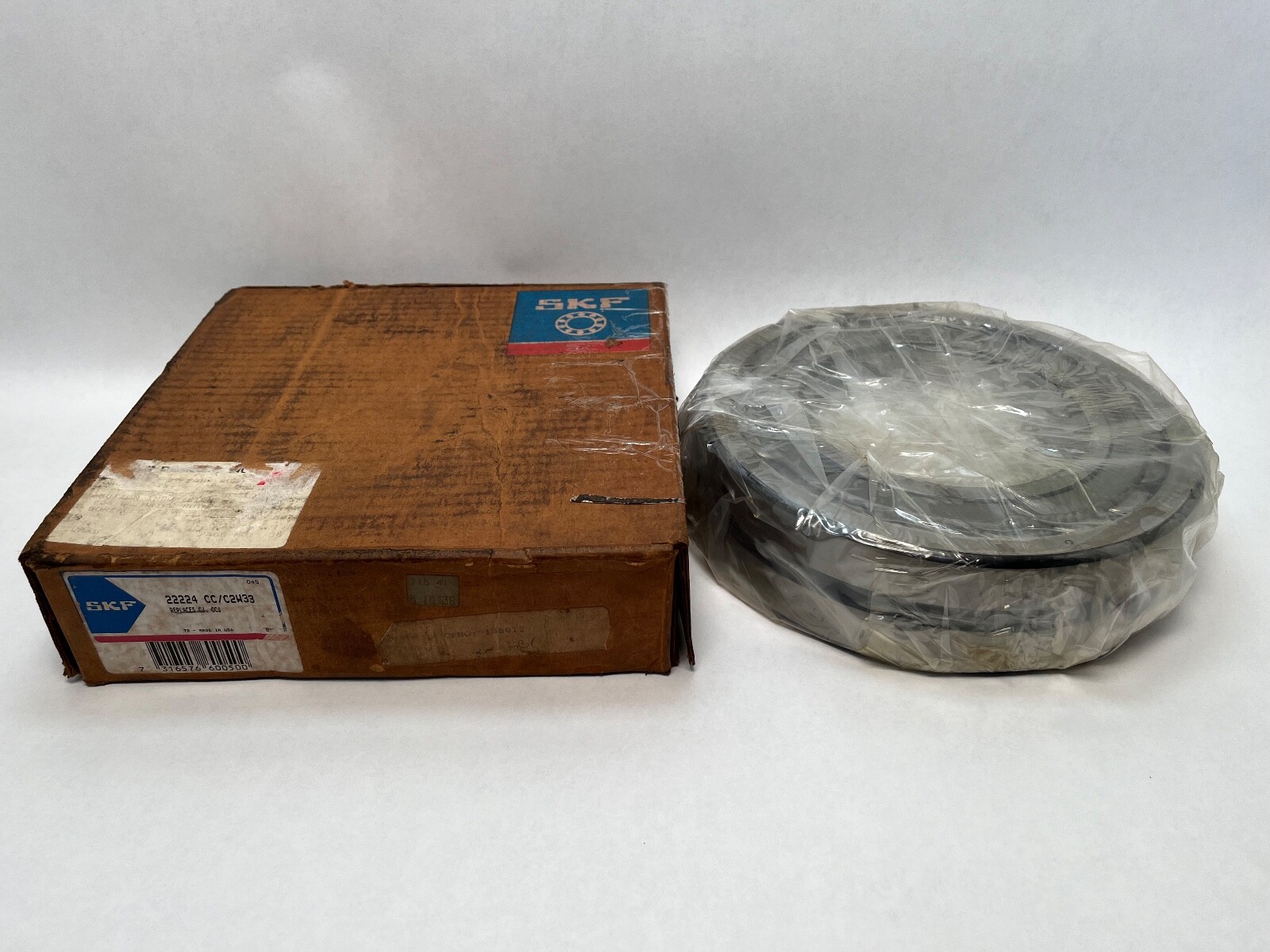

Spherical roller bearing, 120 x 215 x 58 mm, cylindrical bore, C2 reduced clearance, W33 lubrication groove and holes. SKF CC design, pressed steel window cages.
List Price
$269.86
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Double-Row Spherical Roller Bearing 120 x 215 x 58 mm, Straight Bore, W33 Lubrication Groove and Holes, C3 Clearance, Pressed Steel Cage$198.87
Spherical Roller Bearing — 120 mm Tapered Bore, 215 mm OD, 58 mm Width, C3 Clearance, Machined Brass Cage, W33$205.75
Spherical Roller Bearing — Straight Bore, 120 mm ID, 215 mm OD, 58 mm Width, Open$205.75
Spherical Roller Bearing - Double Row, Straight Bore, 120 mm ID, 215 mm OD, 58 mm Width, Open, W33 Lubrication Groove, C3 Internal Clearance$206.52| MFR / Brand | SKF |
|---|---|
| MPN | 22224CCC2W33 |
| Model | 22224 CC C2 W33 / 22224CY / 22224C |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Oil |
| Additional Attributes | GTIN 7316576600500 |
| Cage Type | Two window-type cages with guide ring |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C2 |
| Relubrication Feature | W33 groove and three lubrication holes |
| Harmonization Code | 8482.30.00.80 |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | FAG 22224-E1-C2 |
|---|---|
| Cross Reference 2 | NSK 22224CE4C2 |
| Cross Reference 3 | Timken 22224EJW33C2 |
| Cross Reference 4 | NTN 22224EAW33C2 |
SKF 22224 CC/C2W33 is an open, double-row spherical roller bearing with a cylindrical bore. Bore Diameter: 120 mm. Outside Diameter: 215 mm. Overall Width: 58 mm. Bore Type: Straight. Internal Clearance: C2. Rolling Elements: Spherical Roller. Number Of Rows: 2. Closure Type: Open. Seal type: Open. Cage Material: Pressed steel. Lubricant: grease or oil. Series: 22200. Harmonization Code: 8482.30.00.80. GTIN: 7316576600500.
22224 — SKF spherical roller bearing, 222 dimension series, bore code 24, 120 x 215 x 58 mm.
CC — two window-type pressed steel cages with a loose guide ring between the roller rows.
C2 — radial internal clearance smaller than normal.
W33 — annular groove and three radial lubrication holes in the outer ring.
The two rows of barrel-shaped rollers run in a common spherical outer raceway, so the bearing self-aligns to shaft deflection and misalignment. C2 clearance gives tighter radial location than a normal-clearance bearing. The W33 groove and holes feed grease or oil directly between the roller rows.
Same-envelope 120 x 215 x 58 mm cylindrical-bore C2 spherical roller bearings: FAG 22224-E1-C2, NSK 22224CE4C2, Timken 22224EJW33C2, NTN 22224EAW33C2. These are later high-capacity designs on the same envelope.
