Double-row spherical roller bearing, 40 x 80 x 23 mm, straight bore, open, C4 internal clearance. Self-aligning, carries thrust in both directions.
List Price
$42.47
66 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 22208CC4 |
| Model | 22208-C-C4 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 23 mm |
| Material | Chrome steel |
|---|---|
| Series | 222 |
| Base Number | 22208 |
| Total Width | 23 mm |
| Bore Shaft Size | 40 mm |
| Mpn Variants | 22208CC4, 22208-C-C4, 22208 C C4, 22208C, 22208 C4 |
| Additional Attributes | Chamfer r 1.1 mm; shaft abutment da min 47 mm; housing abutment Da max 73 mm; fillet radius ras max 1.1 mm |
| Closure Type | Open |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C4 |
| Harmonization Code | 8482.30.00 |
| Part Number | 22208CC4 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; double row spherical roller bearing; C4 clearance spherical roller; 40mm bore spherical roller |
| Common Misspellings | NTN 22208 CC4; NTN 22208C C4; 22208CC-4; NTN 22208 C4; NTN22208CC4 |
| Application Types | Conveyor pulleys; fans and blowers; crushers; vibrating screens; long unsupported shafts; industrial gearboxes |
| Cross Reference 1 | SKF 22208 E/C4 - E design |
|---|---|
| Cross Reference 2 | FAG 22208-E1-XL-C4 - E1 XL design |
| Cross Reference 3 | NSK 22208EAE4 - EA design |
| Cross Reference 4 | Timken 22208EJ - EJ design |

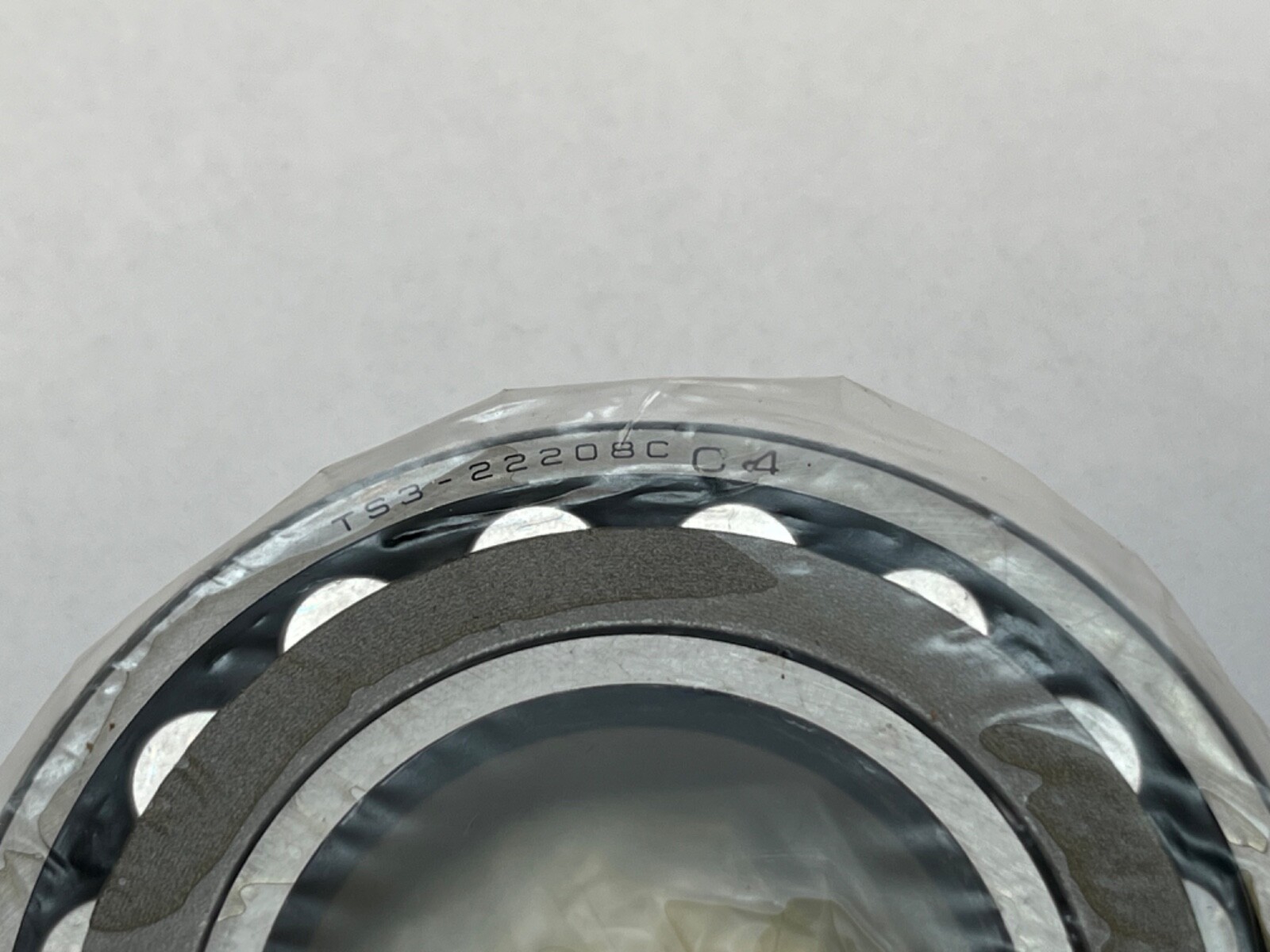

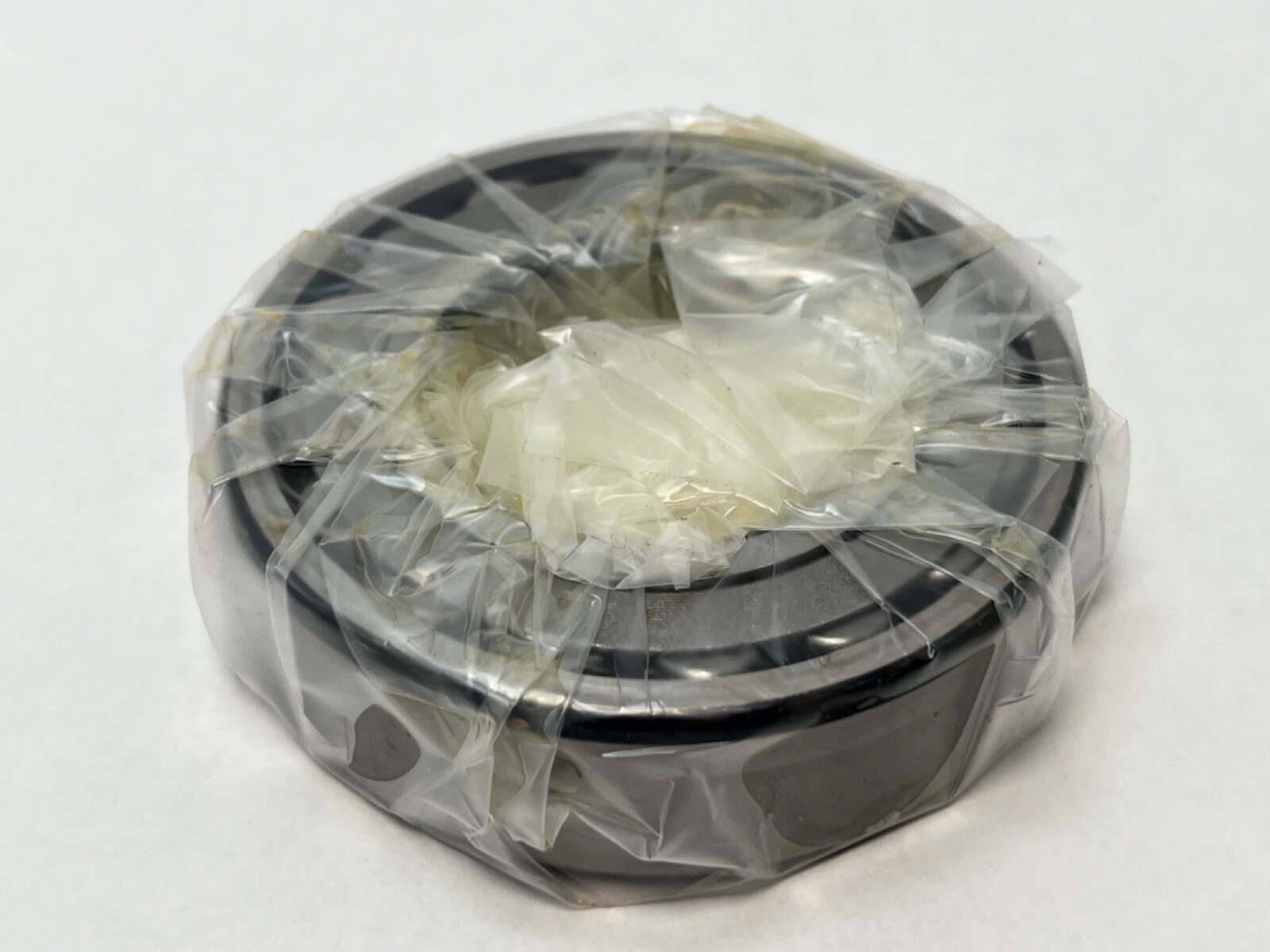

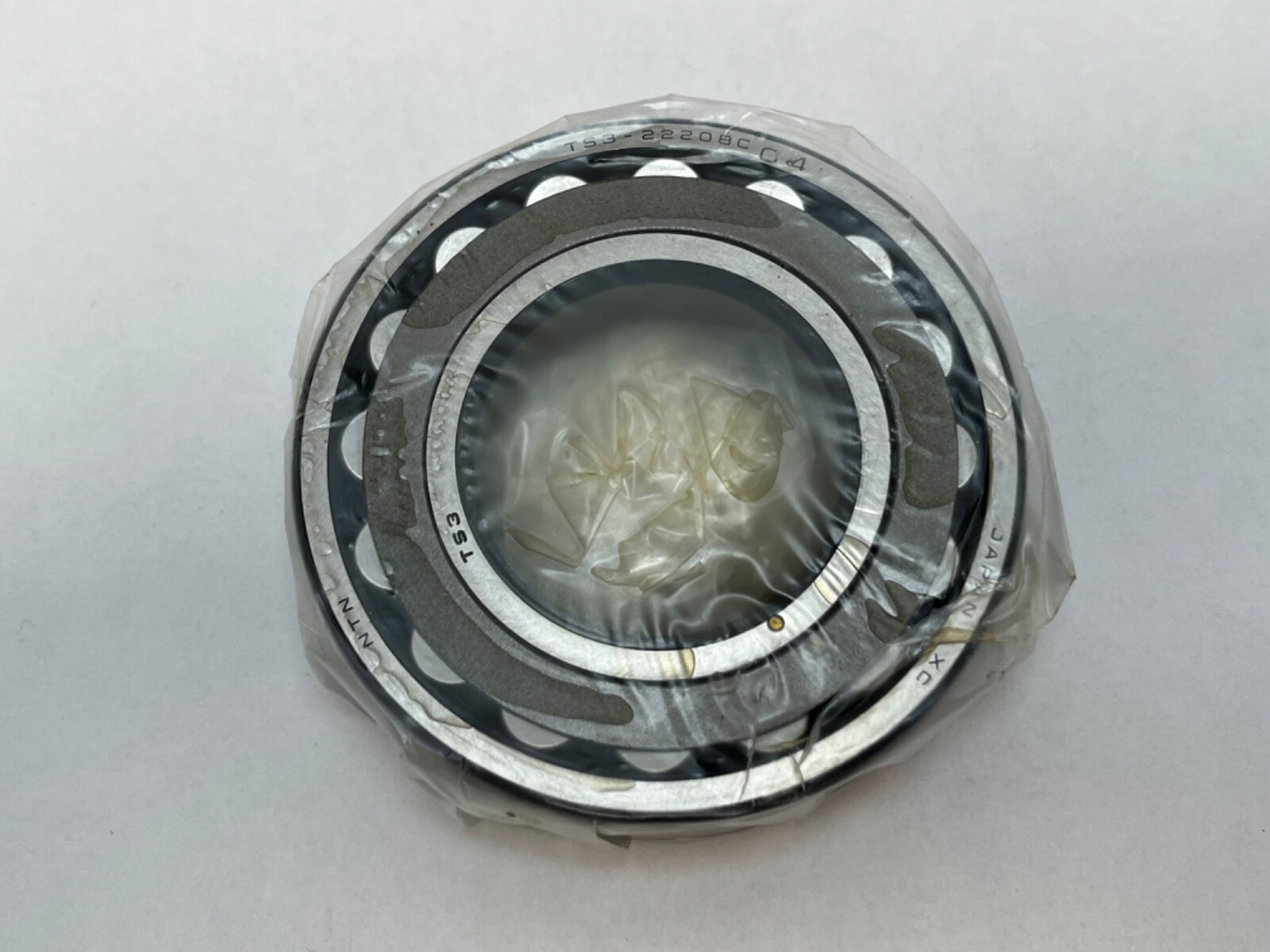

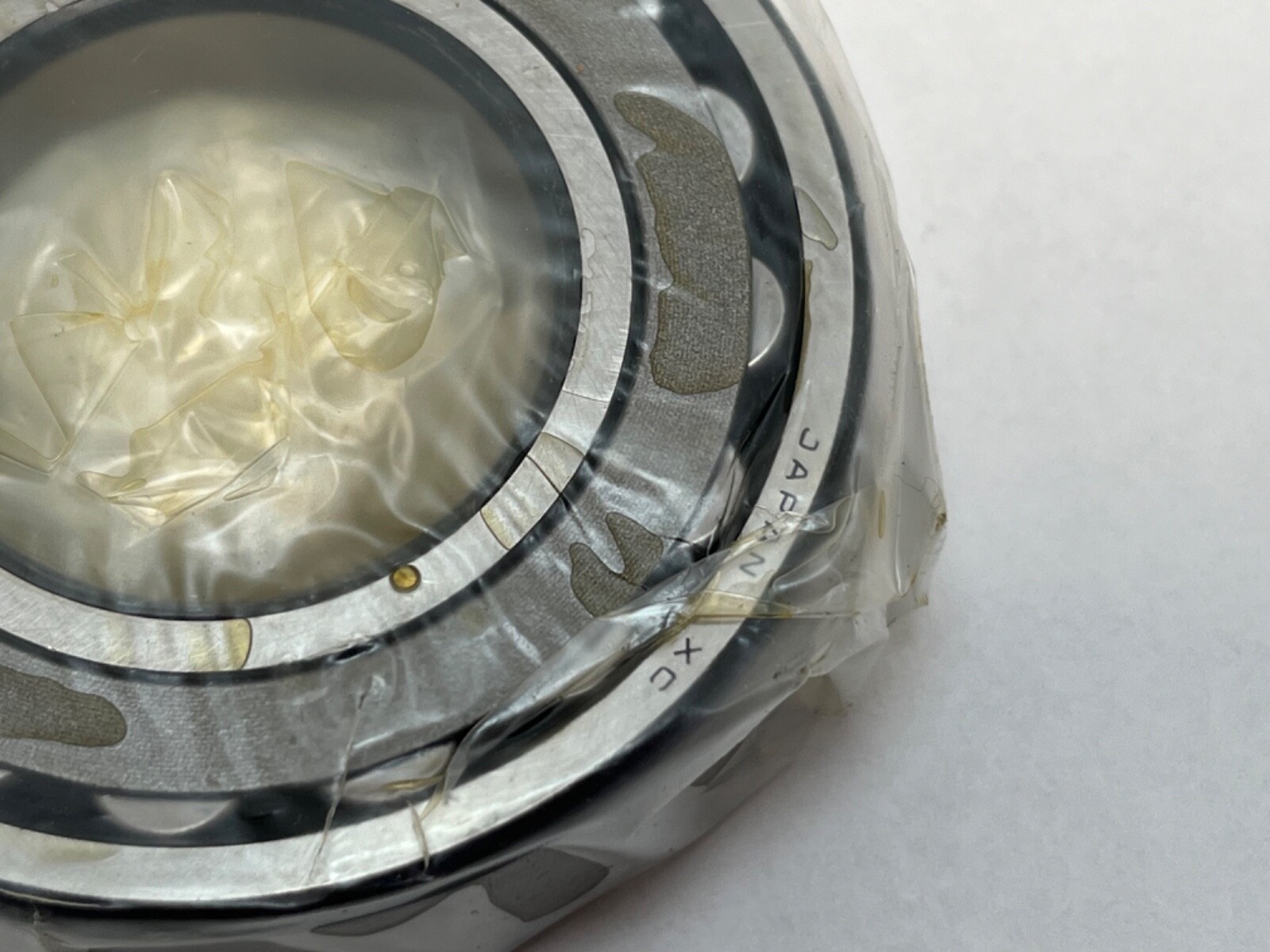

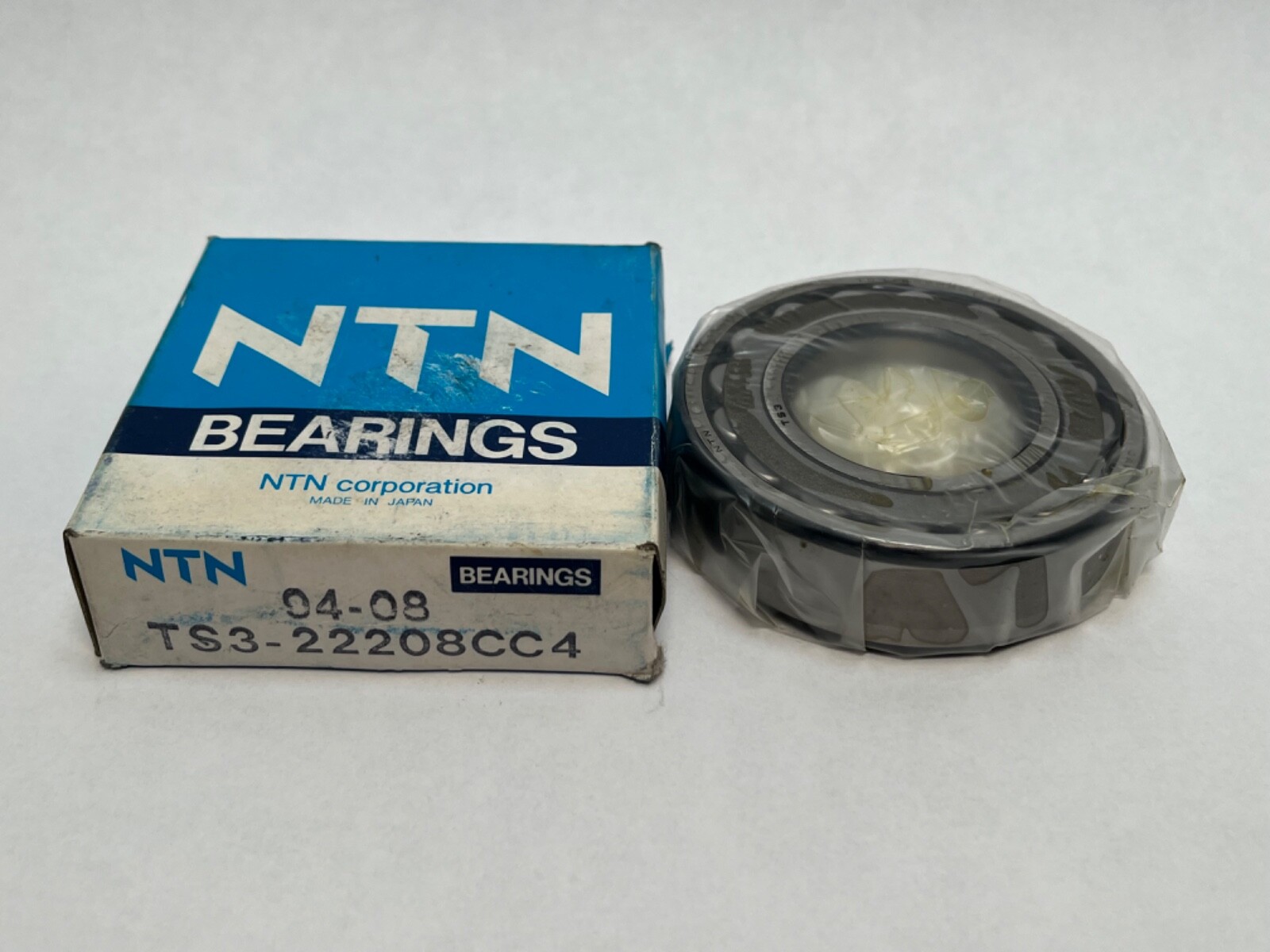

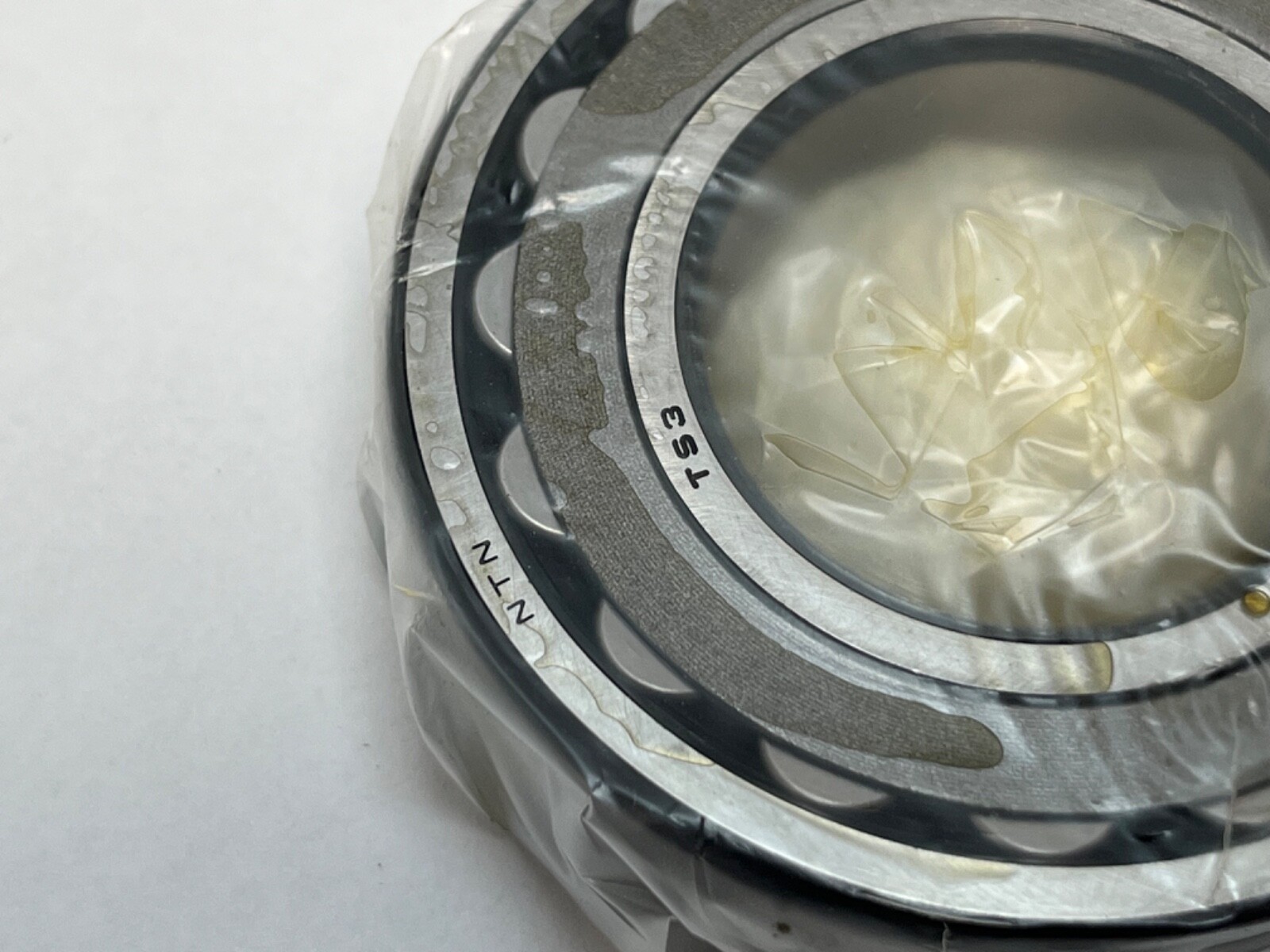

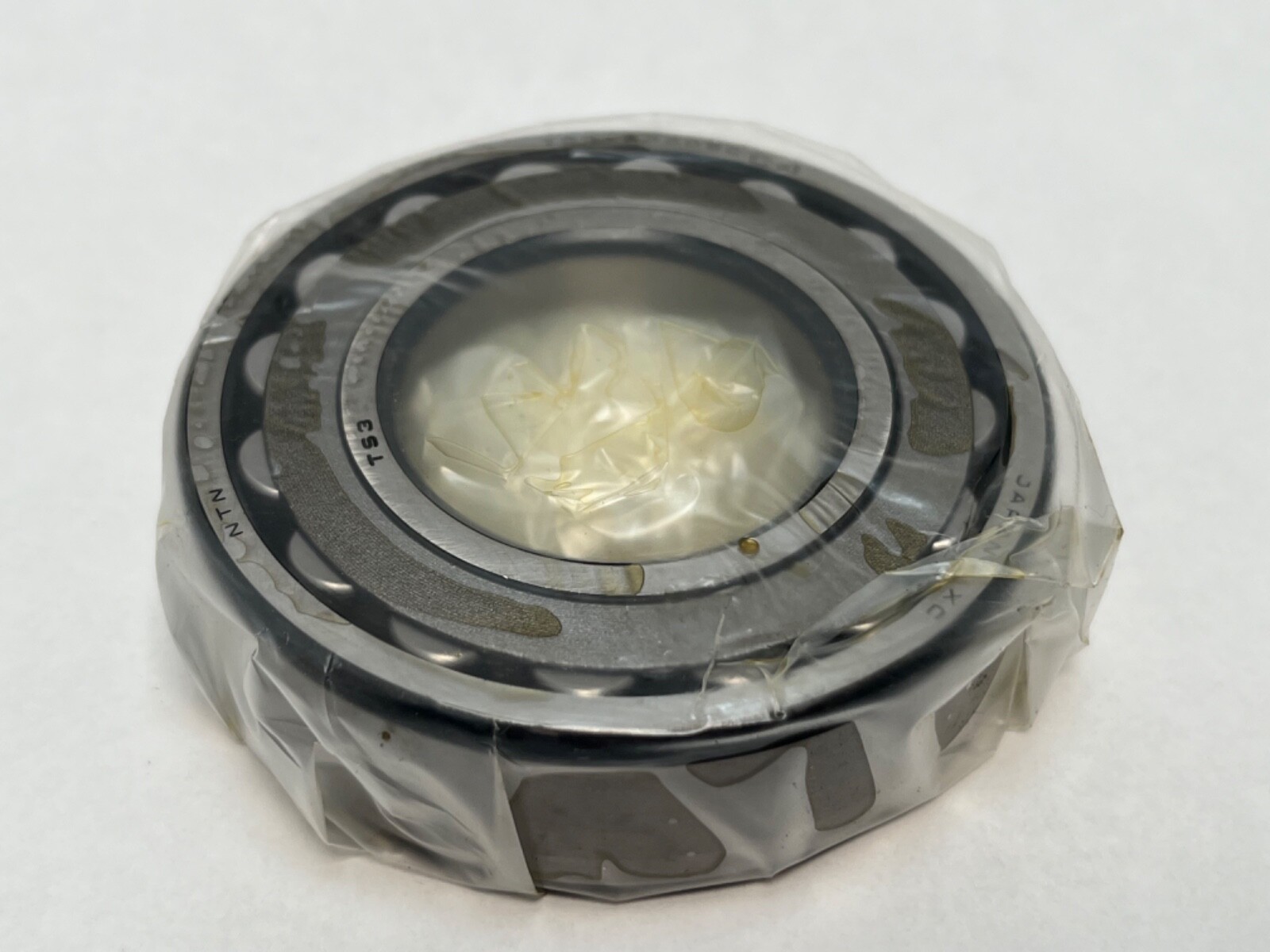

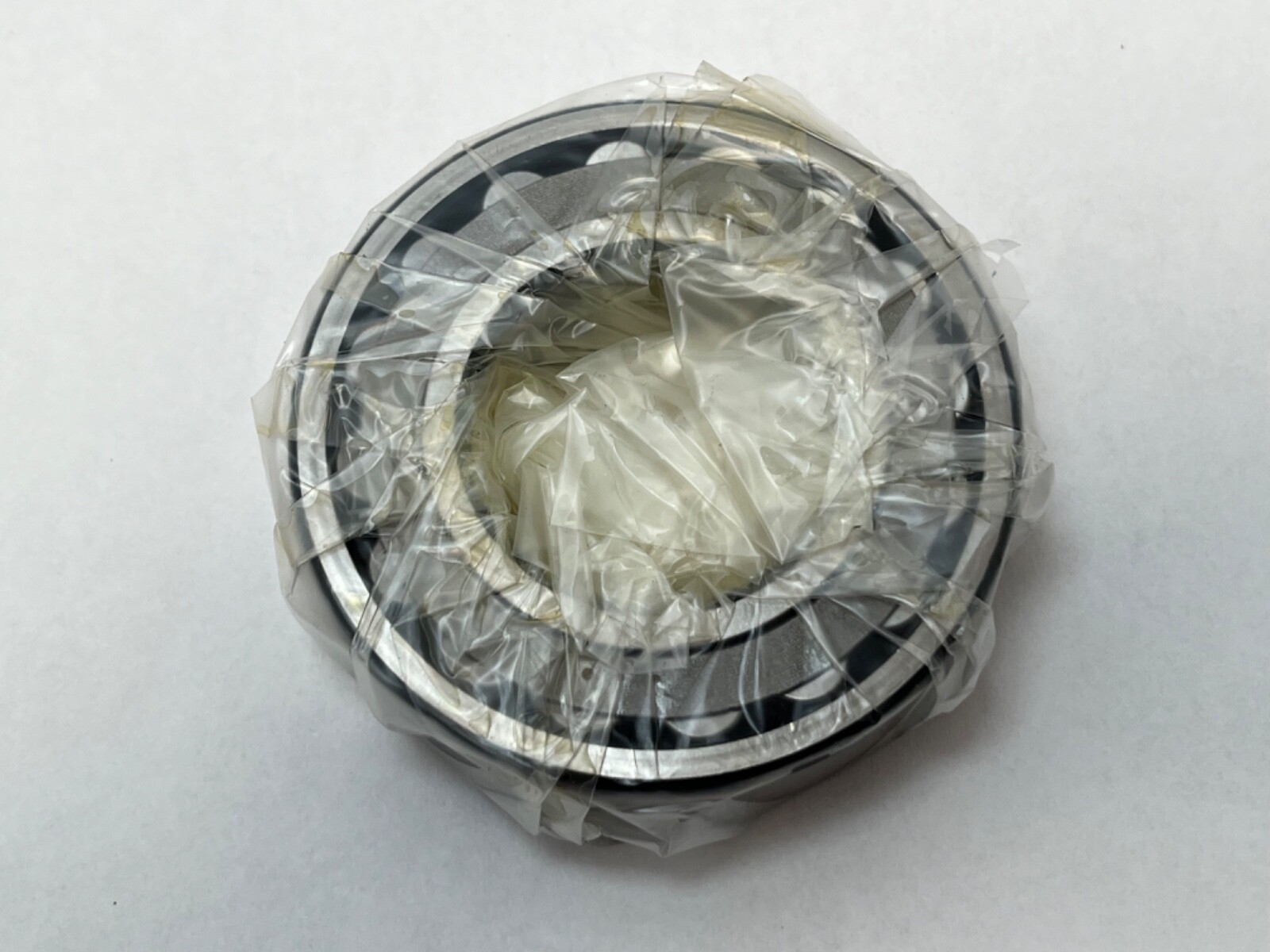

NTN 22208CC4 double-row spherical roller bearing, straight bore, open, C4 radial internal clearance. Bore 40 mm, outside diameter 80 mm, width 23 mm. Unit Quantity: 1 Pc.
22208 — ISO 22208 size, 40 x 80 x 23 mm, dimension series 22.
C — NTN spherical roller design code for this execution.
C4 — radial internal clearance one band wider than C3 and two wider than CN.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Width: 23 mm. Series: 222. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C4. Closure Type: Open. Chamfer r: 1.1 mm. Unit Quantity: 1 Pc.
Shaft abutment diameter da: 47 mm minimum. Housing abutment diameter Da: 73 mm maximum. Shaft or housing fillet radius ras: 1.1 mm maximum. Straight bore, the inner ring seats directly on the shaft. Two rows of rollers run on a single spherical outer raceway, so the bearing is self-aligning and carries thrust in both directions.
Same-size spherical roller bearings at 40 x 80 x 23 mm: SKF 22208 E/C4 (E design); FAG 22208-E1-XL-C4 (E1 XL design); NSK 22208EAE4 (EA design); Timken 22208EJ (EJ design). Also written 22208-C-C4, 22208 C C4, 22208C and 22208 C4. The 22208K is the tapered-bore form of the same size and mounts on an H308 adapter sleeve.
C4, a radial clearance one band wider than C3.
Bore 40 mm, outside diameter 80 mm, width 23 mm, with a straight bore.
Shaft abutment diameter 47 mm minimum, housing abutment diameter 73 mm maximum, fillet radius 1.1 mm maximum.
