SNR22213VB33J30Spherical Roller Bearing – Double Row, Straight Bore, 65 mm ID, 120 mm OD, 31 mm Width, Open, W33 Lubrication Groove, C3 Internal Clearance

Product Description

What this part is:

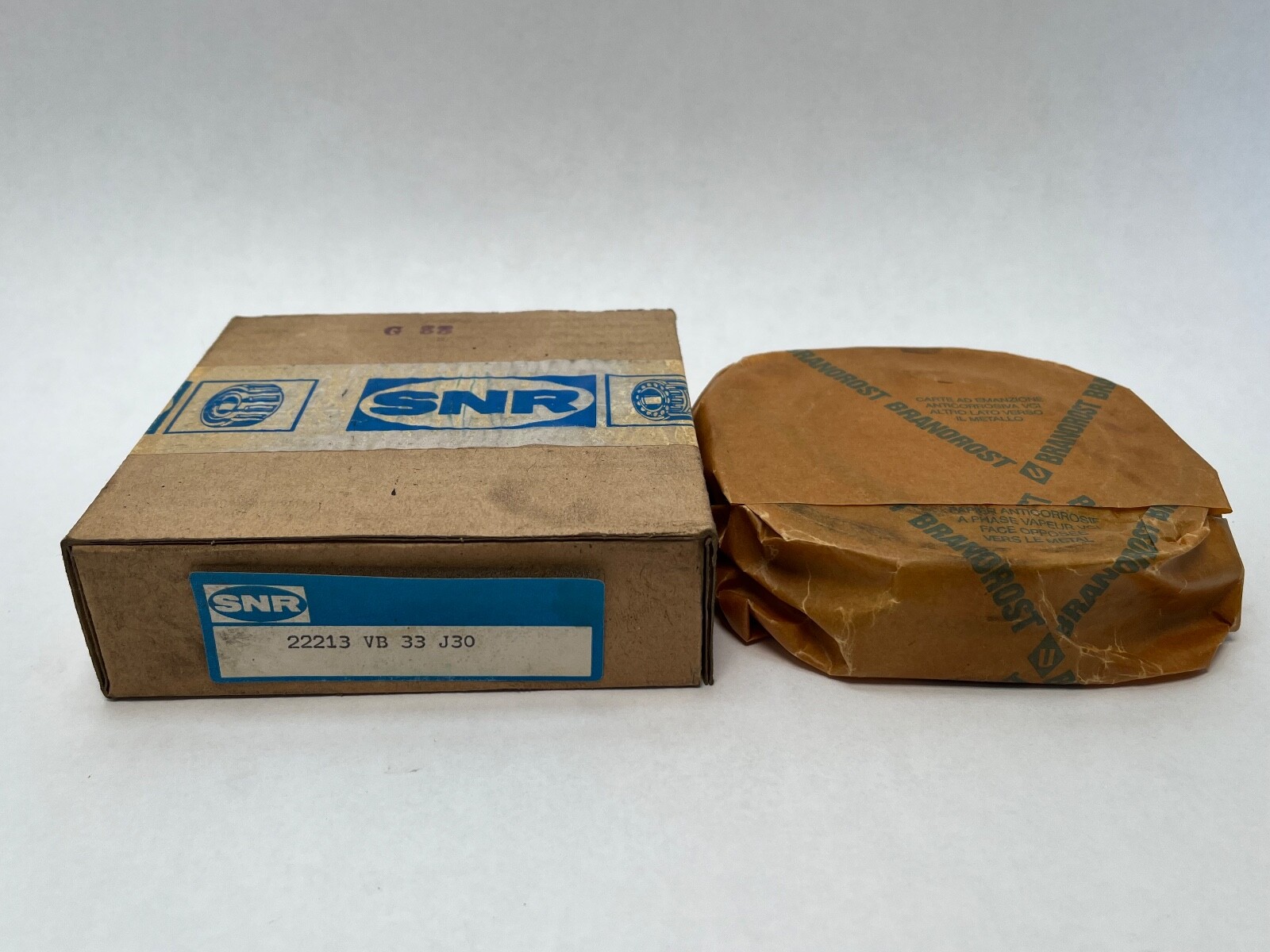

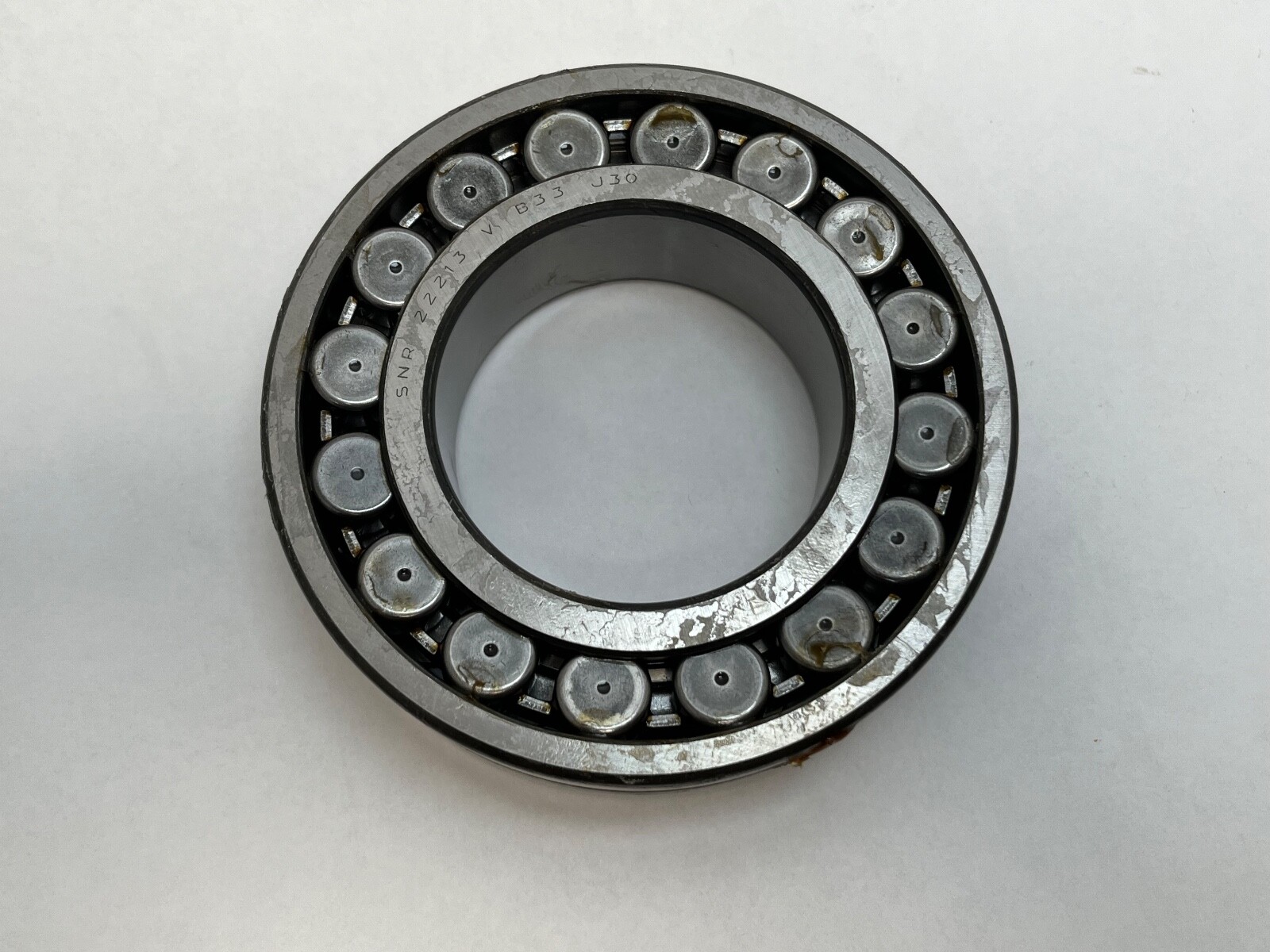

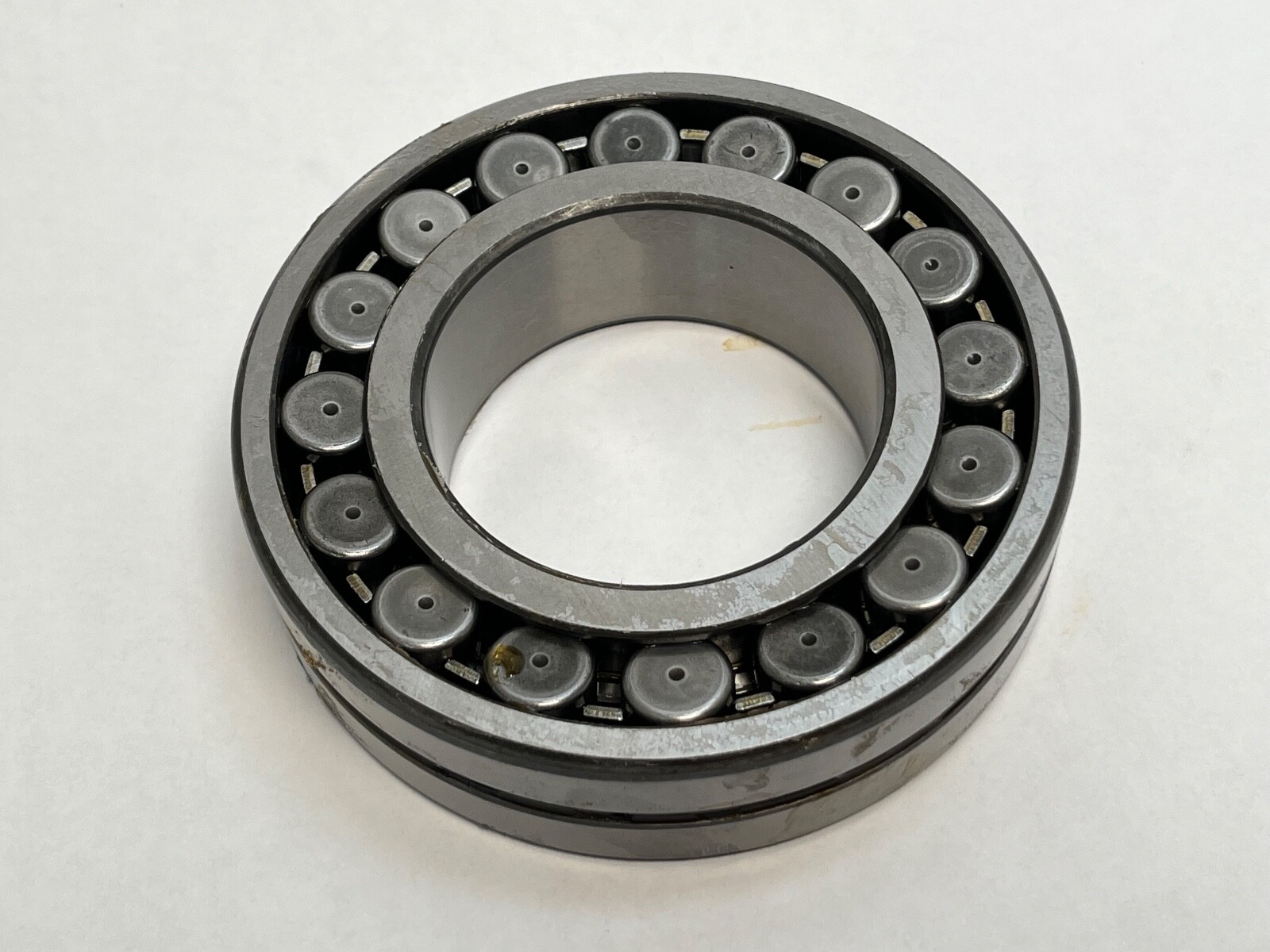

SNR 22213VB33J30 double-row spherical roller bearing, 65 mm bore, 120 mm outside diameter, 31 mm width. Straight bore, open, symmetrical rollers, B33 lubrication groove with three holes in the outer ring, C3 radial internal clearance. One complete non-separable bearing. Unit Quantity: 1 Pc. SNR is part of NTN-SNR; the V design is superseded by the ULTAGE EA and EM designs.

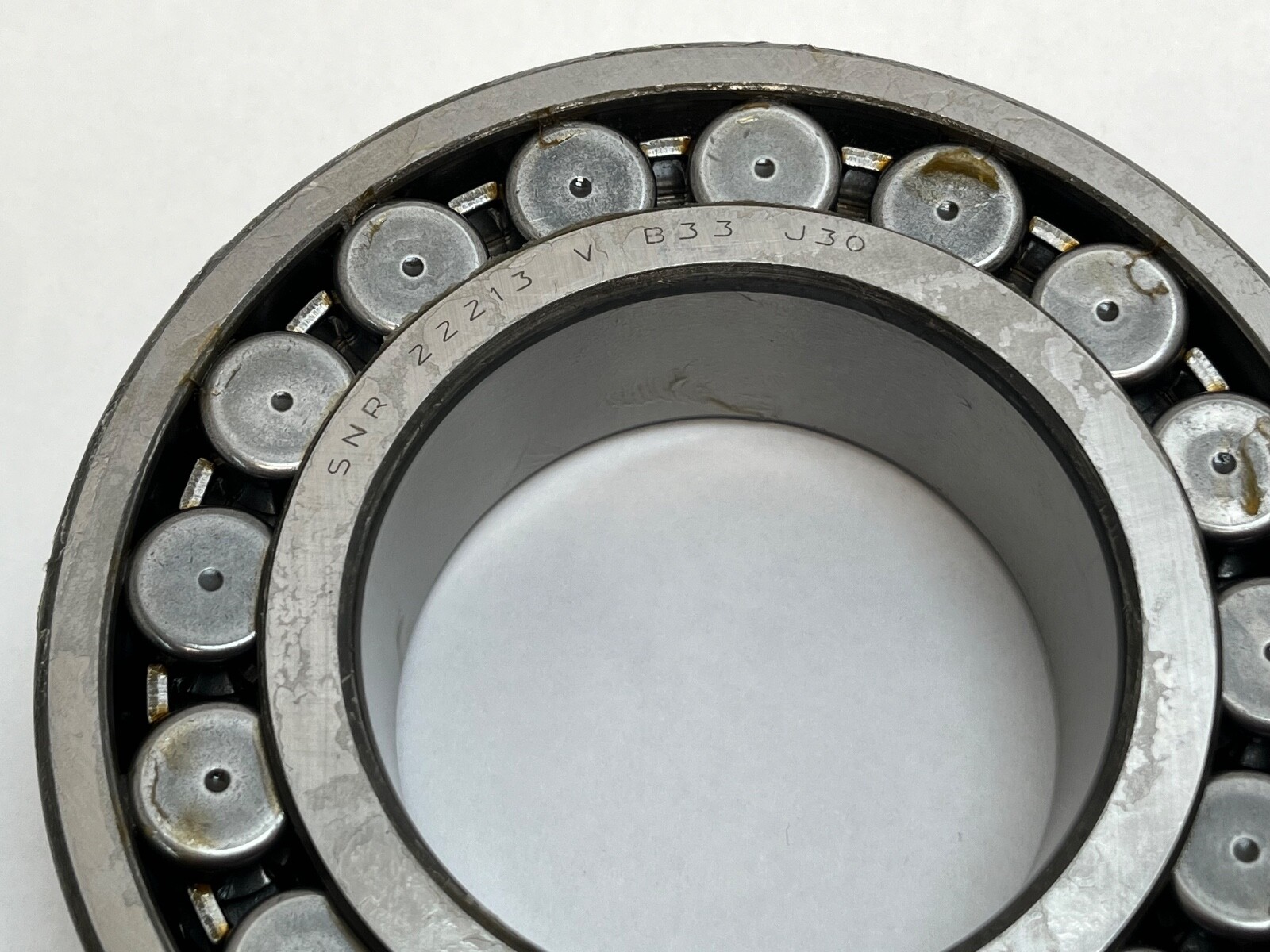

Decoding the designation:

222 — double-row spherical roller series; bore code 13 for a 65 mm bore.

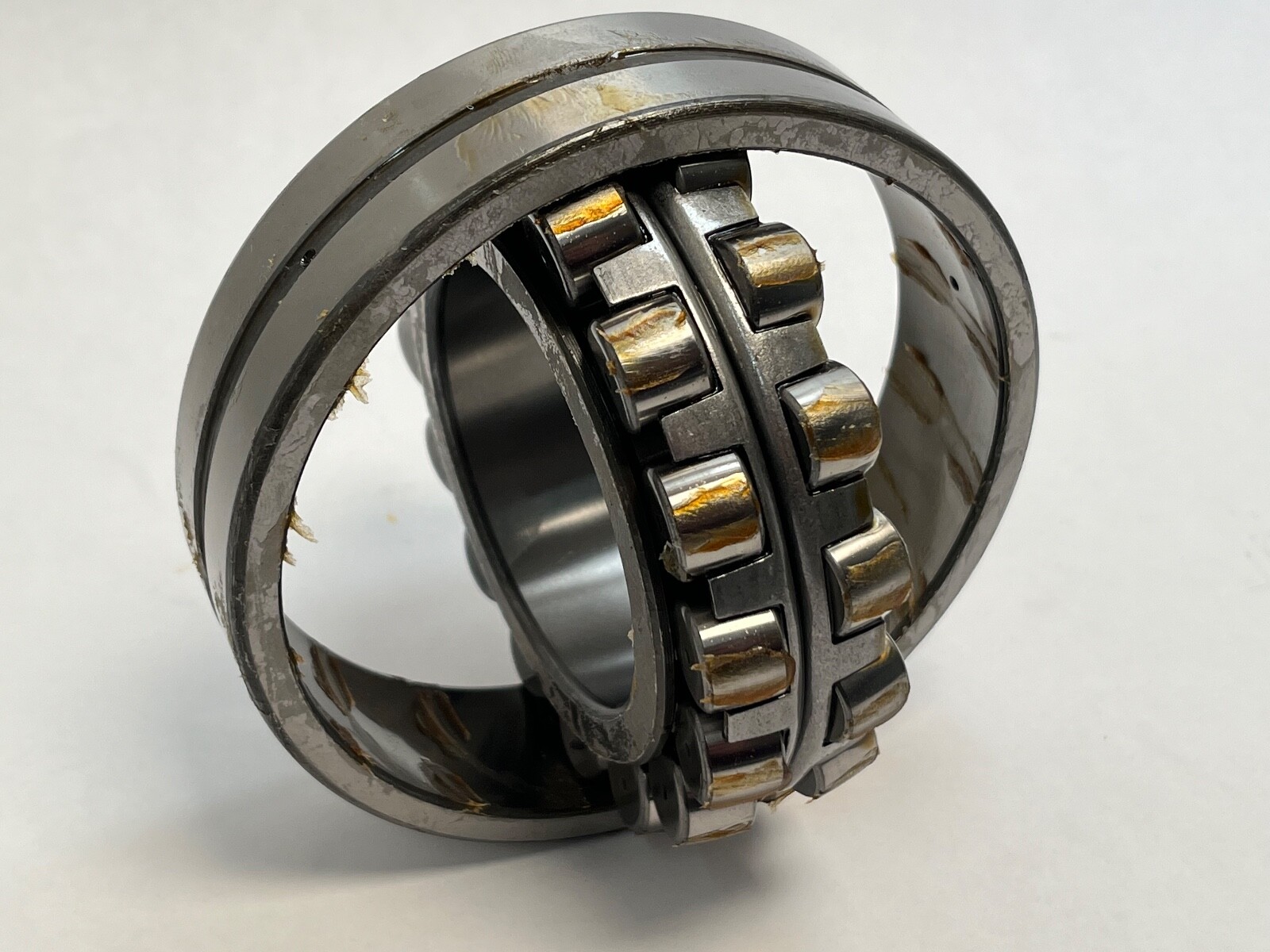

V — SNR internal design generation preceding the ULTAGE E design: symmetrical rollers, no central inner-ring rib, rings stabilised for service to 200°C.

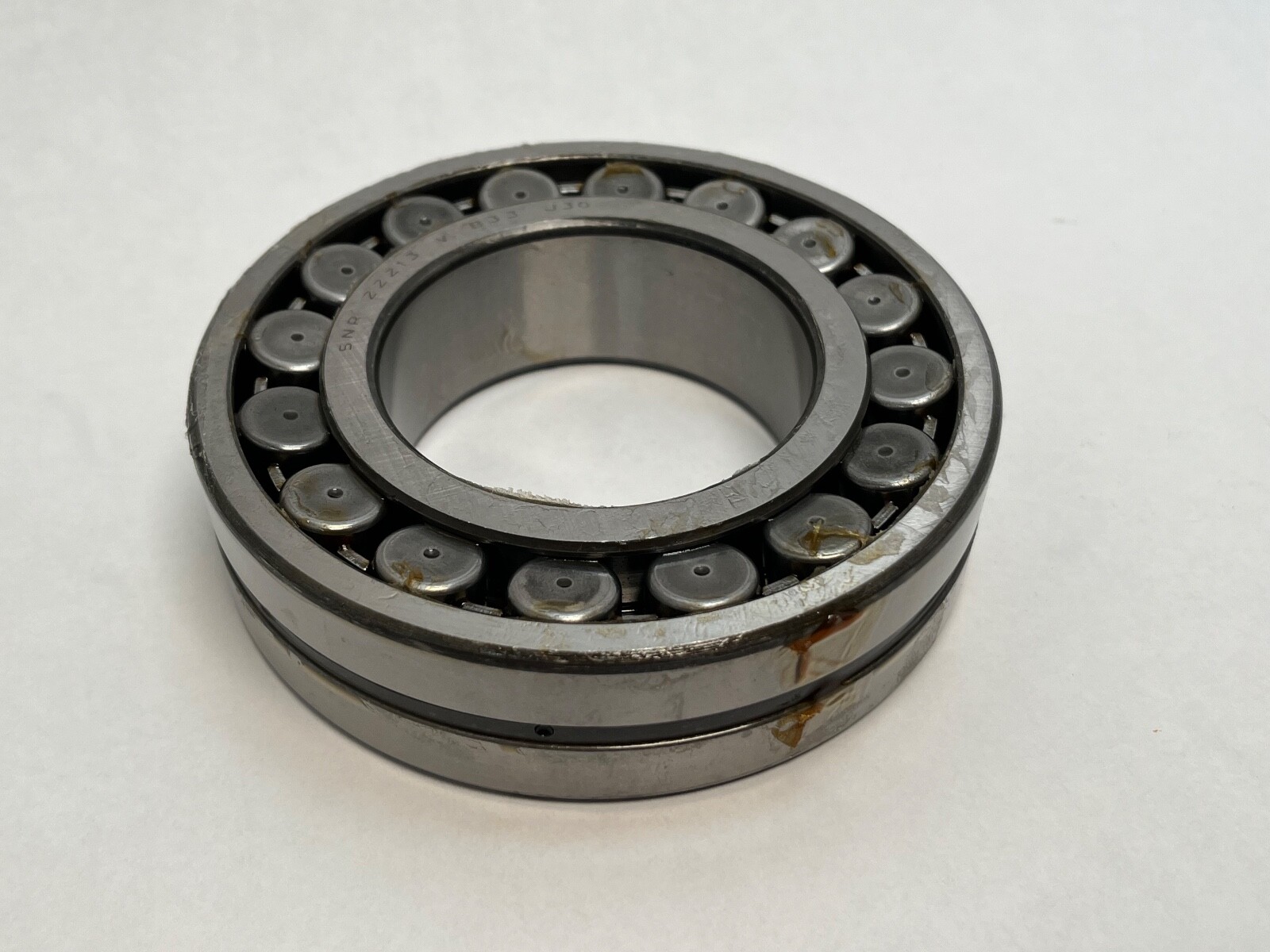

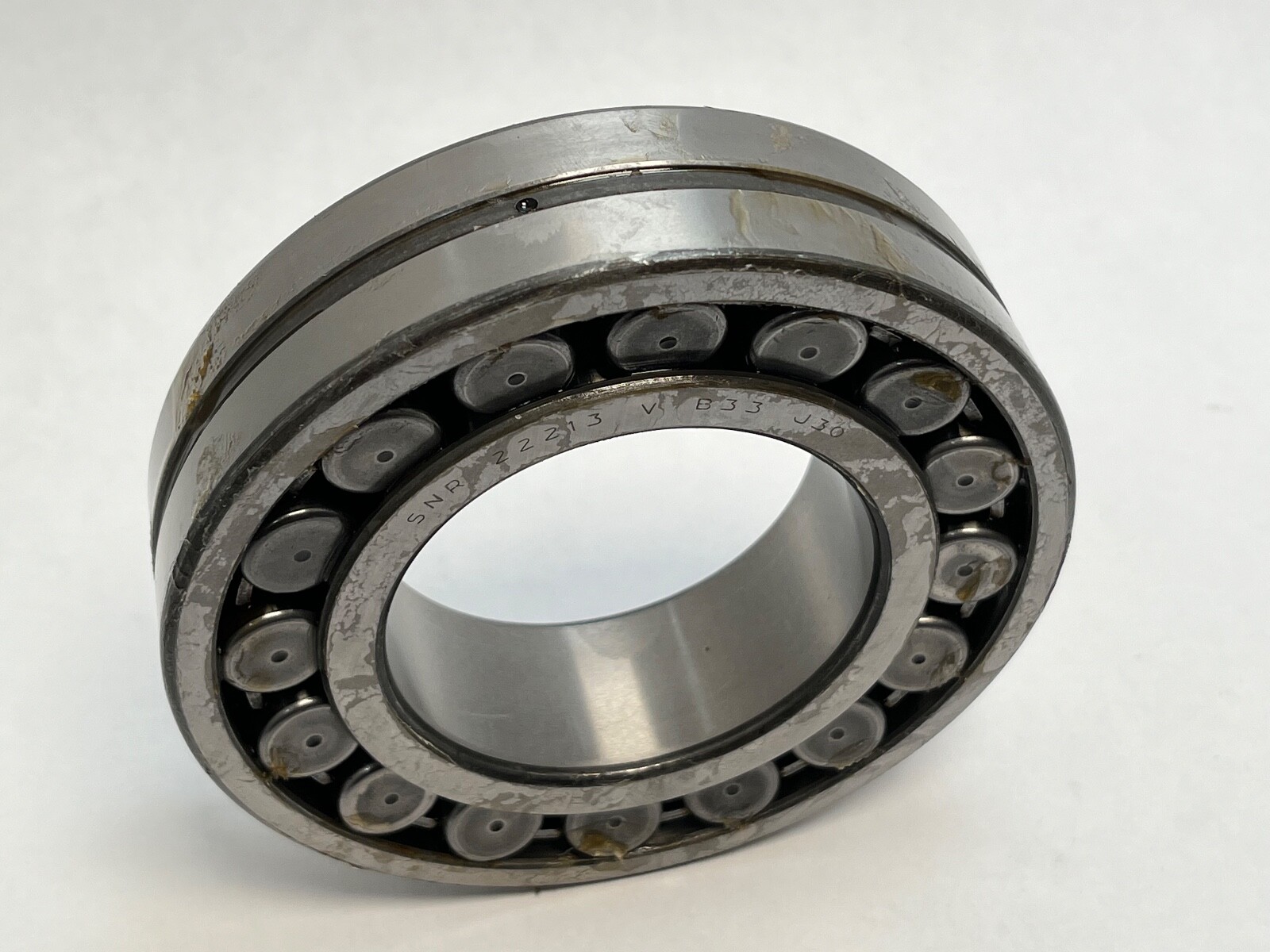

B33 — SNR form of W33: a lubrication groove in the outer ring outside diameter with three holes through to the rolling elements.

J30 — SNR clearance code for C3, greater than normal.

No K in the designation — straight cylindrical bore.

Specifications:

Series: 22200. Base Number: 22213. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Straight. Closure Type: Open both sides. Internal Clearance: C3. Precision Class: ABEC 1 / P0. Lubricant: grease or oil. Maximum Permissible Misalignment: 1.5°. Dynamic Load Rating: 193,000 N (43,388 lbf). Static Load Rating: 216,000 N (48,558 lbf). Limiting Speed: 6,300 rpm. Item Weight: 1.55 kg (3.41 lb). Bearing Material: Bearing steel, stabilised for use to 200°C.

Dimensions and mounting:

Chamfer rs min: 1.5 mm. Fillet ras max: 1.5 mm. Shaft abutment da min: 74 mm. Housing abutment Da max: 111 mm. Axial load factors for the 22213 envelope: e 0.24, Y1 2.79, Y2 4.15, Y0 2.73. Locking Method: interference fit on a cylindrical shaft seat. The groove distributes lubricant around the outer ring and the three holes carry it to the centre of both roller rows.

Compatibility and replacement:

Cross-references: SKF 22213 CC/C3W33; SKF 22213 E/C3W33 (E design, higher rating); FAG 22213-E1-C3 (E1 design, higher rating); NSK 22213CDE4C3; NTN-SNR 22213EAW33C3 (ULTAGE generation, 226 kN dynamic); Timken 22213EJW33C3; Koyo 22213RHW33C3; RHP 22213EJW33C3. The 22213KVB33J30 is the 1:12 tapered-bore version and takes an H313 adapter sleeve with a 55 mm shaft seat. Designation variants: 22213V B33 J30, 22213-V-B33-J30, 22213VW33C3, 22213.VB33J30, 22213V.

Frequently asked questions:

What size is the SNR 22213VB33J30?

65 mm bore, 120 mm outside diameter, 31 mm width, straight bore.

What do B33 and J30 mean in 22213VB33J30?

B33 is the SNR form of W33, a lubrication groove with three holes in the outer ring; J30 is the SNR code for C3 internal clearance.

What are the load ratings of the 22213VB33J30?

Dynamic load rating 193,000 N and static load rating 216,000 N, with a limiting speed of 6,300 rpm.
