Double-row spherical roller bearing, 100 x 180 x 46 mm, cylindrical bore, lubrication groove and three holes, polyamide cage. Self-aligning. 1 Pc.
List Price
$151.33
29 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22220ES.TVPB |
| Model | 22220 E S TVPB W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 46 mm |
| Series | 222 |
|---|---|
| Lubricant | Grease or oil |
| Bore | Straight Bore |
| Base Number | 22220 |
| Industry Terms | Spherical roller bearing, self-aligning roller bearing, straight bore spherical roller, W33 spherical roller, double row barrel roller bearing |
| Common Misspellings | 22220ES TVBP, 22220ES.TVP.B, 22220 E STVPB, 2220ES.TVPB, 22220ESTVBP, sperical roller bearing, spherical roler bearing, straght bore |
| Application Types | Conveyor pulleys, crushers and screens, fans and blowers, gearboxes, pumps, rolling mill auxiliaries, vibrating machinery |
| Bore Shaft Size | 100 mm (3.937 in), cylindrical |
| Mpn Variants | 22220ES.TVPB, 22220-ES-TVPB, 22220ES TVPB, 22220ESTVPB, 22220-E-S-TVPB, 22220E.S.TVPB, 22220-ES-TVPB-W33 |
| Manufacturer Status | FAG is part of the Schaeffler Group |
| Additional Attributes | Chamfer r min 2.1 mm; E reinforced design; S = outer-ring groove with three radial holes (SKF W33); axial load capacity both directions |
| Cage Type | TVPB (window, roller guided) |
| Rolling Elements | Spherical Roller |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | Outer-ring groove, three radial holes |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | CN |
| Part Number | 22220ES.TVPB |
| Total Width | 46 mm |
| Cross Reference 1 | SKF 22220 E/W33 |
|---|---|
| Cross Reference 2 | Timken 22220EJW33 |

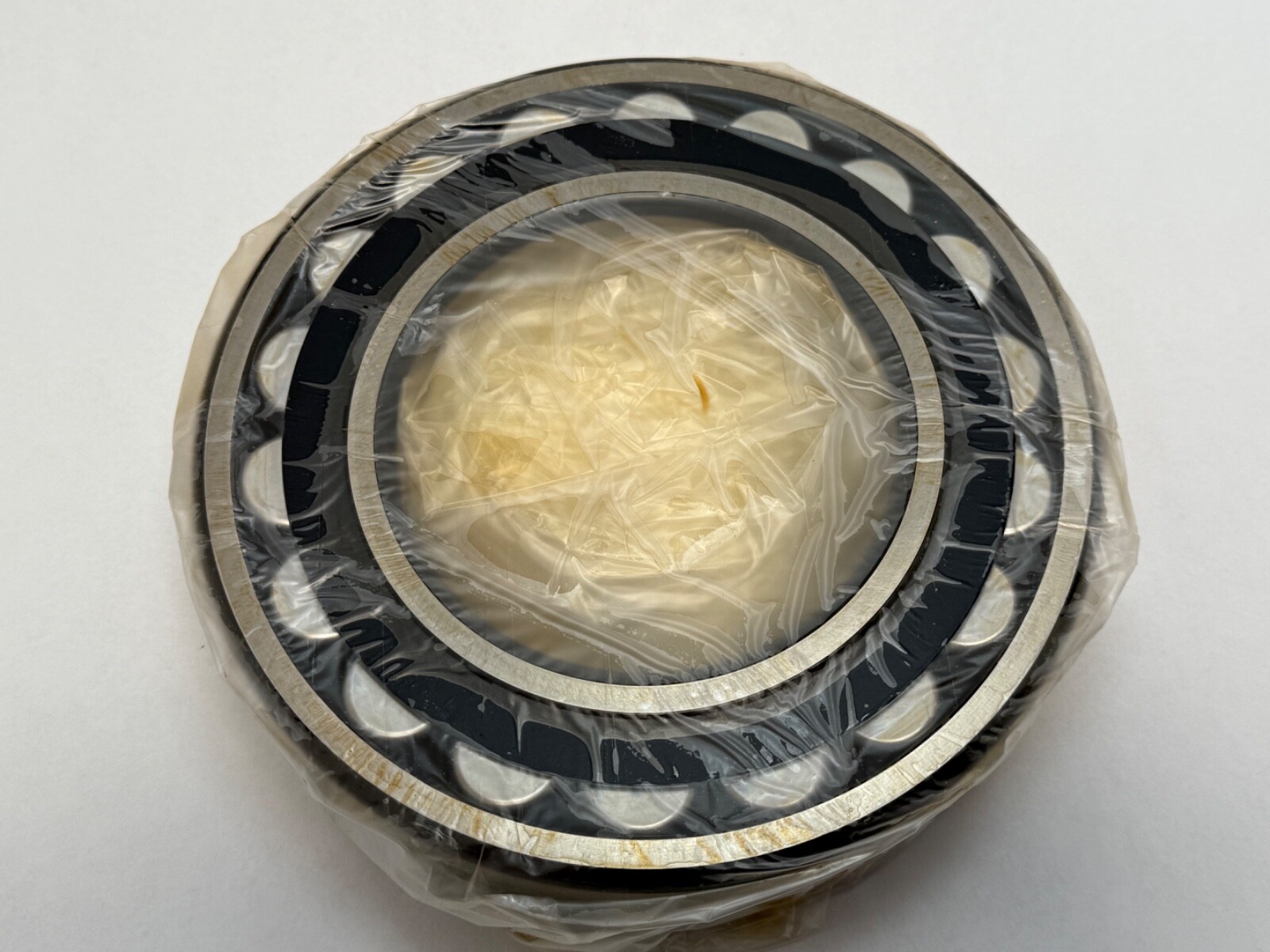

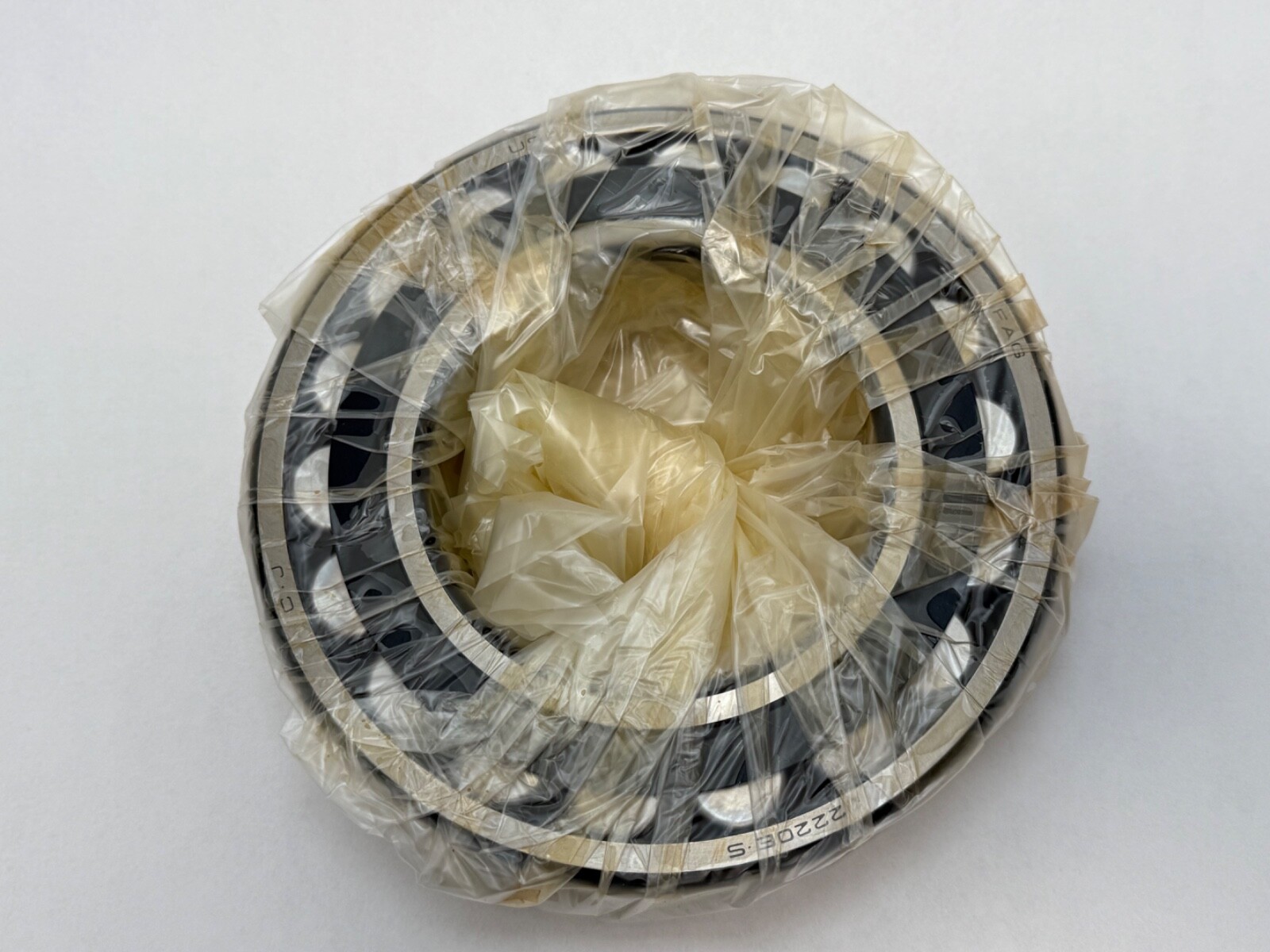

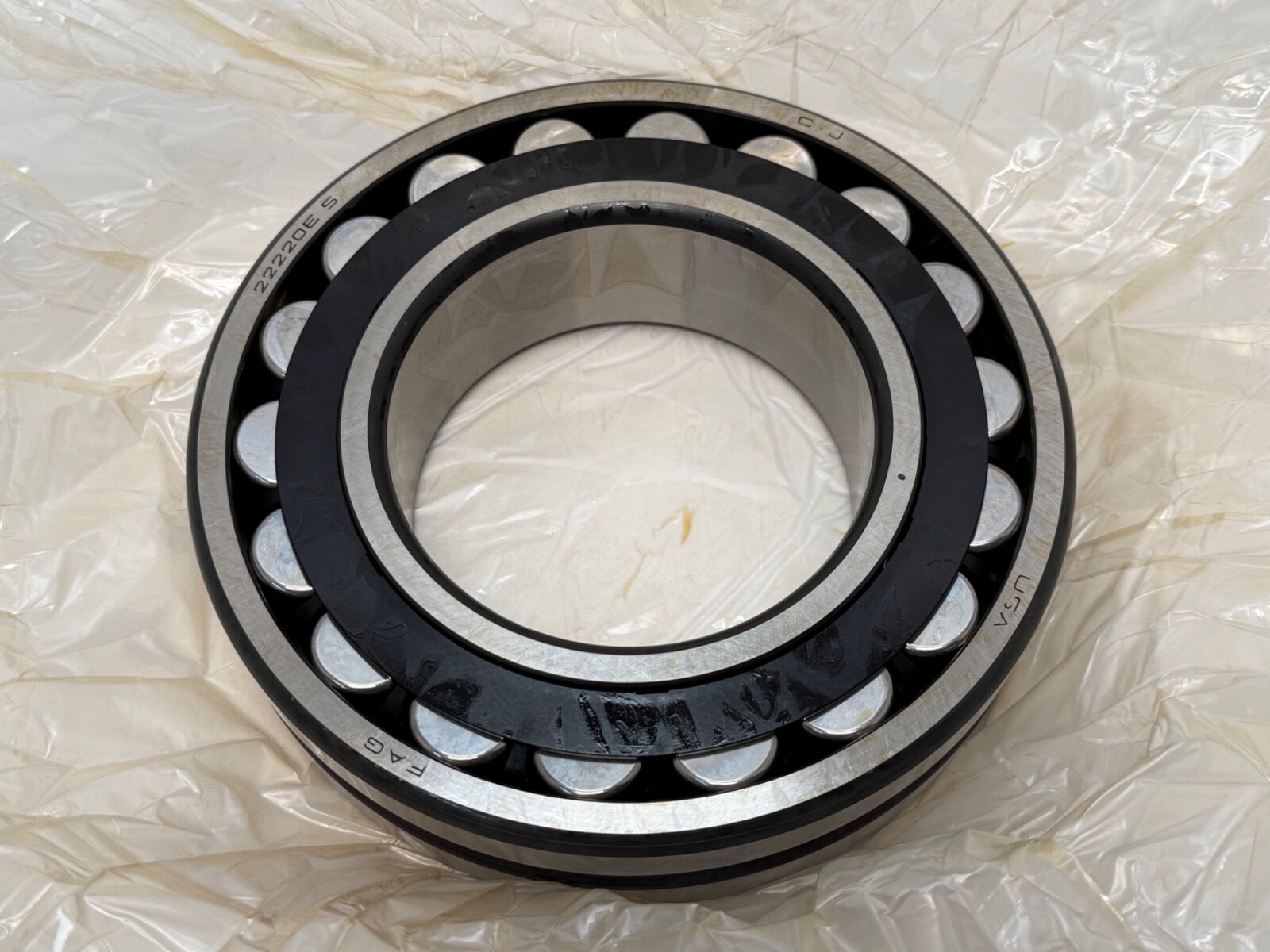

FAG 22220ES.TVPB double-row spherical roller bearing with a cylindrical bore, 100 mm bore by 180 mm outside diameter by 46 mm width. Unit Quantity: 1 Pc. Two rows of barrel-profile rollers run on a common spherical outer raceway; the bearing is self-aligning, carries radial load and takes thrust in both axial directions.
222 — double-row spherical roller dimension series.
20 — bore code, 100 mm.
E — reinforced design, increased load capacity.
S — lubrication groove around the outer ring with three radial lubrication holes; the FAG code for the feature SKF designates W33.
TVPB — glass-fibre reinforced polyamide window cage, roller guided.
Bore Diameter: 100 mm (3.937 in). Outside Diameter: 180 mm (7.087 in). Width: 46 mm (1.811 in). Chamfer Dimension r min: 2.1 mm. Bore Type: Straight (cylindrical). Number Of Rows: 2. Rolling Elements: Spherical roller. Cage Material: Glass-fibre reinforced polyamide. Cage Type: TVPB window, roller guided. Internal Clearance: CN. Closure Type: Open. Lubricant: Grease or oil. Relubrication Feature: Outer-ring groove with three radial holes. Series: 222.
Bore Diameter: 100 mm. Outside Diameter: 180 mm. Width: 46 mm. Bore seat: cylindrical, seats directly on a plain shaft. Axial load capacity: both directions.
Cross-references: SKF 22220 E/W33 and Timken 22220EJW33. The 22220 EK carries a 1:12 tapered bore and is a related size. Variants of the designation: 22220ES.TVPB, 22220-ES-TVPB, 22220ES TVPB, 22220ESTVPB, 22220-E-S-TVPB, 22220E.S.TVPB, 22220-ES-TVPB-W33.
Bore 100 mm, outside diameter 180 mm, width 46 mm, cylindrical bore.
An outer-ring lubrication groove with three radial lubrication holes, the FAG code for the feature SKF designates W33.
A TVPB glass-fibre reinforced polyamide window cage, roller guided.
