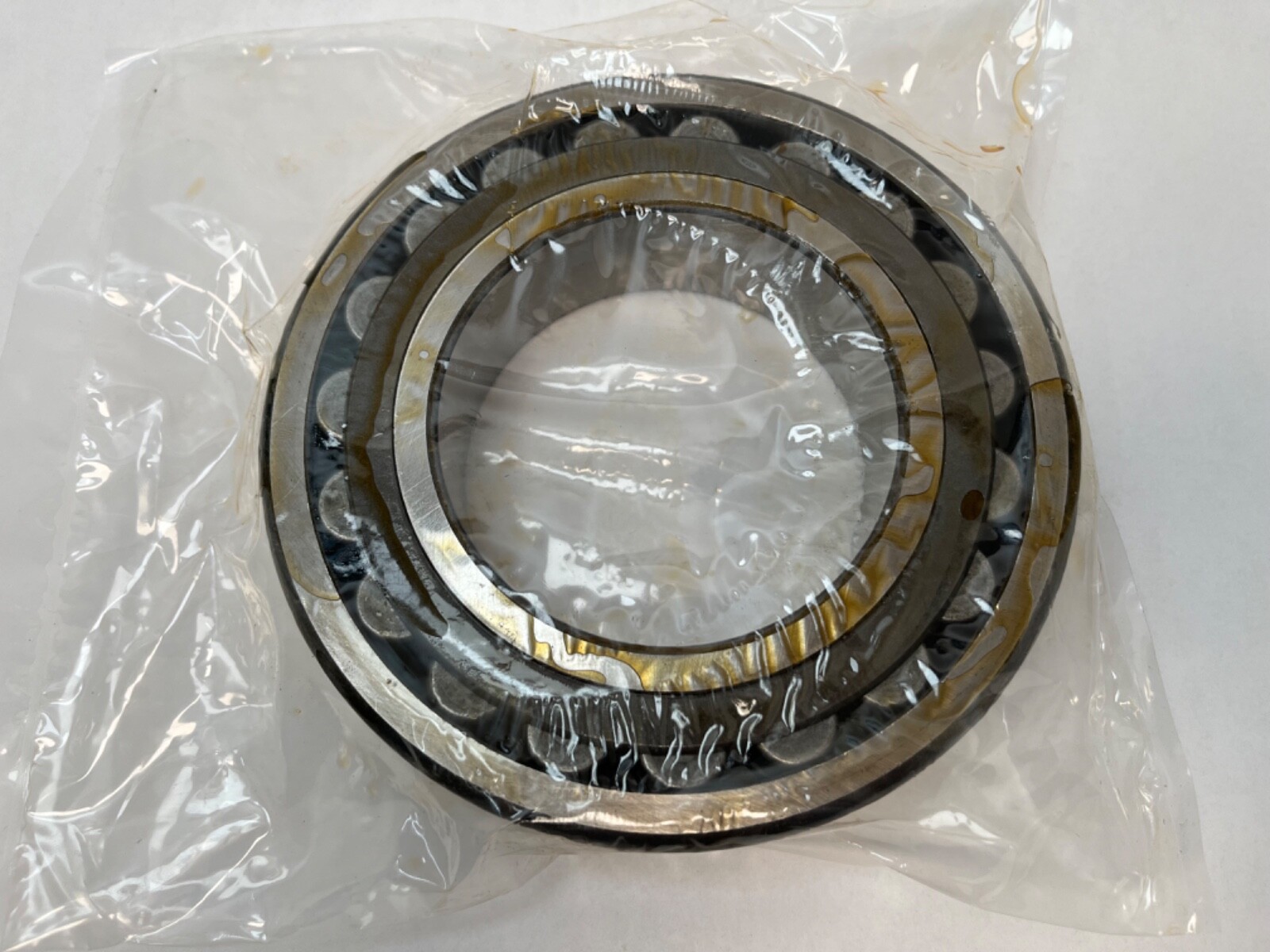

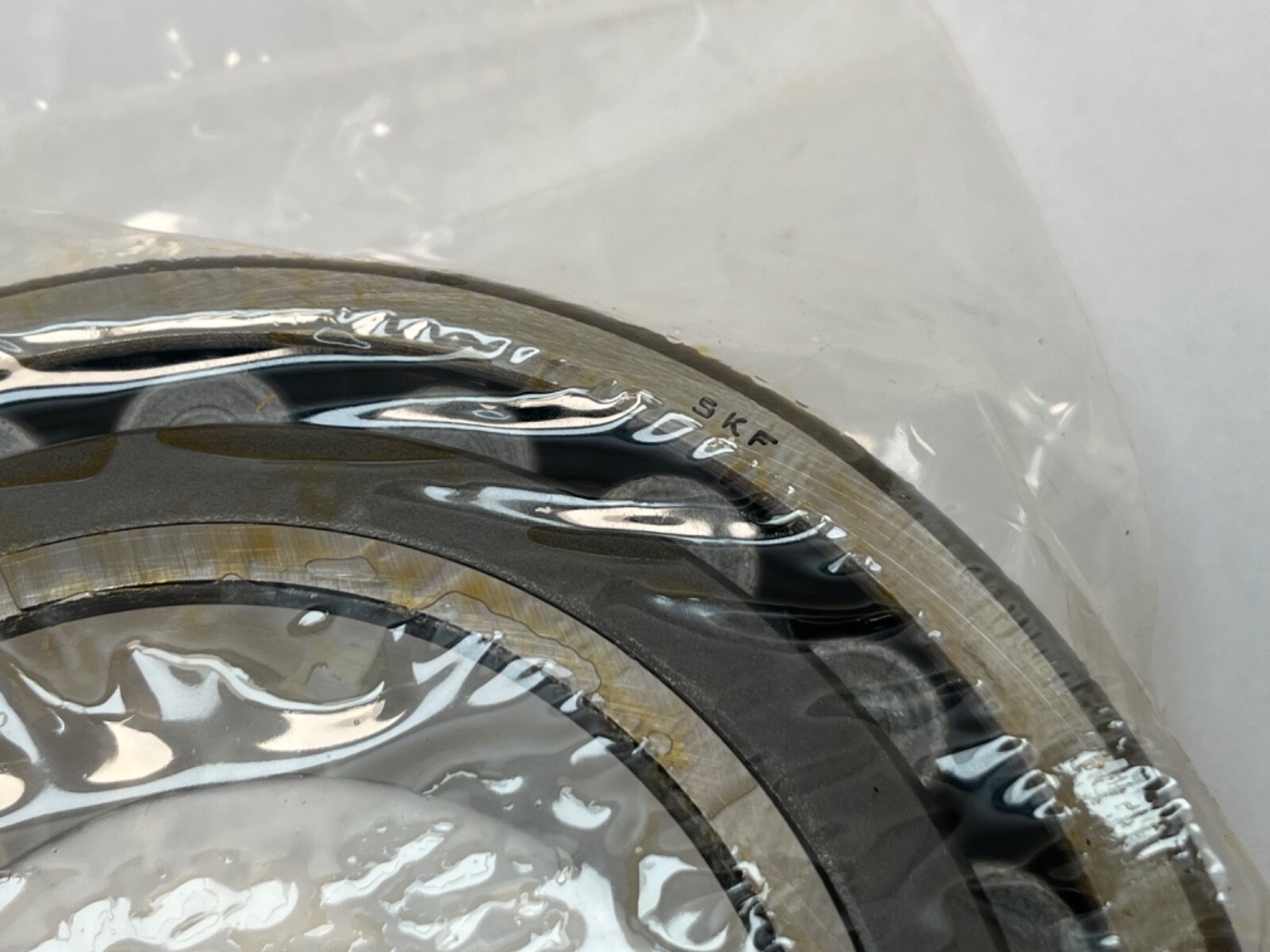

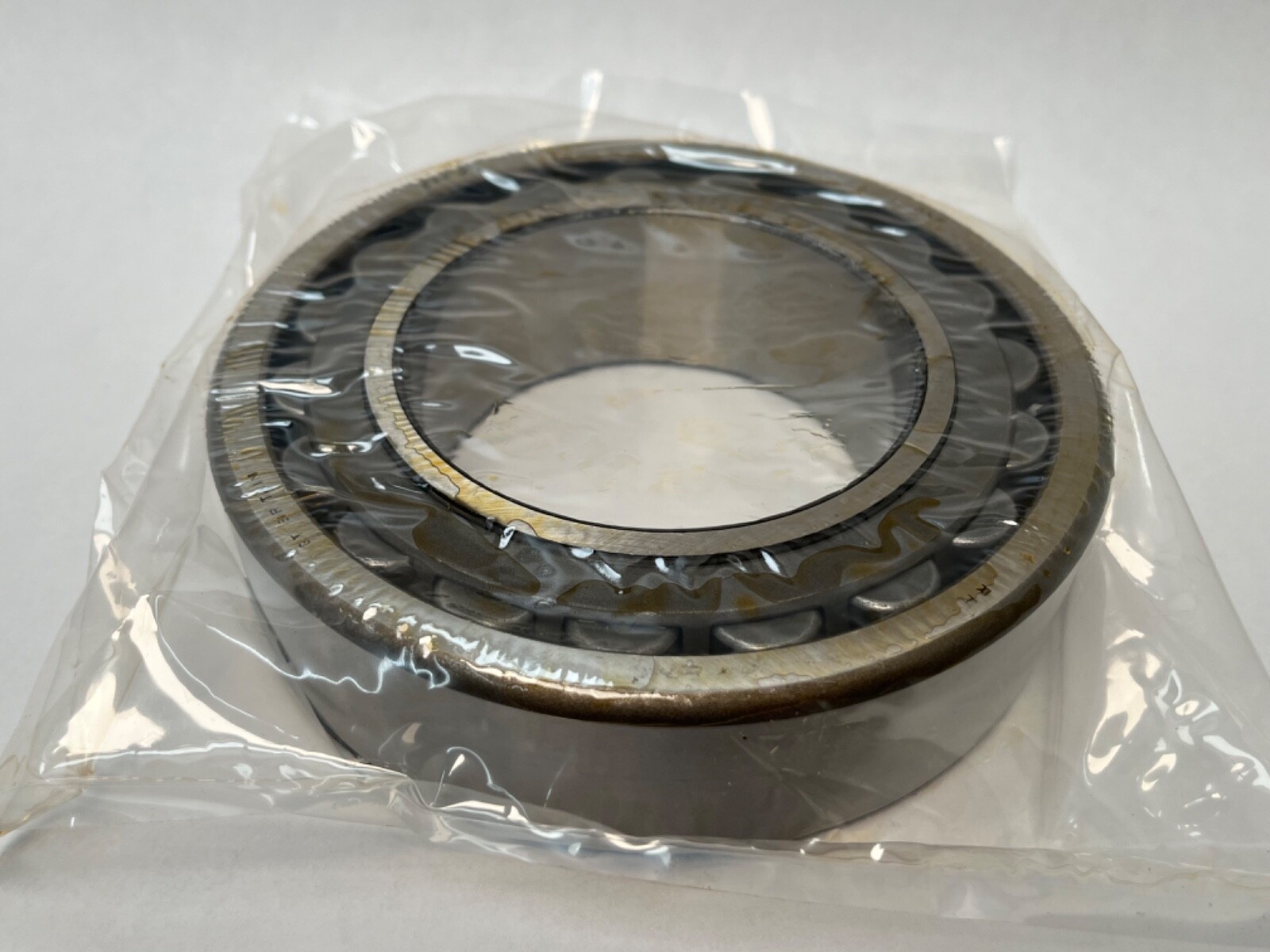

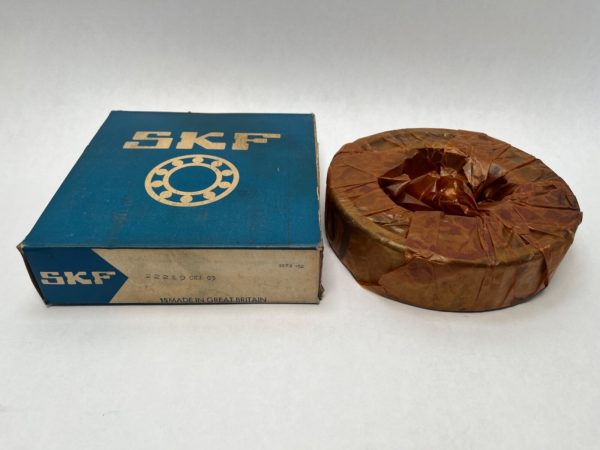

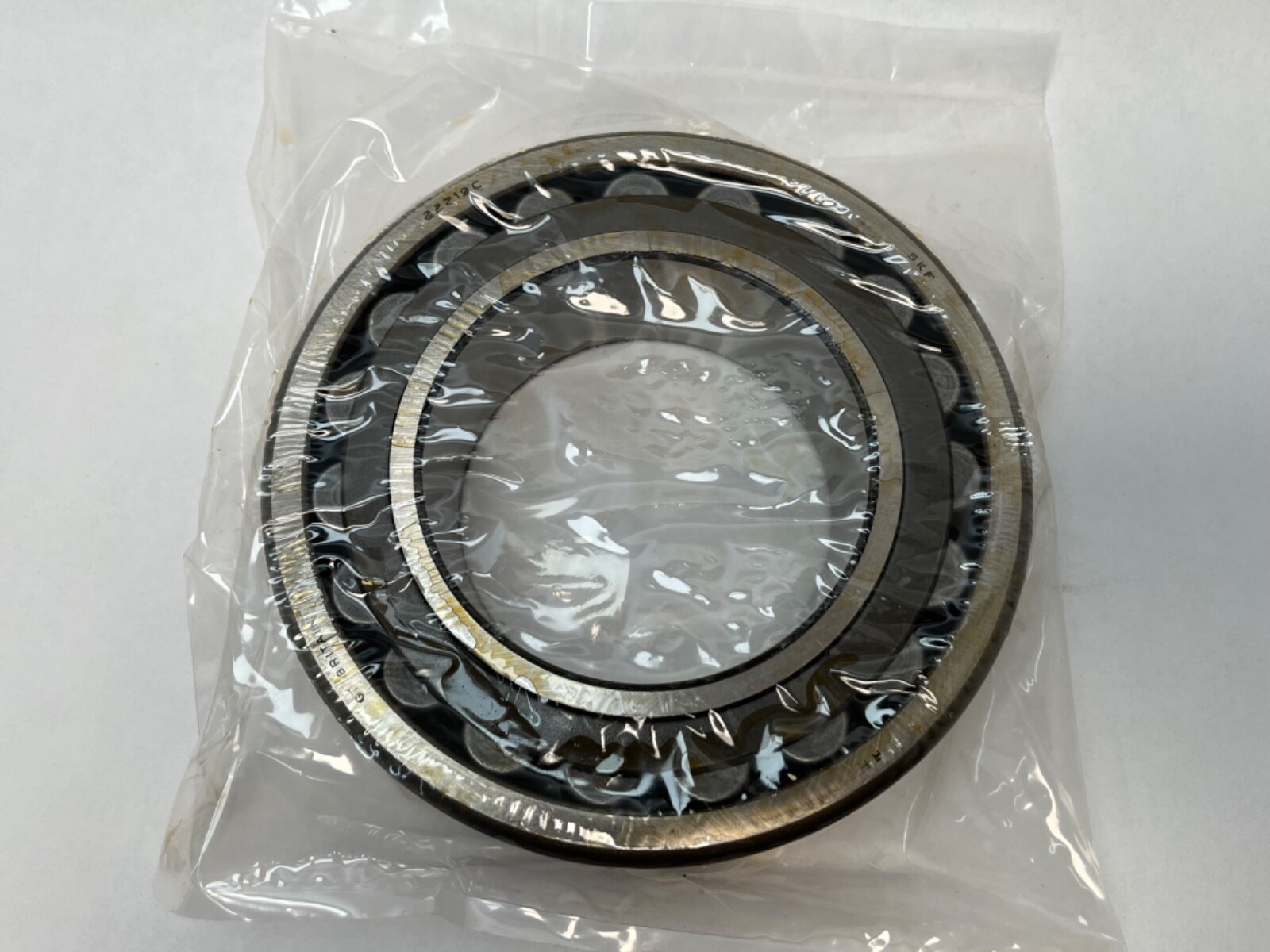

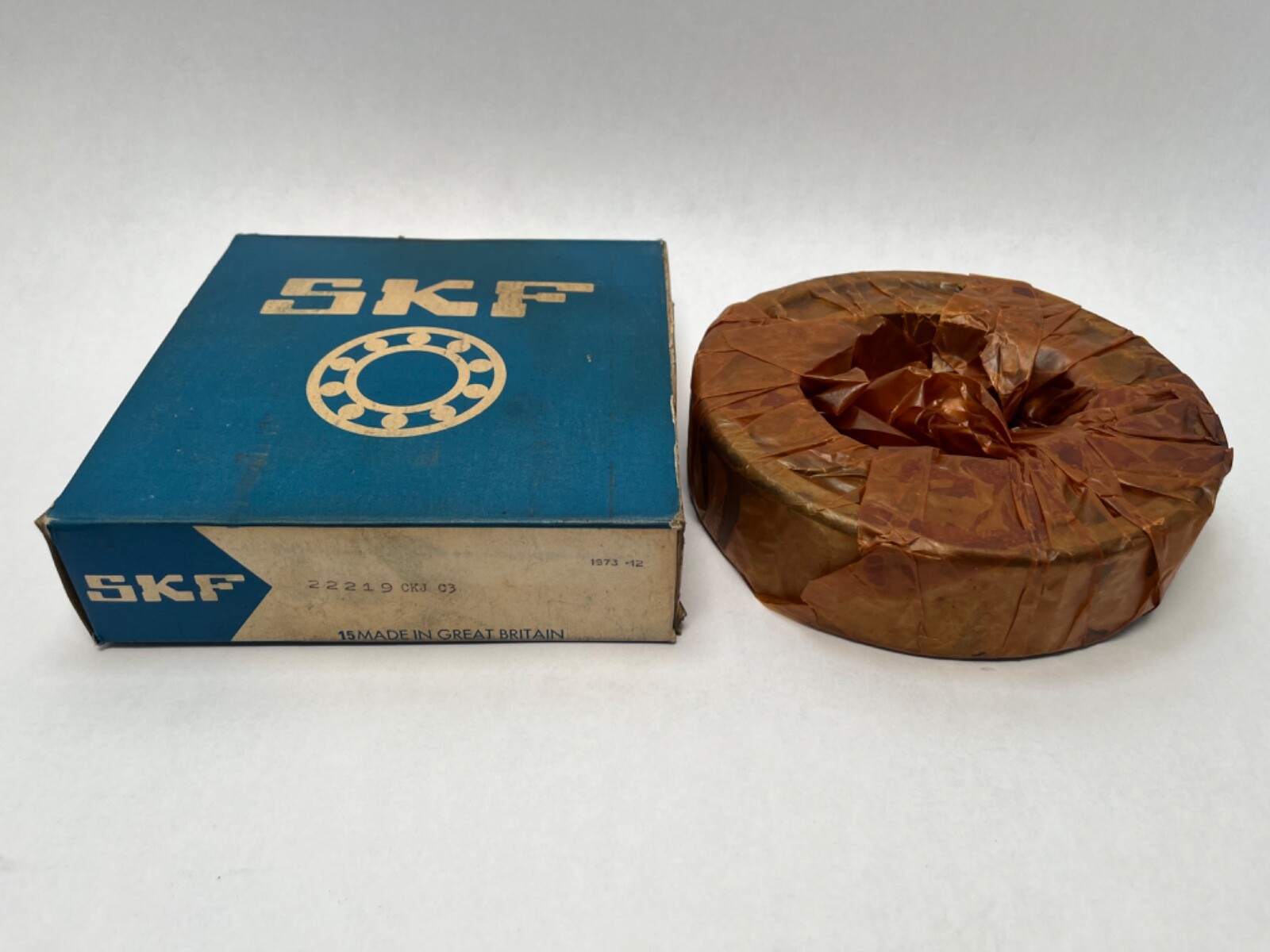

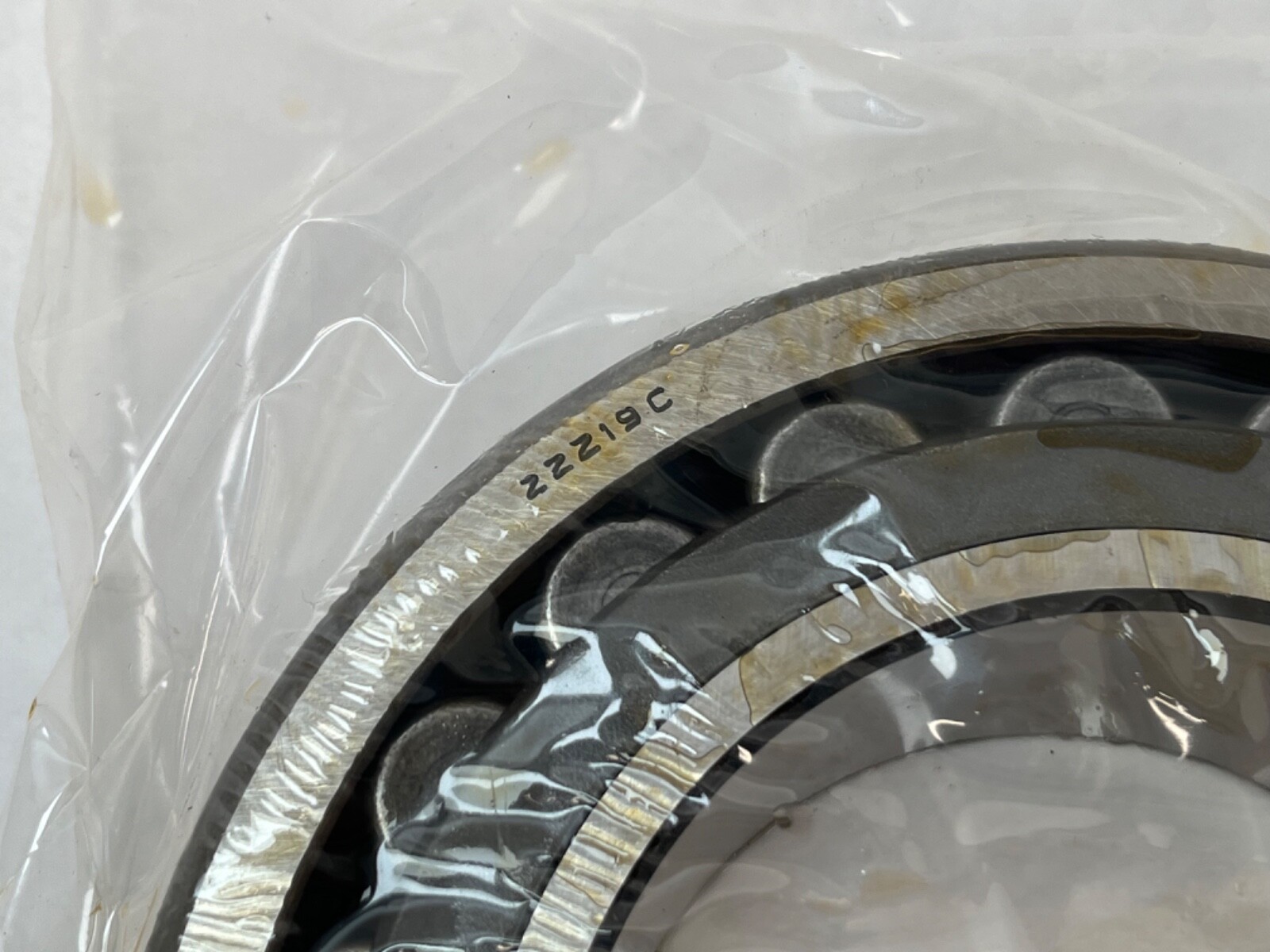

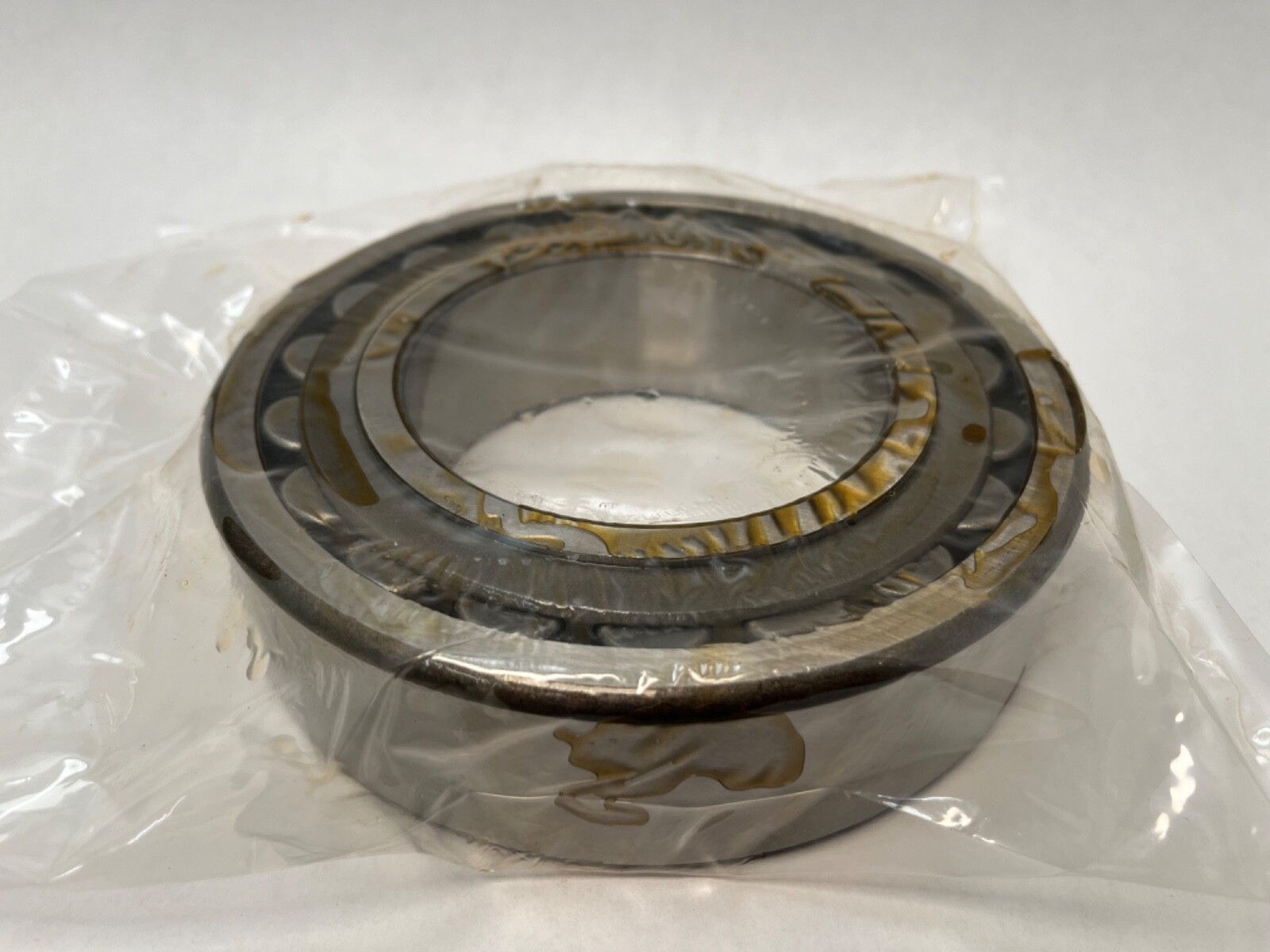

SKF 22219 CKJ/C3W33 spherical roller bearing, 95 x 170 x 43 mm, 1:12 tapered bore, C3 clearance, W33 lube groove, steel cages. Mounts on an H 319 adapter sleeve.
List Price
$144.52
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22219 CKJ/C3W33 |
| Model | 22219-CKJ-C3-W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 95 mm |
| OD | 170 mm |
| Width | 43 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 Series |
| Mpn Variants | 22219 CKJ/C3W33, 22219-CKJ-C3-W33, 22219CKJC3W33, 22219 C K J W33 |
| Compatible With Replaces | Adapter sleeve H 319 |
| Cage Type | Pressed |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Lubricant | Grease or oil |
| Relubrication Feature | W33 groove and three holes |
| Harmonization Code | 8482.30.0000 |
| Cross Reference 1 | Timken 22219KEJW33C3 |
|---|---|
| Cross Reference 2 | SKF 22219 EK/C3 – current E design |
| Cross Reference 3 | FAG 22219-E1-K-C3 |
| Cross Reference 4 | NSK 22219EAKE4C3 |
| Cross Reference 5 | NTN 22219EAKD1C3 |
SKF 22219 CKJ/C3W33 is a double row spherical roller bearing with a 1:12 tapered bore, pressed steel cages, C3 internal clearance and a lubrication groove with three holes in the outer ring. It carries heavy radial load with axial load in both directions and self-aligns to accommodate shaft deflection and misalignment.
222 — spherical roller bearing, dimension series 22.
19 — bore code, 19 x 5 = 95 mm bore.
C — SKF C internal design.
K — tapered bore, taper 1:12.
J — pressed steel cage.
C3 — radial internal clearance greater than Normal.
W33 — annular groove and three lubrication holes in the outer ring.
Bore Diameter: 95 mm. Outside Diameter: 170 mm. Width: 43 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Internal Clearance: C3. Relubrication Feature: W33 groove and three holes. Lubricant: grease or oil. Closure Type: Open.
C3 clearance allows for the clearance reduction from drive-up on the tapered seat and from heat in service.
Mounts on an H 319 adapter sleeve (85 mm shaft) or directly on a 1:12 tapered shaft seat.
Unit Quantity: 1 Pc. Bearing only.
Same envelope, tapered bore, C3 clearance: SKF 22219 EK/C3 (current design), FAG 22219-E1-K-C3, NSK 22219EAKE4C3, Timken 22219KEJW33C3, NTN 22219EAKD1C3. MPN variants: 22219 CKJ/C3W33, 22219-CKJ-C3-W33, 22219CKJC3W33, 22219 C K J W33. Harmonization Code: 8482.30.00.
