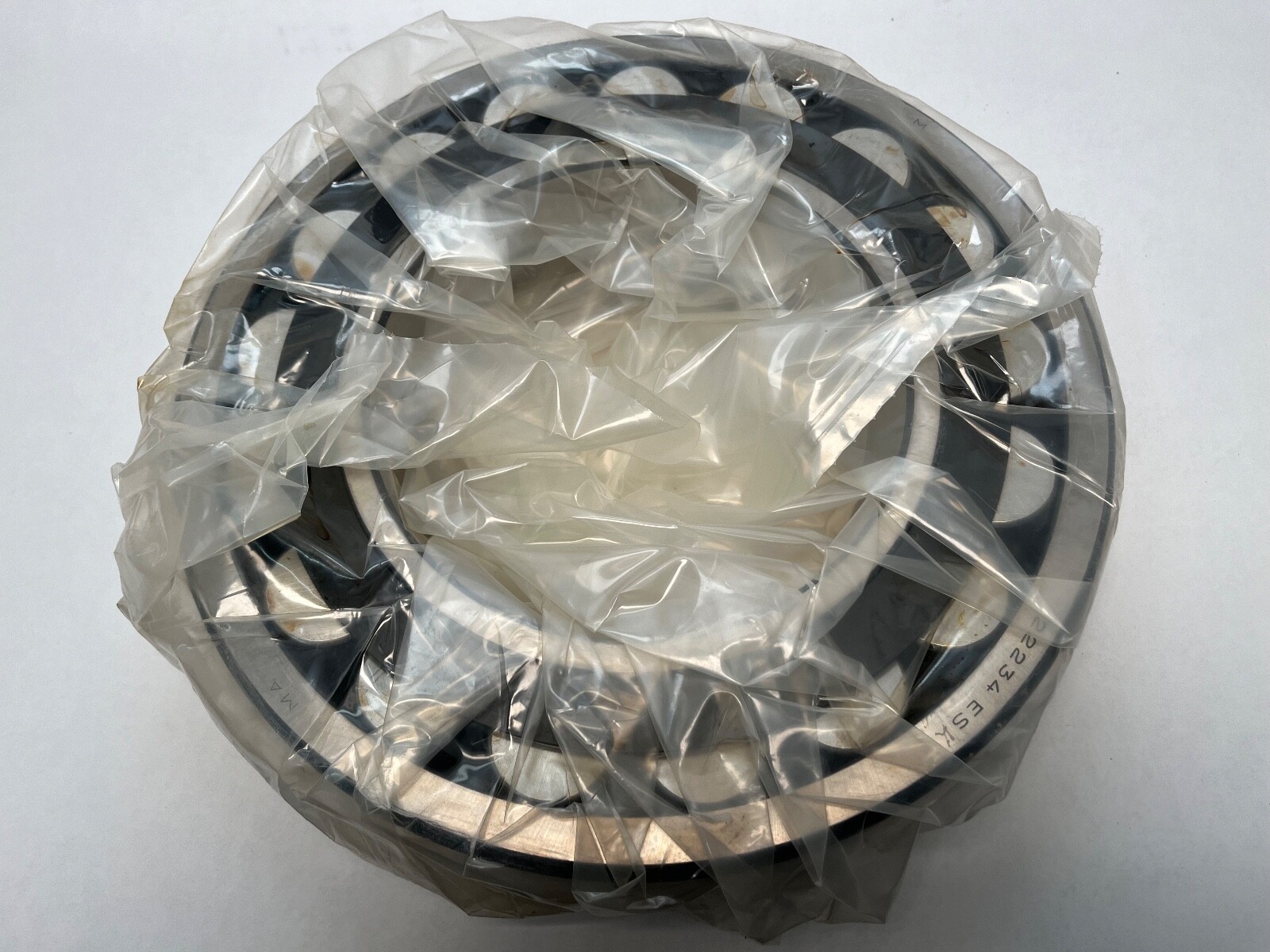

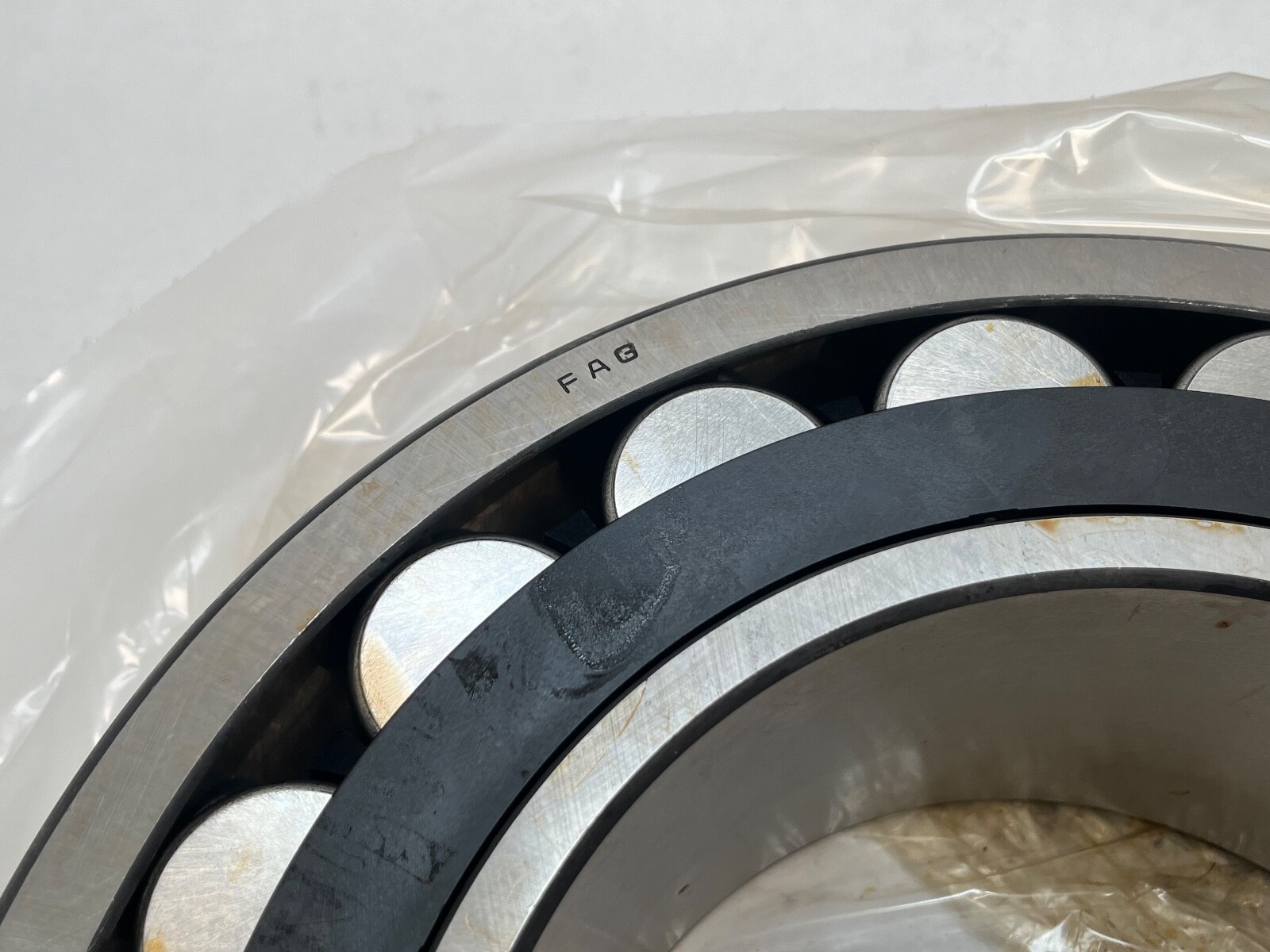

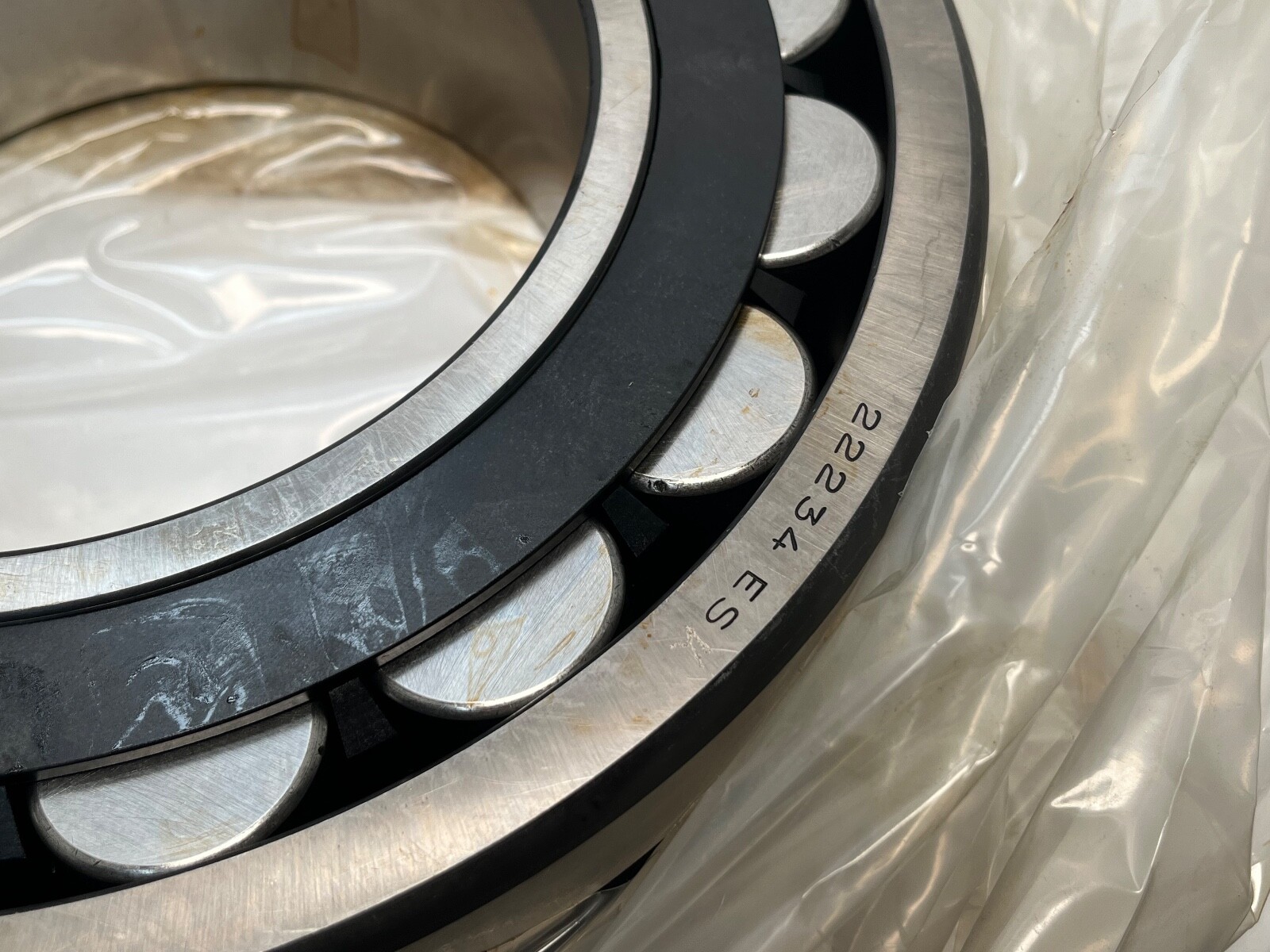

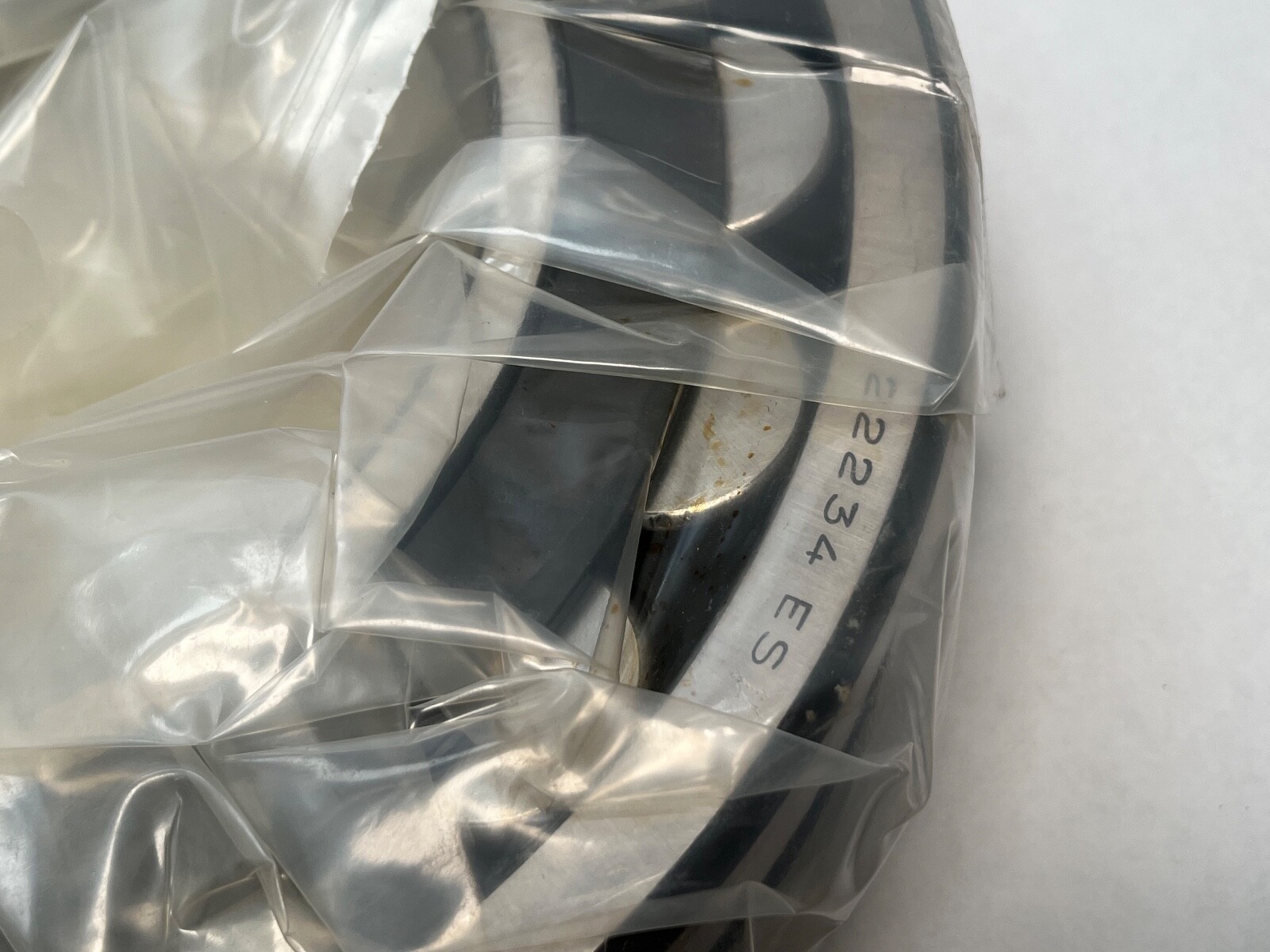

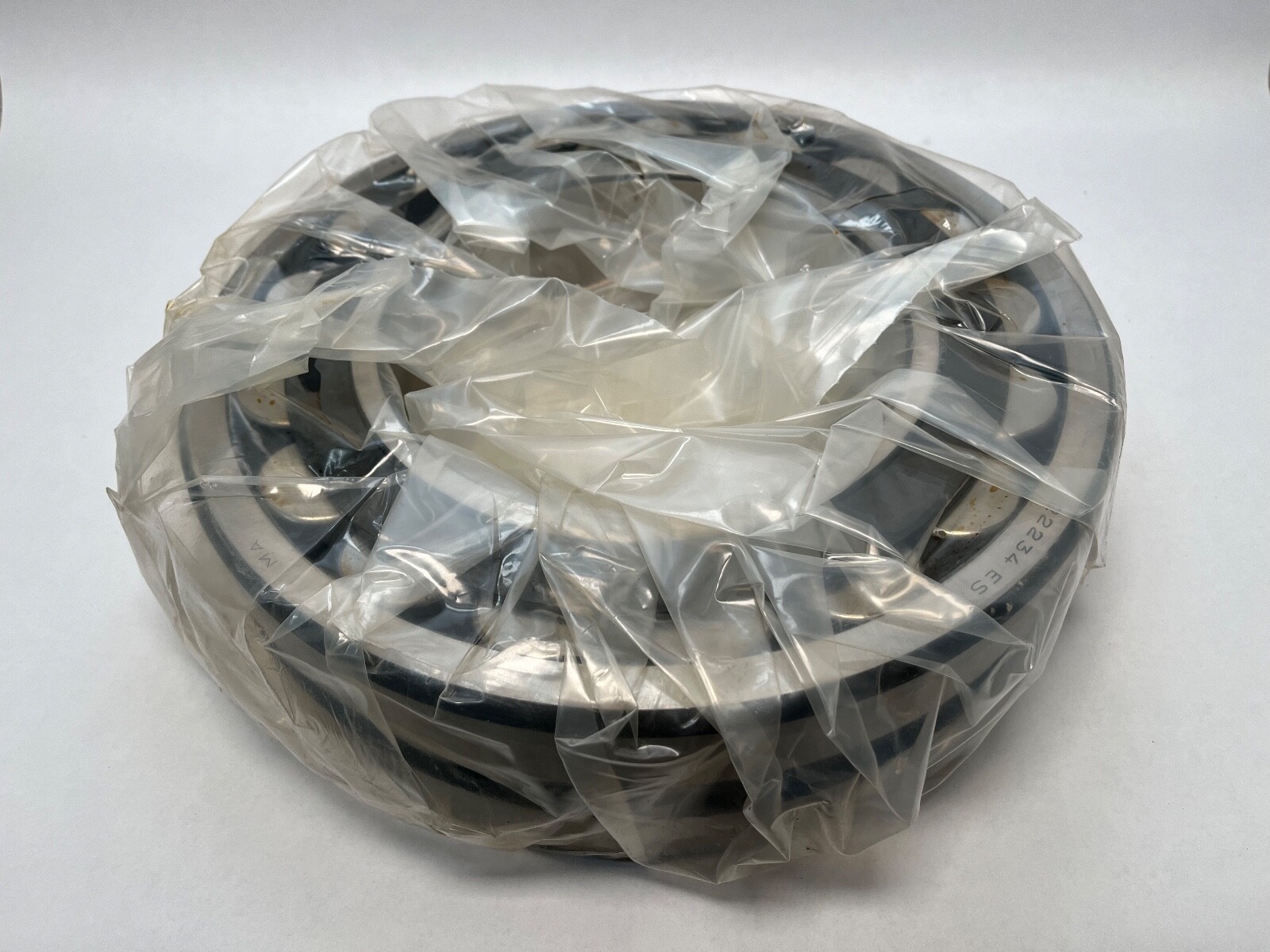

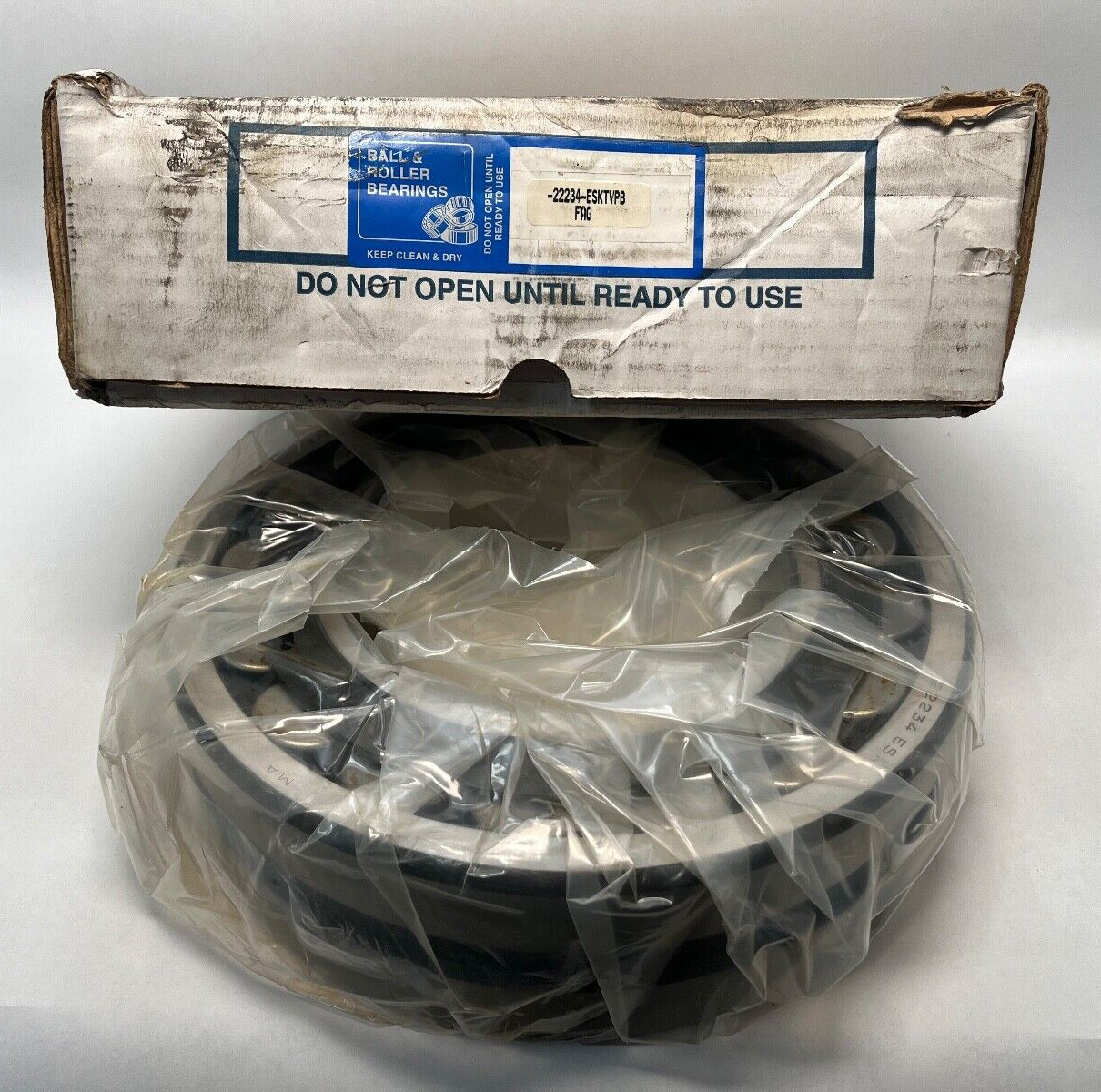

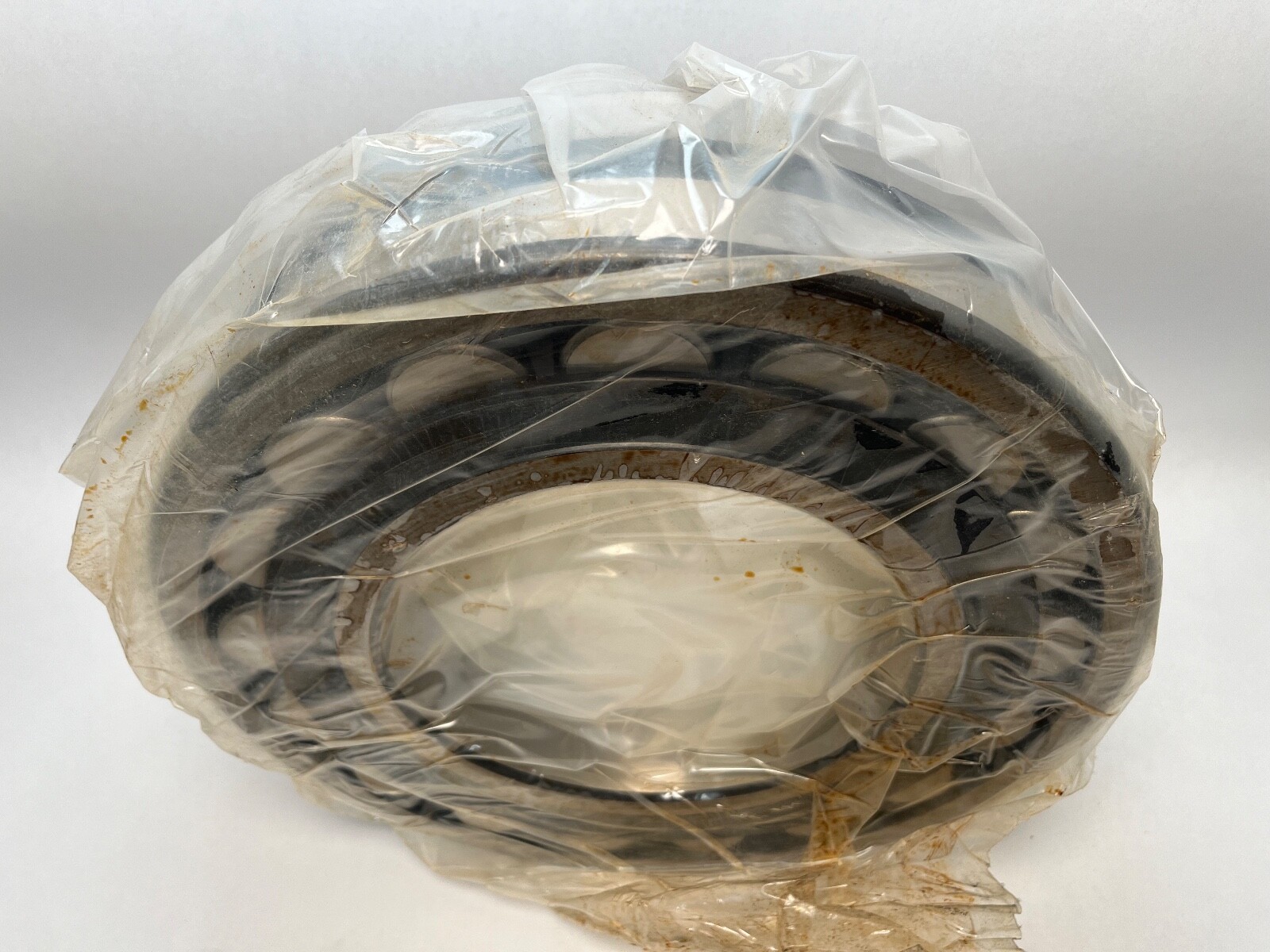

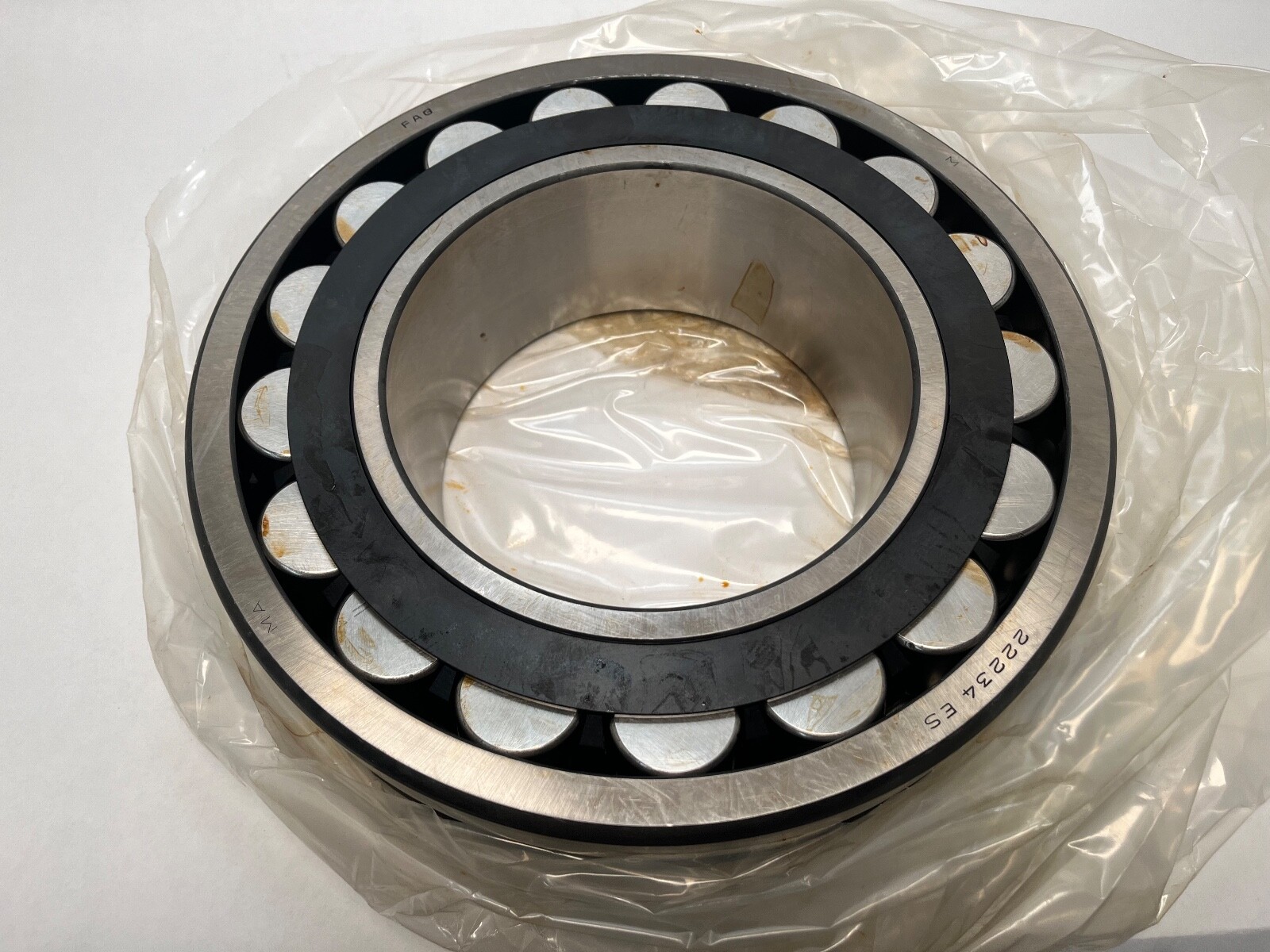

Spherical roller bearing, 170 x 310 x 86 mm, 1:12 tapered bore, polyamide cage, W33-type lubrication groove. FAG E design, normal clearance; sleeve H3134.
List Price
$659.61
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22234-ES-K-TVPB |
| Model | 22234ESK.TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 170 mm |
| OD | 310 mm |
| Width | 86 mm |
| Material | Bearing Steel |
|---|---|
| Series | 222 |
| Mpn Variants | 22234-ES-K-TVPB, 22234ESK.TVPB, 22234ESKTVPB, 22234E |
| Compatible With Replaces | Adapter sleeve H3134; withdrawal sleeve AH3134A |
| Additional Attributes | Design: FAG E increased capacity; Lubrication groove and radial holes in outer ring; Cage: TVPB glass-fibre reinforced polyamide; Sleeves: H3134, AH3134A |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | CN |
| Lubricant | Grease or oil |
| Relubrication Feature | Lubrication groove and holes in outer ring (W33) |
| Harmonization Code | 8482.30.00 |
| Industry Terms | spherical roller bearing; double row spherical roller bearing; tapered bore spherical roller bearing; 170 mm bore spherical roller bearing; 222 series bearing; W33 groove bearing |
| Common Misspellings | FAG 22234ESKTVPB; FAG 22234 ES K TVPB; Fag 22234-ES-K-TVBP; FAG 22234EKS TVPB |
| Application Types | Industrial gearboxes; Fans and blowers; Conveyors; Crushers and screens; General heavy machinery shafts |
| Closure Type | Open |
| Cross Reference 1 | FAG 22234-E1-XL-K - XL reinforced design |
|---|---|
| Cross Reference 2 | SKF 22234 CCK/W33 - CC design |
| Cross Reference 3 | NSK 22234K E4 |
FAG 22234-ES-K-TVPB is a double-row spherical roller bearing, 222 series, with a 1:12 tapered bore, increased-capacity E design, lubrication groove with radial holes in the outer ring, and a glass-fibre reinforced polyamide cage. Unit Quantity: 1 Pc.
22234 — spherical roller bearing, 222 series; bore code 34 = 170 mm.
E — FAG increased-capacity internal design.
S — lubrication groove with radial holes in the outer ring (W33 equivalent).
K — tapered bore, taper 1:12.
TVPB — glass-fibre reinforced polyamide cage.
Bore Diameter: 170 mm (small end of taper). Outside Diameter: 310 mm. Overall Width: 86 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Rolling Elements: Spherical Roller. Series: 222. Internal Clearance: CN. Cage Material: Polyamide. Lubricant: grease or oil. Closure Type: Open.
Adapter sleeve: H3134. Withdrawal sleeve: AH3134A.
Cross-references: FAG 22234-E1-XL-K (XL reinforced design); SKF 22234 CCK/W33 (CC design); NSK 22234K E4.
Bore 170 mm at the small end of the 1:12 taper, outside diameter 310 mm, width 86 mm.
E is FAG’s increased-capacity design, S is the outer-ring lubrication groove with radial holes, K is the 1:12 tapered bore and TVPB is the glass-fibre reinforced polyamide cage.
Adapter sleeve H3134 and withdrawal sleeve AH3134A.
