Double-row spherical roller bearing, 65 x 120 x 31 mm, 1:12 tapered bore, CN clearance, W33 lubrication groove and three holes. SKF 22213 CK/W33.
List Price
$72.01
12 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22213 CK/W33 |
| Model | 22213C K J W33 / 22213-CC-K |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Base Number | 22213 |
| Industry Terms | spherical roller bearing; taper bore spherical roller; adapter sleeve bearing; W33 relubricatable bearing; self-aligning roller bearing |
| Common Misspellings | SFK 22213CK/W33; 22213 CKW-33; 22213CK W3 |
| Application Types | Vibrating screens; conveyor pulleys and idlers; fans and blowers; gearboxes; plummer block shaft support |
| Bore Shaft Size | 65 mm (2.5591 in), 1:12 tapered bore |
| Mpn Variants | 22213CKJW33; 22213-CKJ-W33; 22213CKW33; 22213 CK W33; 22213CK/W33; 22213-C-K-J-W33; 22213CCK; 22213CCKW33 |
| Compatible With Replaces | Adapter sleeve SKF H313 (60 mm shaft seat, with KM13 locknut and MB13 lockwasher) — separate part, not included |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | CN |
| Part Number | 22213 CK/W33 |
| Cage Type | Window |
| Relubrication Feature | Lubrication groove and three radial holes (W33) |
| Cross Reference 1 | NSK 22213EAKE4 |
|---|---|
| Cross Reference 2 | Timken 22213KEJW33 |
| Cross Reference 3 | SNR 22213EAKW33 |
| Cross Reference 4 | Koyo 22213RK |

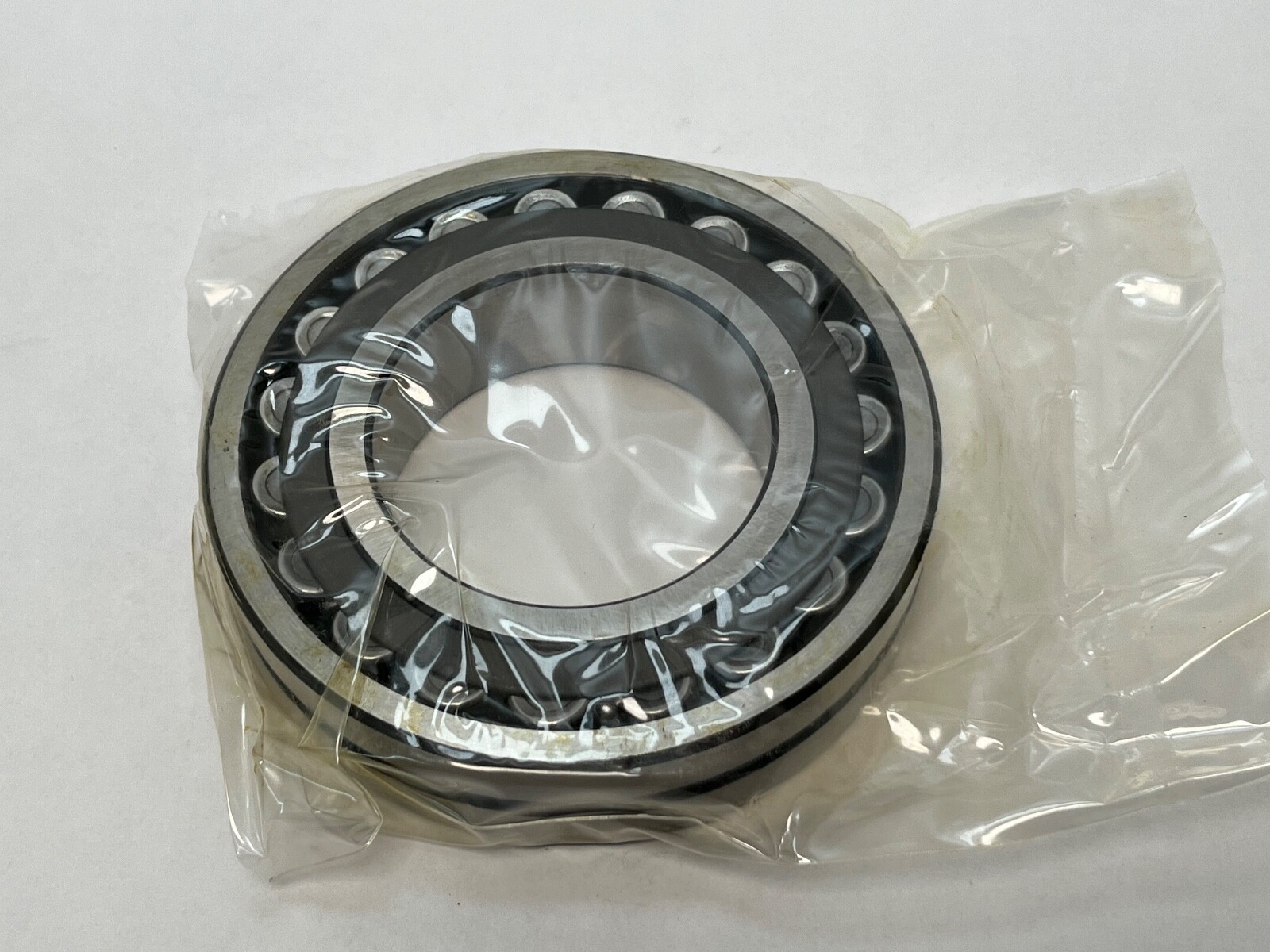

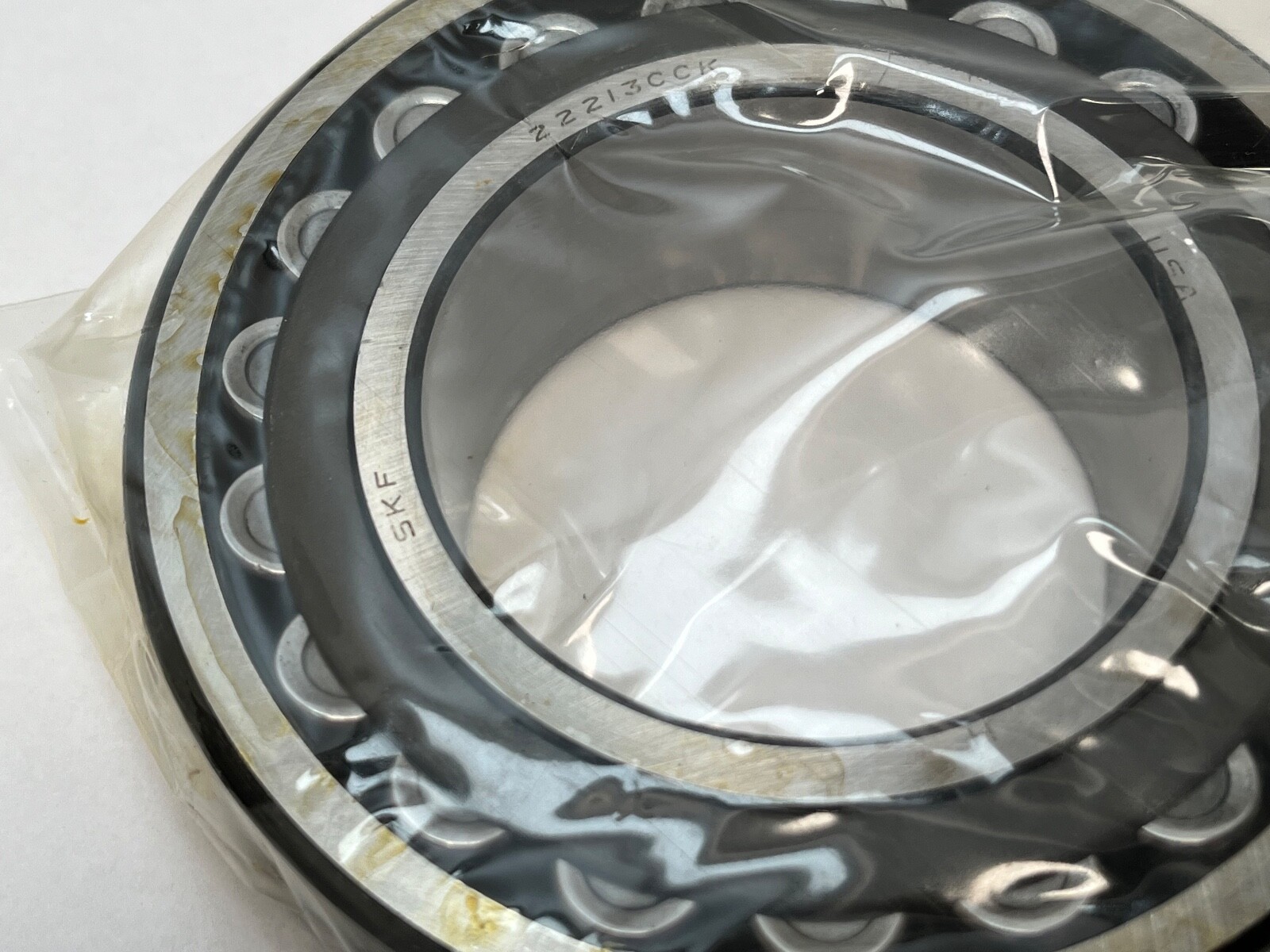

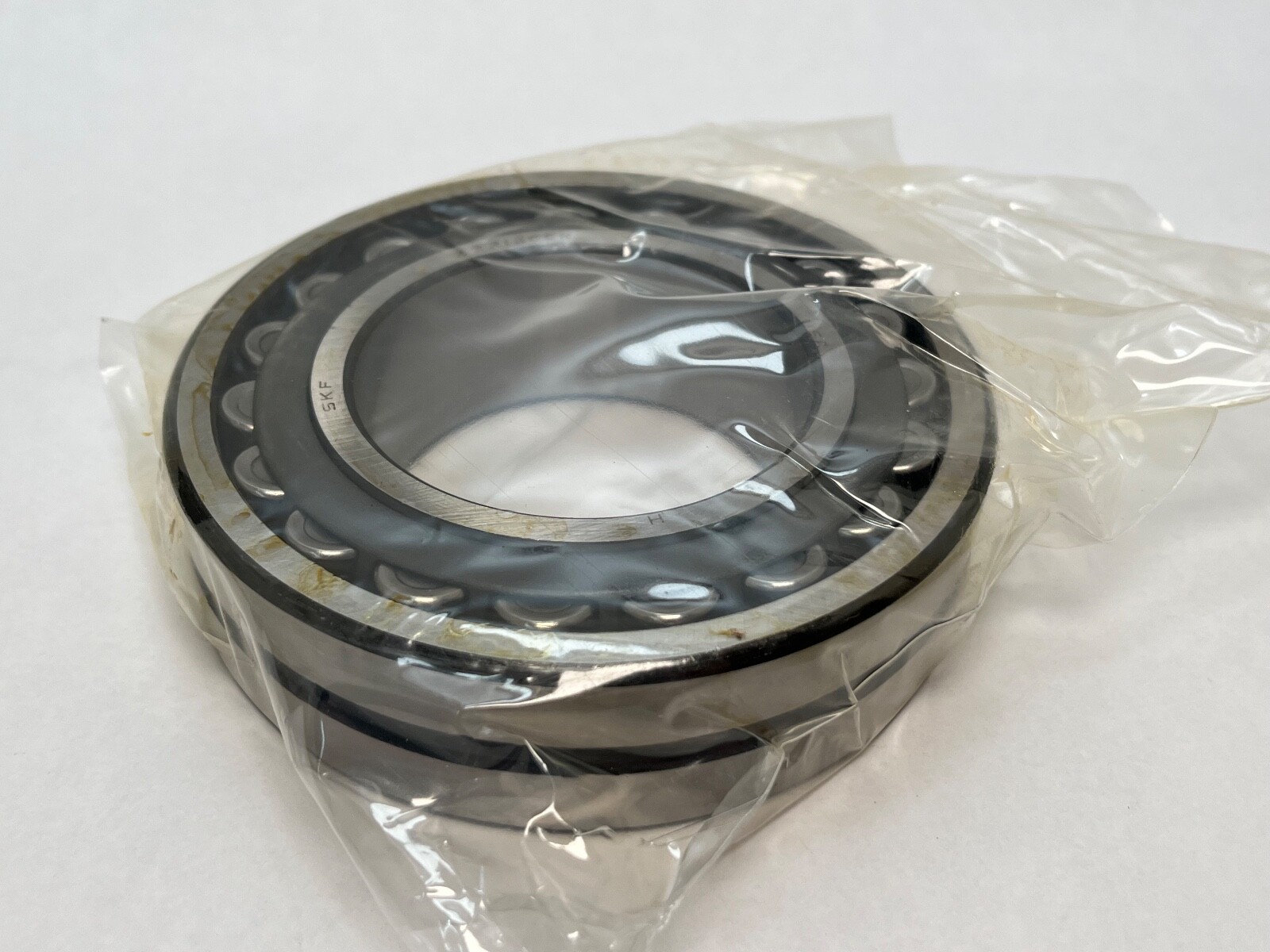

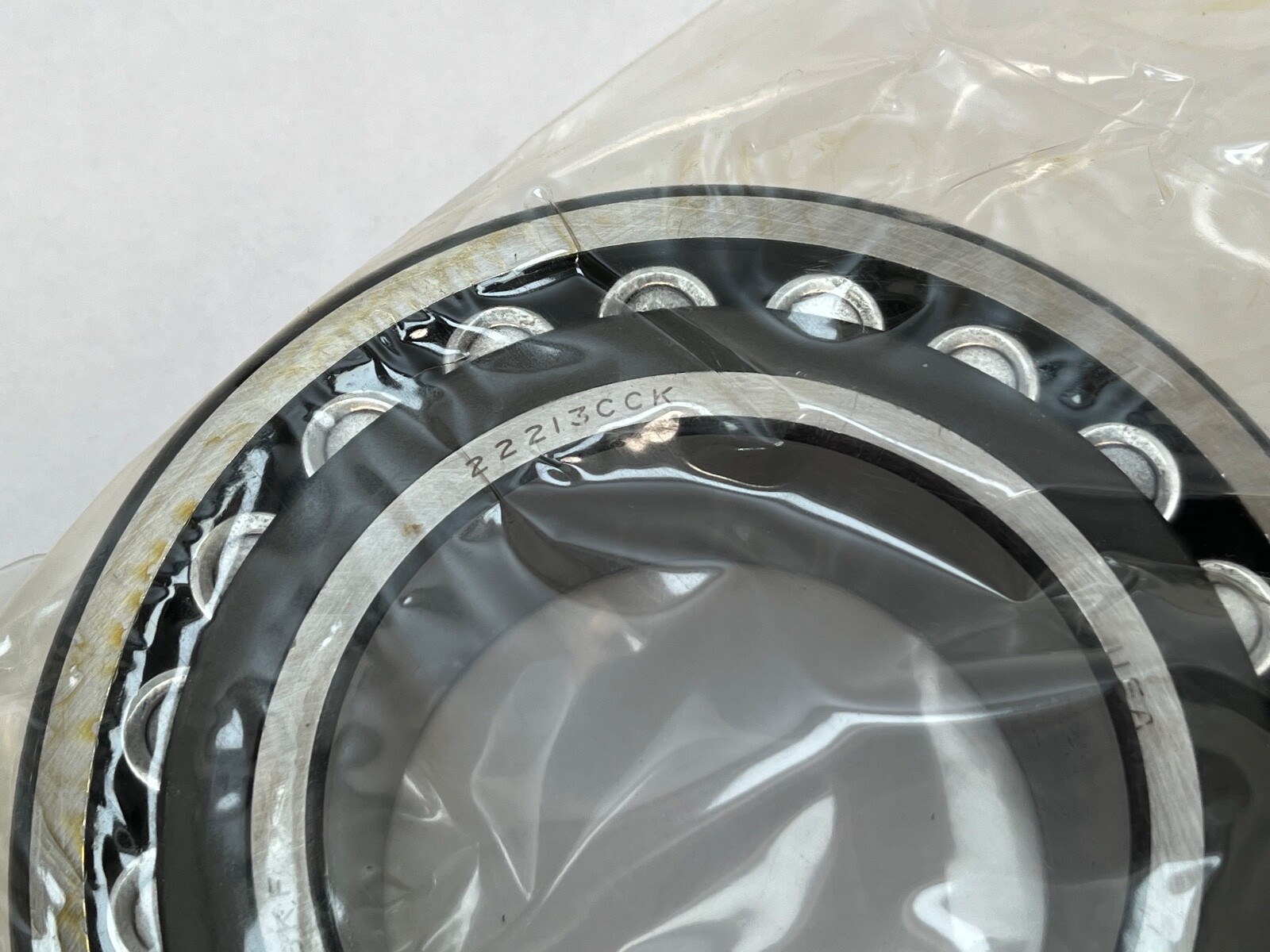

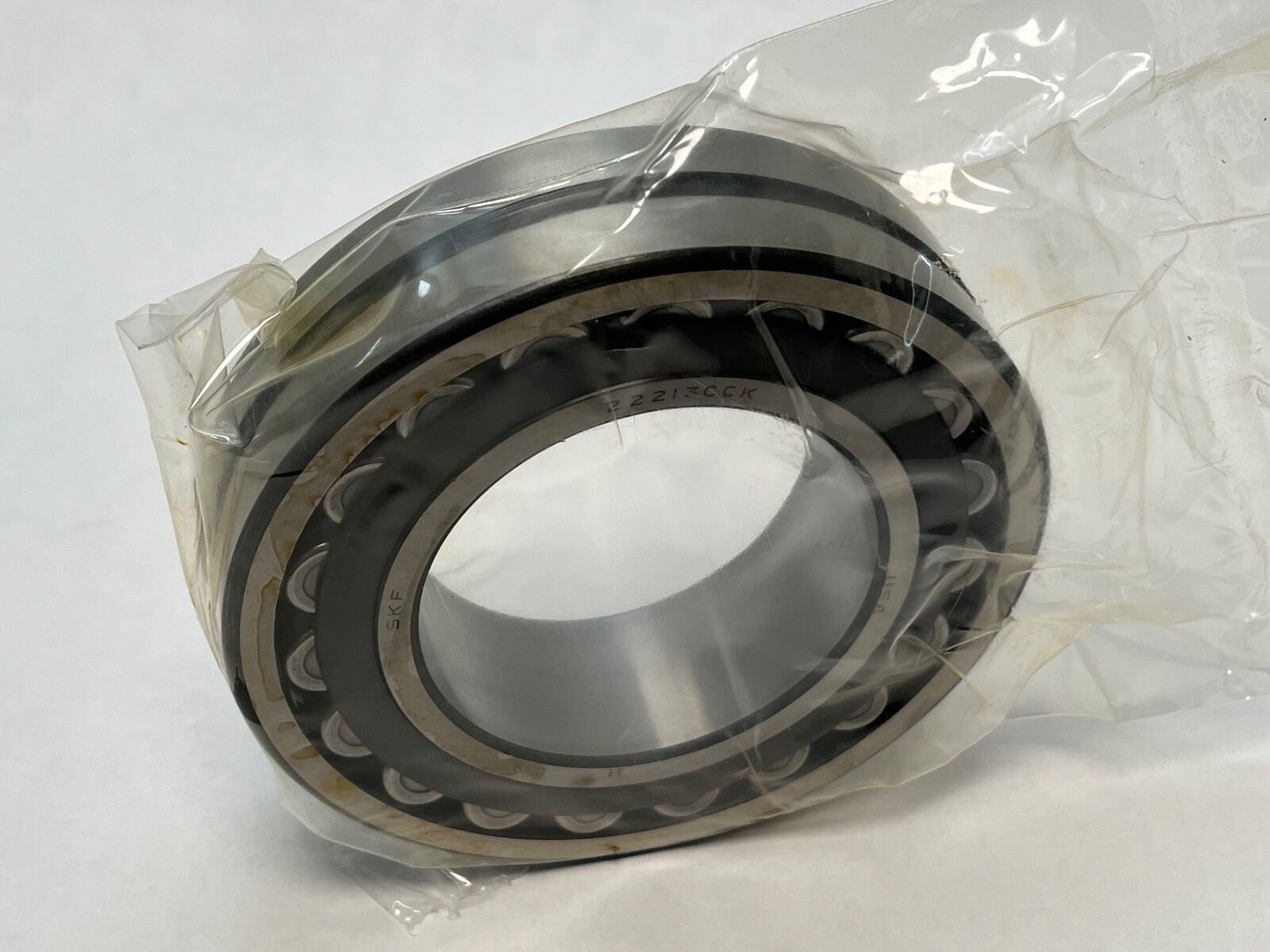

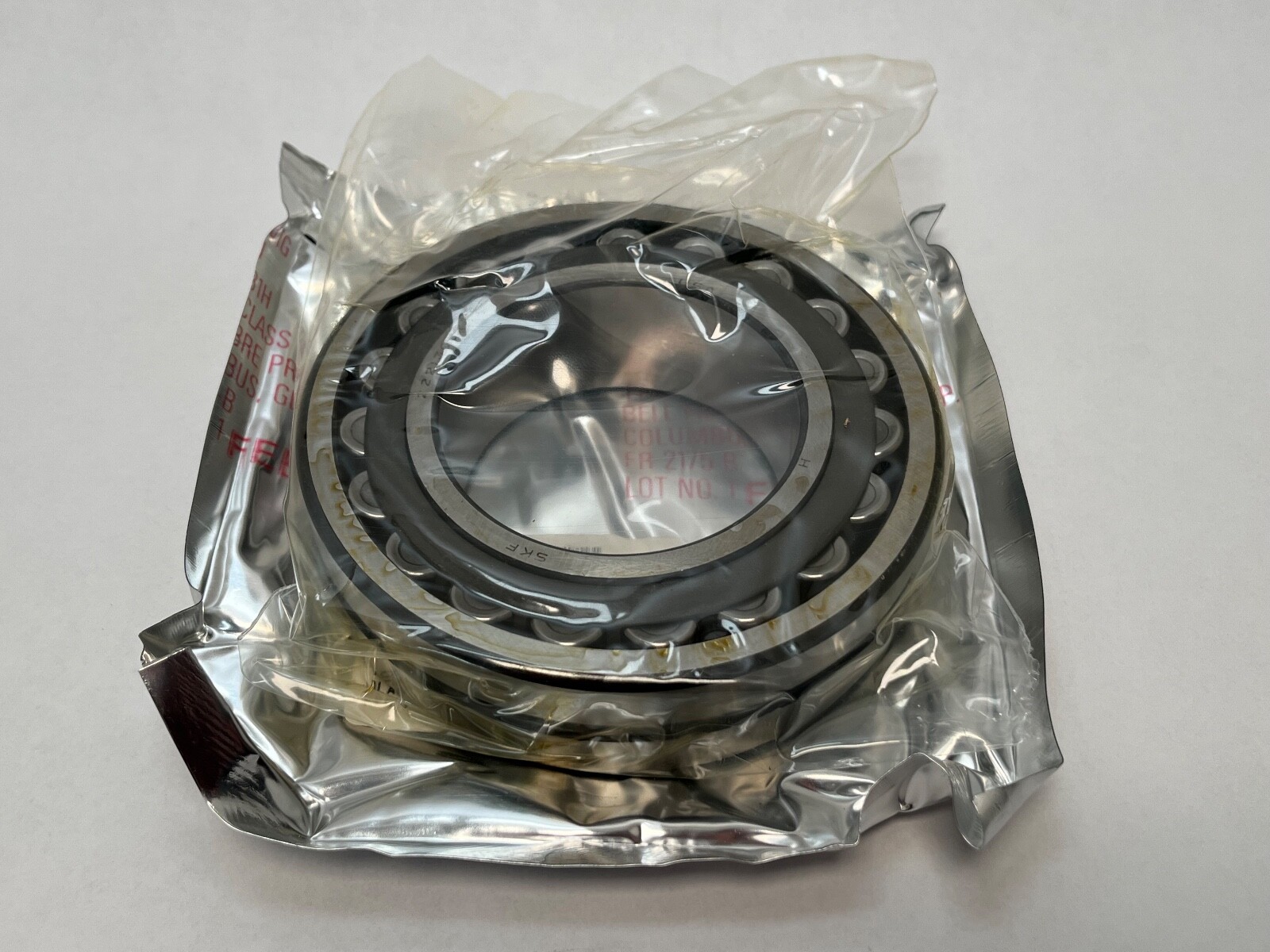

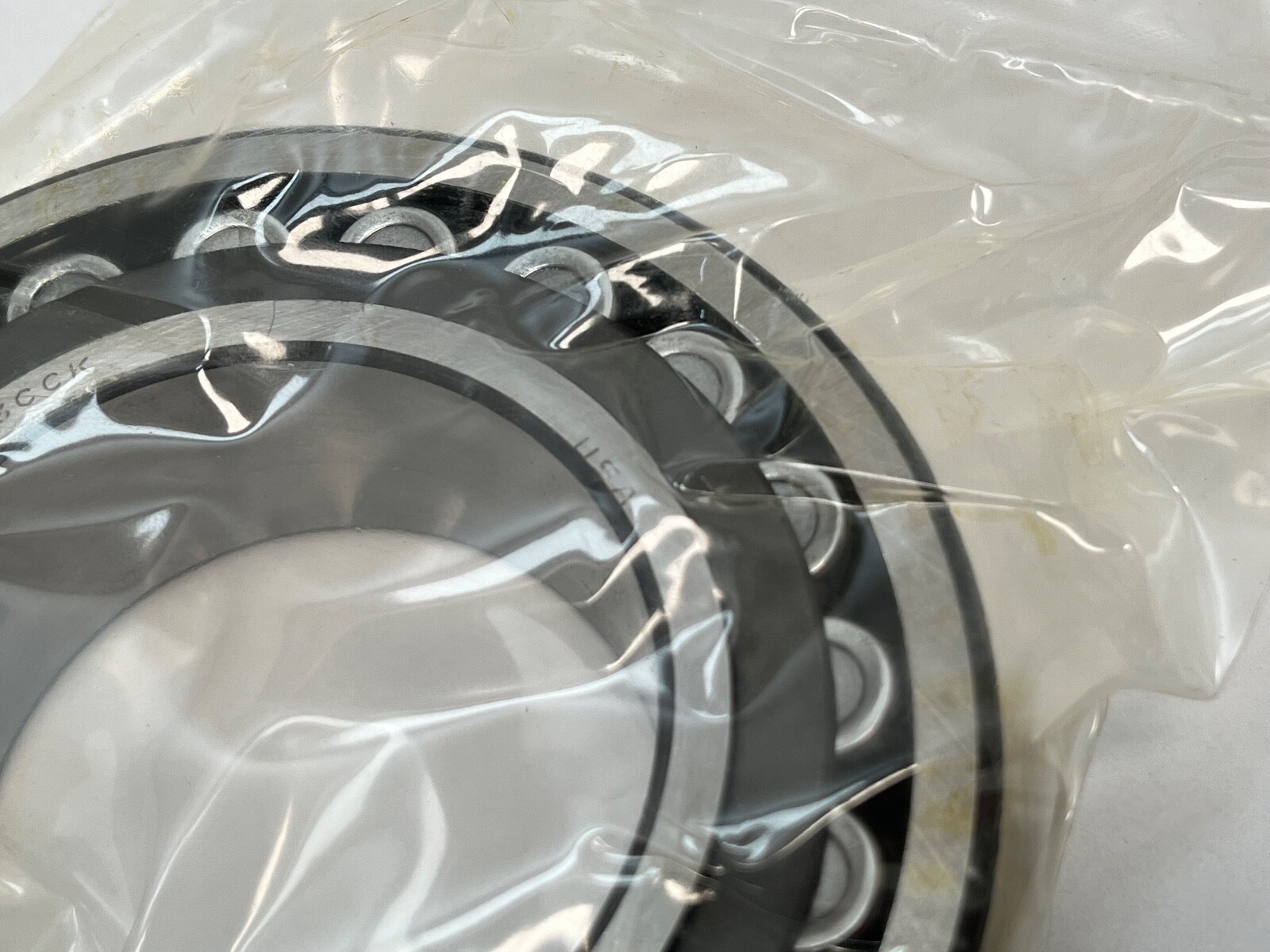

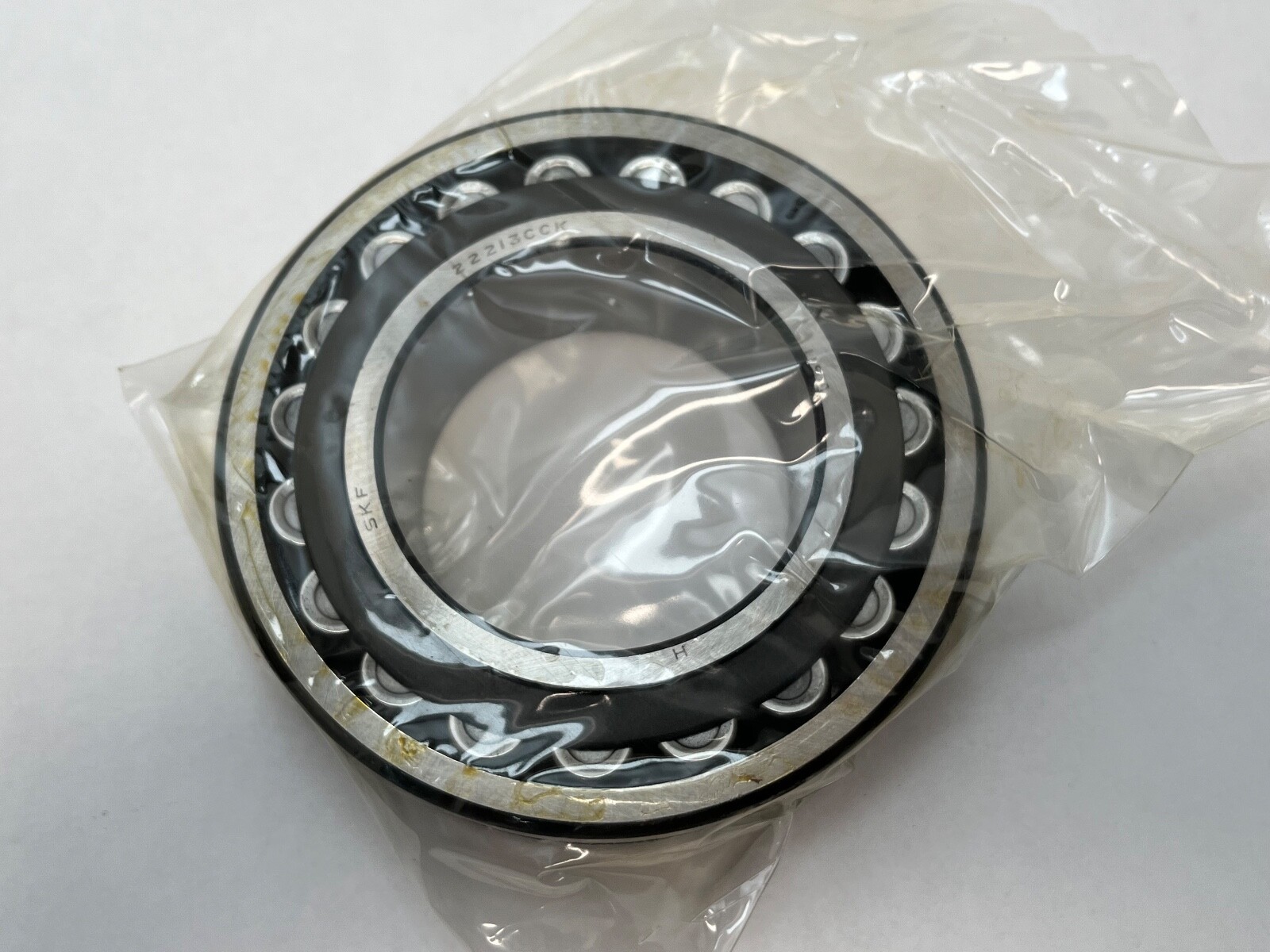

SKF 22213 CK/W33 is a double-row spherical roller bearing with a 65 mm tapered bore (1:12), 120 mm outside diameter and 31 mm width. Bearing only. Unit Quantity: 1 Pc.
222 — double-row spherical roller bearing, 222 series.
13 — bore code, 13 x 5 = 65 mm.
C and J — pressed steel window cage.
K — 1:12 tapered bore.
W33 — lubrication groove and three radial holes in the outer ring.
No clearance suffix — CN (normal) radial internal clearance.
Bore Diameter: 65 mm (2.5591 in), 1:12 tapered. Outside Diameter: 120 mm. Width: 31 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Cage Type: Window. Internal Clearance: CN. Relubrication Feature: Lubrication groove and three radial holes (W33). Lubricant: Grease or oil. Series: 22200. Material: Bearing Steel. Unit Quantity: 1 Pc. Harmonization Code: 8482.30.00.40.
Tapered bore seat: adapter sleeve SKF H313 (60 mm shaft seat) with KM13 locknut and MB13 lockwasher.
Cross-references: NSK 22213EAKE4, Timken 22213KEJW33, SNR 22213EAKW33, Koyo 22213RK, FAG 22213-E1-XL-K (E1-XL reinforced design). Other designations: 22213-CKJ-W33, 22213CK/W33, 22213CCK/W33, 22213 CK W33.
Bore 65 mm, outside diameter 120 mm, width 31 mm, double row.
K is a 1:12 tapered bore.
W33 is a lubrication groove with three radial holes in the outer ring.
