Availability:
1 in stock

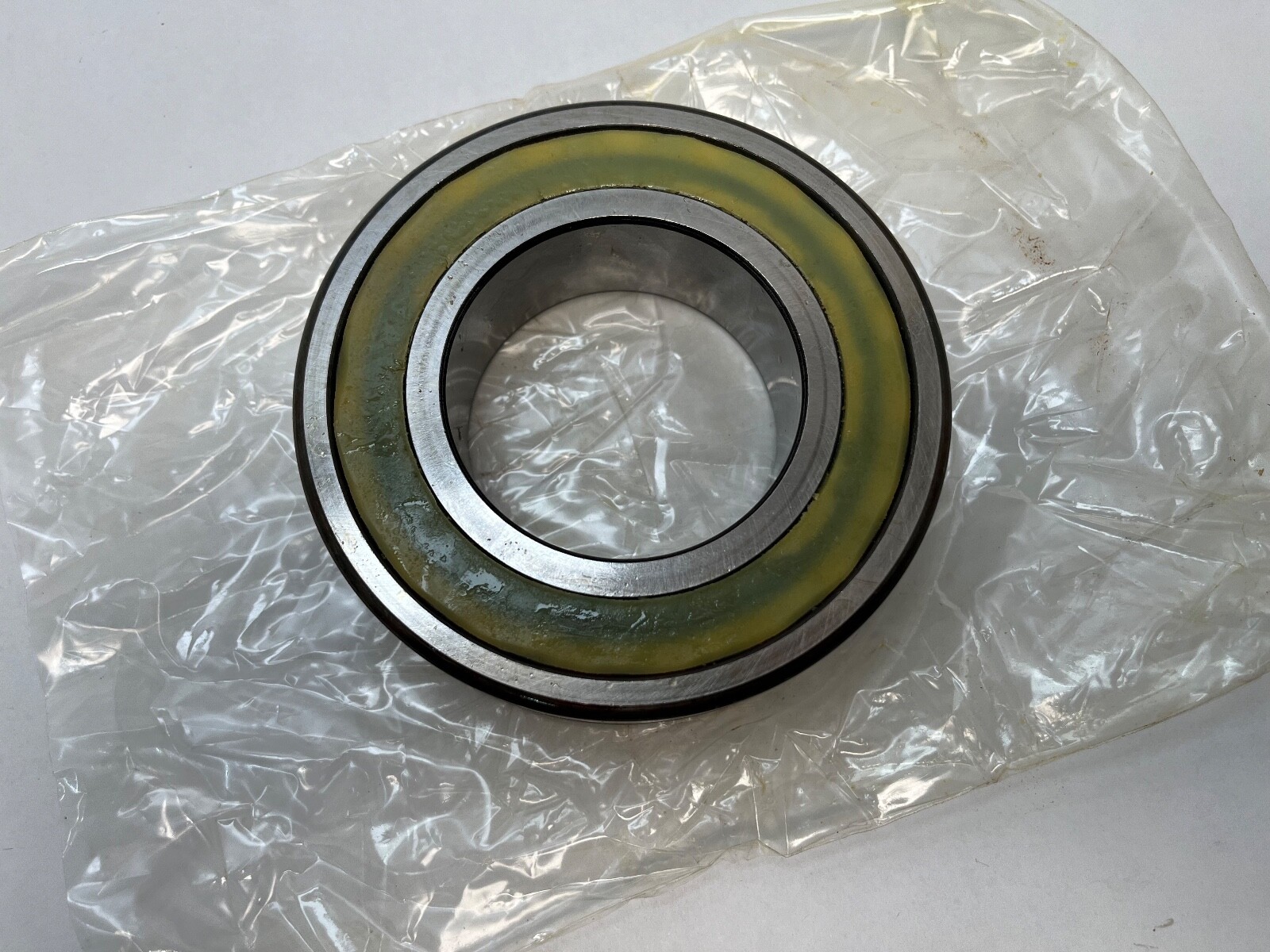

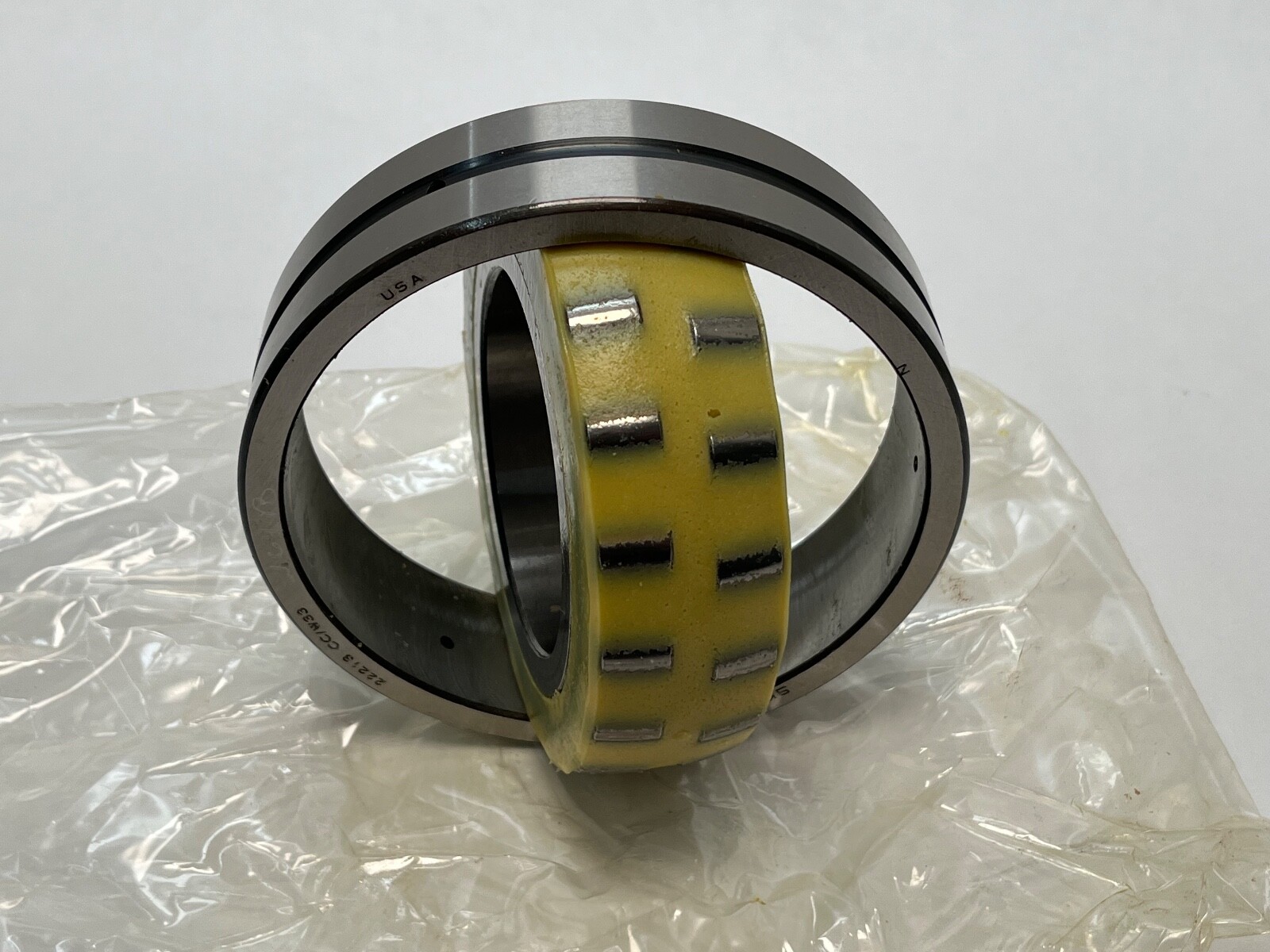

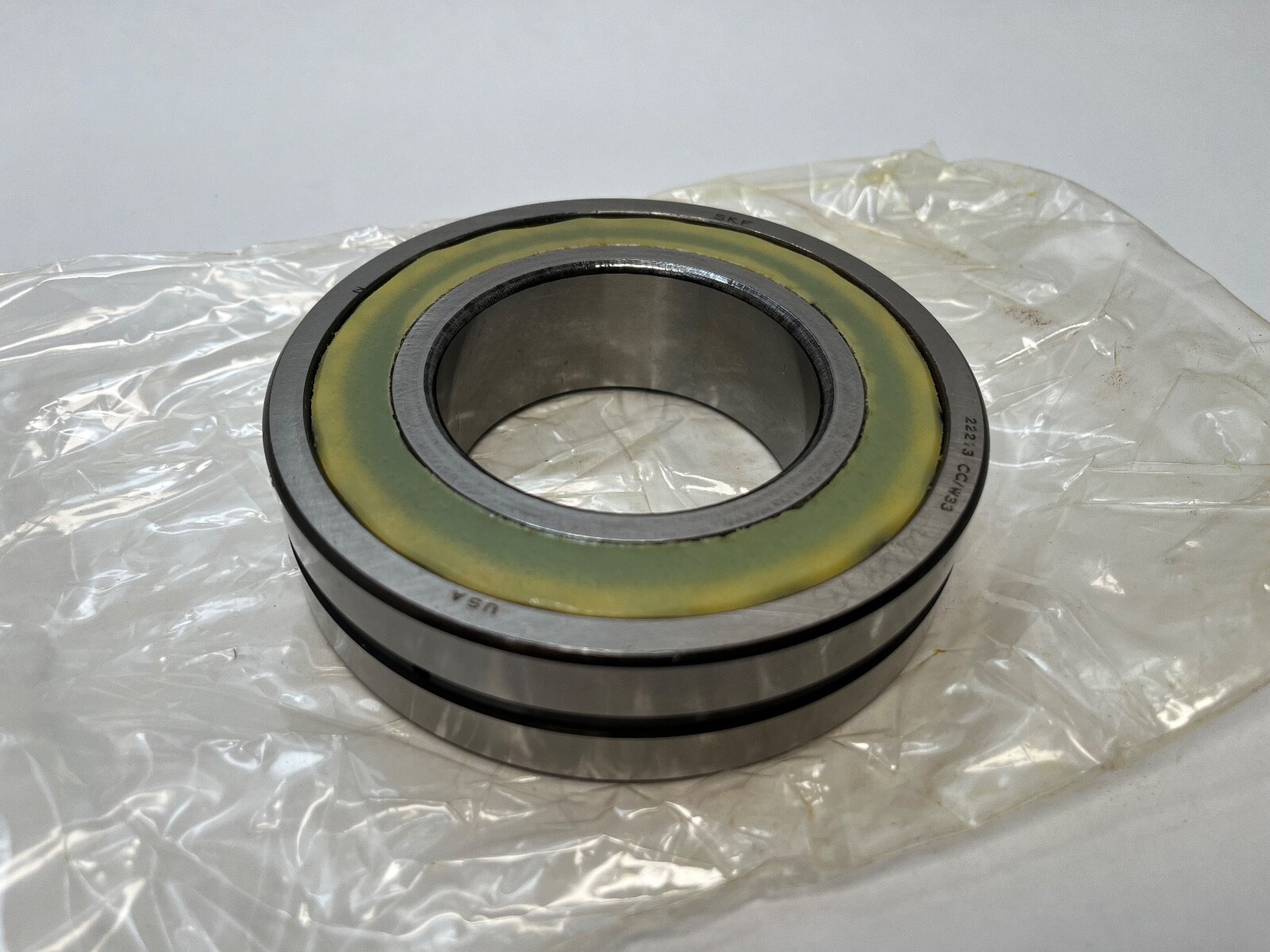

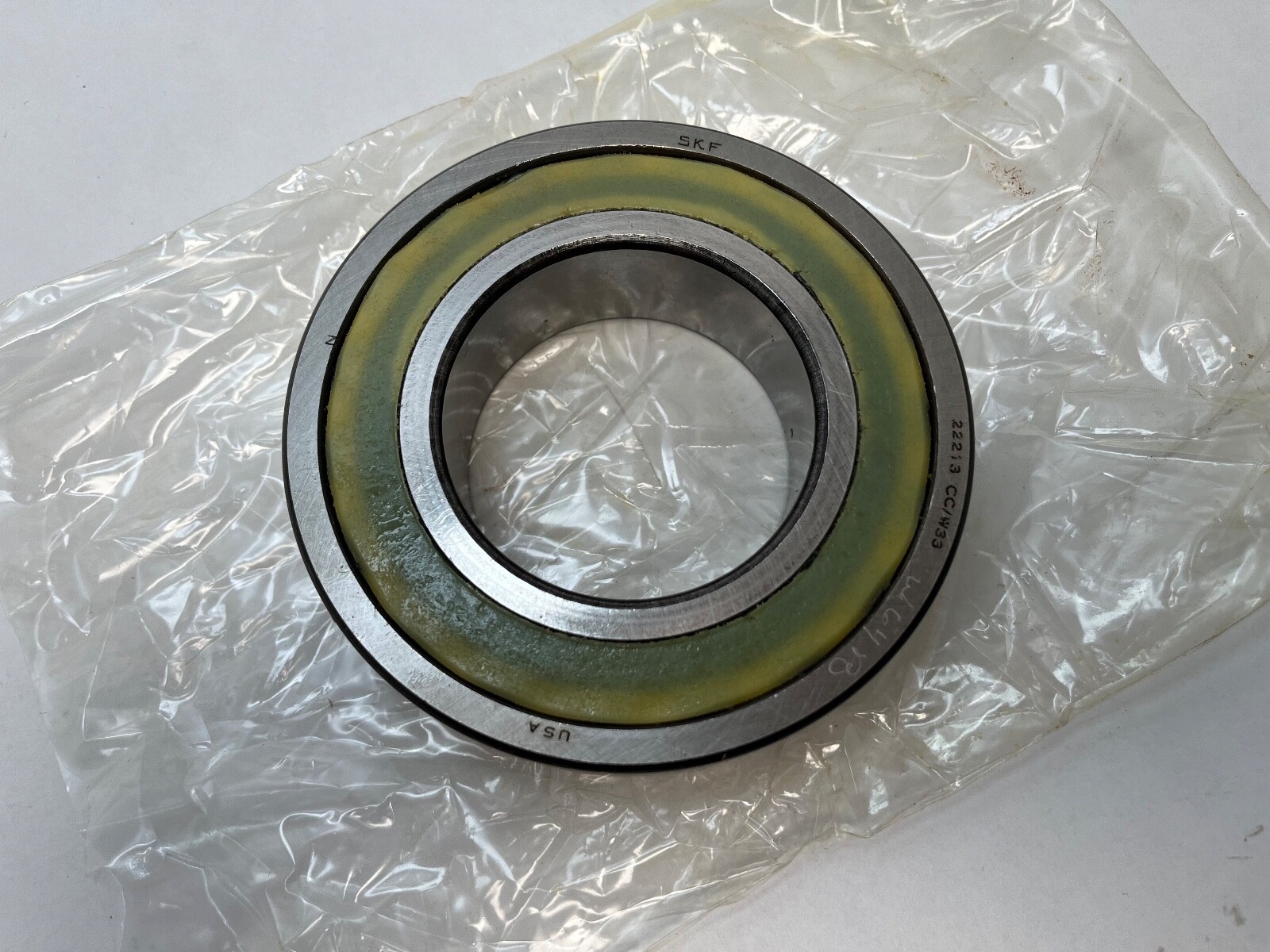

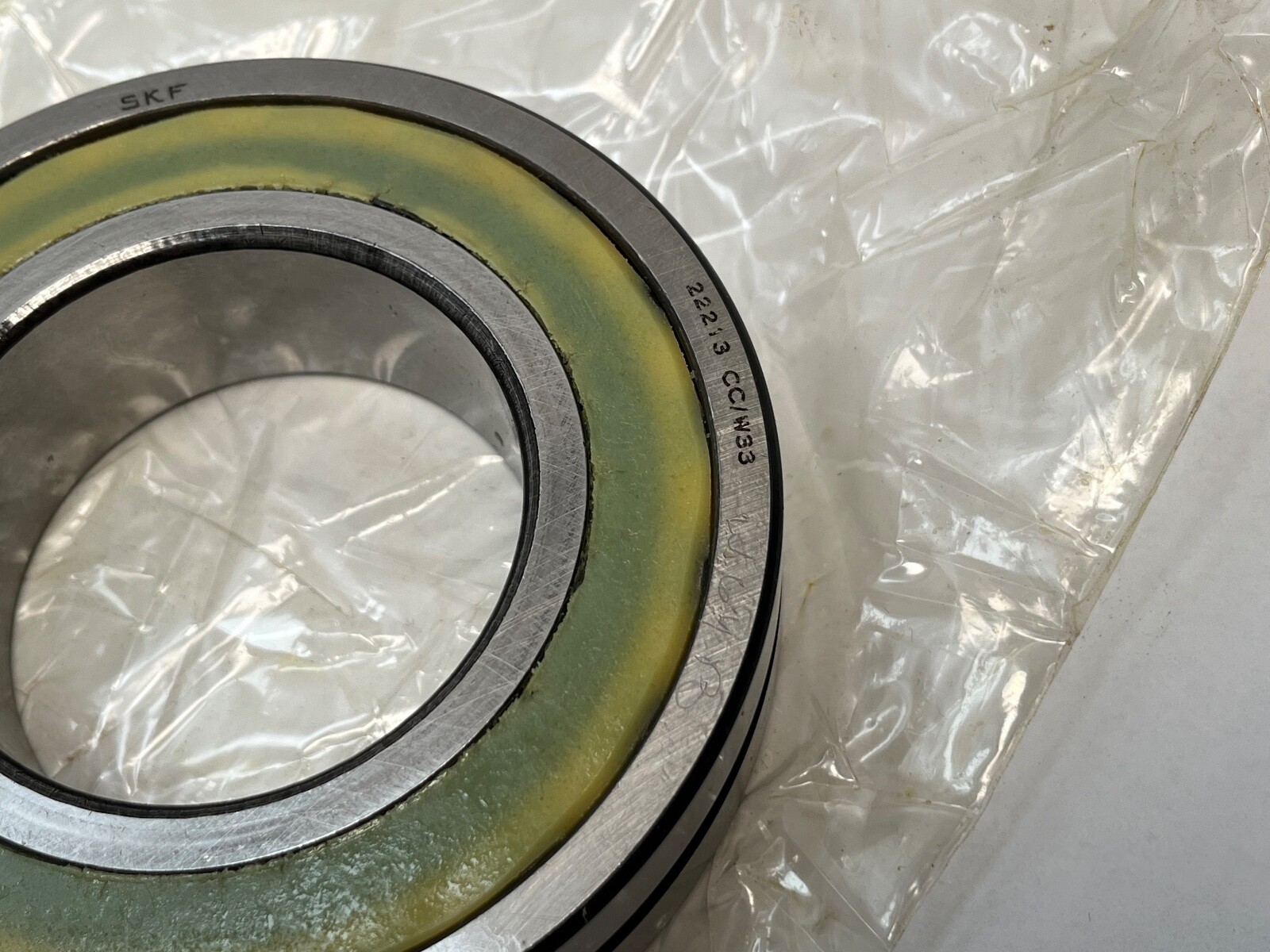

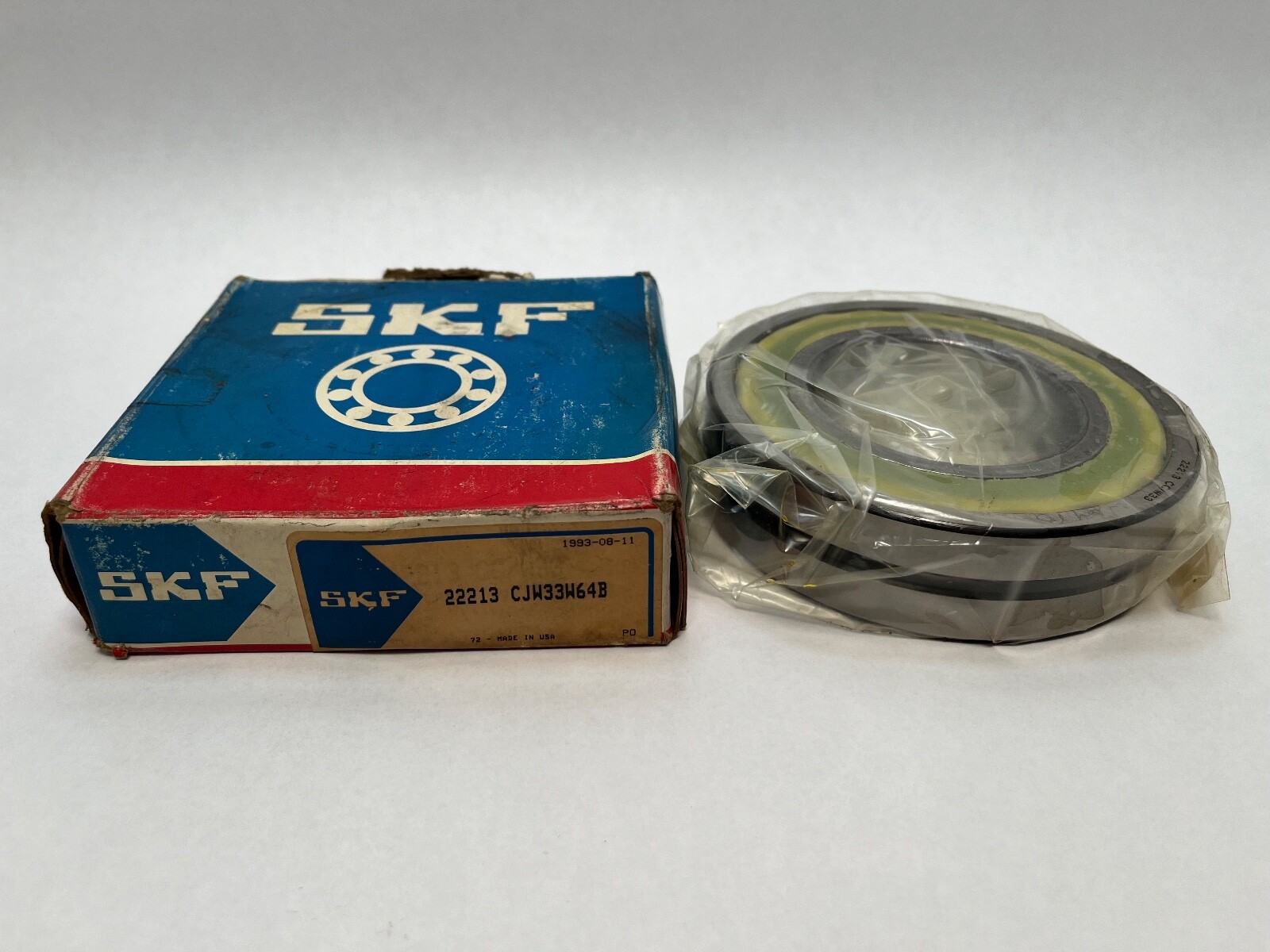

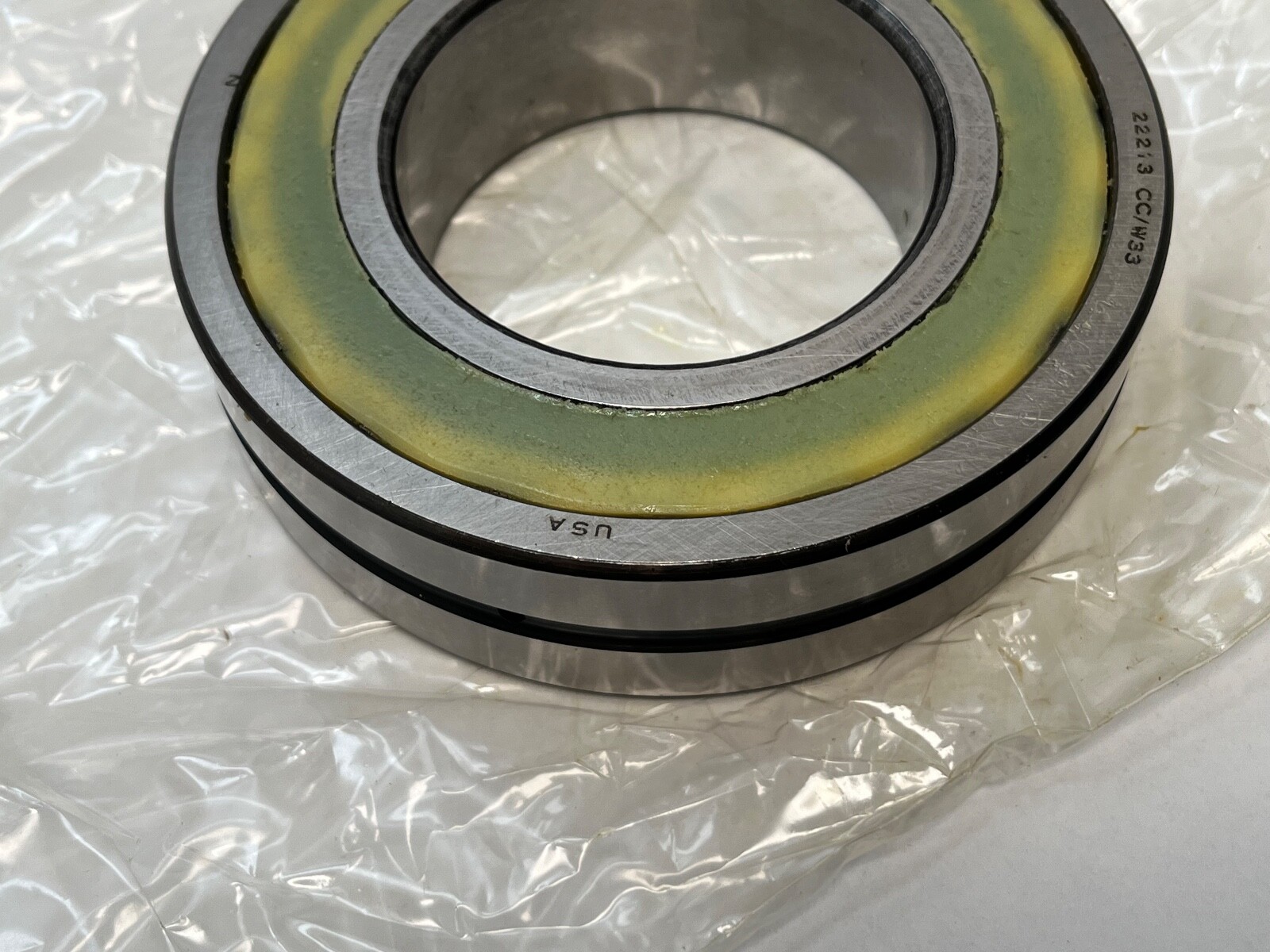

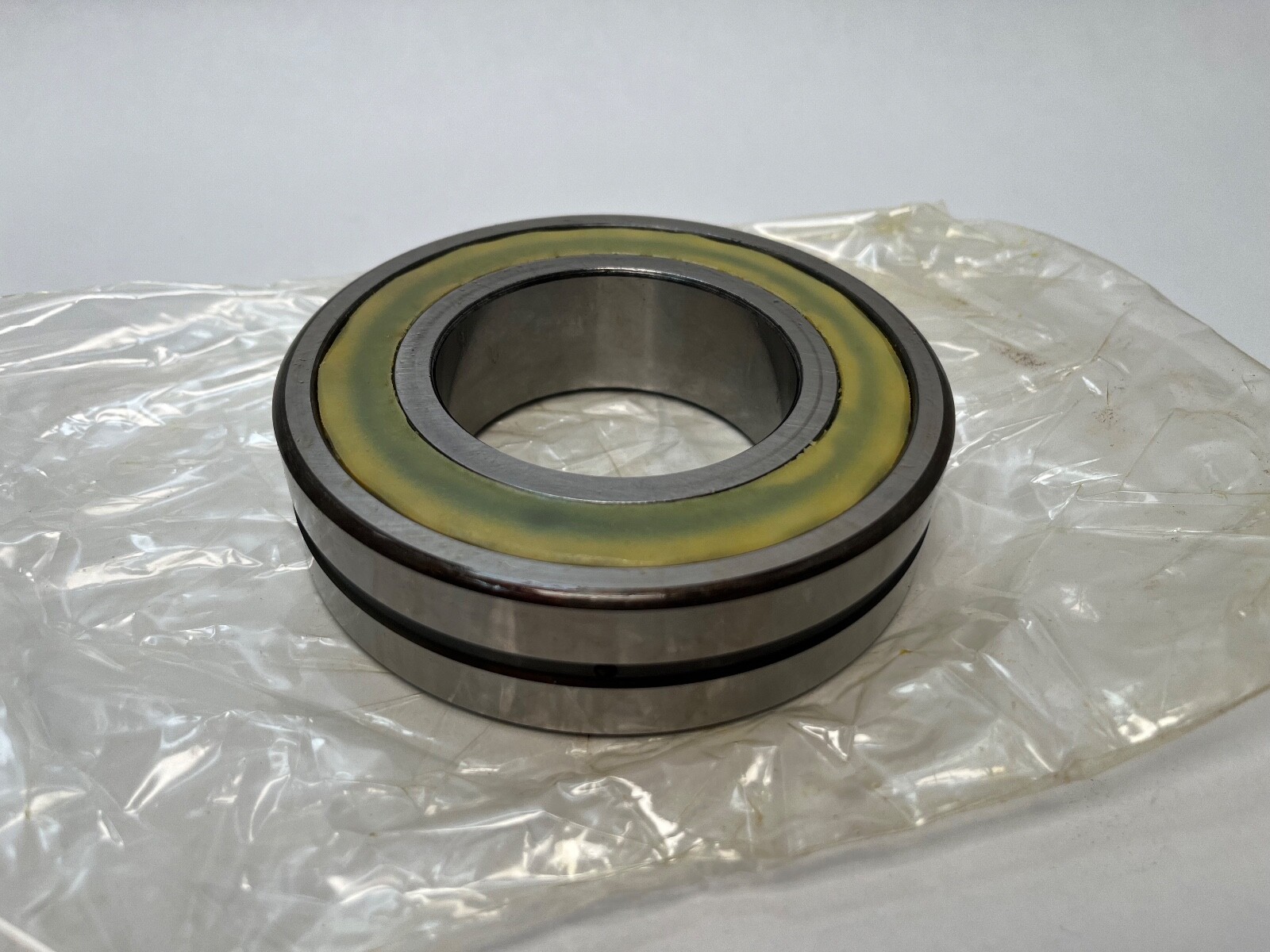

Double-row spherical roller bearing, 65 x 120 x 31 mm, cylindrical bore, W33 lubrication groove. Pressed steel window cage, CN clearance, open design.
List Price
$104.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22213-CJ-W33-W64B |
| Model | 22213 C J W33 W64B |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Material | Bearing steel |
|---|---|
| Series | 222 |
| Lubricant | Grease or oil |
| Base Number | 22213 |
| Relubrication | W33 annular groove in the outer ring with three radial holes |
| Mpn Variants | 22213-CJ-W33-W64B; 22213CJW33W64B; 22213CCW33; 22213 CC/W33; 22213 |
| Cage Type | Window type, inner-ring guided |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00.80 |
| Bearing Material | Bearing steel |
| Closure Type | Open |
| Cross Reference 1 | Timken 22213EJW33 (reinforced E design, W33 groove) |
|---|---|
| Cross Reference 2 | NSK 22213EAE4 (reinforced EA design, E4 groove) |
| Cross Reference 3 | FAG 22213-E1 (reinforced E design, no W33 groove) |
| Cross Reference 4 | NTN 22213 (no W33 groove, design may differ) |
SKF 22213 CJ/W33 double-row spherical roller bearing with a cylindrical bore. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Cylindrical. Cage Material: Pressed steel. Cage Type: Window type, inner-ring guided. Internal Clearance: CN. Closure Type: Open. Unit Quantity: 1 Pc.
22213 — the 222 spherical roller series at a 65 mm bore.
CJ — SKF pressed steel window cage.
W33 — annular groove machined into the outer ring outside diameter with three radial holes through to the rolling elements.
No K in the designation — cylindrical bore.
No clearance suffix — normal (CN) radial internal clearance.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm. Series: 222. Base Number: 22213. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Cylindrical. Cage Material: Pressed steel. Cage Type: Window type, inner-ring guided. Internal Clearance: CN. Closure Type: Open. Lubricant: Grease or oil. Bearing Material: Bearing steel. Relubrication: W33 annular groove in the outer ring with three radial holes. Harmonization Code: 8482.30.00.80.
Lubrication Groove Width: 6 mm. Lubrication Hole Diameter: 3 mm. Shaft Abutment Diameter: 74 mm minimum. Housing Abutment Diameter: 111 mm maximum. Shaft and Housing Fillet Radius: 1.5 mm maximum. Bearing Chamfer r1,2: 1.5 mm minimum.
Searchable forms of the designation: 22213-CJ-W33-W64B, 22213CJW33W64B, 22213CCW33, 22213 CC/W33, 22213. Related 22213 designations: Timken 22213EJW33, NSK 22213EAE4, FAG 22213-E1, NTN 22213.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm.
W33 is an annular groove in the outer ring outside diameter with three radial holes through to the rolling elements.
CJ is a pressed steel window cage, inner-ring guided.
