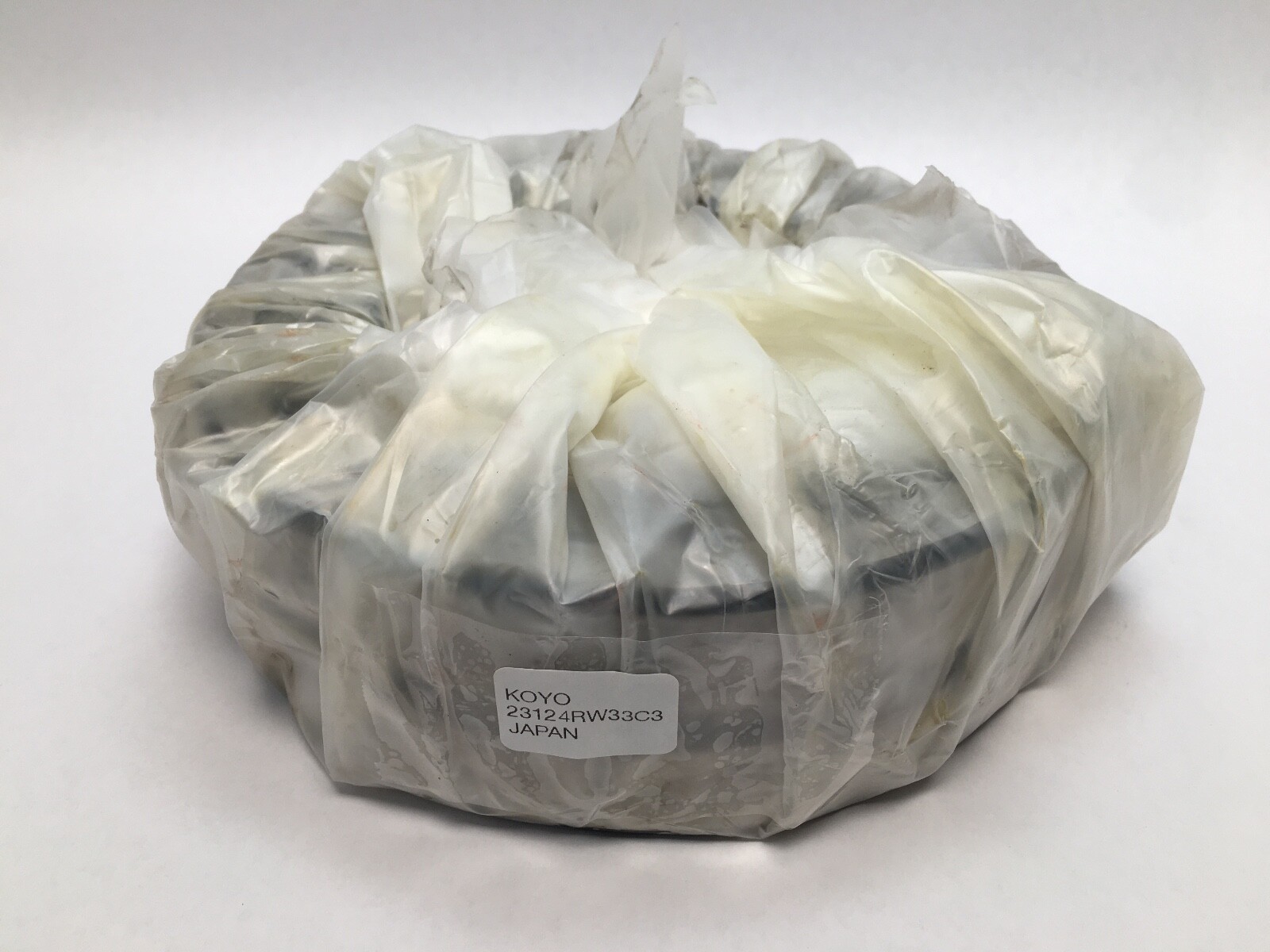

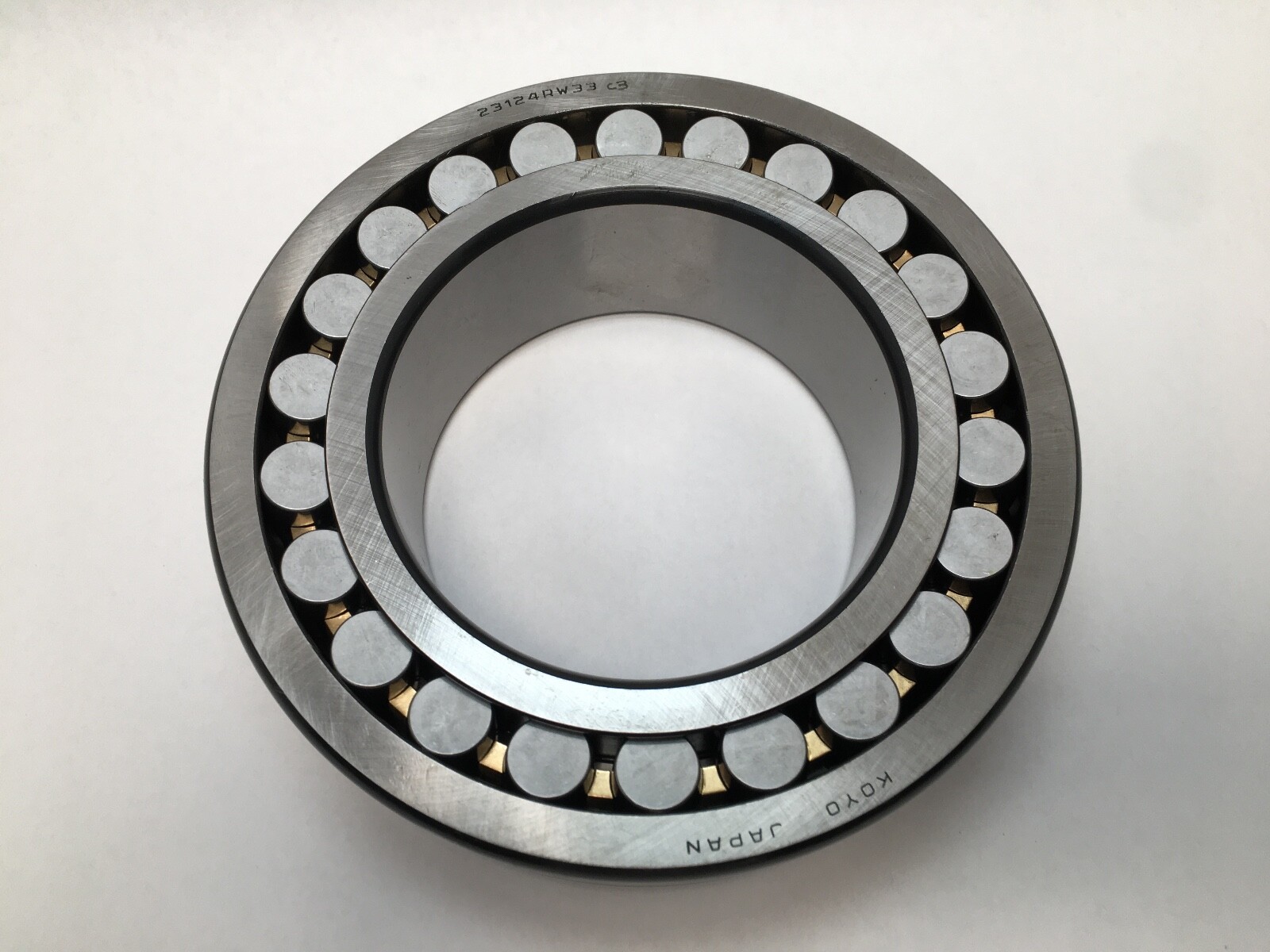

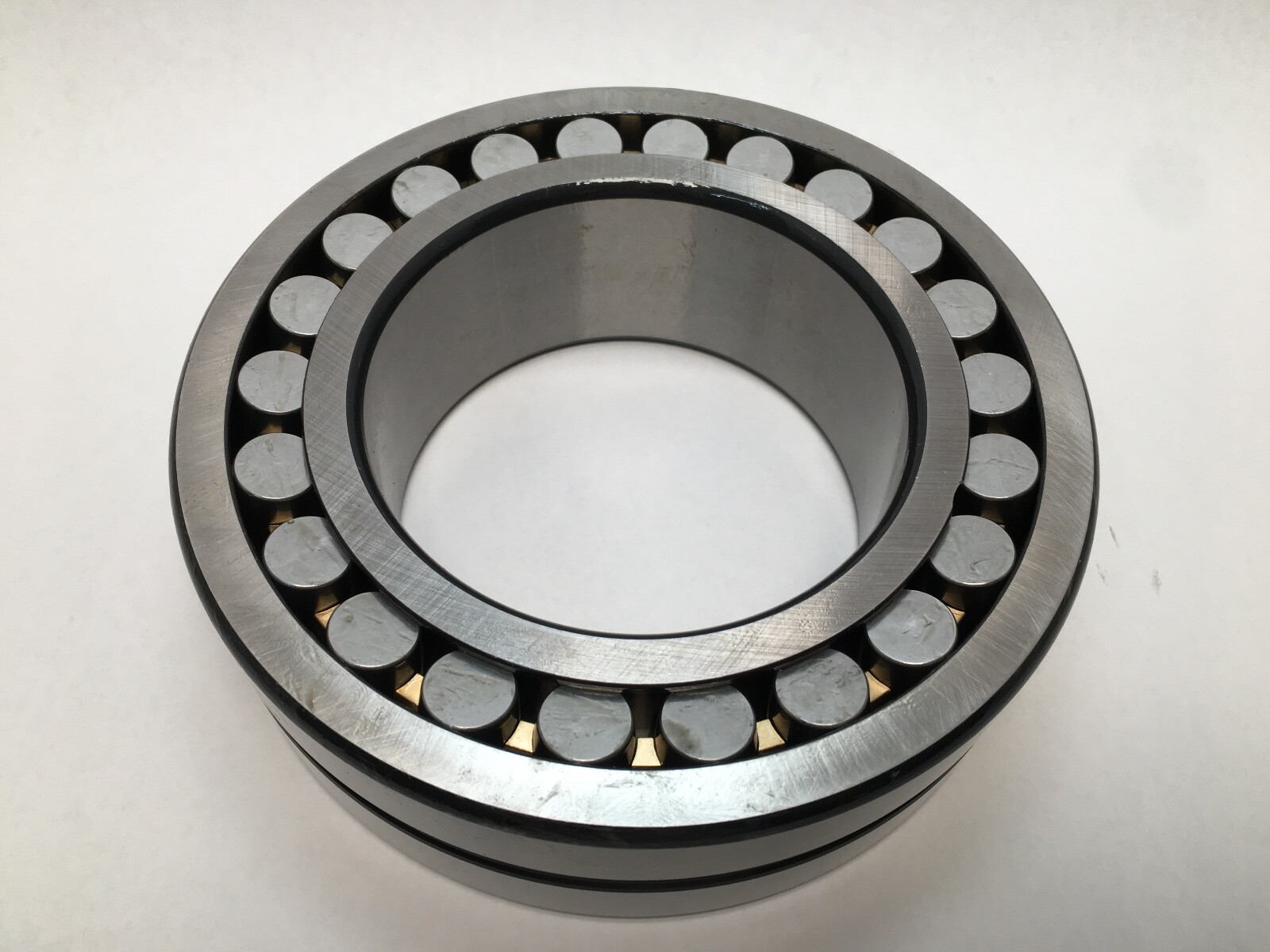

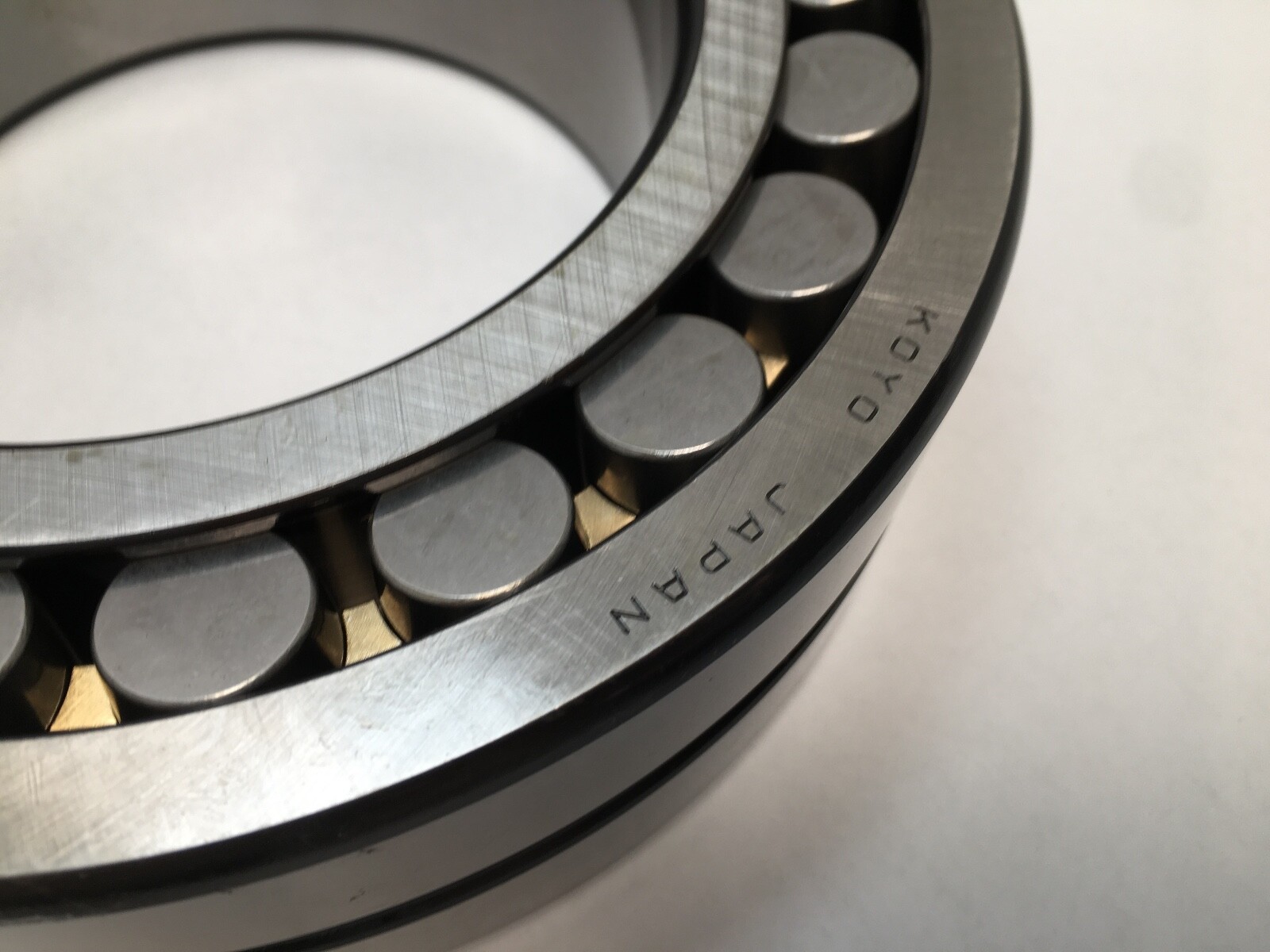

Koyo 23124RW33C3 spherical roller bearing, 120 mm straight bore, 200 mm OD, 62 mm width, W33 lubrication groove, C3 clearance, brass cage. 23100 series.
List Price
$335.78
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| Model | 23124 R W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 200 mm |
| Width | 62 mm |
| Material | Bearing Steel |
|---|---|
| Series | 23100 |
| Lubricant | grease or oil |
| Rolling Elements | Spherical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Relubrication | W33 groove and three holes in outer ring |
| Mpn Variants | 23124RW33C3, 23124 R W33 C3, 23124-R-W33-C3, 23124W33C3 |
| Compatible With Replaces | Current Koyo equivalent 23124RHW33C3 (successor) |
| Additional Attributes | Successor 23124RH data: Dynamic Load Rating 571,000 N; Static Load Rating 714,000 N; Limiting Speed 2,200 rpm grease; 3,000 rpm oil; Mass 7.98 kg (17.59 lb); r min 2 mm; da min 130 mm; Da max 190 mm; ra max 2 mm |
| Cross Reference 1 | SKF 23124 CC/C3W33 – W33 groove, C3 |
|---|---|
| Cross Reference 2 | NSK 23124CE4 – lube groove; specify C3 |
| Cross Reference 3 | Koyo 23124RHW33C3 – current Koyo, pressed steel cage |
| Cross Reference 4 | FAG 23124-E1A-M – brass cage; check groove, C3 |

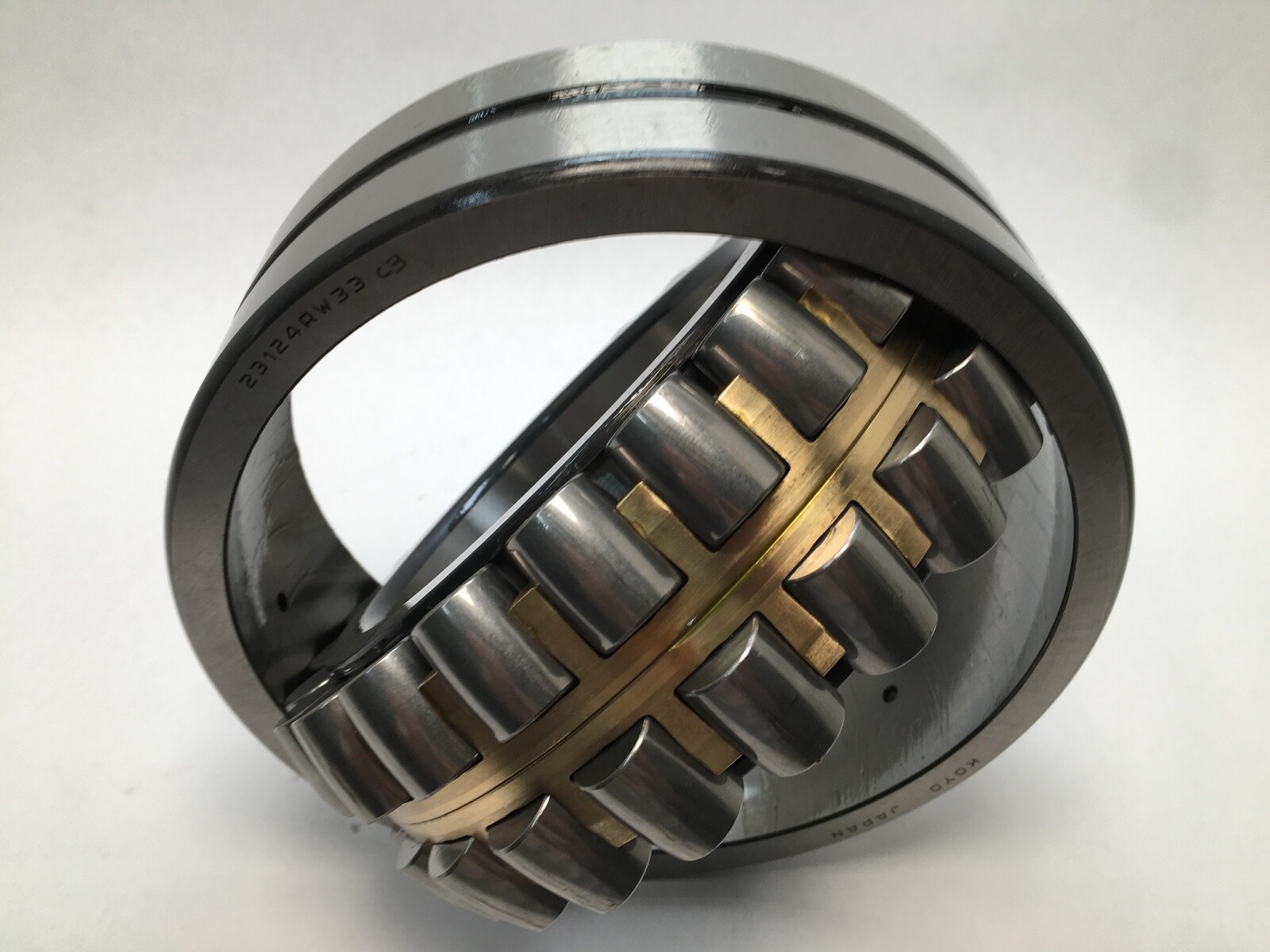

The Koyo 23124RW33C3 is a double-row spherical roller bearing in the 23100 series with a straight (cylindrical) bore and a relubrication groove in the outer ring. The spherical outer raceway lets the bearing self-align under shaft deflection or housing misalignment while carrying heavy radial load and axial load in both directions.

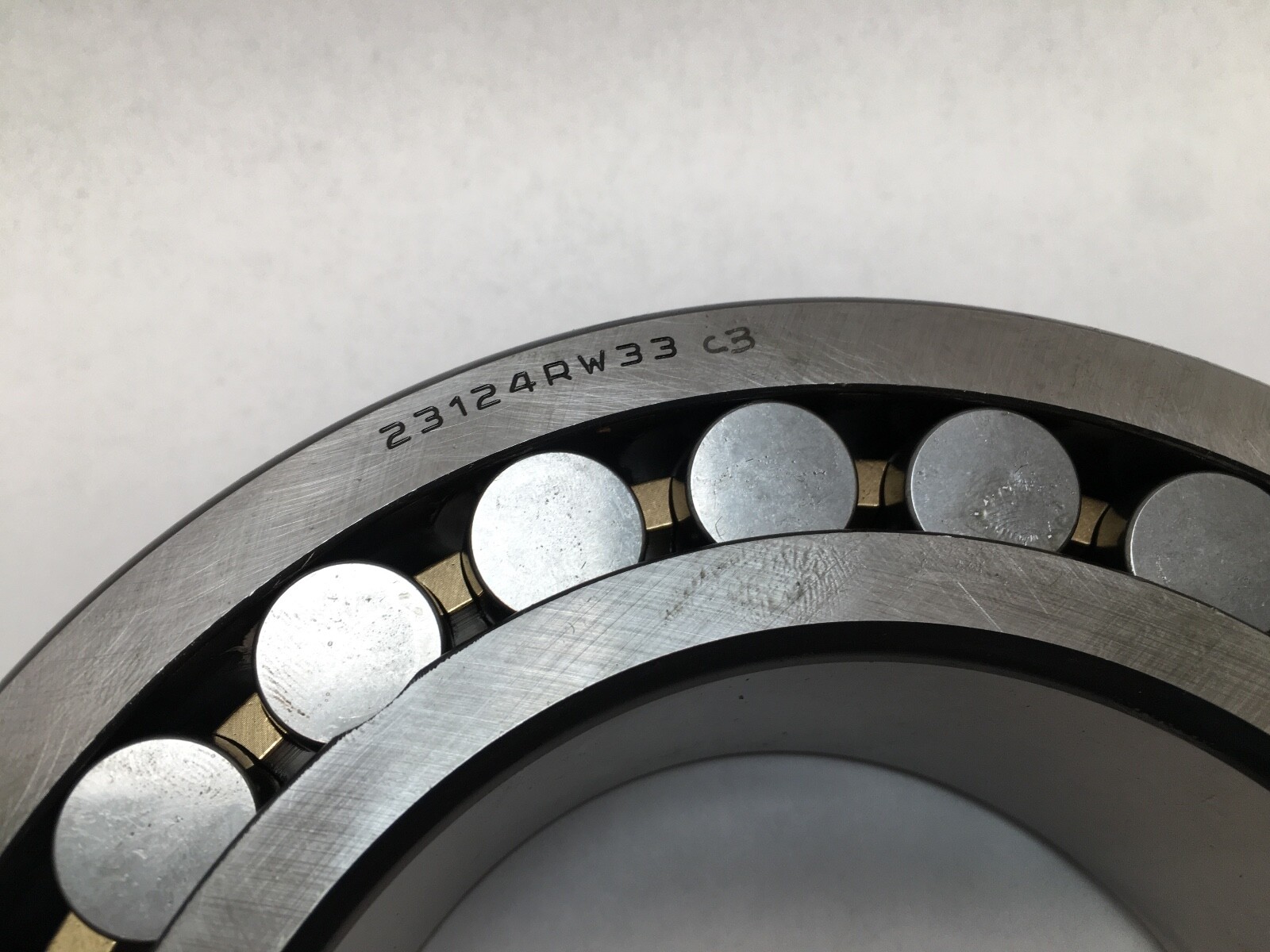

23124 — 231 series spherical roller bearing, bore code 24 = 120 mm bore, 200 mm OD, 62 mm width.
R — Koyo R-type internal design with machined brass cage.
W33 — lubrication groove and three lubrication holes in the outer ring.
C3 — radial internal clearance greater than normal.
Bore Diameter: 120 mm. Outside Diameter: 200 mm. Overall Width: 62 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Brass. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil.

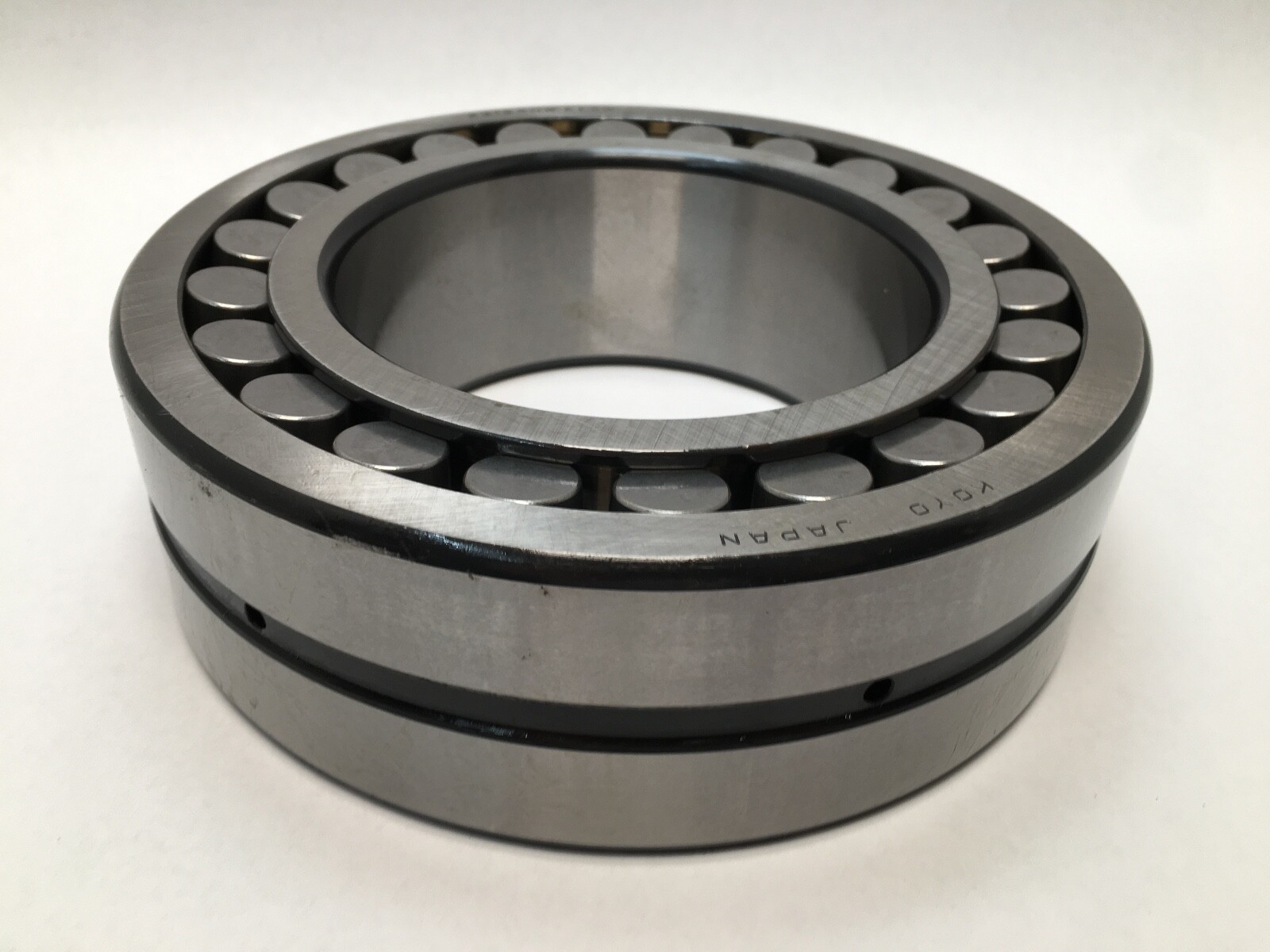

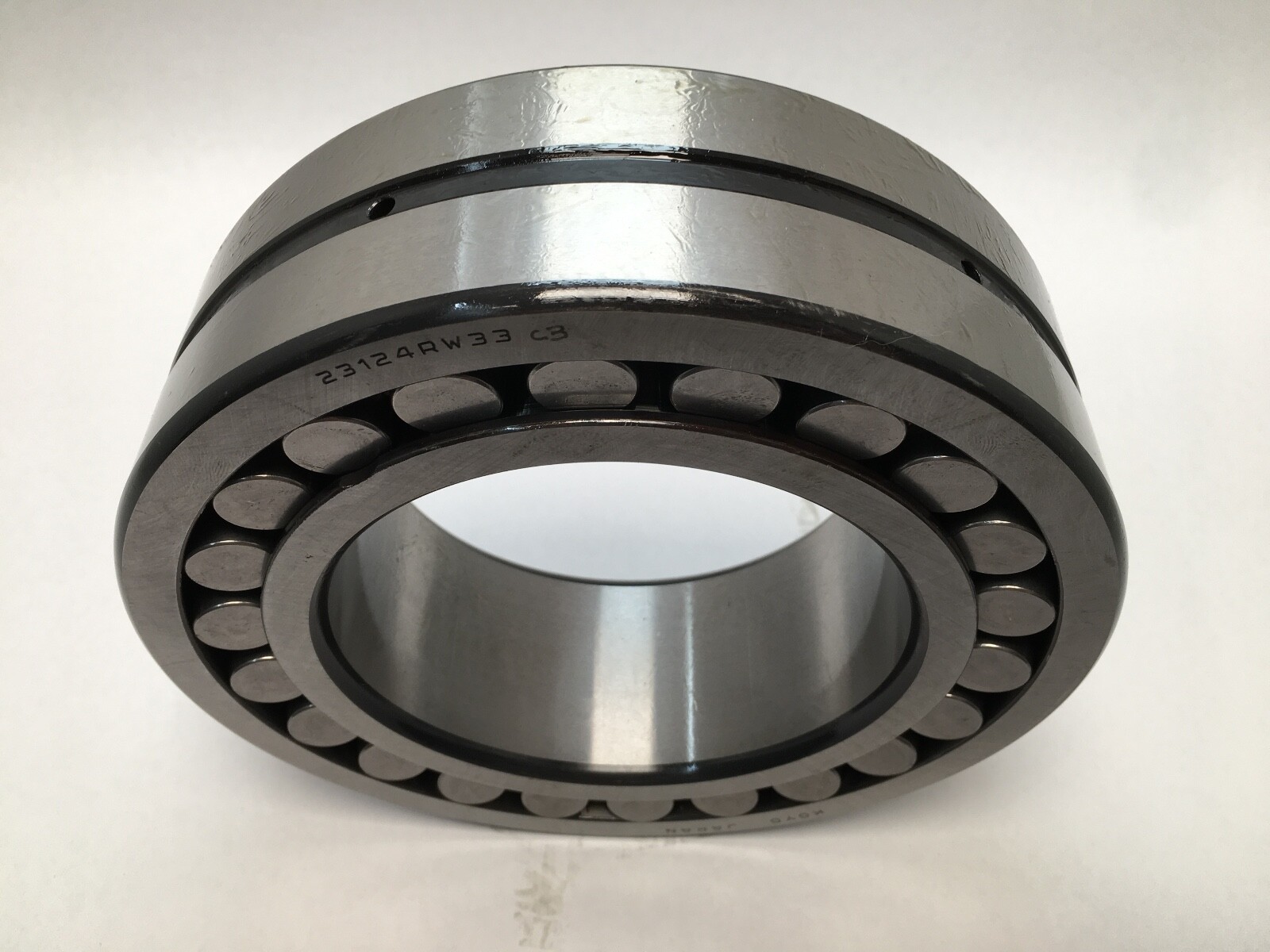

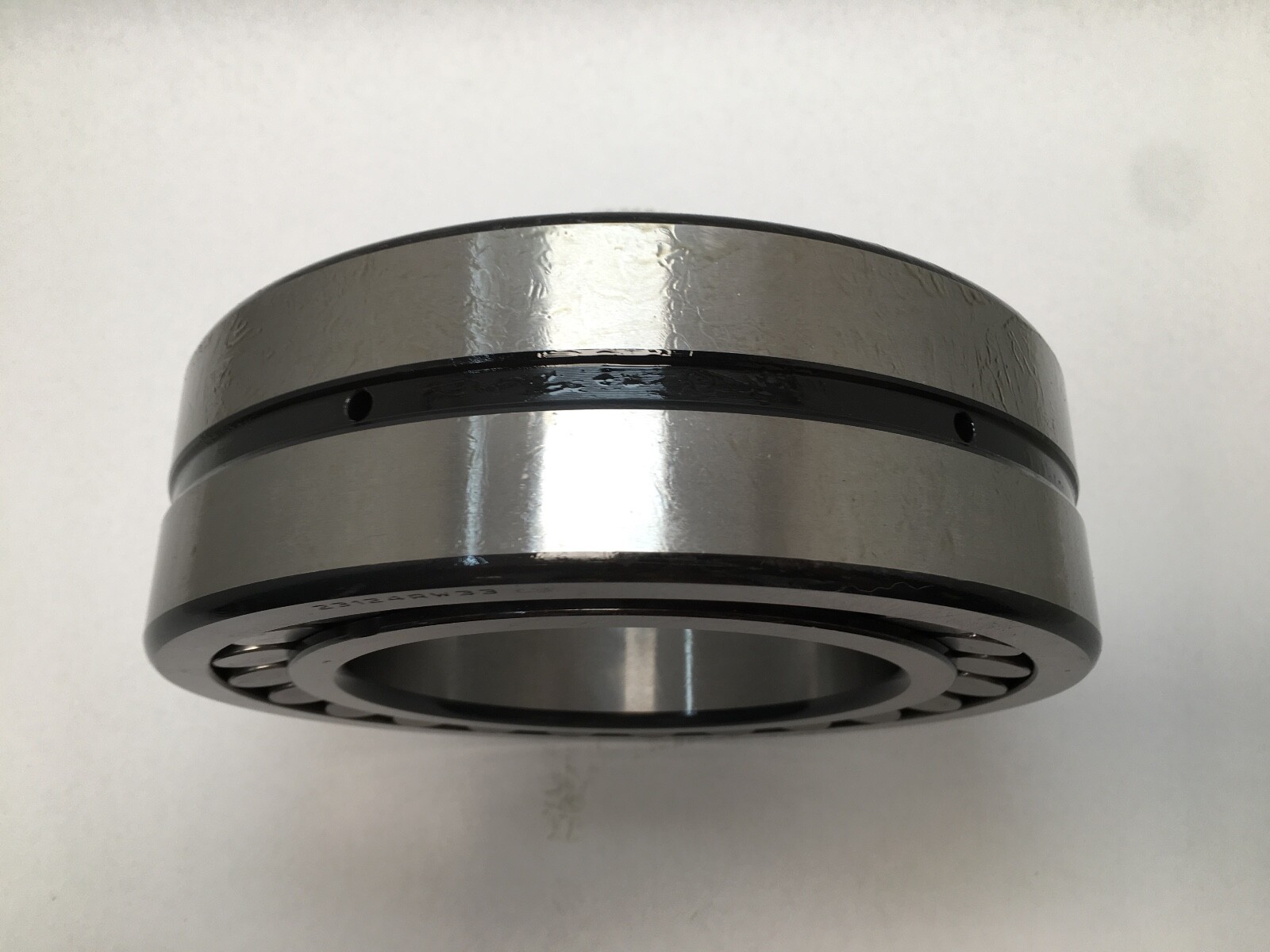

The W33 groove distributes lubricant around the outer ring; three radial holes carry it to the rollers.
Successor 23124RH data: Dynamic Load Rating 571,000 N. Static Load Rating 714,000 N. Limiting Speed 2,200 rpm grease; 3,000 rpm oil. Mass 7.98 kg (17.59 lb).
Successor 23124RH data: chamfer r (min.) 2 mm, shaft abutment da (min.) 130 mm, housing abutment Da (max.) 190 mm, fillet ra (max.) 2 mm.
Unit Quantity: 1 Pc.
Straight-bore 120 x 200 x 62 mm spherical roller bearings with a lubrication groove, specified in C3: SKF 23124 CC/C3W33 and NSK 23124CE4. Koyo 23124RHW33C3 is the current Koyo number, with a pressed steel cage instead of brass. FAG 23124-E1A-M has a brass cage; check for the lubrication groove and specify C3.
