Availability:
4 in stock

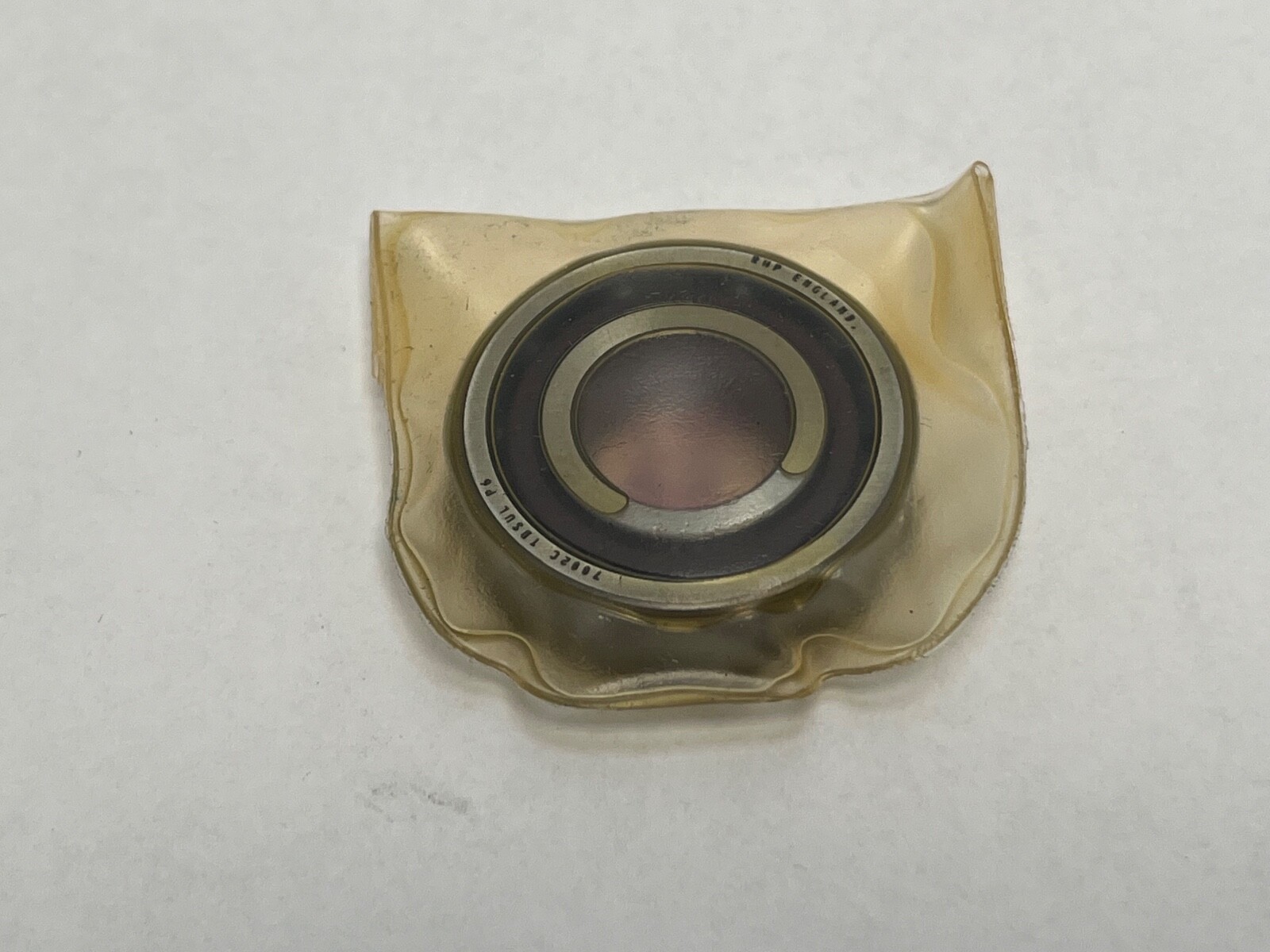

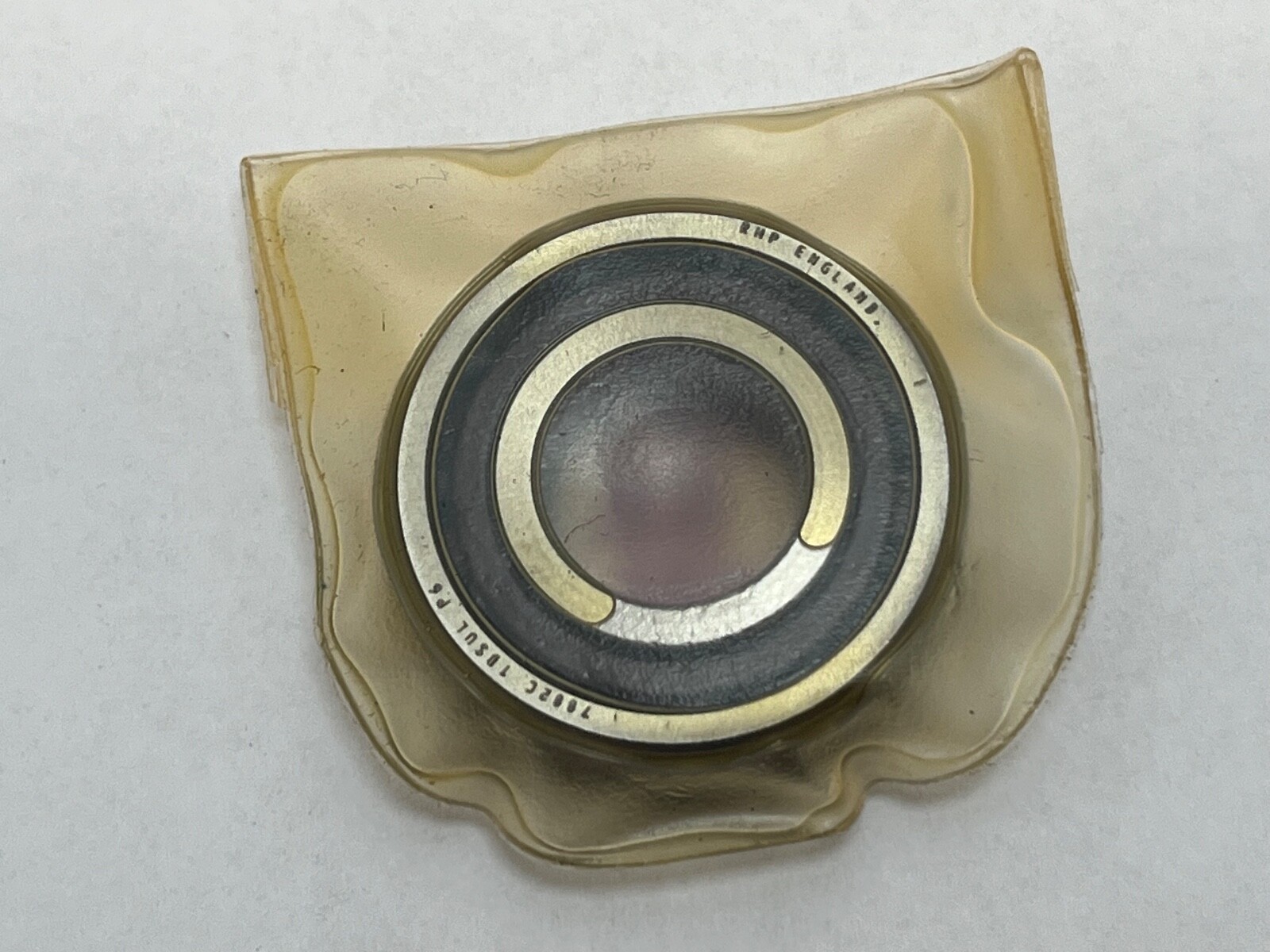

Angular contact ball bearing, 15 x 32 x 9 mm, 15° contact angle, ABEC 3 precision. Open, phenolic cage, universal face control for paired mounting.
List Price
$66.54
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7002CTBSULP6 |
| Model | 7002 C TB SUL P6 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Grease or oil |
| Base Number | 7002 |
| Industry Terms | Spindle bearing; Precision angular contact ball bearing; Machine tool spindle bearing; Universally ground bearing |
| Common Misspellings | 7002 CTB SUL P6; 7002CTBSULP-6; 2M9102WI; B7002X2TAULEP-3; 7002CTBSULP6 RHP |
| Application Types | Machine tool spindles; Grinding spindles; Precision gearboxes; High-speed pumps |
| Mpn Variants | 7002CTBSULP6; 7002-C-TB-SUL-P6; B7002X2TAULEP3; B-7002-X2-TA-UL-EP3; 2MM9102WI |
| Precision Class | ABEC 3 / P6 |
| Additional Attributes | Effective load centre a: 7.6 mm; shaft abutment d1 min 17.5 mm; abutment D1 max 29.5 mm; abutment D2 max 30.8 mm; chamfer r min 0.3 mm; chamfer r1 min 0.15 mm |
| Dynamic Load Rating | 6,250 N |
| Static Load Rating | 3,400 N |
| Rolling Elements | Ball |
| Item Weight | 0.031 kg (0.07 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Single, universally ground for paired mounting |
| Bearing Material | Bearing steel (SAE 52100 equivalent) |
| Cross Reference 1 | Timken/Fafnir 2MM9102WI - 15 deg, carton cross |
|---|---|
| Cross Reference 2 | FAG B7002-C-T - 15 deg, phenolic cage, no preload code |
| Cross Reference 3 | SKF 7002 CD - 15 deg, no preload or class code |
| Cross Reference 4 | NSK 7002C - 15 deg, no preload or class code |
| Cross Reference 5 | NTN 7002C - 15 deg, no preload or class code |
| Cross Reference 6 | Koyo 7002C - 15 deg, no preload or class code |
| Cross Reference 7 | SNR 7002CV - 15 deg, no preload or class code |
RHP 7002CTBSULP6 single-row angular contact ball bearing. Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 7000. Base Number: 7002.
7 — single-row angular contact ball bearing.
0 — RHP dimension series 0, ISO series 10.
02 — bore code 02, a 15 mm bore.
C — 15° contact angle. The carton’s B-series marking X2 states the same 15°.
TB — one-piece machined cage in laminated phenolic resin.
SU — single universal face control. Inner and outer rings are ground to equal width and the face steps are pre-adjusted at manufacture, so two bearings mount back-to-back, face-to-face or in tandem without custom-ground spacers.
P6 — RHP precision grade P6. Precision Class: ABEC 3 / P6.
Dynamic Load Rating: 6,250 N. Static Load Rating: 3,400 N. Cage Material: Phenolic. Bearing Material: Bearing steel, SAE 52100 equivalent, through hardened and heat treated for dimensional stability. Lubricant: Grease or oil.
The 15° contact angle carries radial load with an axial component in one direction, so the bearing runs opposed against a second bearing or within a larger set. The laminated phenolic cage is light and runs quietly against the ring land.
Shaft abutment diameter d1: 17.5 mm minimum. Abutment diameter D1: 29.5 mm maximum. Abutment diameter D2: 30.8 mm maximum. Chamfer dimension r: 0.3 mm minimum. Chamfer dimension r1: 0.15 mm minimum. Effective load centre a: 7.6 mm. Item Weight: 0.031 kg (0.07 lb).
Unit Quantity: 1 Pc. Mounting Arrangement: single bearing, universally face-ground for paired or multiple-set mounting.

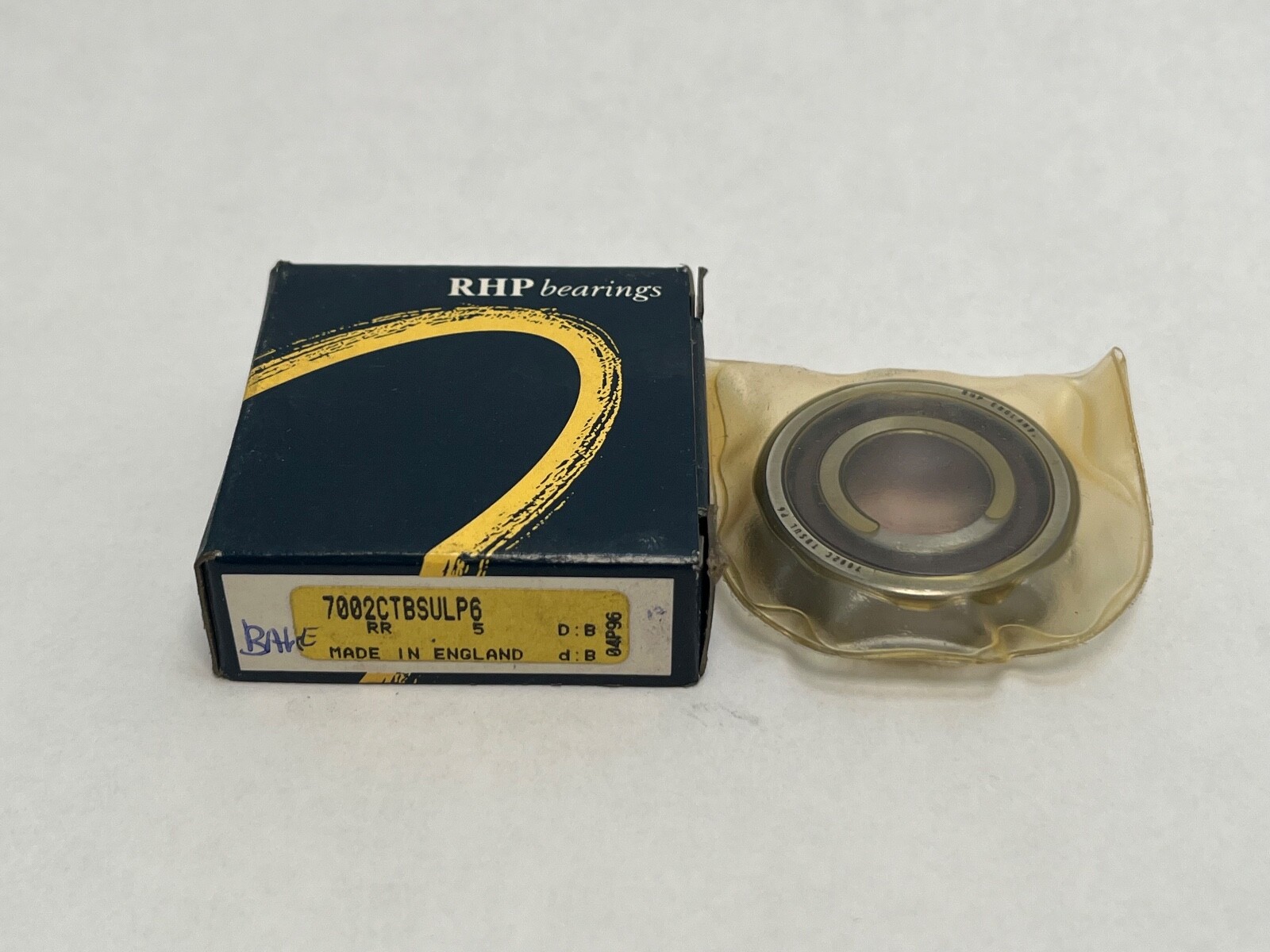

The carton carries the RHP B-series marking B7002X2TAULEP3 and the Fafnir-scheme number 2MM9102WI for the same bearing. Same envelope and 15° contact angle: FAG B7002-C-T, SKF 7002 CD, NSK 7002C, NTN 7002C, Koyo 7002C and SNR 7002CV. These carry no SUL preload or P6 class code, so check the preload and class when pairing.
