MRC108KRAngular Contact Ball Bearing — 40 mm Bore, 68 mm OD, 15 mm Width, 15° Contact Angle, Counterbored Outer Ring

Condition: New

Availability:

1 in stock

Angular contact ball bearing, 40 x 68 x 15 mm, 15° contact angle, counterbored outer ring. 19,500 N dynamic rating, 9,500 rpm grease. ISO 7008C envelope.

List Price

$38.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandMRC
MPN108KR
Model7008-C
Bearing TypeAngular Contact Ball Bearing
ID40 mm
OD68 mm
Width15 mm

Technical Specifications

MaterialBearing Steel
Base Number108
Industry Terms15 degree angular contact bearing, counterbored outer ring bearing, 7008 angular contact
Mpn Variants108KR, 108-KR, 108-K-R, 108 KR
Dynamic Load Rating19,500 N
Static Load Rating14,600 N
SeriesMRC 100-KR
Rolling ElementsBall
Number Of Rows1
Limiting Speed9,500 rpm grease; 12,000 rpm oil
Contact Angle15°
Closure TypeOpen

Cross-References

Cross Reference 17008C
Cross Reference 2NSK 7008C
Cross Reference 3NTN 7008C
Cross Reference 4Koyo 7008C
Cross Reference 5SKF 7008 CD
Seller Part Number: AC2B4#CJCLZ7

Product Description

What this part is:

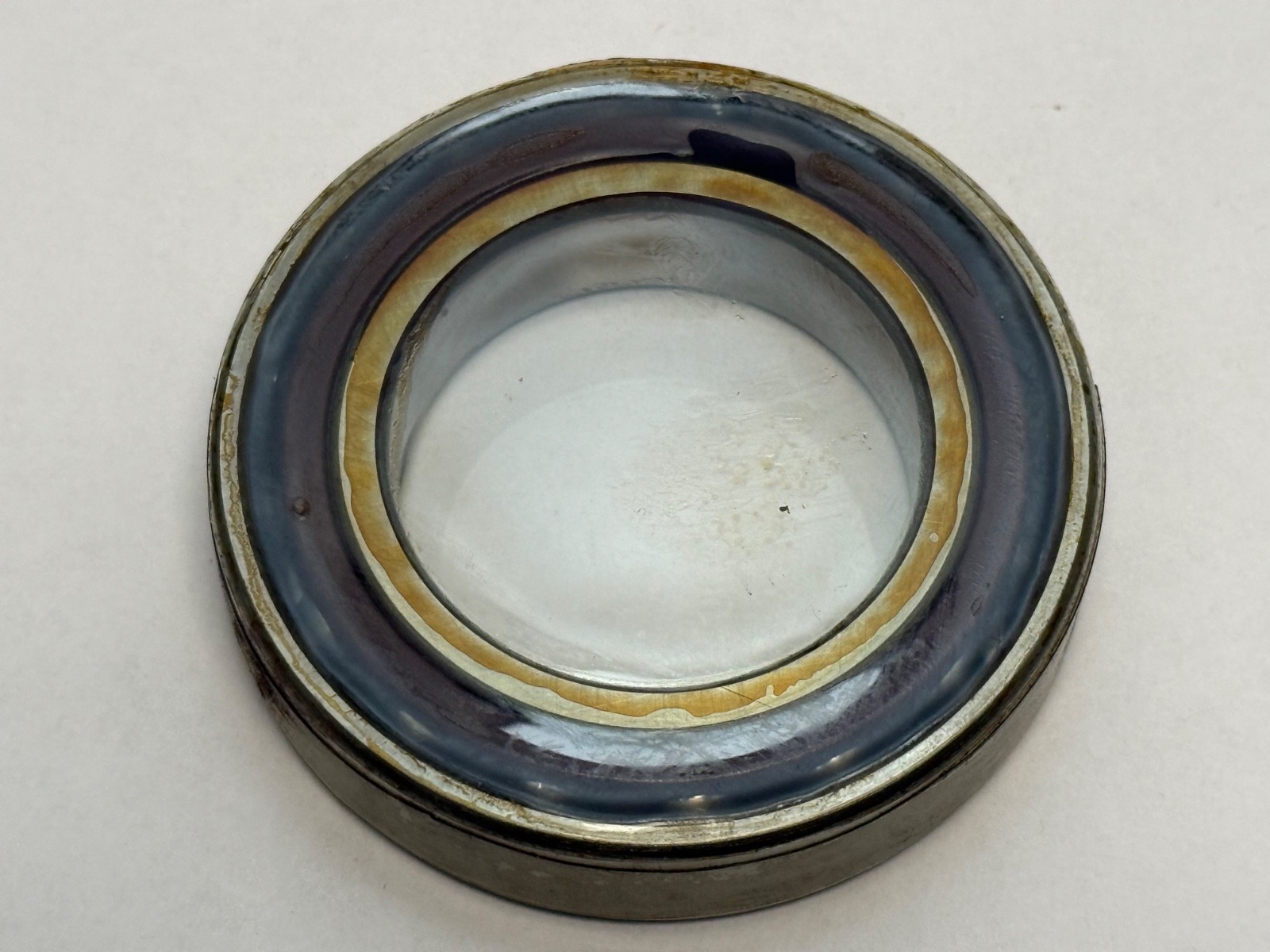

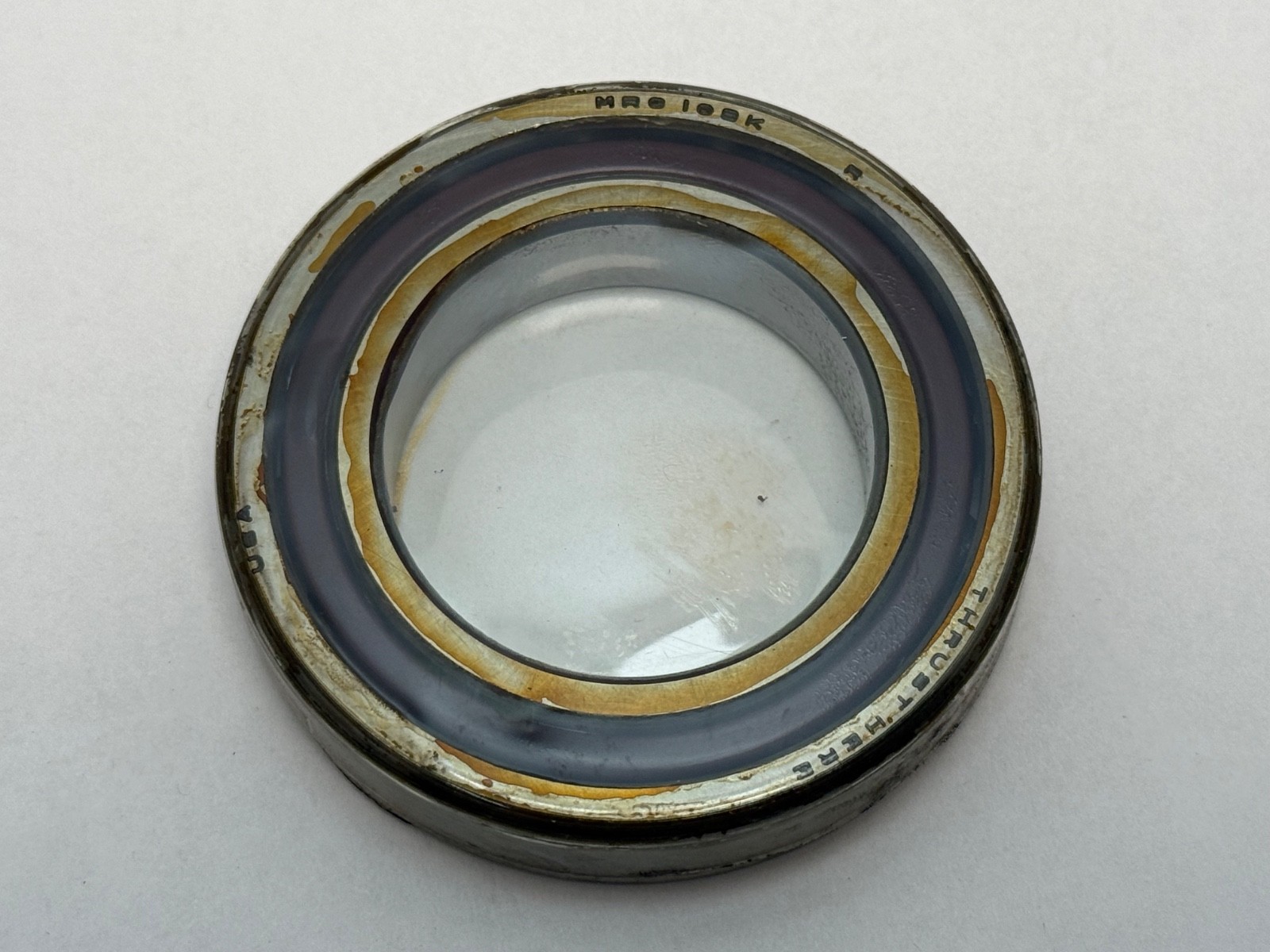

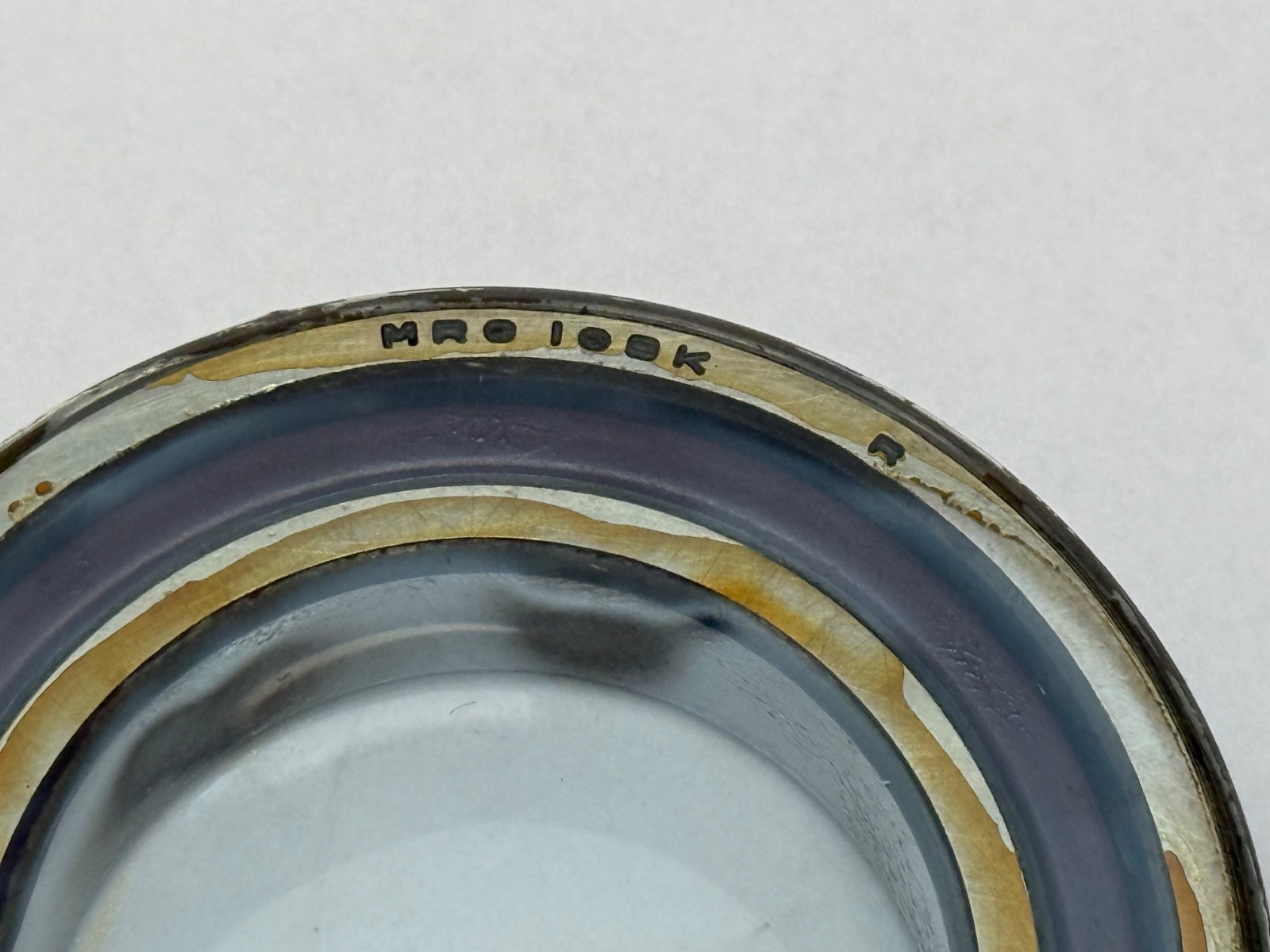

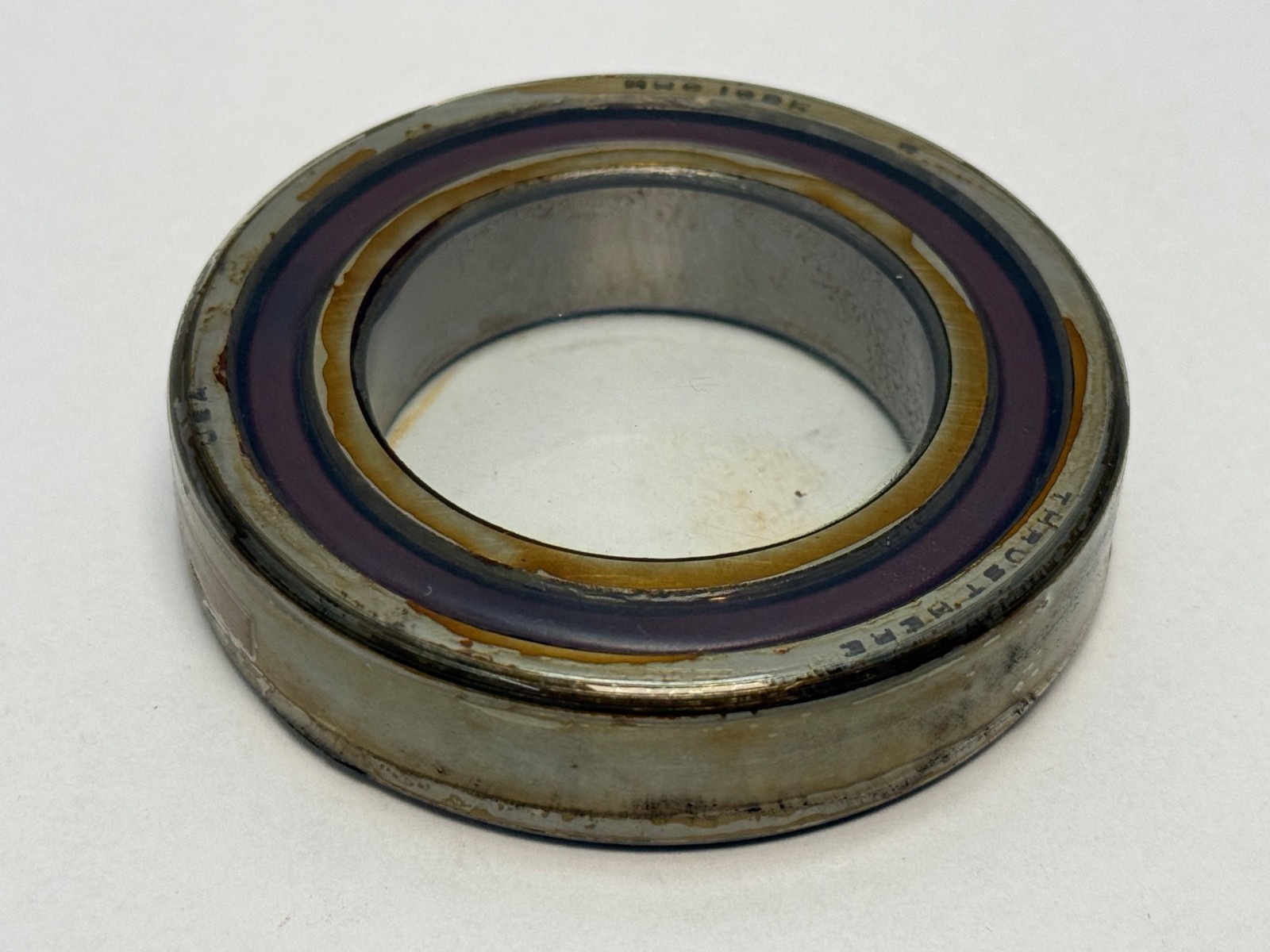

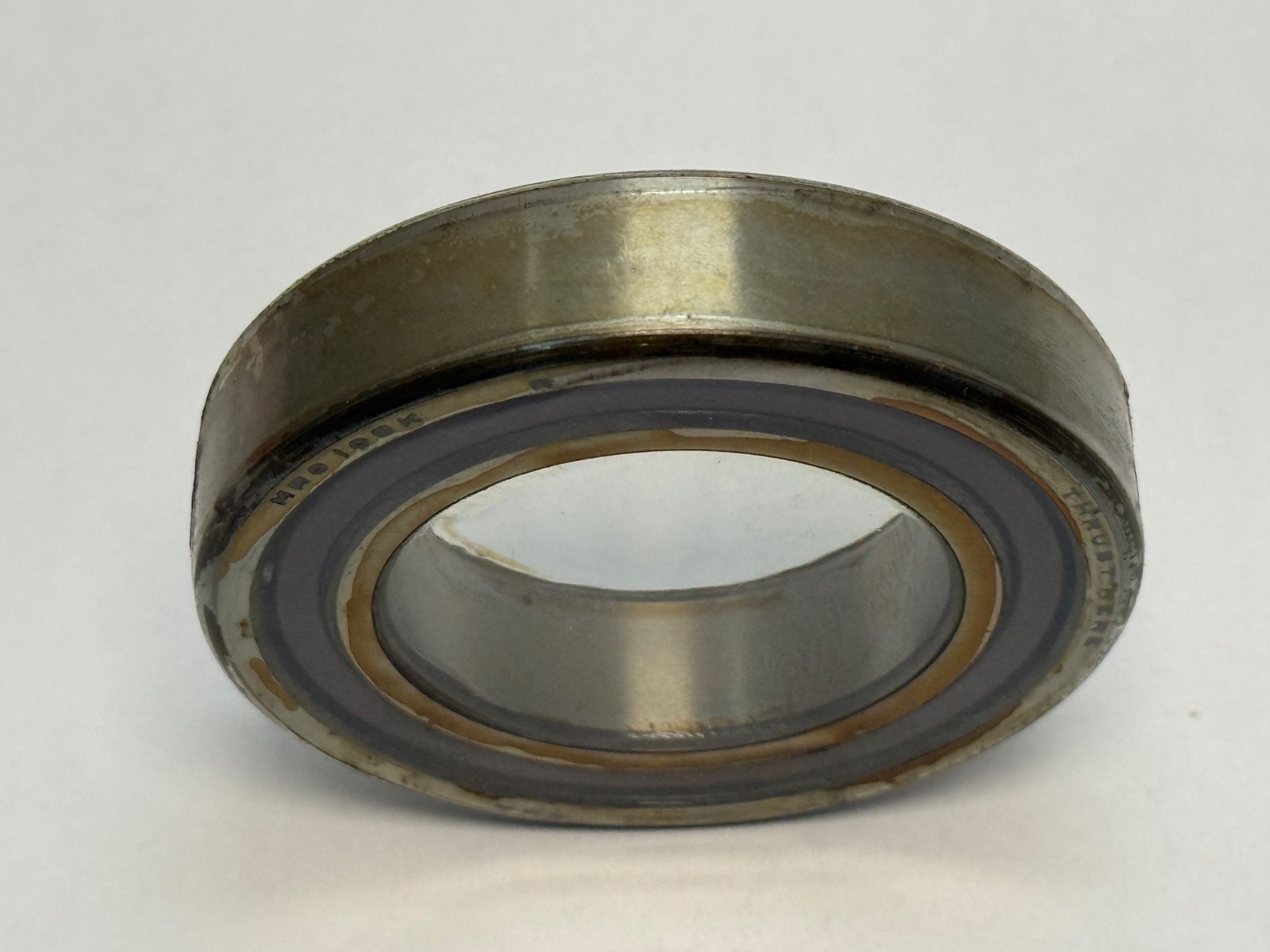

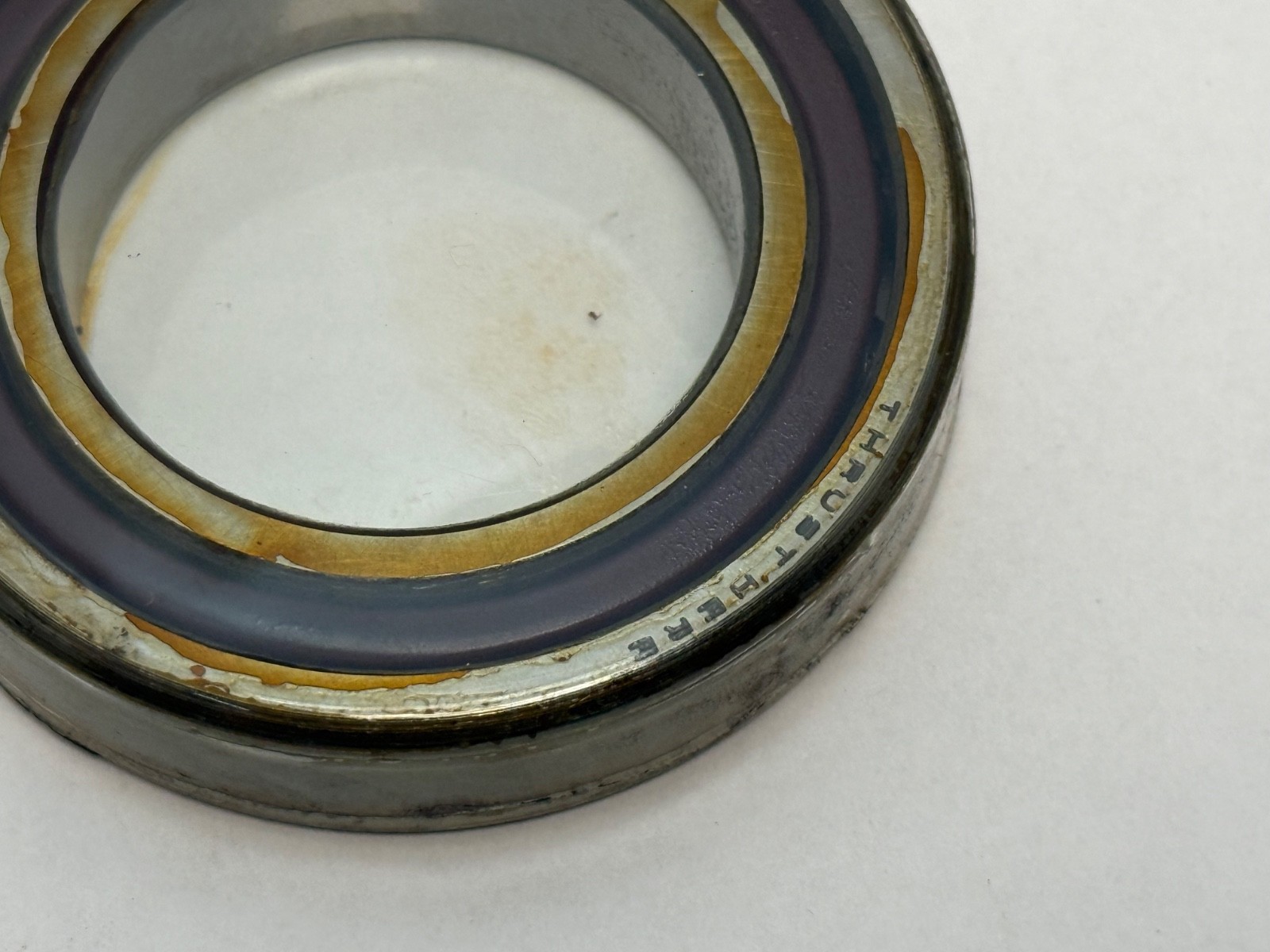

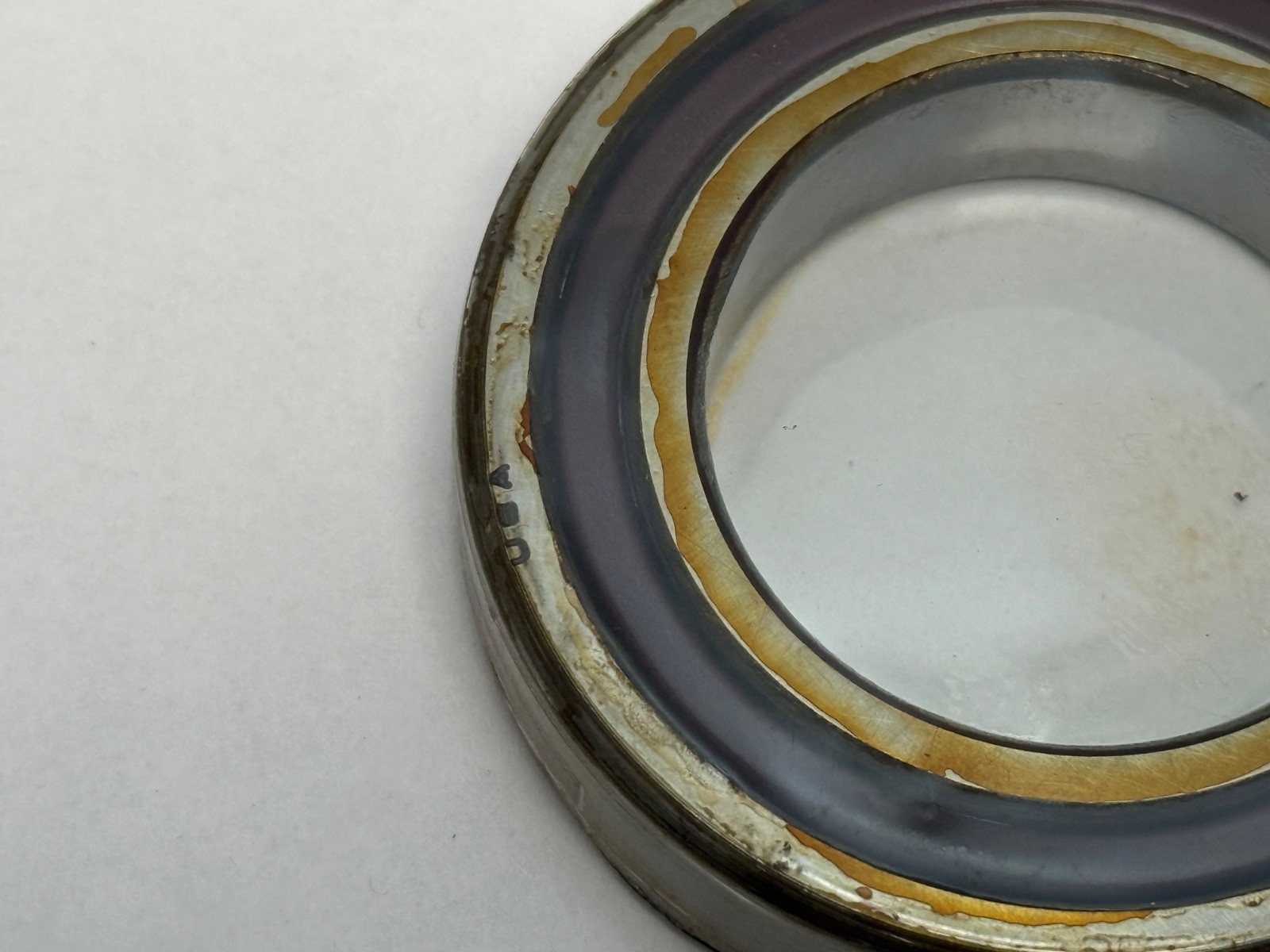

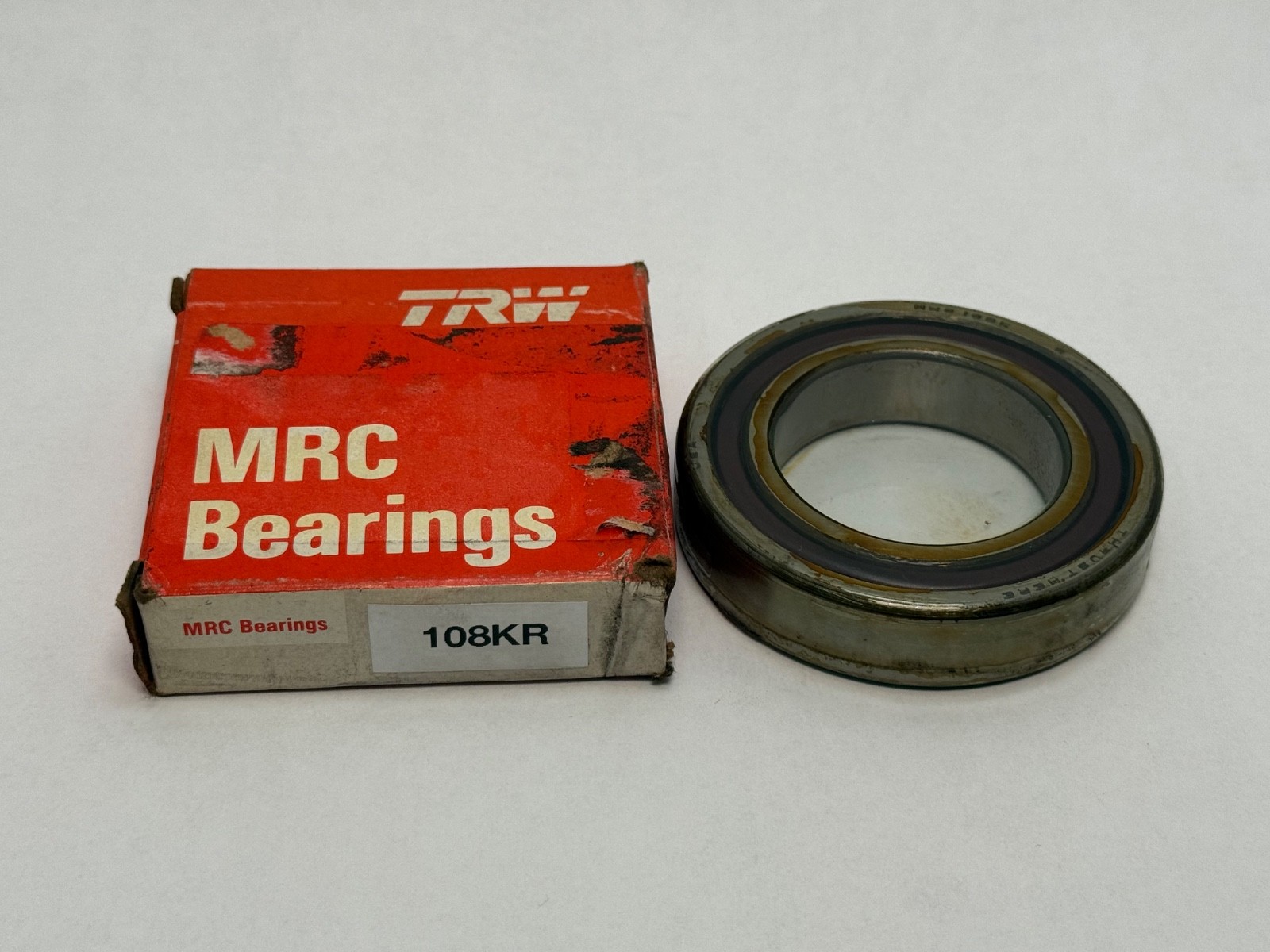

MRC 108KR single-row angular contact ball bearing from the MRC 100-KR extra-light series. MRC is an SKF brand. Contact Angle: 15°. The outer ring has one full shoulder and one counterbored shoulder, which allows a larger ball complement than a deep groove bearing of the same envelope. Unit Quantity: 1 Pc.

Decoding the designation:

108 — MRC 100 extra-light series, 40 mm bore, 68 mm outside diameter, 15 mm width. ISO 7008 envelope.

KR — MRC 100-KR series angular contact: 15° contact angle with a counterbored outer ring.

Specifications:

Dynamic Load Rating: 19,500 N. Static Load Rating: 14,600 N. Limiting Speed: 9,500 rpm grease; 12,000 rpm oil. Contact Angle: 15°. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Material: Bearing Steel. Series: MRC 100-KR. Base Number: 108.

Dimensions and mounting:

Bore Diameter: 40 mm. Outside Diameter: 68 mm. Width: 15 mm. Fillet Radius ra: 1.0 mm. Fillet Radius rb: 0.3 mm.

Compatibility and replacement:

Cross-references on the ISO 7008 envelope, 40 x 68 x 15 mm, 15° contact angle: 7008C, NSK 7008C, NTN 7008C, Koyo 7008C and SKF 7008 CD. MPN Variants: 108KR, 108-KR, 108-K-R, 108 KR.

Frequently asked questions:

What is the MRC 108KR?

It is a single-row angular contact ball bearing, 40 x 68 x 15 mm, with a 15° contact angle and a counterbored outer ring.

What are its load ratings and speed?

Dynamic load rating is 19,500 N and static load rating is 14,600 N. Limiting speed is 9,500 rpm on grease and 12,000 rpm on oil.

What does KR mean in the designation?

KR is the MRC 100-KR series angular contact type: 15° contact angle with a counterbored outer ring.
