Availability:
37 in stock
Angular contact ball bearing, 20 x 47 x 14 mm, 40° contact angle, polyamide cage, open, light preload, universally matchable for paired mounting.
List Price
$26.88
37 in stock
37 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7204BETNUL |
| Model | 7204 B E TN UL / 204WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm (0.7874 in) |
| OD | 47 mm (1.8504 in) |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New |
| Lubricant | Grease |
| Preload | Light |
| Base Number | 7204 |
| Industry Terms | angular contact ball bearing, 40 degree contact angle bearing, universally matchable bearing, spindle bearing, polyamide cage bearing |
| Overall Width | 14 mm (0.5512 in) |
| Bore Shaft Size | 20 mm (0.7874 in) |
| Mpn Variants | 7204BETNUL, 7204 BE TN UL, 7204-BE-TN-UL, 7204BETN, 7204BE, 7204B, 7204, 204WI CR SUL |
| Arrangement Configuration | Universally matchable single (UL) |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Design Units | Metric |
| Bearing Material | Bearing Steel |
| Part Number | 7204BETNUL |
| Cross Reference 1 | SKF 7204 BEP |
|---|---|
| Cross Reference 2 | FAG 7204-B-TVP |

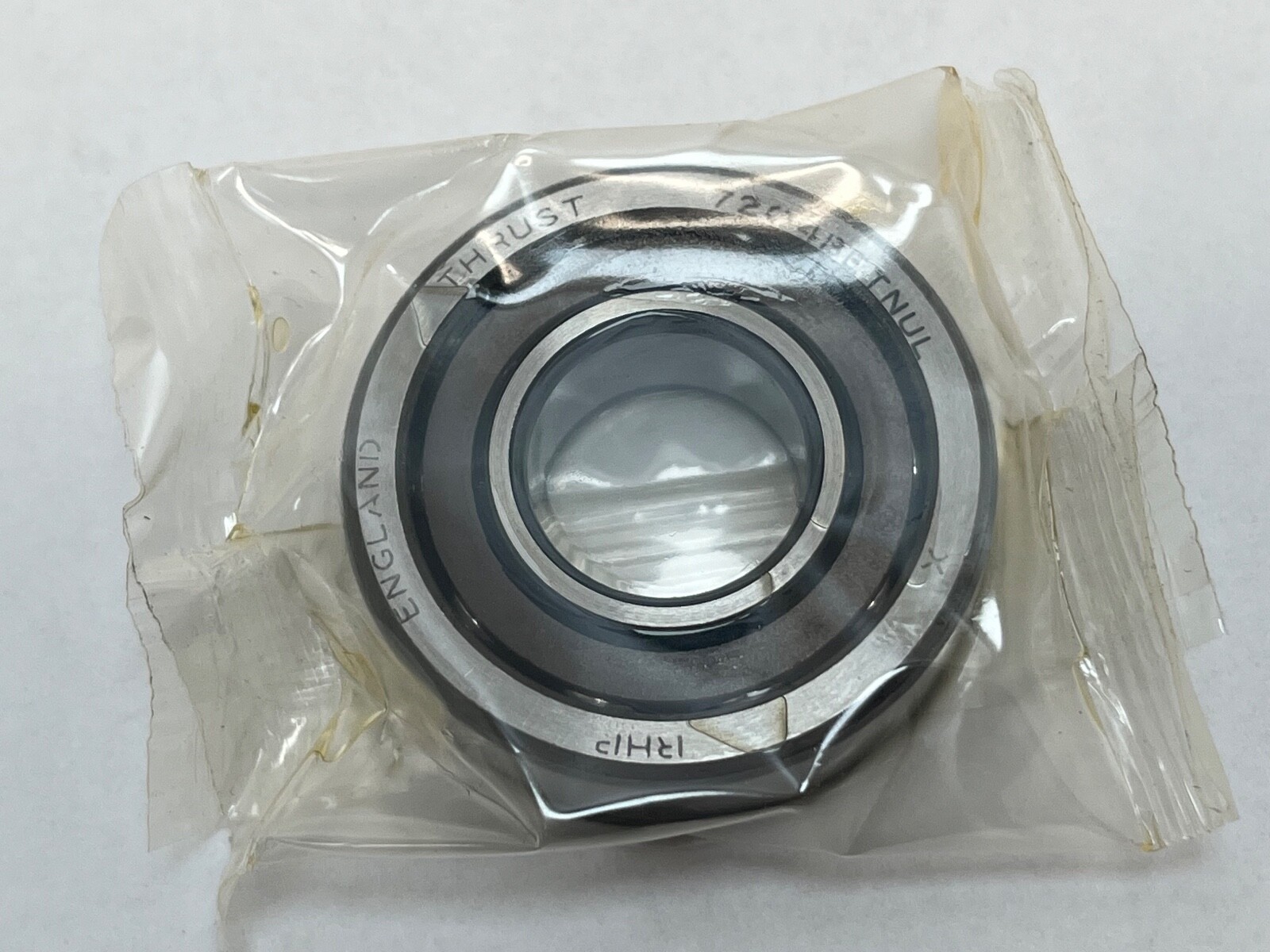

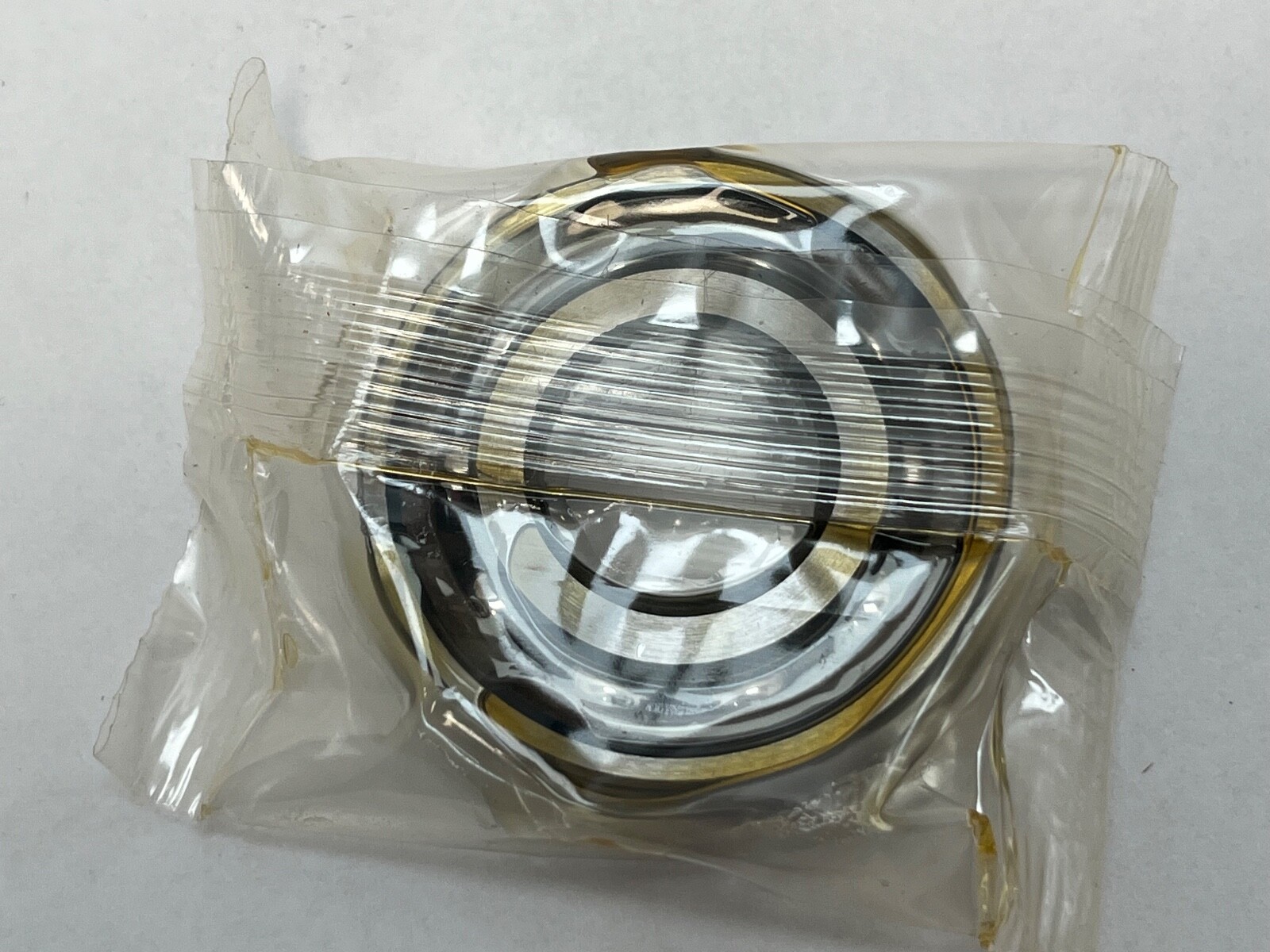

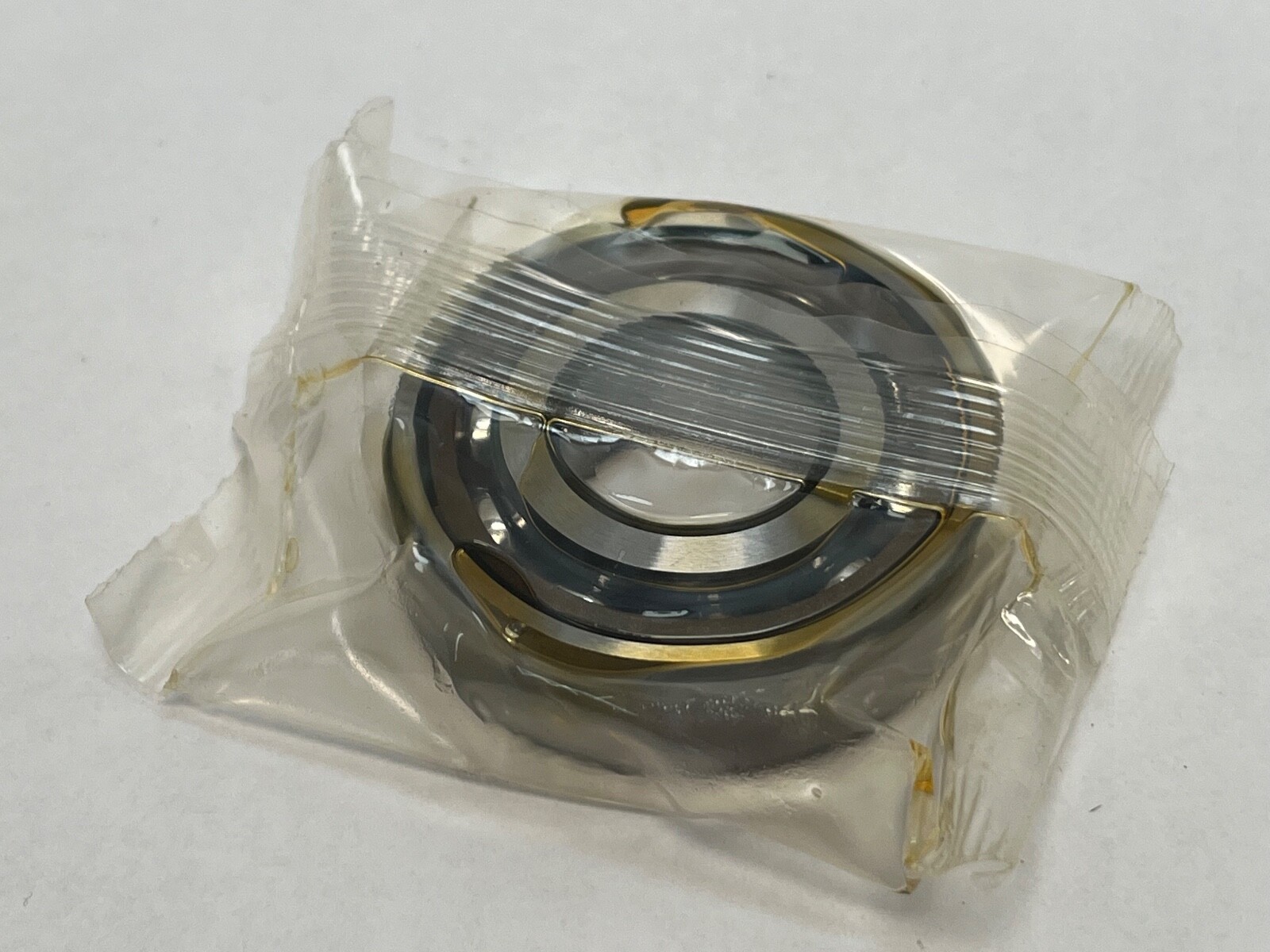

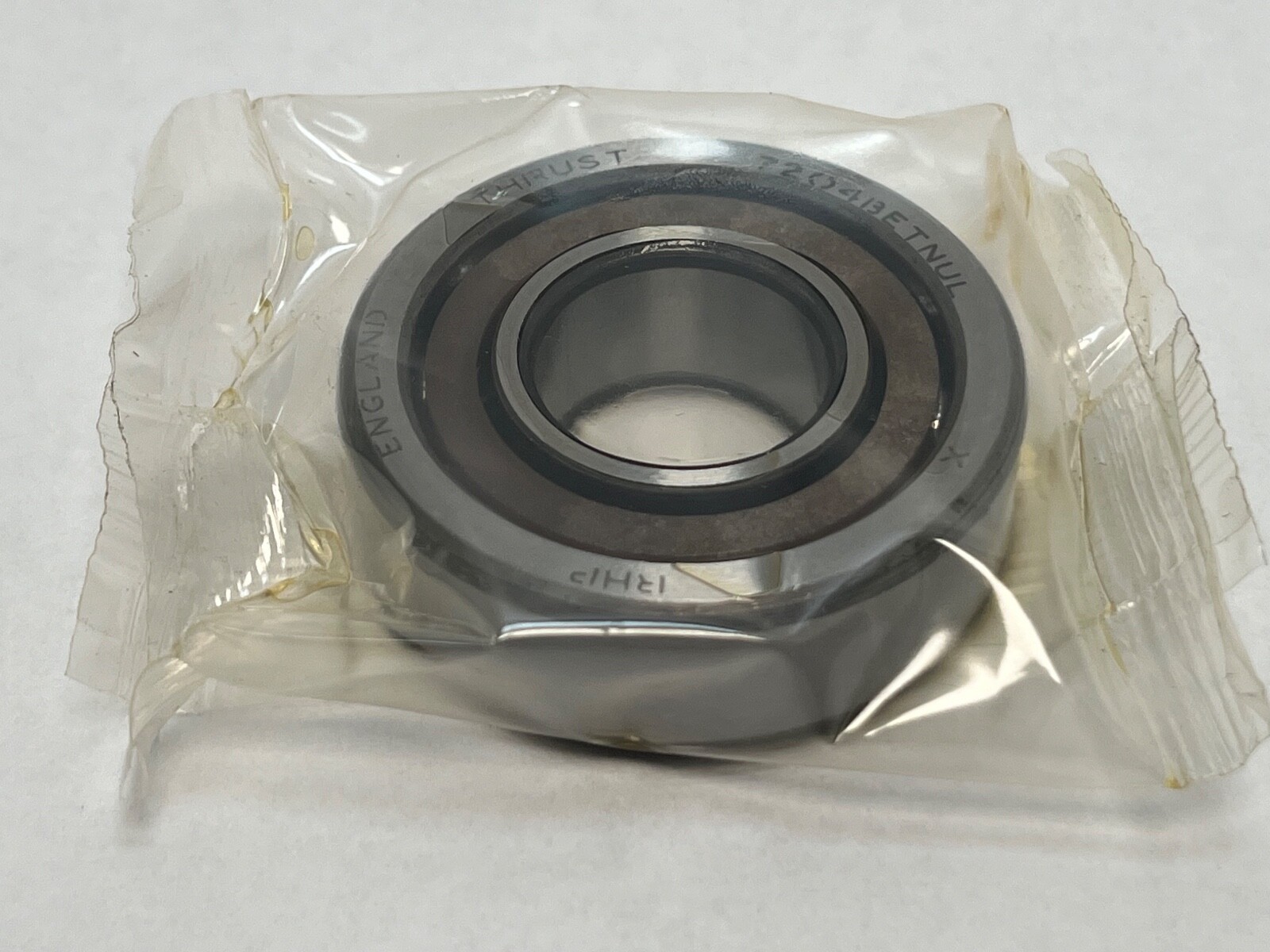

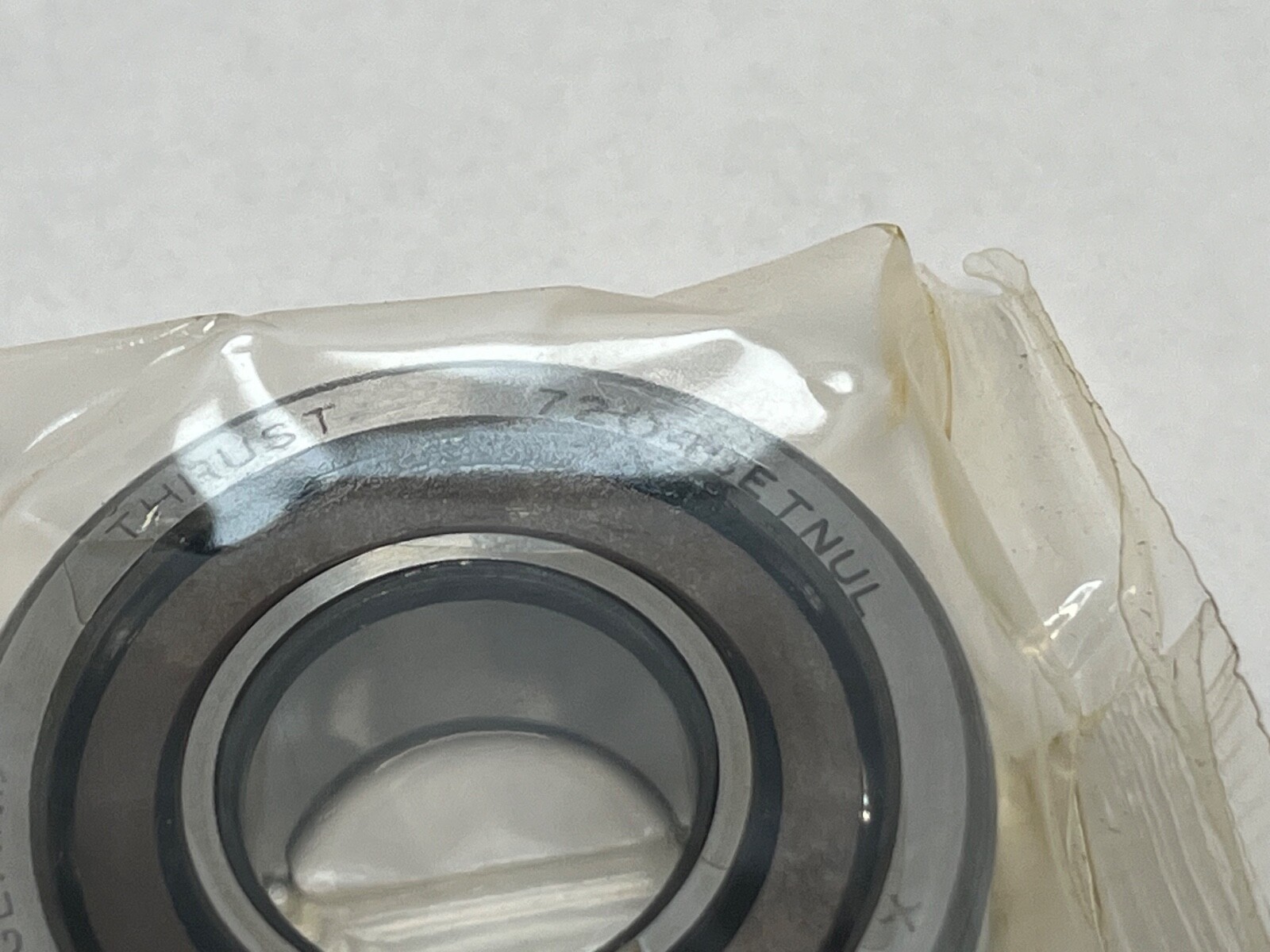

RHP 7204BETNUL is a single-row angular contact ball bearing with a 20 mm bore, 47 mm outside diameter and 14 mm width. Series: 7200 (ISO dimension series 02). Base Number: 7204. Contact Angle: 40°. Cage Material: polyamide. Closure: open on both faces. Rolling elements are steel balls in one row.
Contact Angle: 40°. Design: reinforced capacity. Cage: polyamide. Matching: universally matchable single bearing. Preload: light. Searchable forms of the designation include 7204BETNUL, 7204 BE TN UL, 7204-BE-TN-UL, 7204BETN and 7204B.
A 40° contact angle carries higher axial load in one direction than a 15° or 25° bearing of the same envelope. The trade is speed: a steeper angle runs slower than a shallower one at equal size. A polyamide cage is lighter than pressed steel and runs quieter. Maximum recommended operating temperature for a polyamide cage is 120 °C.
Preload: light. A universally matchable bearing is face-ground so that two bearings clamped back-to-back or face-to-face reach a set preload without custom spacers. Preload and radial internal clearance are mutually exclusive, so Internal Clearance is N/A on this bearing.
Unit Quantity: 1 Pc. Single bearing, universally matchable. Two or more of these bearings mount together in a back-to-back, face-to-face or tandem arrangement.
Same-specification 40° reinforced polyamide-cage equivalents in this envelope are SKF 7204 BEP and FAG 7204-B-TVP. NSK 7204B is the same 40° angle and envelope with a pressed steel cage. The carton also carries the marking 204WI CR SUL, which is a super-precision phenolic-cage part on the same 20 x 47 x 14 mm envelope and is a related size.
Country of Origin: United Kingdom. RHP bearings are manufactured in England and RHP is part of the NSK group.
