Angular contact ball bearing pair, 25 x 52 x 15 mm each, 30 mm stacked. 25° contact angle, universally matchable, light preload.
List Price
$59.83
80 in stock
80 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | 7205A5TYDUL |
| Model | 7205A 5TY DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7200 |
| Condition | New |
| Preload | Light Preload |
| Total Width | 30 mm stacked |
| Base Number | 7205 |
| Industry Terms | Angular contact ball bearing, super precision spindle bearing, universally matchable duplex pair, light preload set, 25 degree angular contact |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 7205A5TYDUL, 7205-A5TY-DUL, 7205A5TY DUL, 7205A5, 7205A 5TY DUL |
| Closure Type | Open |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 7205A5TYDUL |

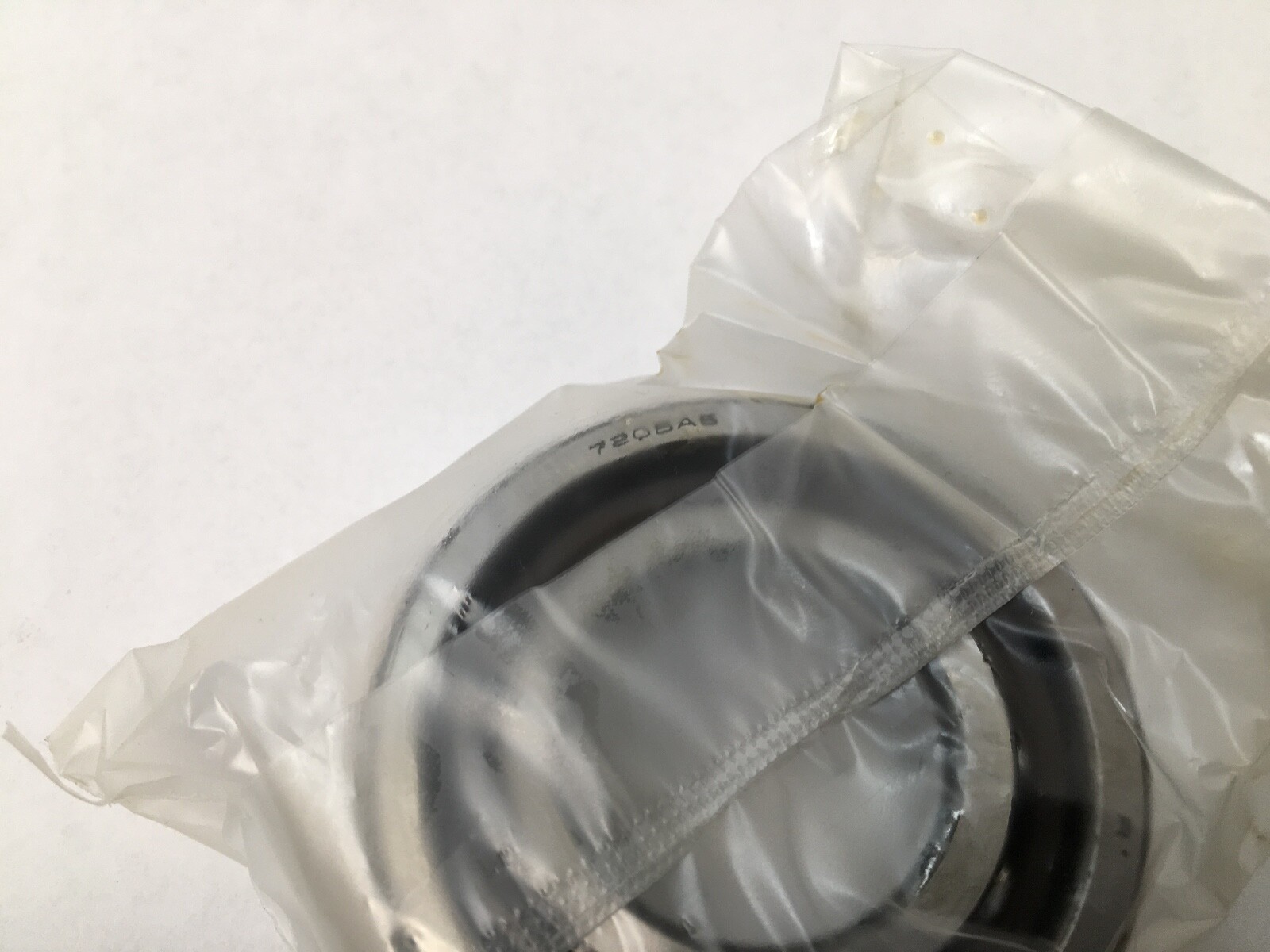

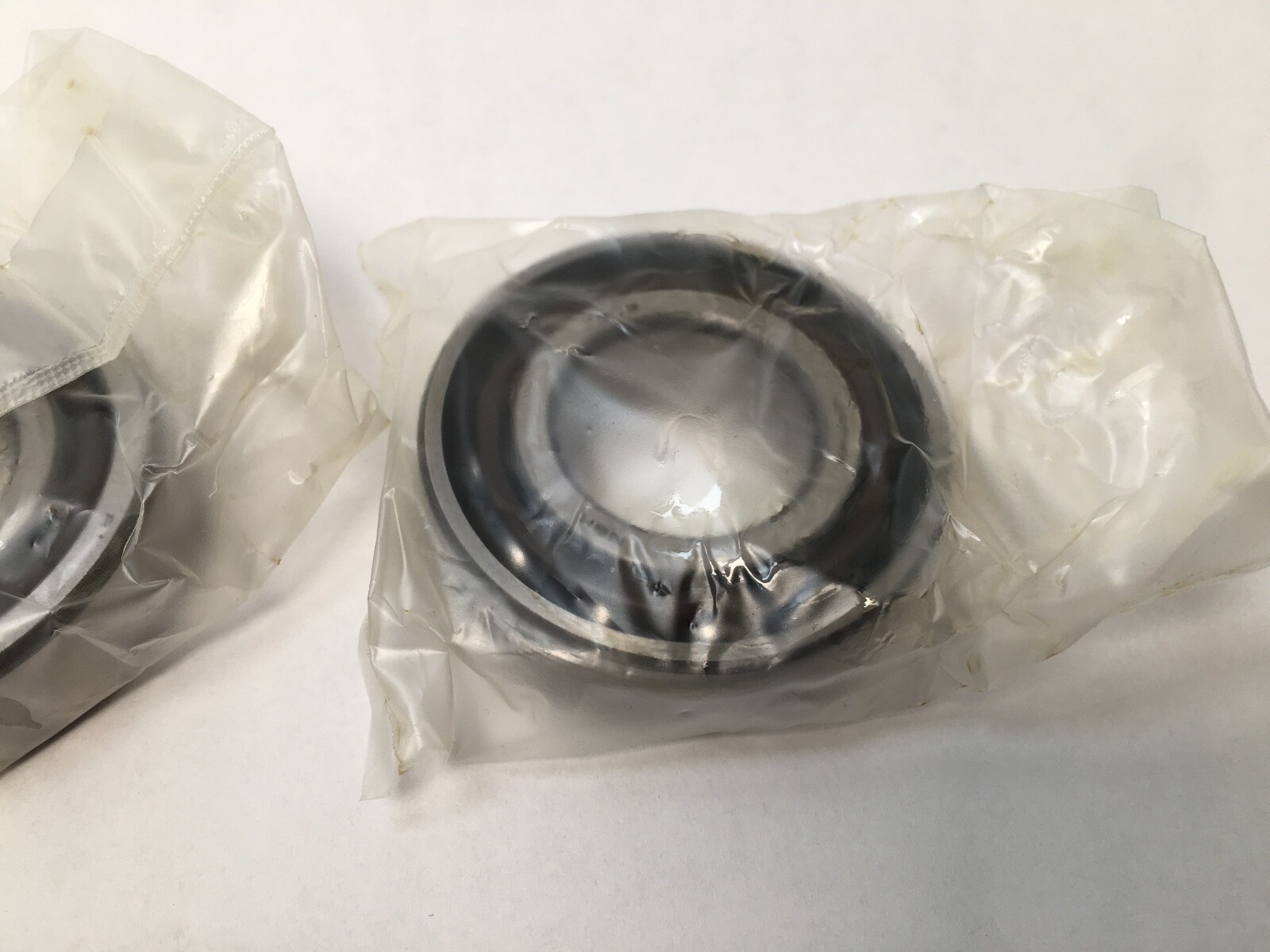

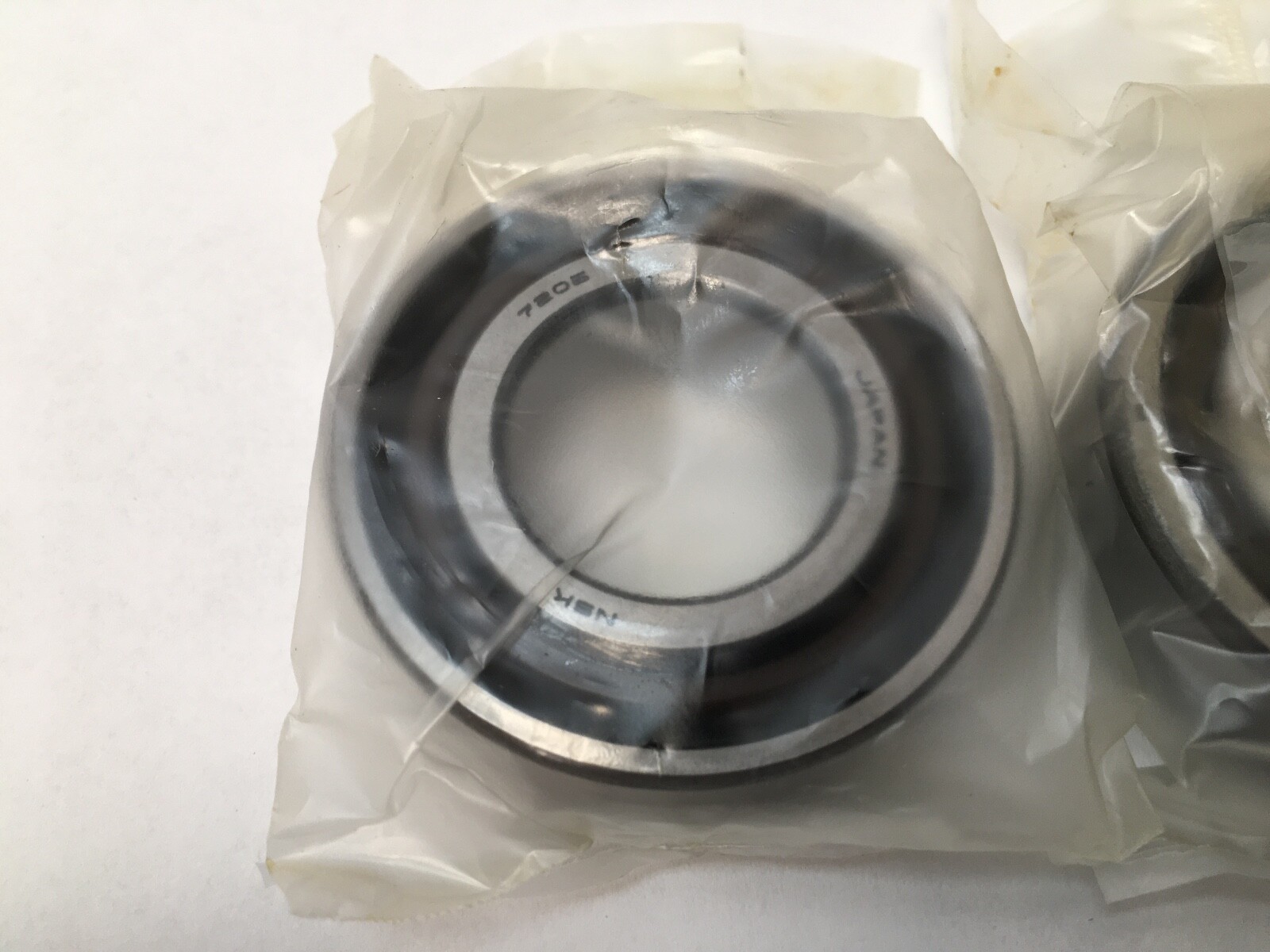

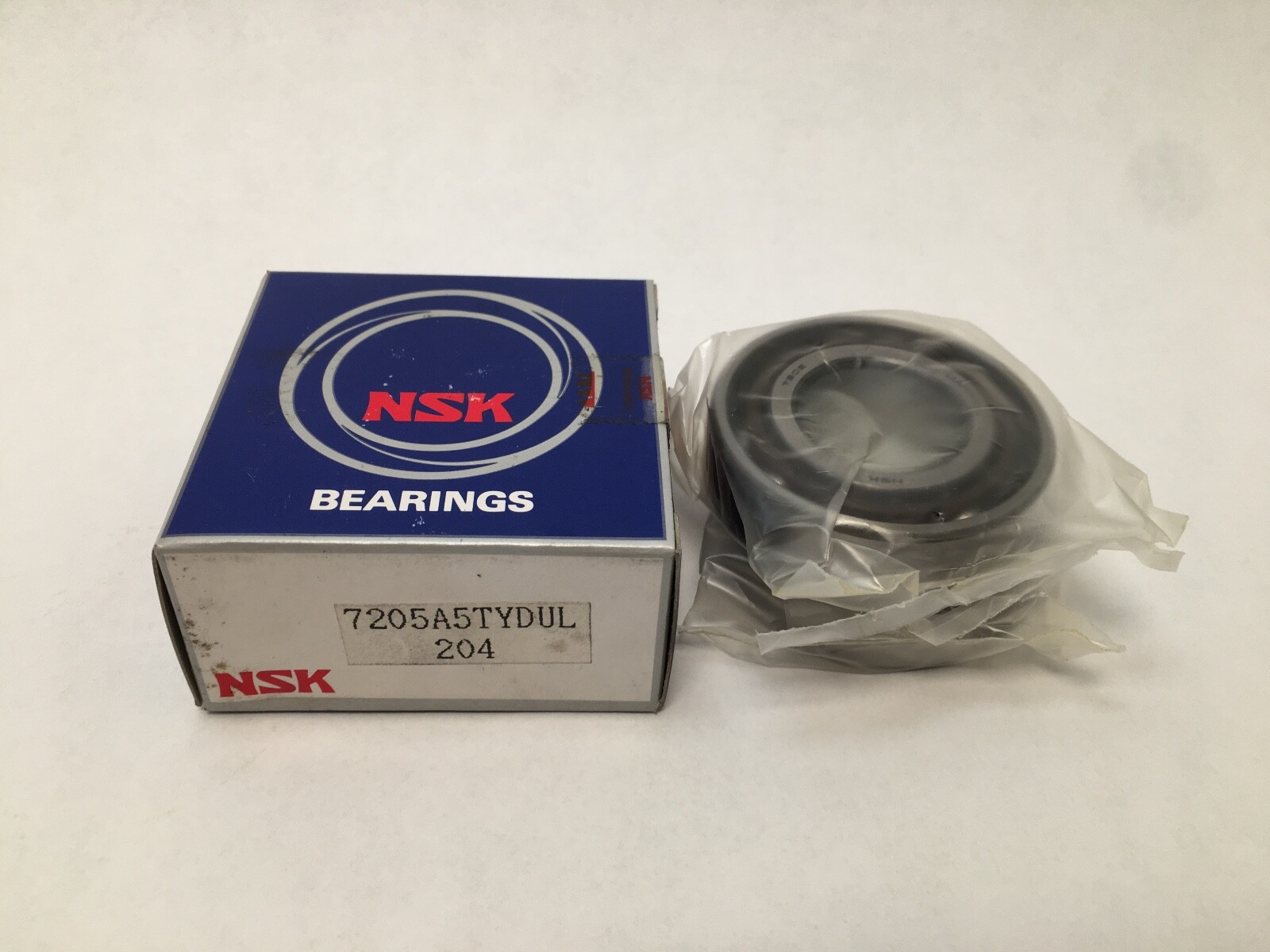

NSK 7205A5TYDUL super-precision angular contact ball bearings, supplied as a universally matchable duplex pair. Bore: 25 mm. Outside diameter: 52 mm. Width: 15 mm each, 30 mm stacked. Series: 7200. Bore form: straight. Closure: open.
A5: 25° contact angle. TY: ball-guided cage. DU: universally matchable duplex set, so the pair can be arranged back-to-back, face-to-face or in tandem. L: light preload. Searchable forms include 7205A5TYDUL, 7205-A5TY-DUL, 7205A5TY DUL and 7205A5.
Basic dynamic load rating: 20.0 kN per bearing. Basic static load rating: 9.80 kN per bearing. Limiting speed: 26,000 rpm on grease, 39,000 rpm on oil-air. Permissible axial load: 9.05 kN. Effective load centre: 16.5 mm. Light preload on a back-to-back or face-to-face pair is 143 N, giving 89 N/µm of axial rigidity. A 25° contact angle sits between the 15° high-speed and 30° high-thrust executions: more thrust capacity and stiffness than a 15° bearing, higher speed capability than a 30°.

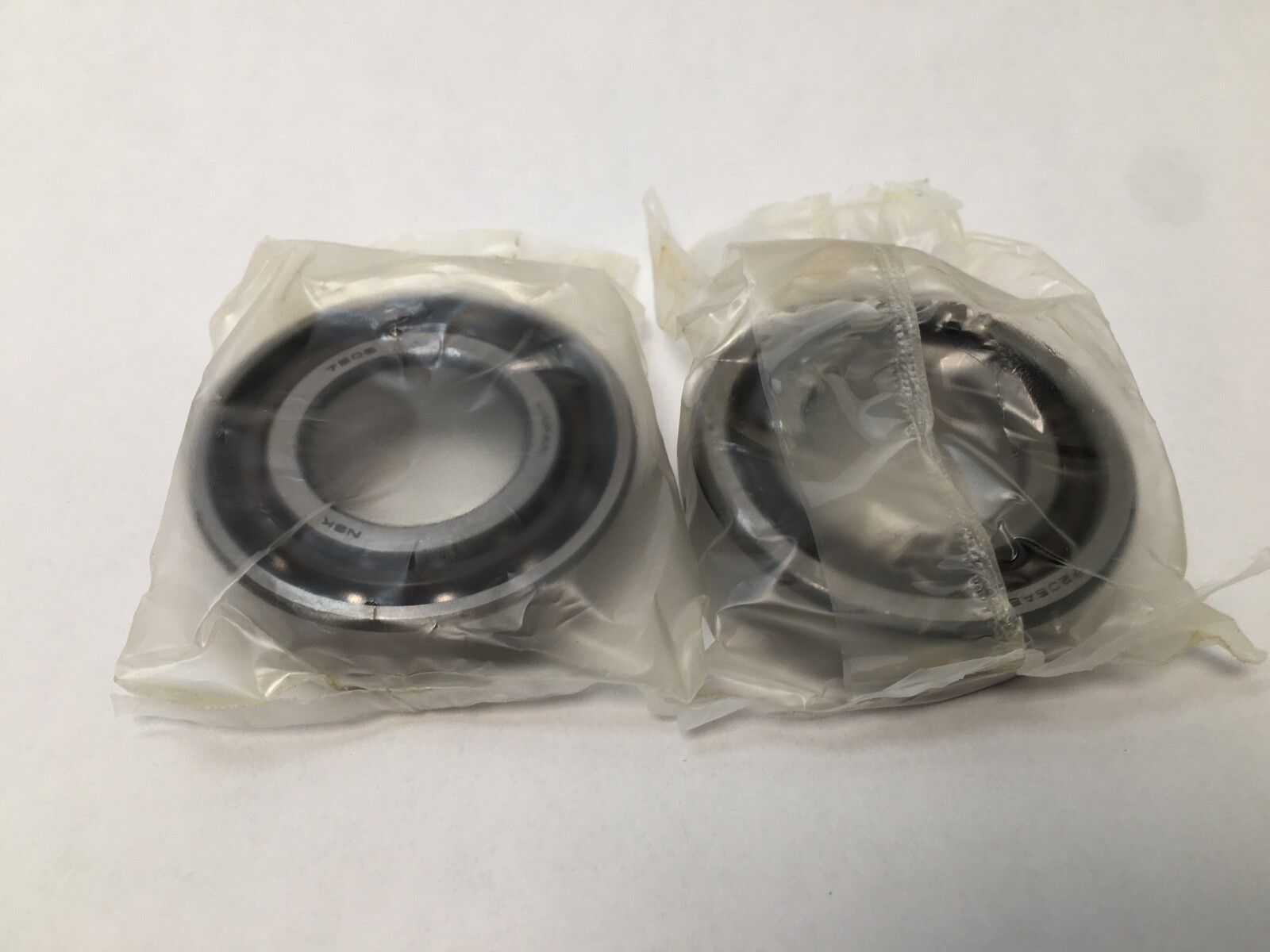

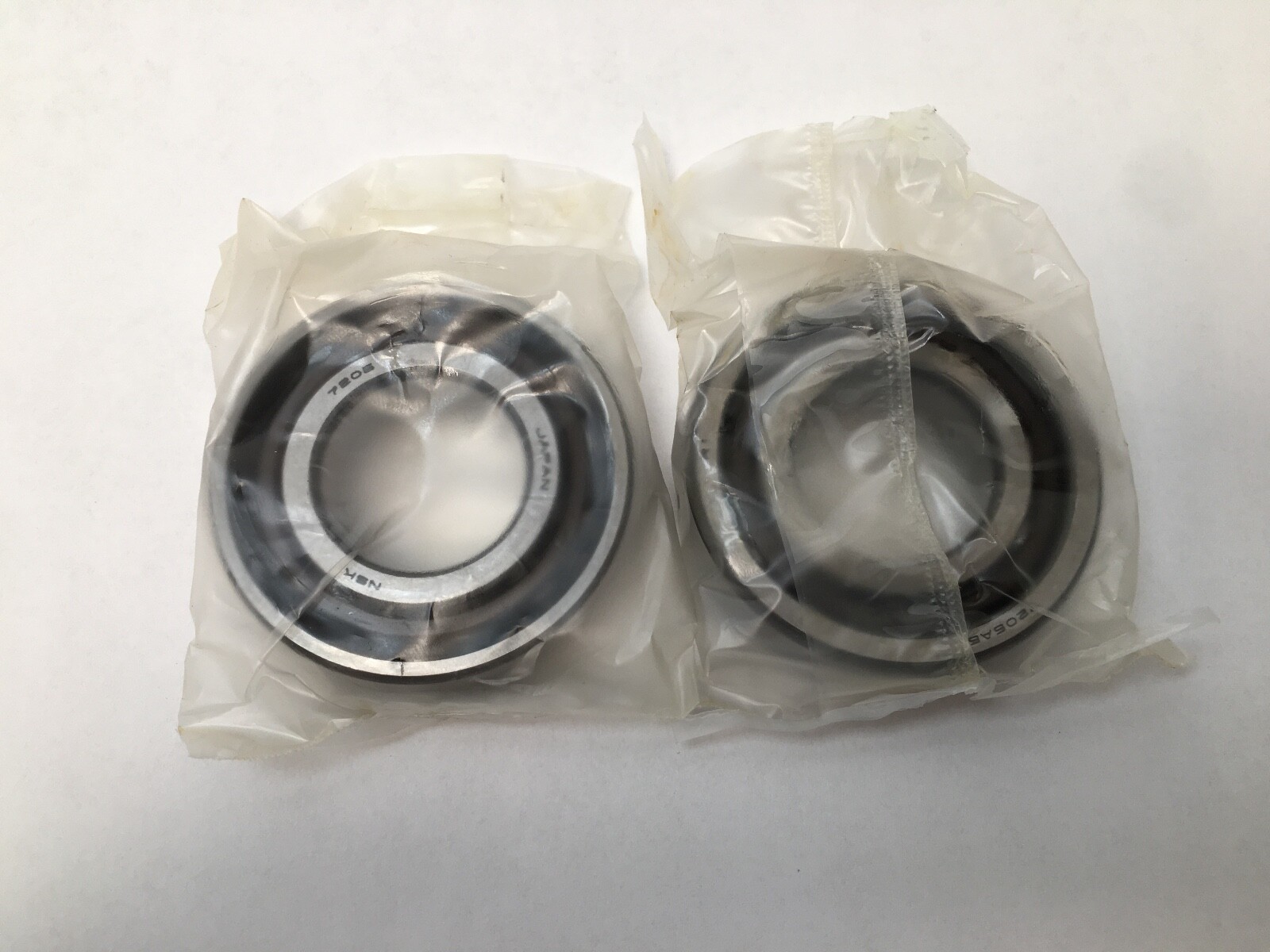

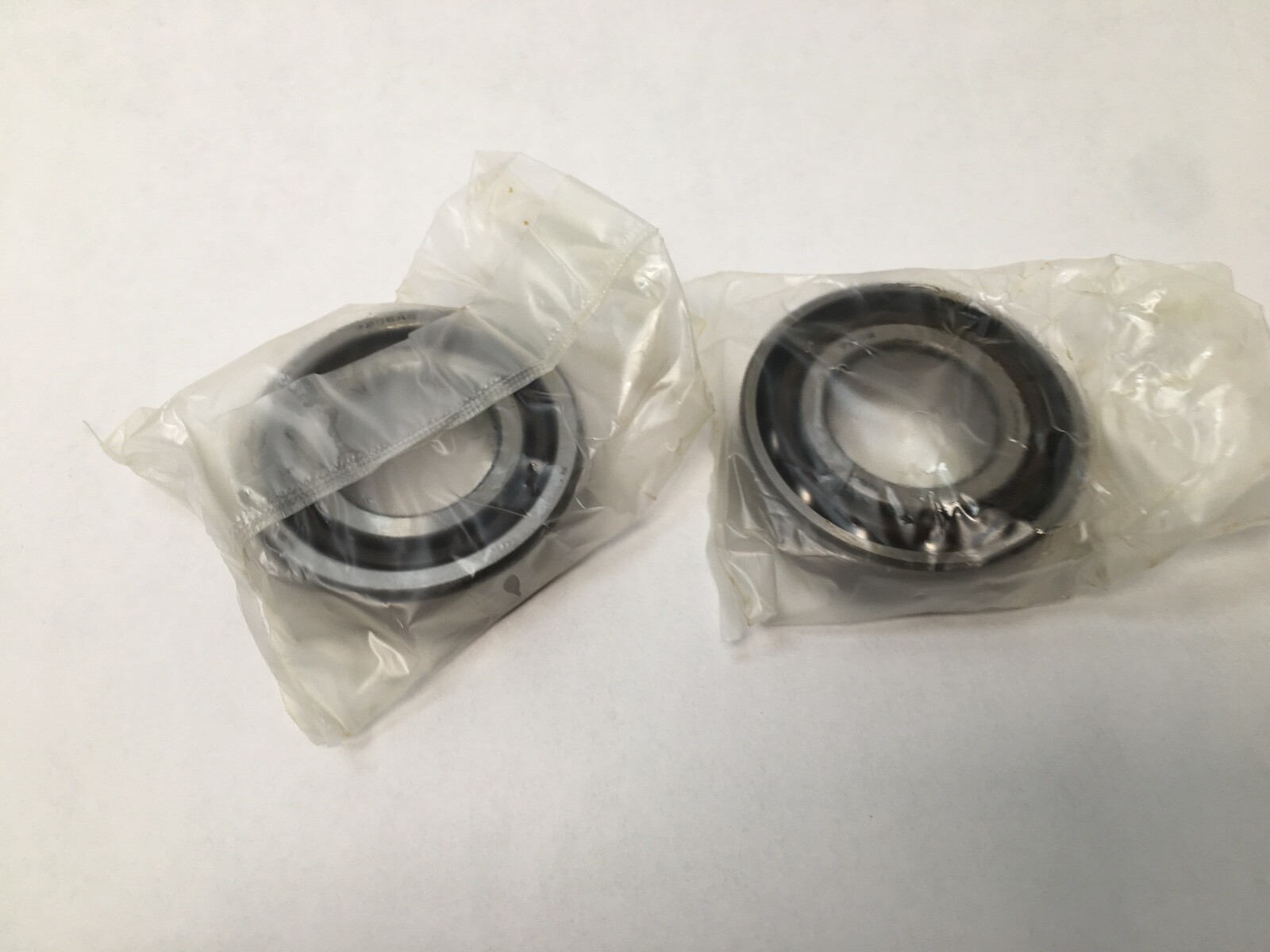

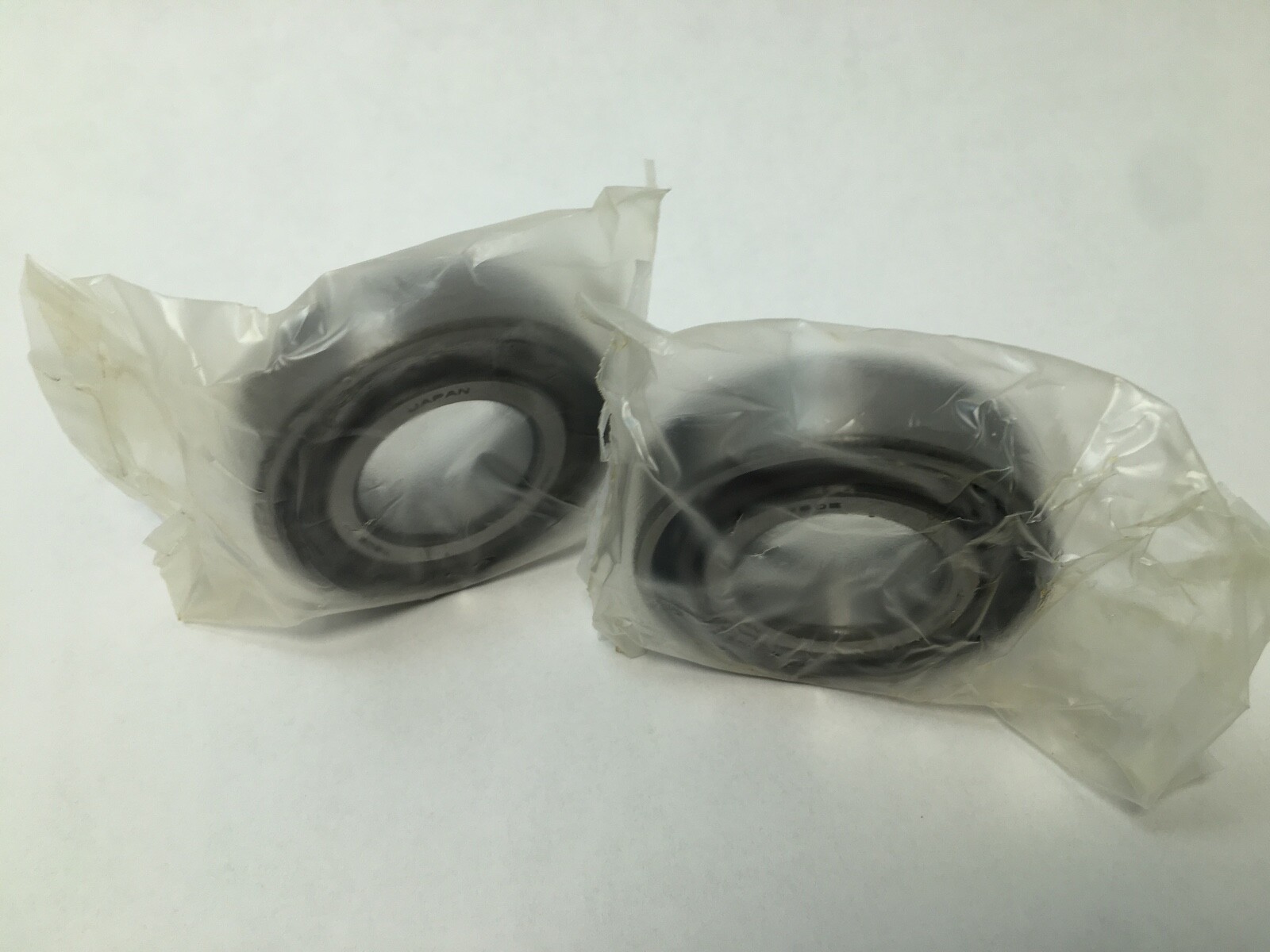

Two bearings, a factory universally matchable pair. Because the faces are ground for universal matching, the two rings stack in any of the three arrangements without a spacer and reach the published preload on clamp-up.
Shaft abutment diameter: 31 mm minimum. Housing abutment diameter: 46 mm maximum, 47 mm on the outer shoulder. Shaft fillet radius: 1 mm maximum; housing fillet radius: 0.5 mm maximum. Recommended grease charge: 0.79 g per bearing.
FAG B7205-E-T-P4S-DUL covers the same envelope and preload class. 7205CTYDUL at 15° and 7205ATYDUL at 30° are related sizes rather than interchanges, because the contact angle changes both thrust capacity and speed rating.
