Availability:
45 in stock
Super-precision angular contact ball bearing, 25 x 47 x 12 mm, 15° contact angle, ABEC 7 / P4 class, phenolic laminate cage, open faces, single row.
List Price
$64.57
45 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7005-TG-P4 |
| Model | B 7005 C TPA P4 / 7005 TG P/4 / 2MM9105WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Base Number | 7005 |
|---|---|
| Industry Terms | spindle bearing, super precision bearing, machine tool bearing, precision angular contact bearing, 15 degree angular contact |
| Common Misspellings | 7005TGP4 FAG, 7005 TGP4, 7005TG P4, B7005 CTPA P4, FAG 7005 TPG4, 7005TCP4 |
| Application Types | Machine tool spindles, grinding spindles, high-speed motorised spindles, precision gearboxes, milling heads |
| Bore Shaft Size | 25 mm (0.9843 in) |
| Mpn Variants | 7005TGP4, 7005 TG P4, 7005-TG-P4, 7005 TG P/4, B7005C.TPA.P4, B7005-C-TPA-P4, B 7005 C TPA P4, B7005CTPAP4 |
| Precision Class | ABEC 7 / P4 |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Harmonization Code | 8482.10.5008 |
| Contact Angle | 15° |
| Part Number | 7005TGP4 |
| Precision Rating | ABEC 7 / P4 |
| Cross Reference 1 | Fafnir 2MM9105WICR - same size, 15 deg |
|---|

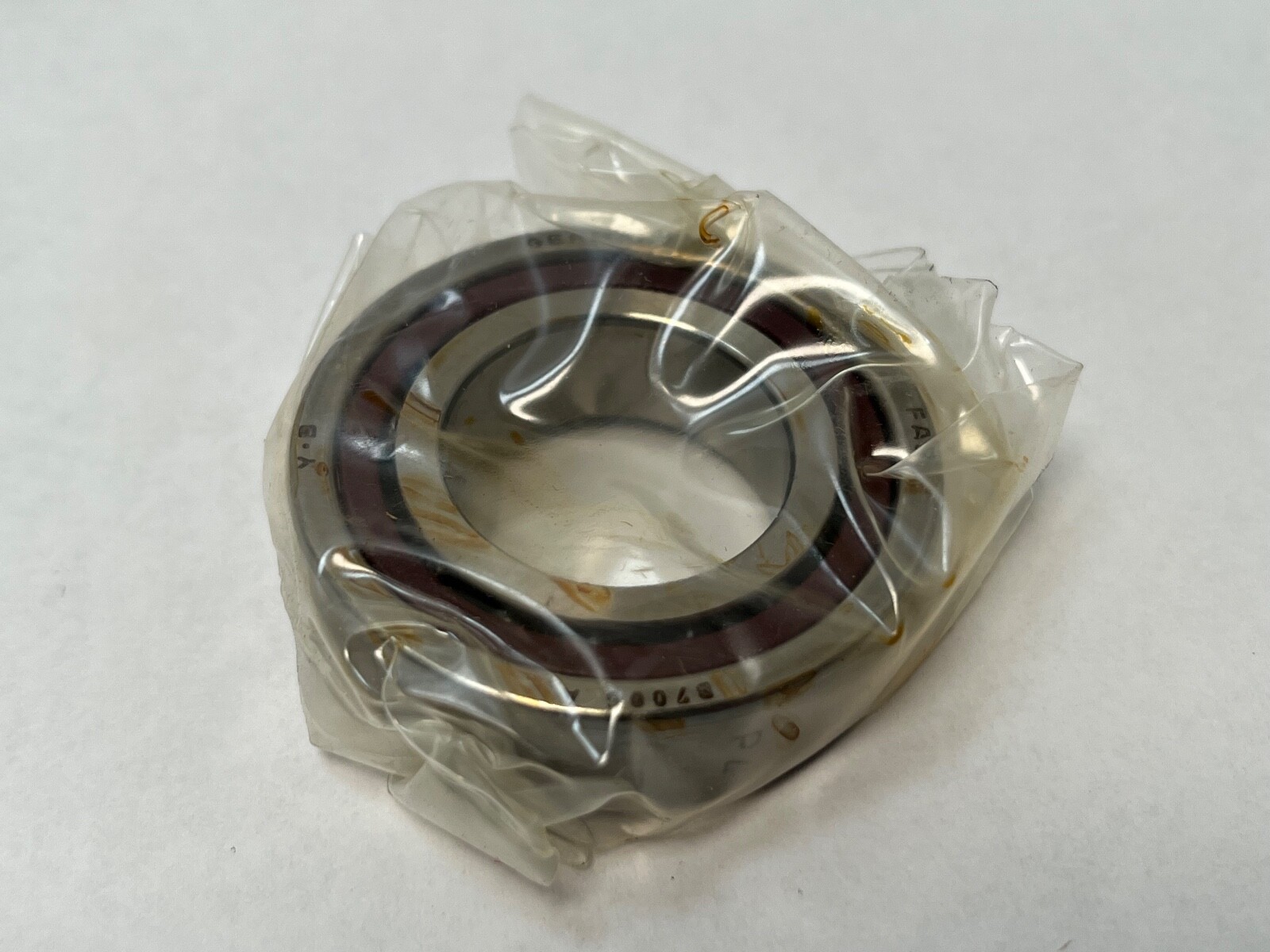

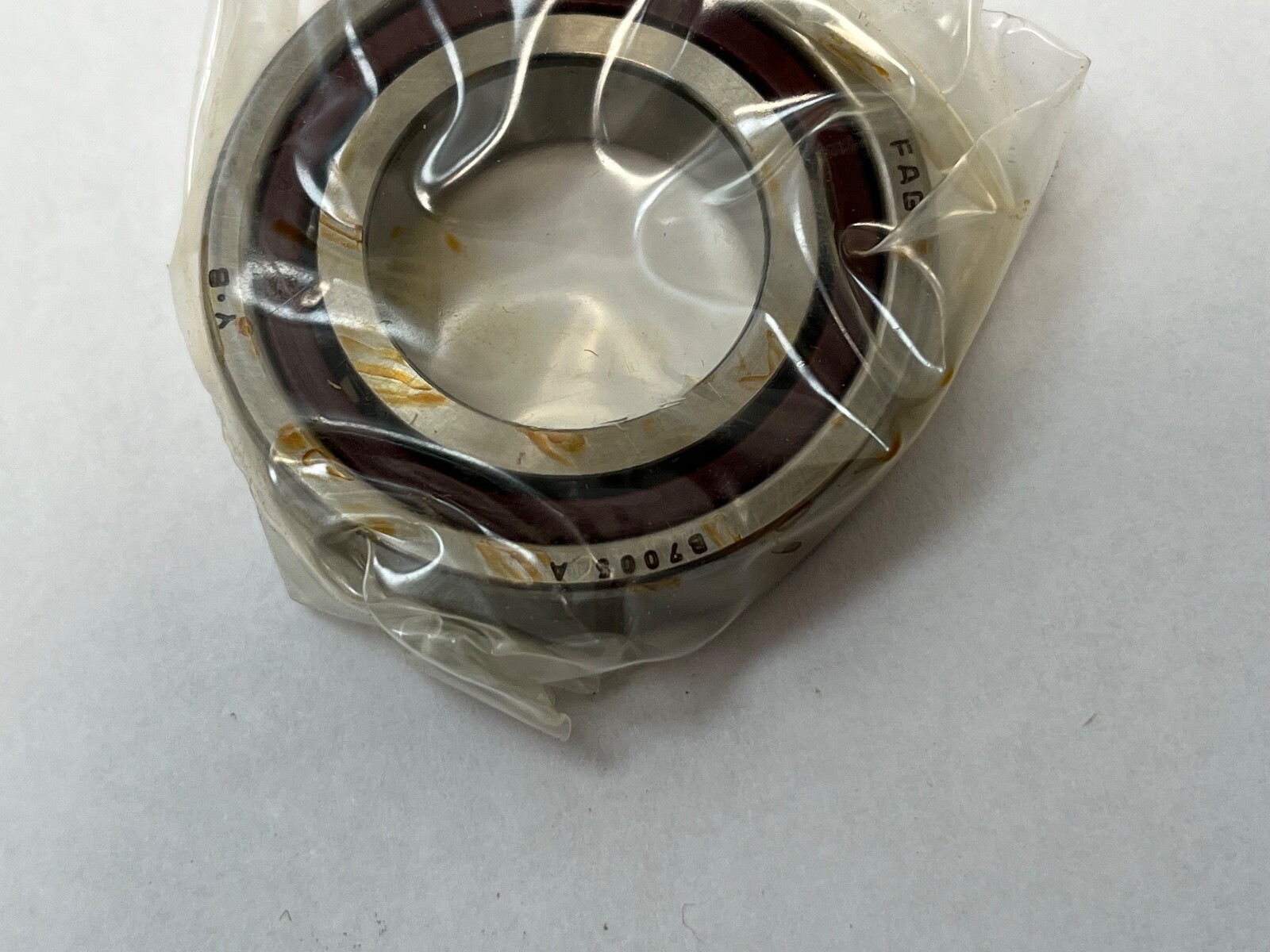

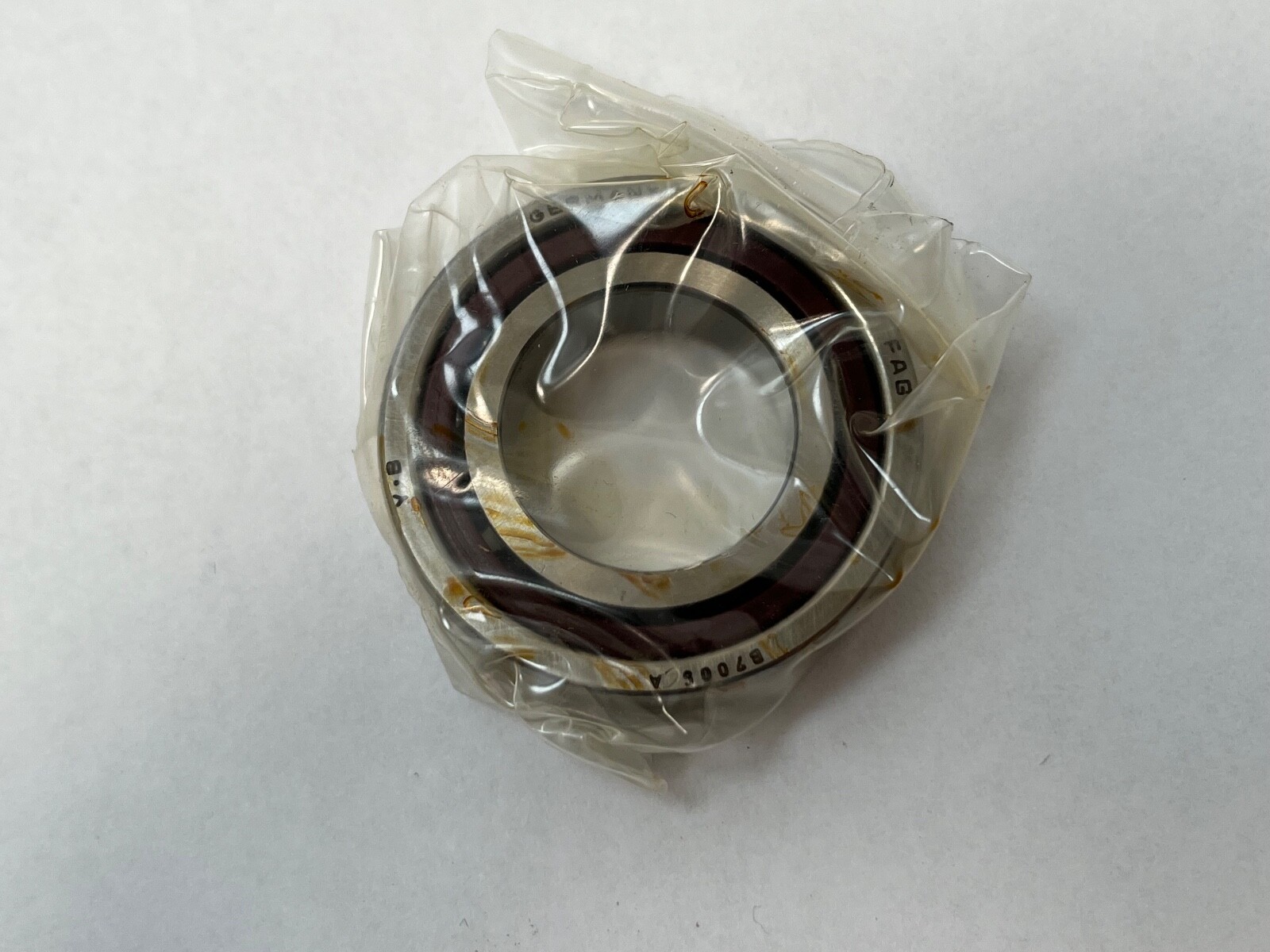

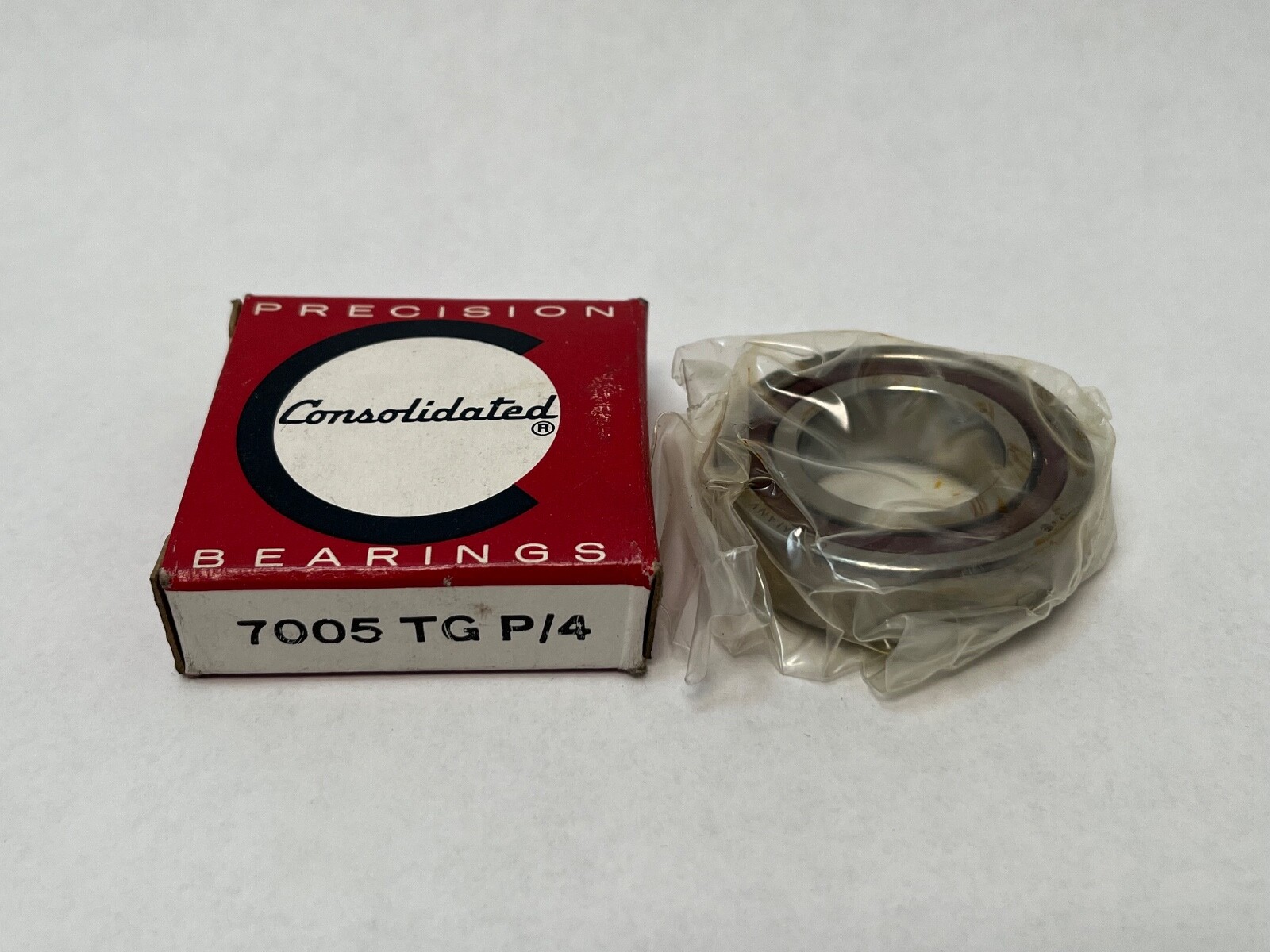

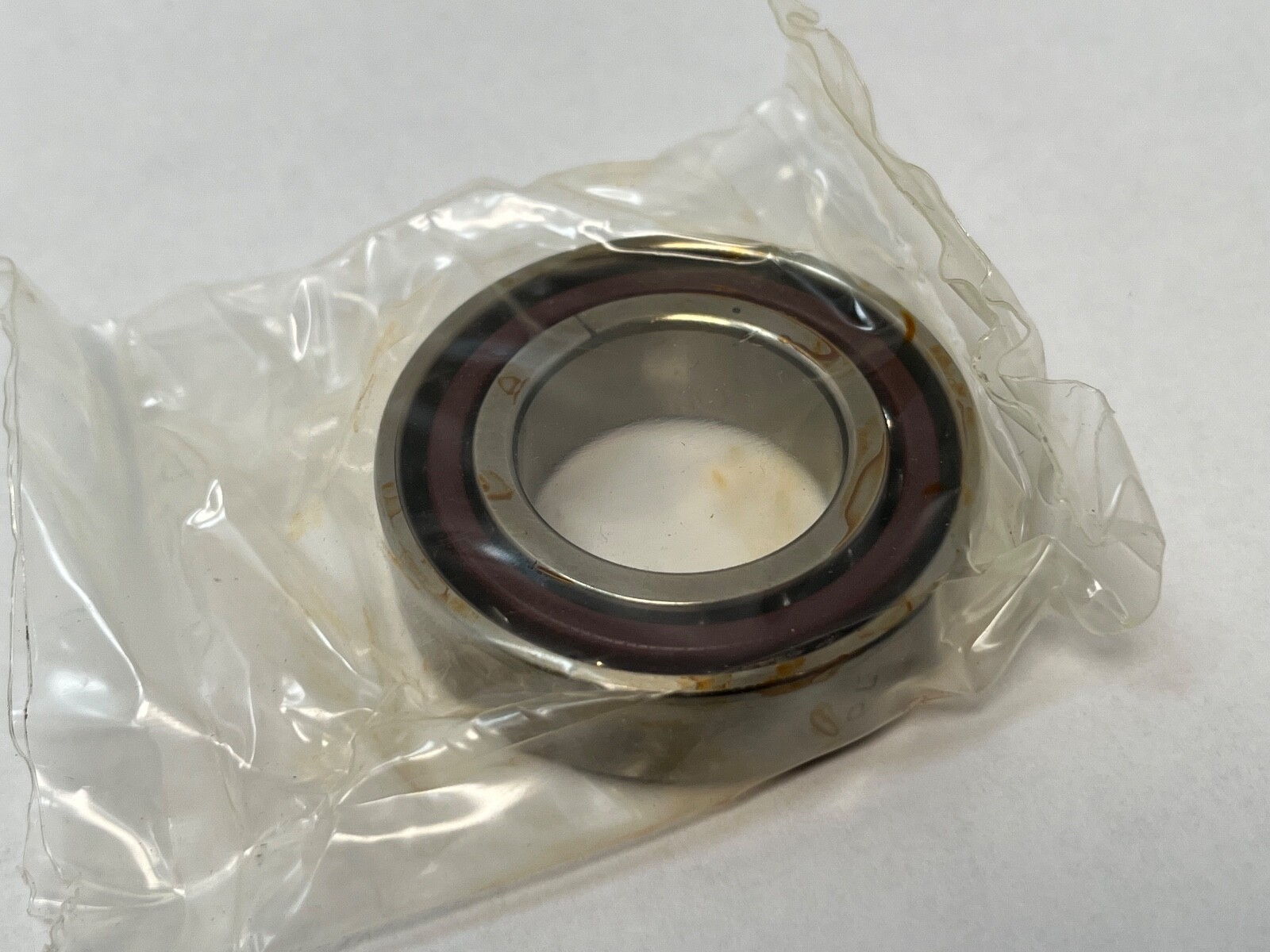

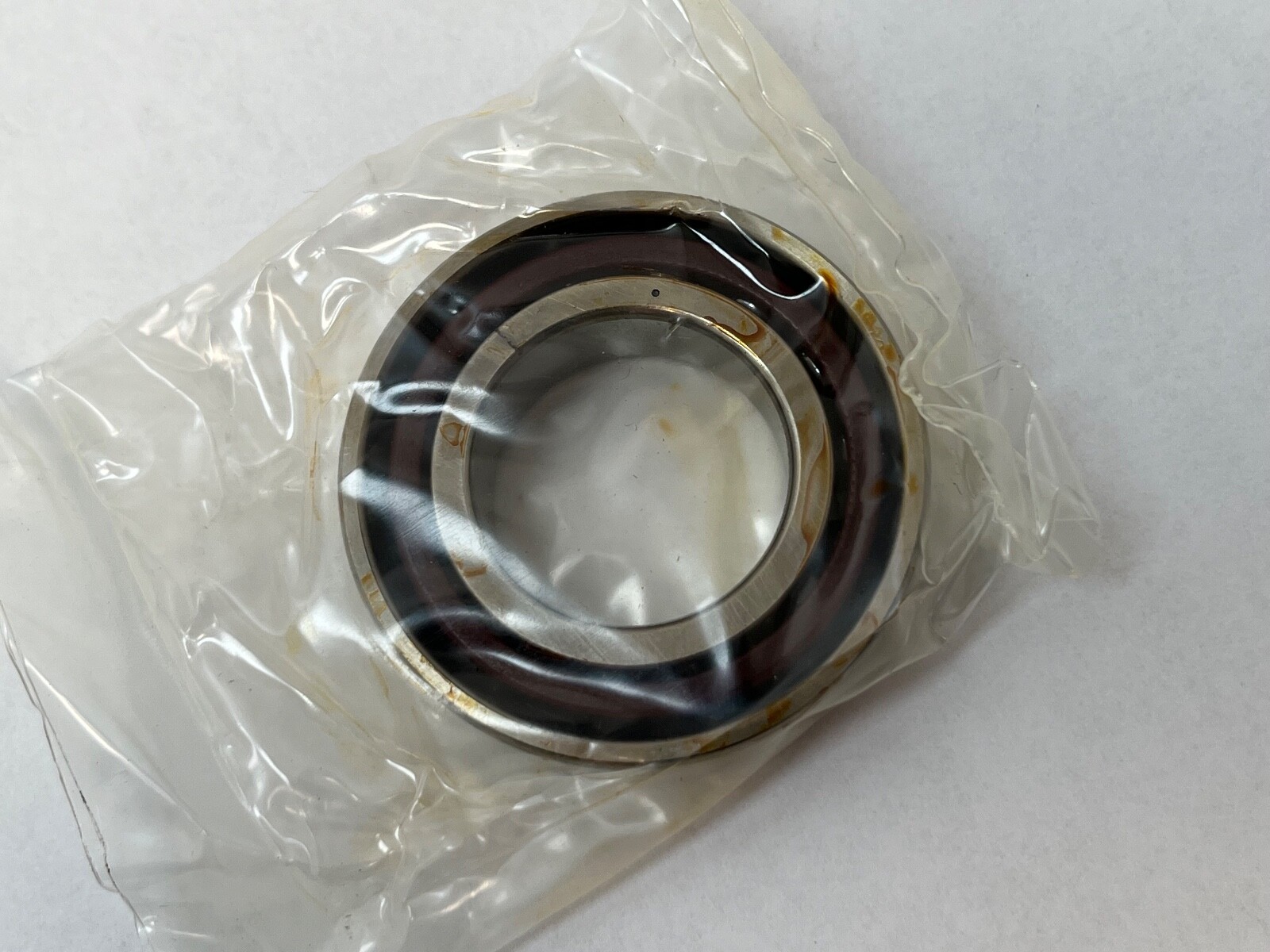

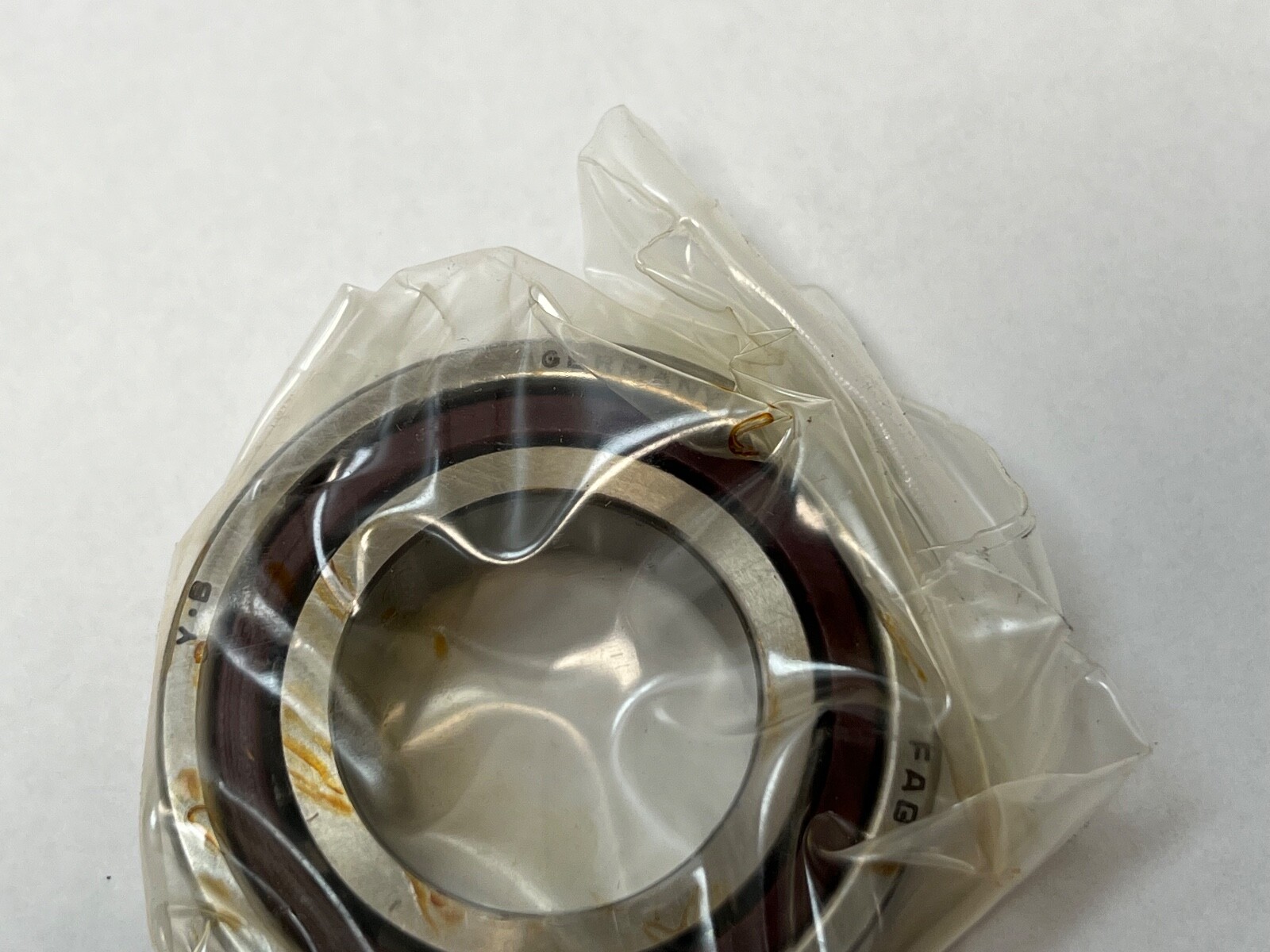

FAG 7005-TG-P4 single-row super-precision angular contact ball bearing, listed in the current Schaeffler scheme as B7005-C-TPA-P4. Bore 25 mm, outside diameter 47 mm, width 12 mm. Open on both faces, single bearing (1 Pc), universally matchable.
70 — ISO angular contact dimension series.
05 — bore code, 25 mm bore.
C — 15° contact angle.
TG (legacy FAG) and TPA (current) — fabric-base laminate phenolic cage.
P4 — precision class, equivalent to ABEC 7.
Bore Diameter: 25 mm. Outside Diameter: 47 mm. Width: 12 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Steel balls. Unit Quantity: 1 Pc.
Universally matchable spindle bearing; it mounts alone or in a back-to-back, face-to-face or tandem set with a second bearing of the same designation. Non-separable unit with solid inner and outer rings and a one-piece ball and cage assembly.
Fafnir 2MM9105WICR is the same 25 x 47 x 12 mm envelope with a 15° contact angle and a phenolic cage. Designations with an E or B angle code, a TVP polyamide cage, a 2RSD seal or a different preload letter are separate parts.
The C in the current designation B7005-C-TPA-P4 is a 15° contact angle.
Bore 25 mm, outside diameter 47 mm, width 12 mm.
The TG (legacy) and TPA (current) codes denote a fabric-base laminate phenolic cage.
