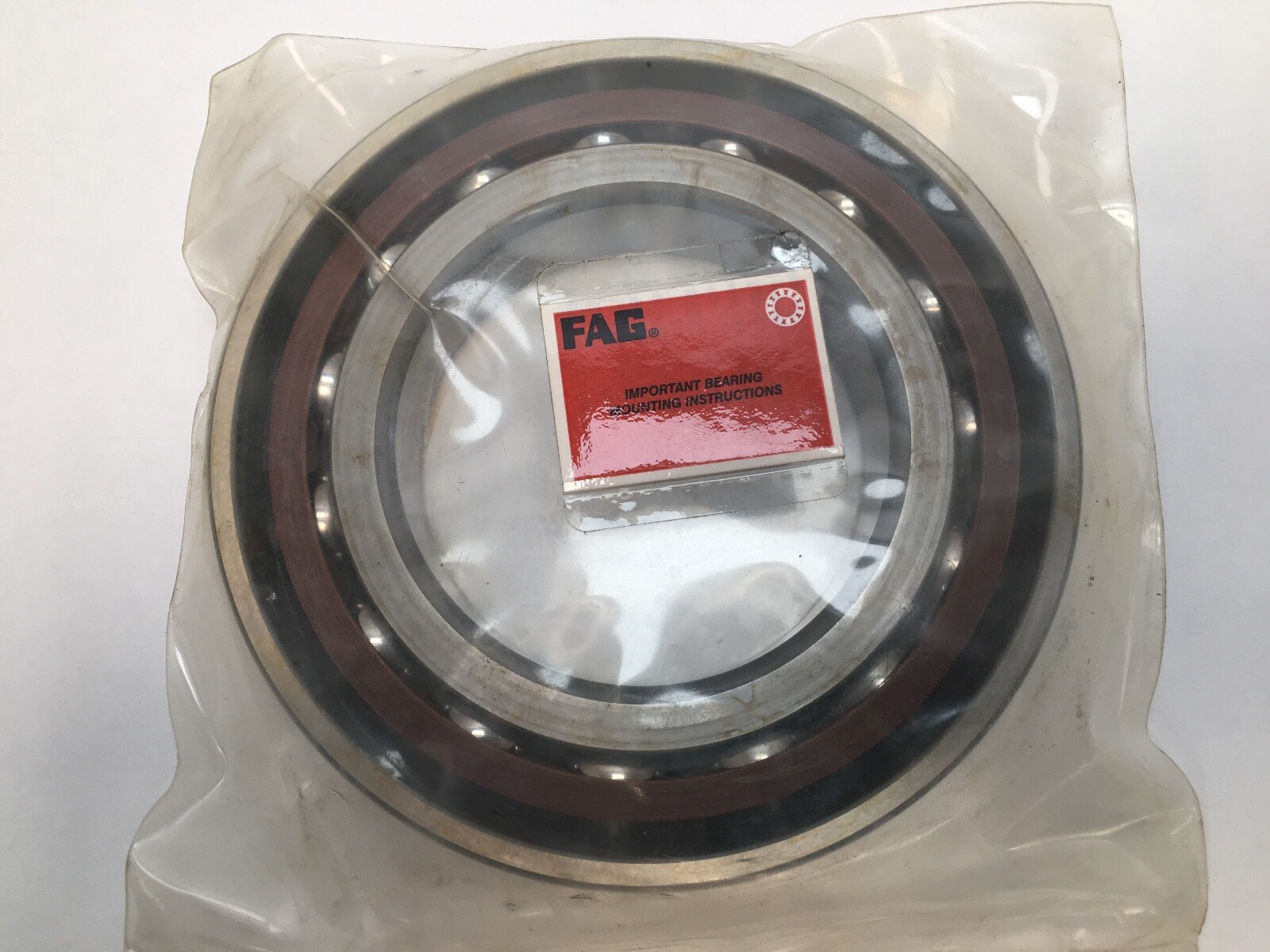

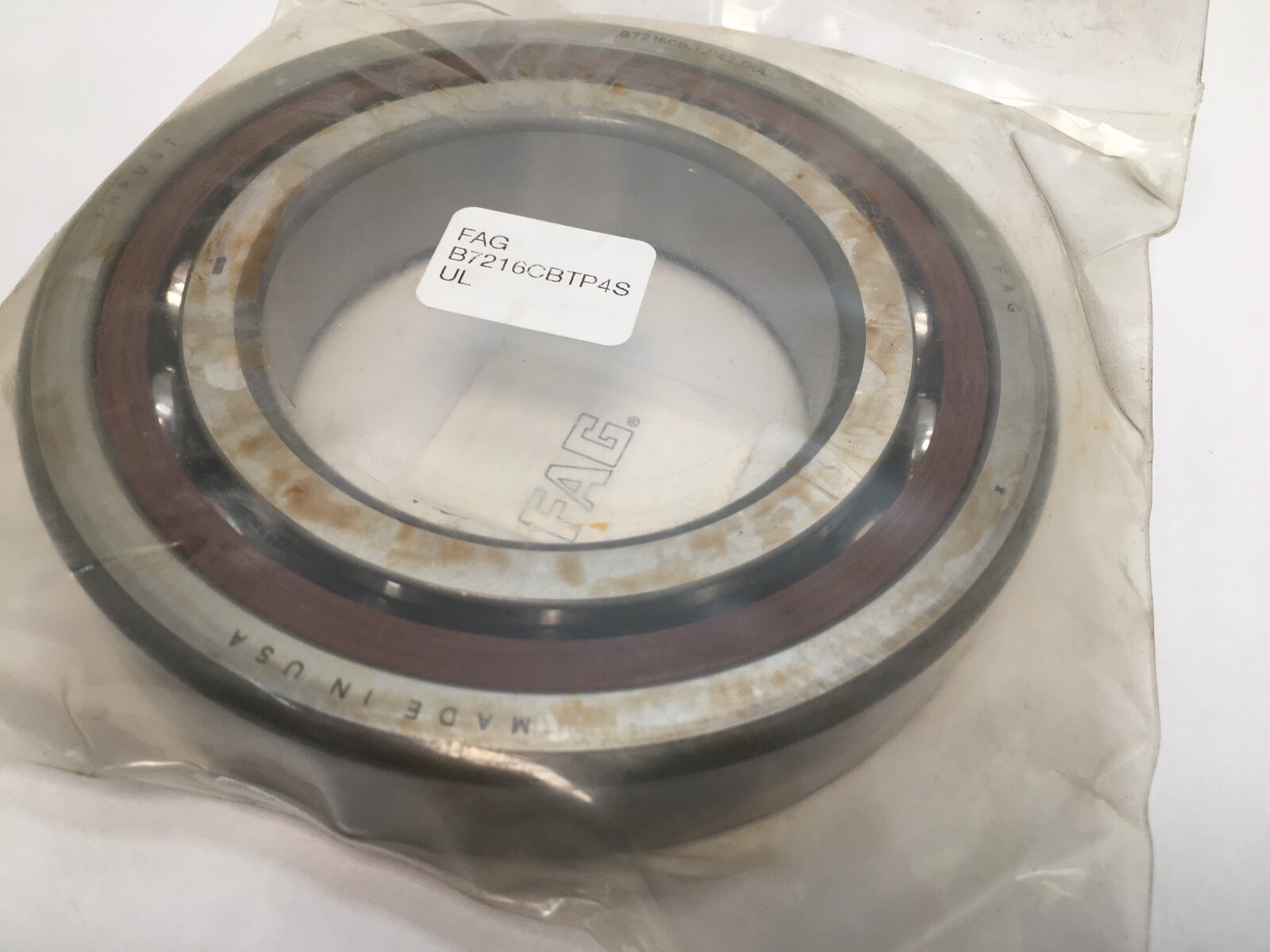

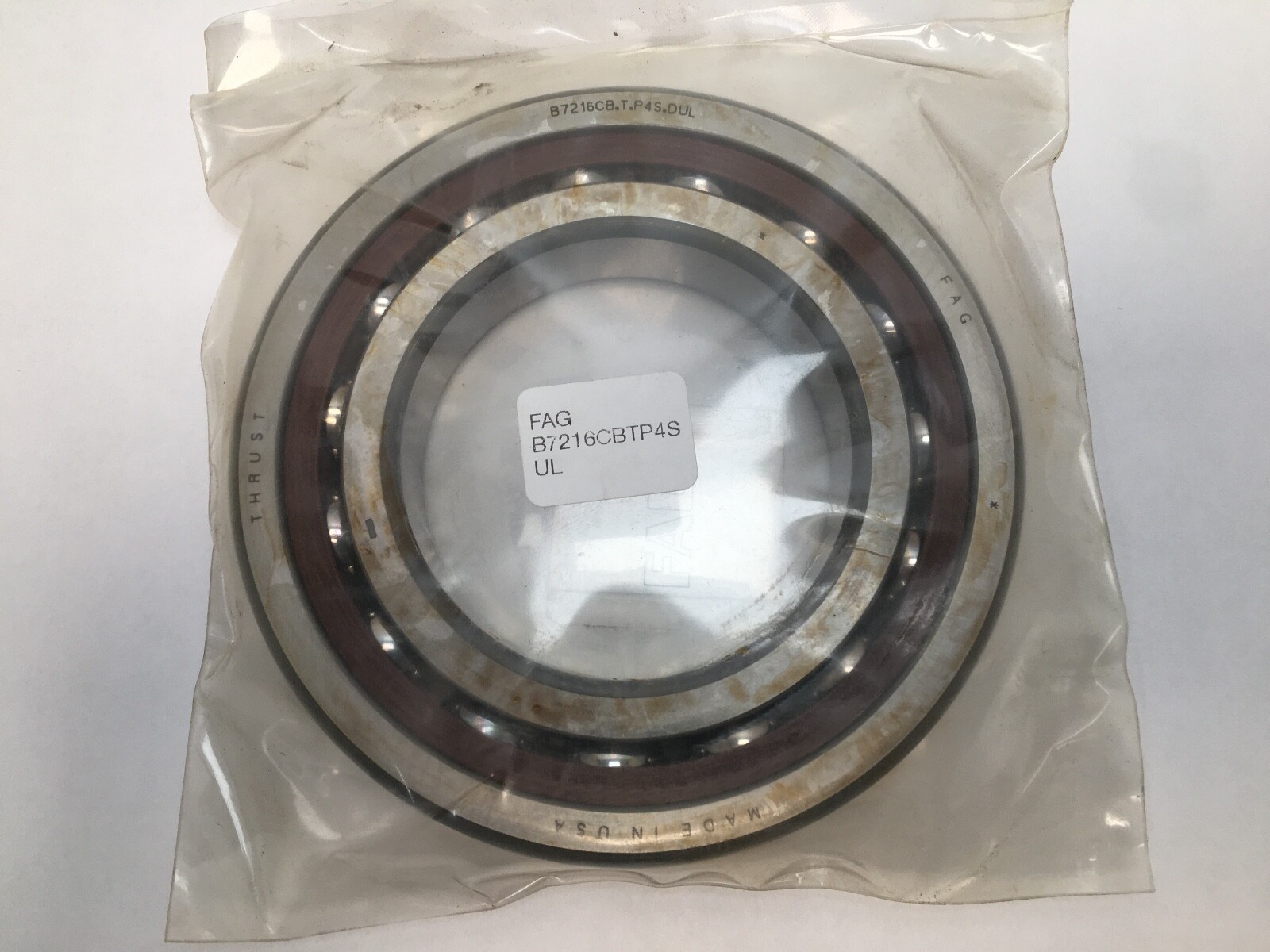

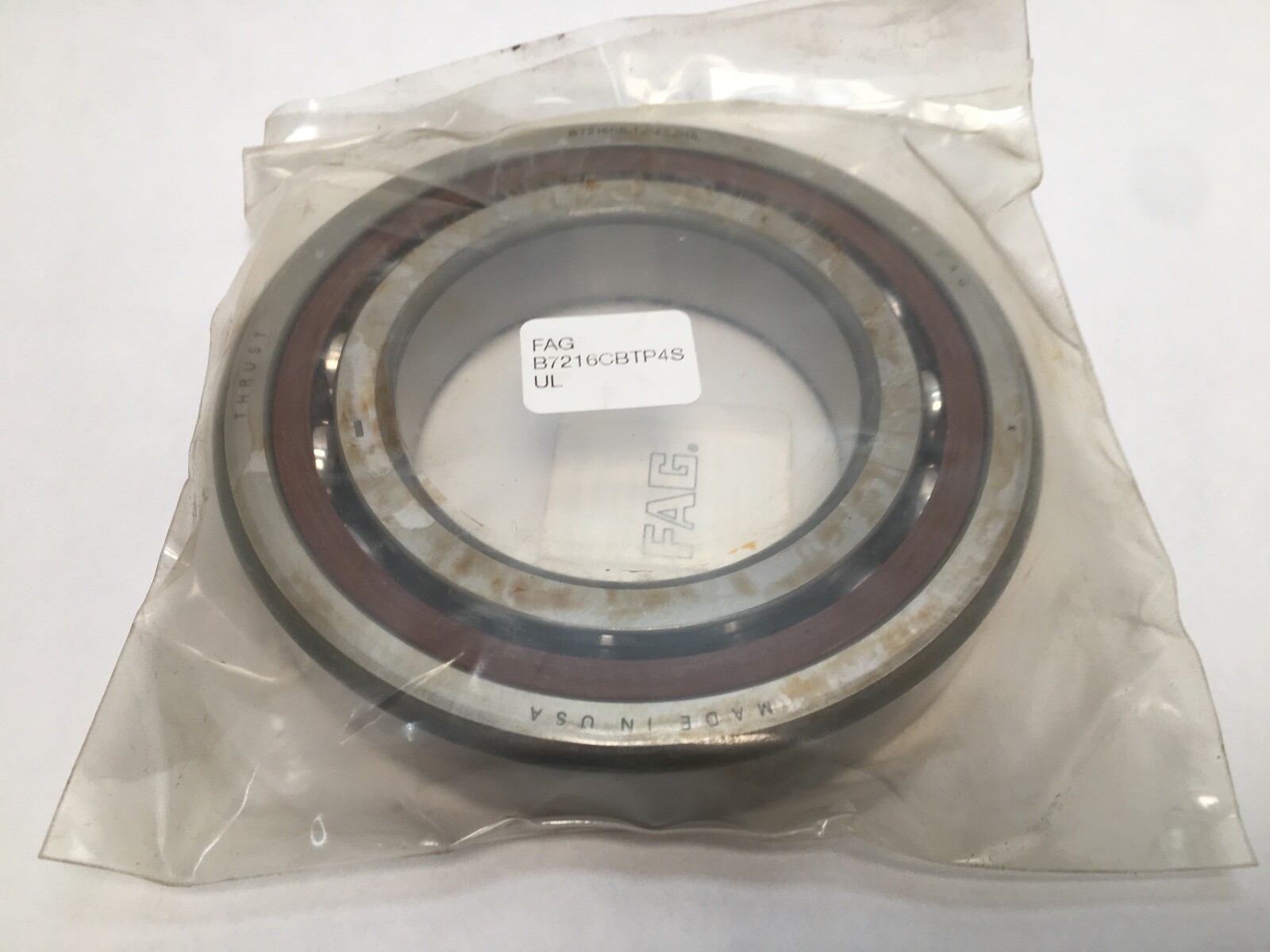

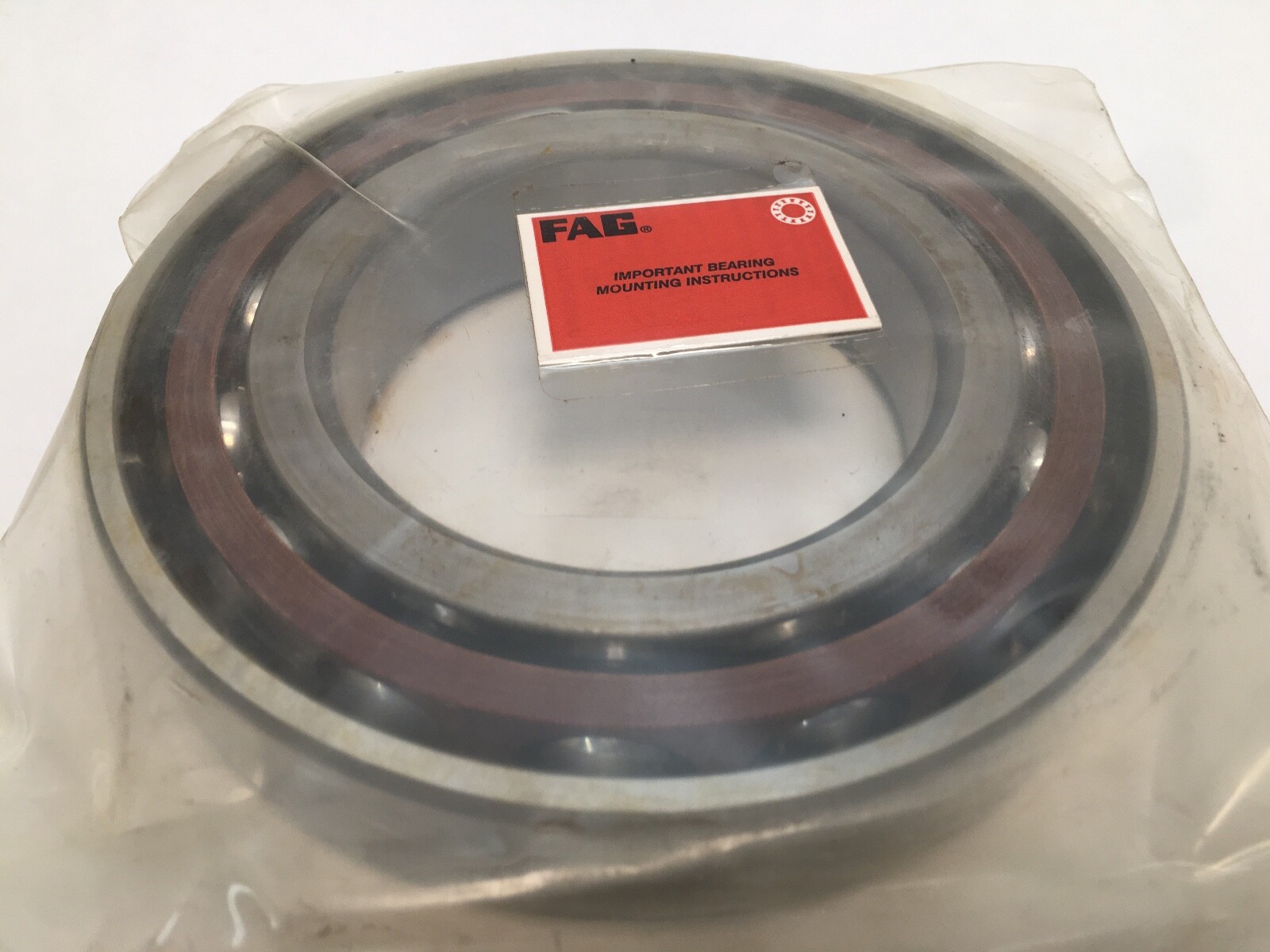

FAG B7216C.T.P4S.UL single super-precision angular contact ball bearing, 80 x 140 x 26 mm, 15 degree contact angle, P4S, phenolic cage, light preload.
List Price
$114.69
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7216C.T.P4S.UL |
| Model | B7216C B T P4S UL / 216 H C / 2MM216 / 7216 CT Y |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Light |
| Base Number | 7216 |
| Industry Terms | Spindle bearing, machine tool bearing, super precision angular contact, universally ground single, precision ball bearing |
| Common Misspellings | F.A.G., FAG B7216CB T P4S UI, B7216C.T.P45.UL, B7216CBTP4SUI, B72I6C |
| Application Types | Machine tool spindles, grinding spindles, high-speed rotary tables, precision gearboxes |
| Bore Shaft Size | 80 mm |
| Mpn Variants | B7216C.T.P4S.UL, B7216CB.T.P4S.UL, B7216CBTP4SUL, B-7216-C-T-P4S-UL, B7216-C-T-P4S-UL |
| Precision Class | P4S |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Part Number | B7216C.T.P4S.UL |
FAG B7216C.T.P4S.UL is a single super-precision angular contact ball bearing, 80 mm bore, 140 mm outside diameter, 26 mm wide, 15° contact angle, phenolic cage, P4S precision class, universally ground for light preload. The B prefix is FAG’s spindle-bearing line for machine tool spindles, grinding heads, high-speed rotary tables and precision gearboxes. Unit Quantity: 1 Pc.
B — FAG super-precision spindle bearing series.
7216 — ISO angular contact envelope, light series, 80 x 140 x 26 mm.
C — 15° contact angle.
T — phenolic (fabric-laminate) cage.
P4S — FAG super-precision class: P4 dimensional tolerance with tightened running accuracy.
UL — universally ground, light preload.
Bearing Type: Angular Contact Ball Bearing. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Contact Angle: 15°. Precision Class: P4S. Preload: Light. Cage Material: Phenolic. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Material: Bearing Steel. Series: FAG B7200 spindle bearing, 7216 envelope. Snap Ring Included: No. Harmonization Code: 8482.10.50.68. Unit Quantity: 1 Pc.
Mounting Arrangement: universally ground rings, single bearing or combined with identical bearings back-to-back (DB), face-to-face (DF) or in tandem (DT). Bore Type: Straight.

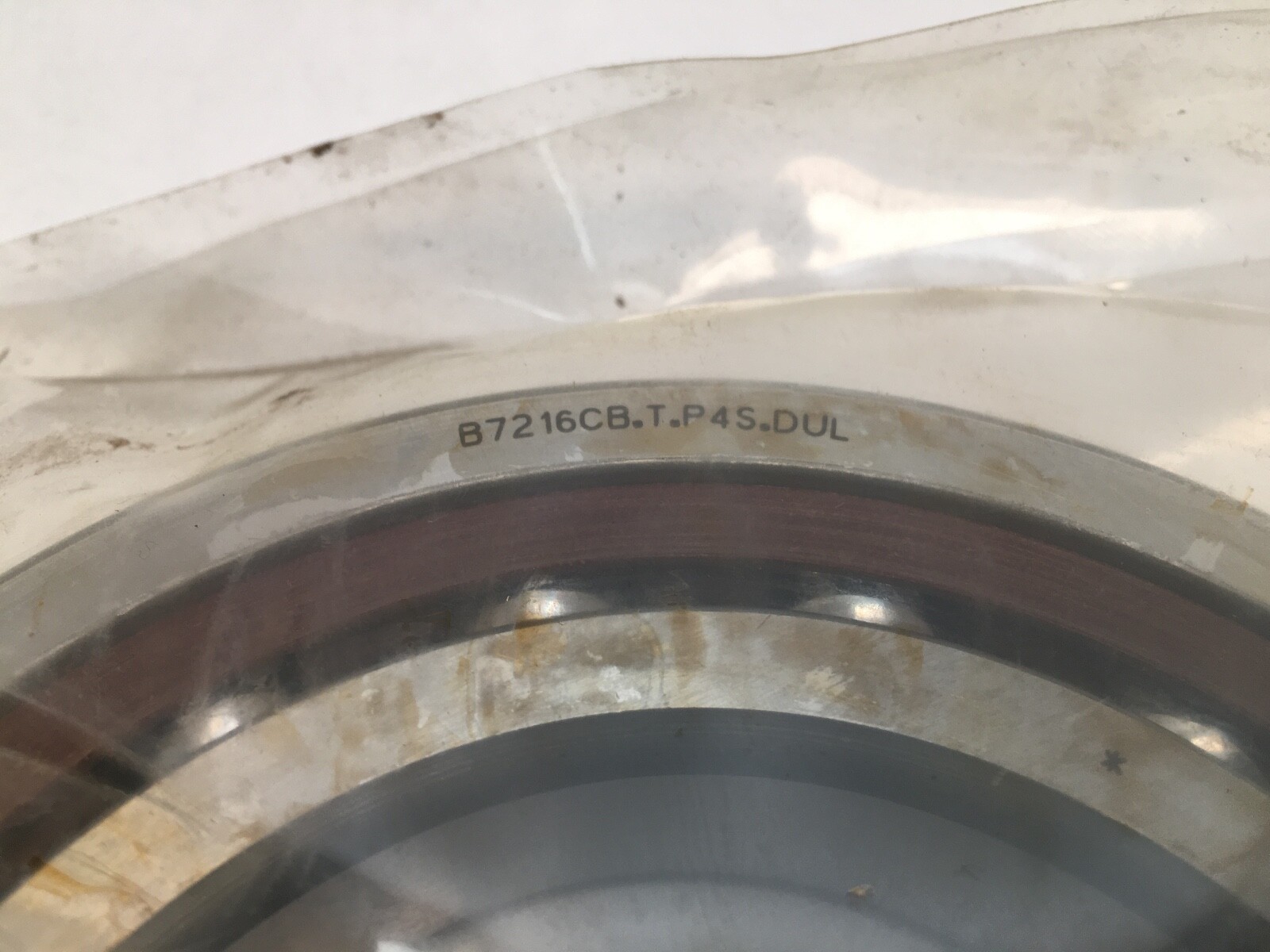

Designation variants: B7216C.T.P4S.UL, B7216CB.T.P4S.UL, B7216CBTP4SUL, B-7216-C-T-P4S-UL, B7216-C-T-P4S-UL. The same 7216 envelope in 25° contact angle is FAG B7216-E-T-P4S-UL.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm.
Contact Angle: 15°. Preload: Light (UL), universally ground.
Precision Class: P4S. Cage Material: Phenolic.
