Availability:
2 in stock
Angular contact ball bearing, 80 x 140 x 26 mm, 30 degree contact angle for high thrust capacity. Open design, 107 kN dynamic and 71.5 kN static rating.
List Price
$95.69
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7216A |
| Model | 7216A 7216E 7216ACD |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Base Number | 7216 |
|---|---|
| Overall Width | 26 mm |
| Bore Shaft Size | 80 mm |
| Mpn Variants | 7216A; 7216A-W; 7216E; 7216AWDBCP15; 7216ACD |
| Additional Attributes | Shaft abutment da min 90 mm; housing abutment Da max 130 mm; housing bore relief Db max 134 mm; chamfer r min 2 mm; chamfer r1 min 1 mm; shaft fillet ra max 2 mm; housing fillet rb max 1 mm; effective load centre a 44.8 mm; permissible axial load Pa 47.5 kN; grease quantity 8.1 g per bearing |
| Material | High Carbon Chrome Steel |
| Dynamic Load Rating | 107 kN |
| Static Load Rating | 71.5 kN |
| Series | 7200 |
| Rolling Elements | Ball |
| Item Weight | 1.45 kg |
| Limiting Speed | 6900 |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Contact Angle | 30° |
| Design Units | Metric |
| Part Number | 7216A |

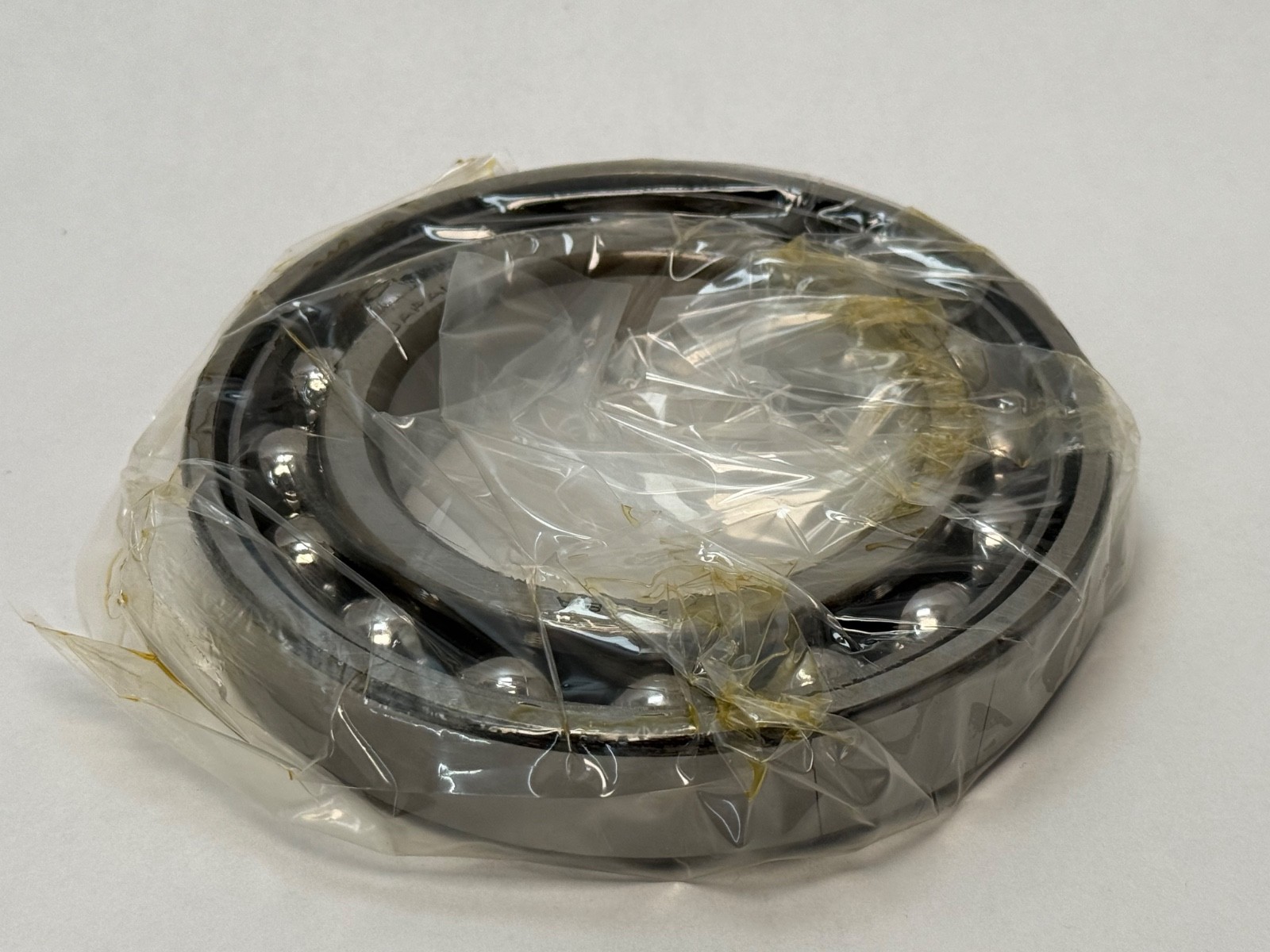

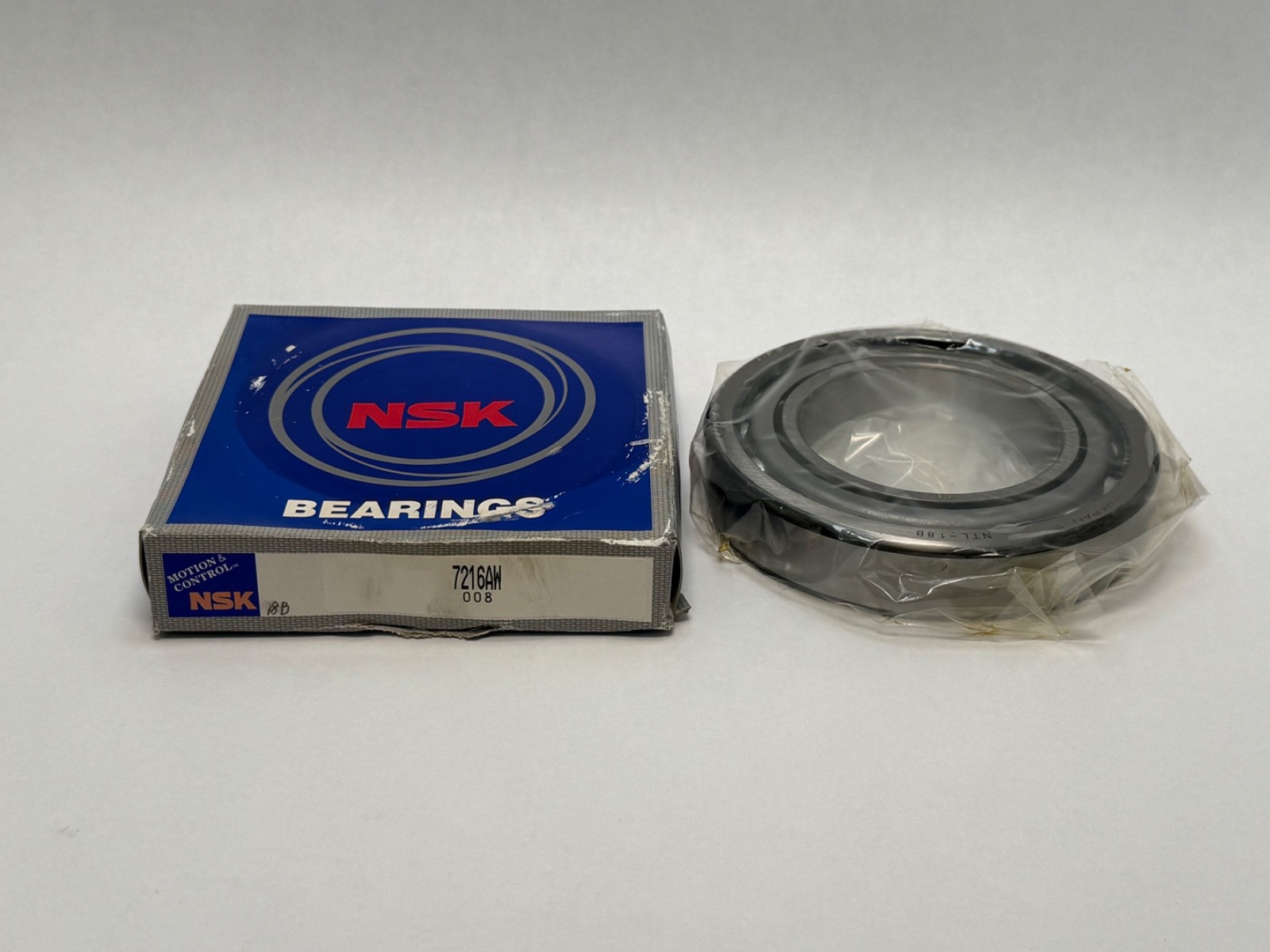

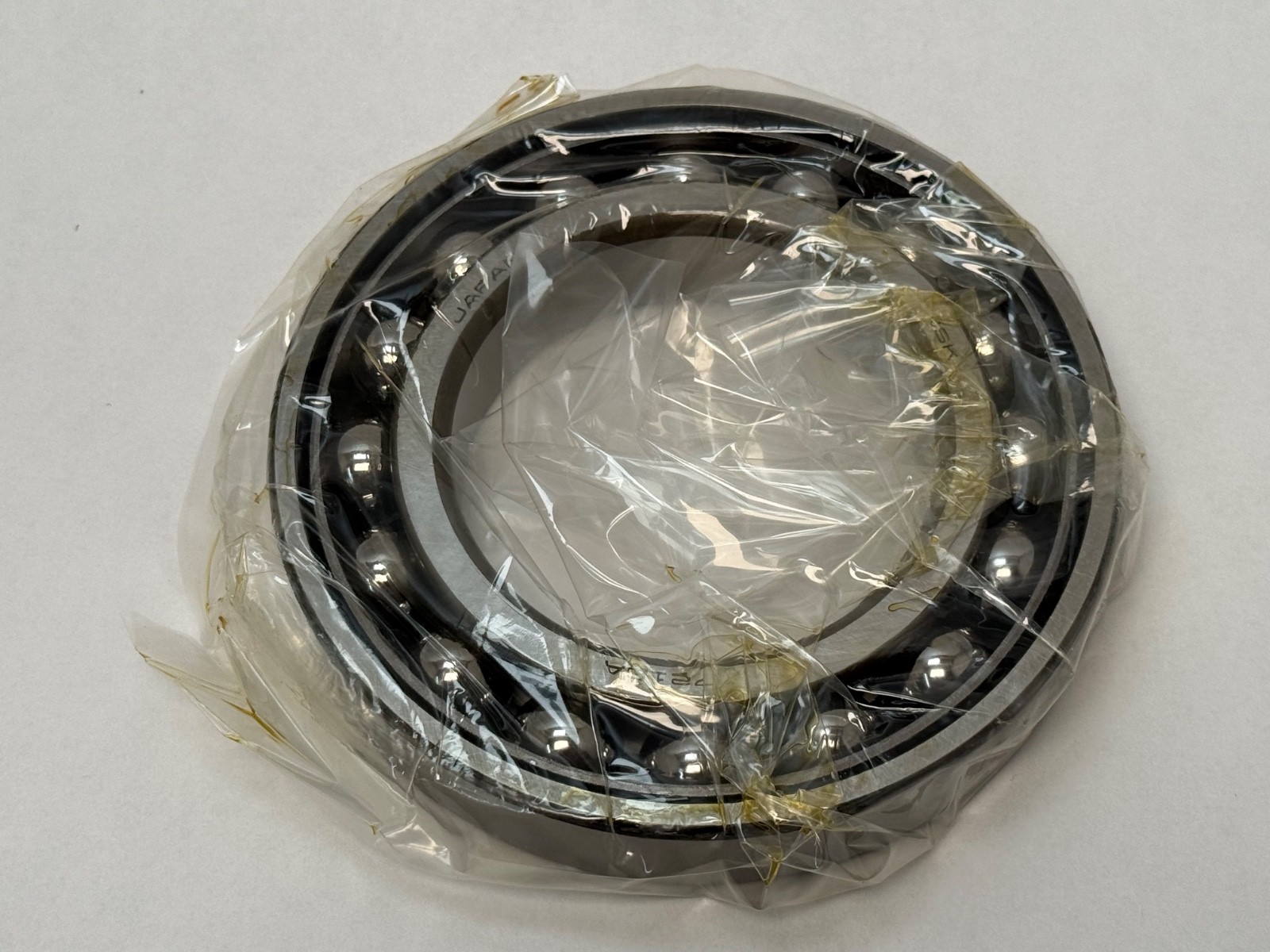

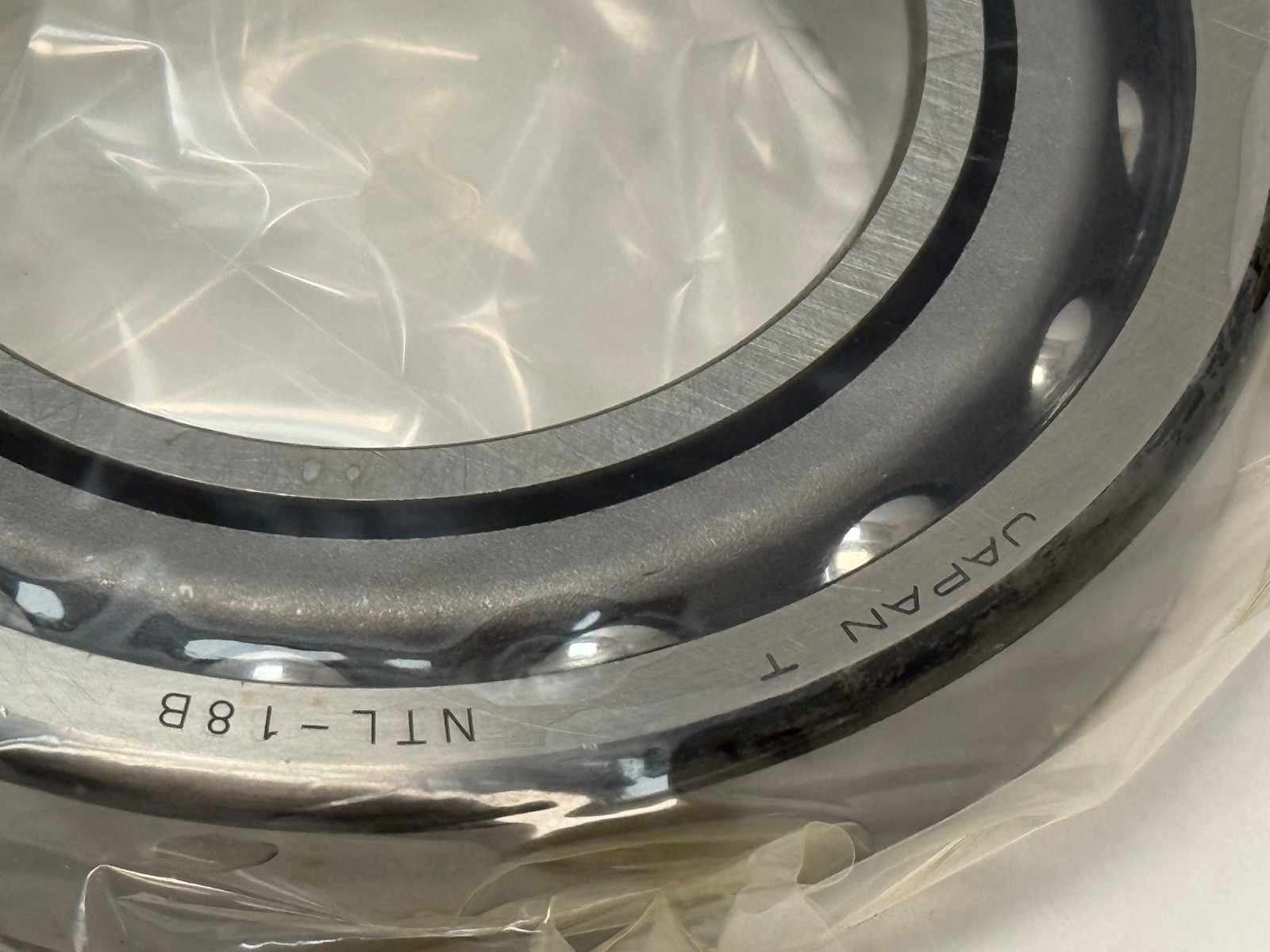

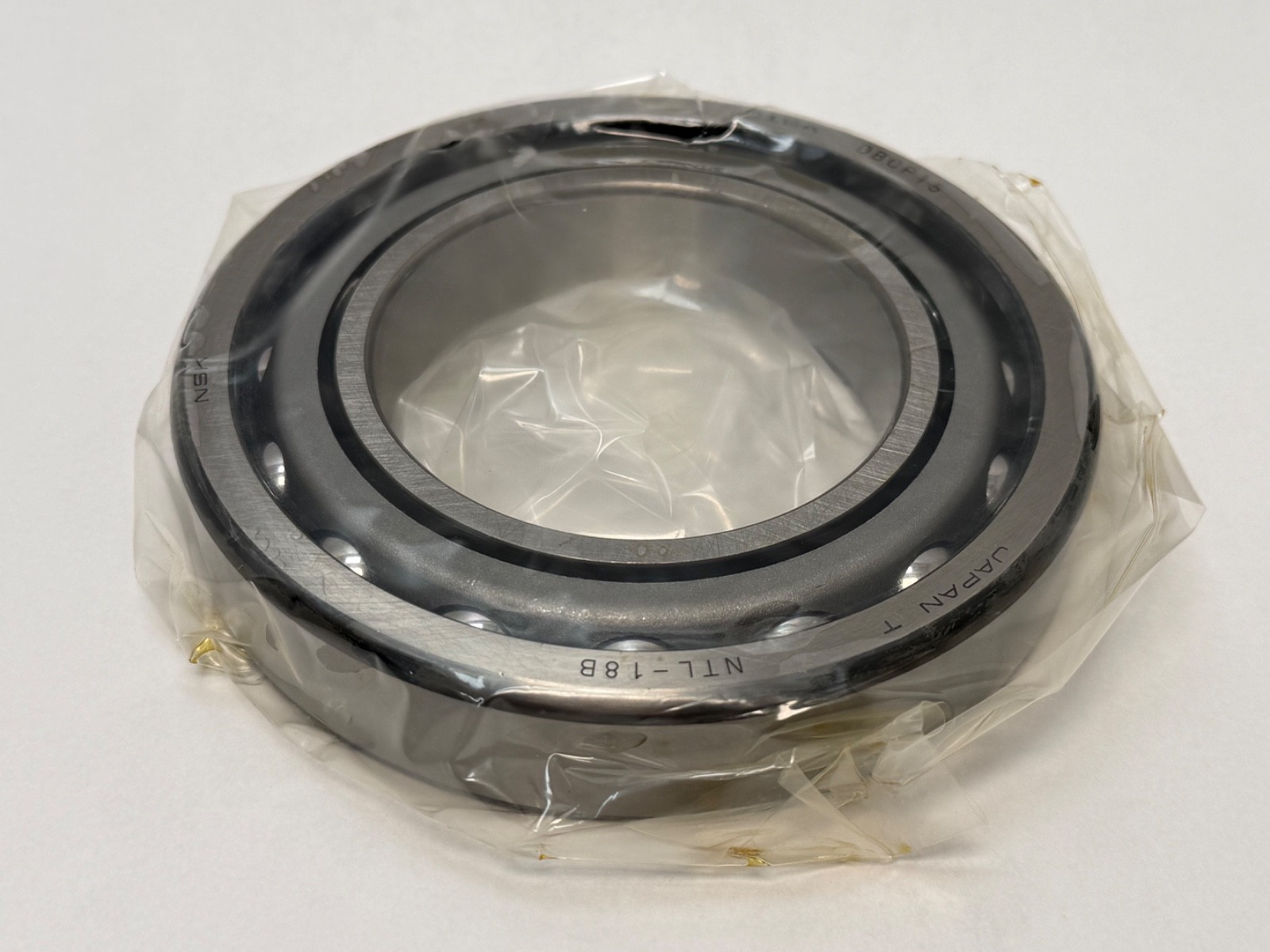

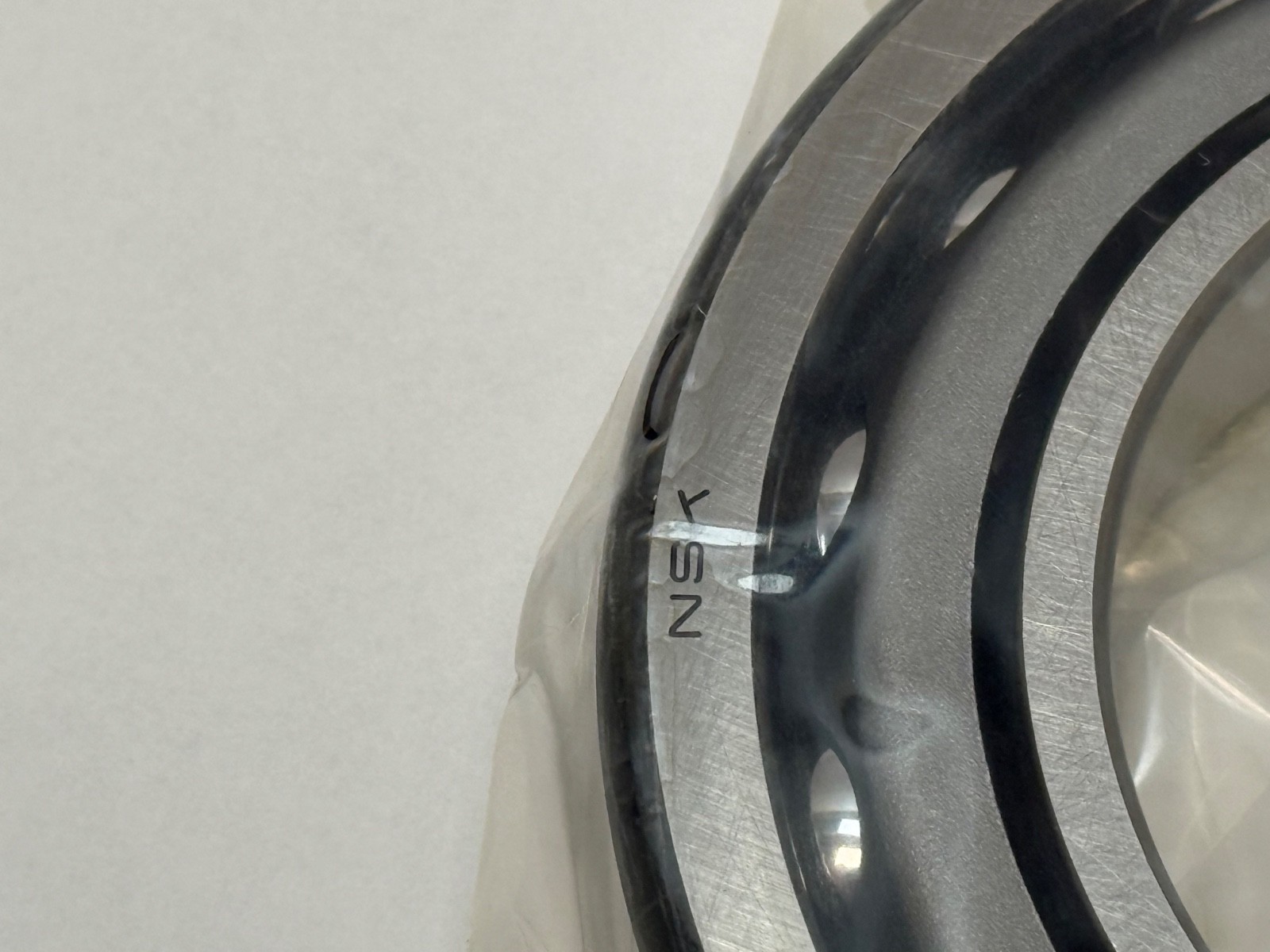

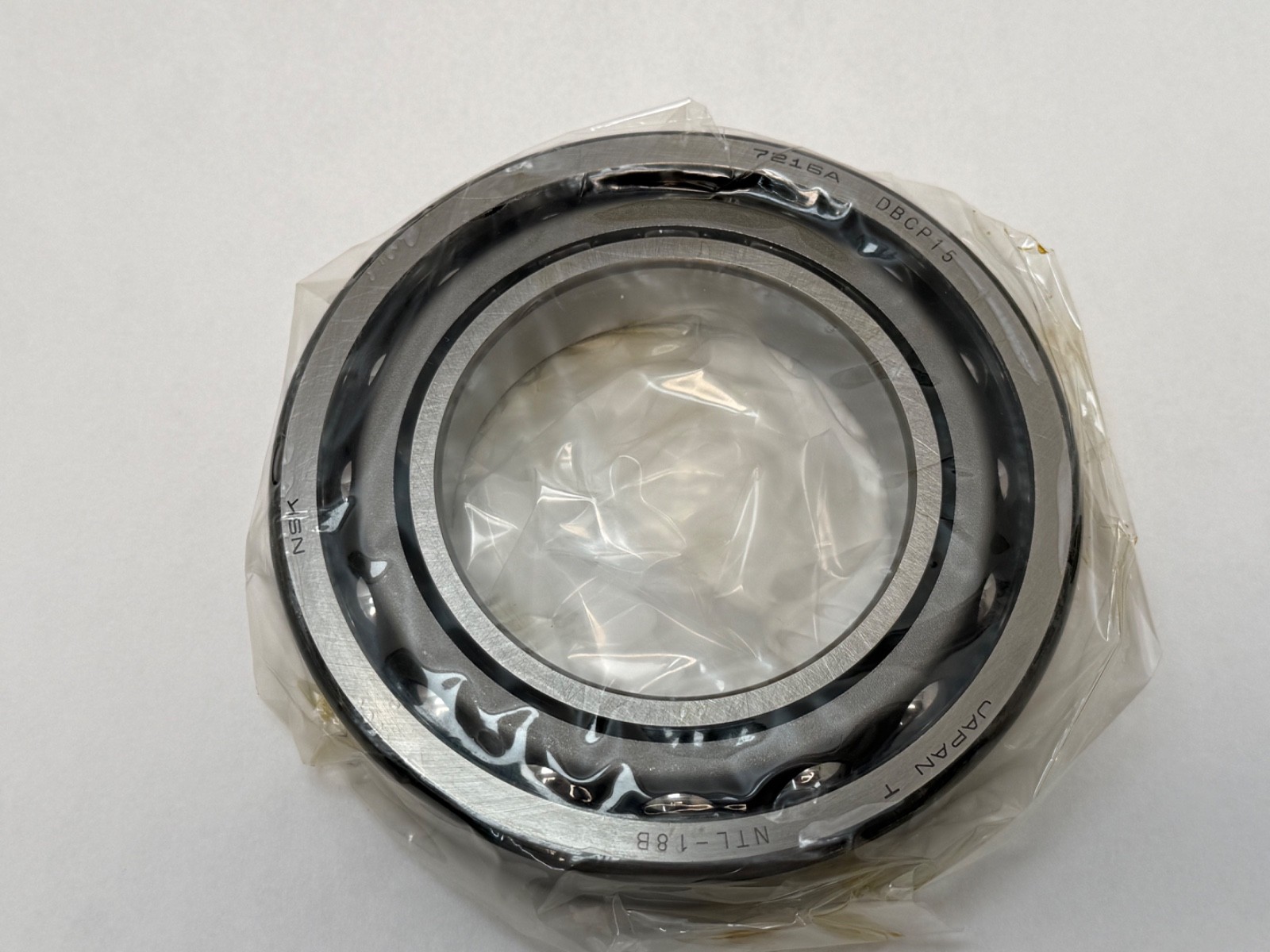

NSK 7216A single-row angular contact ball bearing, 72 series, 80 x 140 x 26 mm, open on both faces. Single bearing. Unit Quantity: 1 Pc.
7216 — the ISO 7216 size, 80 x 140 x 26 mm.
A — a 30° contact angle, the steepest of NSK’s standard angular contact angles.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Contact Angle: 30°. Dynamic Load Rating: 107 kN. Static Load Rating: 71.5 kN. Permissible Axial Load: 47.5 kN. Limiting Speed: 6,900 rpm grease / 9,100 rpm oil and oil-air. Effective load centre a: 44.8 mm. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Material: High Carbon Chrome Steel. Lubricant: Grease or oil, grease charge 8.1 g per bearing. Design Units: Metric. Item Weight: 1.45 kg. Unit Quantity: 1 Pc.
Chamfer dimension r min: 2 mm. Chamfer dimension r1 min: 1 mm. Shaft abutment diameter da min: 90 mm. Housing abutment diameter Da max: 130 mm. Housing bore relief Db max: 134 mm. Shaft fillet radius ra max: 2 mm. Housing fillet radius rb max: 1 mm.

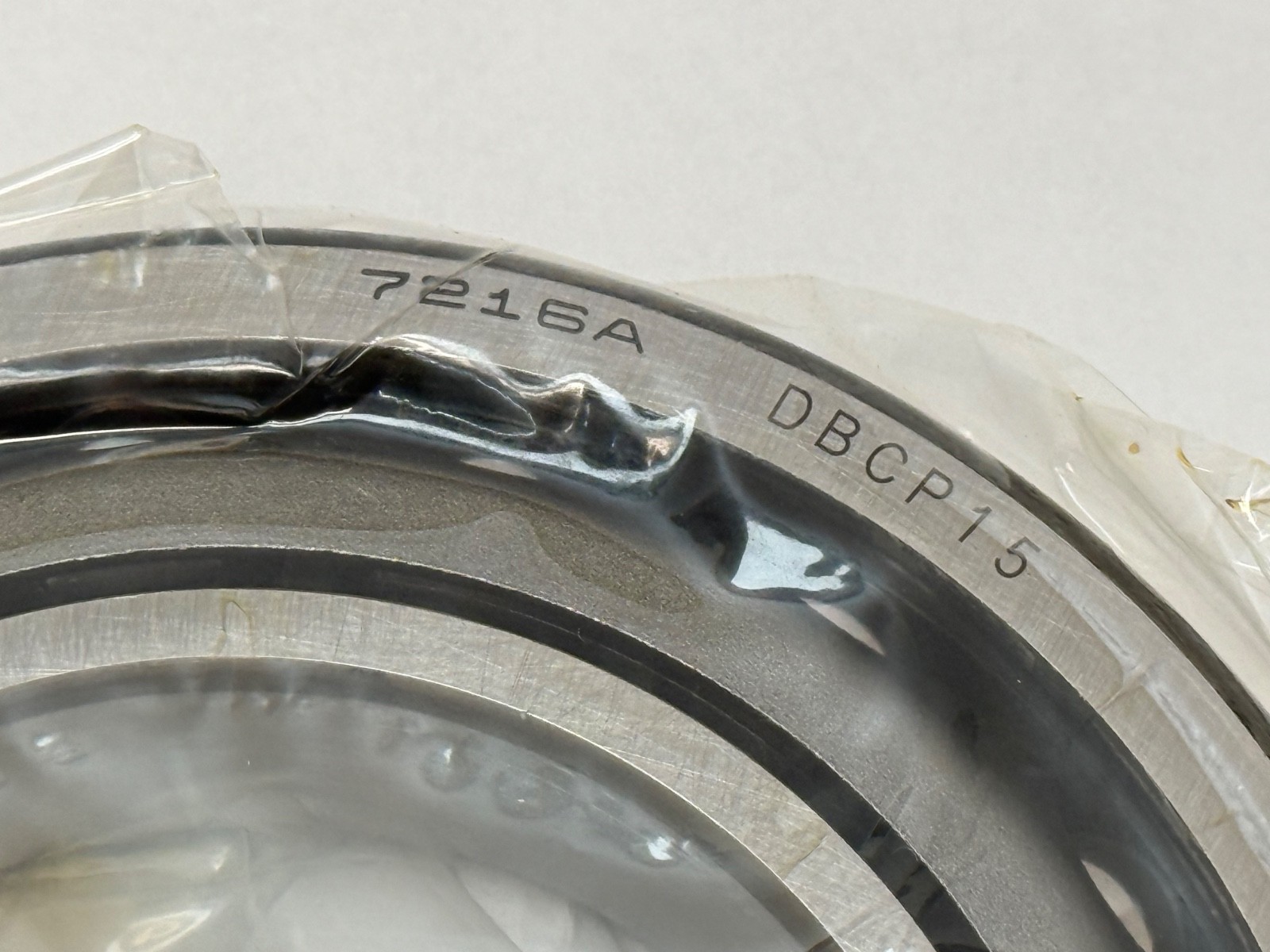

Part number variants: 7216A, 7216A-W, 7216E, 7216AWDBCP15, 7216ACD. A 7216 carrying a different angle letter has a different contact angle.
Contact Angle: 30°.
Dynamic Load Rating: 107 kN. Static Load Rating: 71.5 kN.
Limiting Speed: 6,900 rpm grease / 9,100 rpm oil and oil-air.
