Availability:
4 in stock

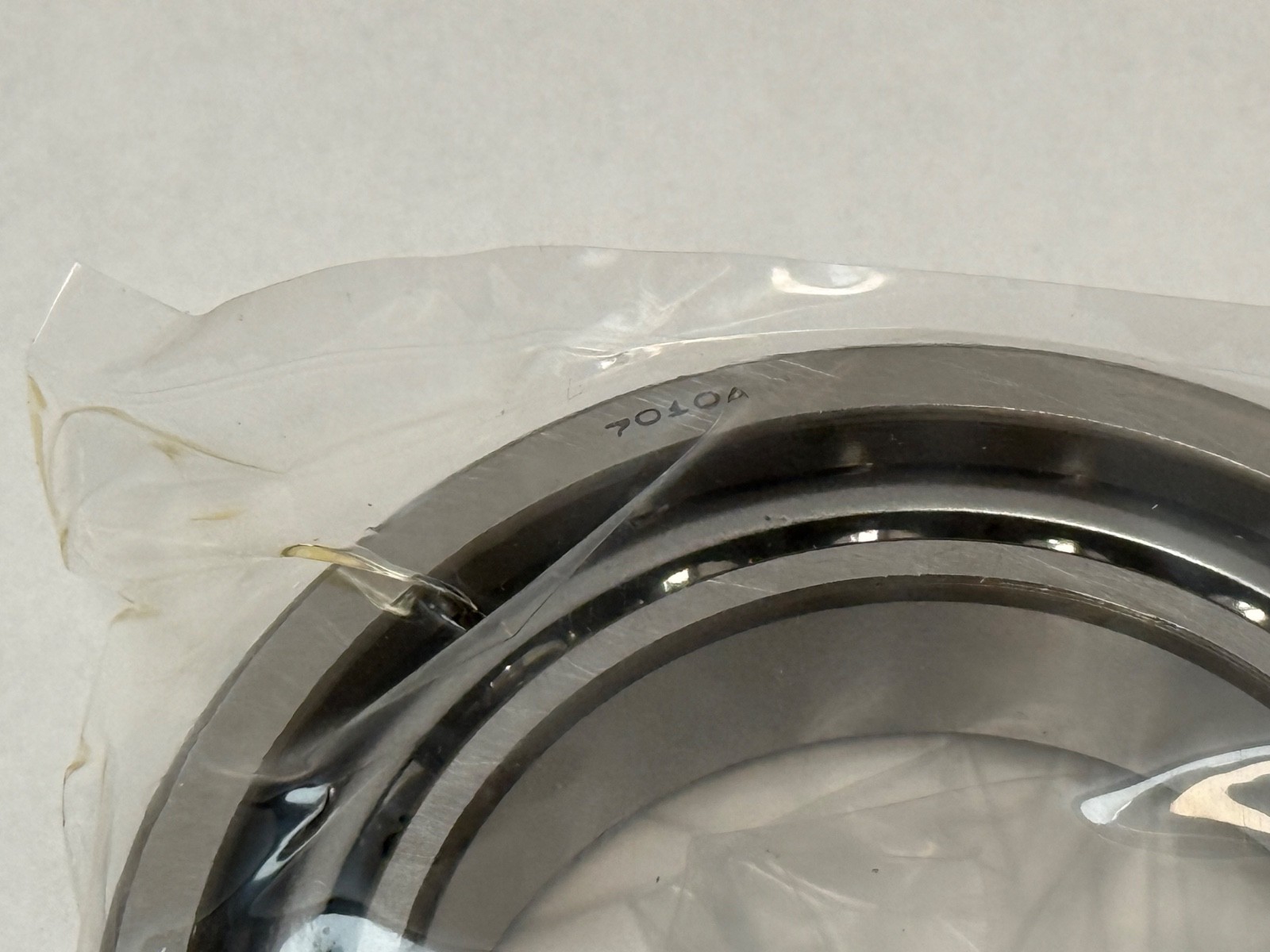

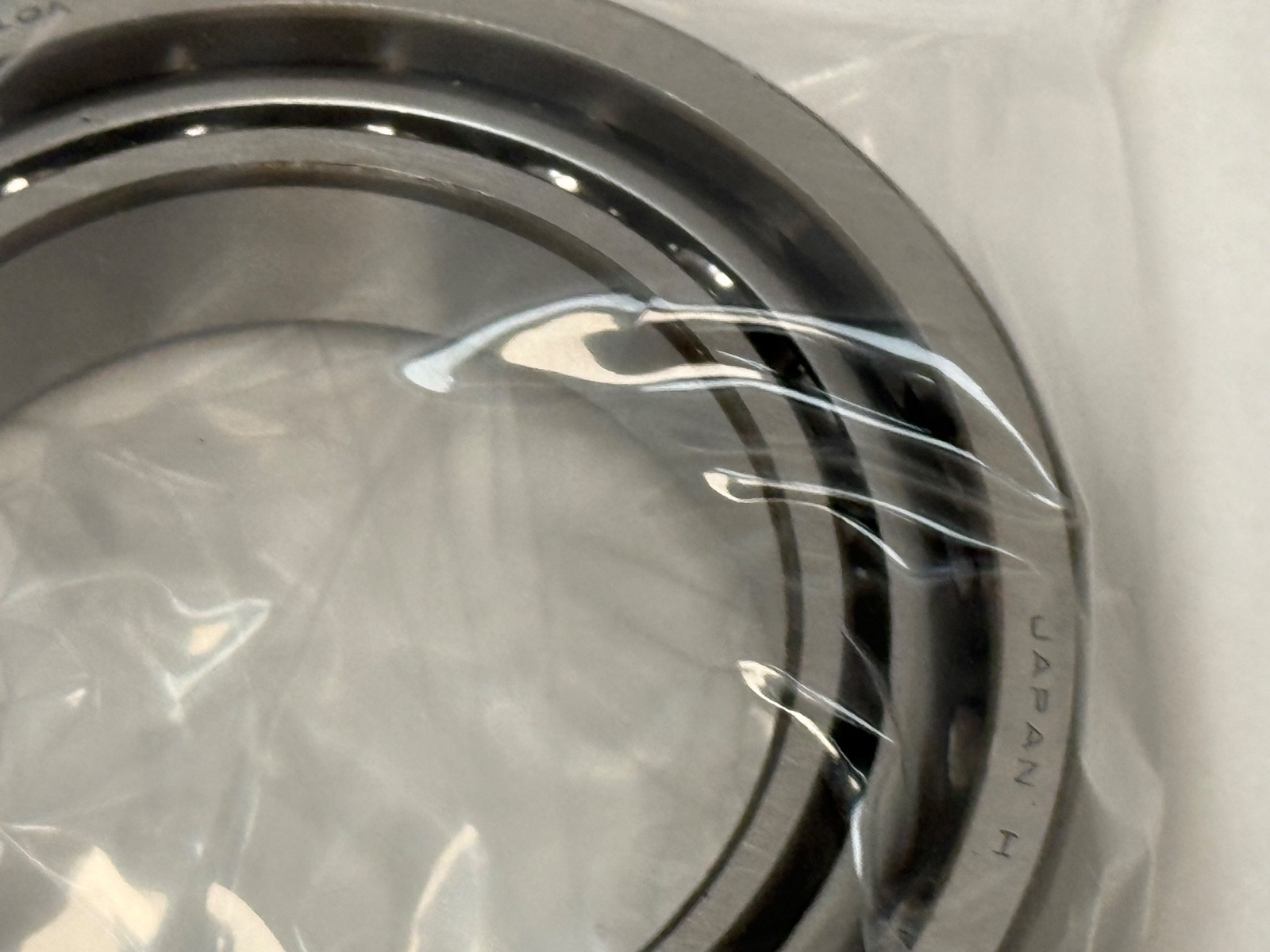

Angular contact ball bearing, 50 x 80 x 16 mm, 30° contact angle, open, pressed steel cage. Cr 26.9 kN, C0r 21.1 kN, 6,700 rpm grease.
List Price
$60.45
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| Model | 7010-A-W |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Base Number | 7010 |
|---|---|
| Industry Terms | Angular contact ball bearing; 30 degree angular contact bearing; spindle thrust bearing |
| Common Misspellings | 7010-A; 7010 AW; NSK 7010 A W |
| Total Width | 16 mm |
| Bore Shaft Size | 50 mm |
| Mpn Variants | 7010A; 7010 A; 7010AW; 7010A-W |
| Precision Class | Normal (ISO P0) |
| Dynamic Load Rating C1 | 26.9 kN |
| Additional Attributes | Effective load centre a 26.8 mm; shaft abutment da min 56 mm; housing abutment Da max 74 mm; abutment fillet ra max 1 mm; bearing chamfer r min 1 mm |
| Dynamic Load Rating | 26.9 kN |
| Static Load Rating | 21.1 kN |
| Precision Rating | ABEC 1 / ISO Normal |
| Rolling Elements | Ball |
| Item Weight | 0.263 kg |
| Cage Material | Pressed steel |
| Limiting Speed | 6,700 rpm grease / 9,500 rpm oil |
| Number Of Rows | 1 |
| Contact Angle | 30° |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Series | 70 (ISO light) |
| Part Number | 7010A |
| Material | Chrome steel |
| Cross Reference 1 | NSK 7010AW (30 deg, pressed steel cage) |
|---|---|
| Cross Reference 2 | 7010E (RHP/Fafnir scheme, 25 deg, different angle) |
| Cross Reference 3 | 7010ACD (SKF scheme, machined cage, different angle) |
NSK 7010A single-row angular contact ball bearing, ISO 7010 size. Bore: 50 mm. Outside Diameter: 80 mm. Width: 16 mm. Bearing Type: Single-row angular contact ball bearing. Number of Rows: 1. Rolling Elements: Ball. Contact Angle: 30°. Closure Type: Open. Cage Material: Pressed steel. Precision Class: Normal (ISO P0). Dynamic Load Rating: 26.9 kN. Static Load Rating: 21.1 kN. Limiting Speed: 6,700 rpm on grease, 9,500 rpm on oil. Item Weight: 0.263 kg.
7010 — NSK’s number for the ISO 7010 size, 50 x 80 x 16 mm, in the 70 light dimension series.
A — 30° contact angle.
W — pressed steel cage.
Contact Angle: 30°. NSK’s middle angle. It carries roughly twice the thrust of a 15° bearing on the same envelope and still runs fast enough for grease lubrication at 6,700 rpm. Thrust is carried in one direction only from a single row, so the shaft needs a second bearing or a shoulder facing the other way.
Dynamic Load Rating: 26.9 kN. Static Load Rating: 21.1 kN. The 70 light series keeps the outside diameter down to 80 mm on a 50 mm shaft, which is what makes it the usual choice where housing bore is the constraint.
Cage Material: Pressed steel. Low mass and low windage, which suits the grease-lubricated speed range.
Limiting Speed: 6,700 rpm on grease, 9,500 rpm on an oil bath.
Effective Load Centre (a): 26.8 mm from the bearing face. Shaft Abutment Diameter (da min): 56 mm. Housing Abutment Diameter (Da max): 74 mm. Maximum Abutment Fillet Radius (ra max): 1 mm. Bearing Chamfer (r min): 1 mm.
Unit Quantity: 1 Pc. One open bearing, supplied as an individual bearing.
The 50 x 80 x 16 mm envelope is ISO standard and every maker’s 7010 shares it. The contact angle decides substitution. A 7010A or 7010AW is 30°. A 7010C is 15°, a 7010B is 40°, and a 7010E in the RHP and Fafnir schemes is 25°. All three fit the same seats but change the thrust-to-speed balance, so check the angle before substituting. The SKF-scheme 7010ACD is a machined-cage bearing on the same envelope with a different contact angle.
Searchable variants of the part number: 7010A, 7010 A, 7010AW, 7010A-W, 7010 AW.
