Angular contact spindle bearing, 25 x 42 x 9 mm, 15° contact angle, phenolic cage, universal light preload, 36,000 rpm on grease. FAG B719 thin-section series.
List Price
$43.50
29 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B71905C.TPA.P4A.UL |
| Model | 71905 TG P4 / B 71905 C T P4 UL / 2MM9305WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 42 mm |
| Width | 9 mm |
| Material | Chrome Steel |
|---|---|
| Series | B719 |
| Lubricant | grease or oil |
| Preload | Light (34 N) |
| Mpn Variants | B71905CTPAP4AUL, B71905C.TPA.P4A.UL, B-71905-C-TPA-P4A-UL, 71905TGP4, 7905C |
| Closure Type | Open |
| Min Temp | -30 °C |
| Dynamic Load Rating | 8,000 N |
| Static Load Rating | 3,800 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.044 kg (0.10 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 36,000 rpm grease; 56,000 rpm oil |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal single (UL) |
| Cross Reference 1 | SKF 71905 CD/P4A |
|---|---|
| Cross Reference 2 | NSK 7905CTYNSULP4 |
| Cross Reference 3 | RHP 7905CTSULP4 |
| Cross Reference 4 | Fafnir 2MM9305WI CR SUL |

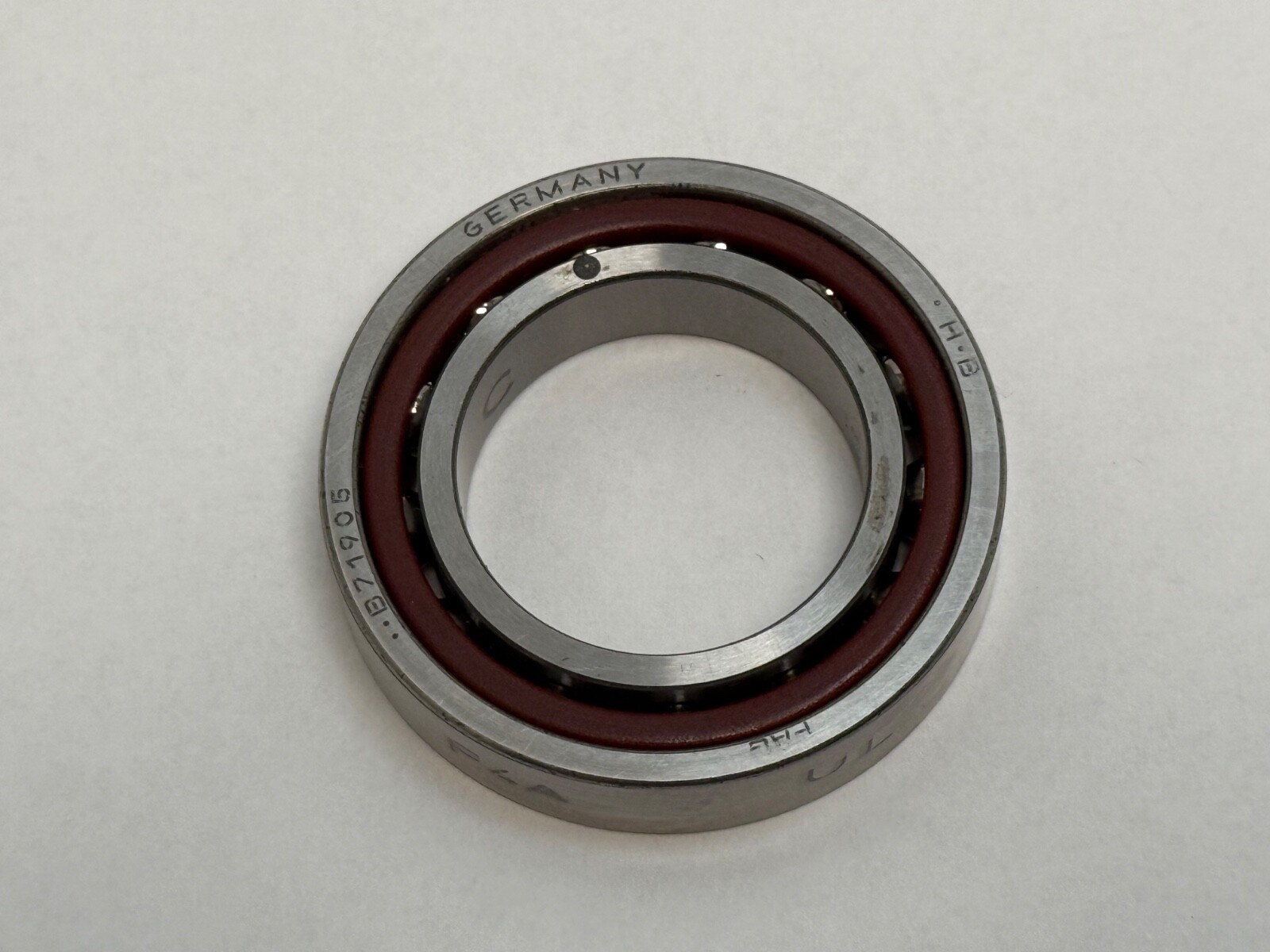

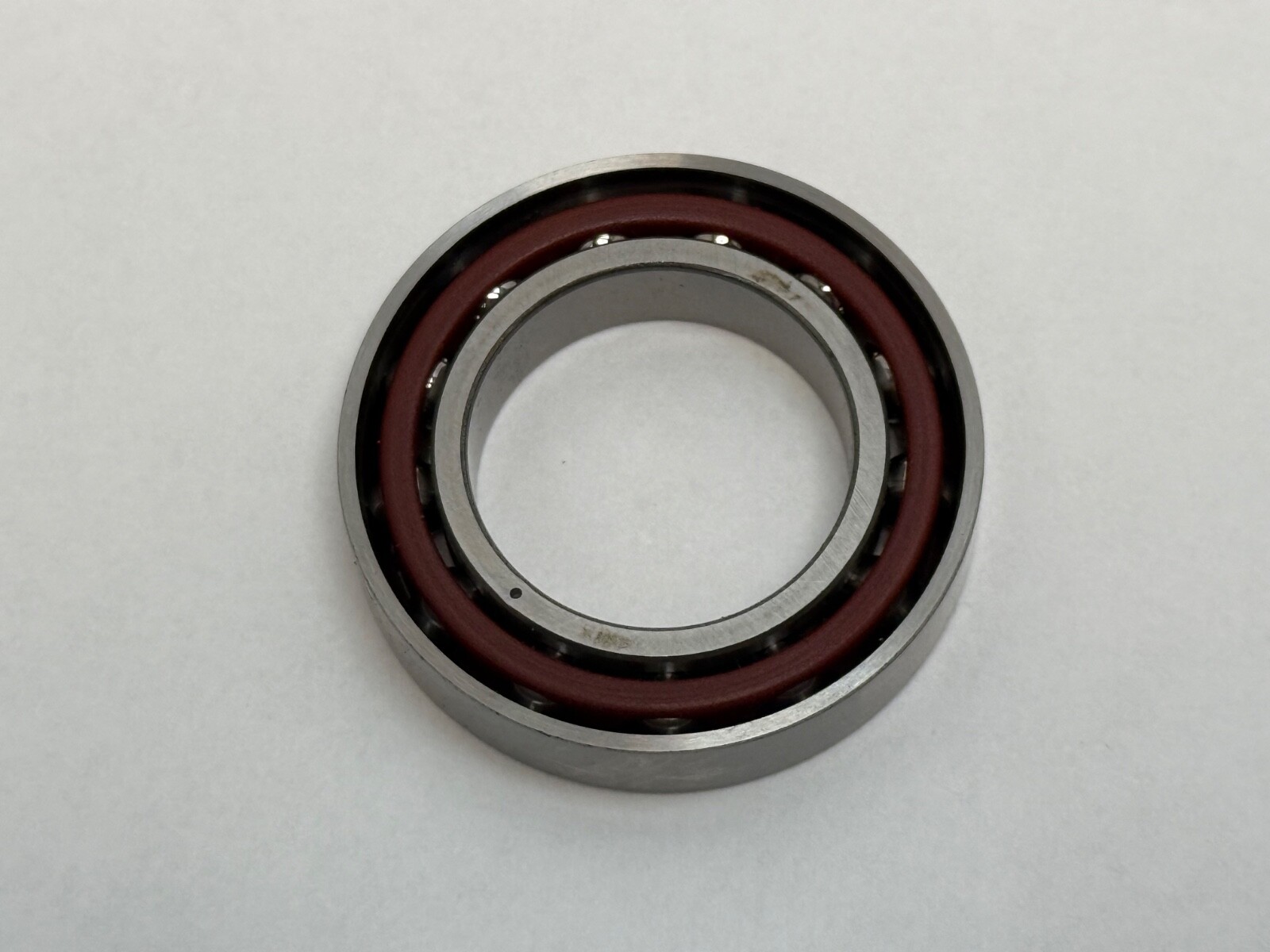

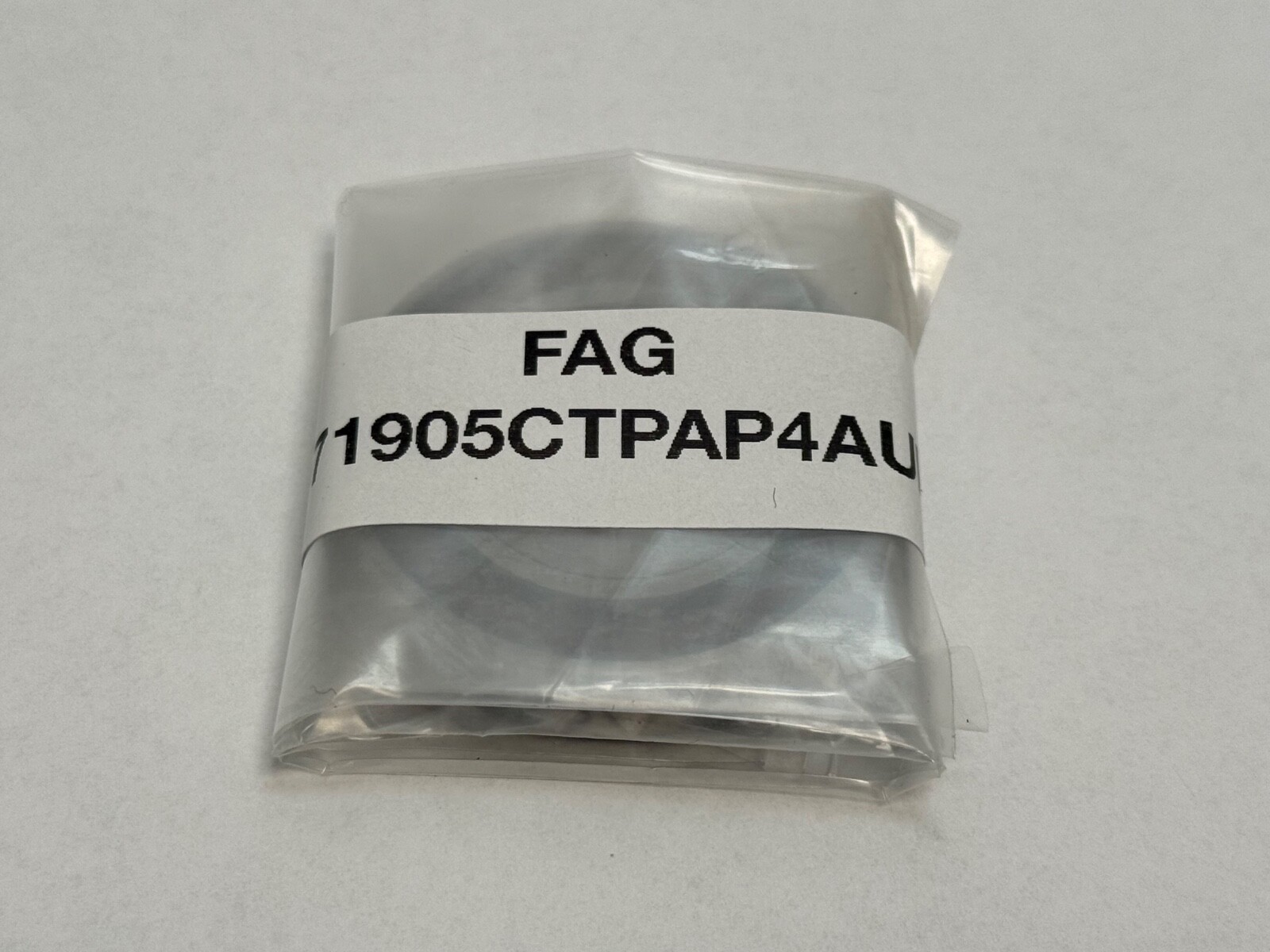

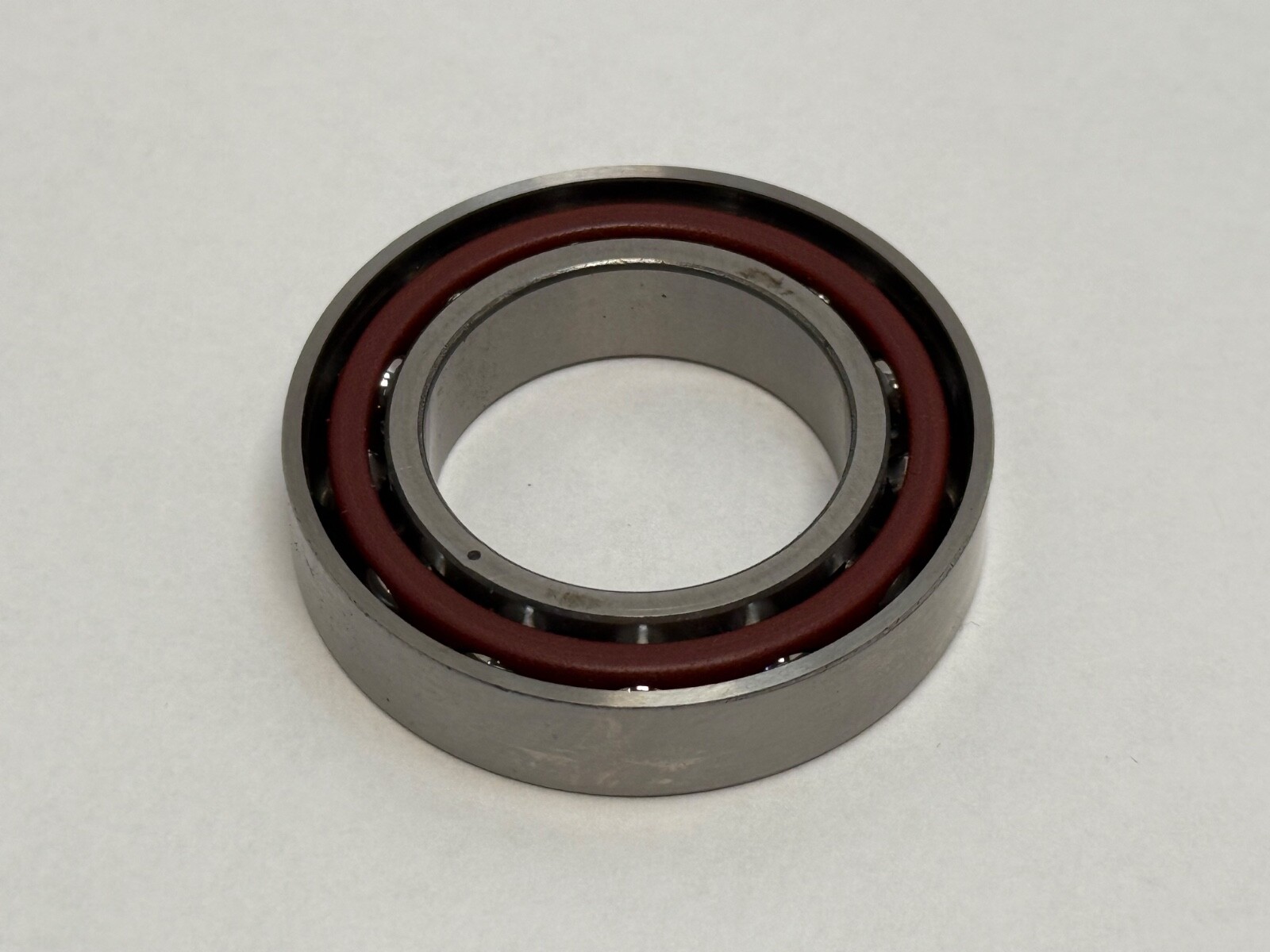

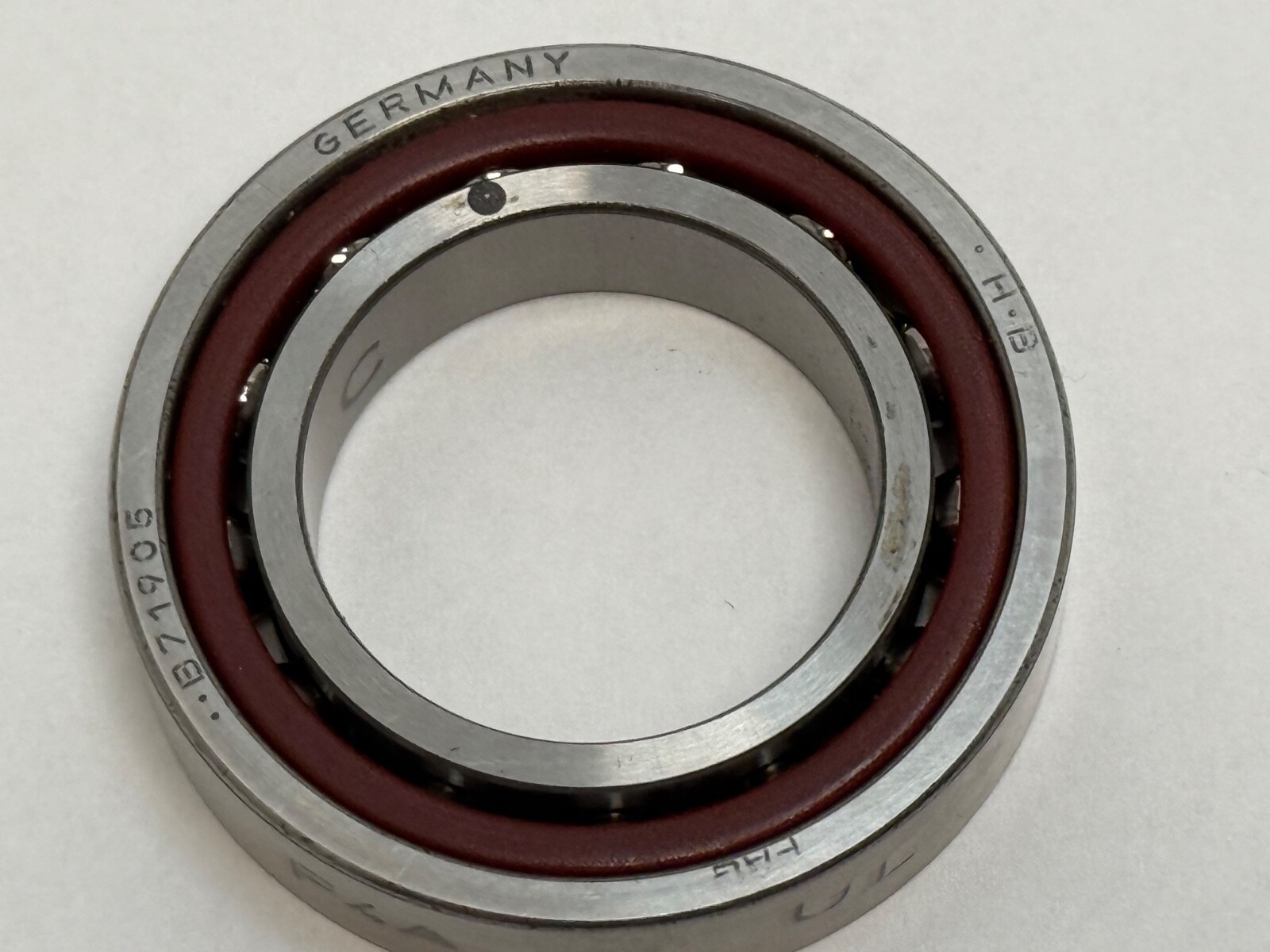

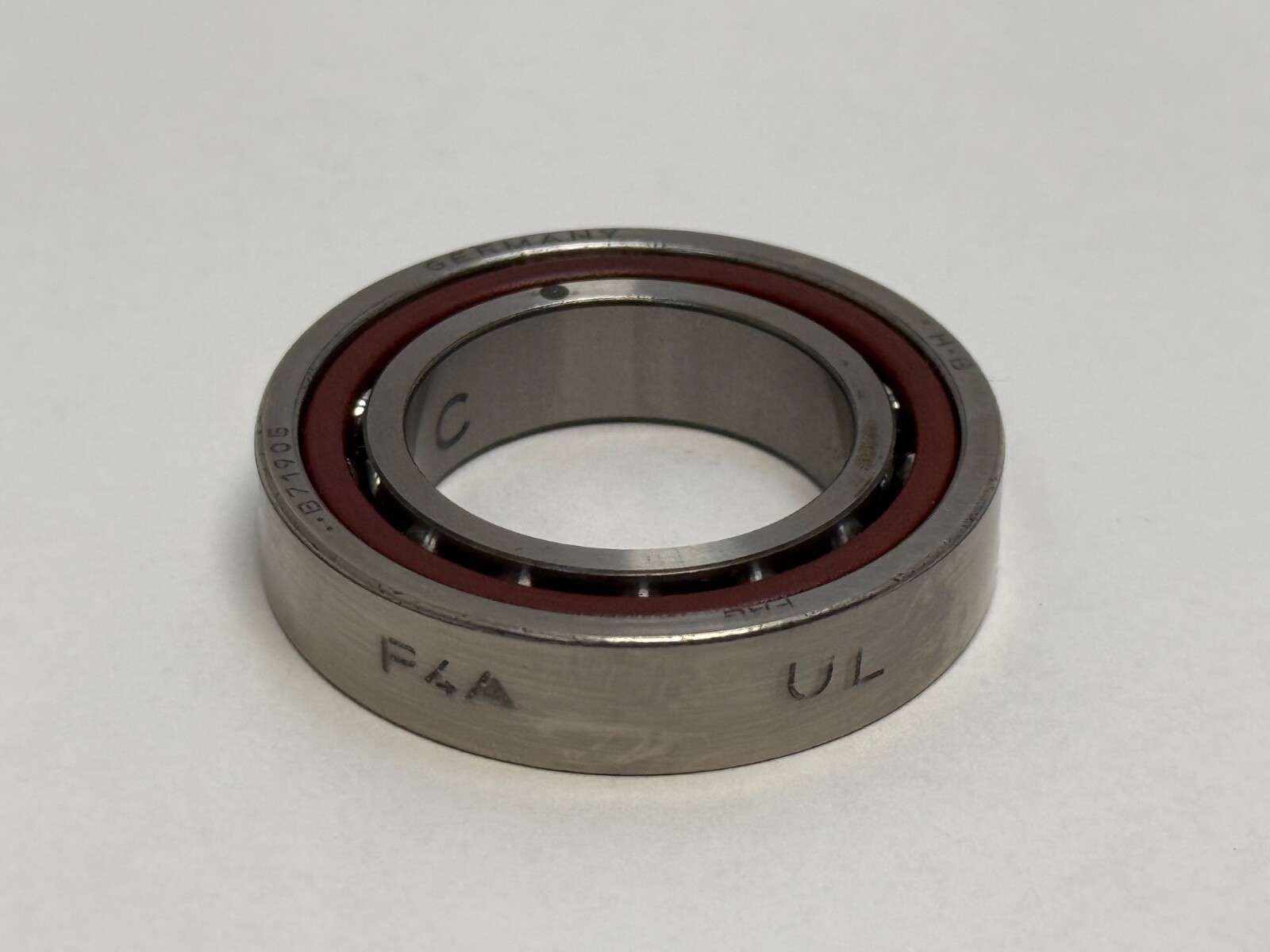

FAG B71905-C-TPA-P4A-UL is a single super-precision angular contact spindle bearing from the Schaeffler B719 thin-section series. Bore Diameter: 25 mm. Outside Diameter: 42 mm. Width: 9 mm. Contact Angle: 15°. Cage Material: Phenolic. Preload: Light.
B71905 — FAG spindle bearing, ISO 71905 envelope, 25 x 42 x 9 mm.
C — 15° contact angle.
TPA — machined fabric-base laminated phenolic cage.
UL — universally ground single bearing, light preload when paired in any arrangement.
Dynamic Load Rating: 8,000 N. Static Load Rating: 3,800 N. Limiting Speed: 36,000 rpm grease; 56,000 rpm oil. Preload Force: Light, 34 N (Schaeffler FV L). Operating Temperature: -30 to 100 °C.
Shaft Shoulder Diameter: 29 mm. Housing Shoulder Diameter: 38.5 mm. Item Weight: 0.044 kg (0.10 lb).
Unit Quantity: 1 Pc. Universal single bearing for duplex or multi-bearing sets.
Same envelope and 15° angle: SKF 71905 CD/P4A, NSK 7905CTYNSULP4, RHP 7905CTSULP4, Fafnir 2MM9305WI CR SUL. Current Schaeffler equivalent: B71905-C-T-P4S-UL.
