Availability:
2 in stock

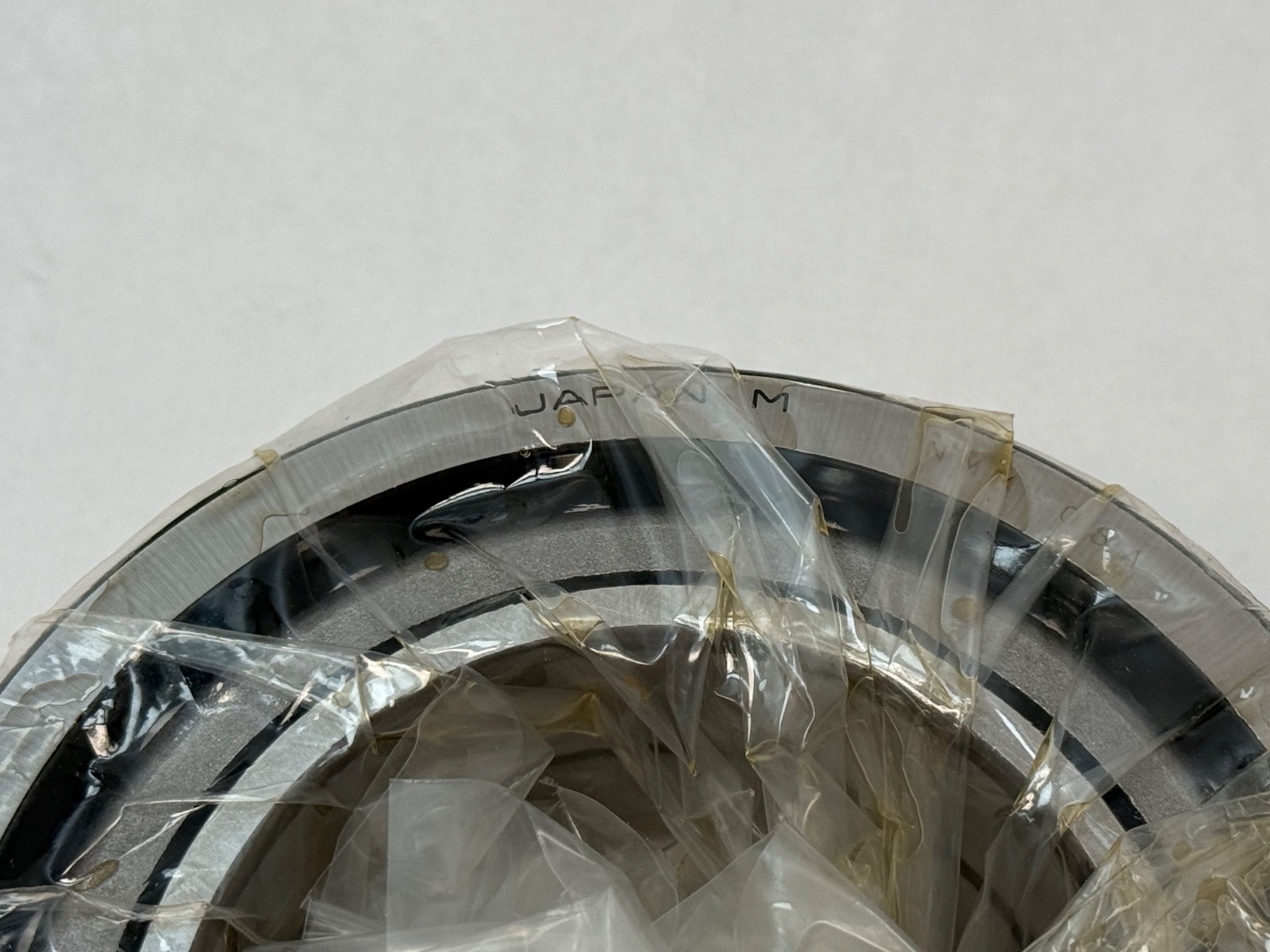

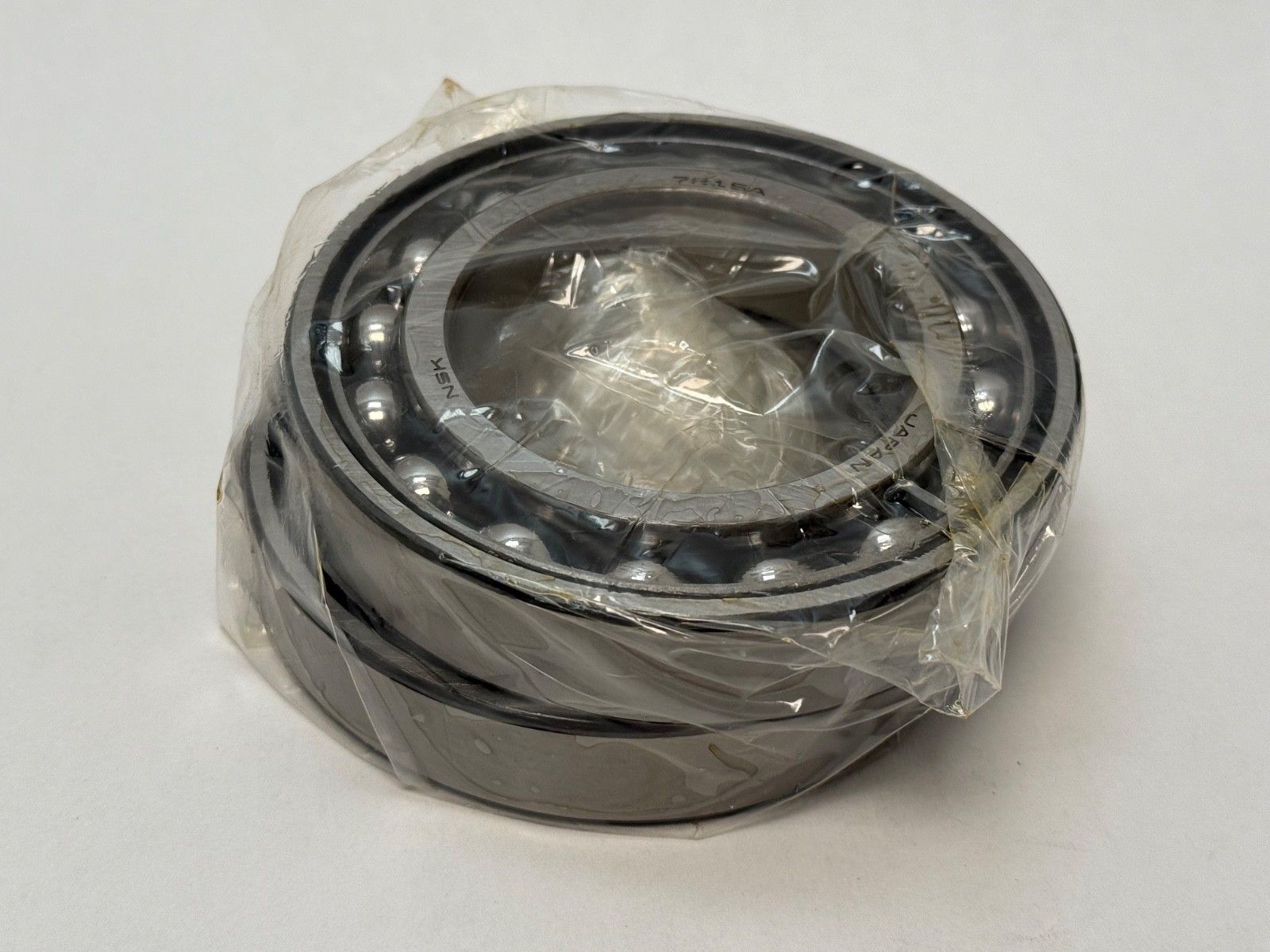

Angular contact ball bearings, 75 x 130 x 25 mm, 30° contact angle, back-to-back matched pair. Cr 83,500 N per bearing. 2 Pcs.
List Price
$167.76
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| Model | 7215A / 3MM215WI CR DB |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 7215 |
| Common Misspellings | NKS 7215AW, 721SAW, 7215-AW, 7215 A W DB, 7215AVV, 721SA, NSK 7215 AW DB pair |
| Application Types | Machine tool spindles, pump and blower shafts, gearbox shafts carrying overhung load, vertical shafts, rotary tables, any arrangement needing high moment stiffness in one housing bore |
| Mpn Variants | 7215AWDB, 7215AW, 7215A, 7215-A-W-DB, 7215 AW DB, 7215ACD, 7215E, 7215AWDBCP5 |
| Arrangement Configuration | Matched pair ground as a set for back-to-back mounting. Load ratings and weight are per bearing. |
| Additional Attributes | Effective load centre a 42.1 mm per bearing. Shaft abutment da min 84 mm. Housing abutment Da max 121 mm. Fillet radius ra max 1.5 mm. Chamfer r min 1.5 mm, r1 min 1 mm. Load ratings and mass are per bearing, not set totals. |
| Dynamic Load Rating | 83,500 N |
| Static Load Rating | 64,500 N |
| Series | 7200 |
| Rolling Elements | Ball |
| Item Weight | 1.19 kg (2.62 lb) per bearing |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 4,300 rpm grease; 6,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 30° |
| Mounting Arrangement | Back-to-back (DB) |
| Design Units | Metric |
| Bearing Material | Bearing steel |
| Cross Reference 1 | NSK 7215AW – single bearing of this pair |
|---|---|
| Cross Reference 2 | NSK 7215AWDF – face-to-face pair of same bearing |
| Cross Reference 3 | NSK 7215ATYNSULP4 – super-precision, P4, different cage |
| Cross Reference 4 | NSK 7215ATRSULP4 – super-precision, P4, phenolic cage |
| Cross Reference 5 | SKF 7215 BE – 40° vs 30° |
| Cross Reference 6 | Koyo 7215B – 40° vs 30° |
| Cross Reference 7 | NTN 7215B – 40° vs 30° |
| Cross Reference 8 | FAG 7215-B – 40° vs 30° |

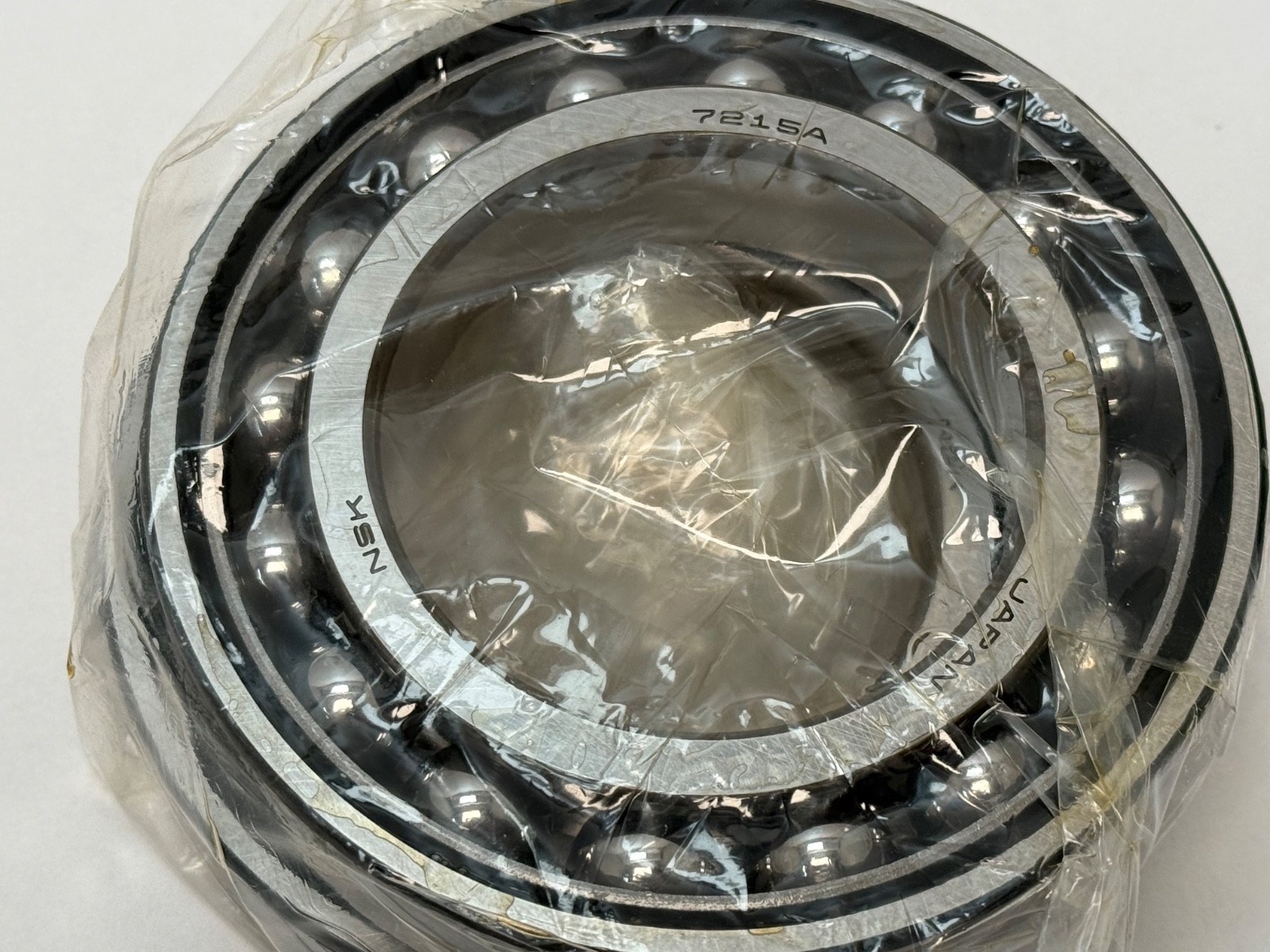

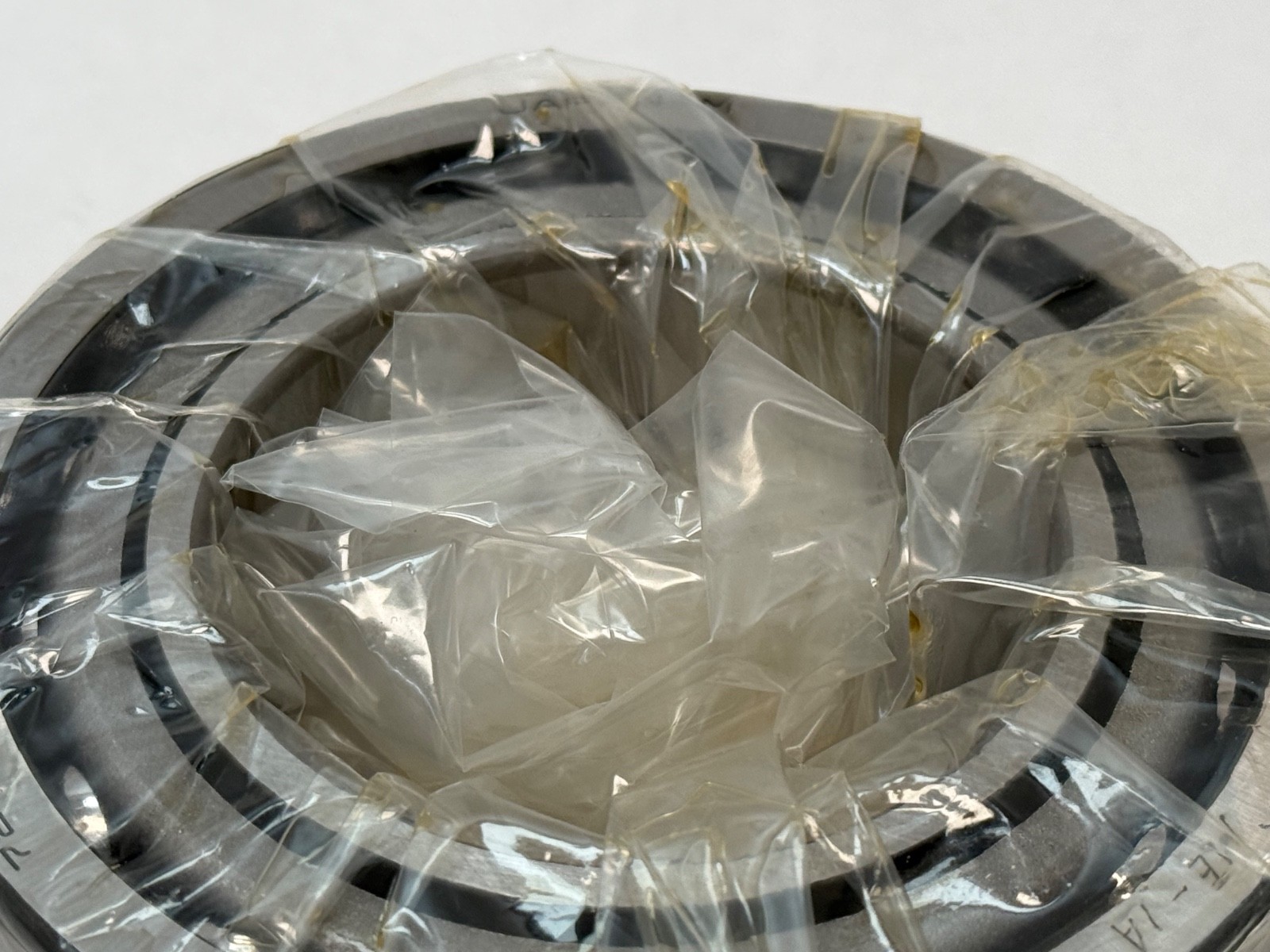

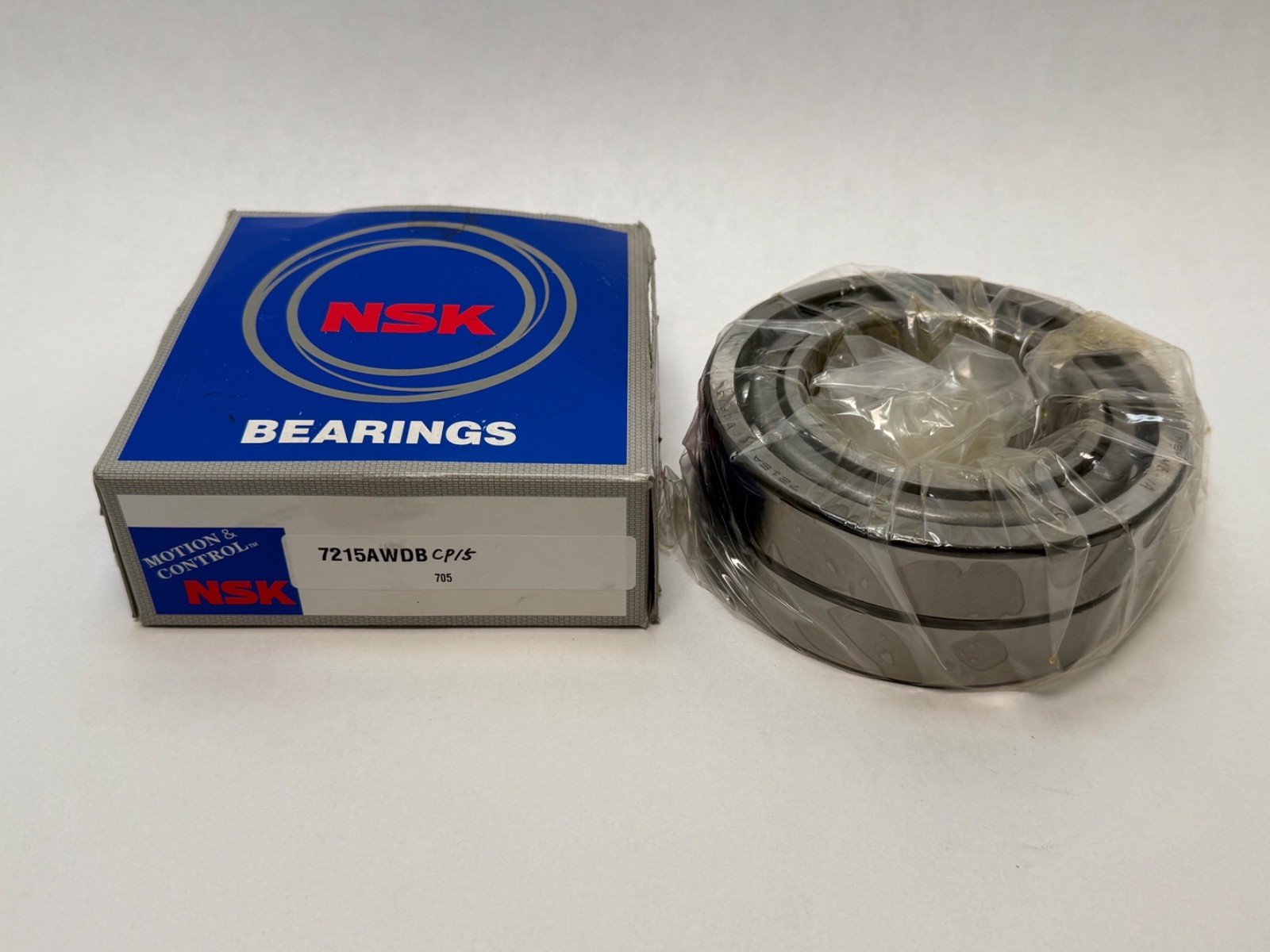

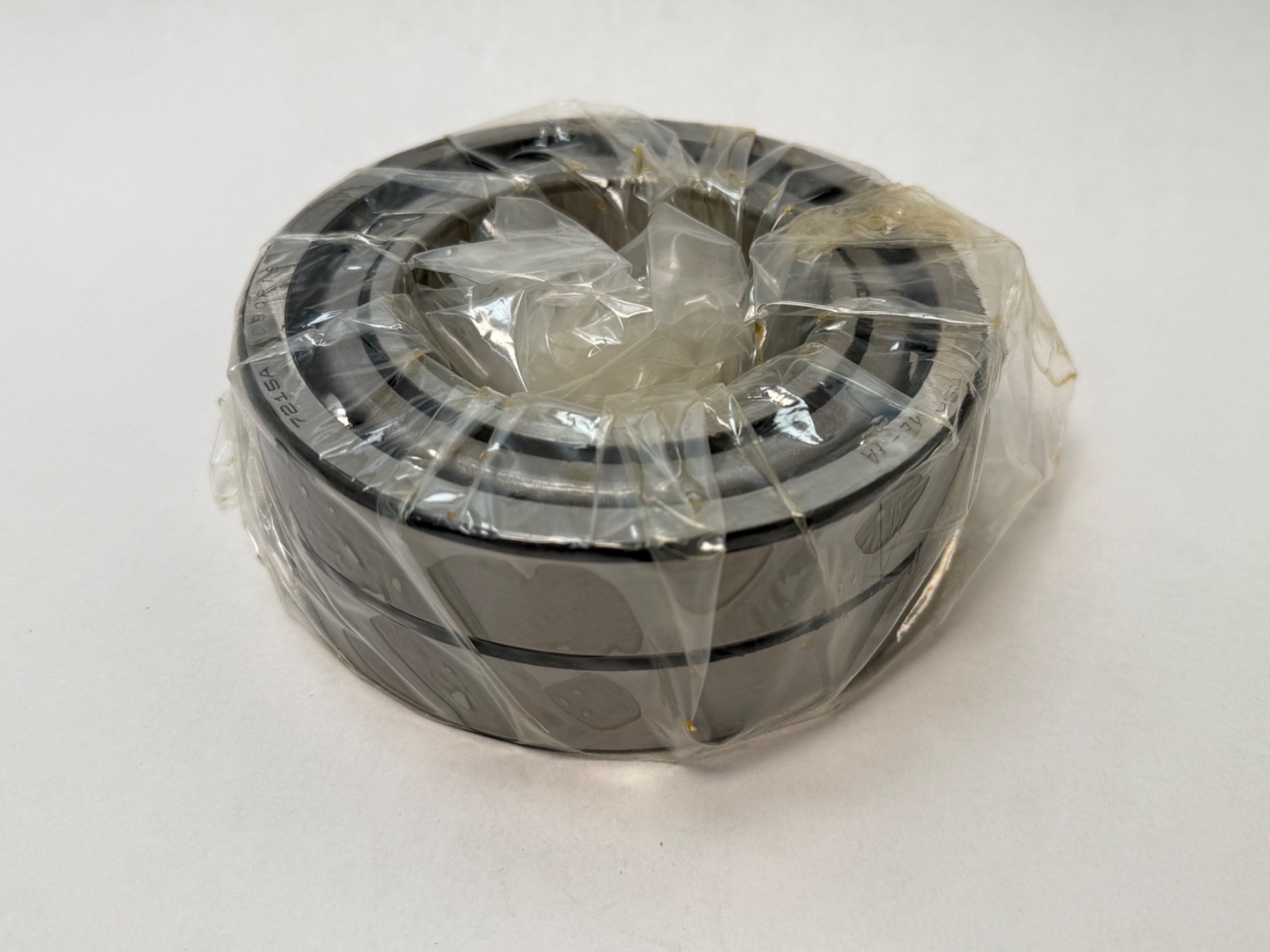

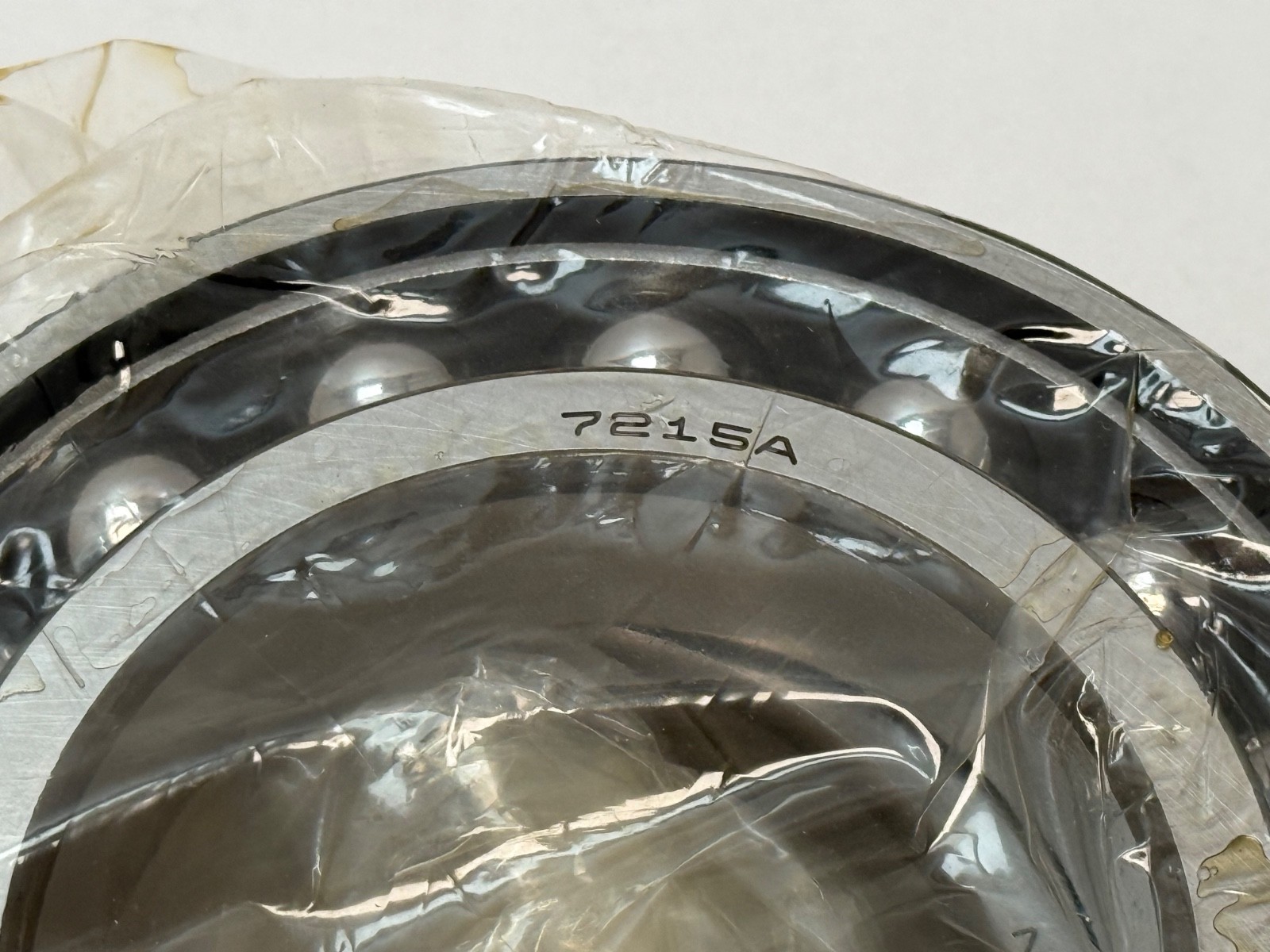

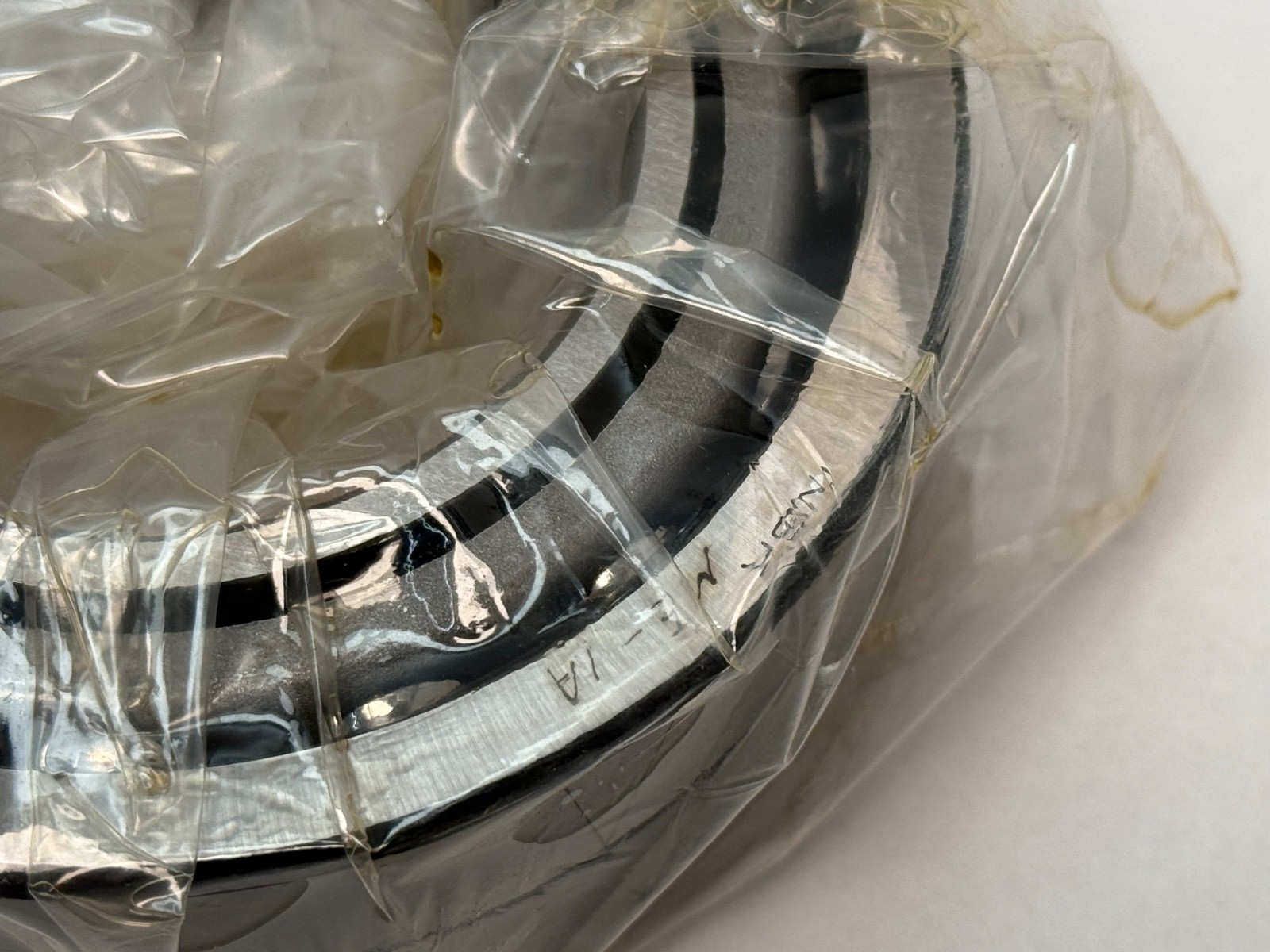

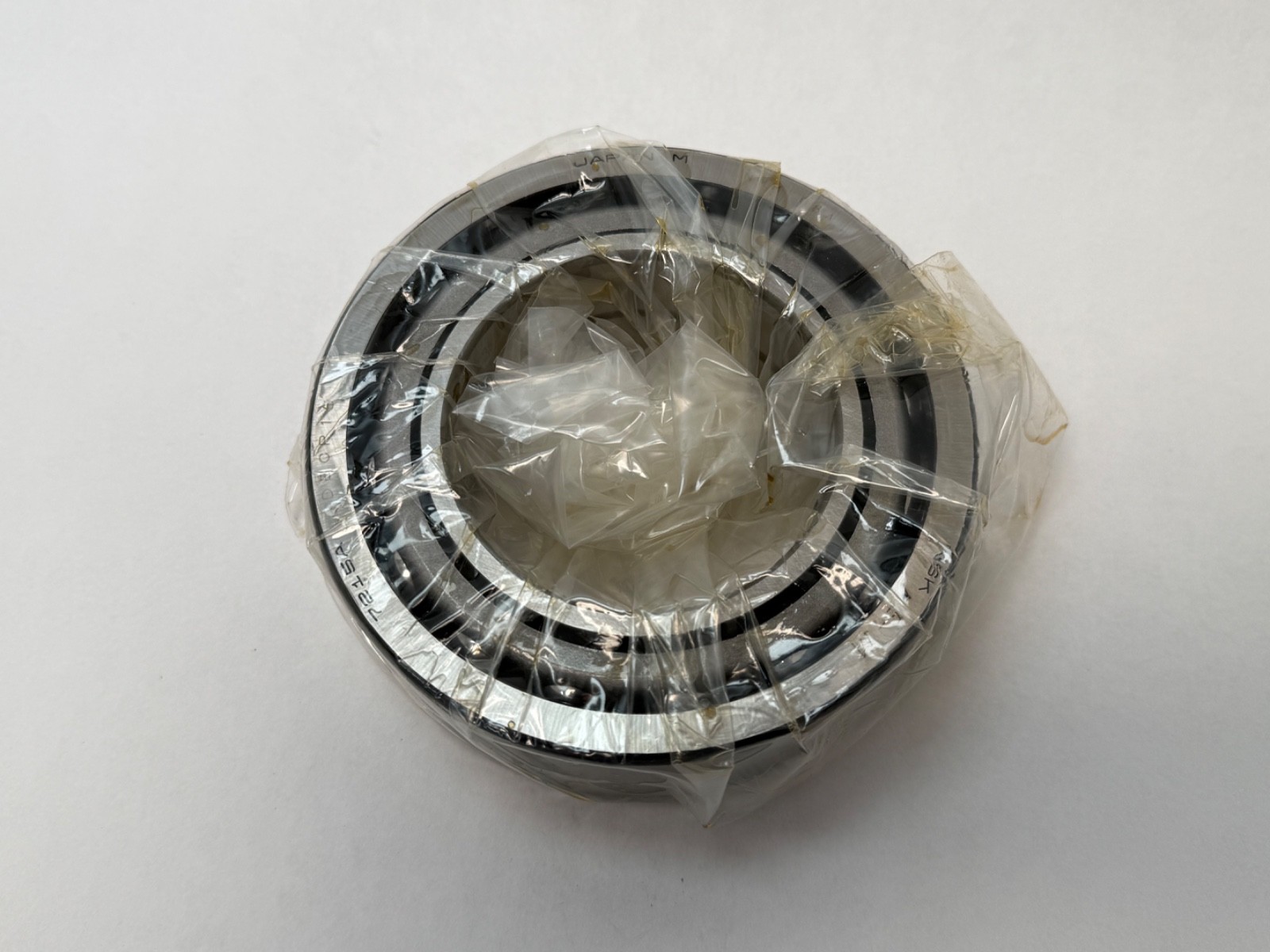

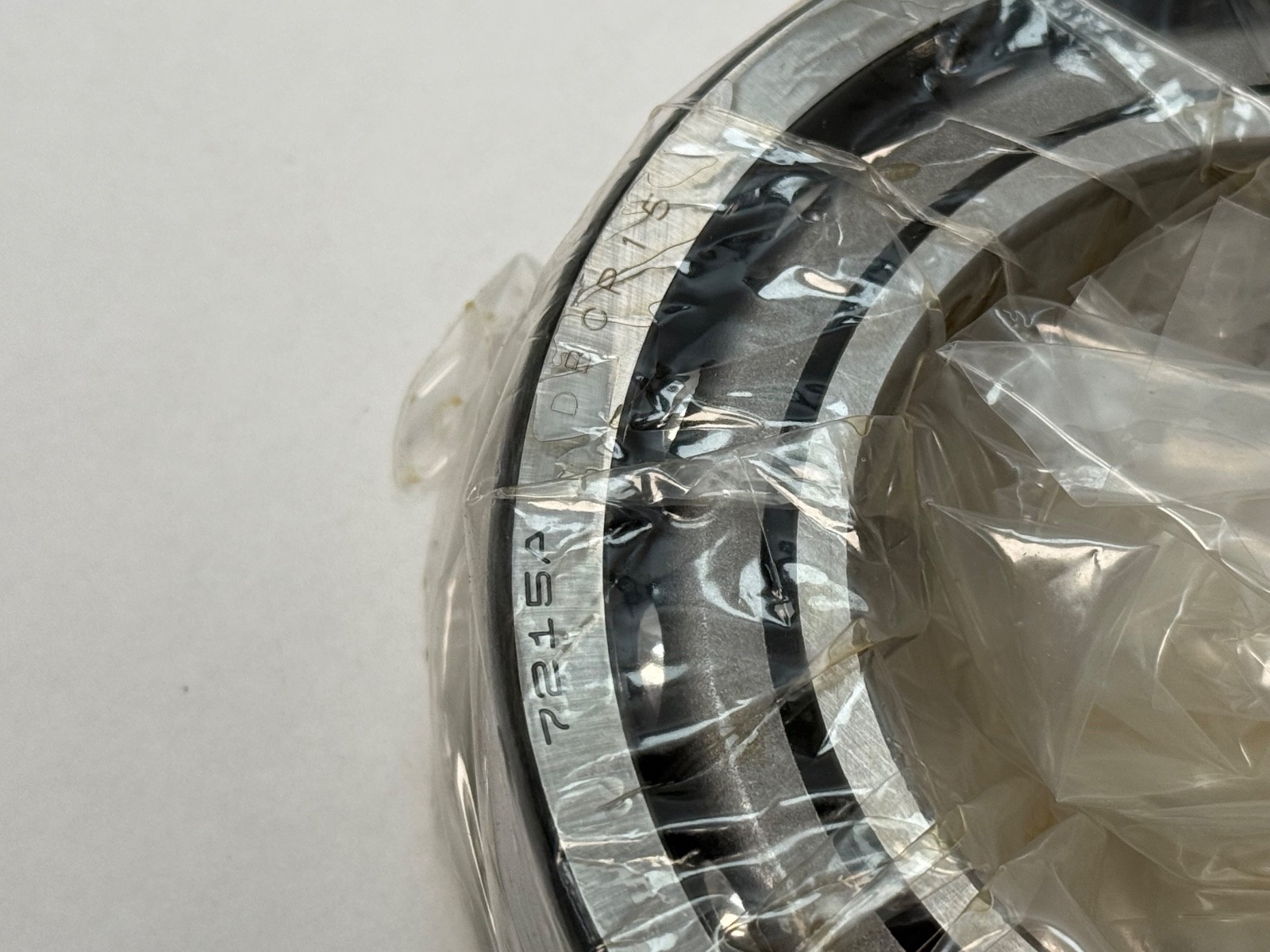

NSK 7215AW single row angular contact ball bearings supplied as a back-to-back matched pair. Bore Diameter: 75 mm (2.9528 in). Outside Diameter: 130 mm (5.1181 in). Overall Width: 25 mm (0.9843 in) per bearing. Contact Angle: 30°. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Cage Material: Pressed steel.
72 — single row angular contact ball bearing, ISO dimension series 02.
15 — bore code, 15 x 5 = 75 mm.
A — 30° contact angle.
W — pressed steel cage.
DB — back-to-back arrangement. Two bearings ground as a set and mounted with their outer ring back faces together.
Dynamic Load Rating: 83,500 N (18,772 lbf) per bearing. Static Load Rating: 64,500 N (14,500 lbf) per bearing. Limiting Speed: 4,300 rpm grease; 6,000 rpm oil. Item Weight: 1.19 kg (2.62 lb) per bearing. Effective load centre a: 42.1 mm.
A 30° contact angle sits at the high-thrust end of NSK’s standard angular contact range: more axial capacity and greater axial stiffness than a 15° bearing, at a lower speed ceiling.
A back-to-back pair spreads the two load lines apart, giving the arrangement a wide effective bearing span and high moment stiffness within one housing bore. That is what makes DB the usual choice where an overhung load or a short shaft has to be held square.
Bore Type: Straight. Shaft abutment diameter da min: 84 mm. Housing abutment diameter Da max: 121 mm. Fillet radius ra max: 1.5 mm. Chamfer r min: 1.5 mm, r1 min: 1 mm. Effective load centre a: 42.1 mm per bearing. Mounting Arrangement: Back-to-back (DB).
Unit Quantity: 2 Pcs. A matched pair, ground as a set for back-to-back mounting. Load ratings and weight above are per bearing.
NSK 7215AWDF is the face-to-face matched pair of the same bearing. NSK’s 7215A super-precision executions, 7215ATYNSU and 7215ATRSU in P4 and P5, share the size and 30° angle but carry different cages, classes, speeds and ratings. SKF 7215 BE, Koyo 7215B, NTN 7215B and FAG 7215-B are the same 75 x 130 x 25 mm size at 40°, not 30°.
Common spellings and search variants carried on this part: 7215A, 7215AW, 7215ACD, 7215E, 7215AWDB, 7215-A-W-DB.
