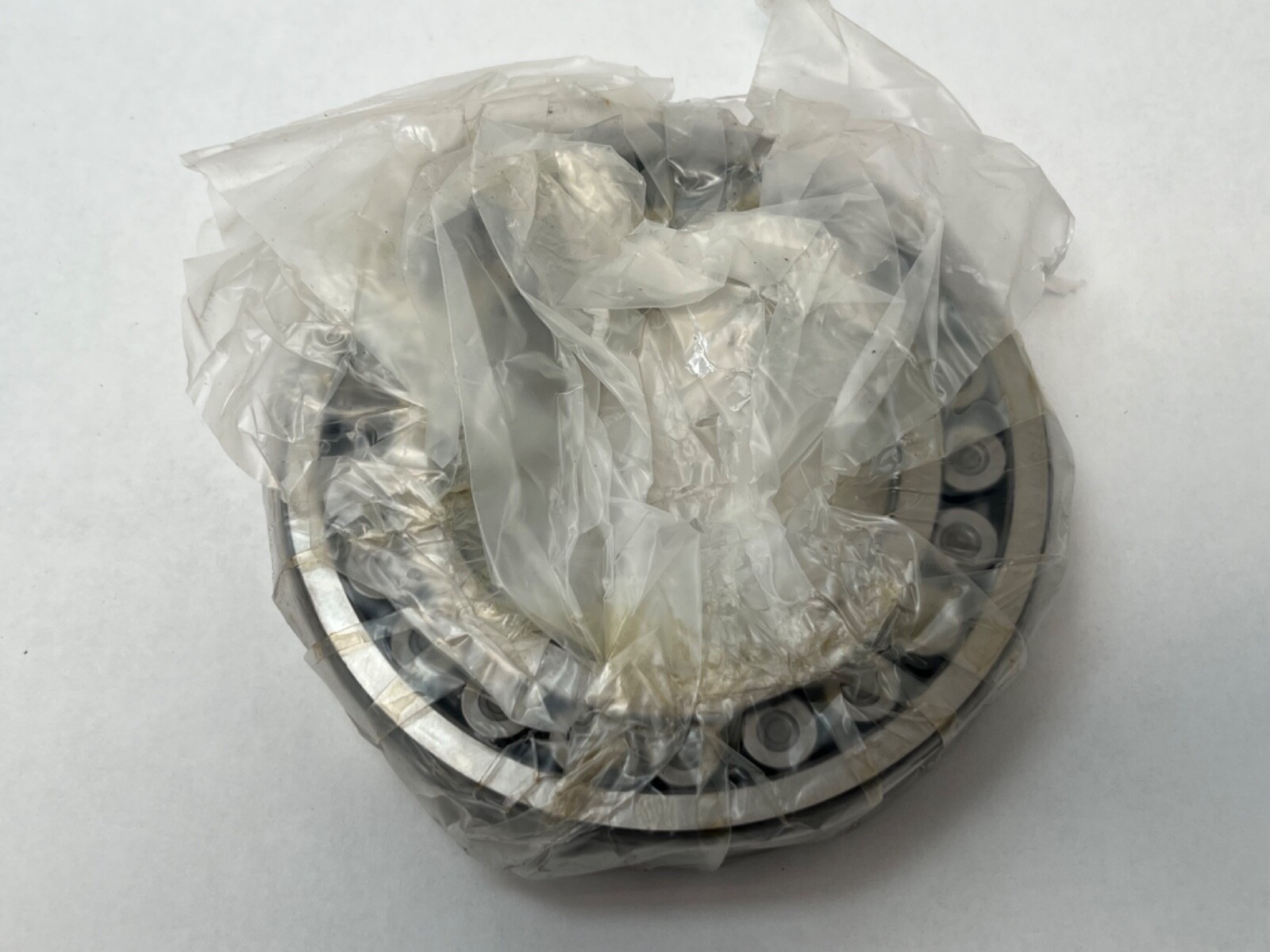

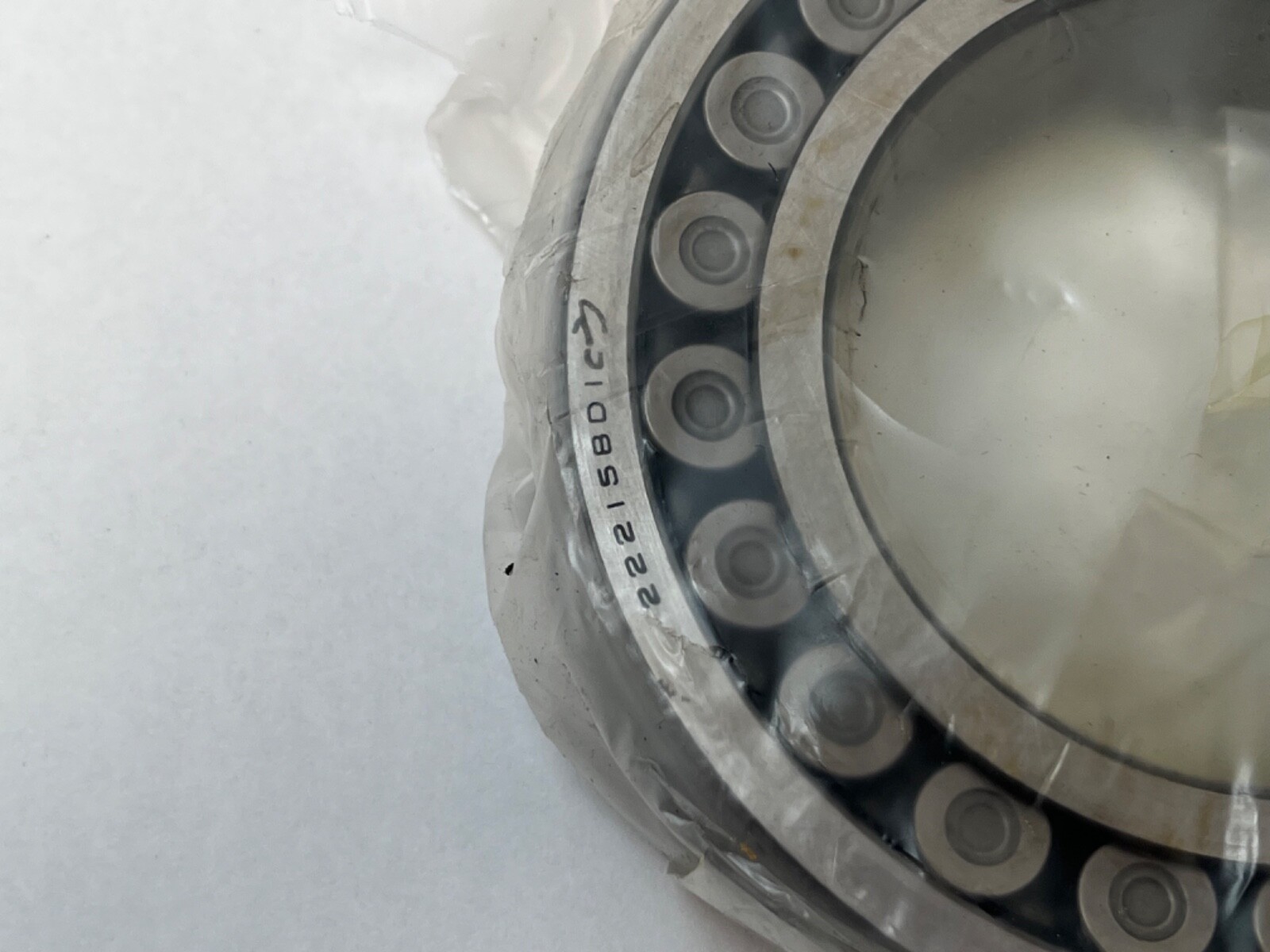

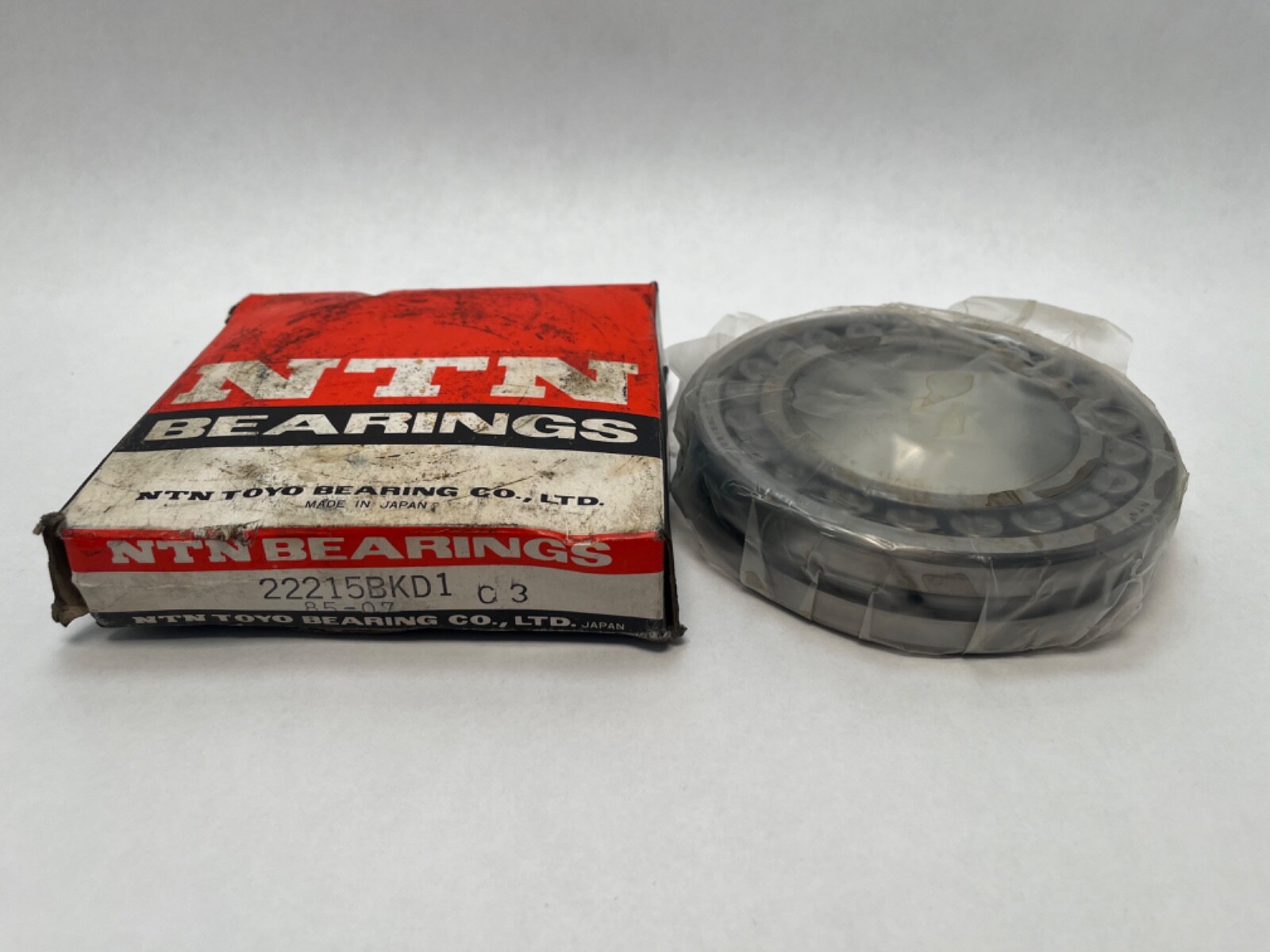

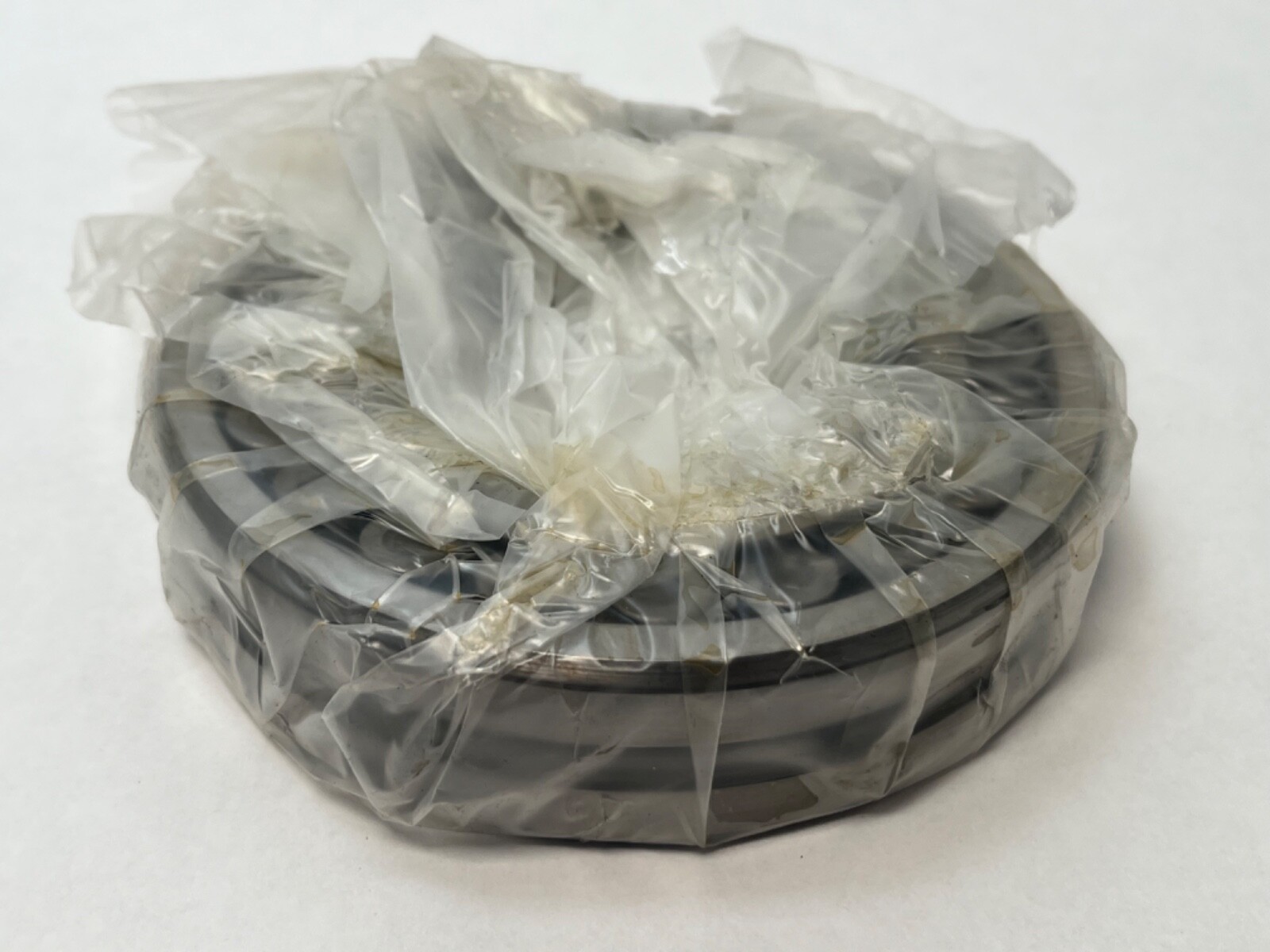

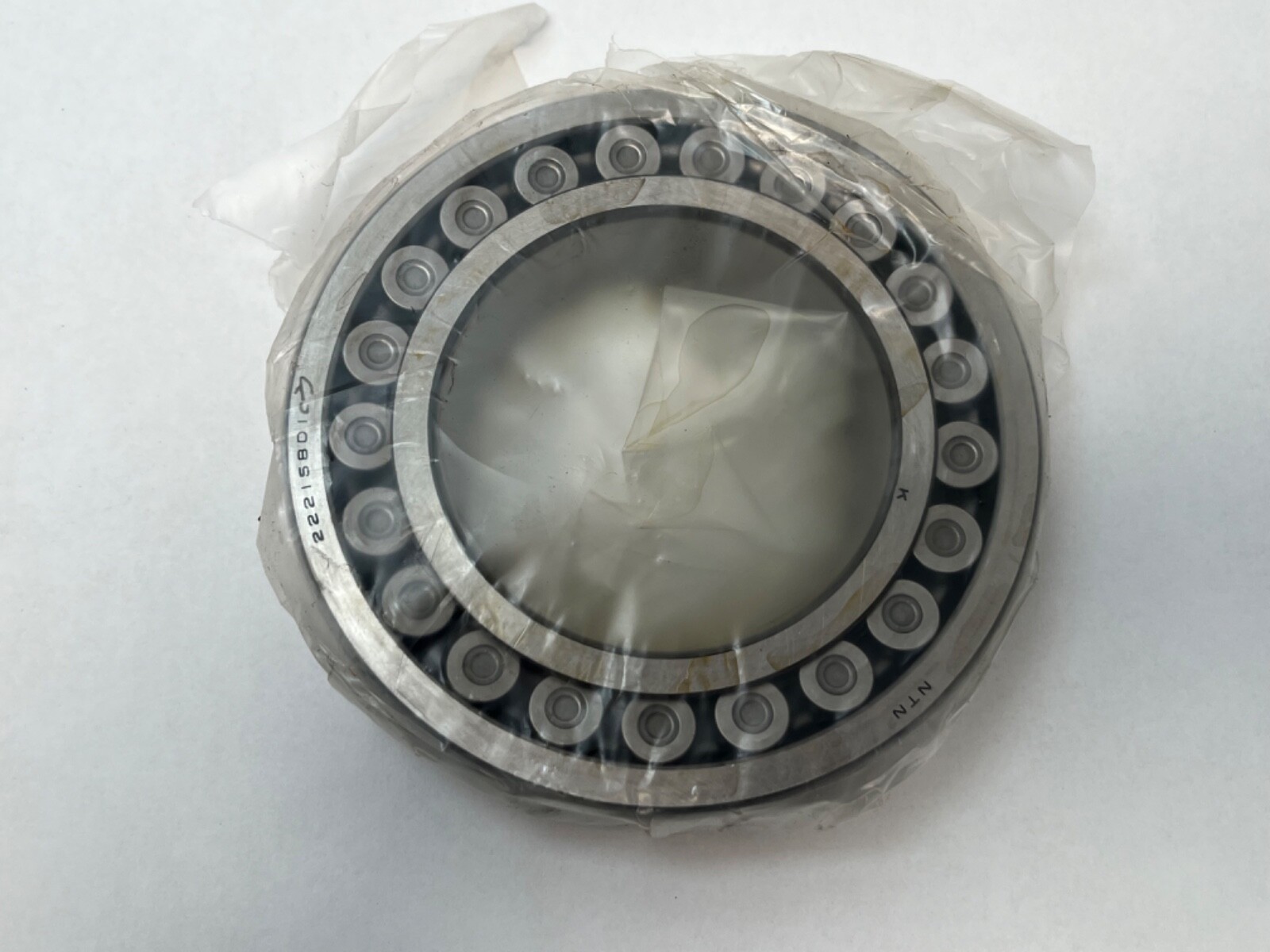

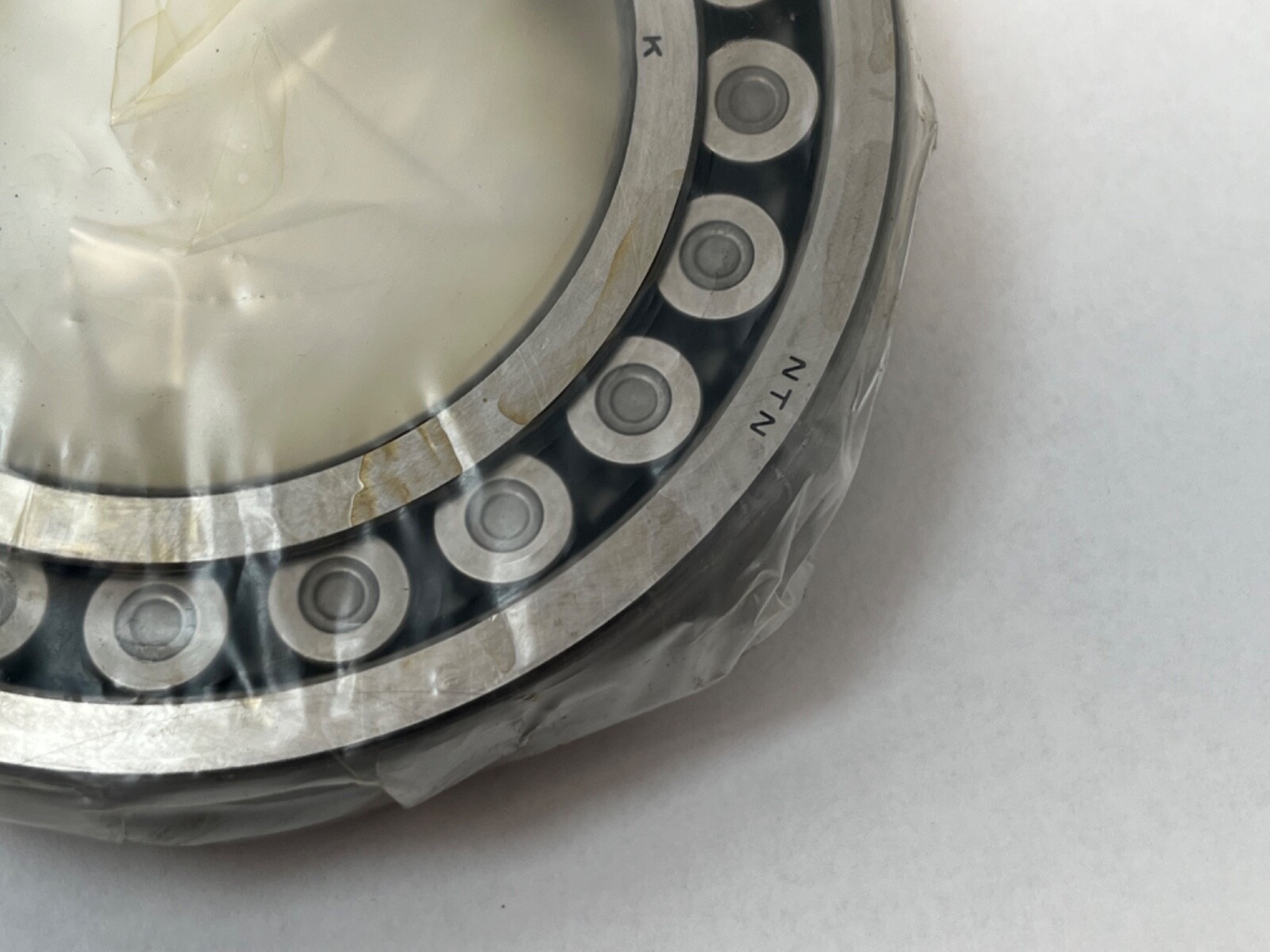

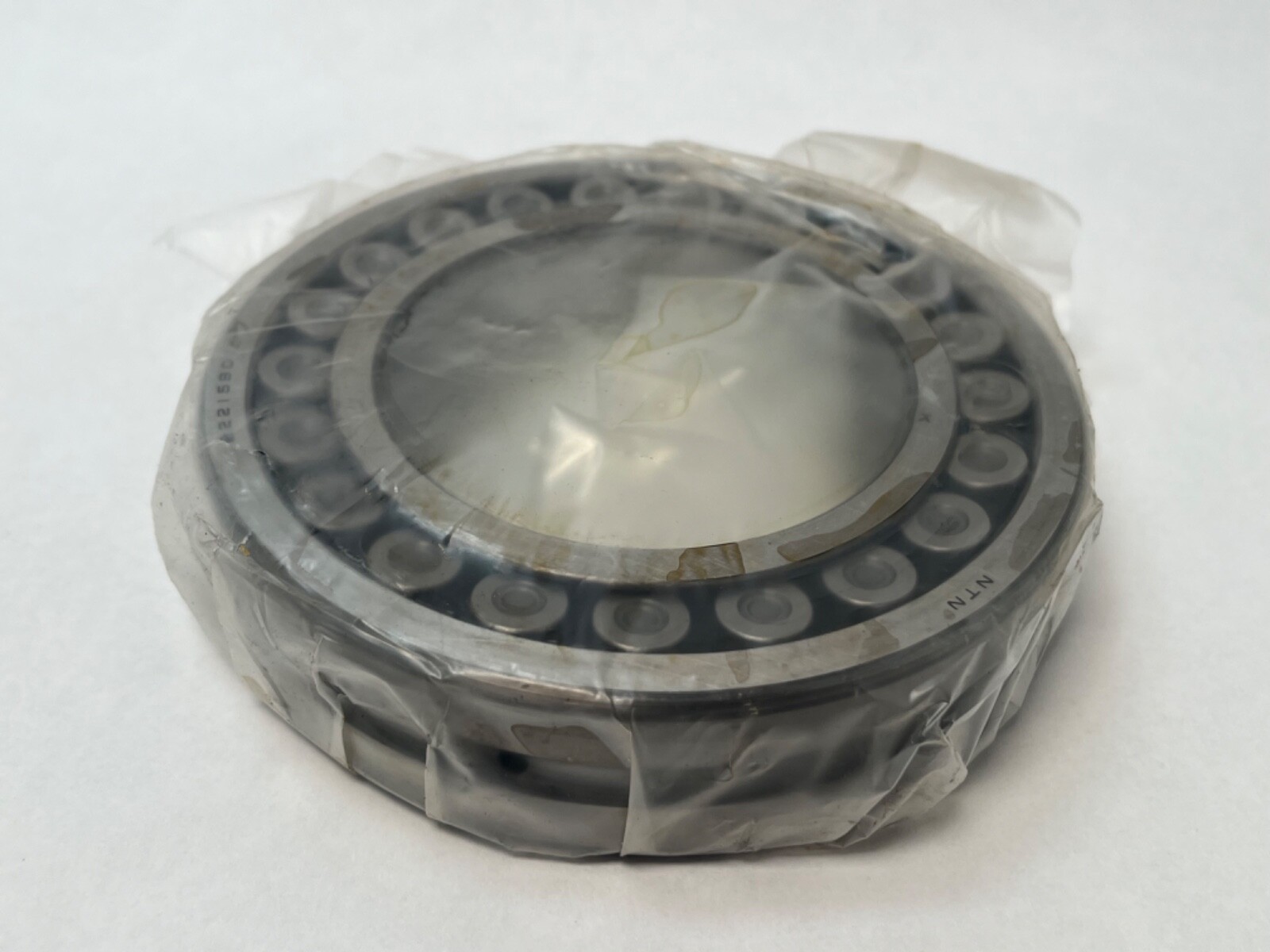

NTN 22215BKD1C3 spherical roller bearing, 75 x 130 x 31 mm, 1:12 tapered bore, C3 clearance, D1 oil groove and holes. Mounts on H315 adapter sleeve.
List Price
$68.78
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| Model | 22215 B K D1 C3 / 22215 C/CC/CJ/CCJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 31 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Mpn Variants | 22215BKD1C3, 22215-B-K-D1-C3, 22215 B K D1 C3, 22215BKD1 C3 |
| Compatible With Replaces | Adapter sleeve H315 with KM15 locknut and MB15 washer |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | D1 lubrication groove and holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22215 EK/C3 - E design, no oil groove |
|---|---|
| Cross Reference 2 | FAG 22215-E1-K-C3 - E1 design, no oil groove |
| Cross Reference 3 | NSK 22215EAKE4C3 - EA design, groove with holes |
| Cross Reference 4 | Timken 22215KEJW33C3 - EJ design, W33 groove |
| Cross Reference 5 | Koyo 22215RHRKW33C3 - RHR design, W33 groove |
NTN 22215BKD1C3 double-row spherical roller bearing in the 222 series with a 1:12 tapered bore, a lubrication groove with holes in the outer ring, and C3 radial internal clearance. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 31 mm. Unit Quantity: 1 Pc, open tapered-bore single bearing.
222 — spherical roller bearing, diameter series 2, width series 2.
15 — bore code, 15 x 5 = 75 mm.
B — NTN B-type internal design: one-piece ribbed inner ring, asymmetrical rollers and a centre guide rib.
K — tapered bore, taper 1:12.
D1 — lubrication groove and holes in the outer ring, for grease or oil feed.
C3 — radial internal clearance greater than normal.
Bearing Type: Spherical Roller Bearing. Series: 22200. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 31 mm. Bore Type: Tapered 1:12. Closure Type: Open. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3. Lubricant: grease or oil. Relubrication Feature: D1 lubrication groove and holes in outer ring. Bearing Material: High carbon chrome steel. Country of Origin: Japan. Unit Quantity: 1 Pc.
Adapter Sleeve: H315, for a 65 mm shaft, with KM15 locknut and MB15 lock washer. The self-aligning outer raceway accommodates shaft deflection and misalignment under heavy radial load.
SKF 22215 EK/C3 and FAG 22215-E1-K-C3 share the 75 x 130 x 31 mm envelope, 1:12 tapered bore and C3 clearance, without the outer-ring oil groove. NSK 22215EAKE4C3, Timken 22215KEJW33C3 and Koyo 22215RHRKW33C3 share the envelope, tapered bore, C3 clearance and a groove with holes. MPN Variants: 22215BKD1C3, 22215-B-K-D1-C3, 22215 B K D1 C3, 22215BKD1 C3.
Which adapter sleeve fits the NTN 22215BKD1C3?H315, for a 65 mm shaft, with KM15 locknut and MB15 lock washer.
What bore form does the 22215BKD1C3 have?A 1:12 tapered bore, 75 mm.
What does D1 mean in 22215BKD1C3?A lubrication groove and holes in the outer ring, for grease or oil feed.
