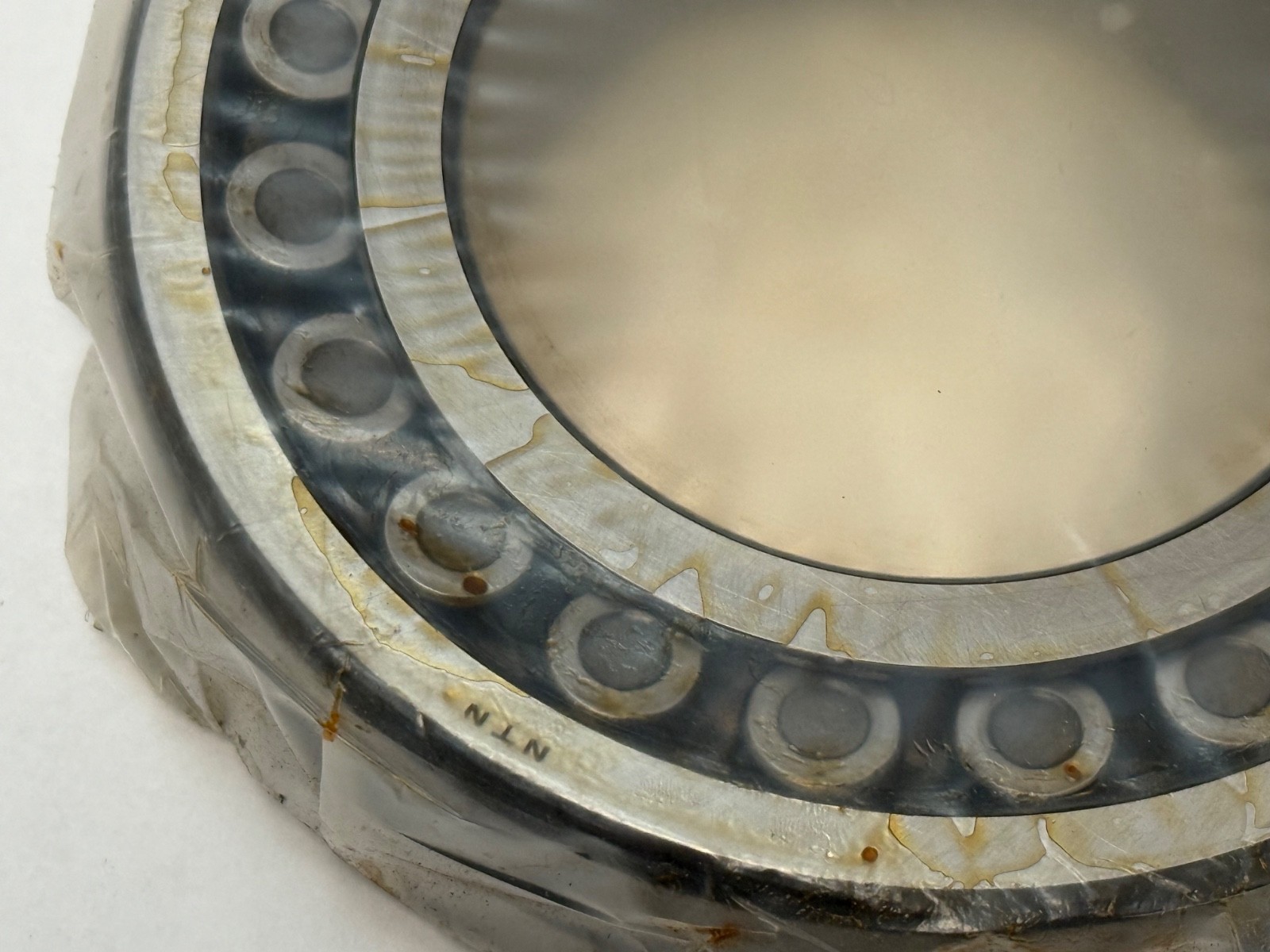

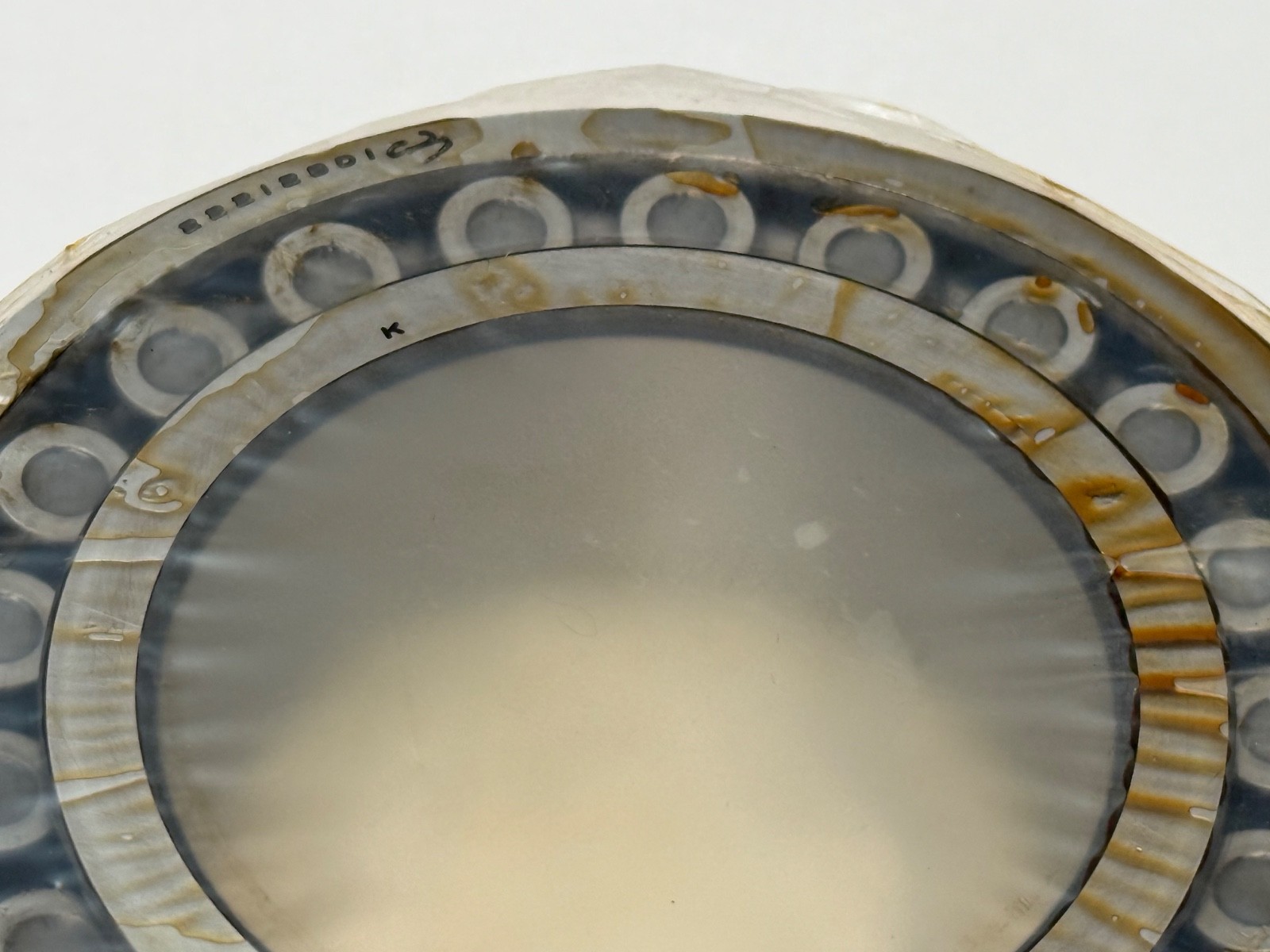

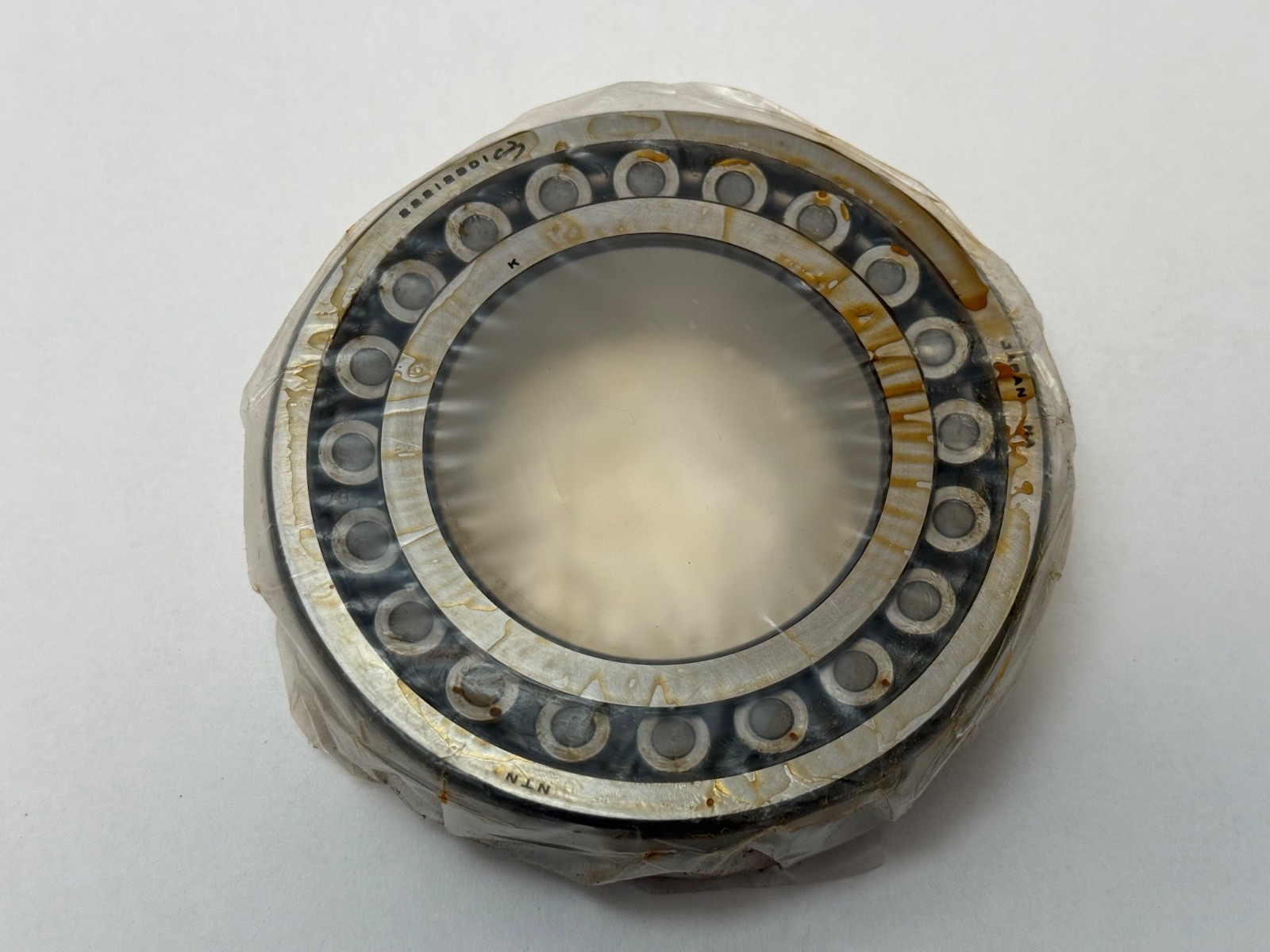

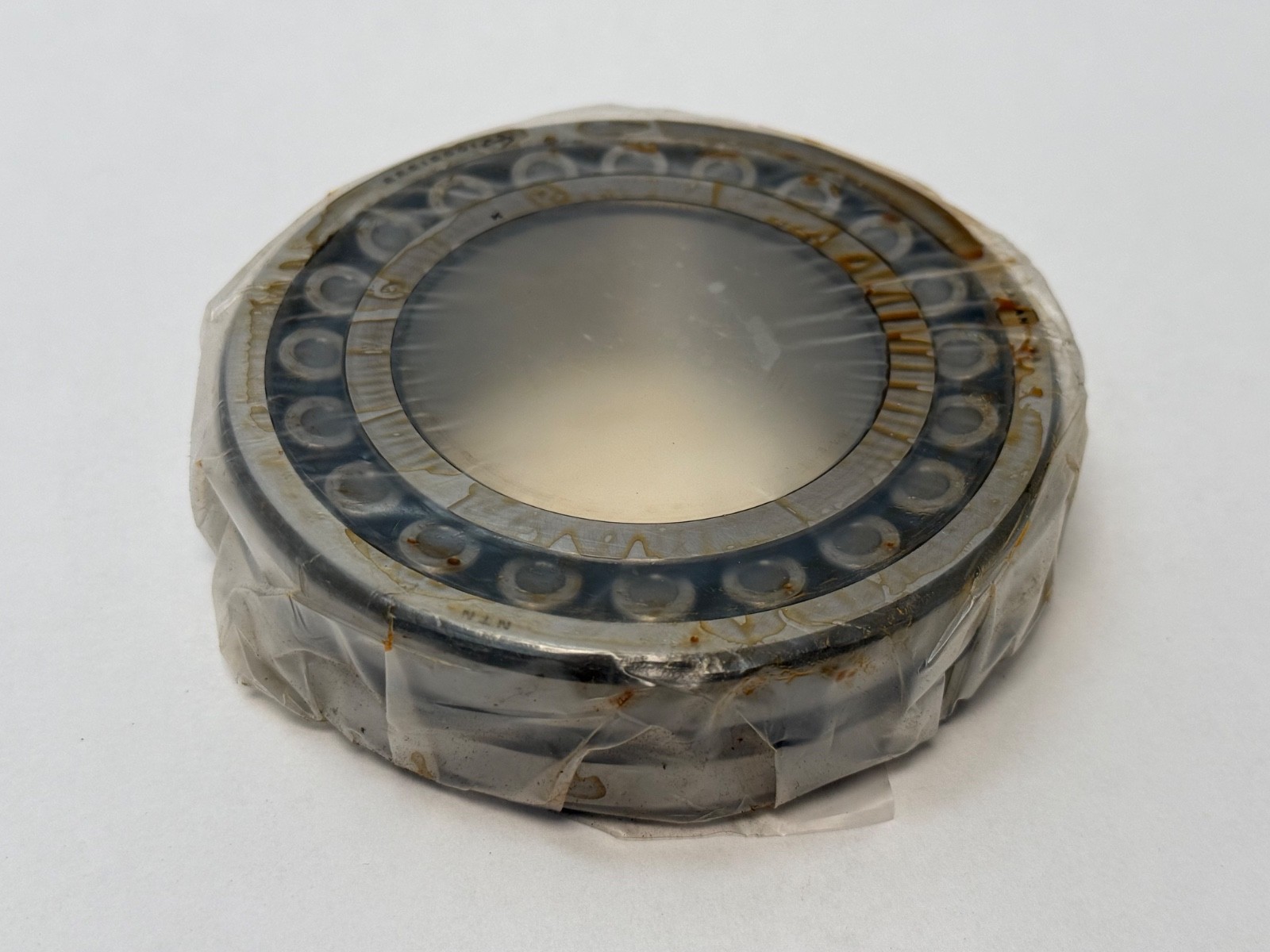

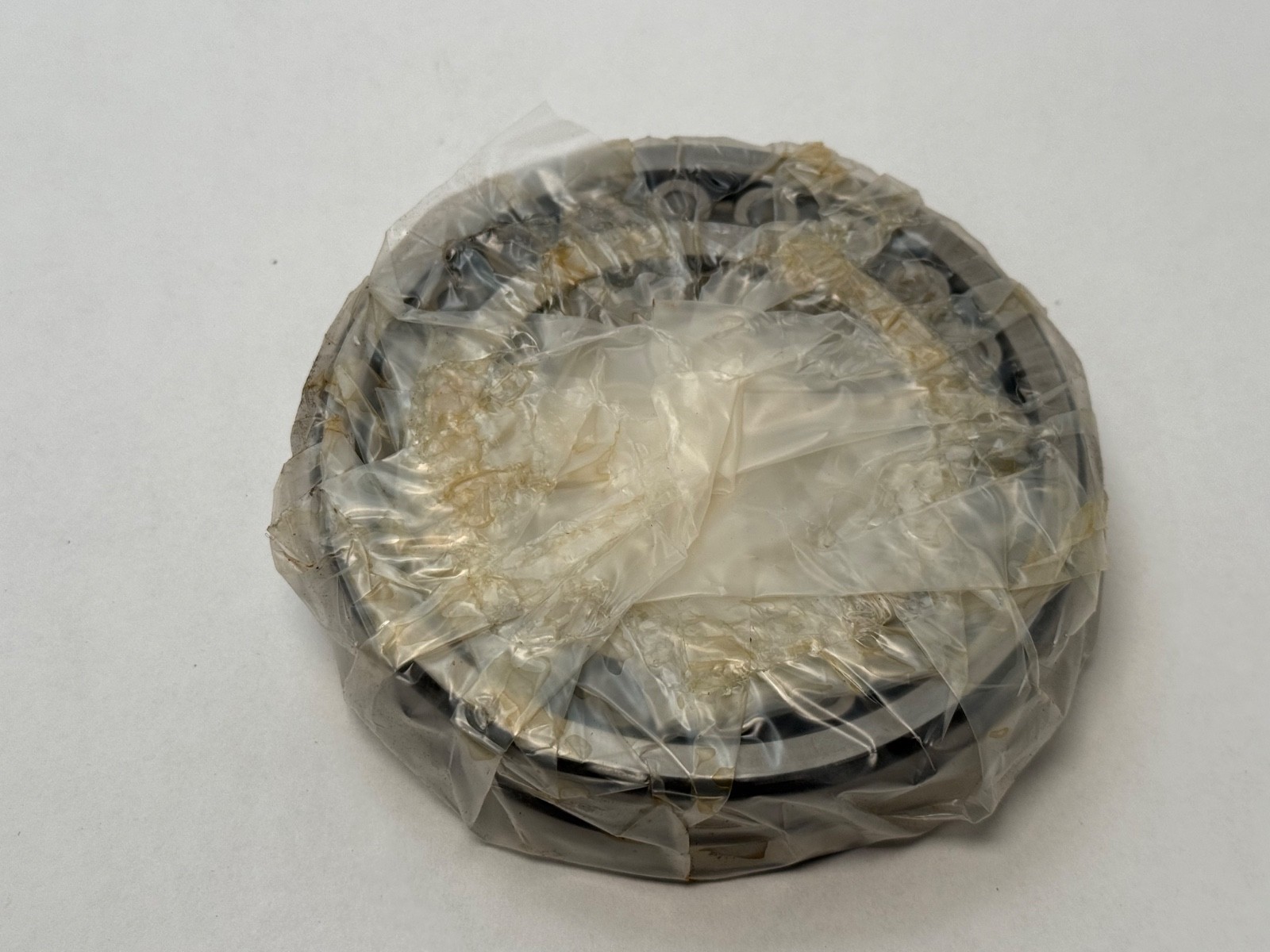

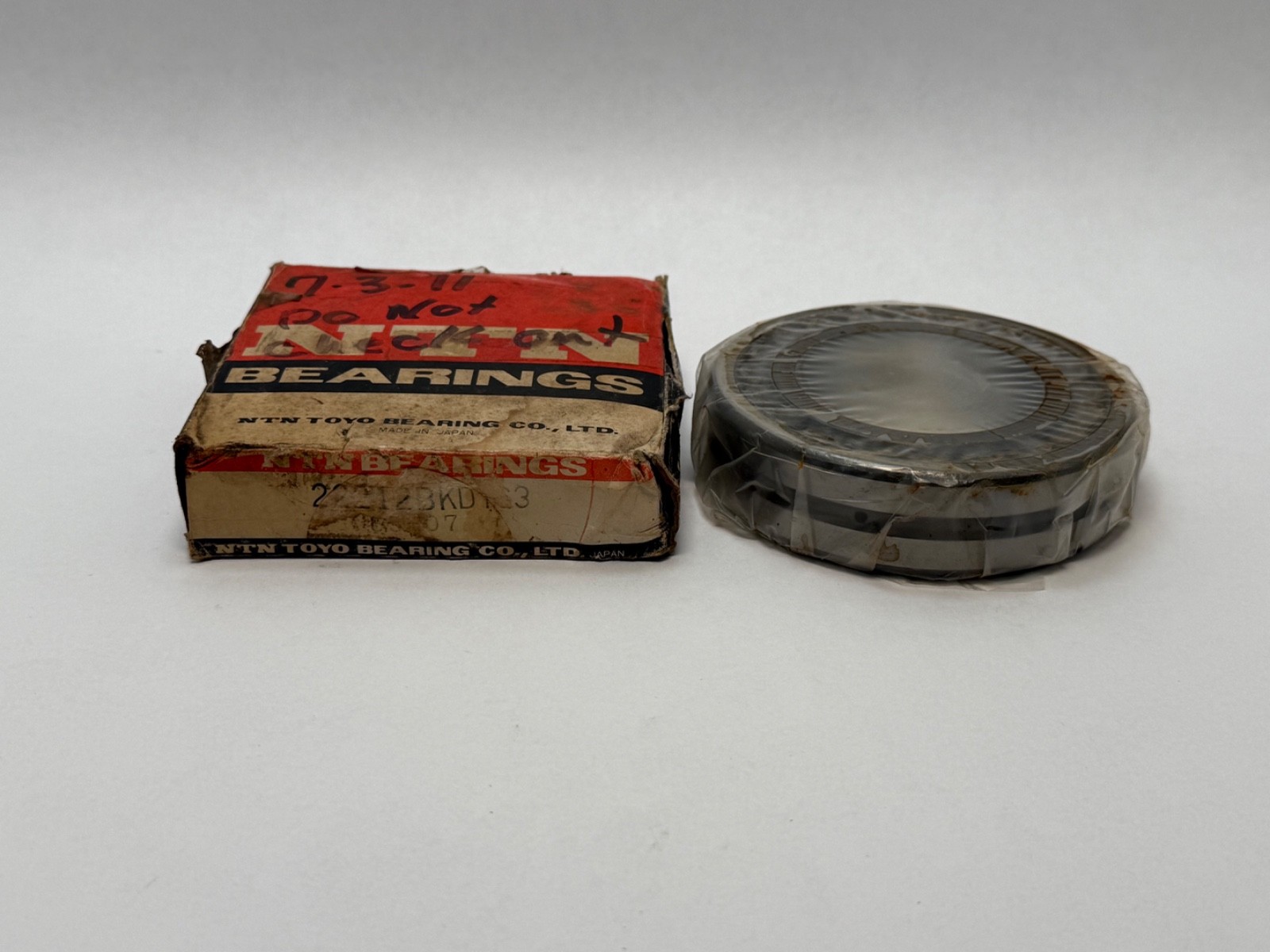

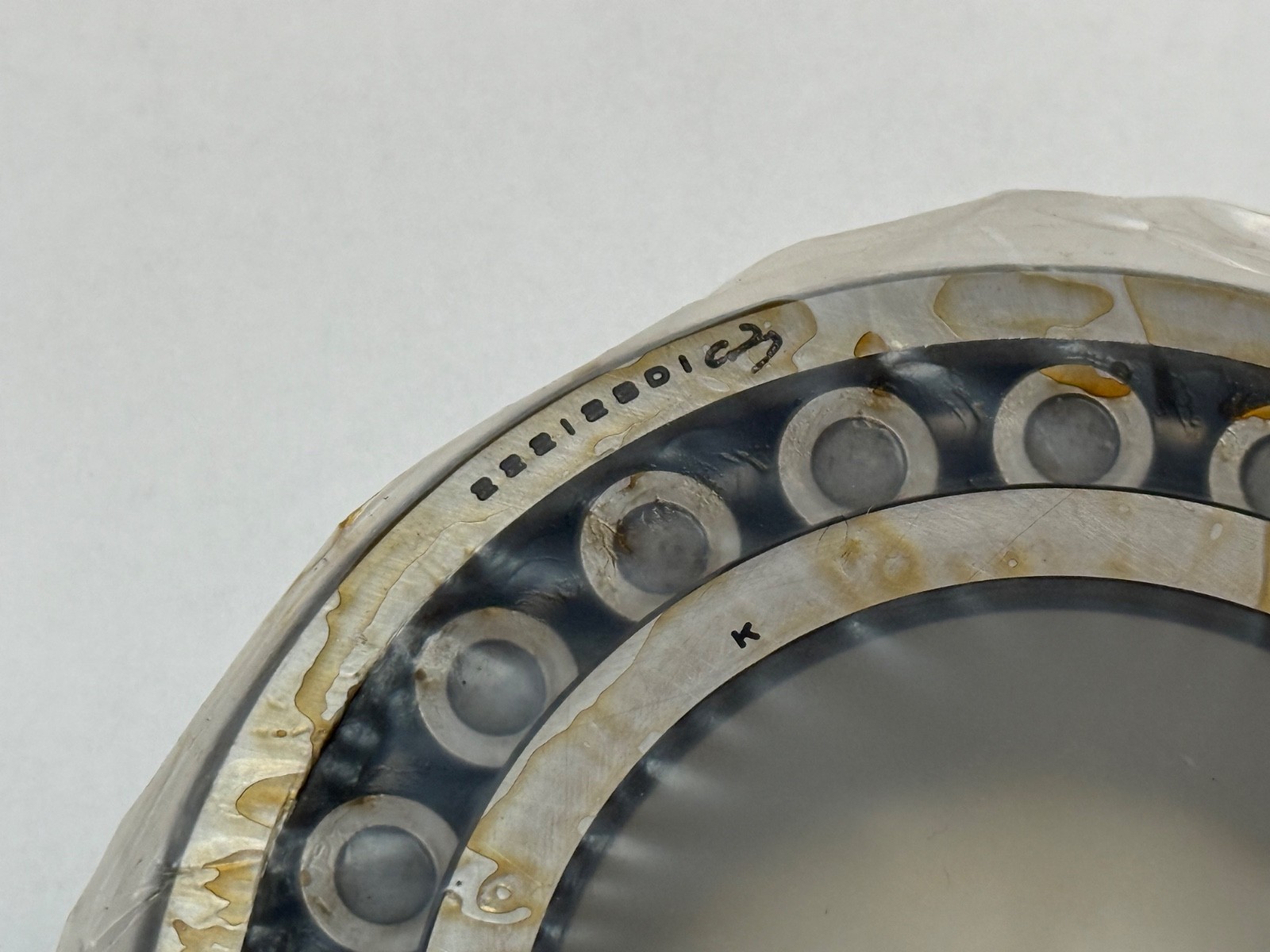

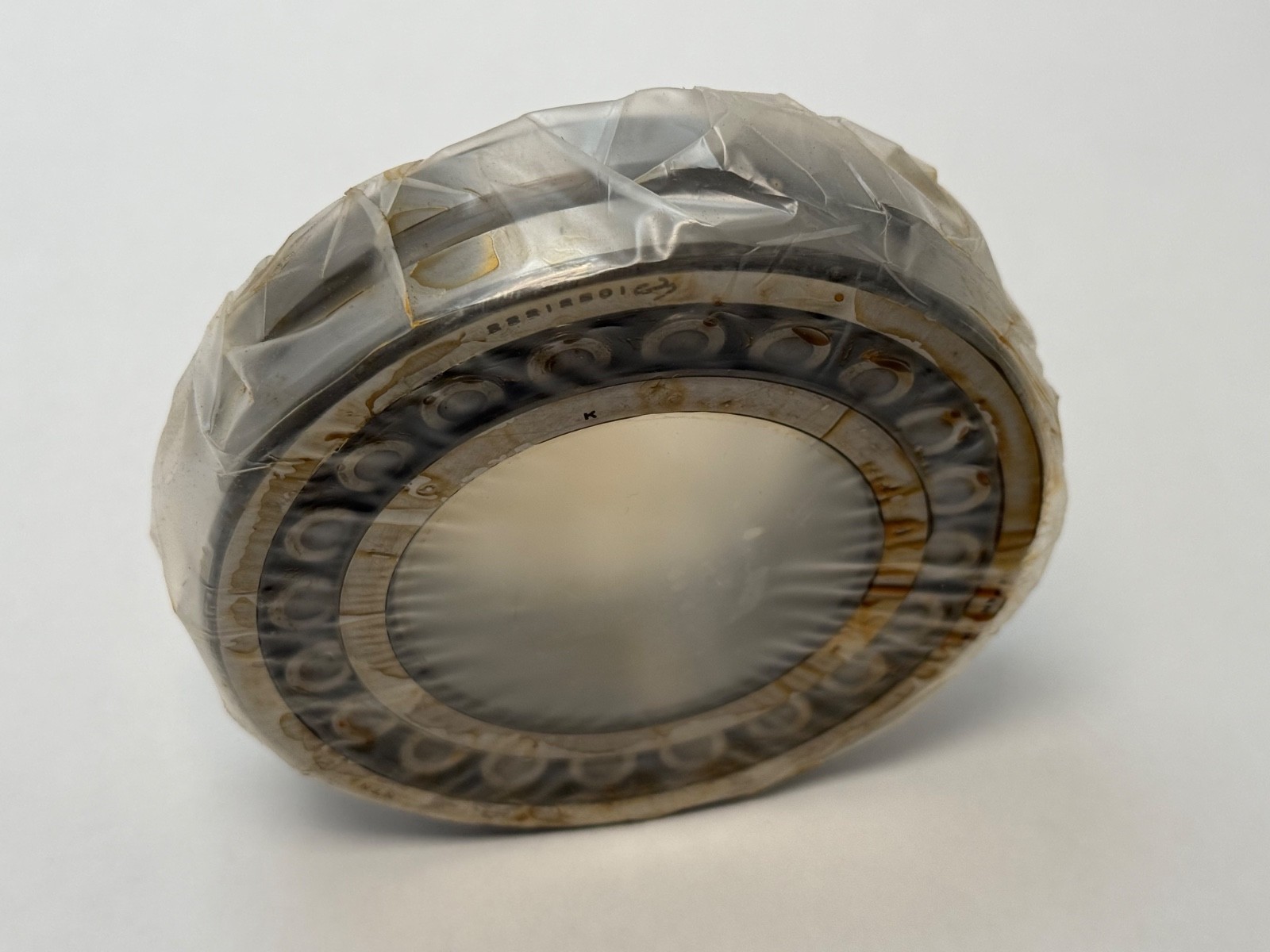

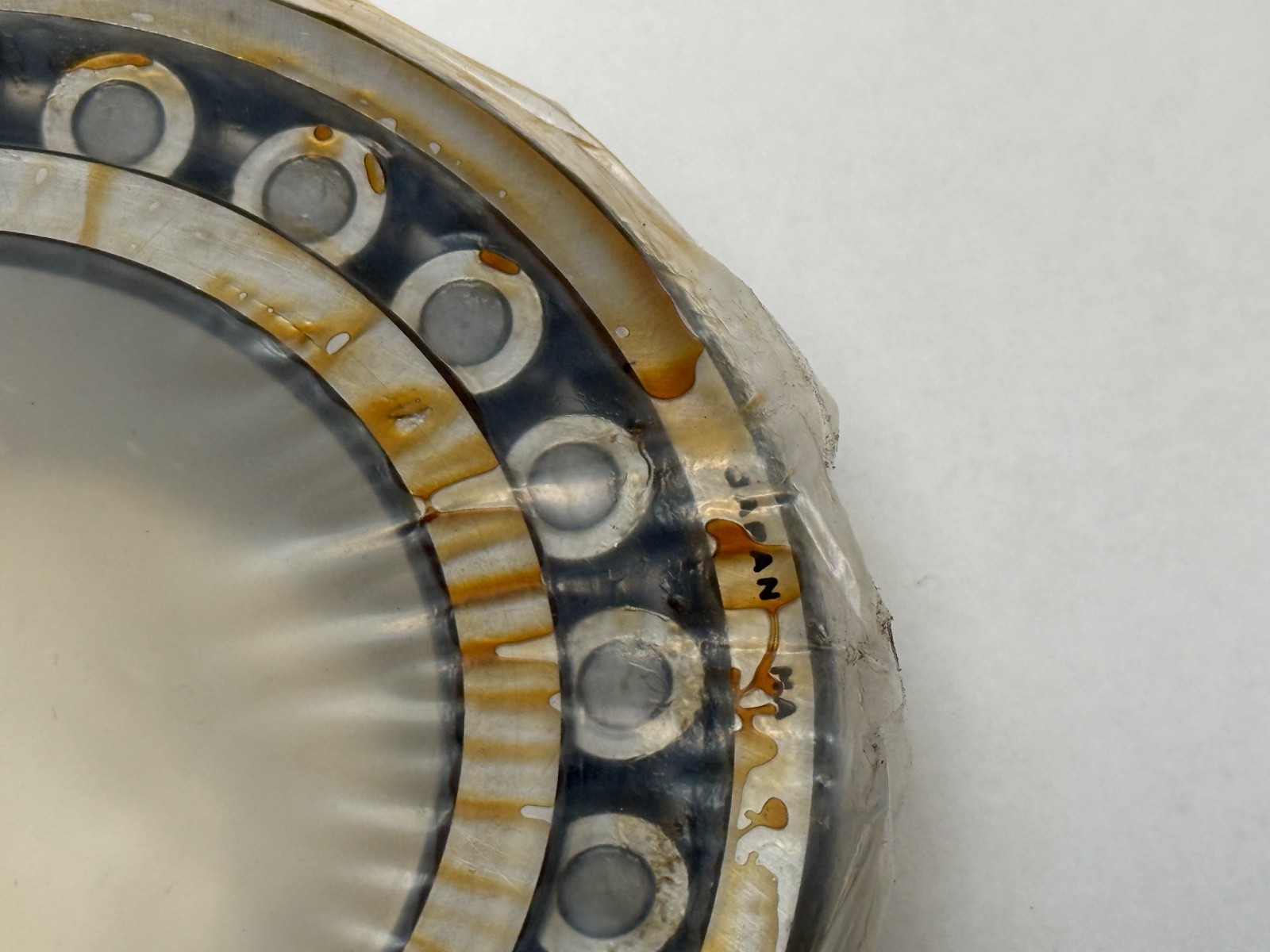

Spherical roller bearing, 60 x 110 x 28 mm, 1:12 tapered bore, oil groove and holes, C3 clearance. NTN 22212BKD1C3, mounts on an H312 adapter sleeve.
List Price
$51.99

2 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 22212BKD1C3 |
| Model | 22212 B K D1 C3 / 22212 K W33 |
| Bearing Type | Spherical Roller Bearing |
| ID | 60 mm |
| OD | 110 mm |
| Width | 28 mm |
| Material | Steel |
|---|---|
| Bore | Tapered |
| Mpn Variants | 22212BKD1C3, 22212-B-K-D1-C3, 22212BKD1, 22212-K-W33 |
| Compatible With Replaces | Mounts on H312 adapter sleeve (KM12 locknut, MB12 washer) |
| Series | 22200 |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Internal Clearance | C3 |
| Lubricant | grease or oil |
| Relubrication Feature | Lubrication groove and oil holes (D1) |
| Harmonization Code | 8482.30.00.00 |
| Cross Reference 1 | SKF 22212 EK/C3W33 |
|---|---|
| Cross Reference 2 | NSK 22212CDKE4C3 |
| Cross Reference 3 | Timken 22212KEJW33C3 |
| Cross Reference 4 | FAG 22212-E1-K-C3 (no oil groove) |
The NTN 22212BKD1C3 is a double-row spherical roller bearing in the ISO 22212 size with a 1:12 tapered bore, an outer-ring lubrication groove with oil holes, and C3 internal clearance. Unit Quantity: 1 Pc.
222 — spherical roller bearing, 22 dimension series.
12 — bore code: 12 x 5 = 60 mm bore.
B — NTN internal design with a one-piece ribbed inner ring, asymmetrical rollers and a centre guide rib.
K — tapered bore, 1:12 taper.
D1 — lubrication groove and oil holes in the outer ring, the NTN equivalent of the W33 feature.
C3 — radial internal clearance greater than normal.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 28 mm. Bore Type: Tapered 1:12. Internal Clearance: C3. Lubricant: grease or oil. Rolling Elements: Spherical Roller. Number Of Rows: 2. Relubrication Feature: Lubrication groove and oil holes (D1). Series: 22200.
Envelope: 60 x 110 x 28 mm. Adapter Sleeve: H312, for a 55 mm shaft, with KM12 locknut and MB12 lock washer.
60 x 110 x 28 mm, 1:12 tapered bore, outer-ring lubrication groove, C3 clearance: SKF 22212 EK/C3W33, NSK 22212CDKE4C3, Timken 22212KEJW33C3. FAG 22212-E1-K-C3 is the same envelope without the outer-ring lubrication groove. MPN variants: 22212BKD1C3, 22212-B-K-D1-C3, 22212BKD1, 22212-K-W33.
A 60 mm bore with a 1:12 taper.
The H312 adapter sleeve, for a 55 mm shaft, with a KM12 locknut and MB12 lock washer.
It has a lubrication groove and oil holes in the outer ring (D1), and takes grease or oil.
