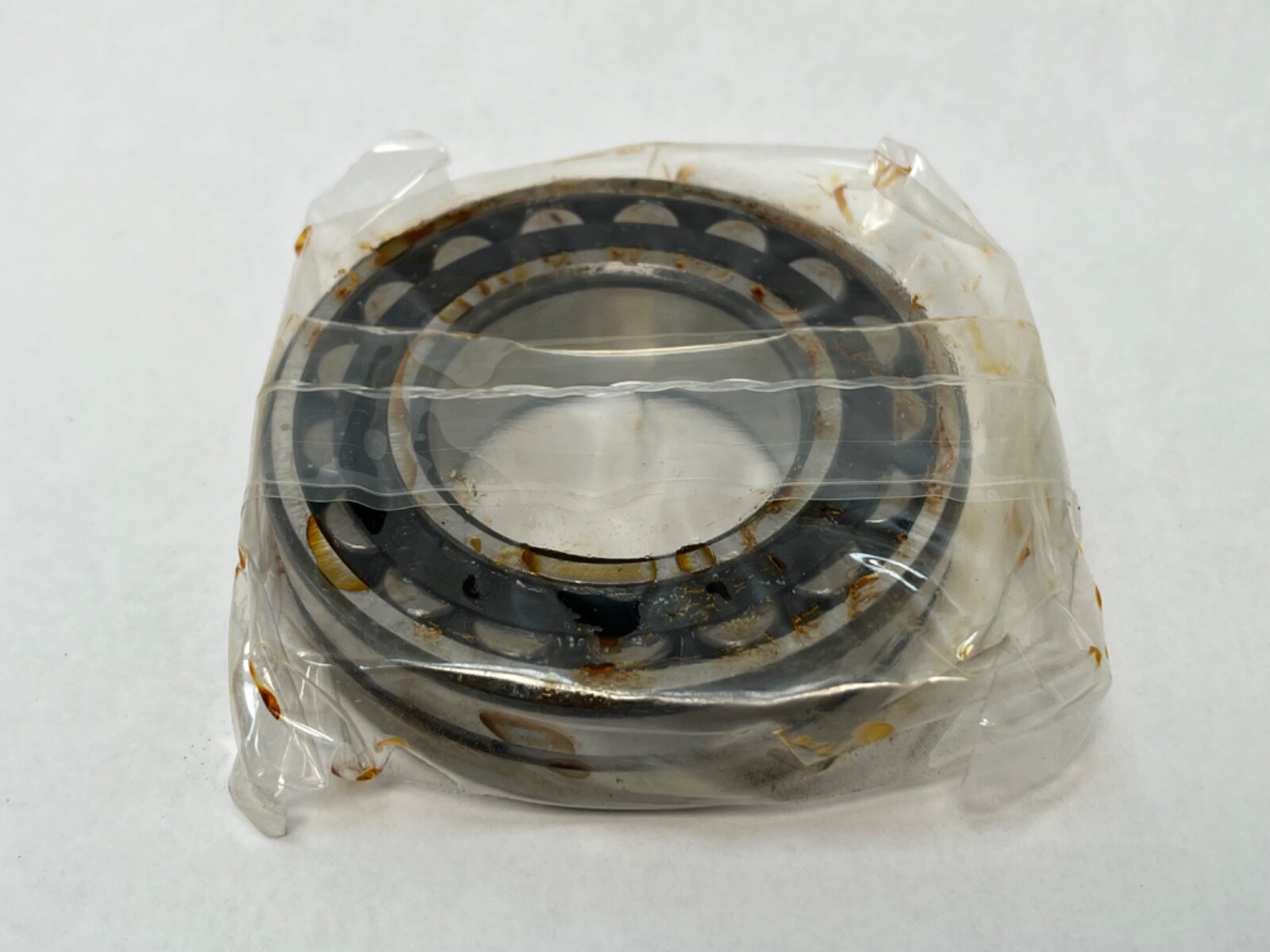

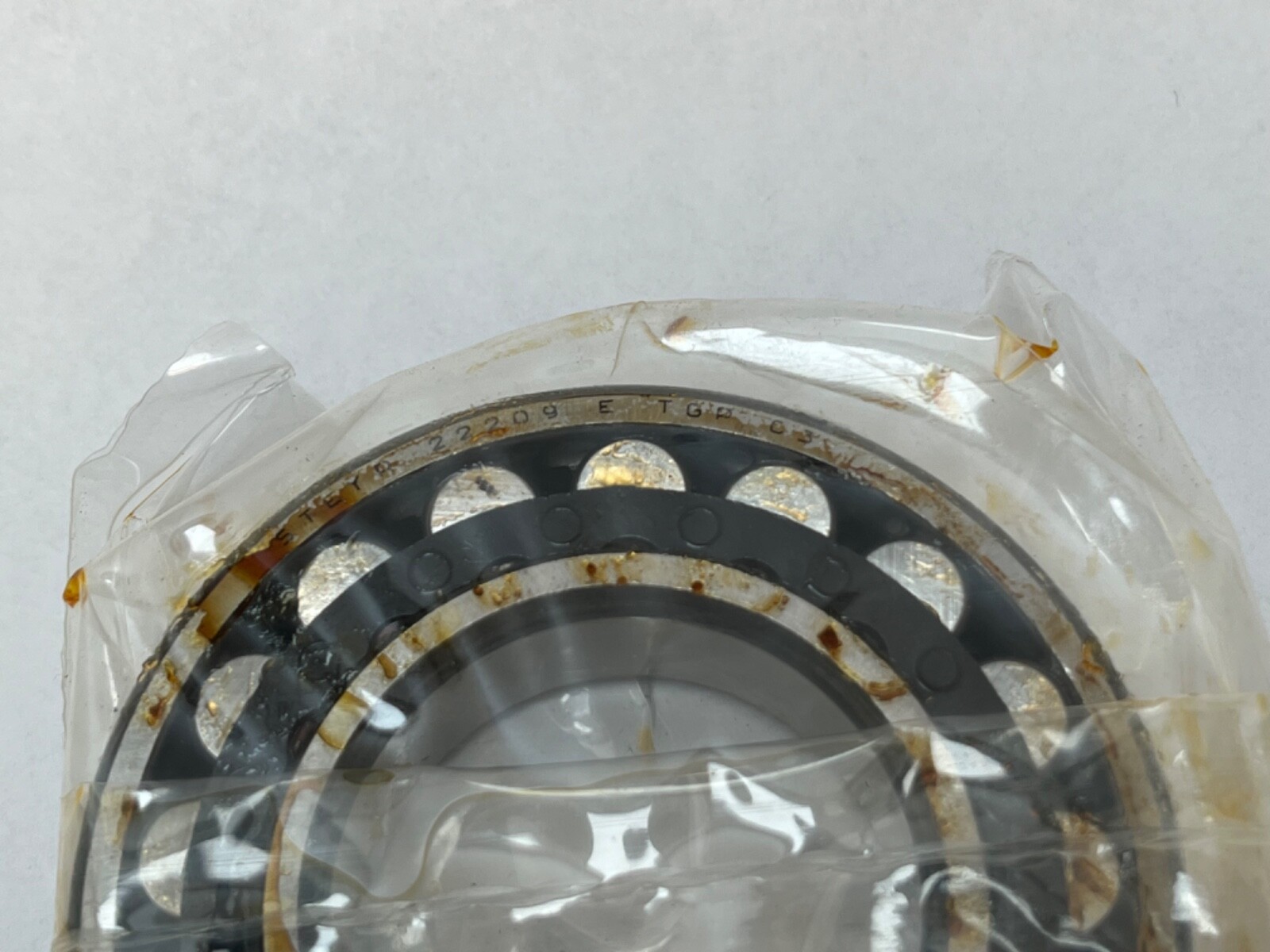

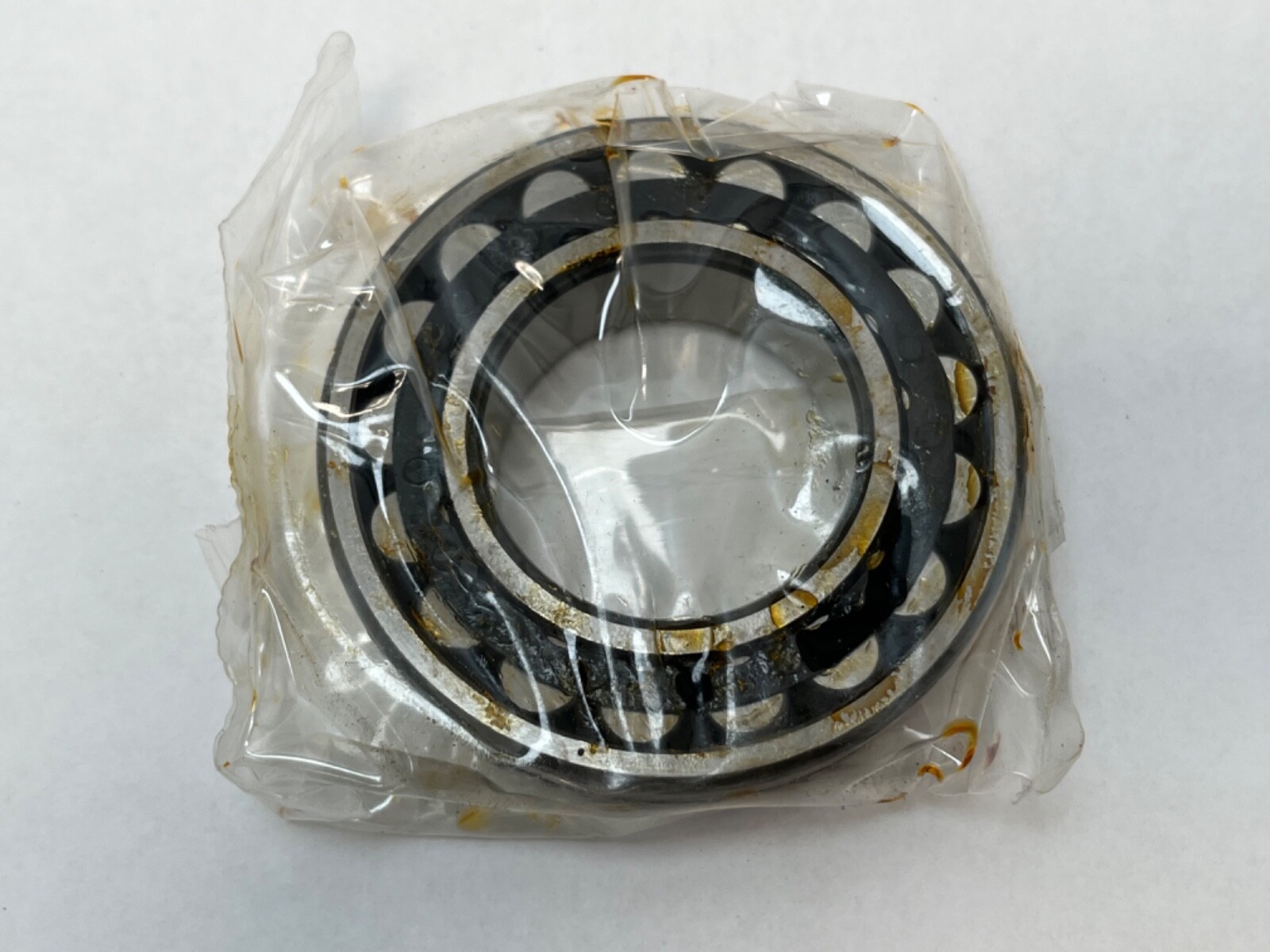

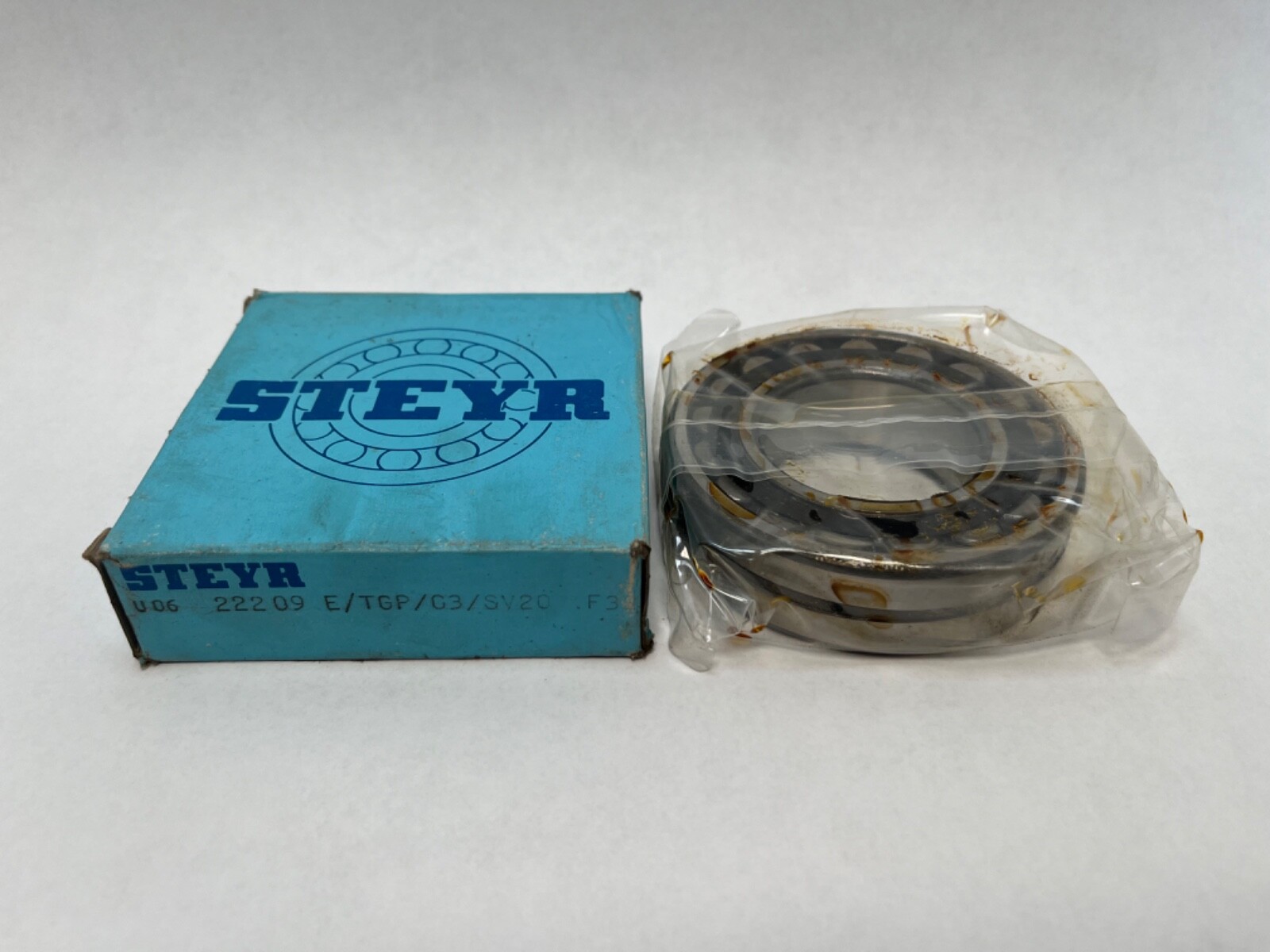

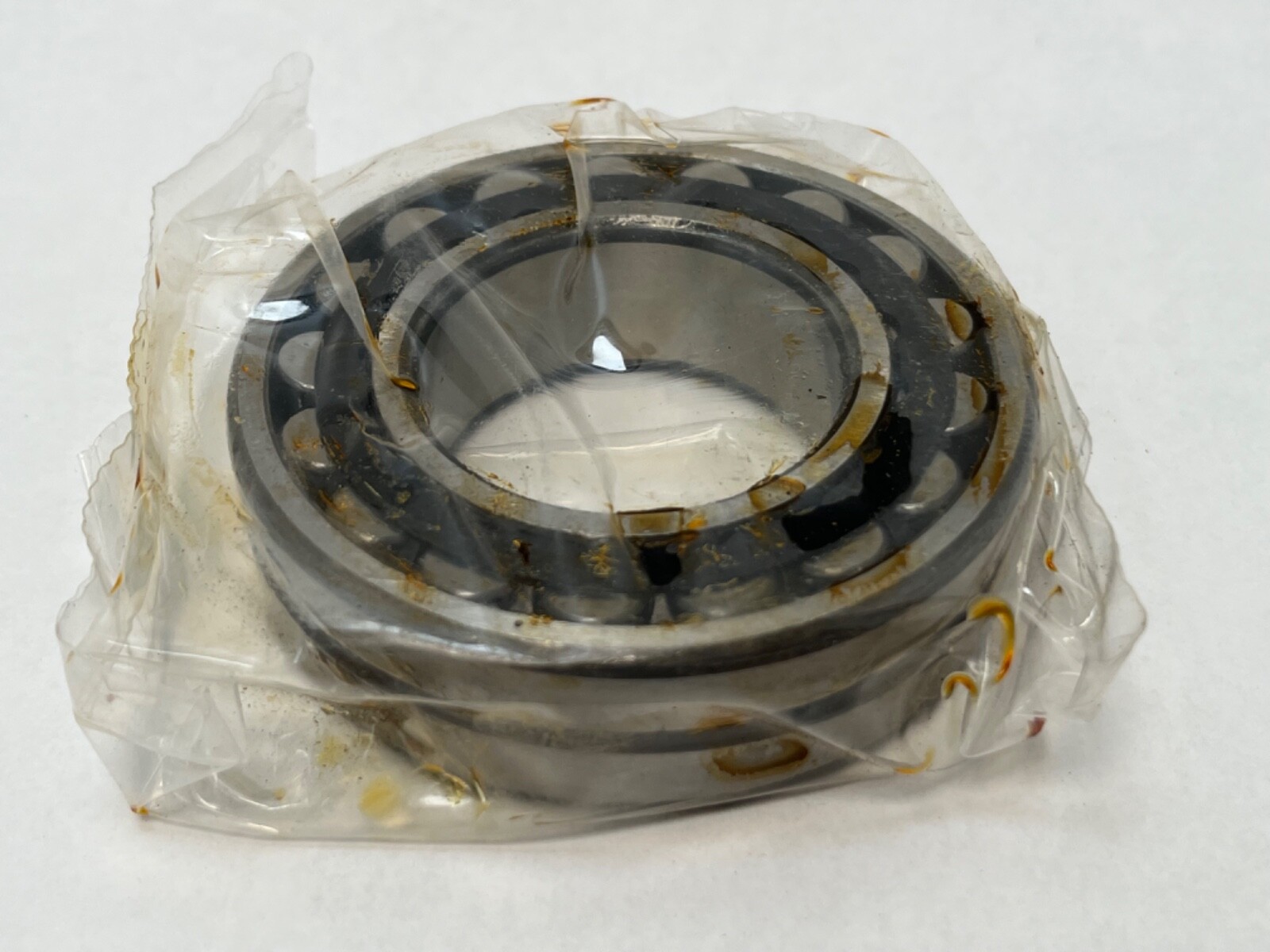

Double-row spherical roller bearing, 45 x 85 x 23 mm, straight bore, open, C3 clearance, W33 lubrication groove with three radial holes in the outer ring.
List Price
$43.38
64 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Steyr |
|---|---|
| MPN | 22209E/TGP/C3/SV20/F3 |
| Model | 22209E/TGP/C3/SV20/F3 22209 E TGP C3 W33 / 22209E |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22209 |
| Industry Terms | double row spherical roller bearing; self-aligning roller bearing; barrel roller bearing; 222 series bearing; W33 bearing; C3 clearance bearing |
| Common Misspellings | Steyer 22209; Stayr 22209; 2209ETGPC3W33; 22209 ETGP C3 W33; 22209ETGPC3-W33 |
| Application Types | Conveyor drives; gearboxes; fans and blowers; pumps; industrial line shafting |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 22209ETGPC3W33; 22209 E TGP C3 W33; 22209-E-TGP-C3-W33; 22209ETGP C3 W33; 22209 E TGP C3 SV20/W33 F3; 22209ETGPC3SV20W33F3 |
| Manufacturer Status | Steyr bearing production passed to SKF Austria; cross-reference SKF for current supply |
| Closure Type | Open |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 (double row) |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Part Number | 22209ETGPC3W33 |
| Total Width | 23 mm |
| Lubricant | Grease or oil |
| Cross Reference 1 | SKF 22209 E/C3 - E design |
|---|---|
| Cross Reference 2 | FAG 22209-E1-XL-C3 - E1 XL design |
| Cross Reference 3 | NSK 22209EAE4 - EA design |
| Cross Reference 4 | NTN 22209EAD1C3 - EAD1 design |
| Cross Reference 5 | Nachi 22209EXW33C3 - EX design |
| Cross Reference 6 | Timken 22209EJW33C3 - EJ design |
| Cross Reference 7 | Koyo 22209RHRW33 - RHR design |
Steyr 22209 double-row spherical roller bearing, straight bore, open, C3 radial internal clearance, with a W33 lubrication groove and three radial holes in the outer ring. Bore 45 mm, outside diameter 85 mm, width 23 mm. Unit Quantity: 1 Pc.
22209 — ISO 222 dimension series, 09 bore code: 45 mm bore, 85 mm outside diameter, 23 mm width.
E — reinforced high-capacity internal design.
C3 — radial internal clearance greater than normal.
W33 — lubrication groove around the outside diameter of the outer ring with three radial holes through to the rollers; delivers grease or oil.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 23 mm. Series: 222. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil. Unit Quantity: 1 Pc.
Straight cylindrical bore; the inner ring seats directly on the shaft. Two rows of symmetrical barrel rollers run on a single spherical outer raceway, so the bearing is self-aligning and carries axial load in both directions. Single complete non-separable bearing.
Same-size 45 x 85 x 23 mm spherical roller bearings: SKF 22209 E/C3; FAG 22209-E1-XL-C3; NSK 22209EAE4; NTN 22209EAD1C3; Nachi 22209EXW33C3; Timken 22209EJW33C3; Koyo 22209RHRW33. Also written 22209 E TGP C3 W33, 22209-E-TGP-C3-W33 and 22209E/TGP/C3/SV20/F3. Steyr bearing production passed to SKF Austria.
C3, a radial internal clearance greater than normal.
W33 is a lubrication groove around the outer ring outside diameter with three radial holes to the rollers.
Bore 45 mm, outside diameter 85 mm, width 23 mm, with a straight cylindrical bore.
