Availability:
1 in stock

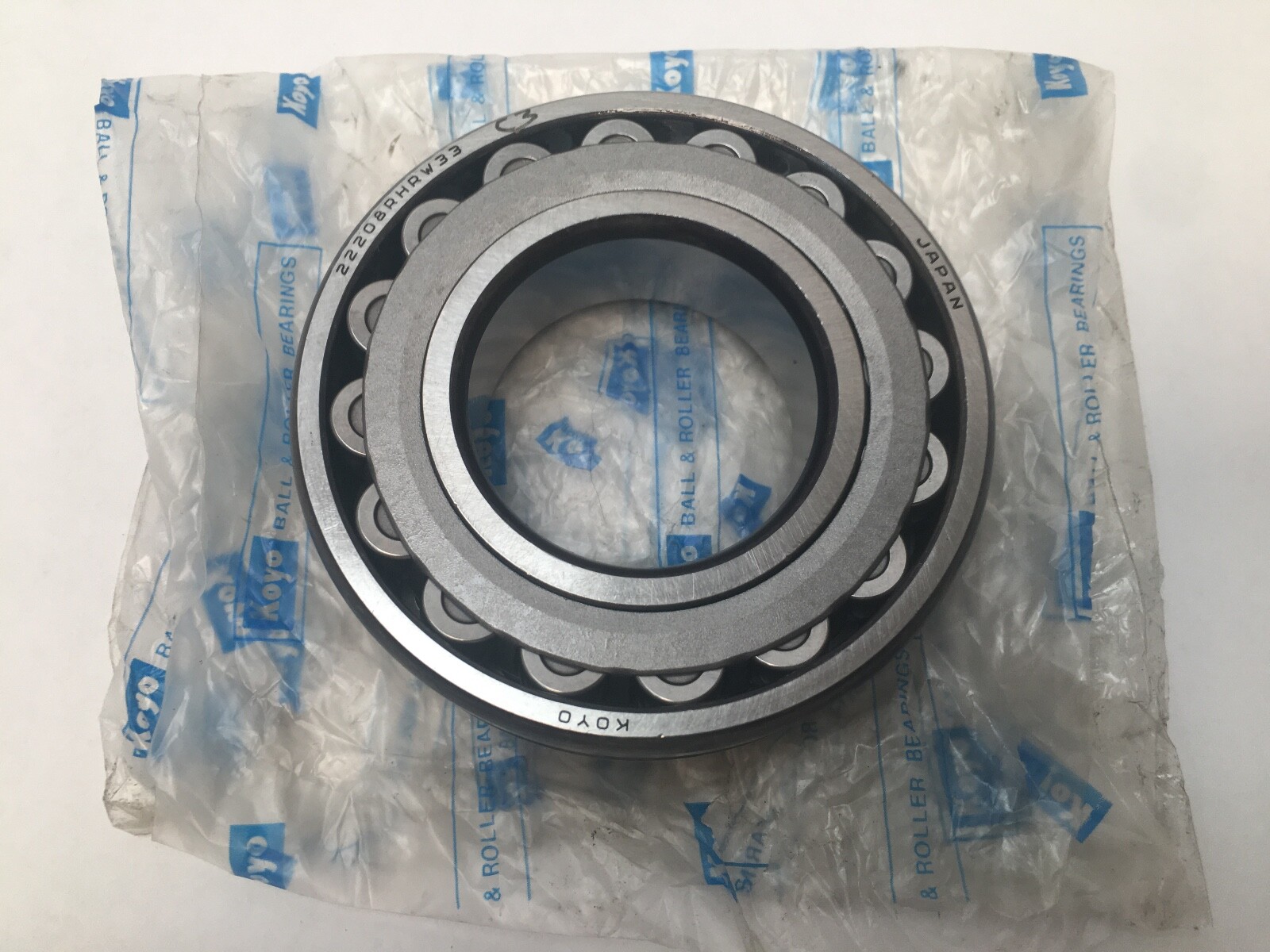

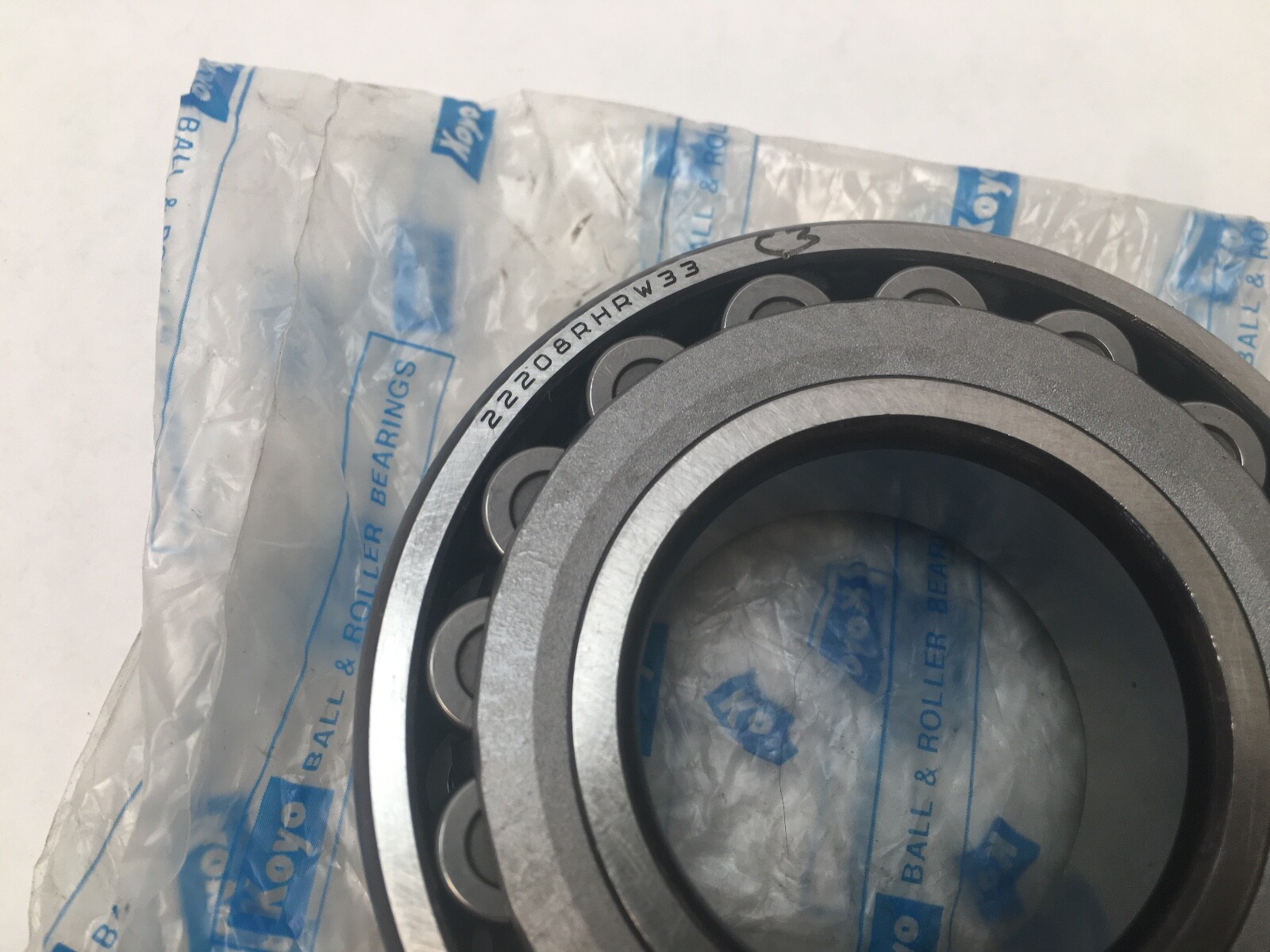

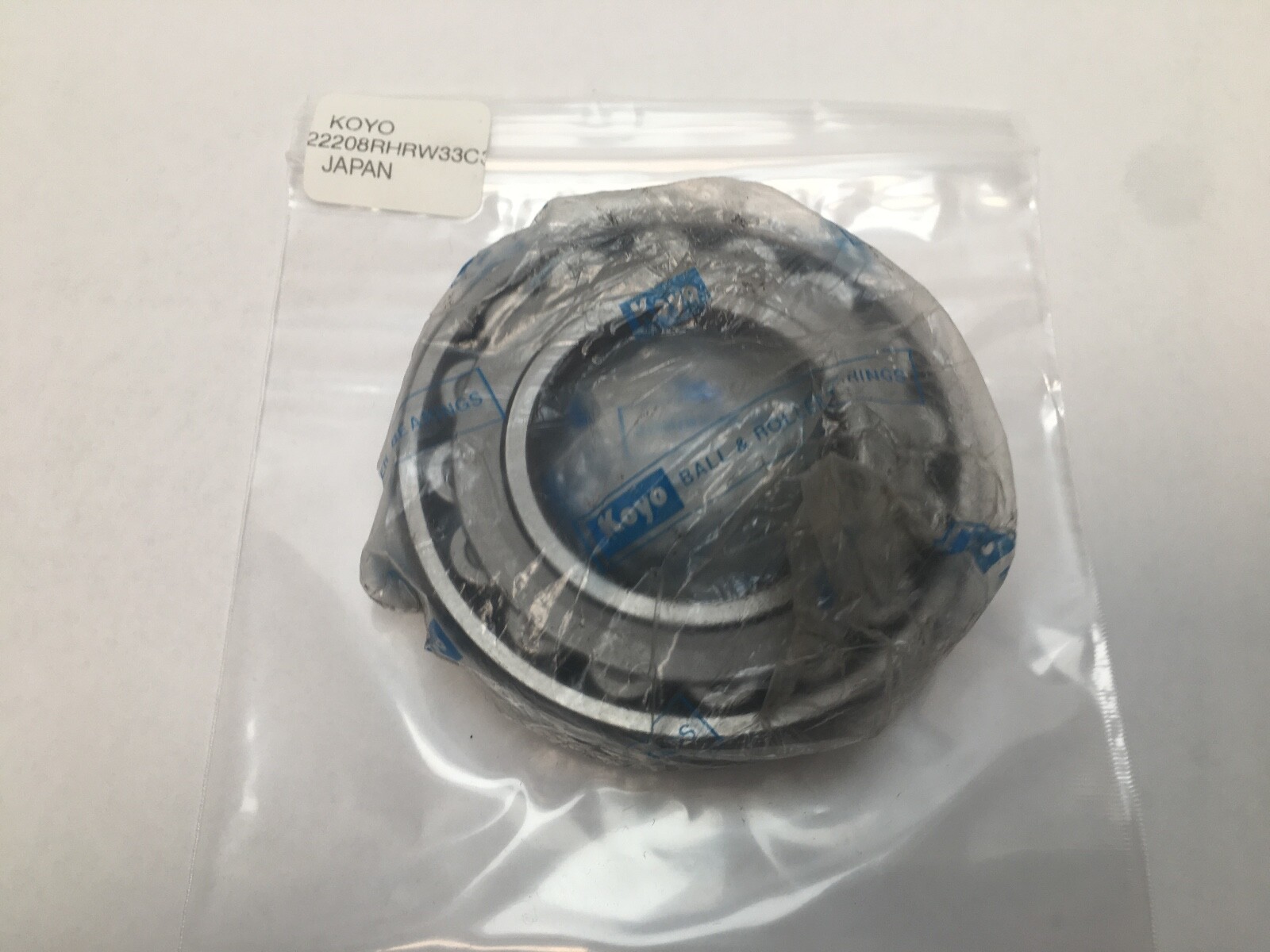

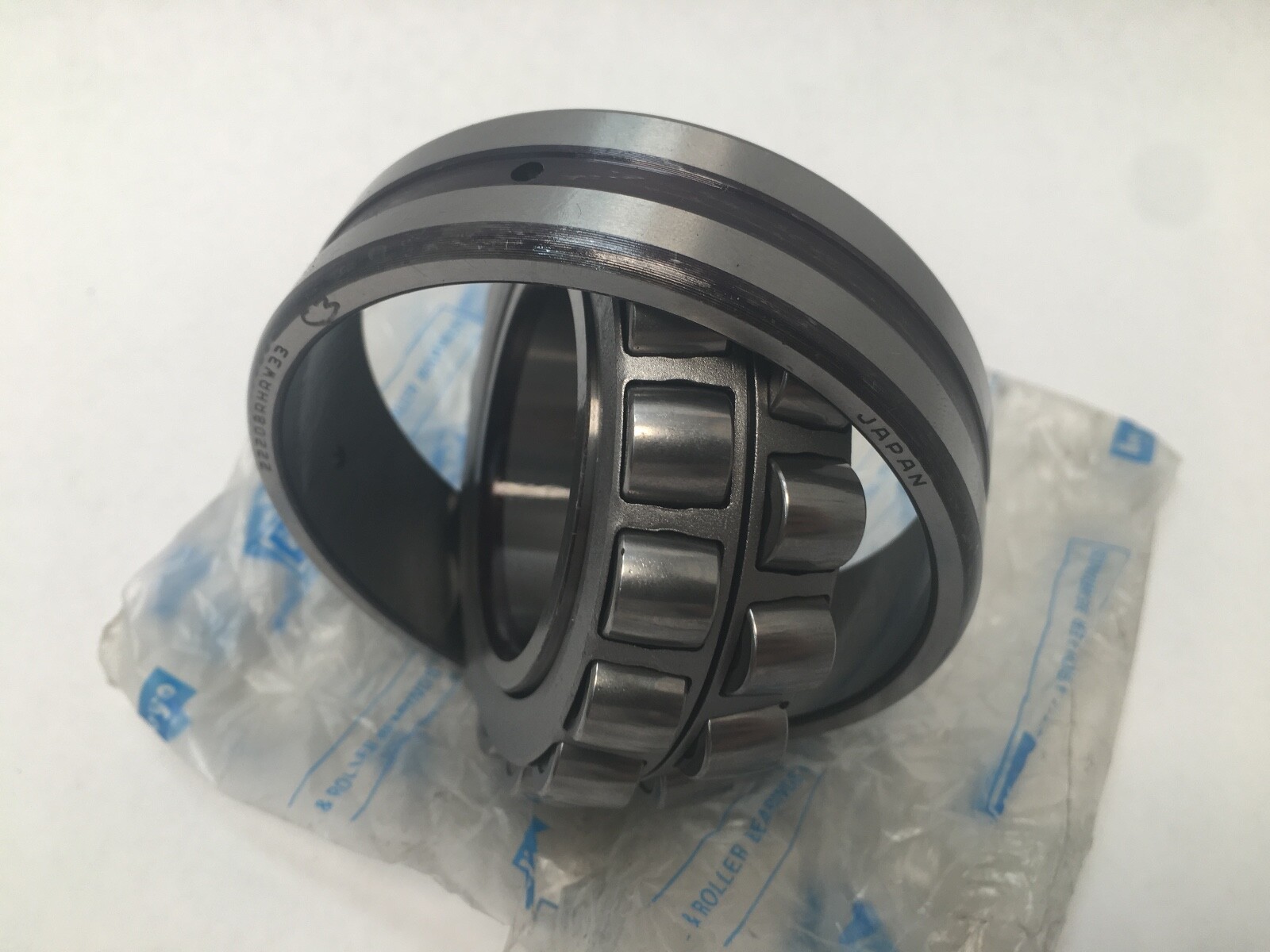

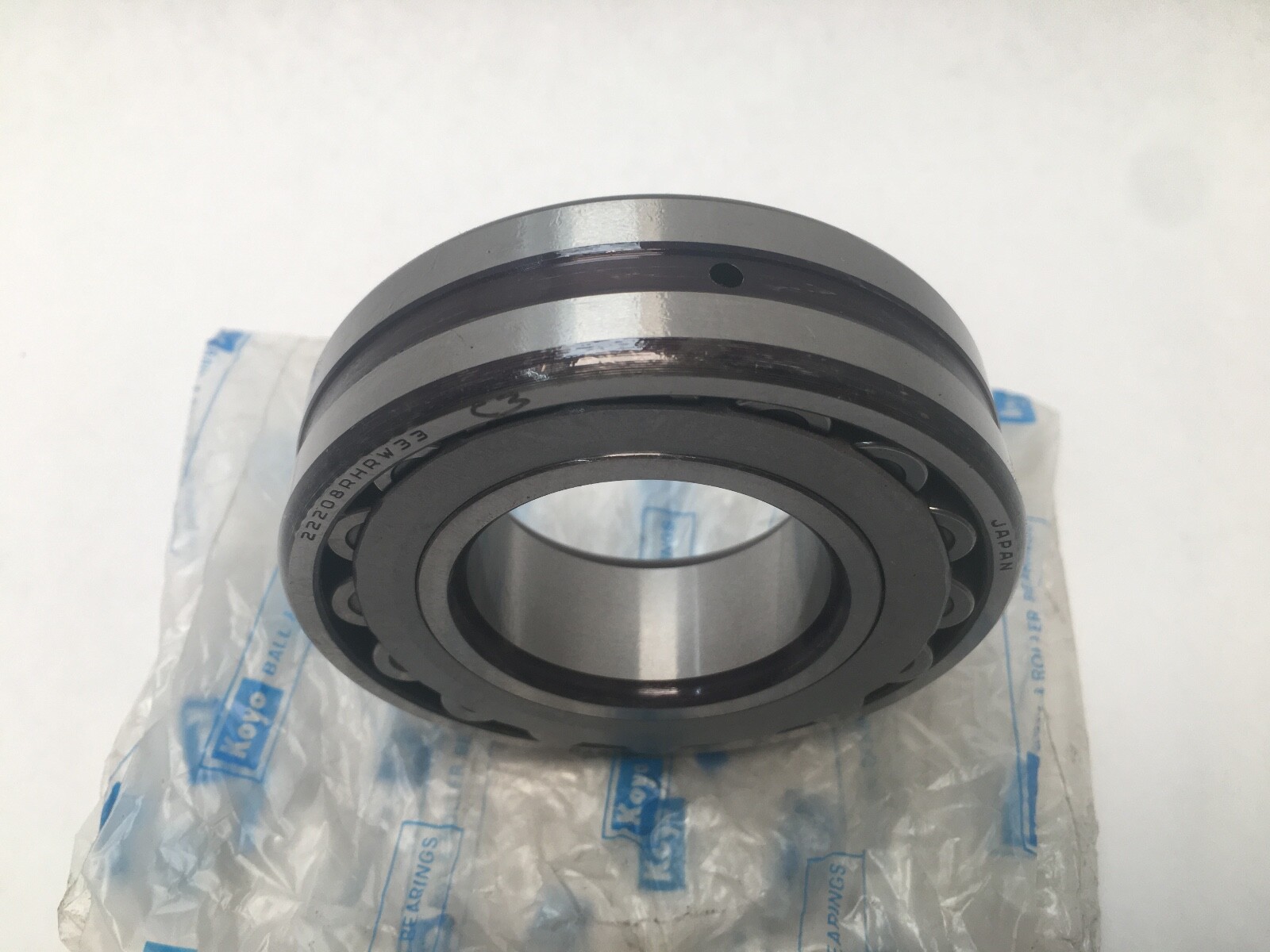

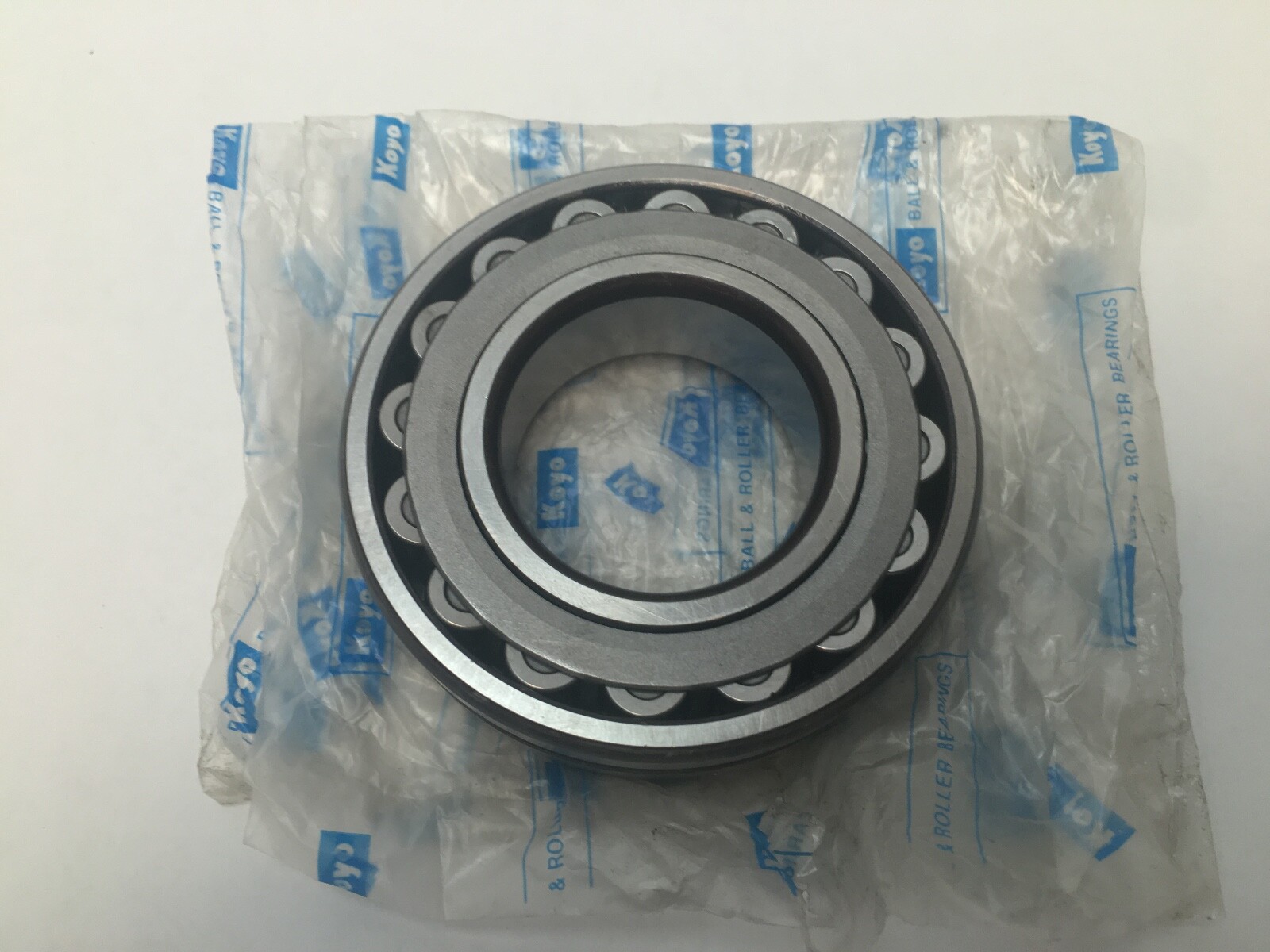

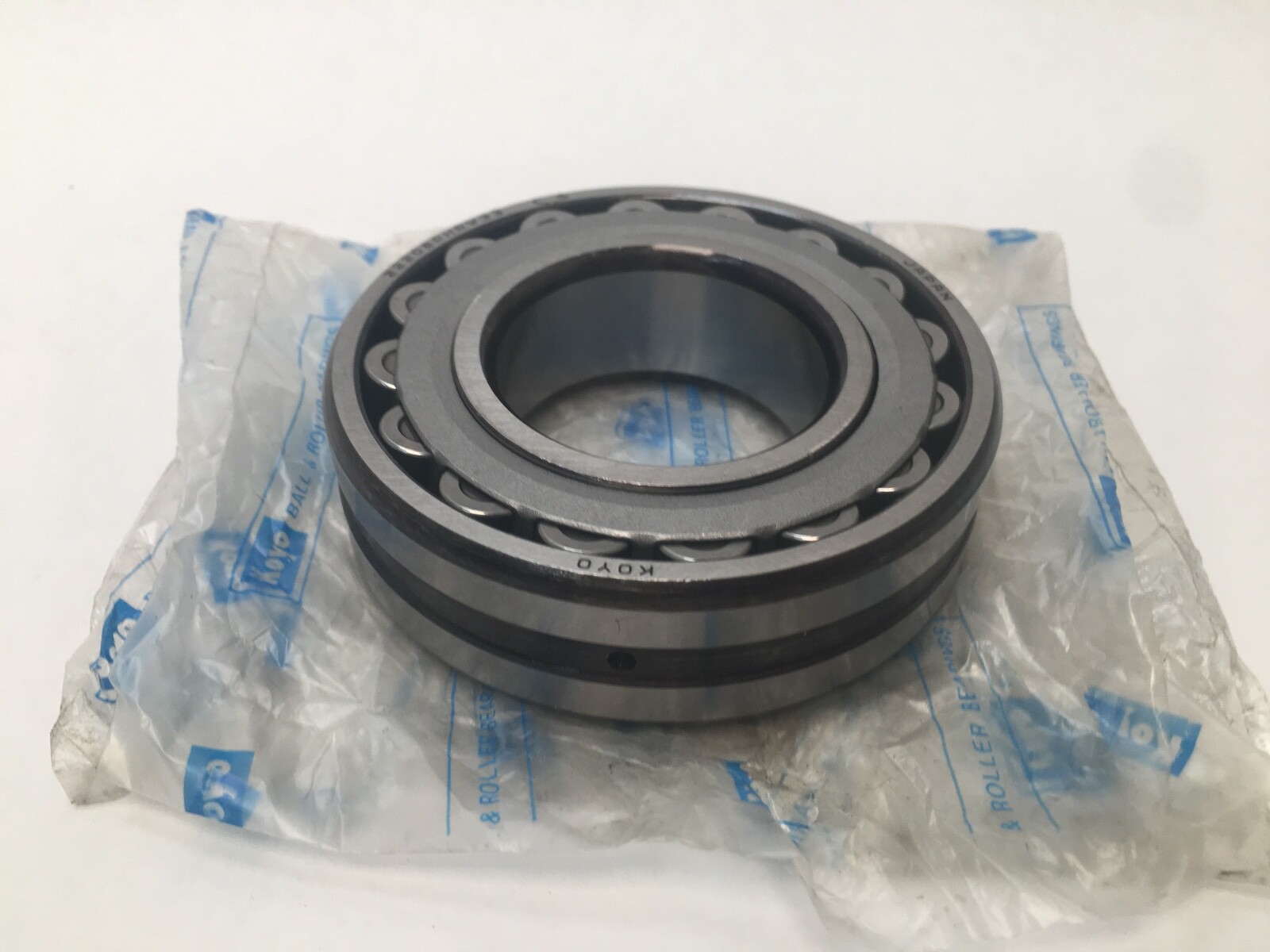

Koyo 22208RHRW33C3 spherical roller bearing, 40 mm straight bore, 80 mm OD, 23 mm wide, pressed steel cage, W33 lubrication groove, C3 clearance.
List Price
$48.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| MPN | 22208RHRW33C3 |
| Model | 22208-RHR-W33-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Closure Type | Open |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | W33 groove with three radial holes |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Base Number | 22208 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row spherical bearing |
| Overall Width | 23 mm |
| Mpn Variants | 22208RHRW33C3, 22208-RHR-W33-C3, 22208 RHR W33 C3, 22208RHR, 22208RHRC3 |
| Lubricant | grease or oil |
| Cross Reference 1 | Timken 22208EJW33C3 |
|---|---|
| Cross Reference 2 | SKF 22208 E/C3 |
| Cross Reference 3 | FAG 22208-E1-C3 |
| Cross Reference 4 | NSK 22208EAE4C3 |
| Cross Reference 5 | NTN 22208EAD1C3 |
The Koyo 22208RHRW33C3 is a double-row spherical roller bearing in the ISO 22208 envelope with a straight bore: 40 mm bore, 80 mm outside diameter, 23 mm width. Two rows of symmetric rollers run in a common spherical outer raceway, so the bearing self-aligns to shaft deflection while carrying heavy radial load and axial load in both directions.
22208 — 222 series spherical roller bearing, bore code 08, 40 mm bore, 80 x 23 mm section.
RHR — Koyo RH-type high-capacity internal design with symmetric rollers and pressed steel cages.

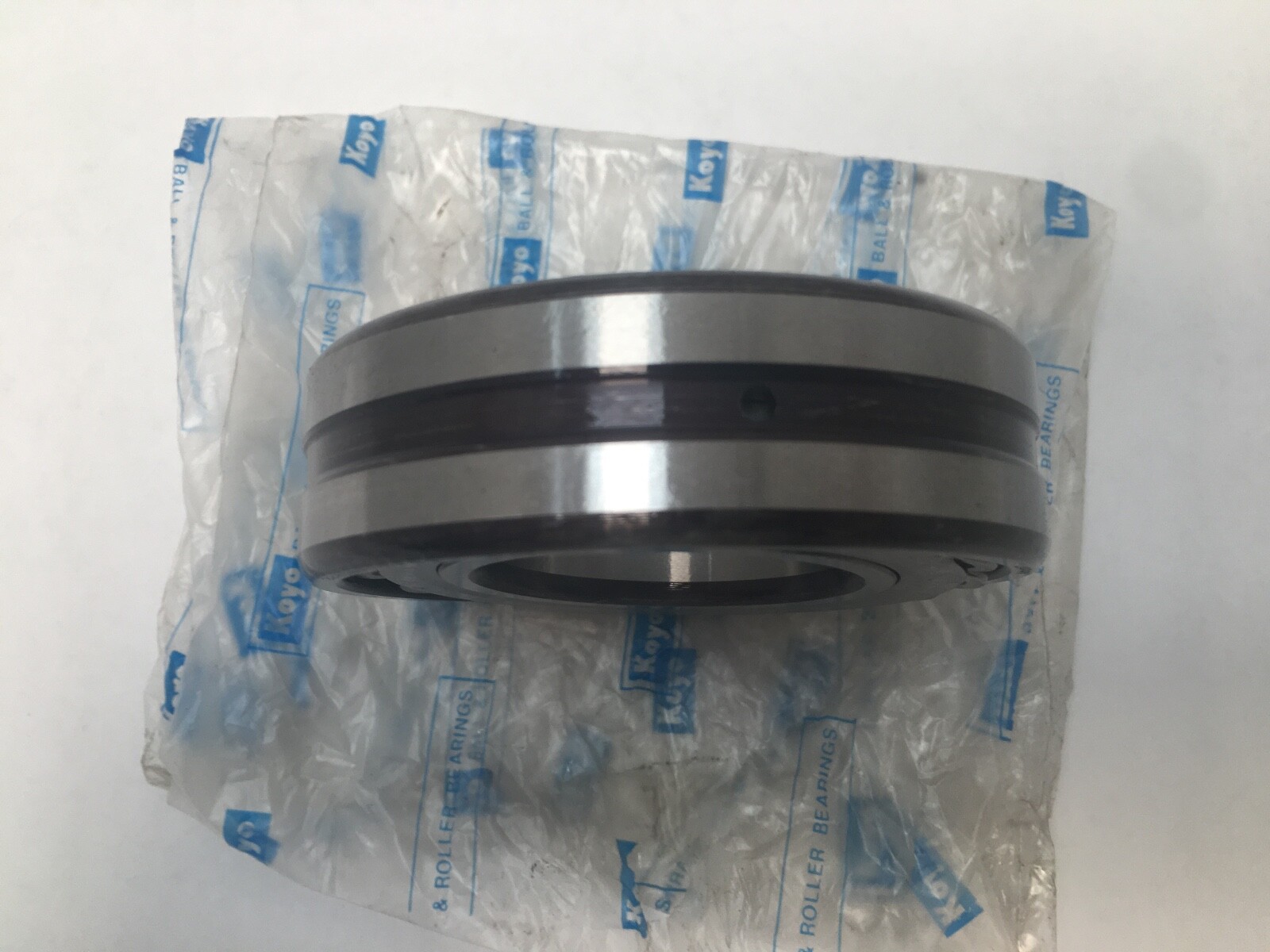

W33 — lubrication groove with three radial holes in the outer ring, for grease or oil feed.
C3 — internal radial clearance greater than normal.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 23 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Internal Clearance: C3. Lubricant: grease or oil. Closure Type: Open. Series: 22200. Unit Quantity: 1 Pc.
The straight 40 mm bore mounts directly on a 40 mm shaft seat. The 80 mm outer ring fits standard 22208 pillow block and flange housings, with the W33 groove aligned to the housing lubrication port.
Interchanges on envelope, straight bore, lubrication groove and C3 with Timken 22208EJW33C3, SKF 22208 E/C3, FAG 22208-E1-C3, NSK 22208EAE4C3 and NTN 22208EAD1C3. Also marked 22208-RHR-W33-C3 and 22208 RHR W33 C3. Harmonization Code: 8482.30.00.
What size is the Koyo 22208RHRW33C3?
40 mm bore, 80 mm outside diameter and 23 mm width.
What cage does the 22208RHRW33C3 use?
Pressed steel cages, Koyo RH-type design.
Which bearings cross to the 22208RHRW33C3?
Timken 22208EJW33C3, SKF 22208 E/C3, FAG 22208-E1-C3, NSK 22208EAE4C3 and NTN 22208EAD1C3.
