Availability:
11 in stock

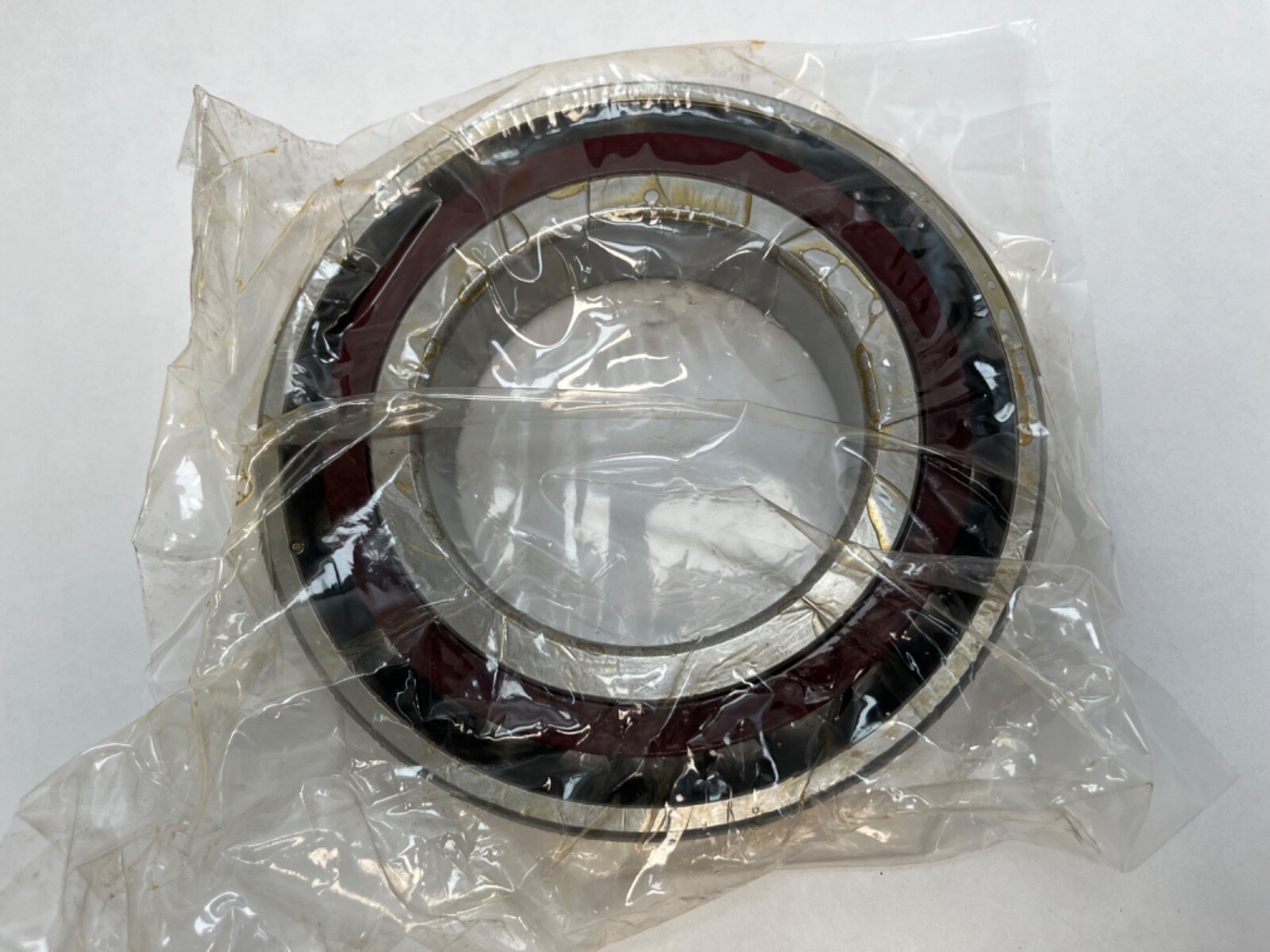

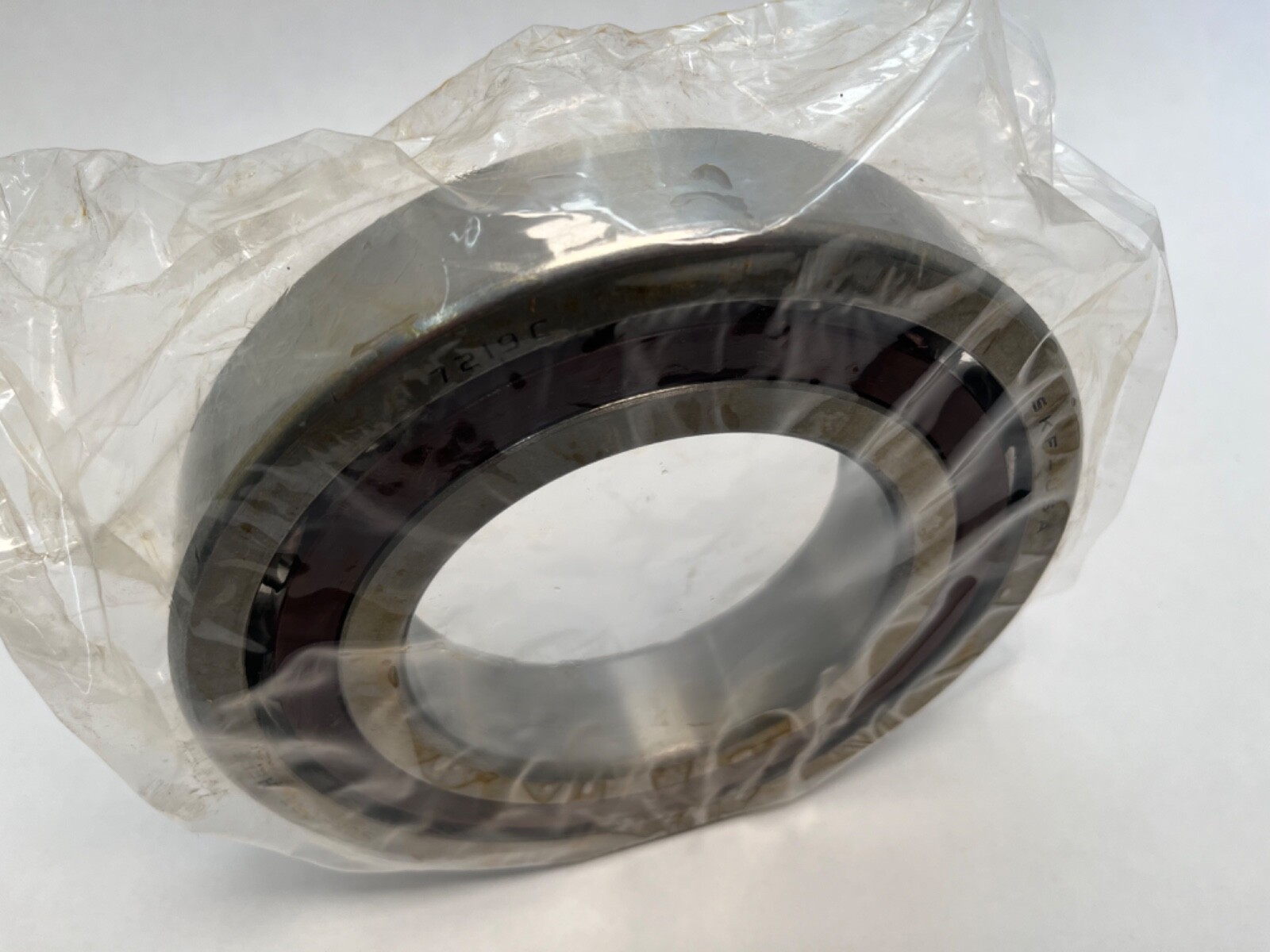

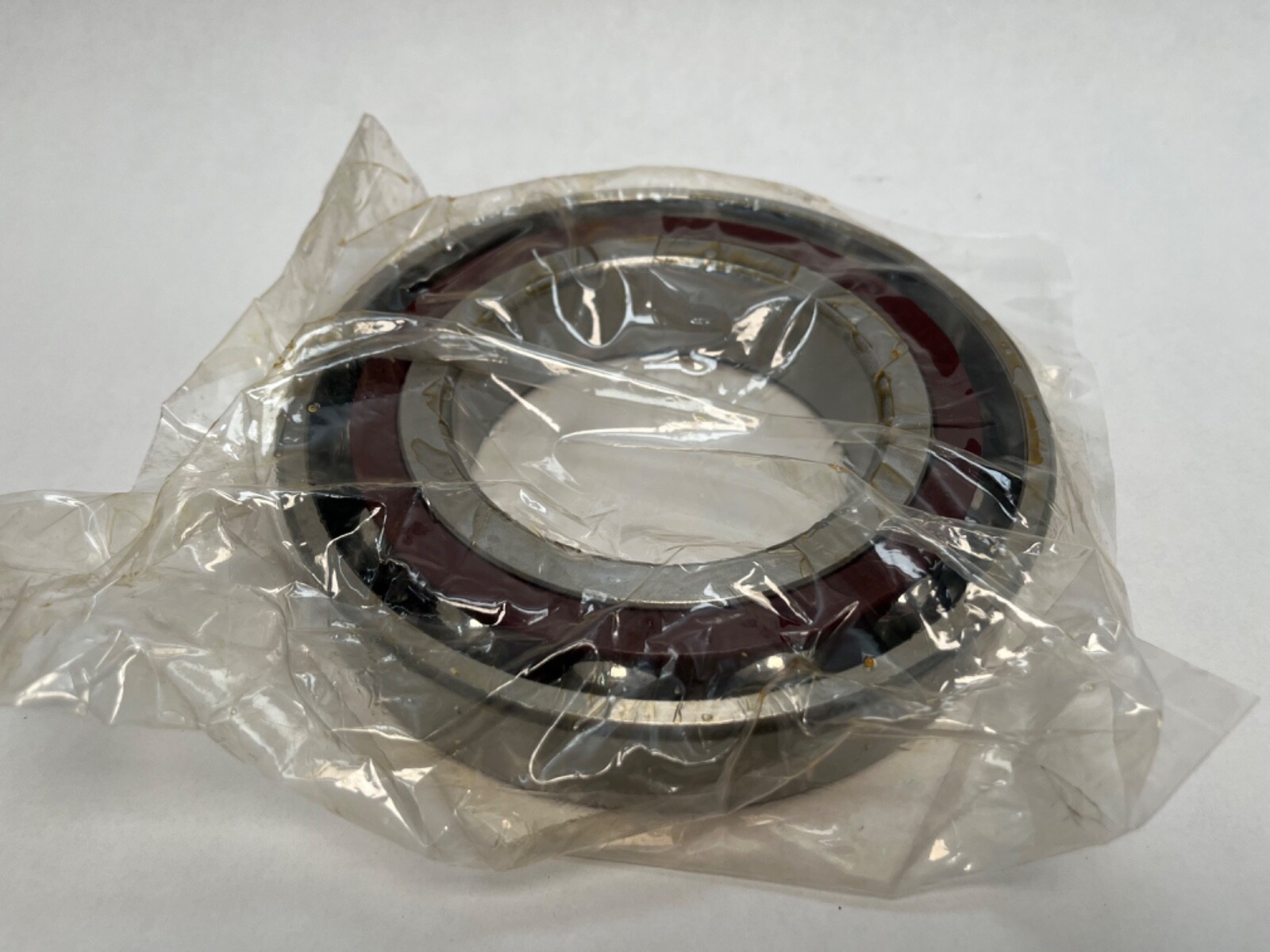

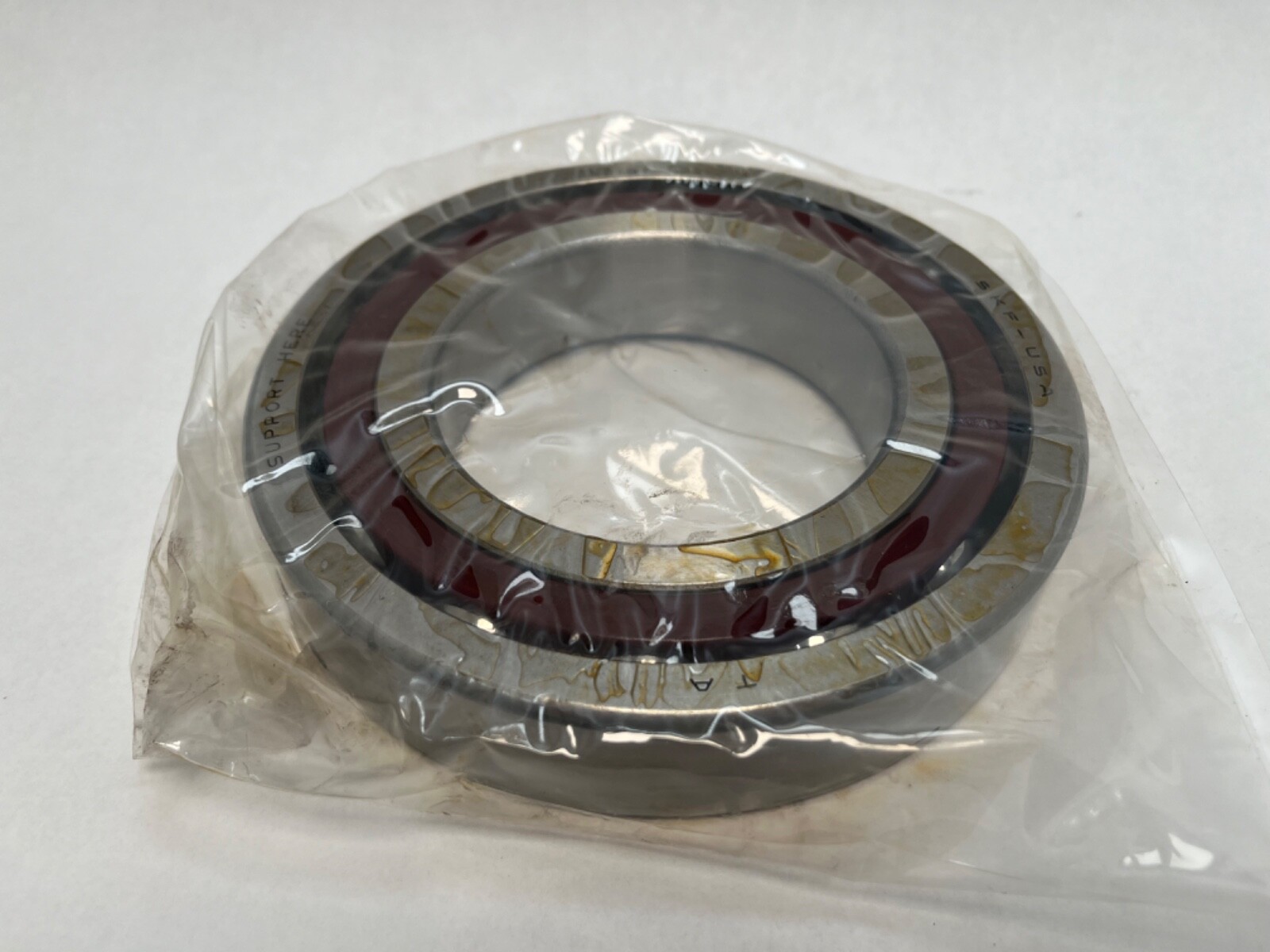

Single-row angular contact ball bearing, 95 x 170 x 32 mm, 15° contact angle. Open, straight bore, 7200 heavy series, chrome steel raceways.
List Price
$336.57
11 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7219CTCC78G4 |
| Model | 7219 C TC C78 G4 / 2M219WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 95 mm |
| OD | 170 mm |
| Width | 32 mm |
| Series | 7200 |
|---|---|
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Base Number | 7219 |
| Overall Width | 32 mm |
| Mpn Variants | 7219CTCC78G4; 7219-CTC-C78-G4; 7219 C TC C78 G4; 7219CTC; 7219C; 2MM219WI CR |
| Bearing Material | Chrome steel |
| Cross Reference 1 | SKF 7219 CD |
|---|---|
| Cross Reference 2 | FAG B7219-C-T-P4S |
| Cross Reference 3 | NSK 7219C |
| Cross Reference 4 | NTN 7219C |
| Cross Reference 5 | Timken / Fafnir 2MM219WI |
| Cross Reference 6 | RHP 7219CT |
| Cross Reference 7 | Koyo 7219C |
| Cross Reference 8 | SNR 7219C |
| Cross Reference 9 | MRC 7219 (related, 29°) |
SKF 7219CTCC78G4 single-row angular contact ball bearing. Bore Diameter: 95 mm. Outside Diameter: 170 mm. Overall Width: 32 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 7200. Bearing Material: Chrome steel. Unit Quantity: 1 Pc.
72 — single-row angular contact ball bearing, ISO heavy dimension series 02. A thicker cross-section than a 70-series bearing on the same bore, which buys load capacity.
19 — bore code. Bore Diameter: 95 mm.
C — 15° contact angle.

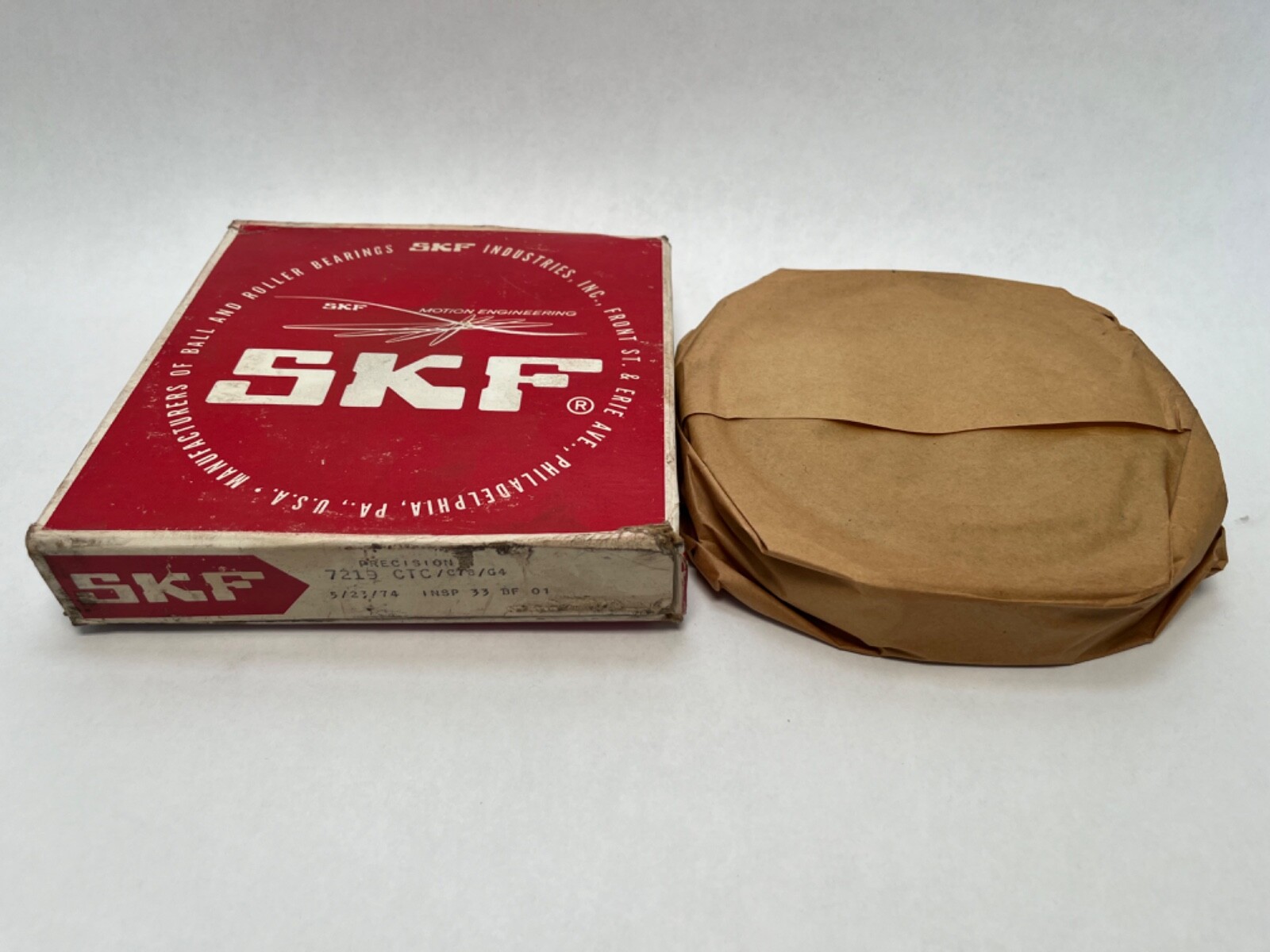

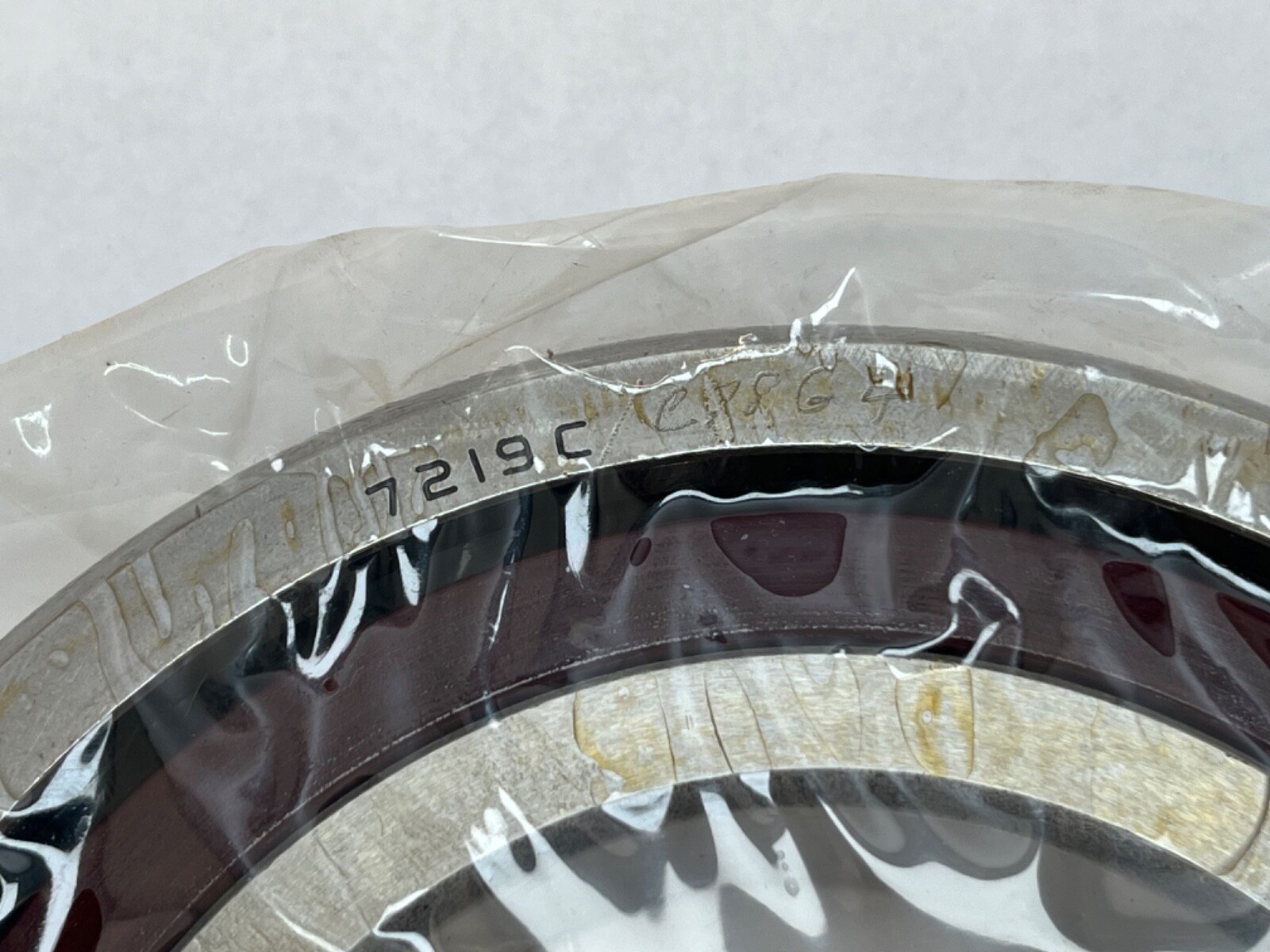

Searchable forms carried on the carton and in the trade: 7219C, 7219-CTC-C78-G4, 7219 C TC C78 G4, 7219CTC, and the Fafnir equivalent 2MM219WI.
A 15° contact angle sets the load line close to the radial plane. That favours speed and radial stiffness, and it is the angle chosen for machine-tool spindles and precision pump shafts where thrust is moderate and surface speed is high.
A single-row angular contact ball bearing carries thrust in one direction only. Two bearings mounted back-to-back, face-to-face or in tandem locate a shaft axially and set the working preload.
The 95 x 170 x 32 mm envelope is the 7219 boundary, shared across every maker, so the bearing drops into any housing and shaft cut for a 7219.

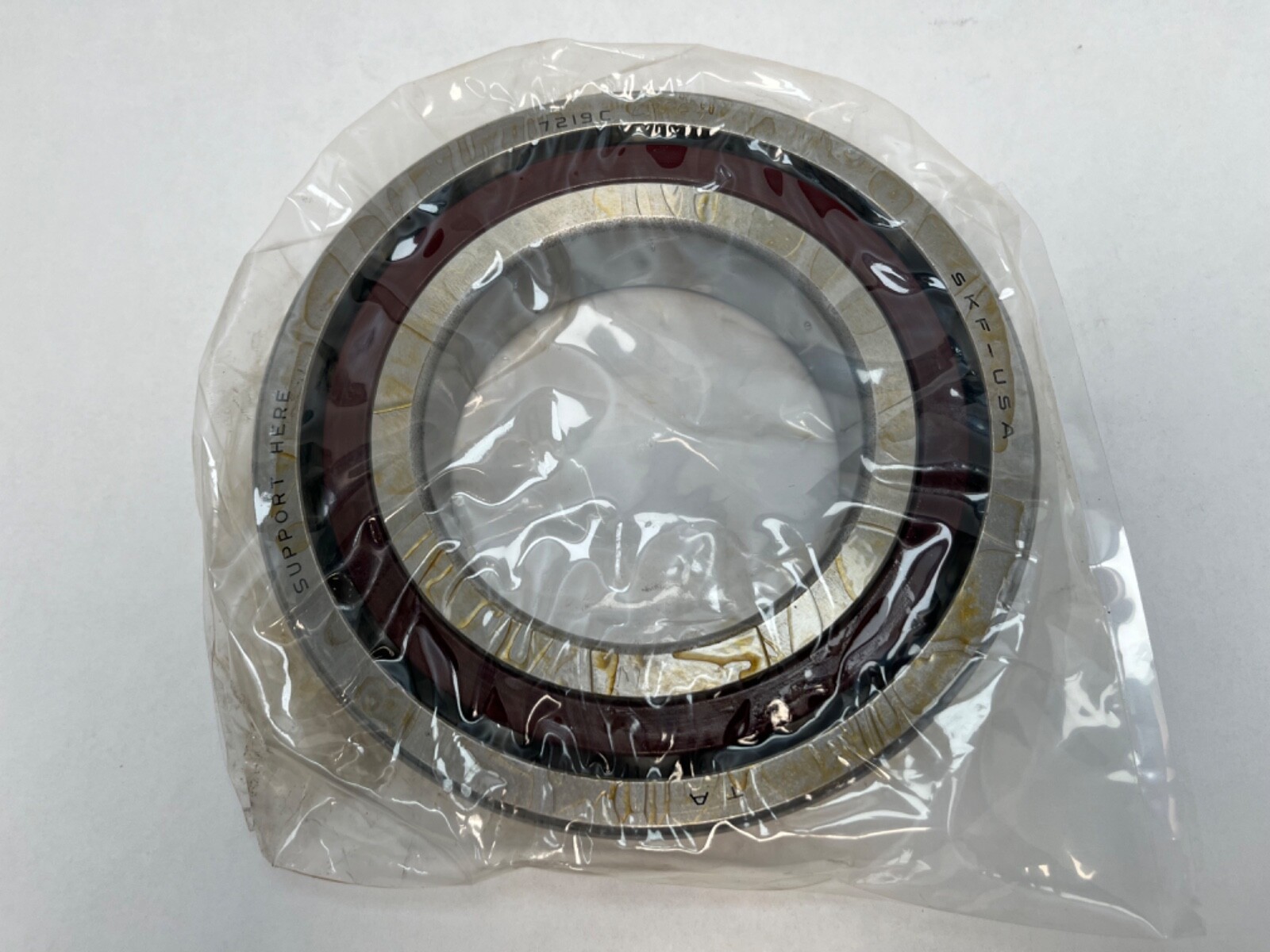

Bore Diameter: 95 mm, straight. Outside Diameter: 170 mm. Overall Width: 32 mm. The high shoulder sits on the thrust-carrying side; the bearing is fitted with that face toward the load.
Unit Quantity: 1 Pc. One single bearing, open on both faces.
Cross-Reference 1: SKF 7219 CD. Cross-Reference 2: FAG B7219-C-T-P4S. Cross-Reference 3: NSK 7219C. Cross-Reference 4: NTN 7219C. Cross-Reference 5: Timken / Fafnir 2MM219WI. Cross-Reference 6: RHP 7219CT. Cross-Reference 7: Koyo 7219C. Cross-Reference 8: SNR 7219C. Cross-Reference 9: MRC 7219 (related, 29°).
Every reference above shares the 95 x 170 x 32 mm envelope. The first eight also share the 15° contact angle and are direct substitutions. The MRC 7219 is the same envelope at a 29° angle, so it is a related size rather than an interchange.
