Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
3 in stock
Single row angular contact ball bearing, 60 mm bore, 110 mm OD, 22 mm wide, 15° contact angle. Open, straight bore, ISO 02 series, radial and one-way axial load.
List Price
$152.80
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7212CTCC78G |
| Model | 7212 CTC C78 G |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil |
| Base Number | 7212 |
| Industry Terms | Spindle bearing; precision angular contact bearing; machine tool bearing; 72 series angular contact |
| Common Misspellings | 7212 CTC C78 6; 7212CTCC78-G; 7212 CTCC78 G; 72 12 CTC C78; 7212CTCC7BG |
| Application Types | Machine tool spindles; gearbox shafts; pumps; screw drive supports |
| Overall Width | 22 mm |
| Mpn Variants | 7212CTCC78G; 7212 CTC C78 G; 7212-CTC-C78-G; 7212CTC/C78G; 7212 C P5; 7212C |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken/Fafnir 2MM212WICR |
|---|---|
| Cross Reference 2 | FAG B7212C.T.P4S |
| Cross Reference 3 | NSK 7212CTR |
| Cross Reference 4 | RHP B7212X2TA |
SKF single row angular contact ball bearing in the 72 series, ISO dimension series 02. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Series: 7200. Base Number: 7212. Unit Quantity: 1 Pc.
72 — angular contact ball bearing to ISO dimension series 02.
12 — bore code. Bore diameter 60 mm.
C — 15° contact angle.
Contact Angle: 15°. The load line runs at 15° to the radial plane, so the bearing carries radial load together with axial load in one direction. The shallow angle favours running speed and radial stiffness. Ring Type: One-piece inner and outer rings.
ISO dimension series 02 at a 60 mm bore gives a 110 mm outside diameter and a 22 mm width. Single row angular contact bearings of this size run in machine tool spindles, gearbox shafts, pumps and screw drive supports, mounted in opposed pairs or in tandem so that thrust is taken in both directions.

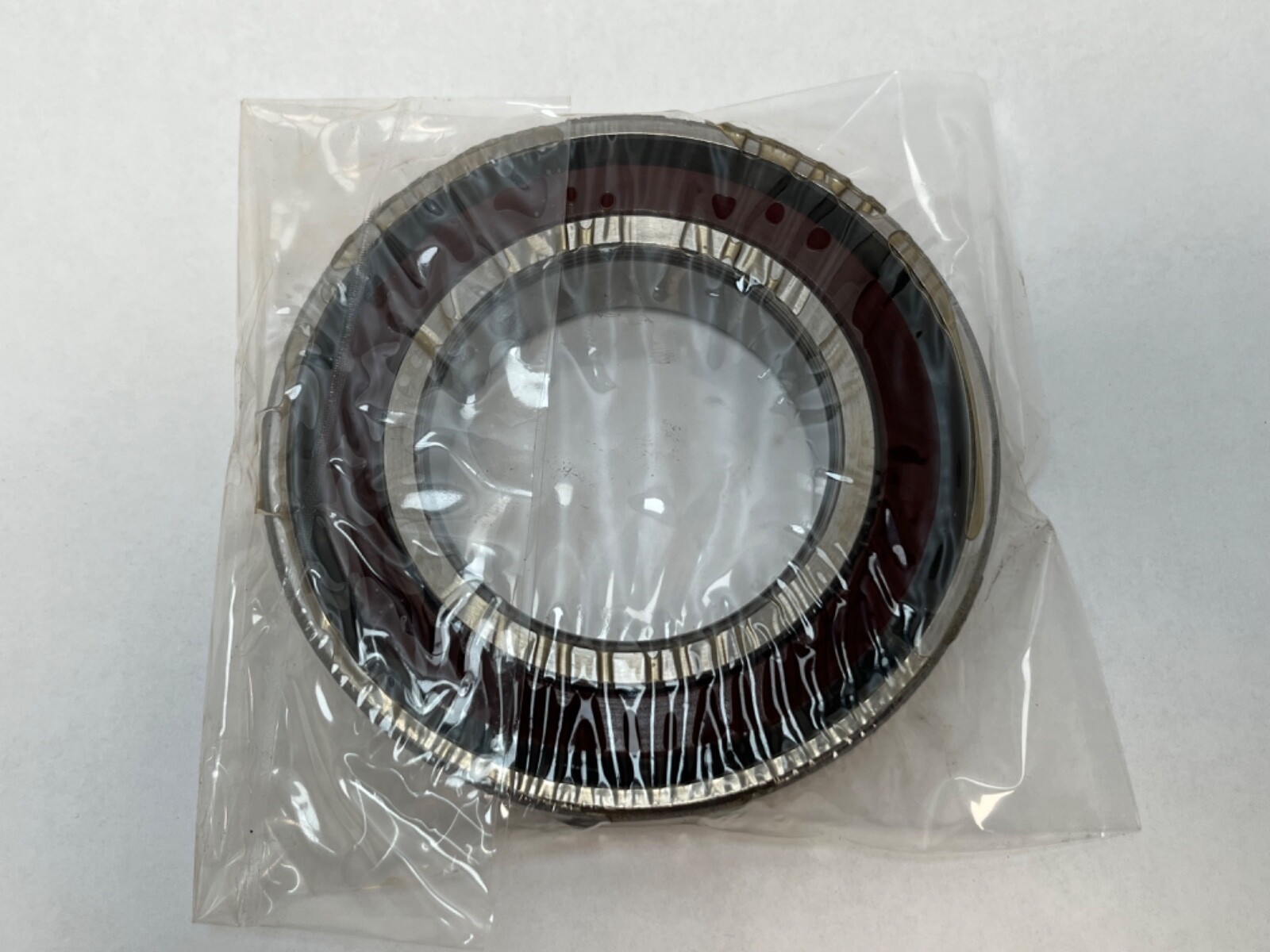

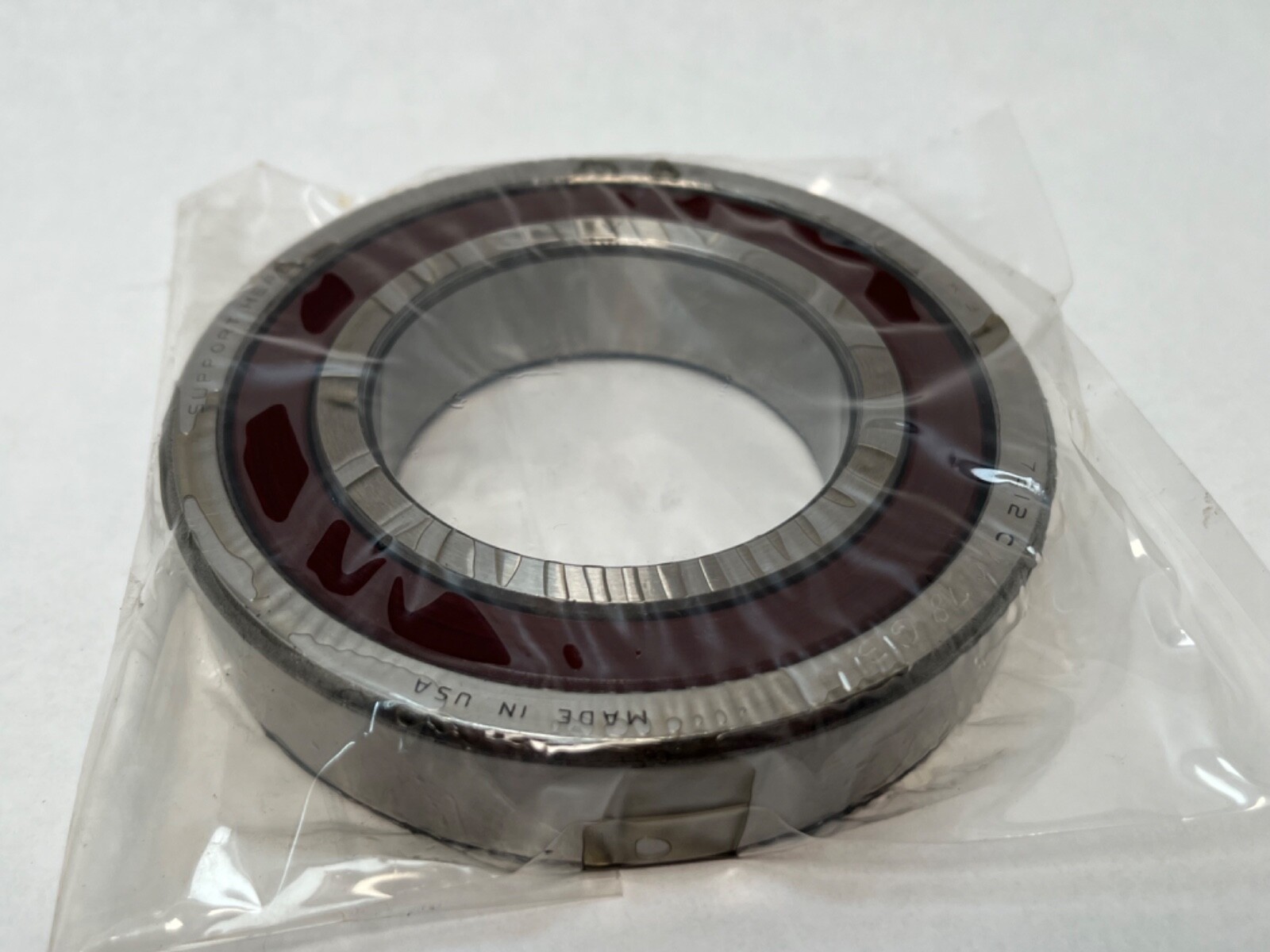

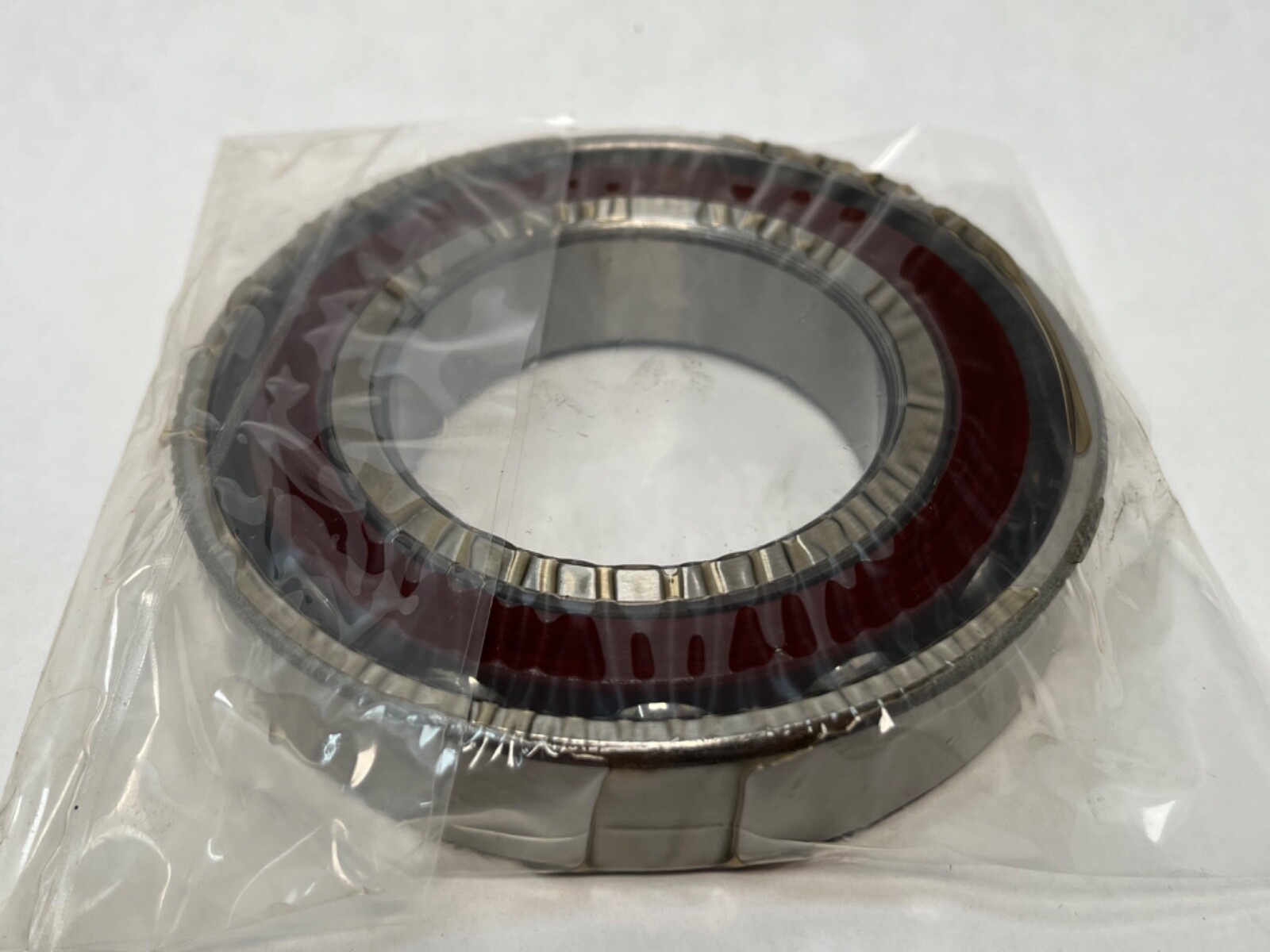

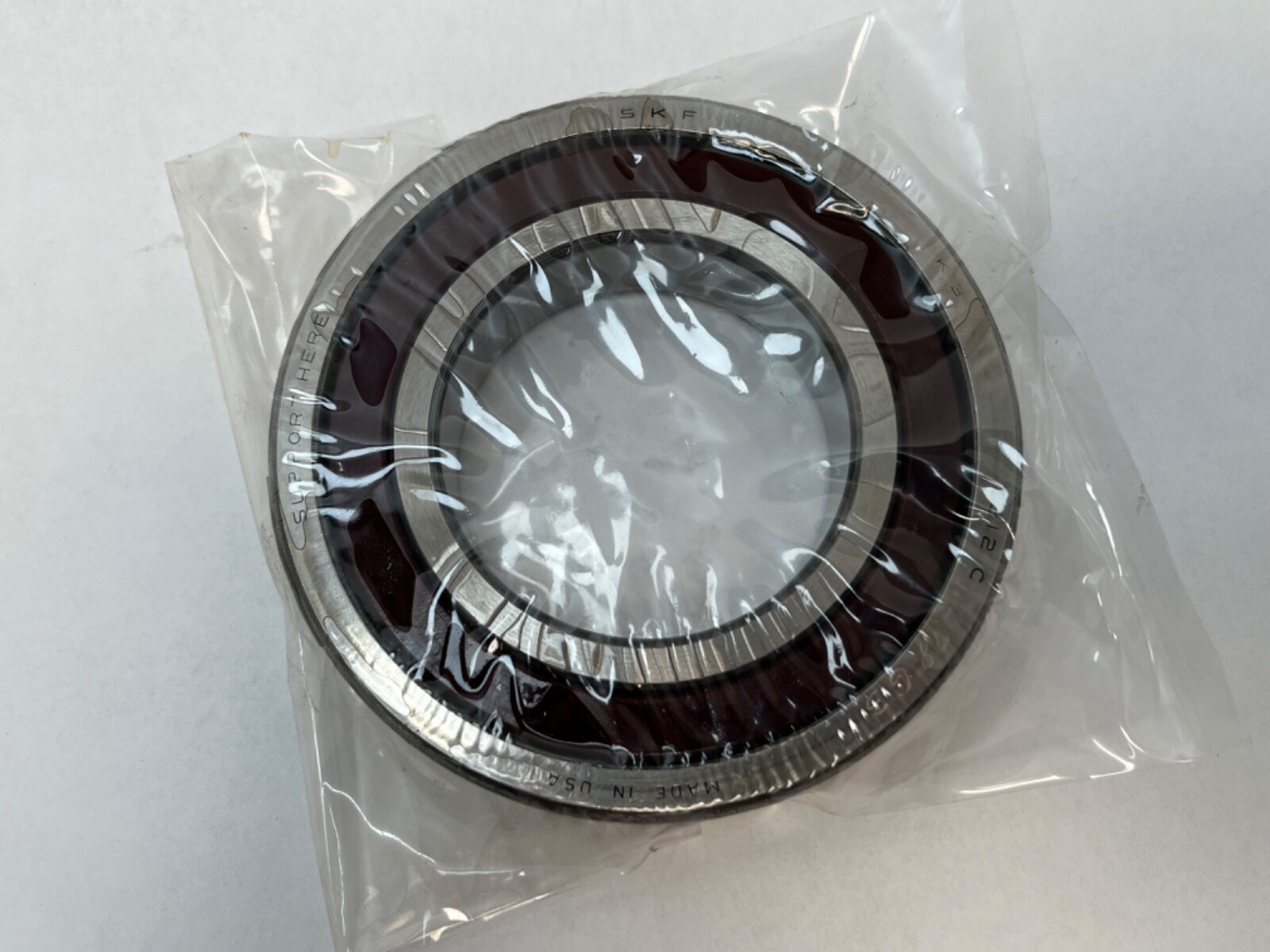

Unit Quantity: 1 Pc. Single bearing, open on both faces, straight bore, one row of balls.

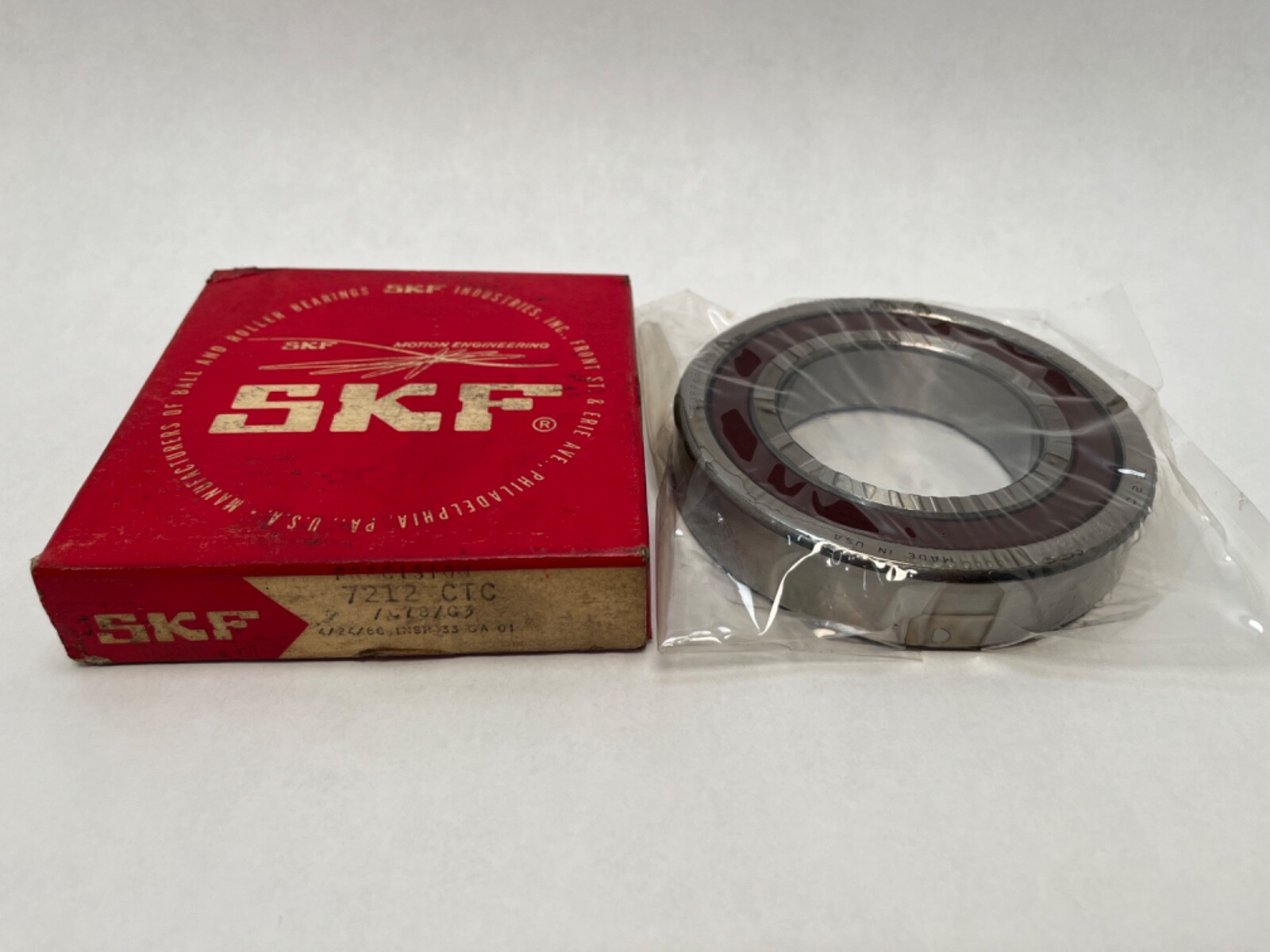

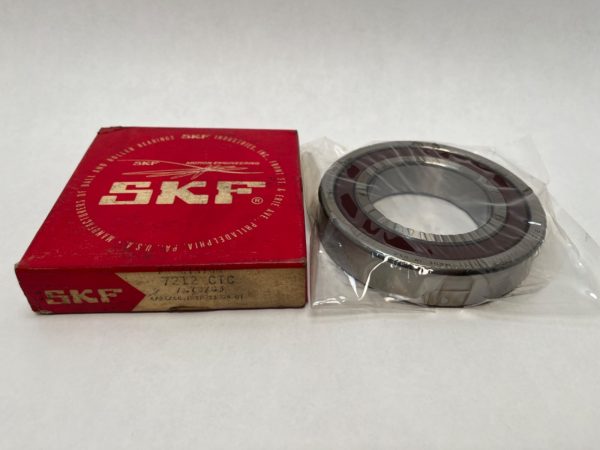

These cross-references share the 60 x 110 x 22 mm size and 15° contact angle; precision class and cage can differ by maker: Timken Fafnir 2MM212WICR, FAG B7212C.T.P4S, NSK 7212CTR, RHP B7212X2TA, NTN 7212C, Koyo 7212C, GMN S6212C, IBC 7212C.T and SNR 7212CG1. The carton carries the Fafnir designation 2M212WI CR alongside the SKF number.
