Availability:
1 in stock
NSK 7222C angular contact ball bearing — 110 mm bore, 200 mm OD, 38 mm width, 15° contact angle, ABEC 5 precision. Matched back-to-back duplex pair.
List Price
$900.98
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7222CTDBC7P5 |
| Model | 7222C T DB C7 P5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 110 mm |
| OD | 200 mm |
| Width | 38 mm |
| Material | Steel |
|---|---|
| Series | 7200 |
| Preload | C7 |
| Precision Class | ABEC 5 / P5 |
| Dynamic Load Rating | 176,000 N |
| Static Load Rating | 160,000 N |
| Rolling Elements | Balls |
| Item Weight | 5.10 kg (11.24 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 5,000 rpm grease; 7,100 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Back-to-Back |
| Cross Reference 1 | NTN 7222C |
|---|---|
| Cross Reference 2 | SNR 7222C |
| Cross Reference 3 | Koyo 7222C |
| Cross Reference 4 | RHP 7222C |
What this part is

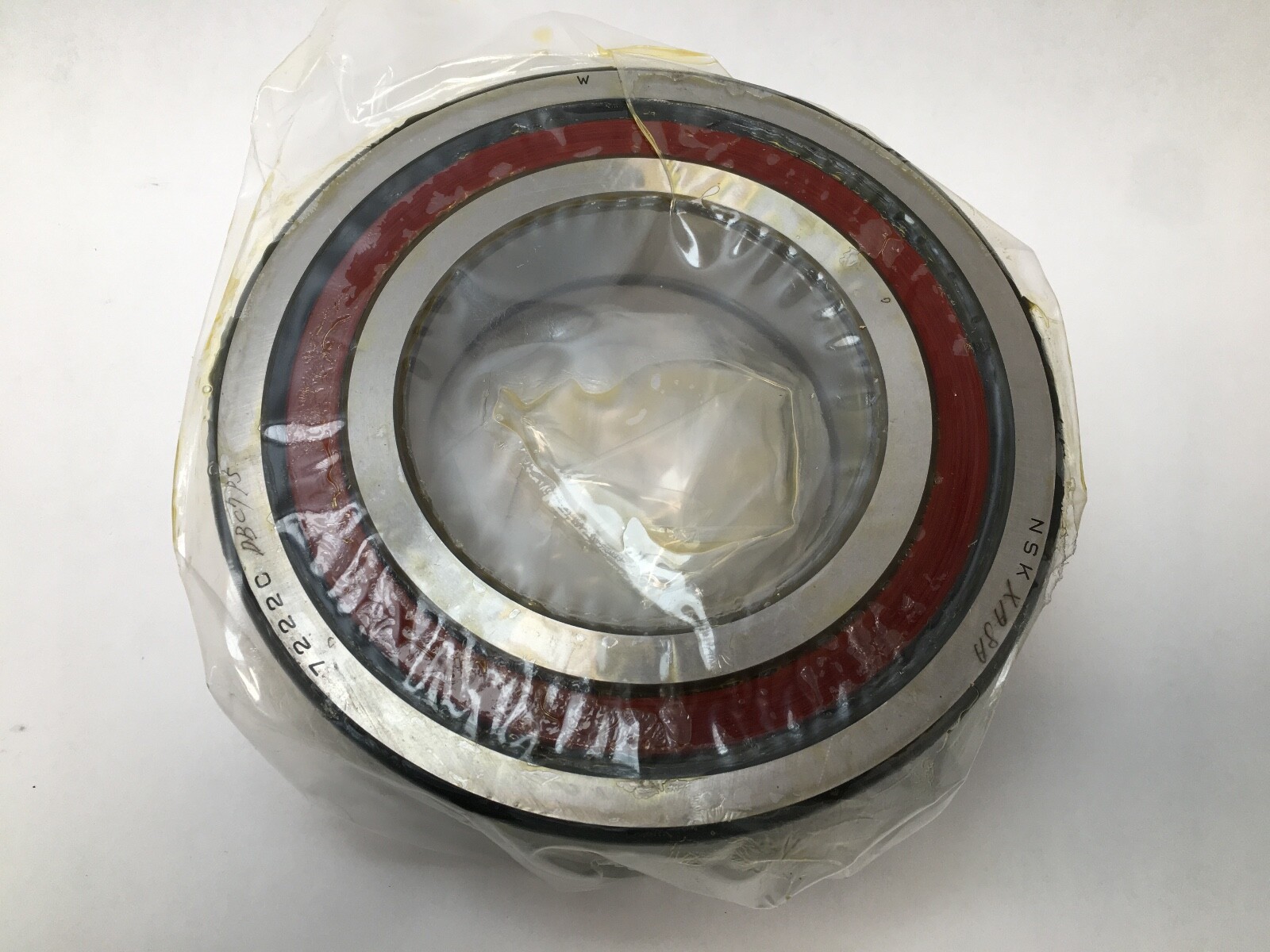

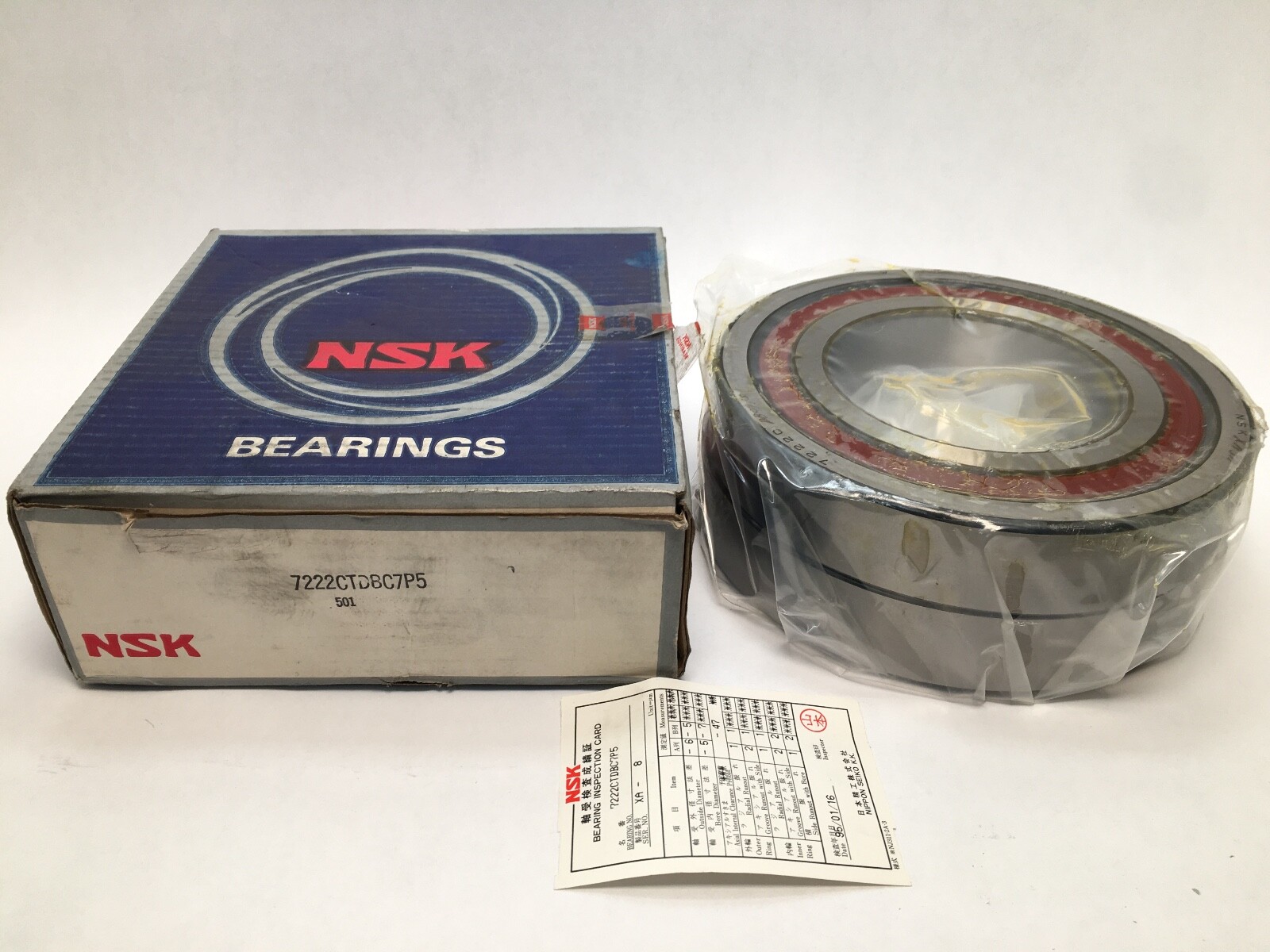

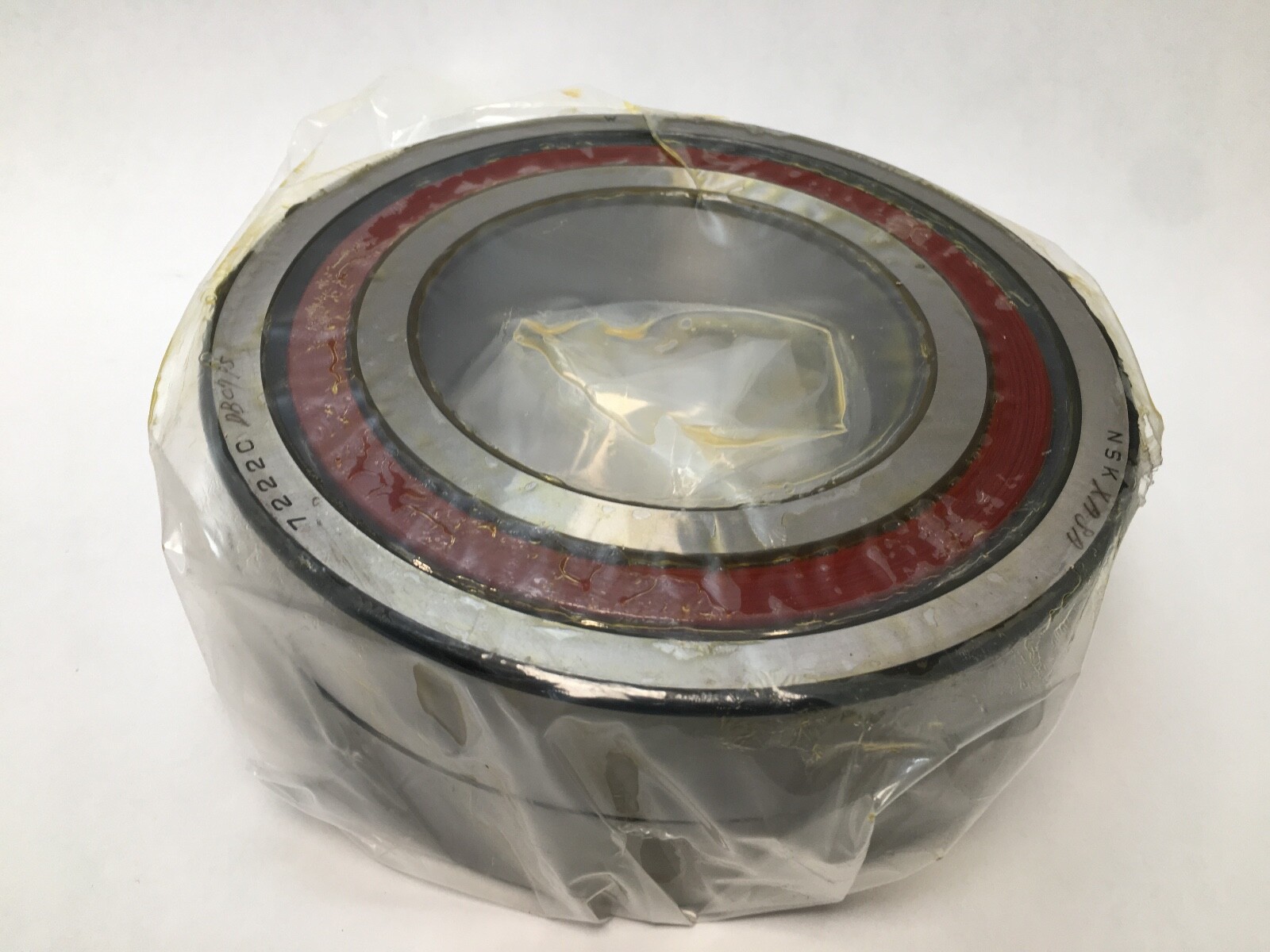

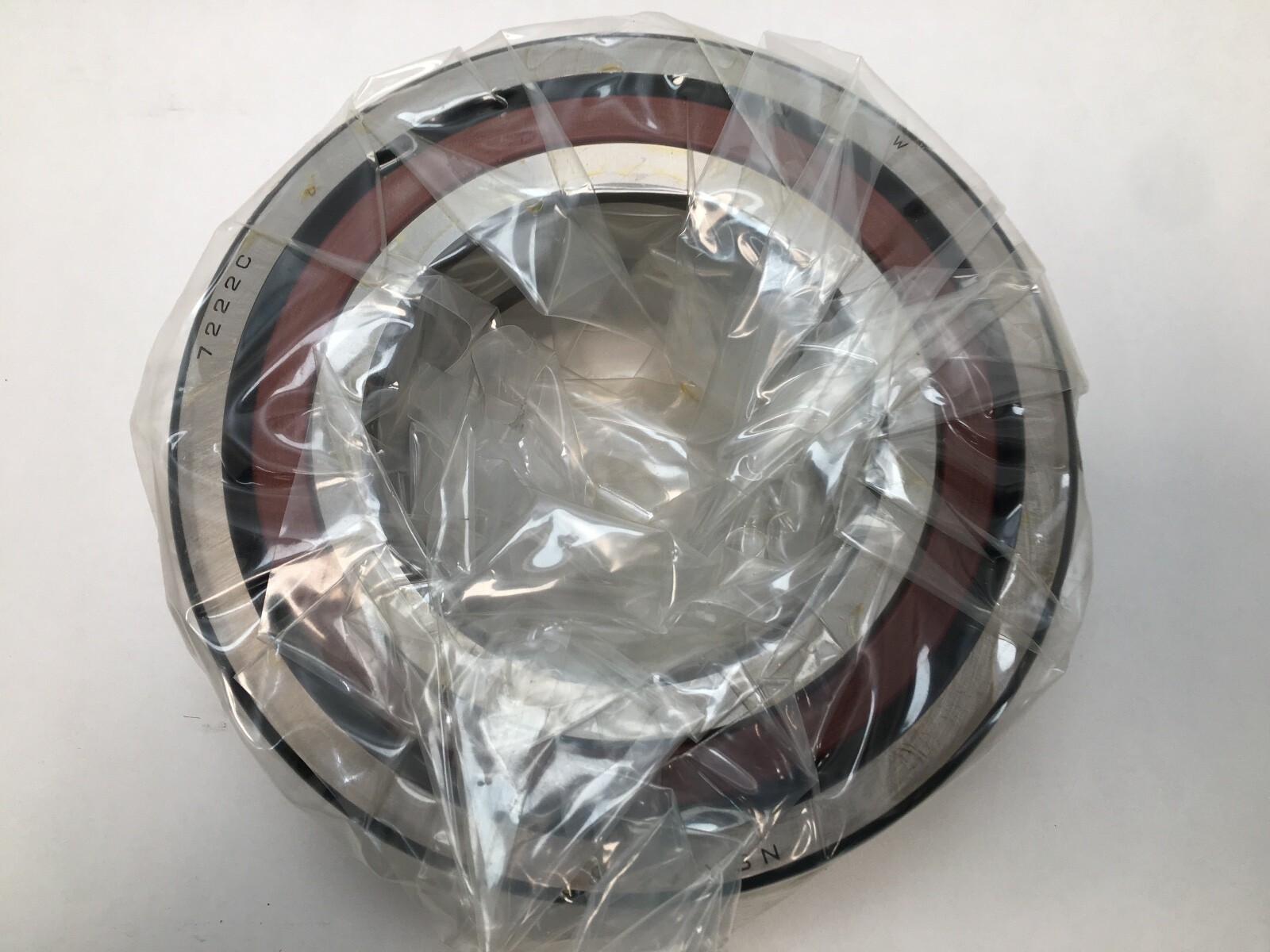

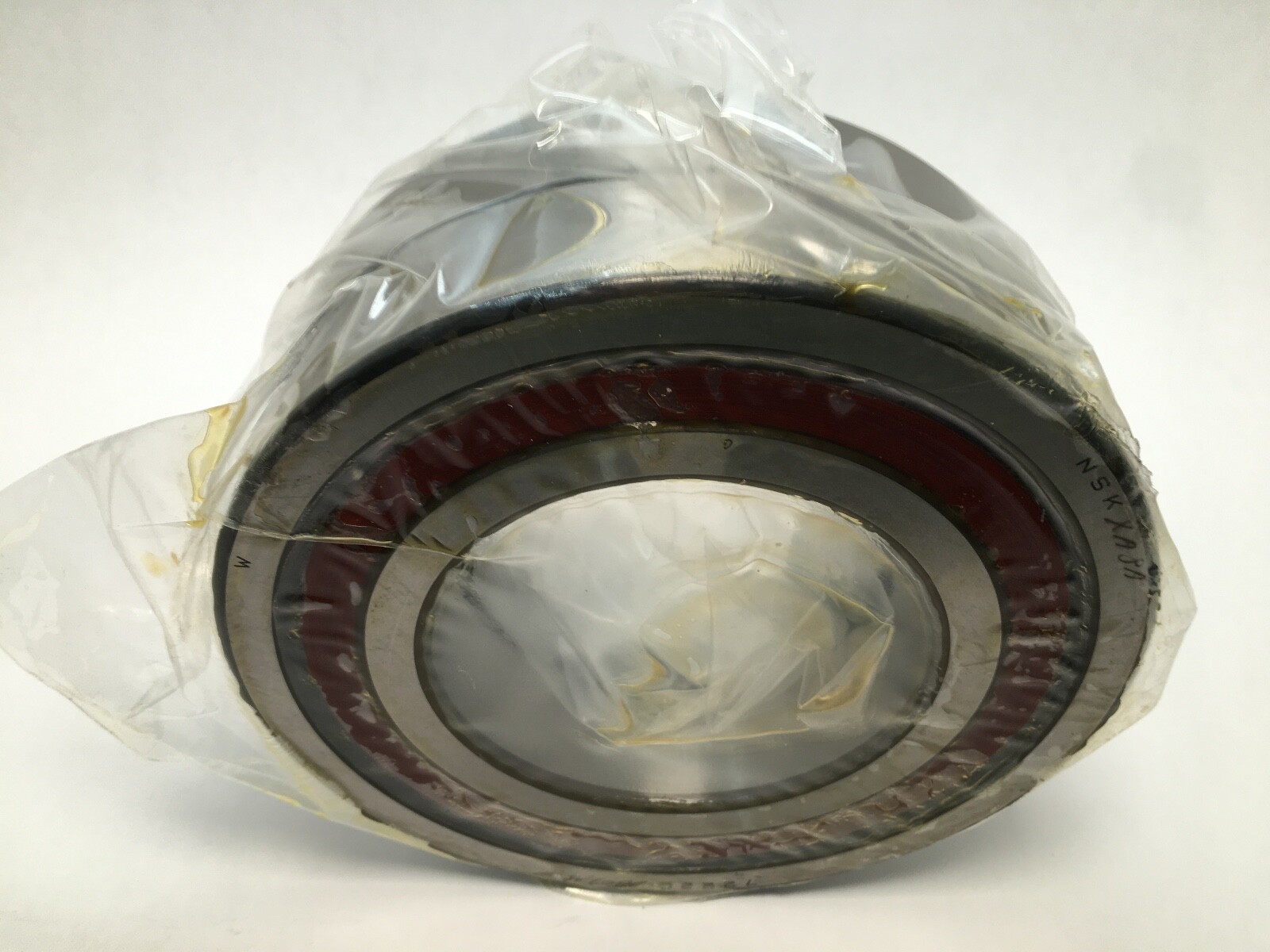

An NSK 7222CTDBC7P5 single-row angular contact ball bearing, supplied as a matched back-to-back duplex pair. Bore 110 mm, outside diameter 200 mm, width 38 mm per bearing. Contact angle 15°, precision class ABEC 5 / P5. Made in Japan.
Decoding the designation

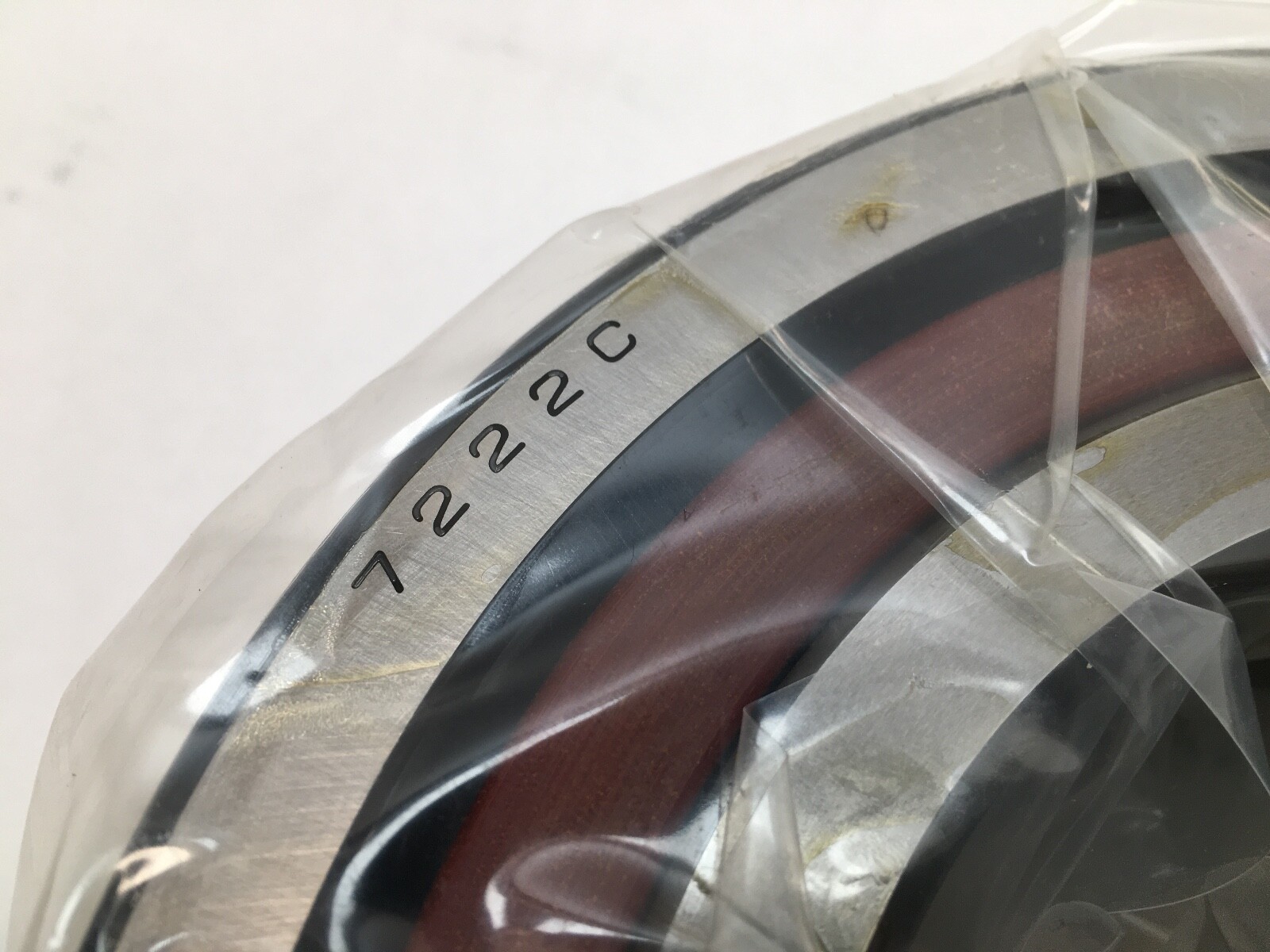

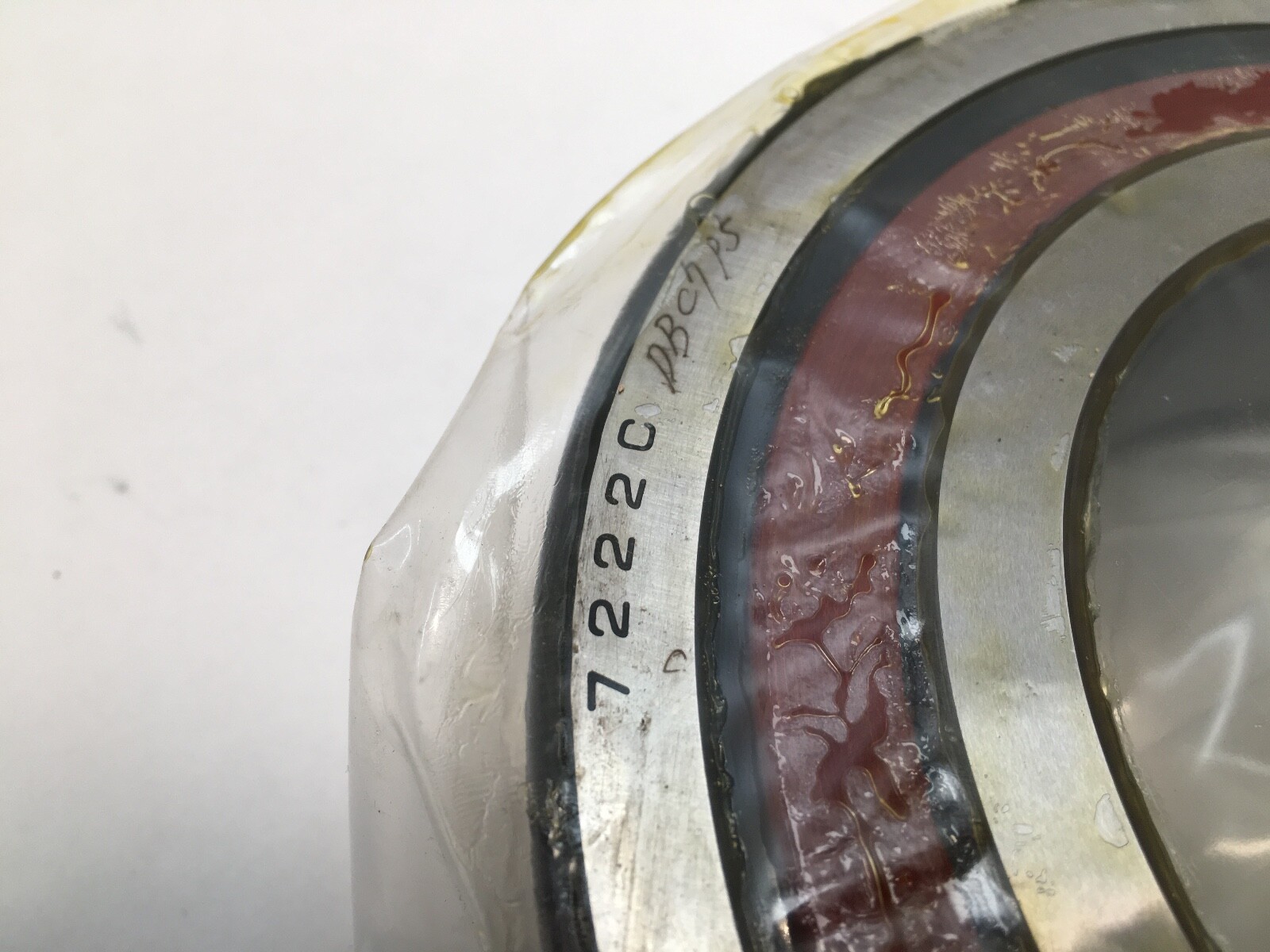

7222 — NSK’s ISO 72-series number for this envelope, 110 x 200 x 38 mm.
C — 15° contact angle.
DB — back-to-back duplex mounting; the two bearings are ground as a matched pair and take axial thrust load in both directions.
C7 — NSK preload class C7.
P5 — NSK precision class, equivalent to ABEC 5.
What these specs mean in practice
Dynamic Load Rating: 176,000 N. Static Load Rating: 160,000 N. Limiting Speed: 5,000 rpm grease; 7,100 rpm oil. Item Weight: 5.10 kg (11.24 lb) per bearing.
Quantity and configuration

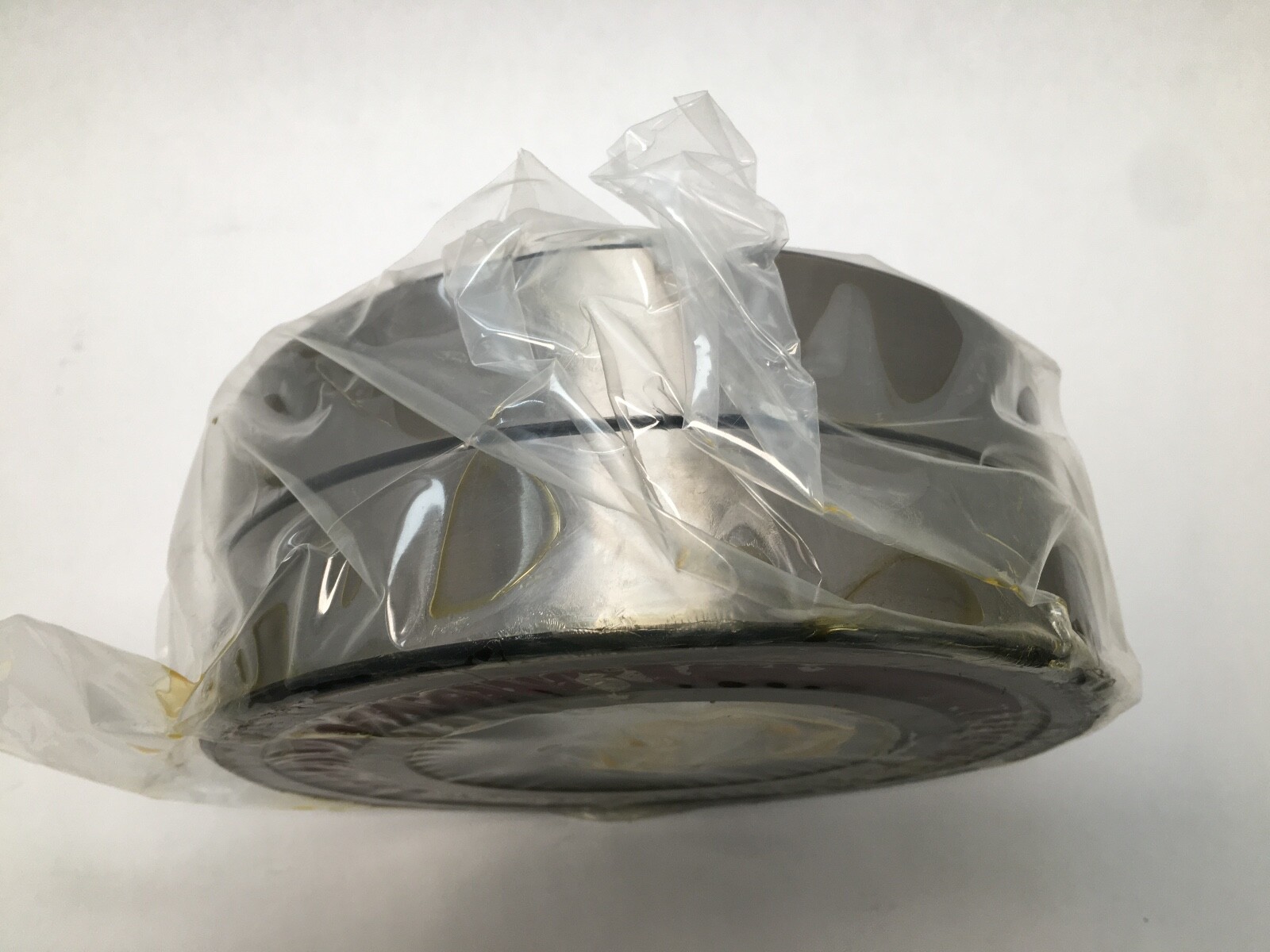

Unit Quantity: 2 Pcs, back-to-back duplex pair.
Interchange guidance
Same envelope and 15° contact angle: NTN 7222C, SNR 7222C, Koyo 7222C, RHP 7222C.
