GMNS6003CTAA7DULAngular Contact Ball Bearing — 17 mm ID, 35 mm OD, 10 mm Width, 15°, Phenolic Cage, ABEC 7 / P4, Universal Light Preload Pair

Product Description

What this part is:

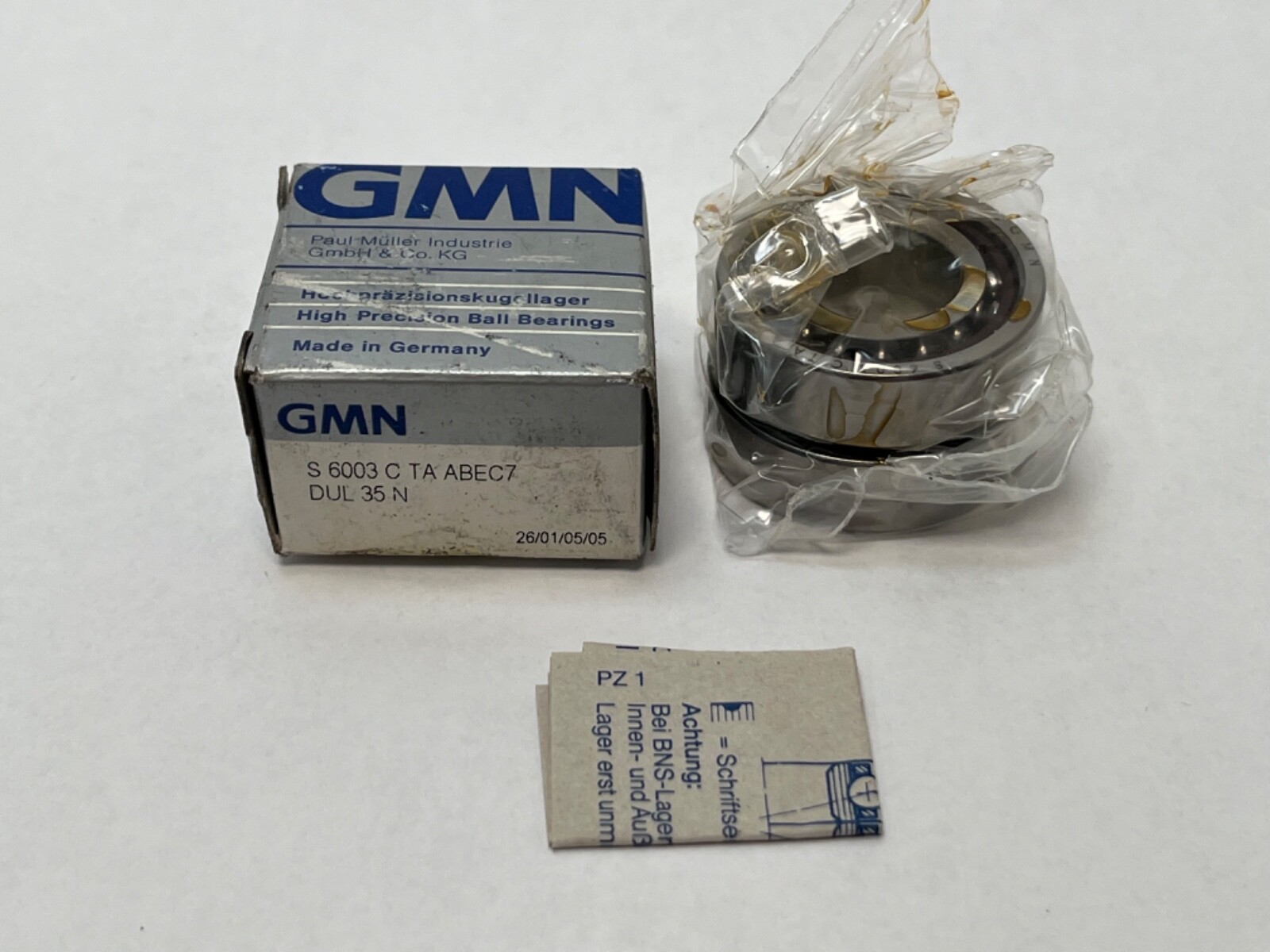

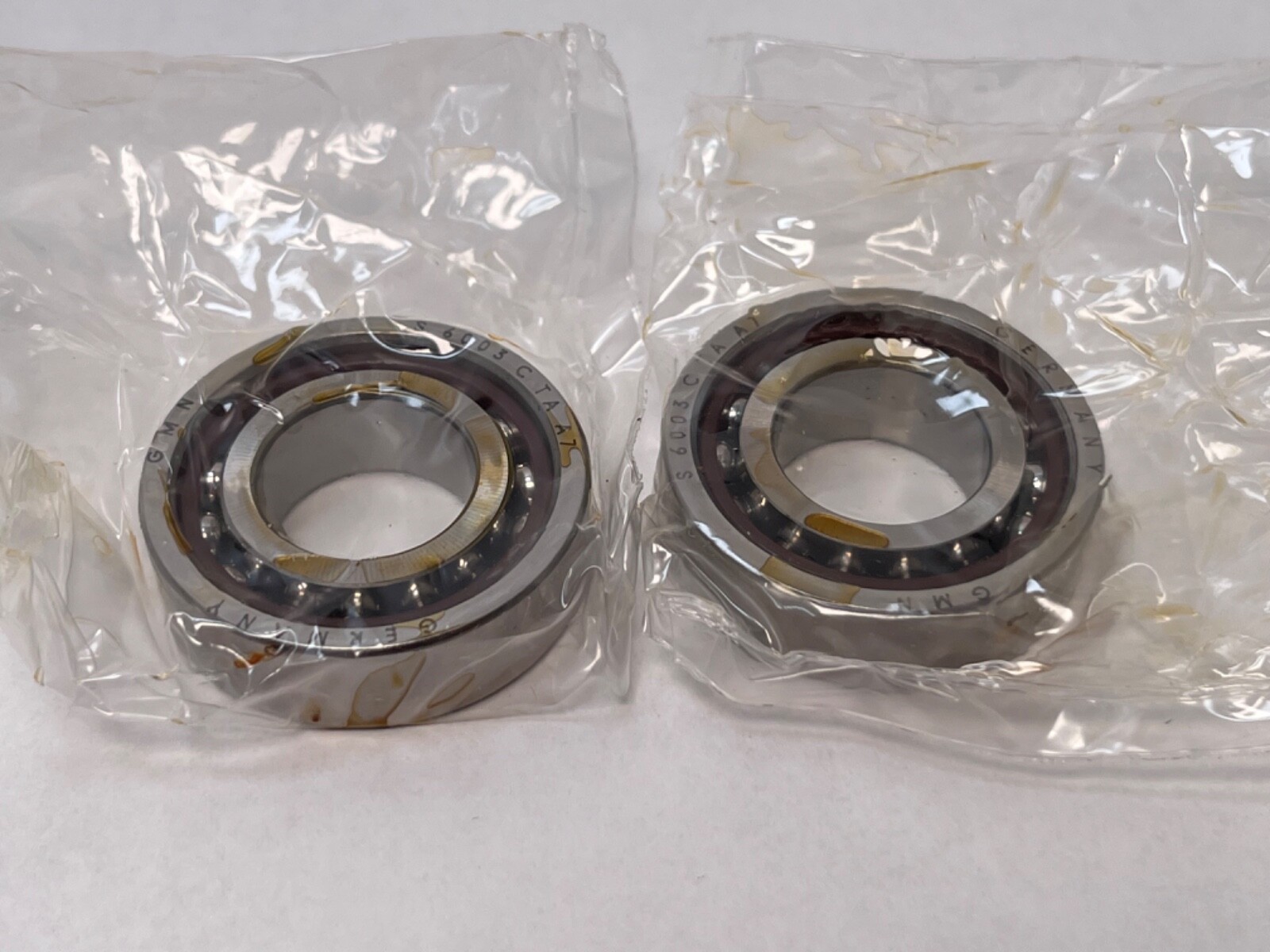

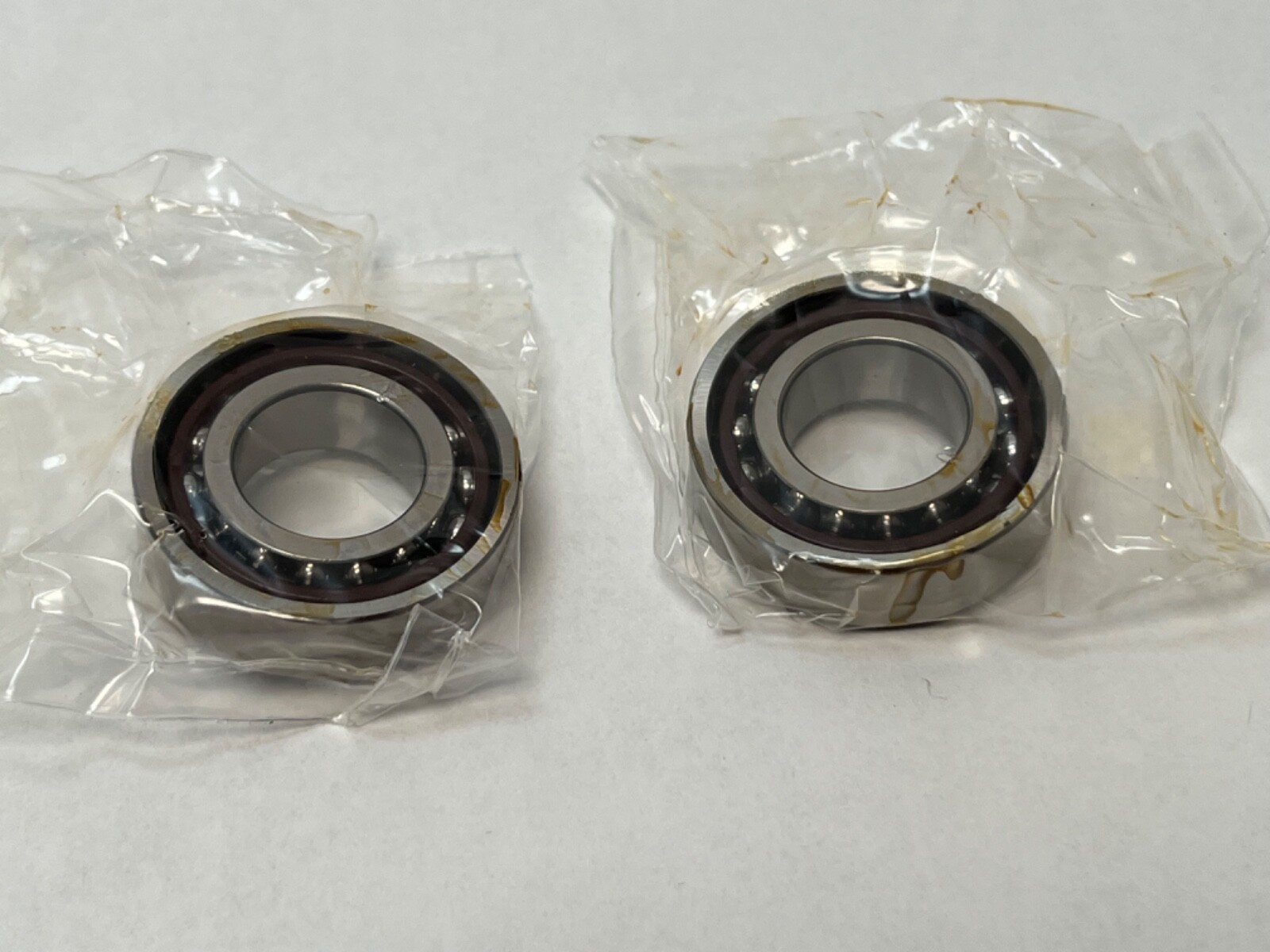

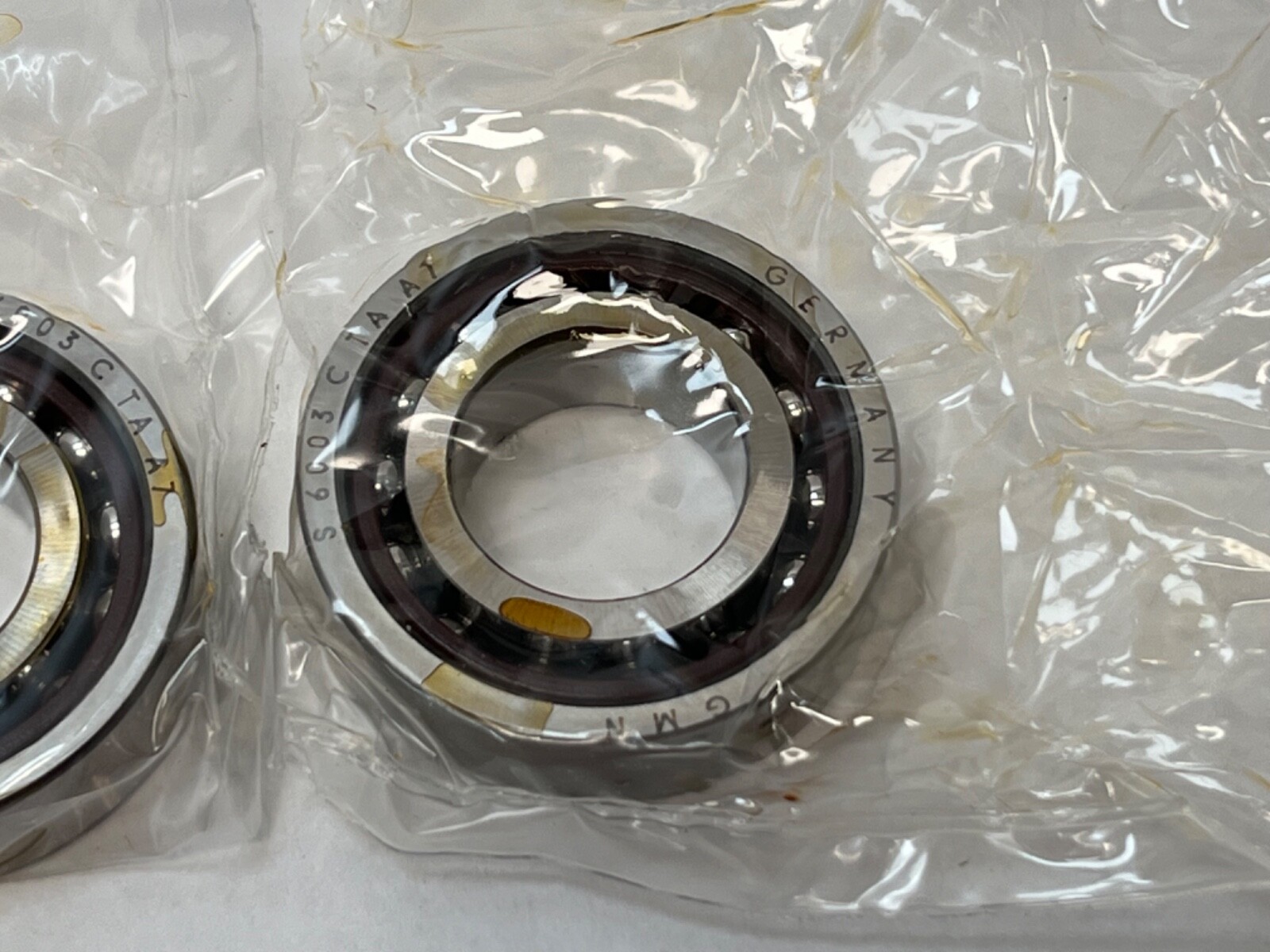

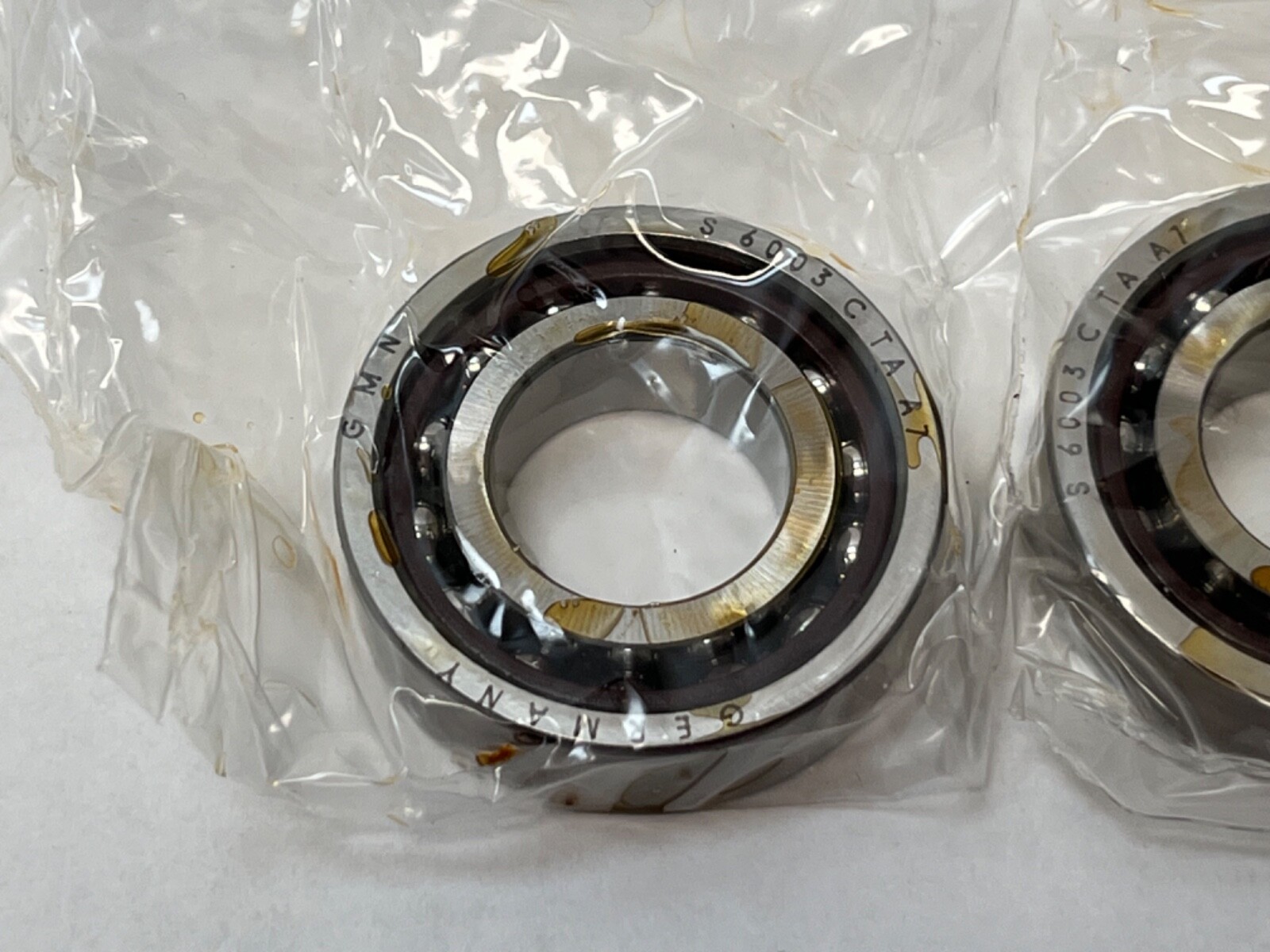

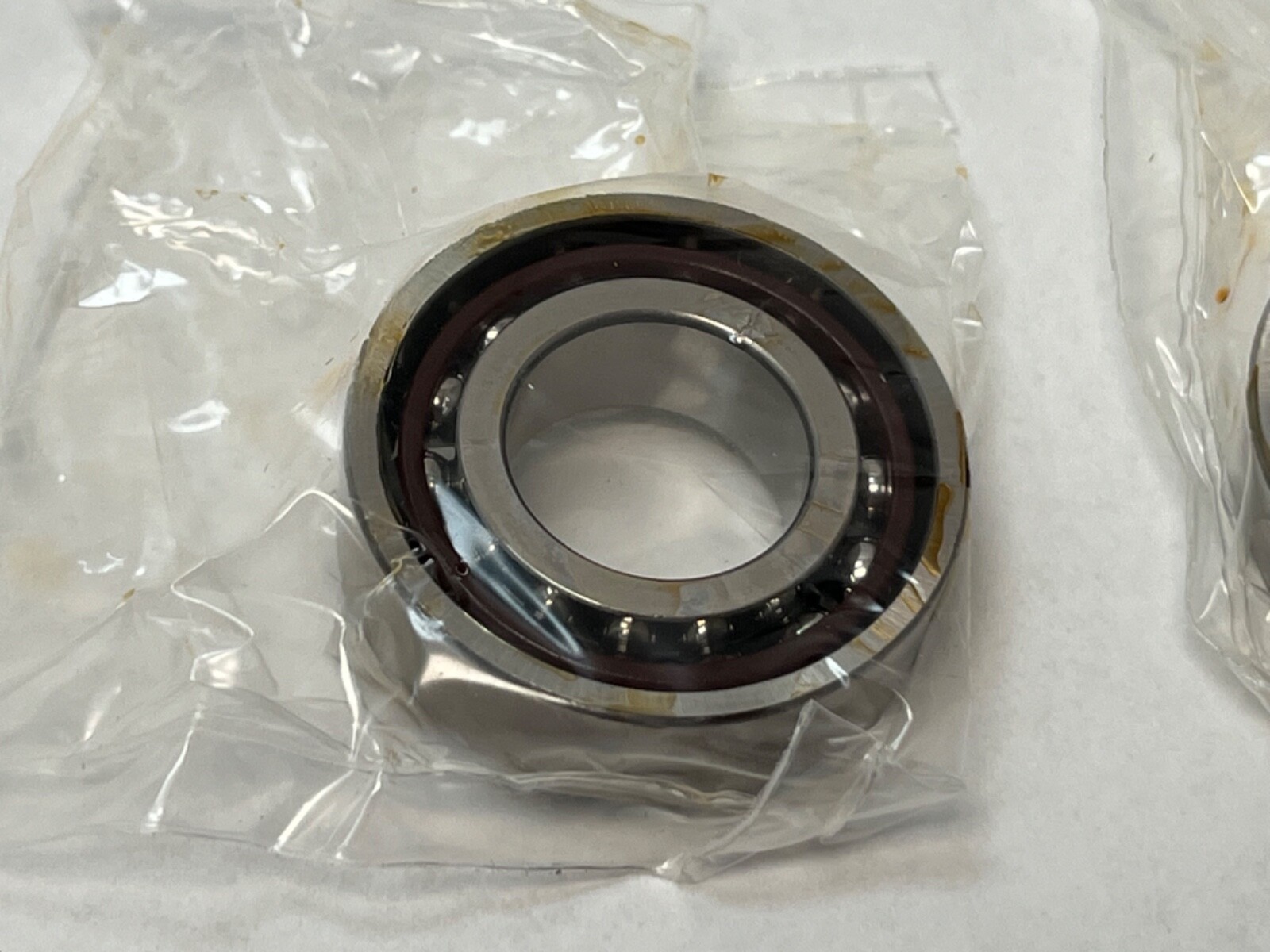

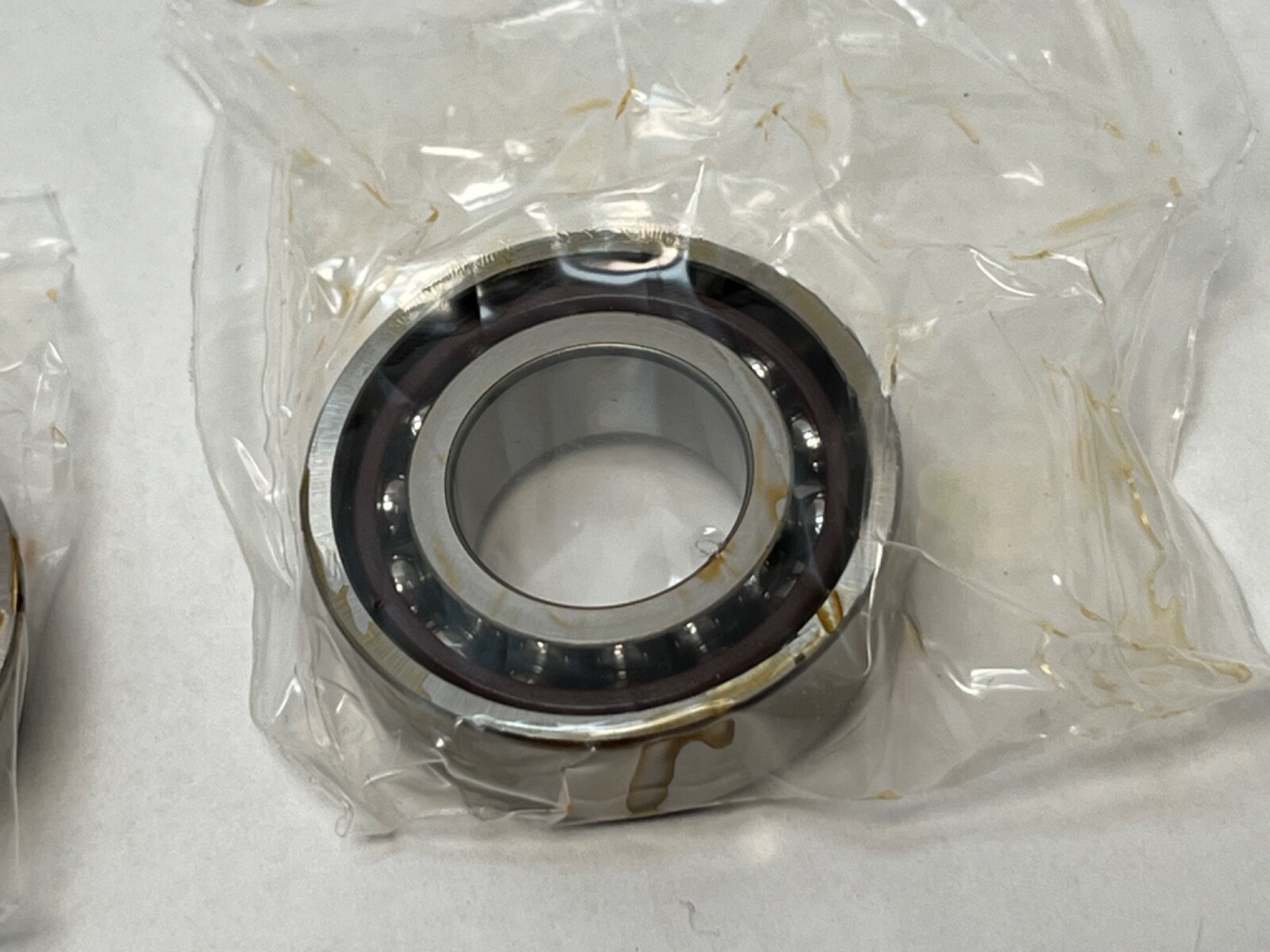

GMN S 6003 C TA A7 DUL super-precision angular contact spindle bearing, supplied as a universal duplex pair of 2 pieces. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm per bearing. Contact Angle: 15°. Cage Material: Fabric-base phenolic, outer-ring guided. Precision Class: ABEC 7 / P4. Preload: Light (35 N). Rolling Elements: Ball, 14 x 4.762 mm steel. Unit Quantity: 2 Pcs.

Decoding the designation:

S — GMN S series angular contact spindle bearing, steel balls.

60 03 — ISO 70 series, bore code 03: 17 mm bore, 35 mm OD.

C — 15° contact angle.

TA — fabric-base phenolic cage, outer-ring guided.

A7 — ABEC 7 / ISO P4 tolerance class.

DUL — duplex set of two universally ground bearings, light preload.

Specifications:

Dynamic Load Rating: 6,950 N. Static Load Rating: 4,200 N. Fatigue Load Limit: 218 N. Limiting Speed: 49,000 rpm grease; 65,000 rpm oil. Preload: Light 35 N, axial rigidity 25 N/µm; GMN medium preload 105 N and heavy 210 N. Closure Type: Open. Item Weight: 0.038 kg (0.08 lb) per bearing. Series: S 60.

Dimensions and mounting:

Chamfer rs min: 0.3 mm. Shaft Abutment da min: 19.6 mm. Housing Abutment Da max: 33.2 mm. Abutment Fillet ra max: 0.3 mm. Oil Jet Position dT: 24.4 mm. Pitch Circle Diameter: 26 mm. Mounting Arrangement: universal (DB, DF or DT).

Compatibility and replacement:

Cross-references, 17 x 35 x 10 mm, 15°: Fafnir 2MM9103WI CR DUL; FAG B7003-C-T-P4S-DUL; SKF 7003 CD/P4ADGA; NSK 7003CTYNDULP4 (polyamide cage); Barden 103HCDUL (ceramic balls). MPN variants: S6003CTAA7DUL, S 6003 C TA A7 DUL, S-6003-C-TA-A7-DUL, S6003CTAP4DUL, 7003C.

Frequently asked questions:

What are the dimensions of the GMN S6003CTAA7DUL?

Bore 17 mm, outside diameter 35 mm, width 10 mm per bearing.

What do C, TA and A7 mean?

C is a 15° contact angle, TA is a fabric-base phenolic outer-ring-guided cage and A7 is ABEC 7 / ISO P4.

What is included and what is the preload?

Two universally ground bearings as a duplex pair with light preload of 35 N.
