GMNS 6003 C TA P4 DUMAngular Contact Ball Bearing – 17 mm ID, 35 mm OD, 10 mm Width, 15° Contact Angle, ABEC 7 / P4, Universal Medium Preload

Product Description

What this part is:

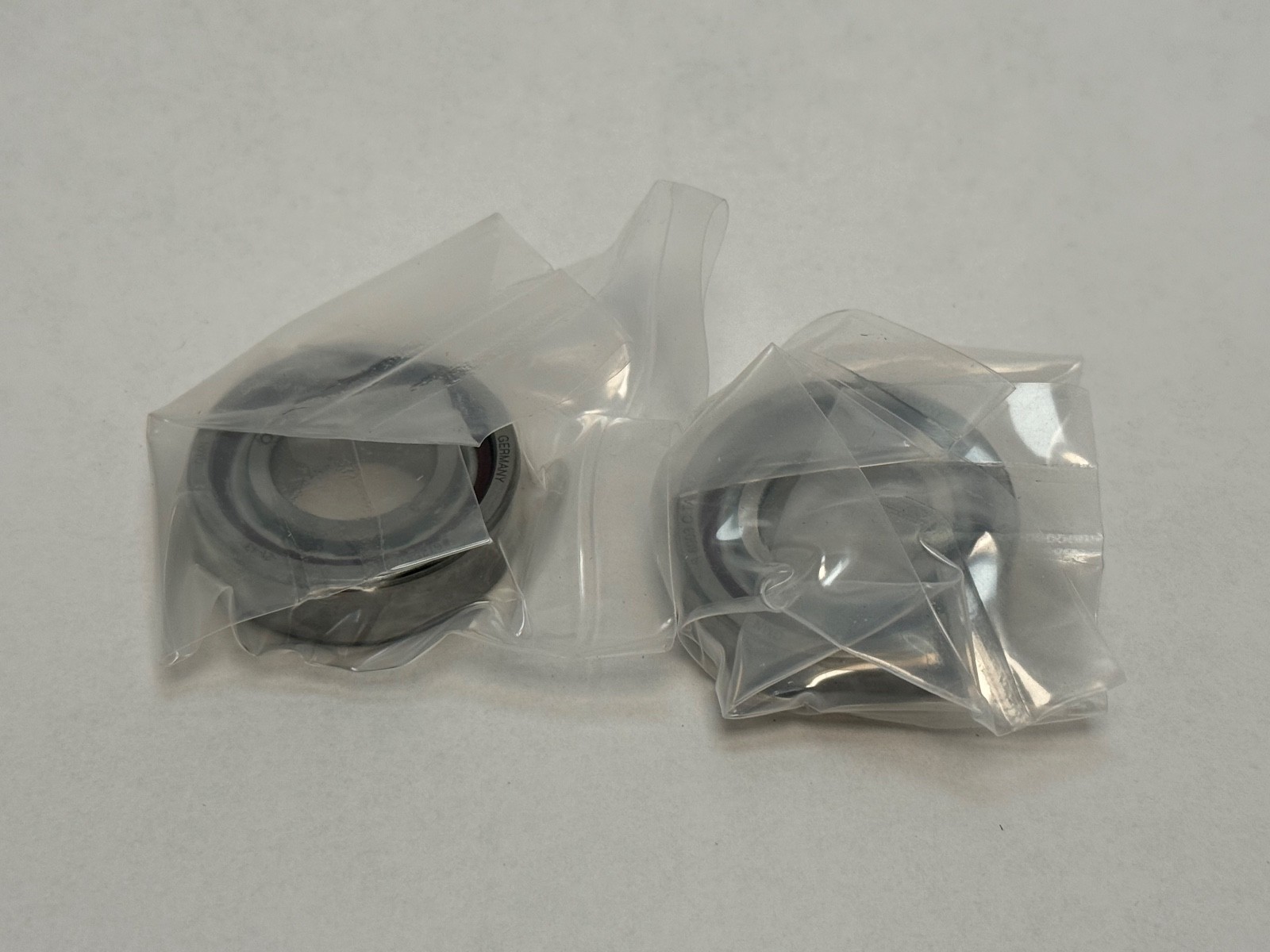

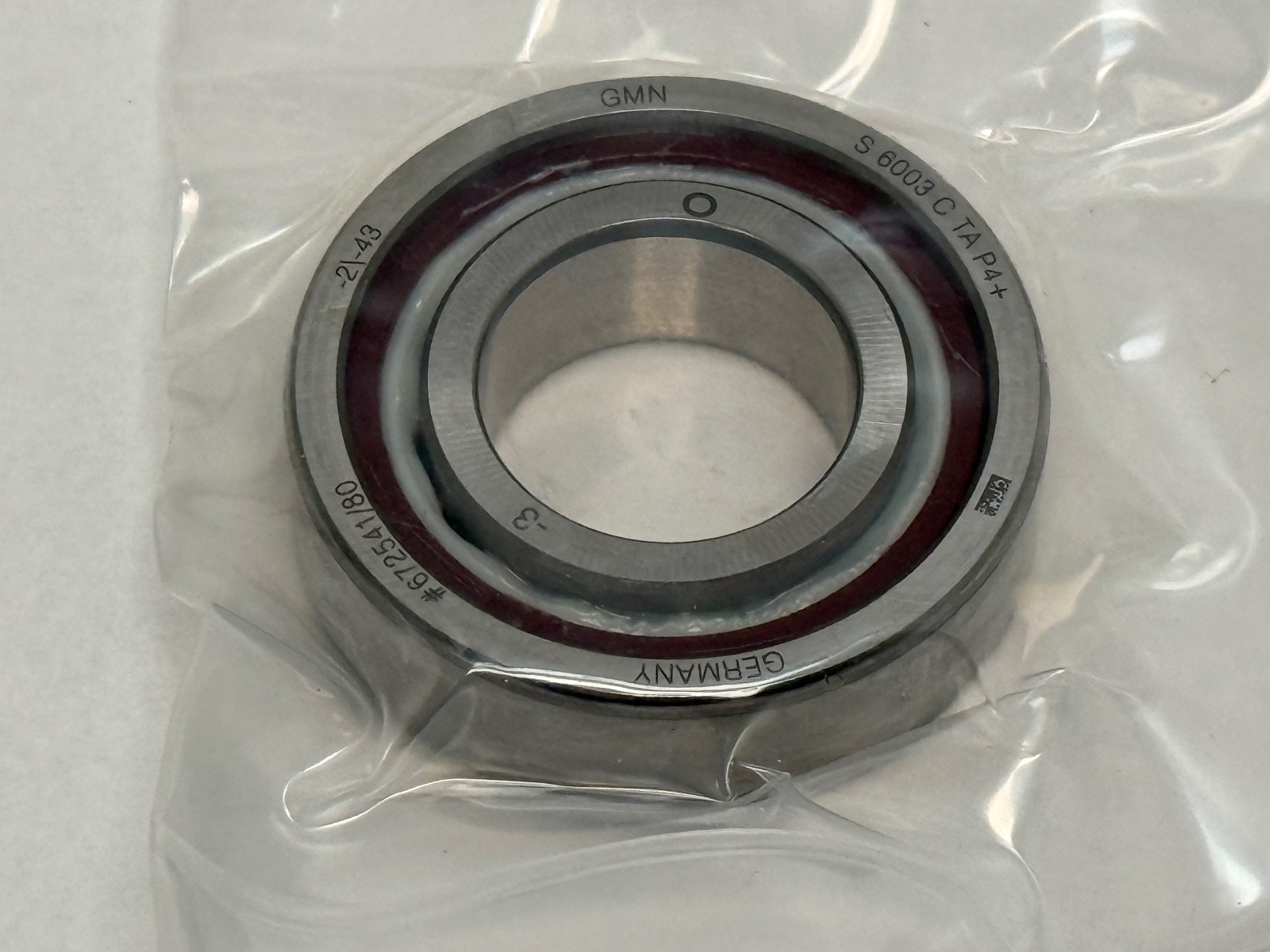

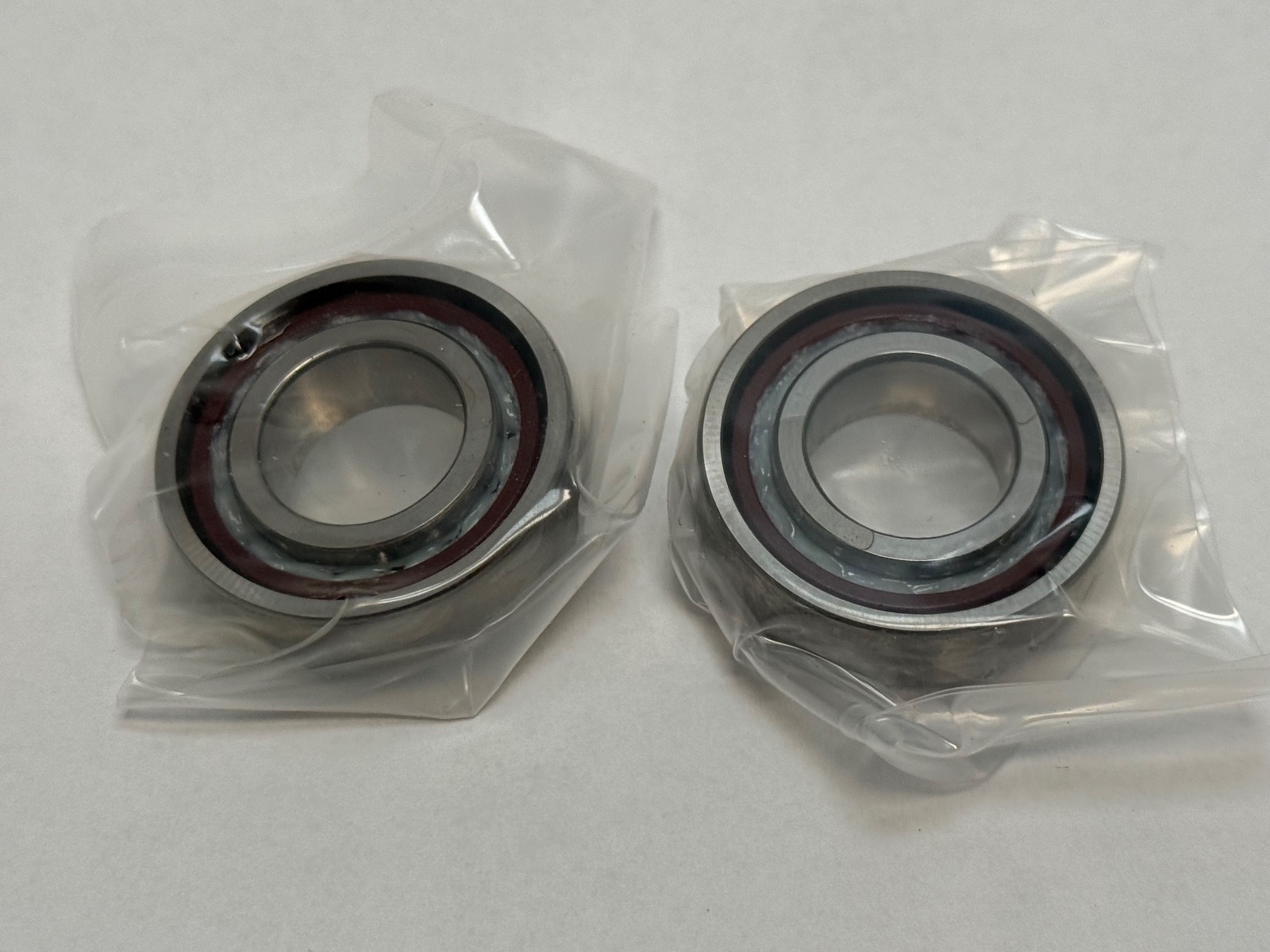

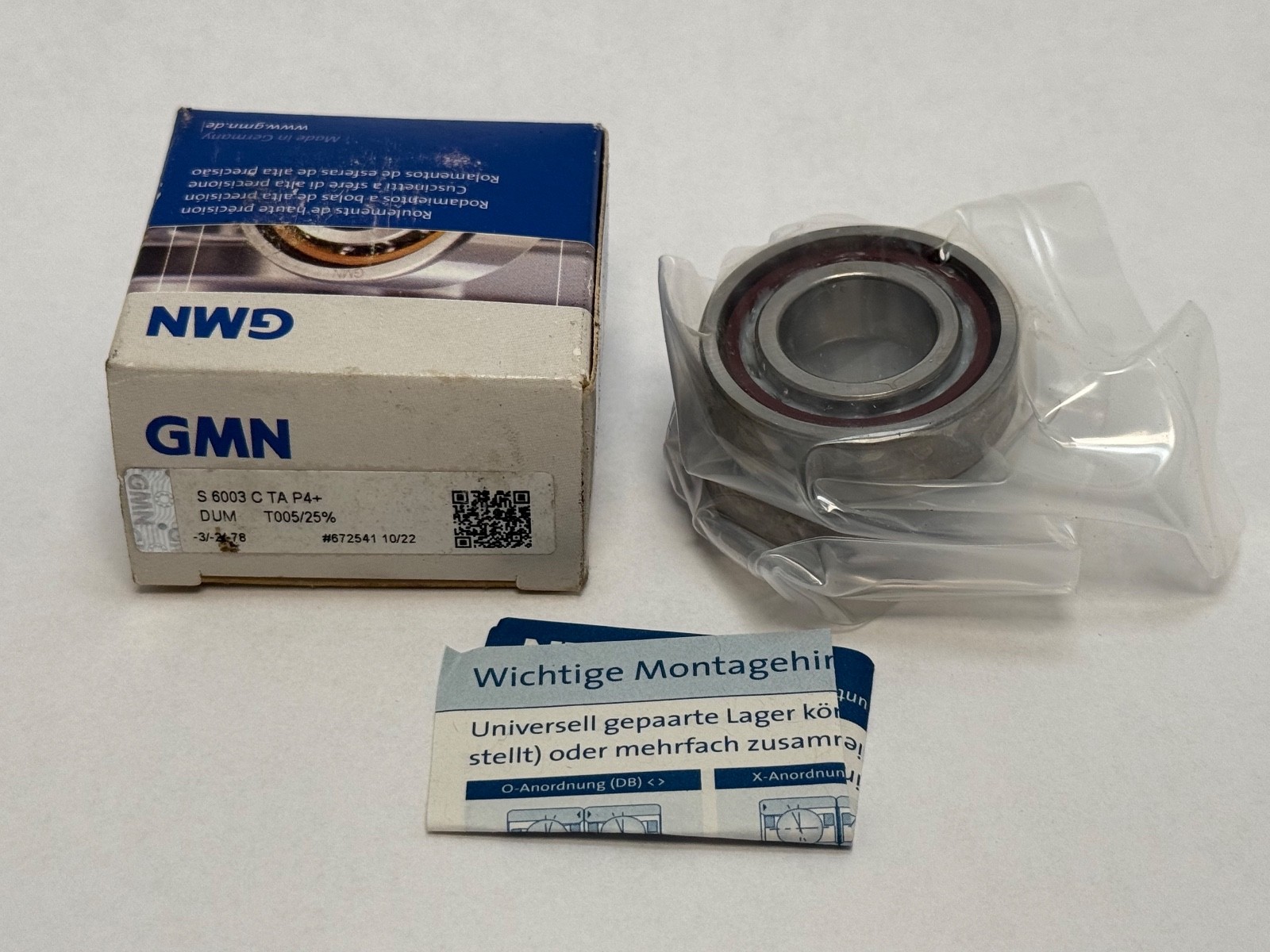

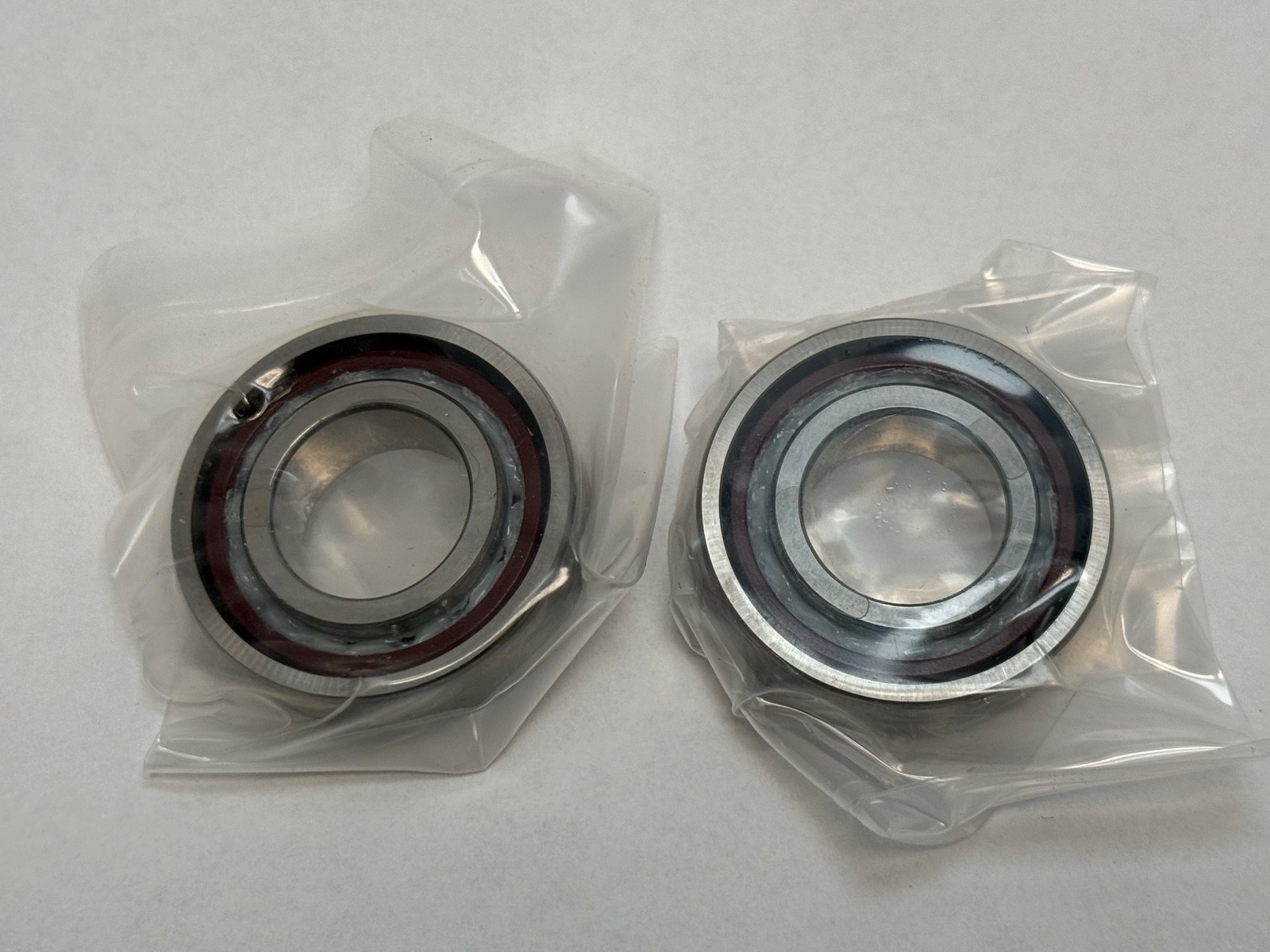

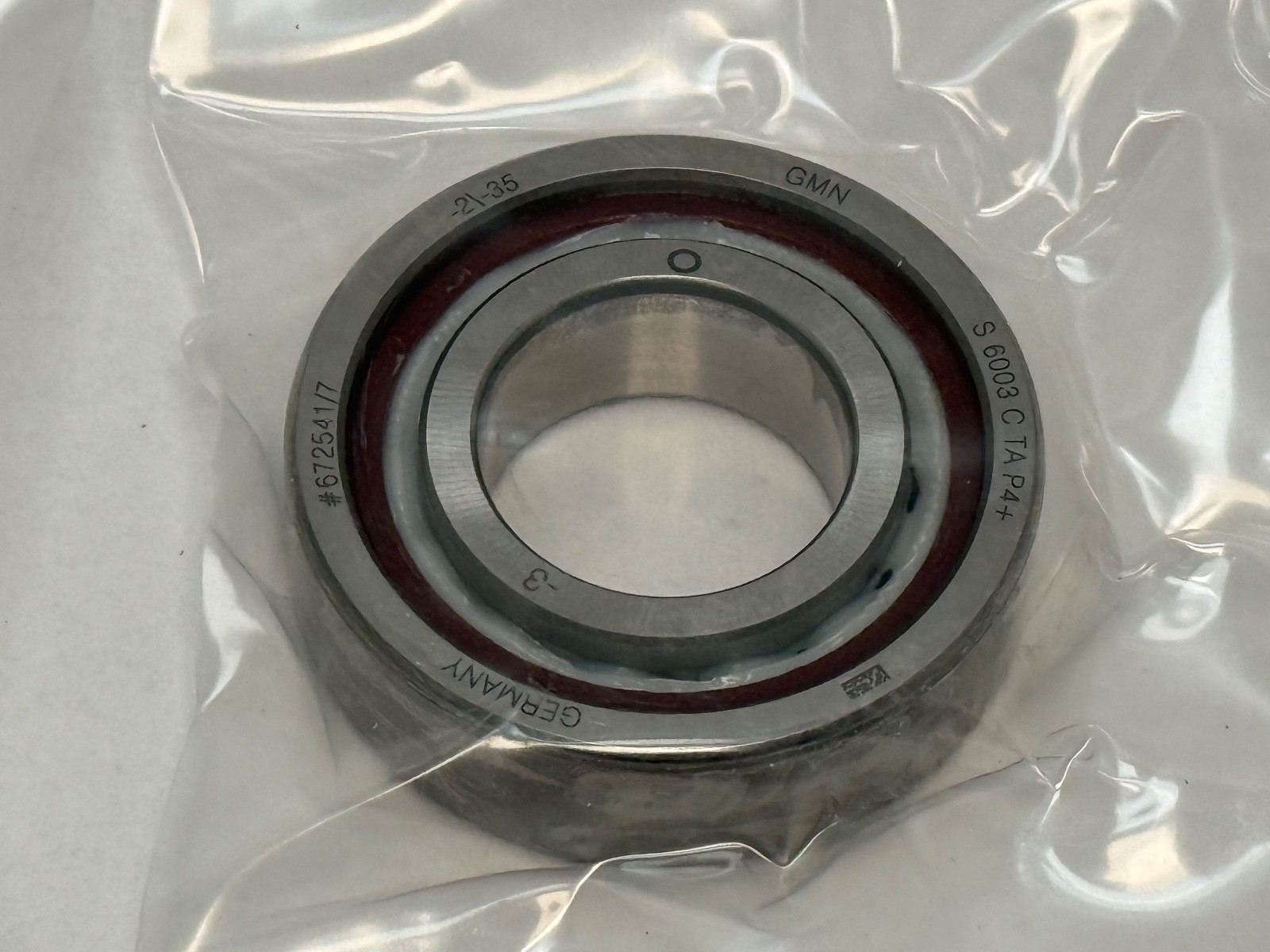

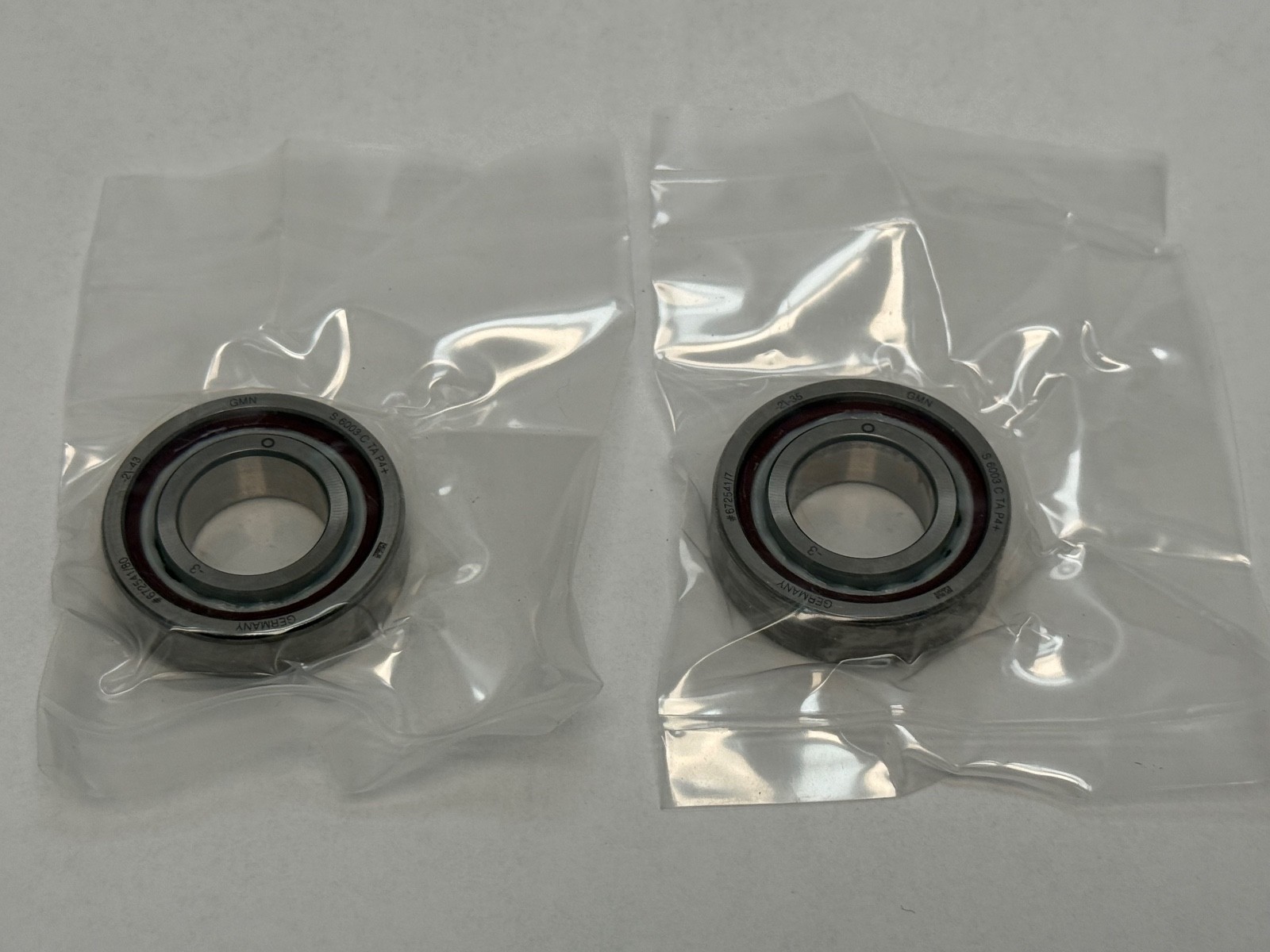

GMN S 6003 C TA P4 DUM is a pair of super-precision single-row angular contact spindle bearings, 17 x 35 x 10 mm each, 15° contact angle, phenolic TA cage, P4 precision (ABEC 7), universally matched at medium preload (105 N), open. Unit Quantity: 2 Pcs.

Decoding the designation:

S — GMN standard spindle bearing, two lands on the inner ring, non-separable.

6003 — dimension series 10, bore code 03: 17 x 35 x 10 mm, the ISO 7003 size.

C — 15° nominal contact angle.

TA — laminated phenolic resin cage guided on the outer ring.

P4 — GMN P4 tolerance class, equivalent to P4S per DIN 628-6 (ABEC 7).

D — set of two bearings.

UM — universal matching, medium preload; the pair mounts back-to-back, face-to-face or in tandem.

Specifications:

Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: M (medium), 105 N. Cage Material: Laminated phenolic resin. Cage Type: TA, machined, outer-ring guided. Rolling Elements: Ball, 14 x 4.762 mm. Dynamic Load Rating: 6,950 N. Static Load Rating: 4,150 N. Limiting Speed: 49,000 rpm grease; 65,000 rpm oil. Item Weight: 0.037 kg (0.08 lb) per bearing. Axial rigidity at medium preload: 41 N/µm per pair. Lubricant: grease or oil. Closure Type: Open. Bore Type: Straight. Arrangement / Configuration: DUM, universal matched pair (DB, DF or DT). Series: S 60. Snap ring included: No. Unit Quantity: 2 Pcs. Harmonization Code: 8482.10.50.

Dimensions and mounting:

Bore 17 mm, outside diameter 35 mm, width 10 mm per bearing. One factory duplex set, universally ground: mounting arrangement DB, DF or DT.

Compatibility and replacement:

Cross-references at 15° in the 17 x 35 x 10 mm envelope: Fafnir 2MM9103WI; FAG B7003-C-T; SKF 7003 CD; RHP 7003 X2TA; Barden 103H; SNFA EX 17 CE1. Also written S-6003-C-TA-P4-DUM, S6003CTAP4DUM, S6003CTAP4-DUM, S 6003 C TA P4 DUM and 7003C.

Frequently asked questions:

What size are the GMN S 6003 C TA P4 DUM bearings?

Each bearing is 17 mm bore, 35 mm outside diameter and 10 mm wide.

What are the load ratings and limiting speed?

Dynamic load rating 6,950 N, static load rating 4,150 N; limiting speed 49,000 rpm on grease and 65,000 rpm on oil.

What does DUM mean?

DUM is a set of two universally matched bearings at medium preload (105 N).
