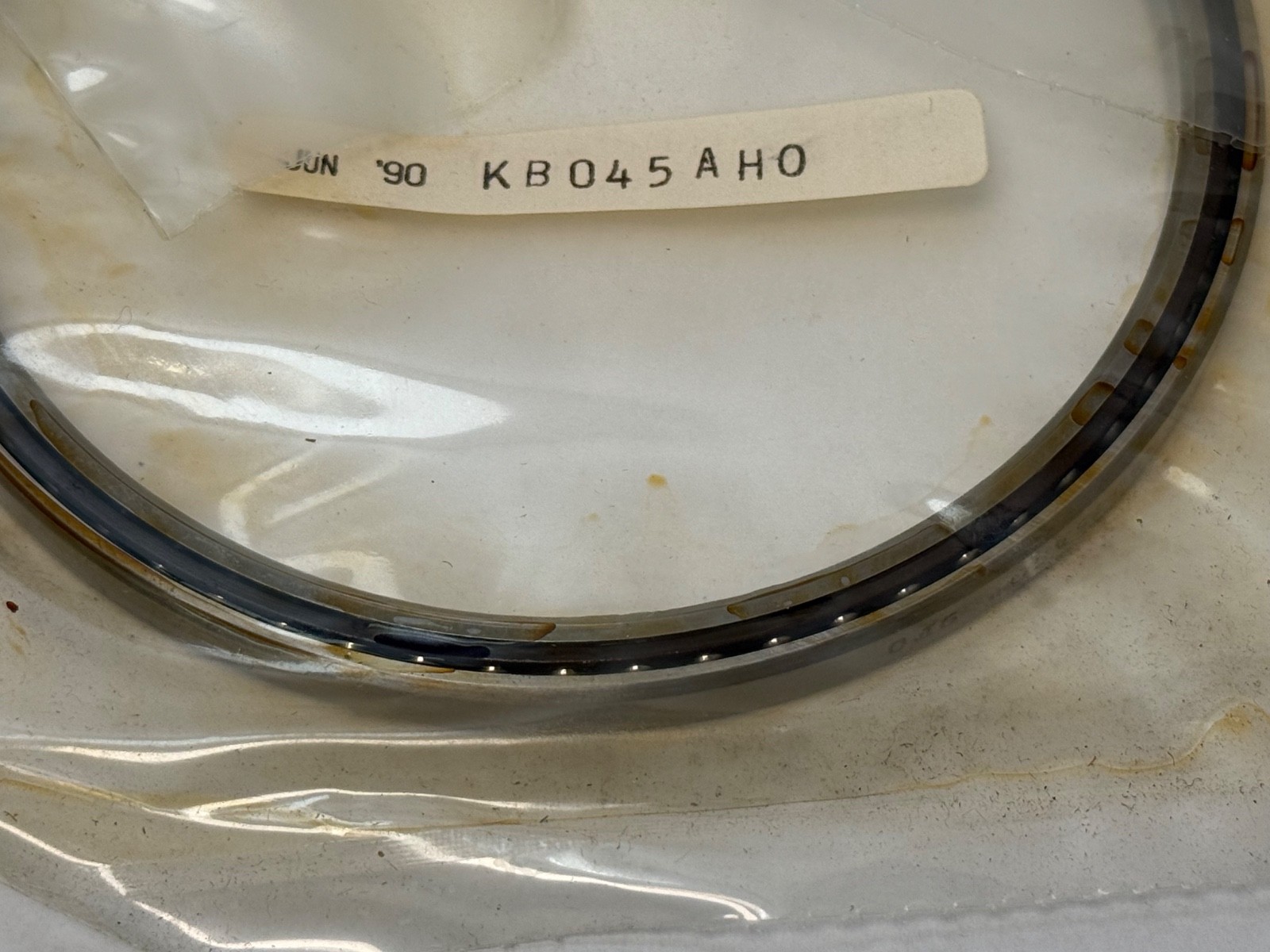

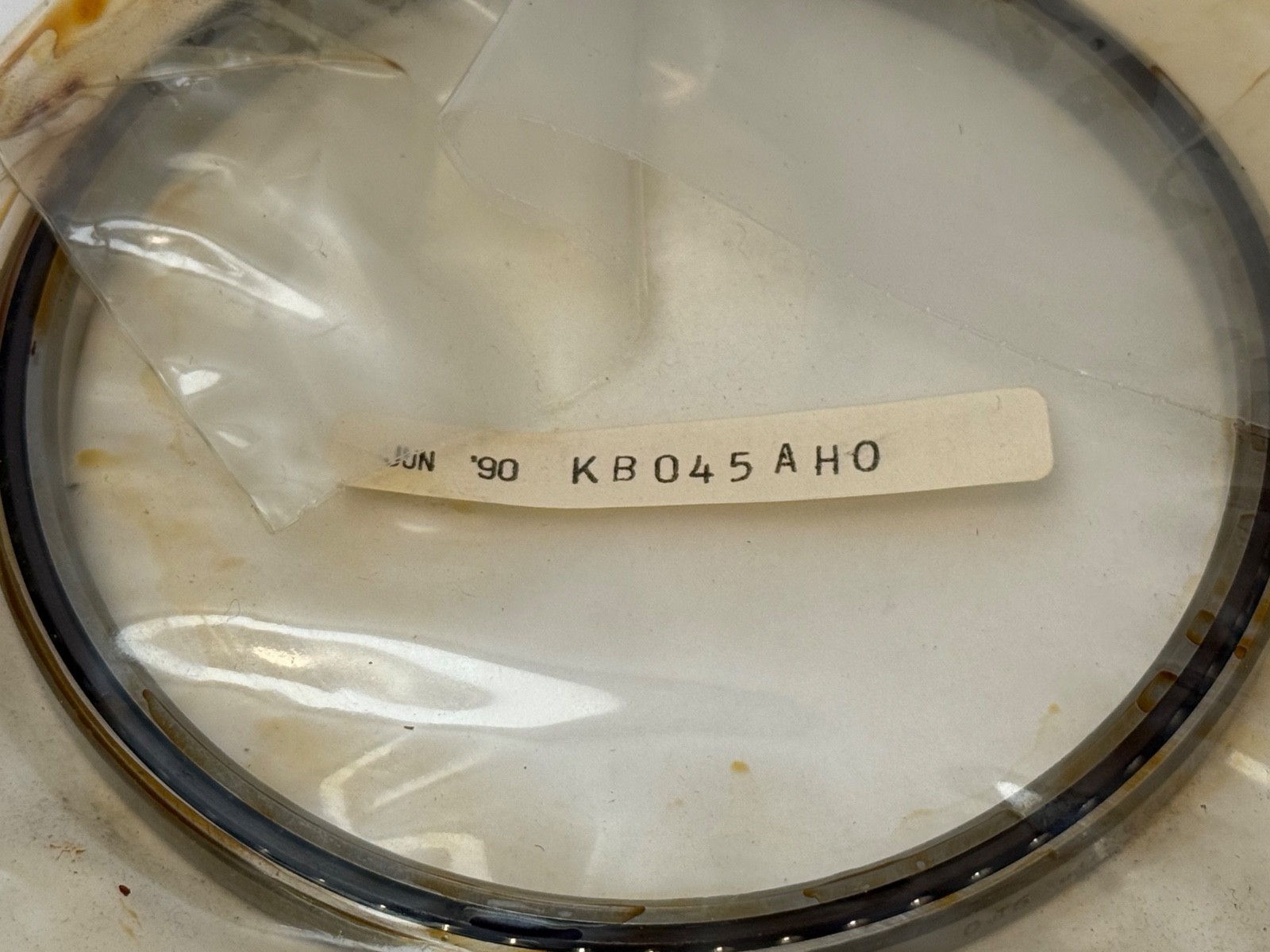

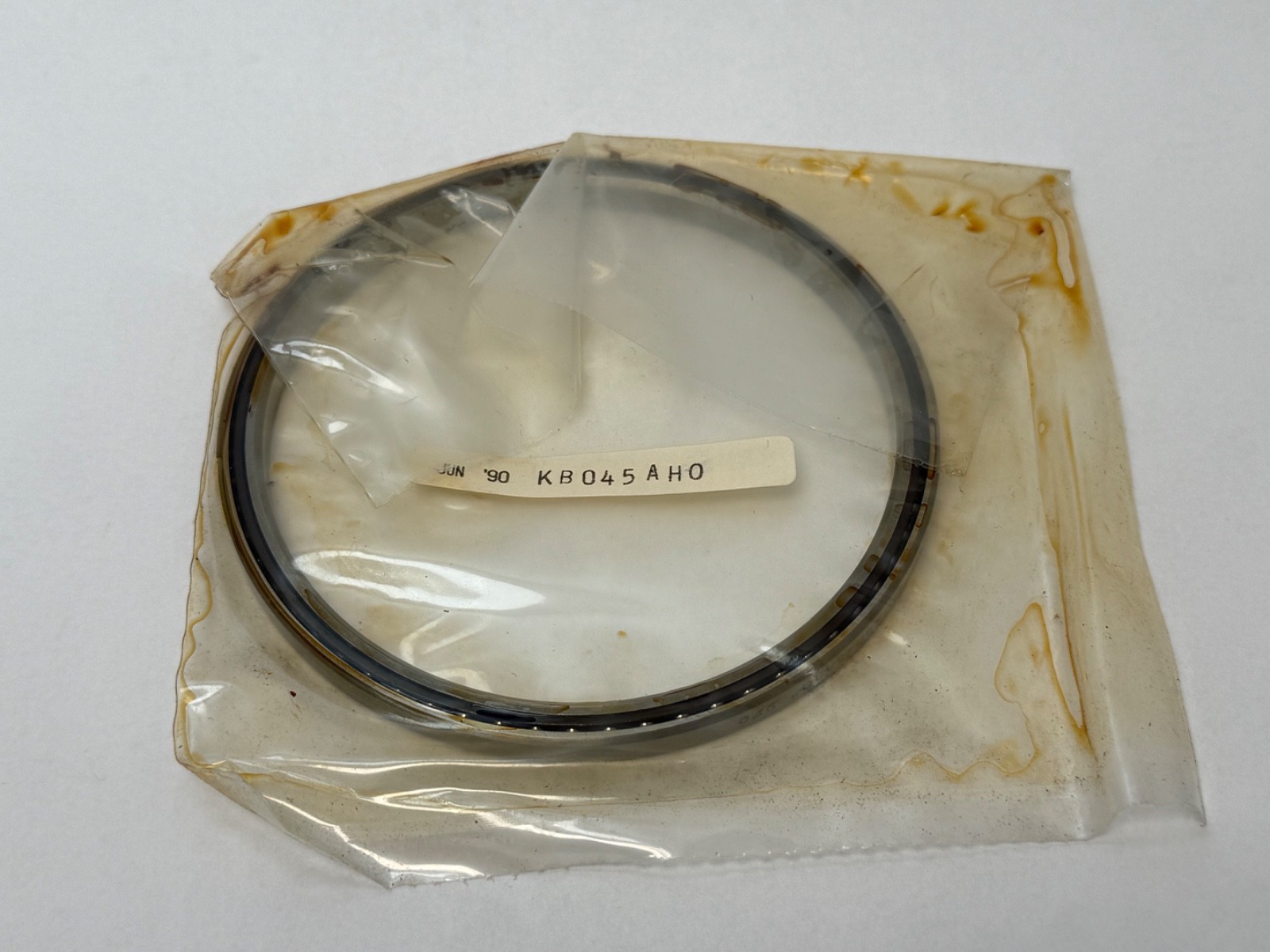

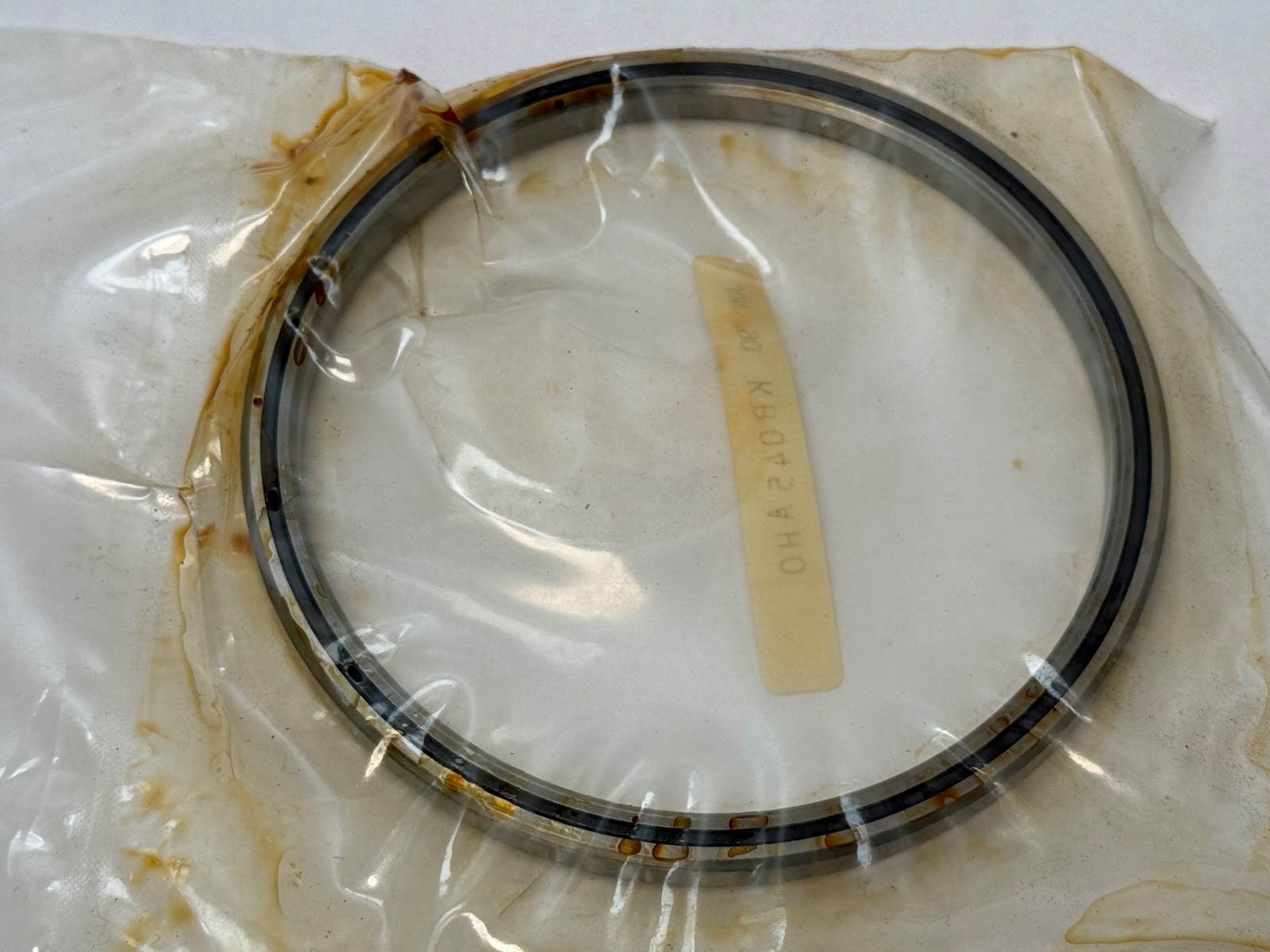

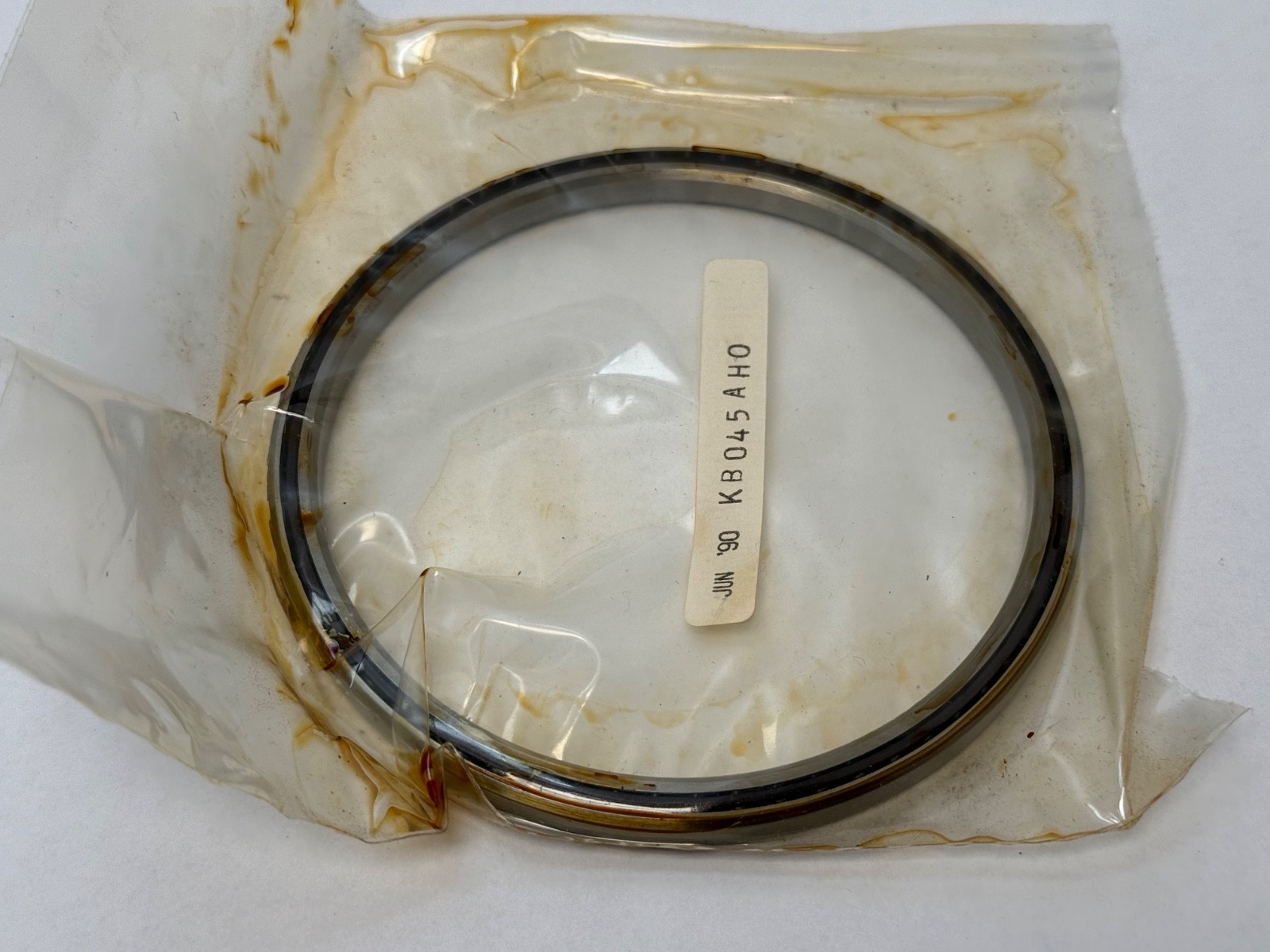

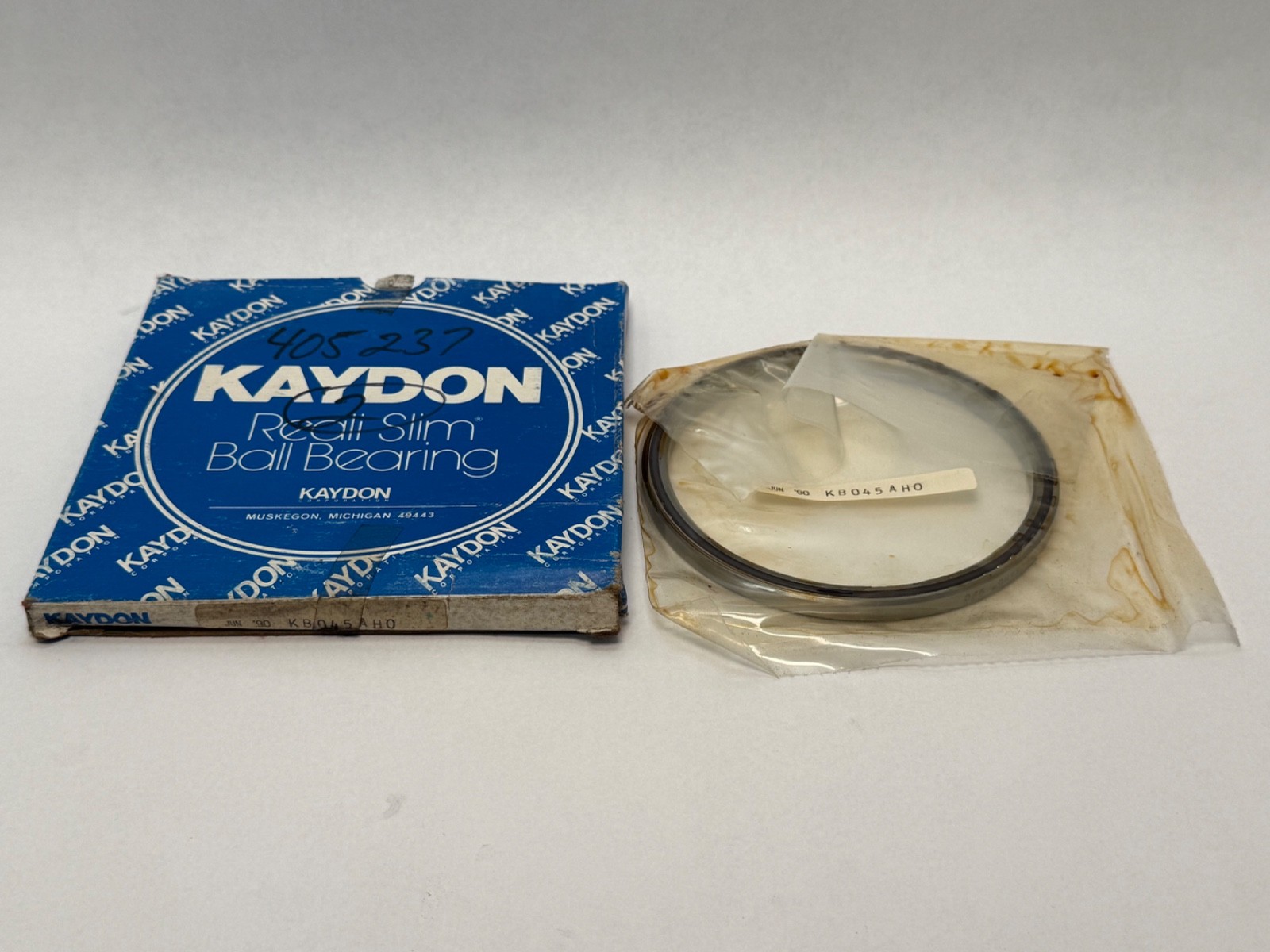

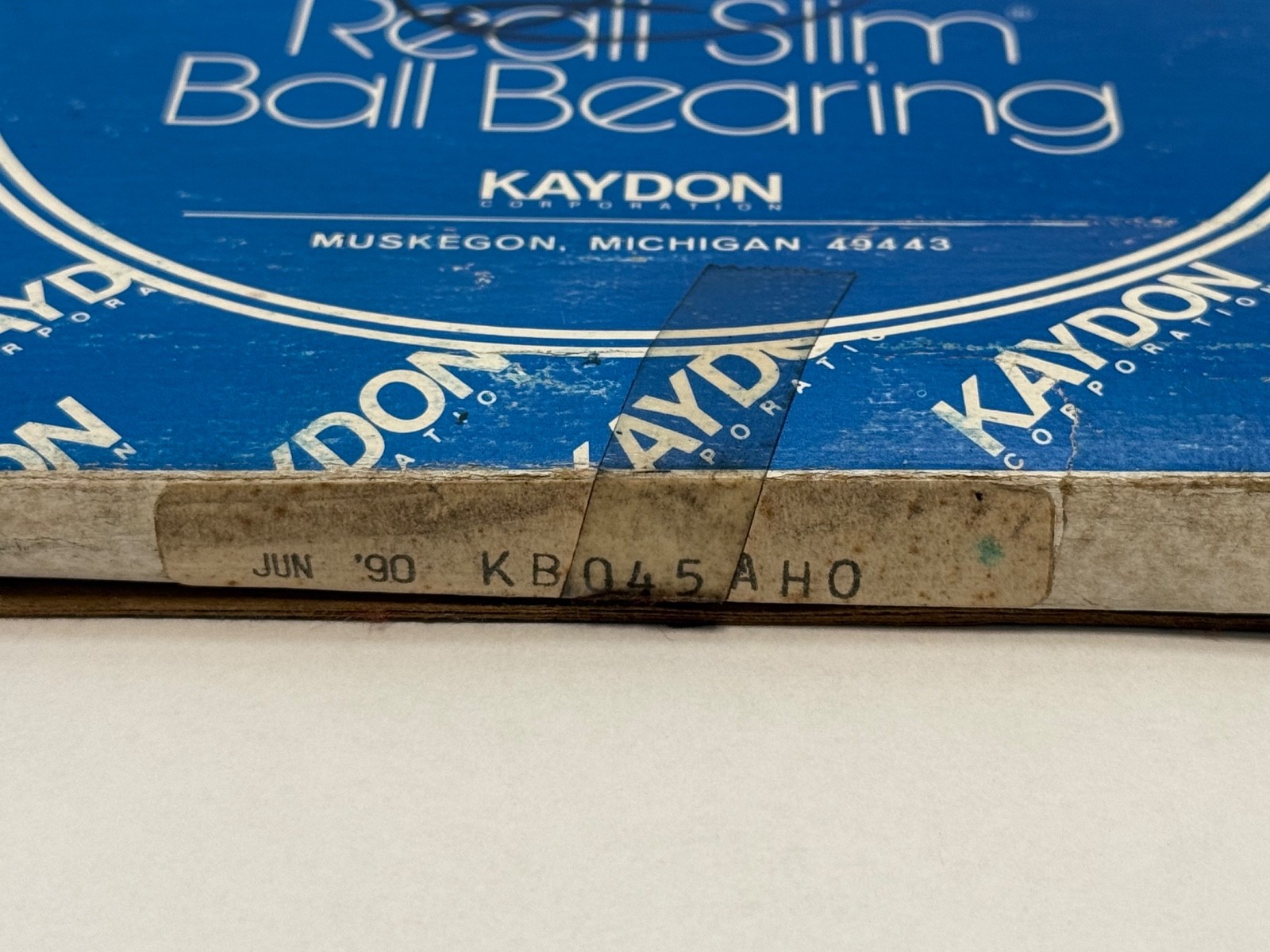

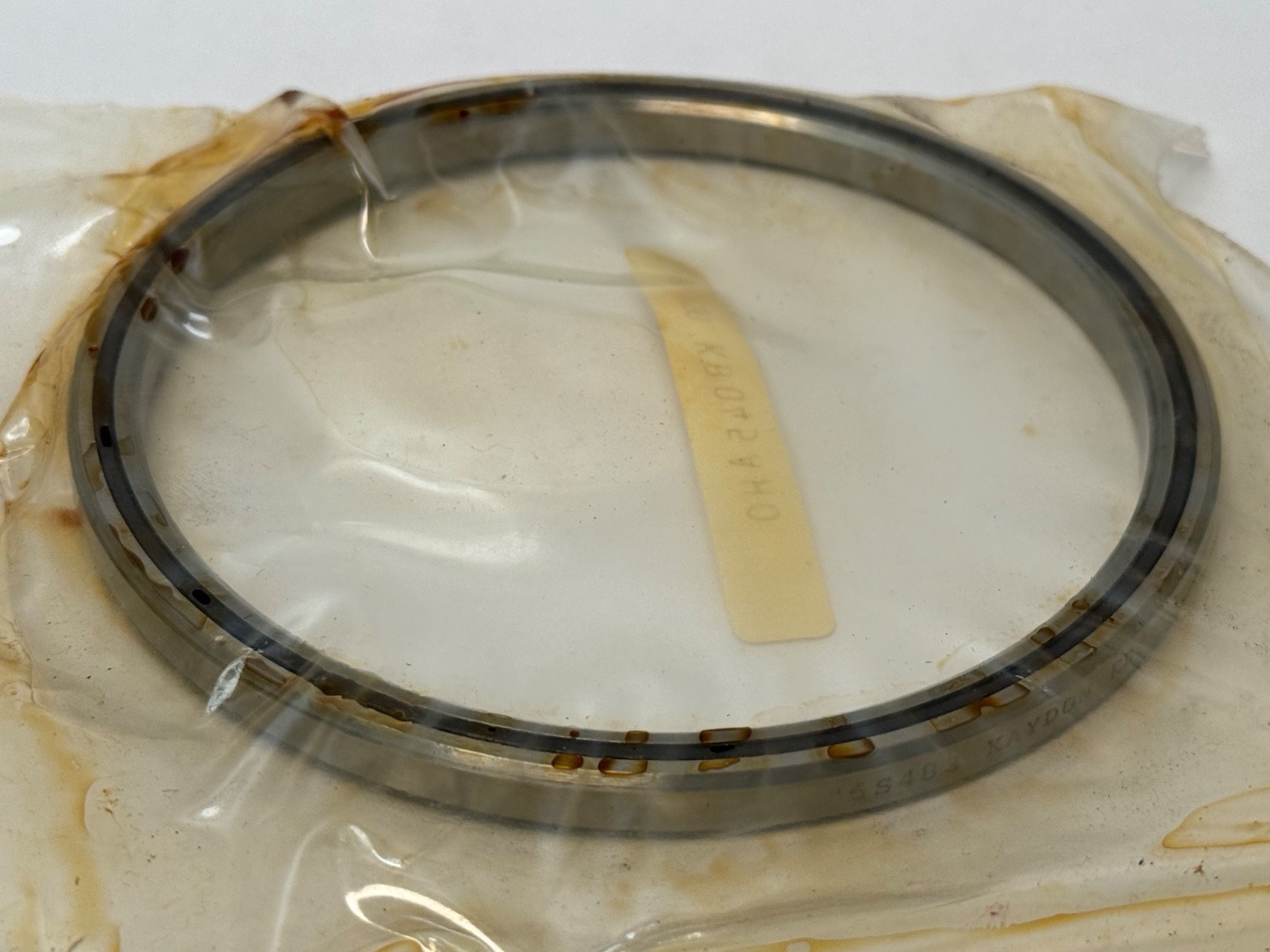

KaydonKB045AH0Thin Section Angular Contact Ball Bearing — 4-1/2 in Bore, 5-1/8 in OD, 5/16 in Width, 30° Contact Angle, Phenolic Separator

Condition: New

Availability:

2 in stock

Thin section angular contact ball bearing, 4-1/2 x 5-1/8 x 5/16 in, 30° contact angle, phenolic ring separator, Kaydon Class 1 (ABEC 1F). Reali-Slim KB series.

List Price

$104.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandKaydon
MPNKB045AH0

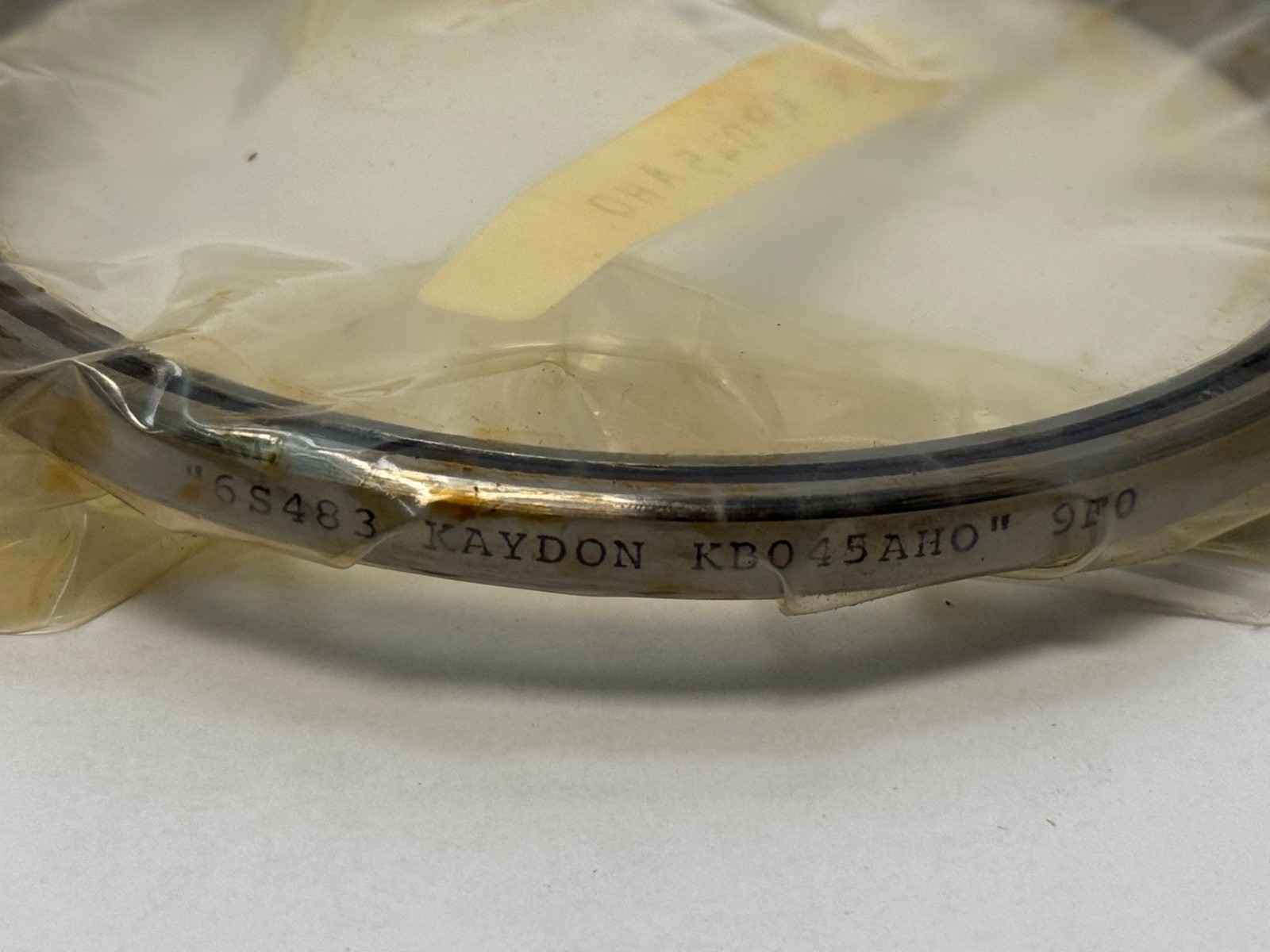

Model6S483 KB045AH0 9F0
Bearing TypeAngular Contact Ball Bearing
ID4.500 in (114.300 mm)
OD5.125 in (130.175 mm)
Width0.3125 in (7.938 mm)

Technical Specifications

Industry Termsthin section bearing, Reali-Slim bearing, slim section angular contact bearing, constant section bearing
Mpn VariantsKB045AH0, KB-045-AH0, KB045 AH0
Precision ClassKaydon Class 1 / ABEC 1F
Cage TypeOne-piece ring, circular pockets
SeriesKaydon Reali-Slim KB
Rolling ElementsBall
Cage MaterialPhenolic laminate
Number Of Rows1
Contact Angle30°
Bearing MaterialAISI 52100 steel
Common MisspellingsKayden KB045AH0; Kaydon KB 045 AH0; Kaydon KB045AHO; Kadon KB045AH0
Application TypesThin section bearing applications; rotary tables; robotic joints; precision positioning equipment
Closure TypeOpen

Cross-References

Cross Reference 1Kaydon KB045AR0 - standard separator
Seller Part Number: B-AR2B2#XCIJKG

Product Description

What this part is:

Kaydon KB045AH0 is a Reali-Slim thin section angular contact ball bearing, 4.500 in bore by 5.125 in outside diameter by 0.3125 in width, 30° contact angle. Kaydon is an SKF brand. The KB series holds a constant 5/16 in square cross-section across every bore size. Unit Quantity: 1 Pc.

Decoding the designation:

K — AISI 52100 bearing steel races and balls, no seals or shields.

B — KB series, 0.3125 x 0.3125 in cross-section.

045 — 4.500 in bore.

A — Type A angular contact, 30° contact angle.

H — phenolic laminate separator, one-piece ring with circular pockets.

0 — Kaydon Precision Class 1, per ABEC 1F.

Specifications:

Bore Diameter: 4.500 in (114.300 mm). Outside Diameter: 5.125 in (130.175 mm). Width: 0.3125 in (7.938 mm). Contact Angle: 30°. Bearing Material: AISI 52100 steel. Cage Material: Phenolic laminate. Cage Type: One-piece ring, circular pockets. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Precision Class: Kaydon Class 1 / ABEC 1F. Series: KB. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bore Diameter: 4.500 in. Outside Diameter: 5.125 in. Width: 0.3125 in. Cross-section: 0.3125 in radial x 0.3125 in axial. The 30° Type A design carries radial load together with thrust in one direction; two bearings mounted as a duplex pair carry thrust in both directions.

Compatibility and replacement:

Kaydon KB045AR0 — same KB045 Type A envelope and class, standard formed-ring separator in place of the phenolic ring. MPN variants: KB045AH0, KB-045-AH0, KB045 AH0.

Frequently asked questions:

What are the dimensions of the Kaydon KB045AH0?

4.500 in bore, 5.125 in outside diameter, 0.3125 in width.

What is the contact angle of the KB045AH0?

30°, Type A angular contact.

What separator does the KB045AH0 use?

A one-piece phenolic laminate ring with circular pockets, from the H code.
