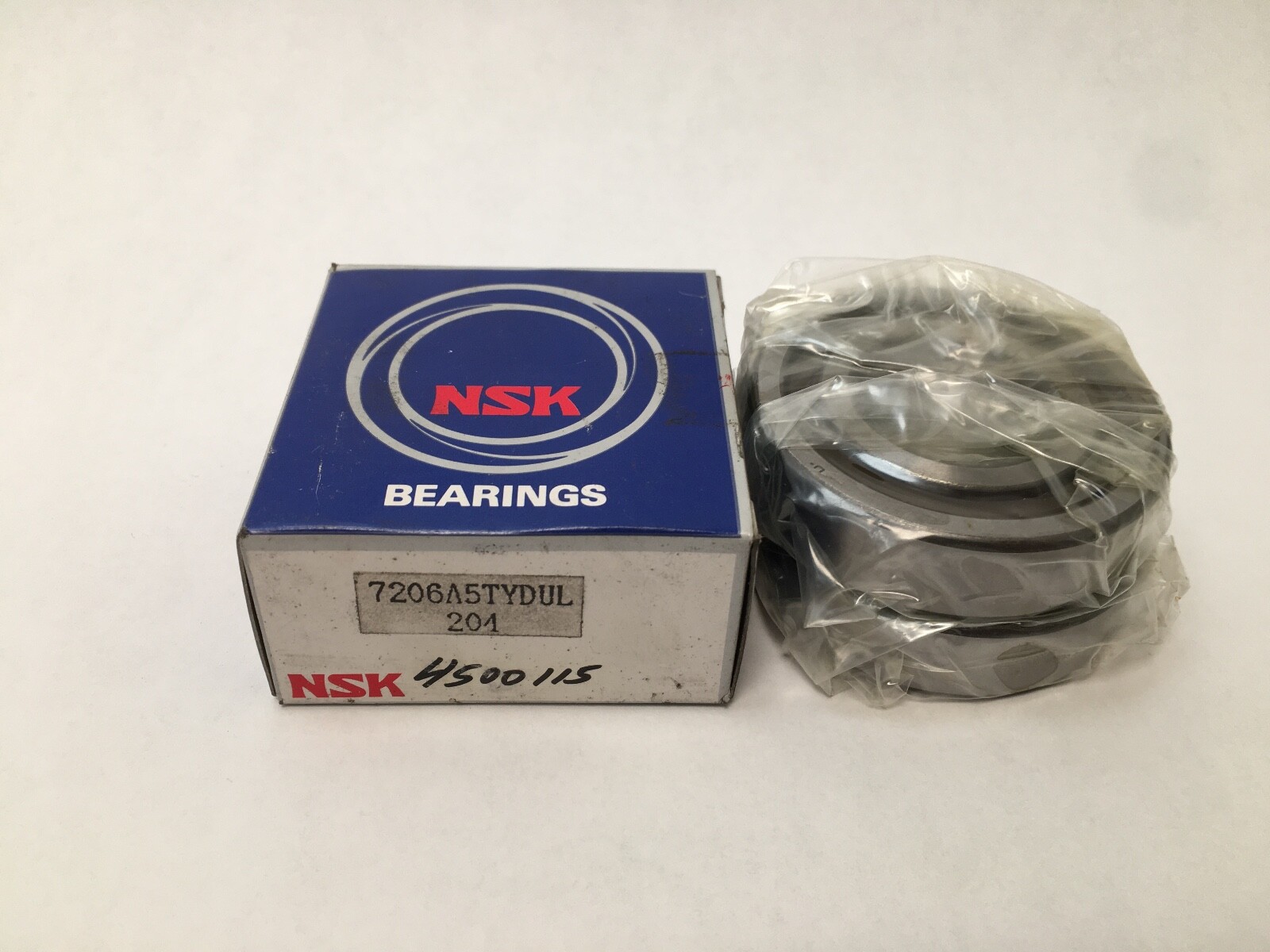

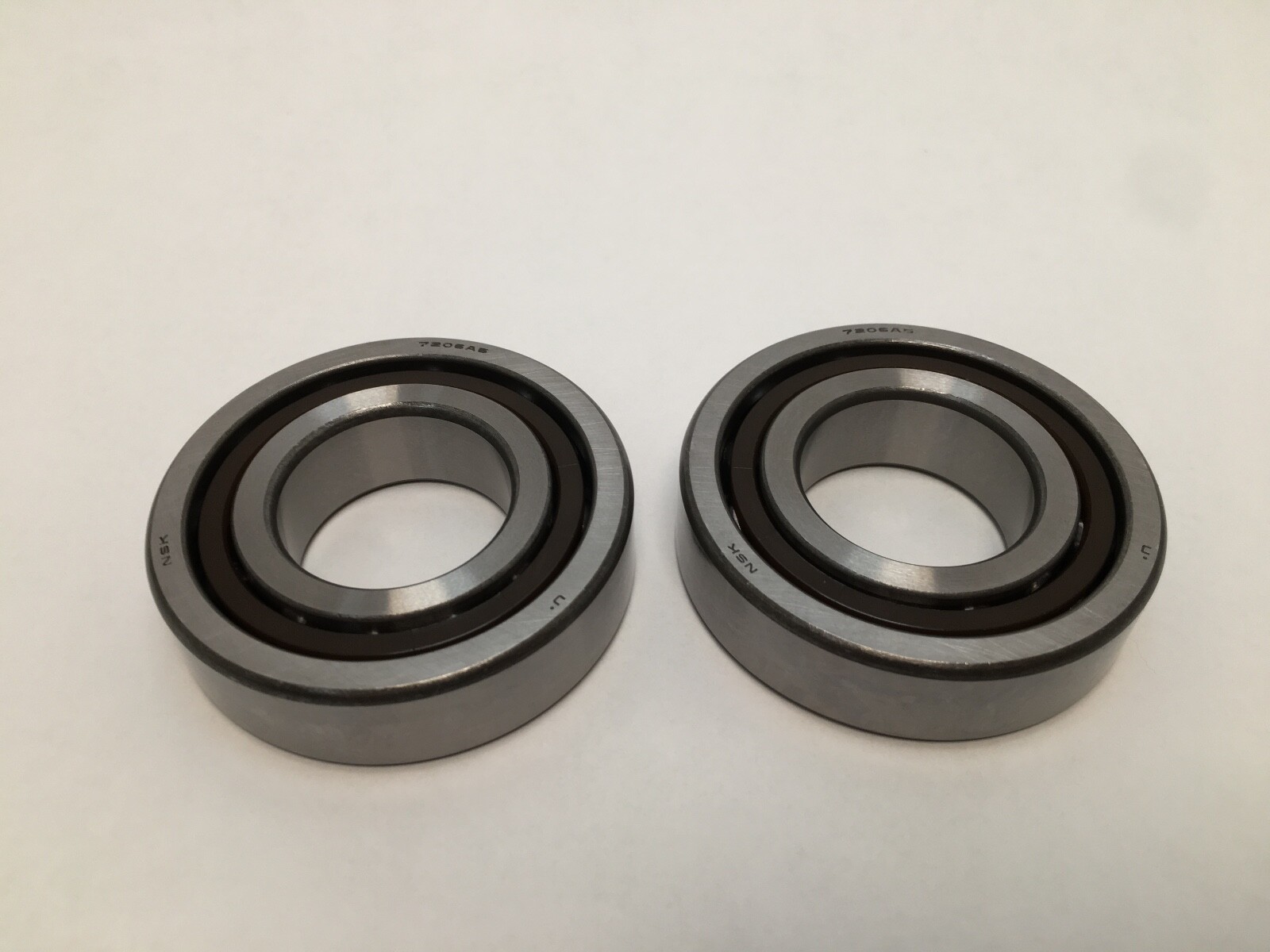

Angular contact ball bearing pair, 30 x 62 x 16 mm each, 25° contact angle, polyamide cage, duplex light preload, faces ground as a matched set. Sold as 2 Pcs.
List Price
$73.22
35 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7206A5TYDUL |
| Model | 7206A 5TY DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 32 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New |
| Lubricant | Grease |
| Preload | Light |
| Base Number | 7206 |
| Industry Terms | angular contact ball bearing, matched pair bearing, duplex bearing set, precision spindle bearing, 25 degree contact angle bearing, light preload bearing |
| Common Misspellings | 7206A5TYDUL, 7206 A5TYDU L, 7206A5TDUL, 7206ASTYDUL, NSK 7206 A5TY DU L |
| Application Types | Machine tool spindles, ball screw supports, precision gearboxes, pumps, high-speed motors |
| Total Width | 32 mm (1.2598 in) for the mounted pair |
| Bore Shaft Size | 30 mm (1.1811 in) |
| Mpn Variants | 7206A5TYDUL, 7206 A5TY DUL, 7206-A5TY-DUL, 7206A5TYDULP4, 7206A5 TY DUL, 7206A5TRDUL |
| Arrangement Configuration | Duplex matched pair (DUL), faces ground as a set |
| Min Temp | -30 °C |
| Dynamic Load Rating | 17.1 kN / 3844 lbf |
| Static Load Rating | 11.2 kN / 2518 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.86 lbs |
| Cage Material | Polyamide resin |
| Limiting Speed | 31000 rpm |
| Number Of Rows | 1 per bearing, 2 rows in the mounted pair |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25 degrees |
| Mounting Arrangement | Universal |
| Design Units | Metric |
| Part Number | 7206A5TYDUL |
| Cross Reference 1 | 7206A5TYDULP4 |
|---|---|
| Cross Reference 2 | 7206 A5 TY DUL |
| Cross Reference 3 | 7206A5TYDBL |
| Cross Reference 4 | 3MM206WI DUL |

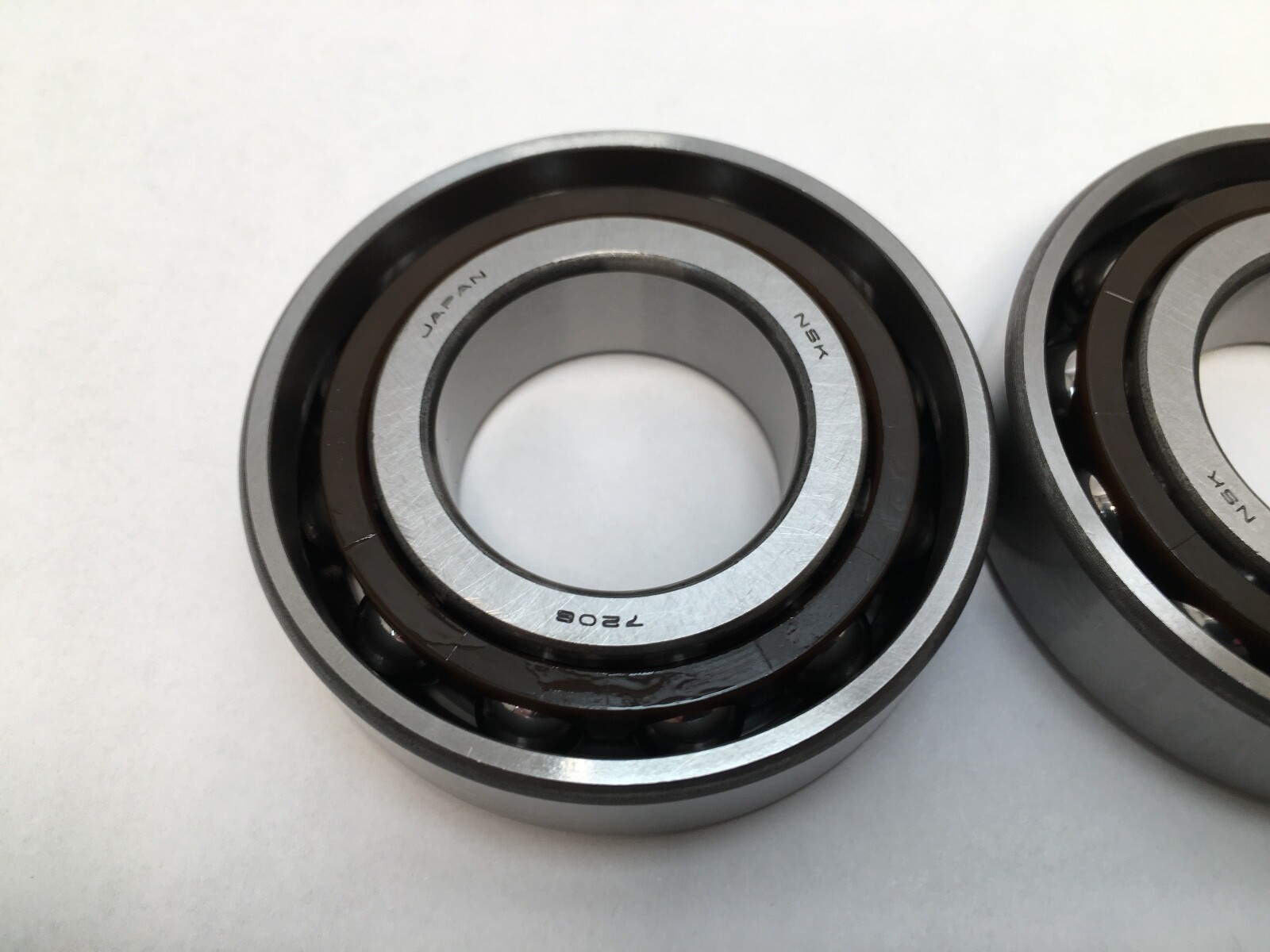

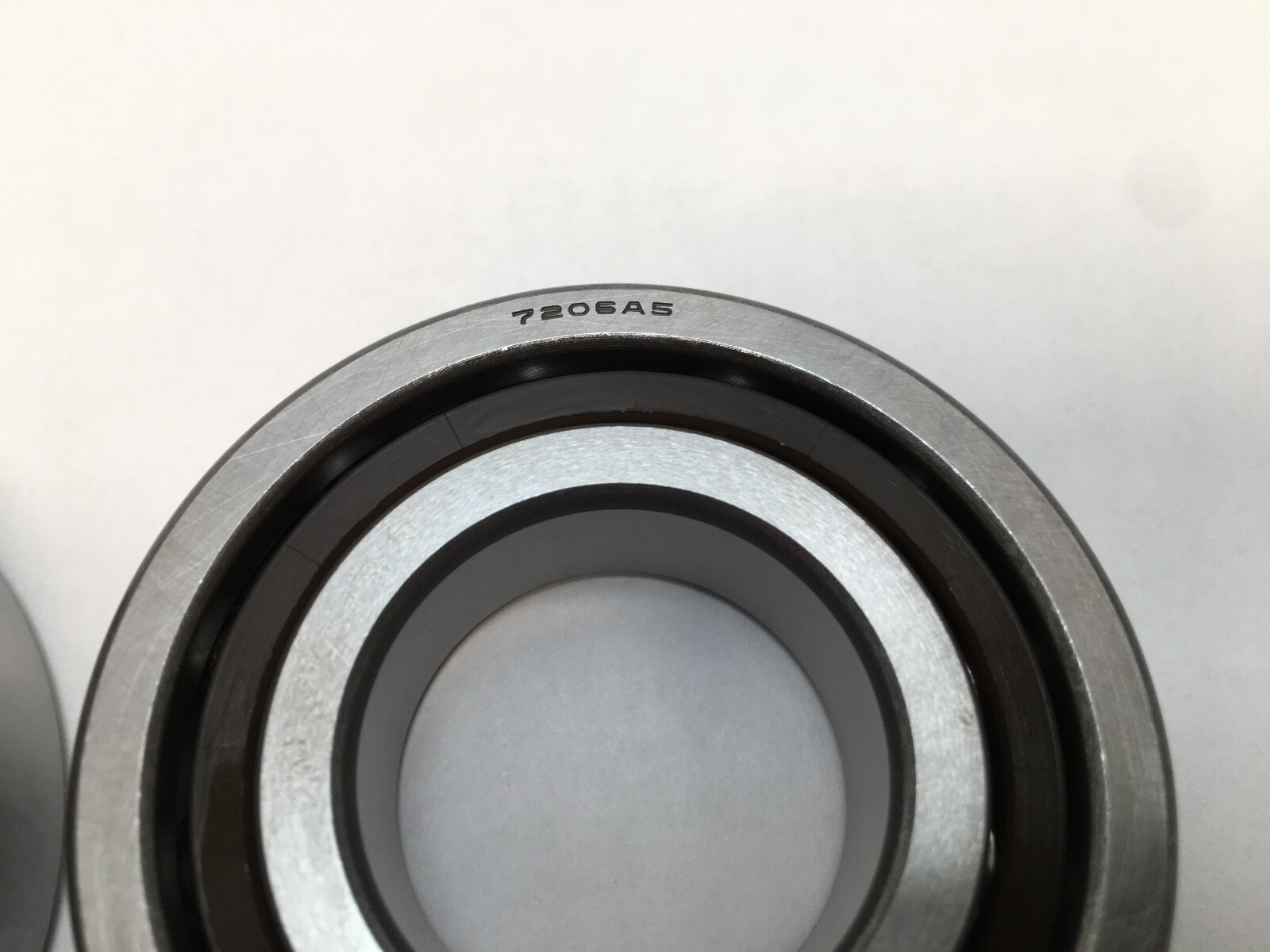

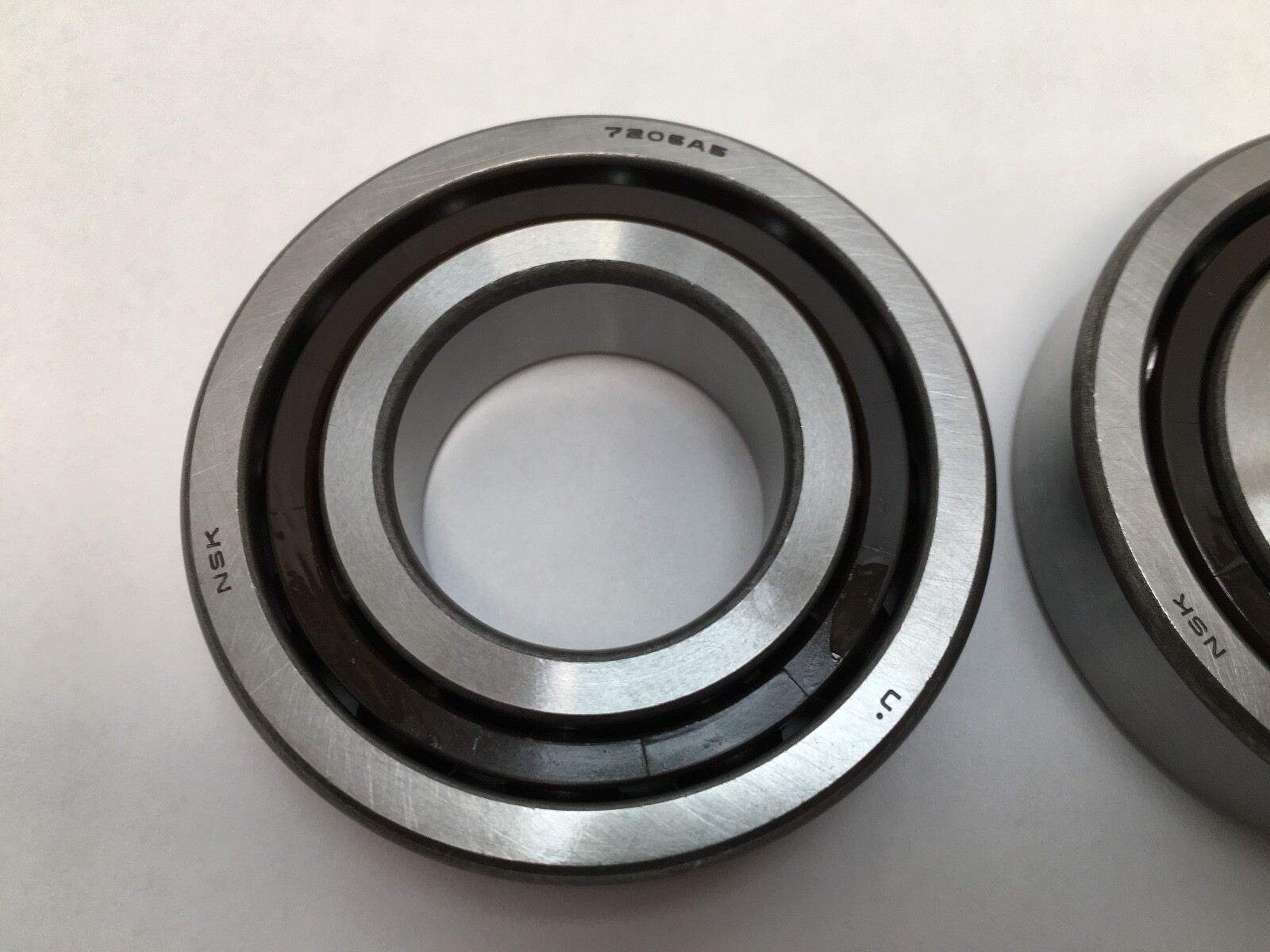

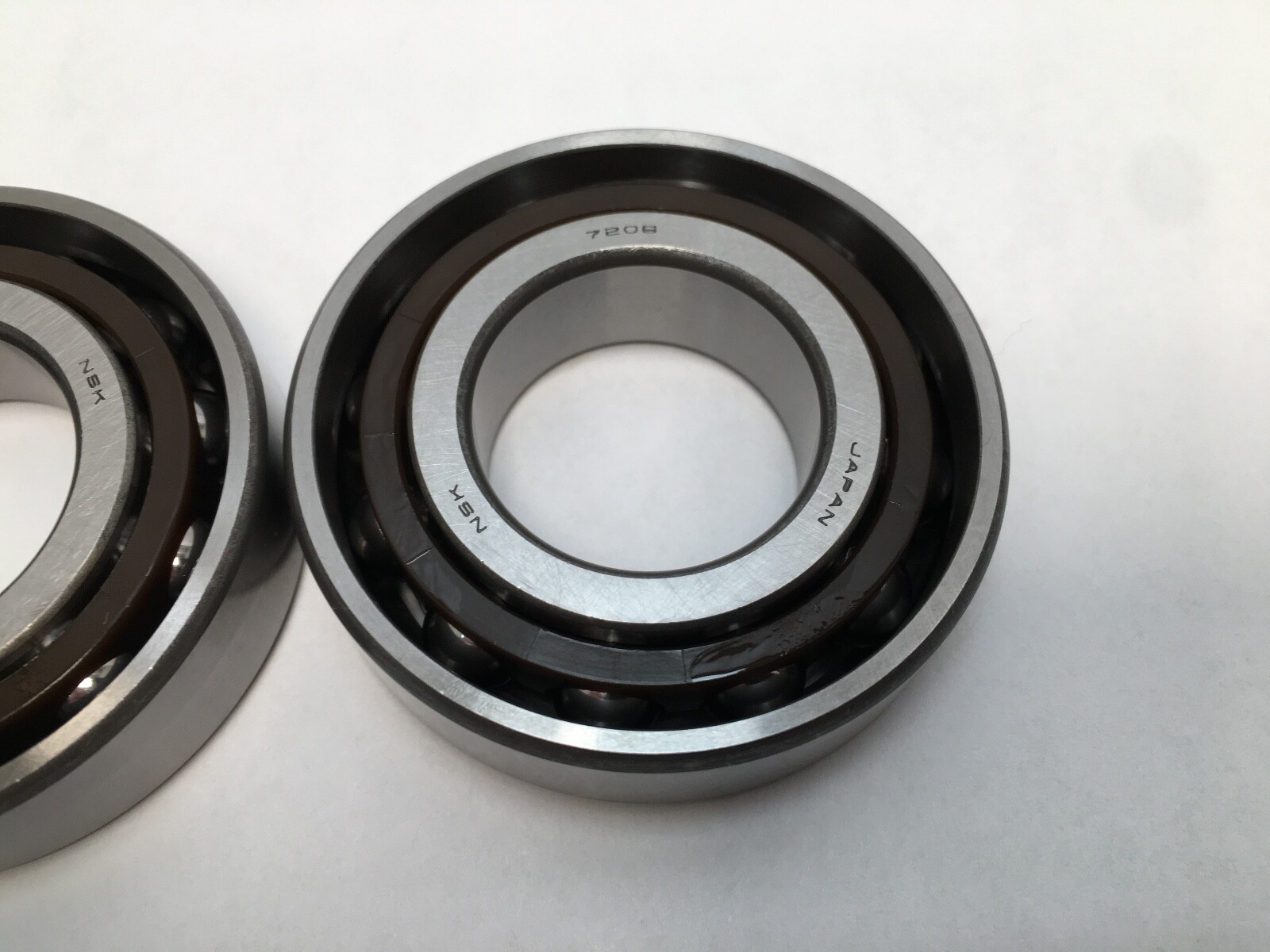

A matched duplex set of single-row angular contact ball bearings in the 72-series, 30 mm bore, 62 mm outside diameter, 16 mm width per bearing. The two rings are ground as a pair so that clamping them together produces a defined light preload.
7206 — single-row angular contact ball bearing, 30 mm bore, 72 dimension series
A5 — 25° contact angle in the NSK scheme
TY — polyamide (moulded resin) cage
DU — duplex, faces ground for pairing
L — light preload
A 25° contact angle carries more thrust and gives higher axial stiffness than a 15° execution of the same envelope, at a lower speed ceiling. Light preload keeps ball skidding out of the contact while holding frictional heat and power draw down, the usual choice for moderate-speed spindles and precision screw drives. The polyamide cage is quiet and tolerant of momentary misalignment, and sets a working temperature ceiling near 120 °C, above which a machined cage execution applies.

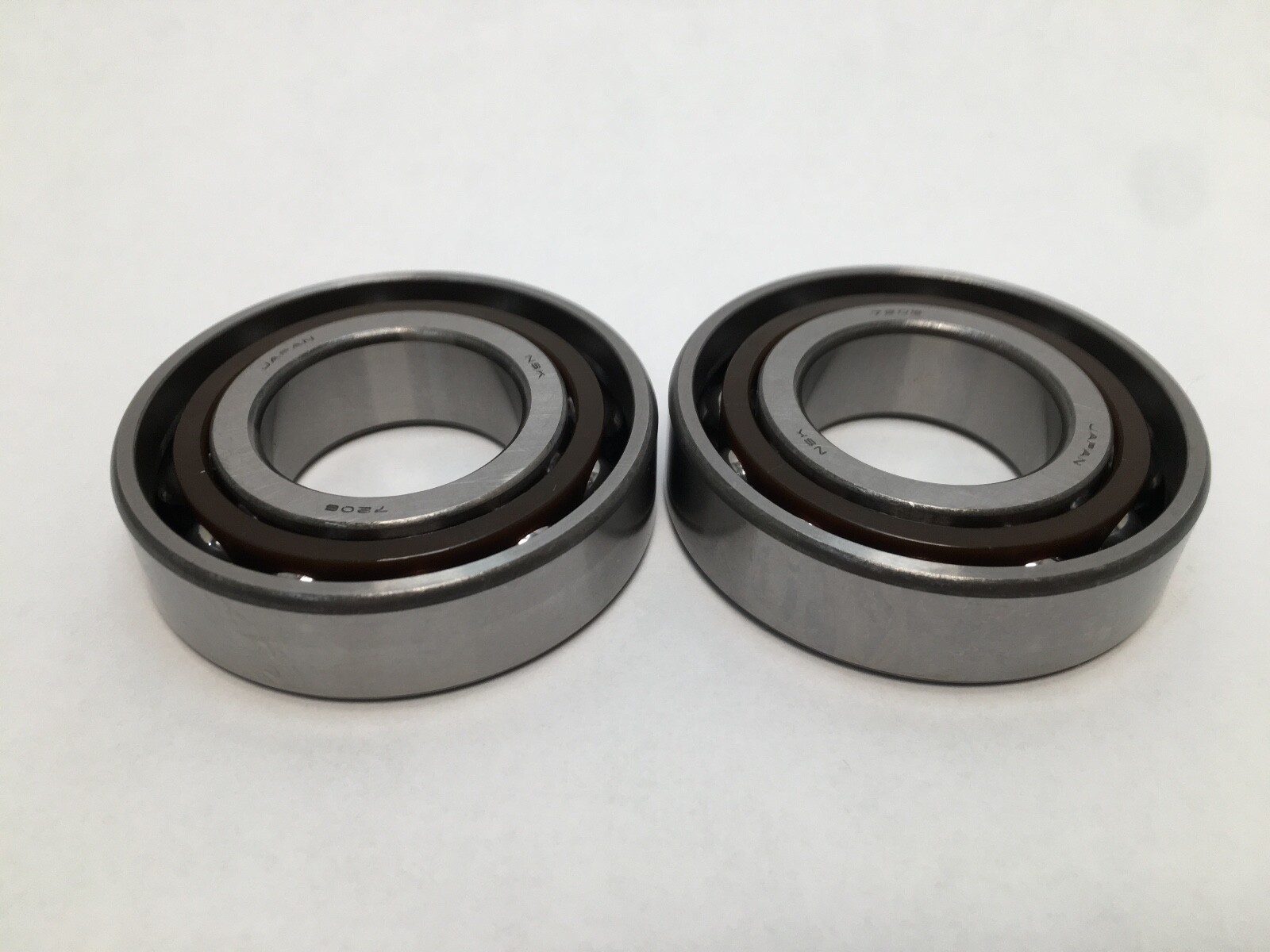

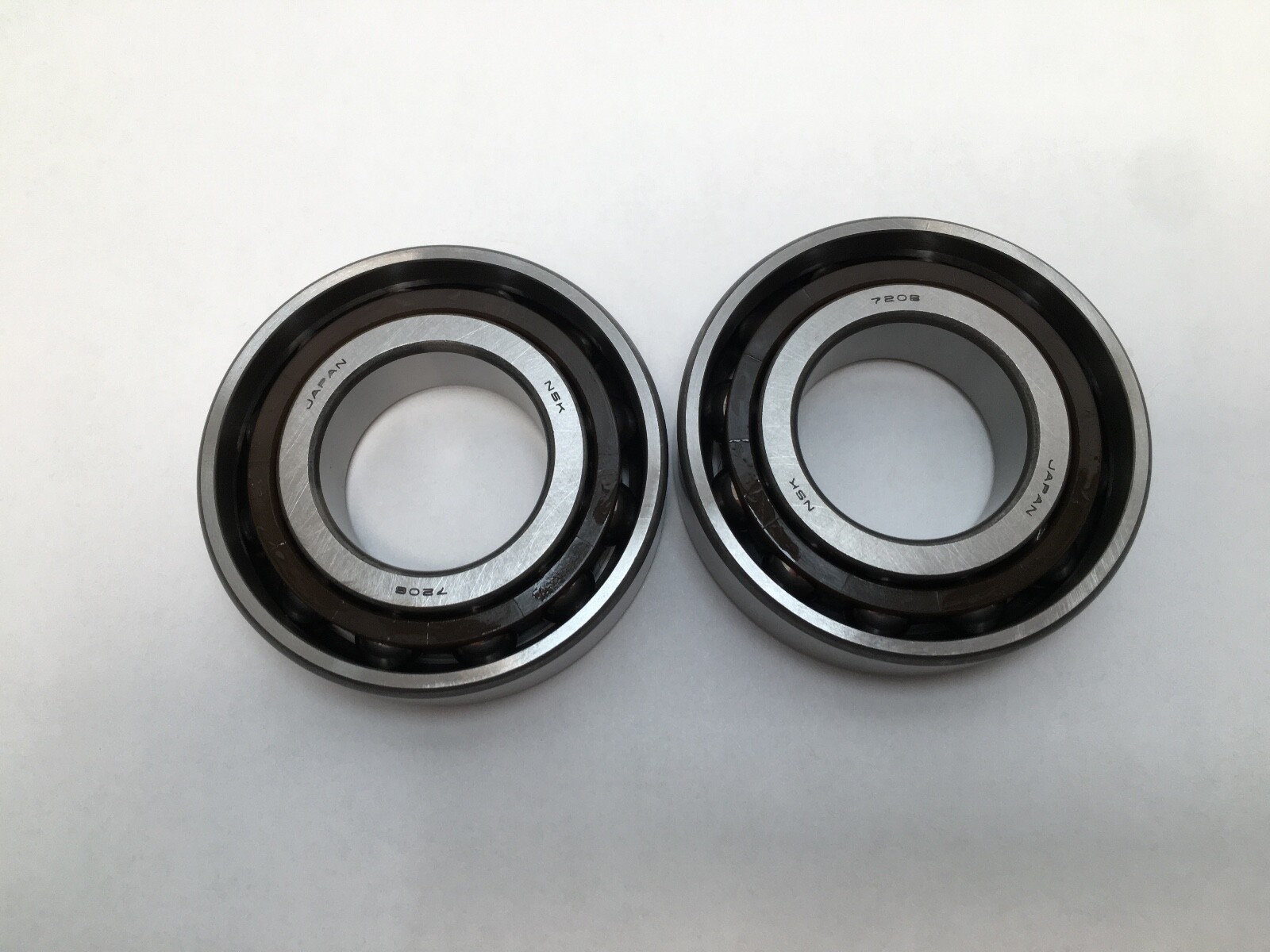

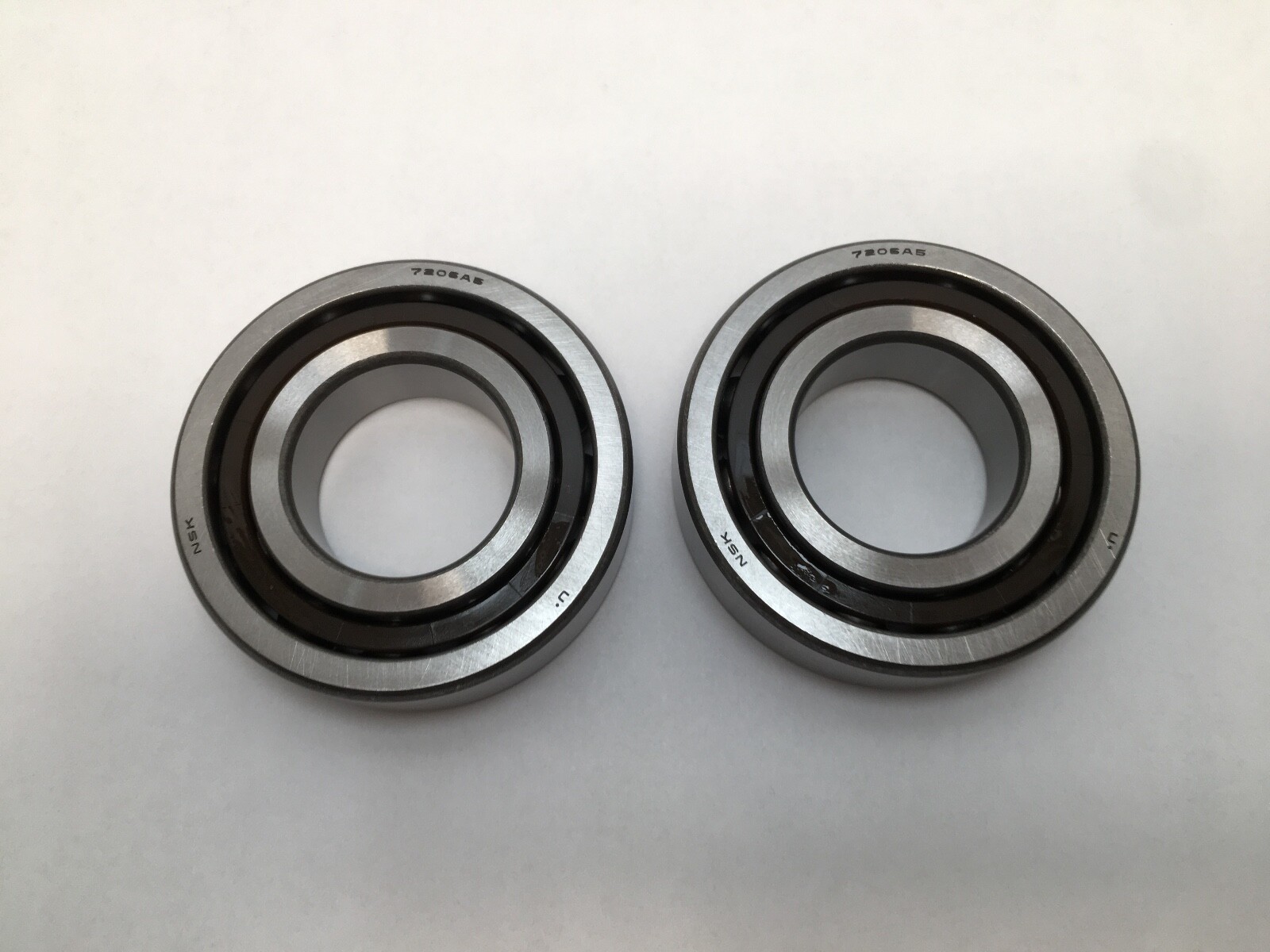

2 Pcs, supplied as a matched duplex pair. Total mounted width of the pair is 32 mm.
The pair is mounted in the ground orientation with the etched face markings aligned, and the rings are clamped fully so the preload comes off the ground faces rather than off the clamp force. Preload is set by tightening the inner and outer rings against square shoulders, and mixing one bearing of the set with a bearing from another set removes the ground relationship the preload depends on.
Same-spec equivalents are 25° duplex light-preload 7206-size pairs under other schemes, such as an SKF 7206 ACD/P4ADGA-class light-preload pair or an FAG 7206-B-2RS-TVP duplex equivalent at matching angle and preload. NSK 7206CTYDUL at 15°, 7206A5TYDUM at medium preload, and single universally ground 7206A5TYSUL bearings are related sizes rather than interchanges.
