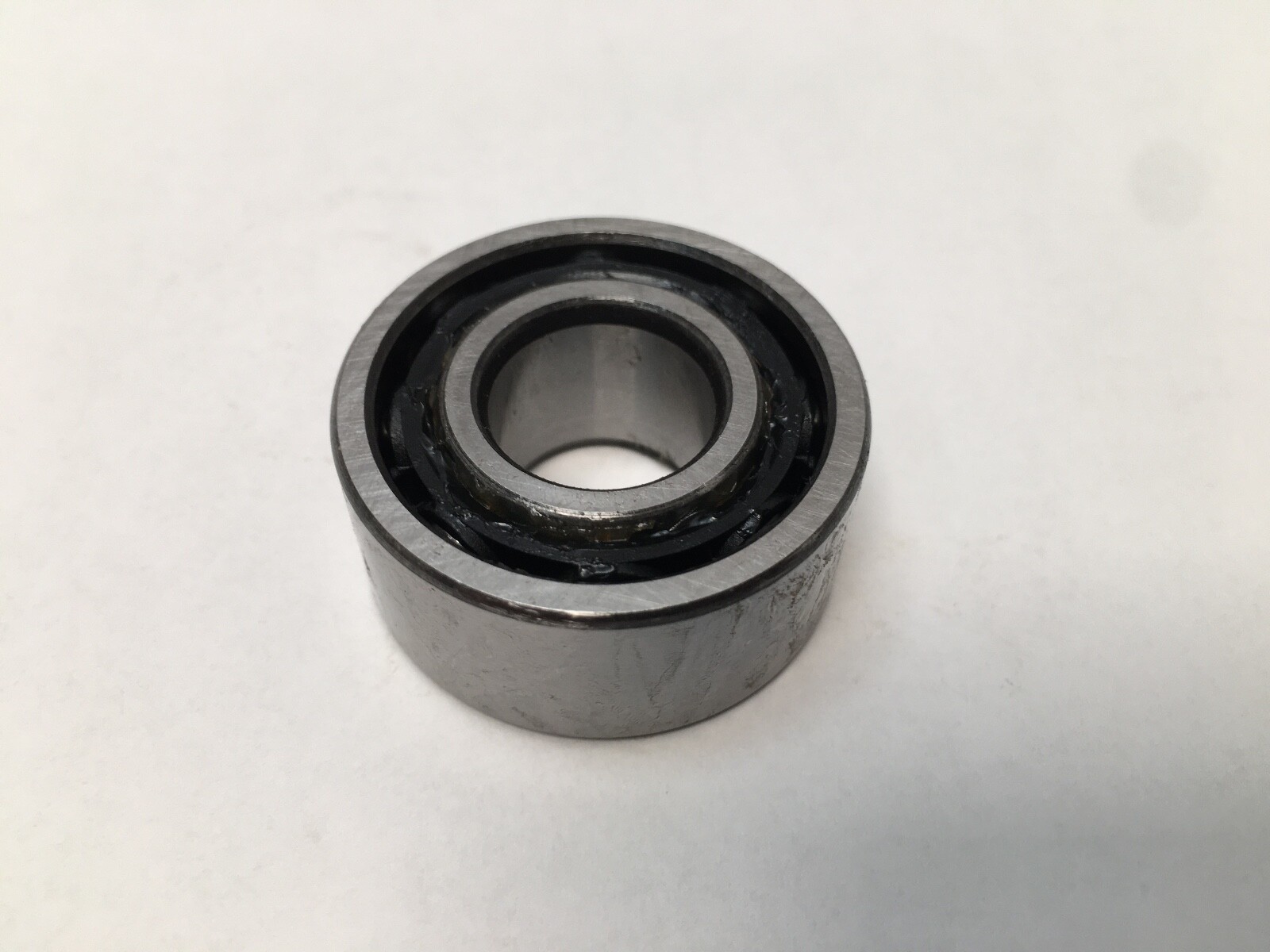

Double-row angular contact ball bearing, 15 x 35 x 15.9 mm, open, 25 degree contact angle, P6 precision, glass-fibre polyamide snap cage, ball guided.
List Price
$40.38
171 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3202-B-TVH-P6 |
| Model | 5202B / 3202B.TVH.P6 / |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 35 mm |
| Width | 5/8 in |
| Base Number | 3202 |
|---|---|
| Industry Terms | double row angular contact ball bearing; 3200 series angular contact; 5200 series angular contact; P6 precision bearing; two-direction thrust bearing |
| Common Misspellings | 3202 BTVH P6; 3202B TVH.P6; 3202-BTVH-P6; 3202BTHV P6; FAG 3202 B TV H P6 |
| Application Types | Worm gear shafts; small pump and blower spindles; indexing heads; tensioner and idler assemblies |
| Bore Shaft Size | 15 mm |
| Mpn Variants | 3202-B-TVH-P6; 3202BTVH.P6; 3202BTVHP6; 3202 B TVH P6; 3202B.TVH.P6; 3202BTVH; 3202-B-TVH; 5202B |
| Arrangement Configuration | Double row, non-separable single unit |
| Precision Class | P6 (ISO tolerance class 6), ABEC 3 |
| Closure Type | Open |
| Cage Type | Solid snap cage, ball guided |
| Precision Rating | ABEC 3 / P6 |
| Rolling Elements | Ball |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 (double row) |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN (normal) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Design Units | Metric |
| Bearing Material | High carbon chrome steel |
| Part Number | 3202-B-TVH-P6 |
| Total Width | 15.9 mm (5/8 in) |
| Overall Width | 15.9 mm (5/8 in) |
| Cross Reference 1 | SKF 3202 A |
|---|---|
| Cross Reference 2 | NSK 3202BTN |
| Cross Reference 3 | NTN 5202 |
| Cross Reference 4 | MRC 5202 - 30 deg vs 25 deg |
| Cross Reference 5 | 3202-BD-XL-TVH - 30 deg, X-life |
| Cross Reference 6 | 3202-B-2Z-TVH - shielded both sides |
| Cross Reference 7 | 3202-B-2RSR-TVH - sealed both sides |

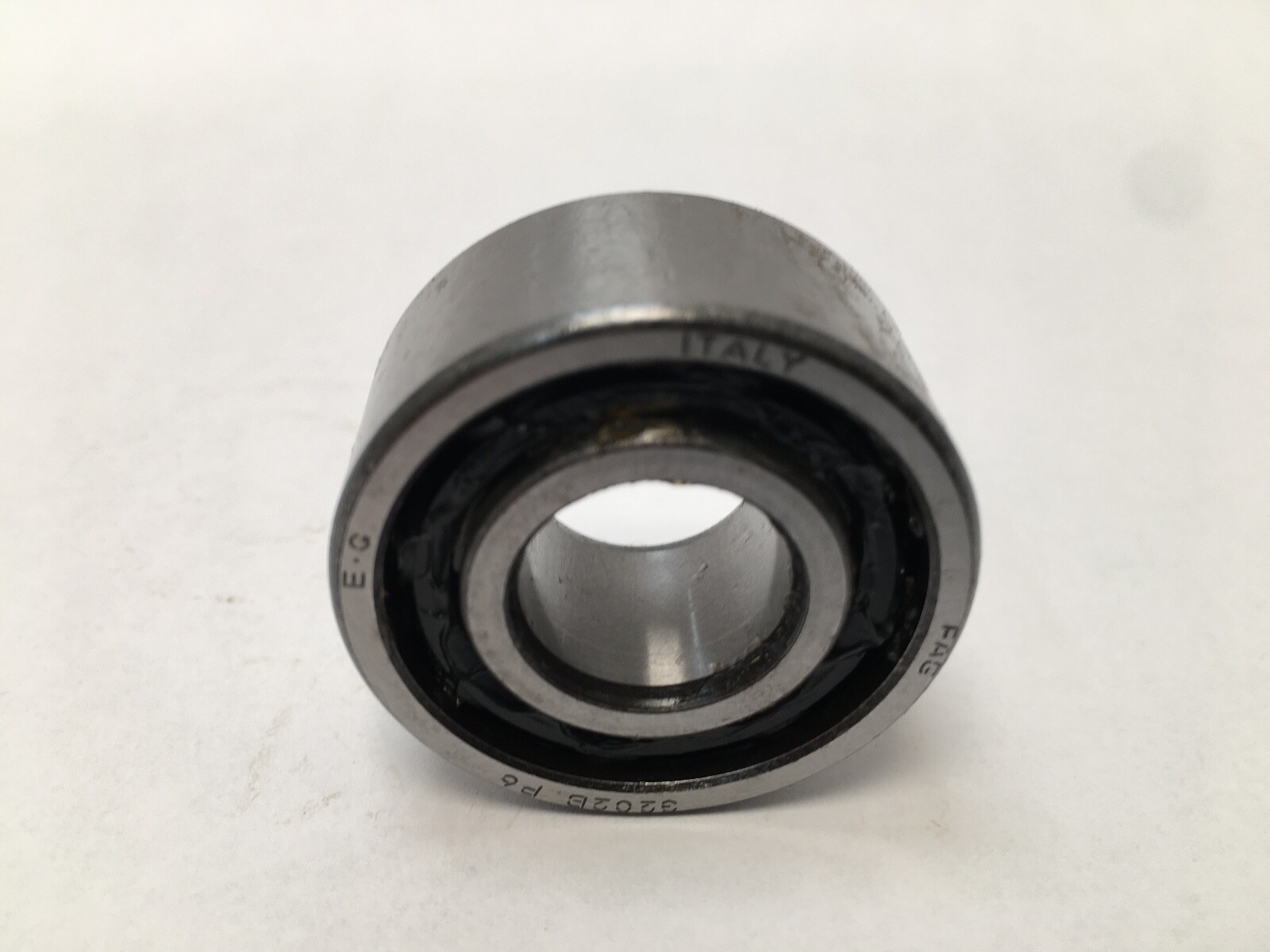

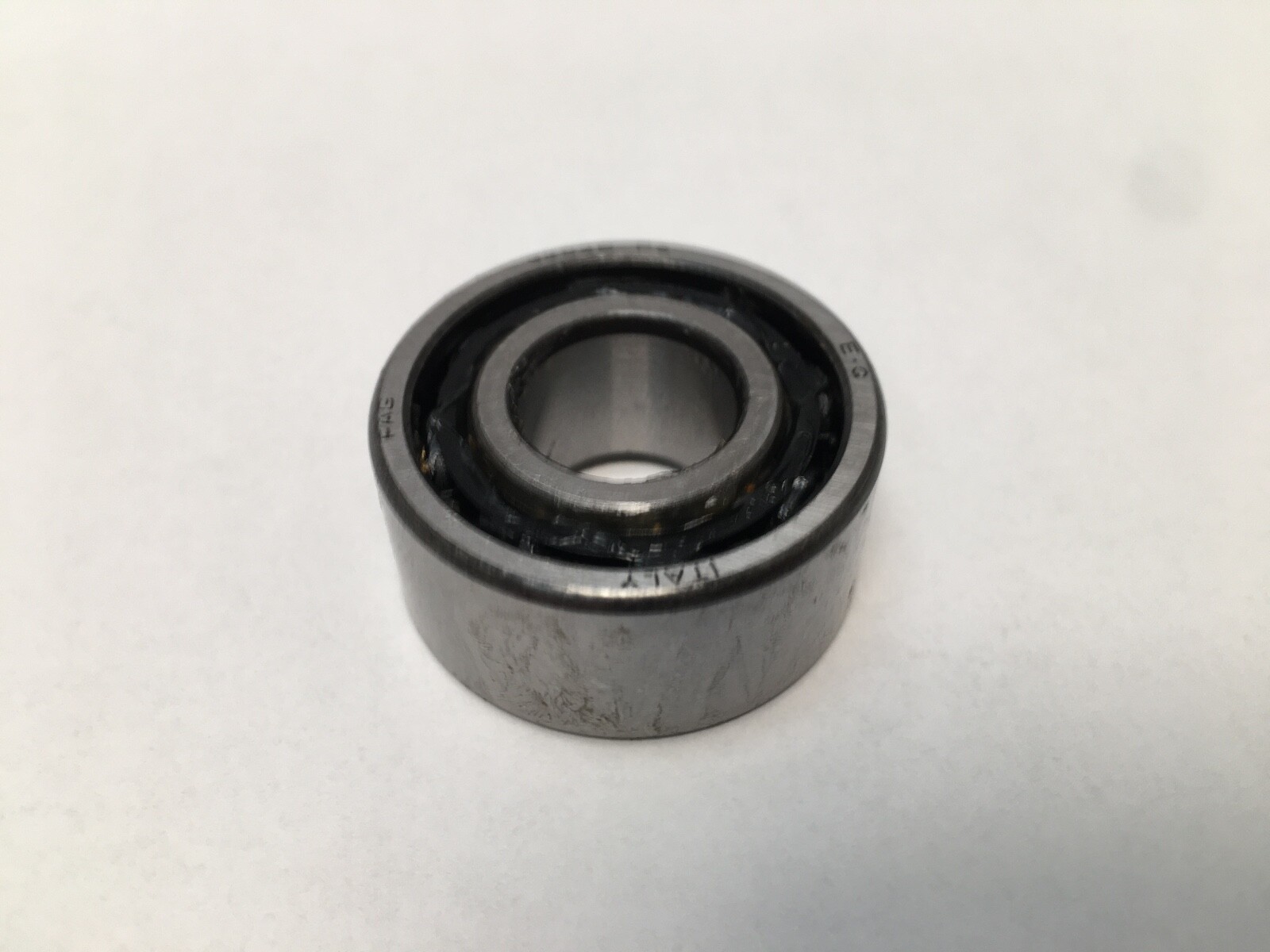

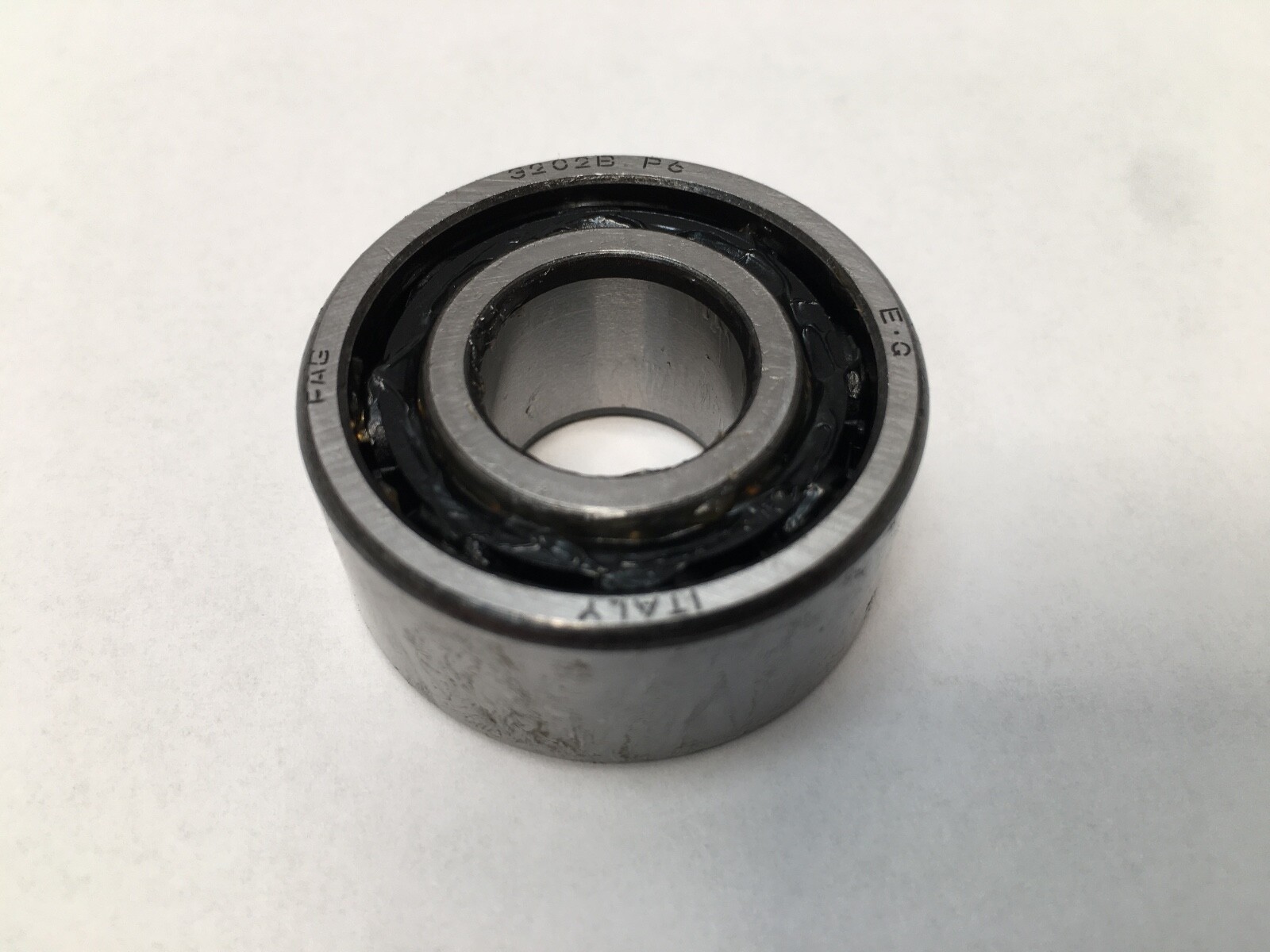

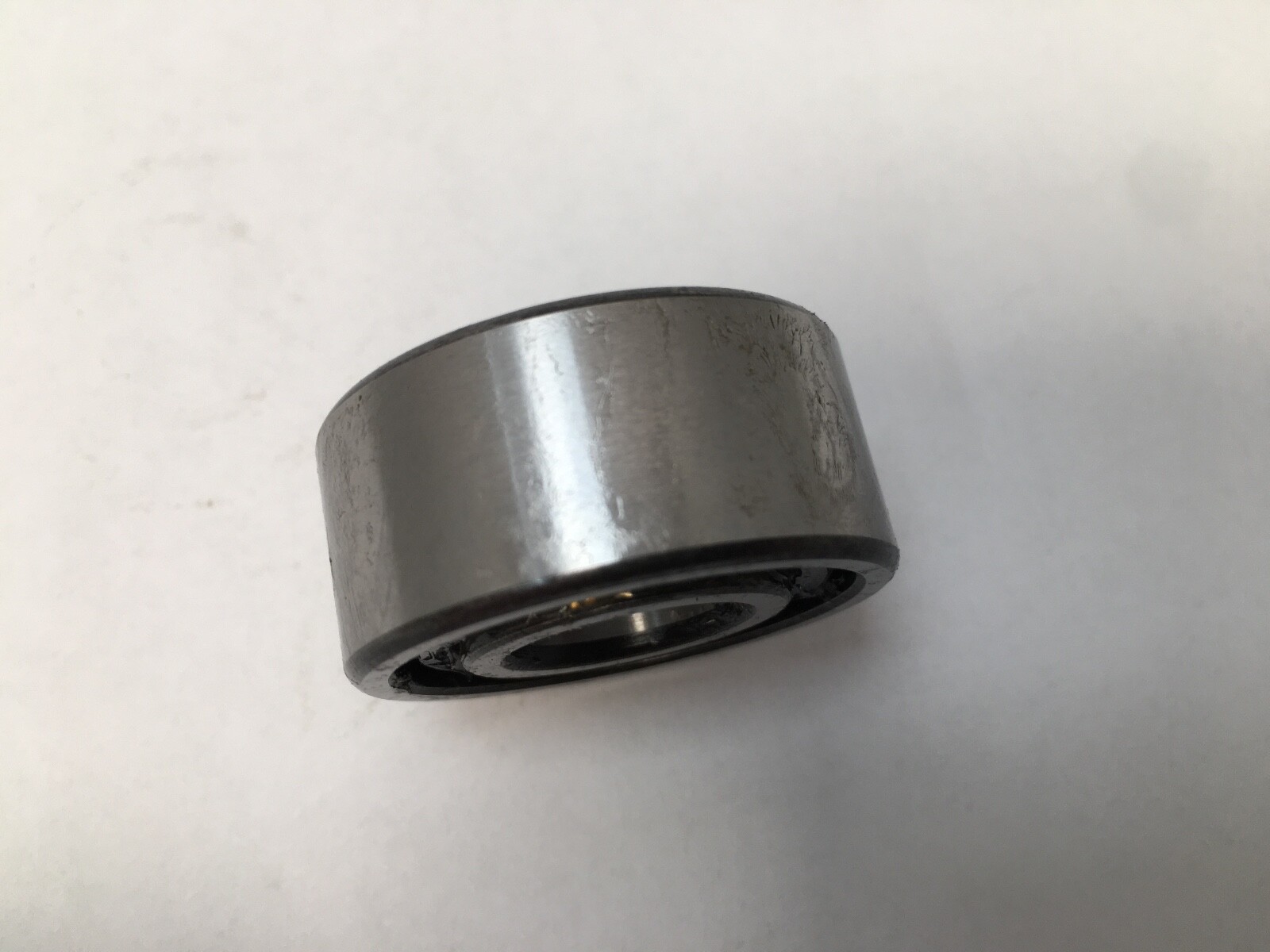

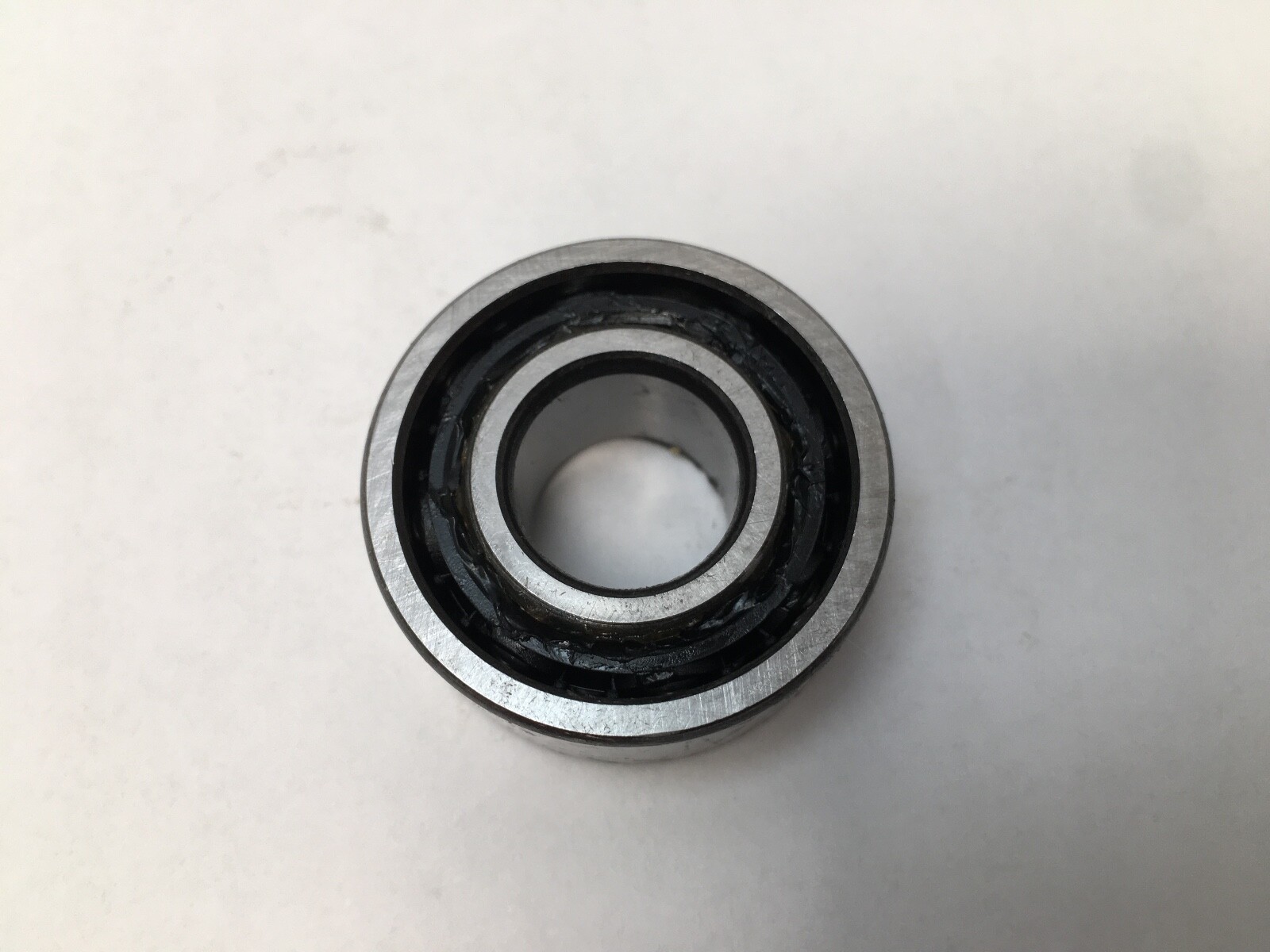

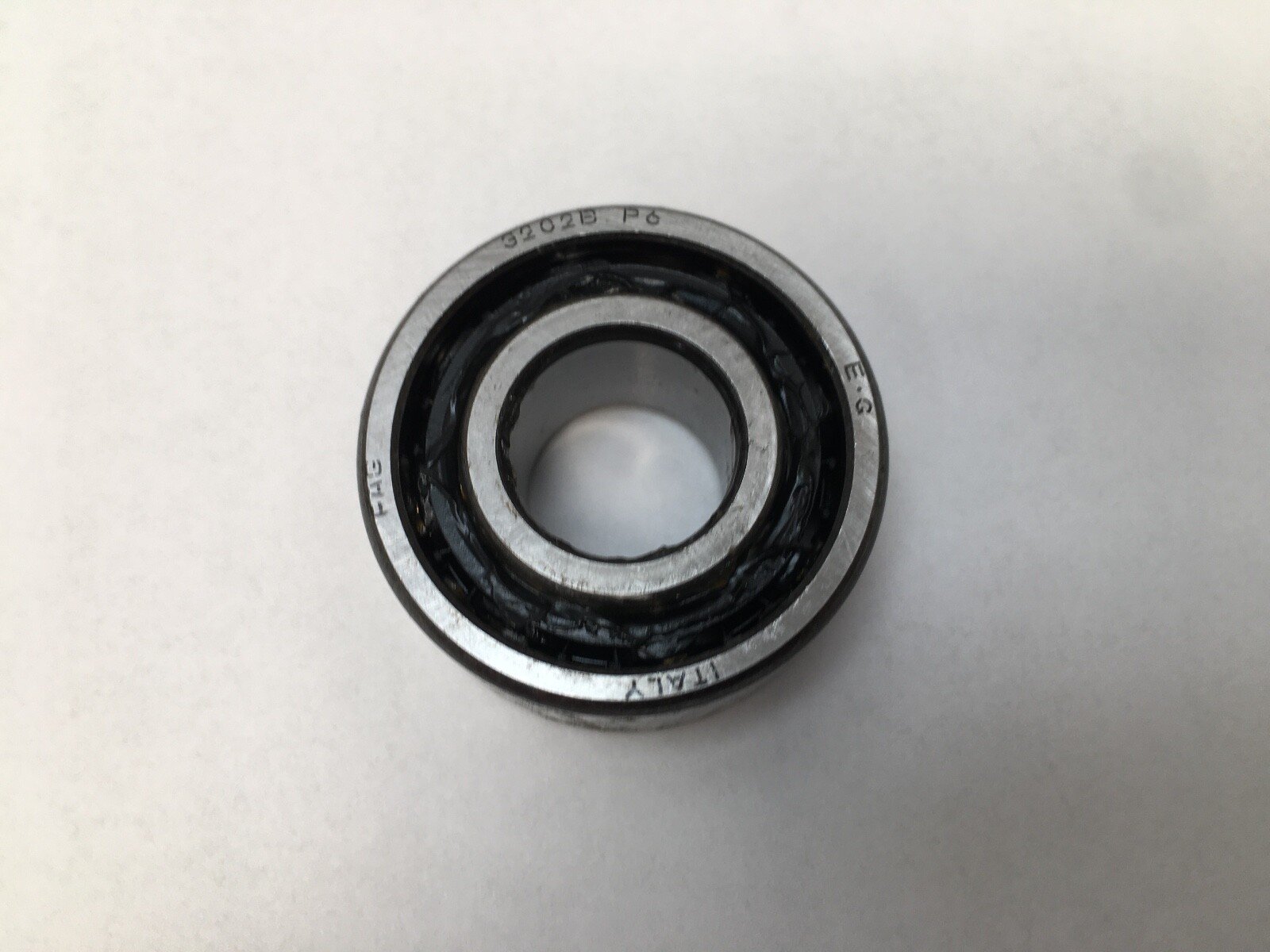

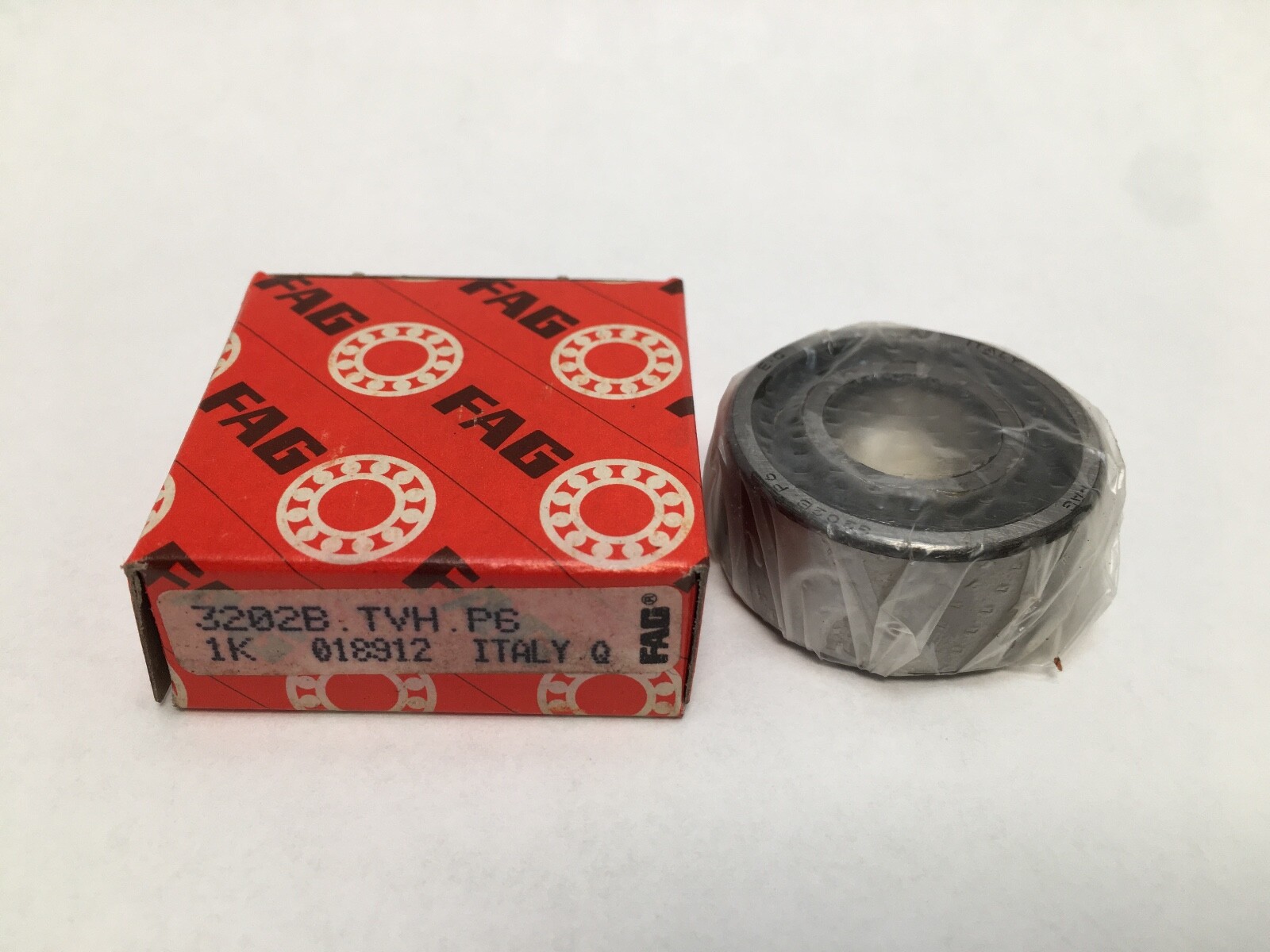

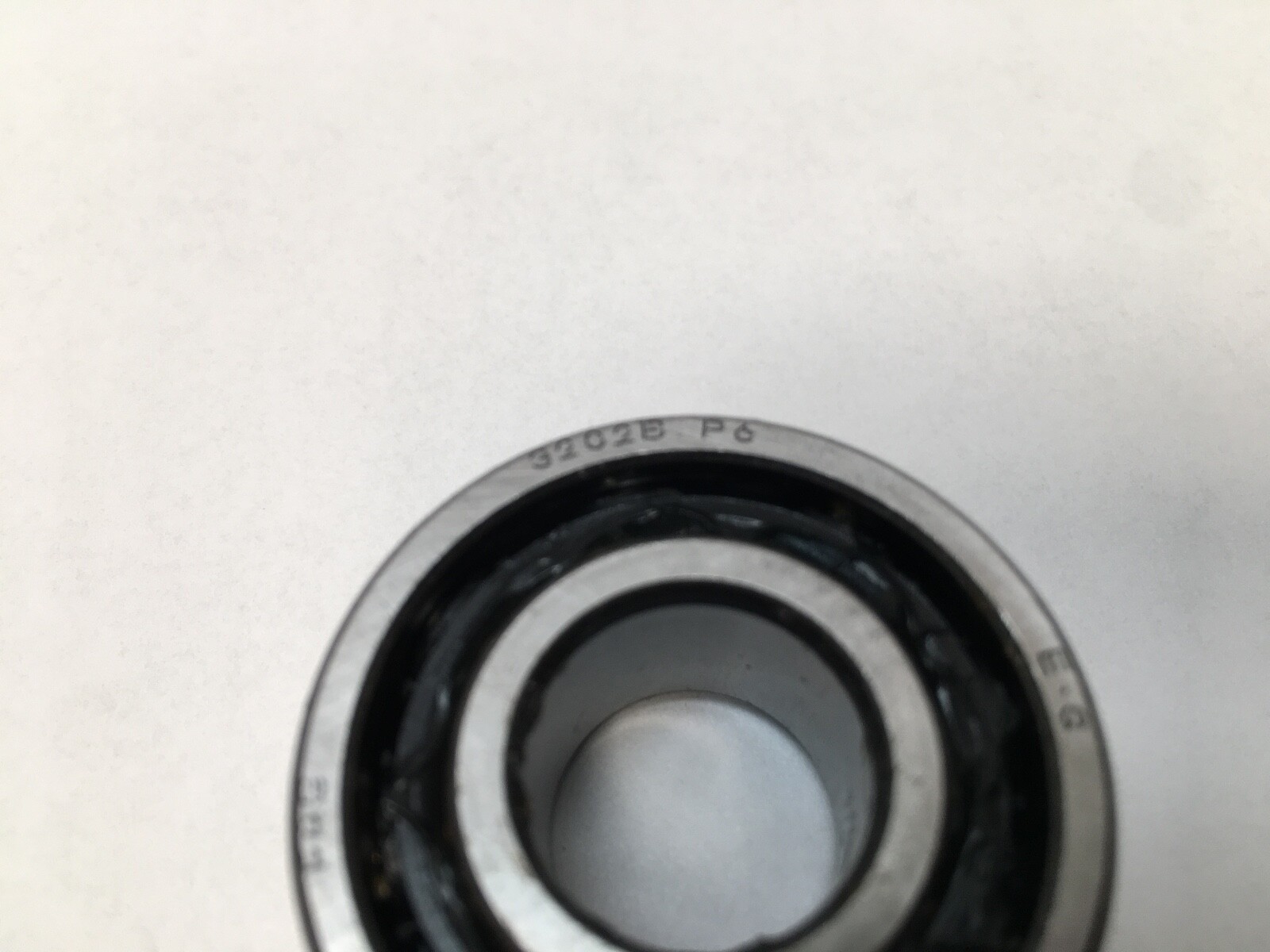

FAG 3202-B-TVH-P6 double-row angular contact ball bearing, open, with a glass-fibre reinforced polyamide snap cage and P6 precision. One complete non-separable bearing: both rings, both ball rows and the cage. Unit Quantity: 1 Pc.
3202 — ISO double-row angular contact series 32, bore code 02 = 15 mm bore.
B — FAG modified internal construction, 25° contact angle on the 32xx-B-TVH design.
TVH — solid snap cage in glass-fibre reinforced polyamide, ball guided.
P6 — ISO tolerance class 6, tighter bore, outside diameter and running accuracy than standard P0.
Bore Diameter: 15 mm. Outside Diameter: 35 mm. Overall Width: 15.9 mm (5/8 in). Contact Angle: 25°. Number of Rows: 2. Closure Type: Open. Cage Material: Glass-fibre reinforced polyamide. Cage Type: Solid snap cage, ball guided. Precision Class: P6 / ABEC 3. Internal Clearance: CN. Harmonization Code: 8482.10.50.
The bearing is 15 mm bore x 35 mm outside diameter x 15.9 mm wide. Two ball rows at opposed angles share one pair of rings, so the unit carries radial load and thrust in both directions.
Cross-references: SKF 3202 A; NSK 3202BTN; NTN 5202; MRC 5202 (30° vs 25°); FAG 3202-BD-XL-TVH (30°, X-life); FAG 3202-B-2Z-TVH (shielded both sides); FAG 3202-B-2RSR-TVH (sealed both sides). Search variants: 3202BTVH.P6, 3202BTVHP6, 3202-B-TVH-P6, 3202 B TVH P6, 3202BTVH, 3202-B-TVH, 5202B.
The -B design has a 25° contact angle; FAG’s 3202-BD-XL-TVH runs 30°.
P6 is ISO tolerance class 6, tighter than the standard P0 class.
Bore 15 mm, outside diameter 35 mm, width 15.9 mm (5/8 in).
