Super-precision angular contact ball bearing, 75 x 115 x 20 mm, 15-degree contact angle, ABEC 7/9. Matched duplex set, light preload, phenolic cage.
List Price
$456.62
48 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9115WI DUL |
| Model | 2MM9115WICRDUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm |
| Width | 20 mm |
| Series | 9100WI |
|---|---|
| Preload | Light |
| Base Number | 9115 |
| Total Width | 40 mm |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 2MM9115WI-DUL, 2MM-9115-WI-CR-DUL, 2MM 9115 WI CR DUL, 7015C, 7015 |
| Manufacturer Status | Active |
| Arrangement Configuration | Duplex, universally ground (DUL) |
| Precision Class | ABEC 7/9 (ISO P4S) |
| Dynamic Load Rating C1 | 51600 N (11600 lbf) per bearing |
| Additional Attributes | Shaft backing shoulder diameter 82.7 mm (3.260 in); housing backing shoulder diameter 107.3 mm (4.230 in); maximum shaft fillet radius 1 mm (0.039 in); outer ring to-clear radius 1 mm (0.039 in); ISO method dynamic rating per row 46800 N (10500 lbf) |
| Cage Type | CR – Phenolic Outer Land Riding Cage |
| Dynamic Load Rating | 51600 N (11600 lbf) per bearing |
| Static Load Rating | 43500 N (9790 lbf) per bearing |
| Precision Rating | ABEC 7/9 (ISO P4S) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 11000 |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex, universally ground (DUL) |
| Design Units | Metric |
| Part Number | 2MM9115WICRDUL |
| Cross Reference 1 | 7015C-T-P4S-DUL |
|---|

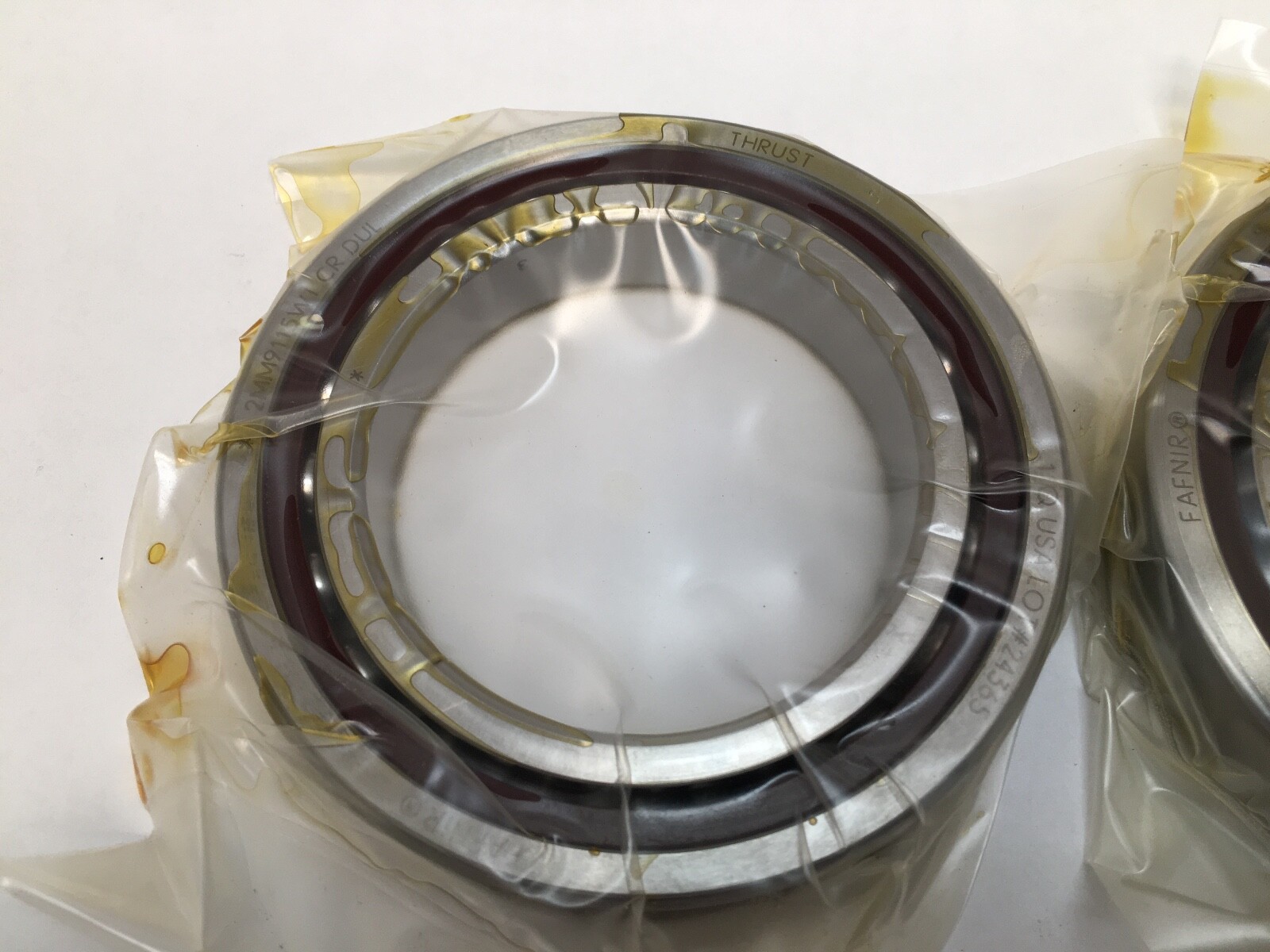

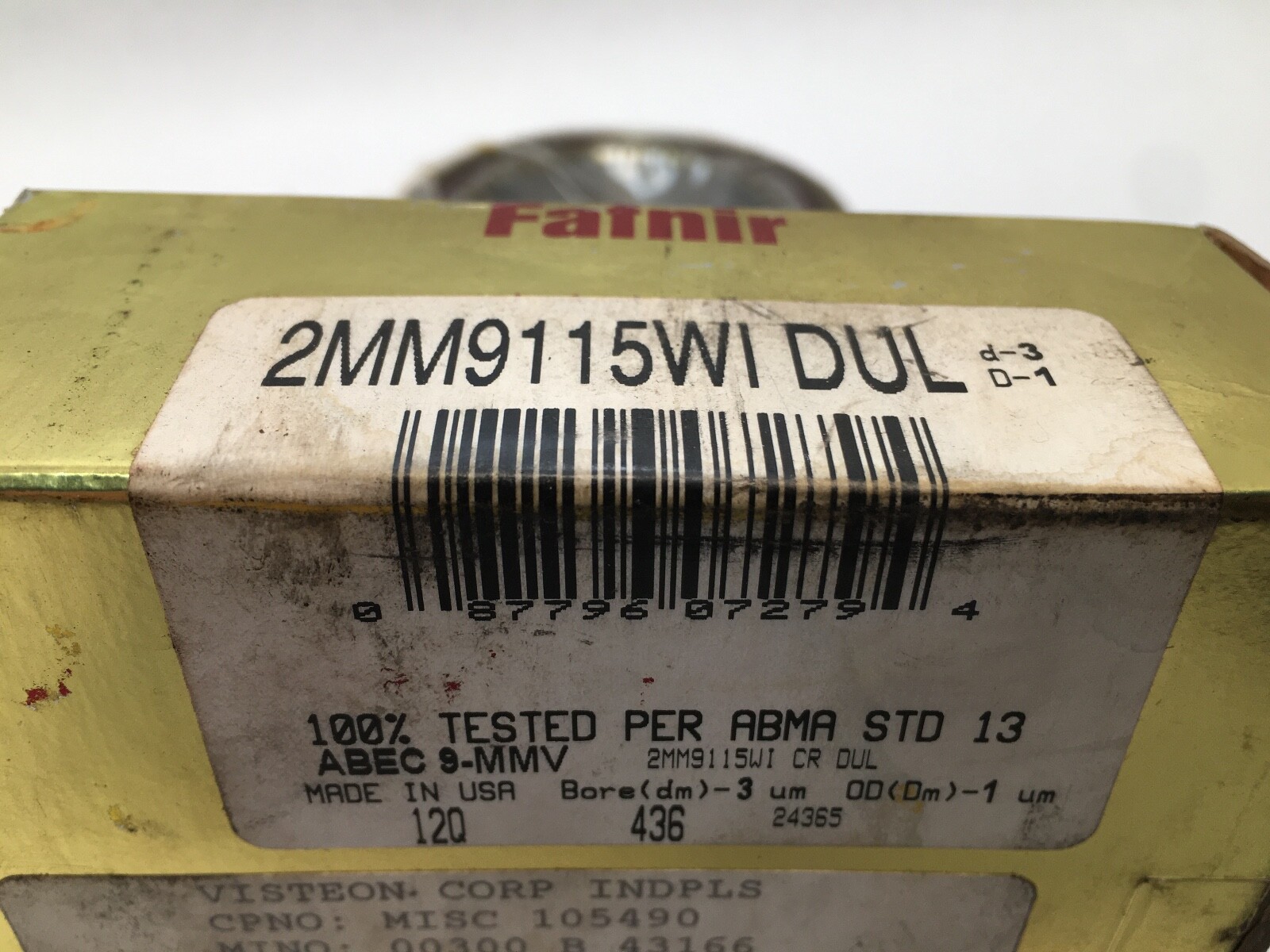

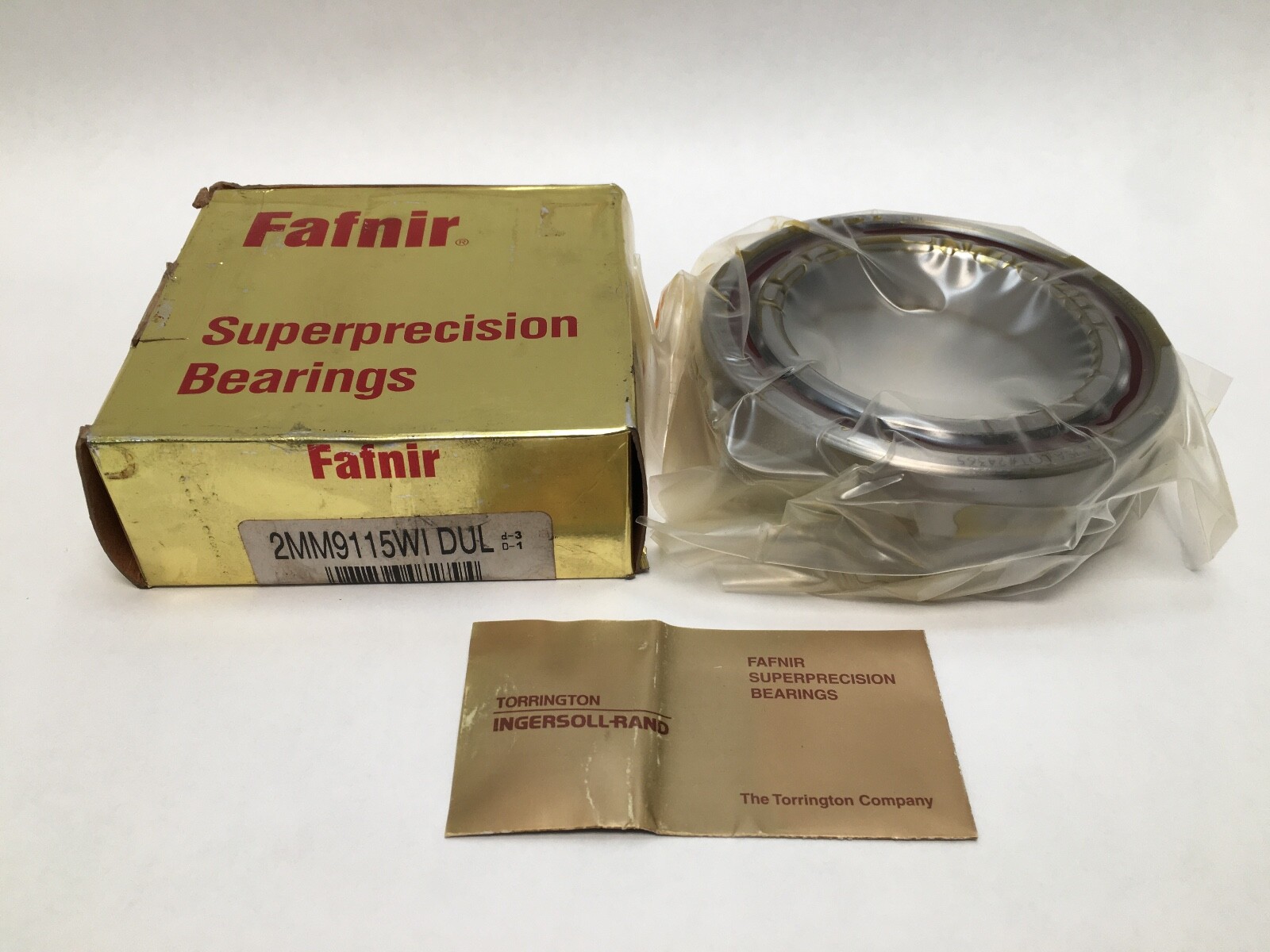

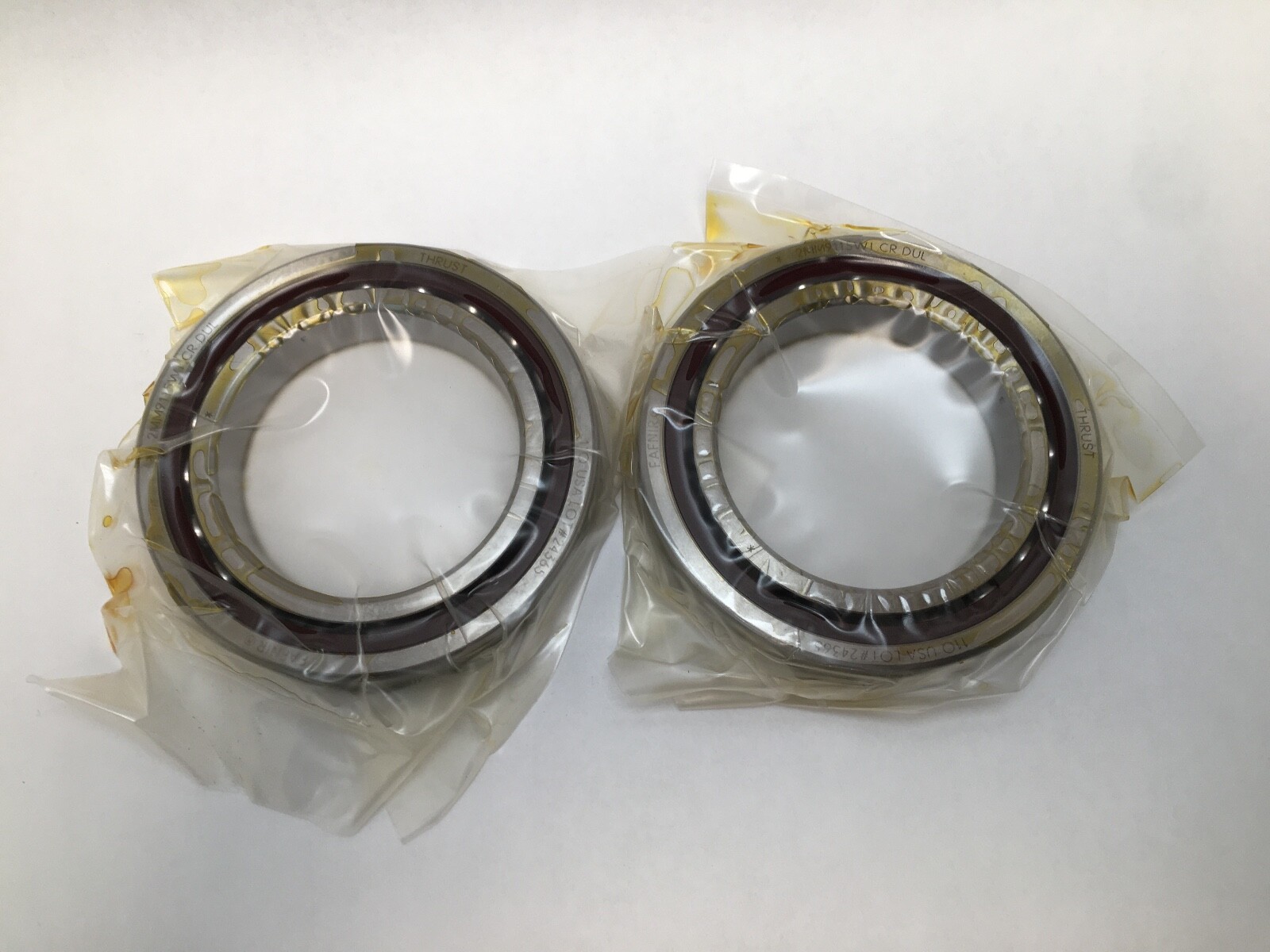

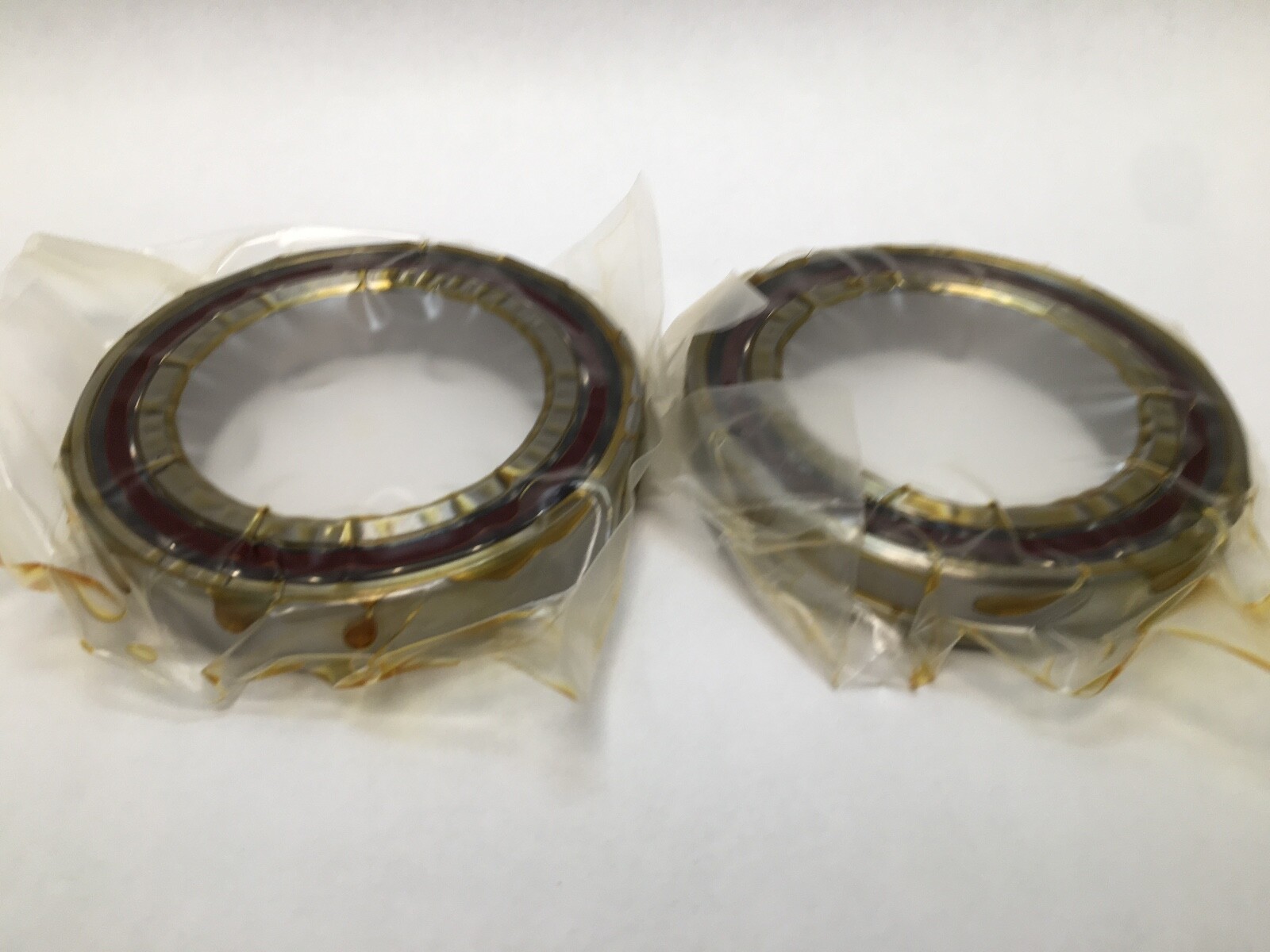

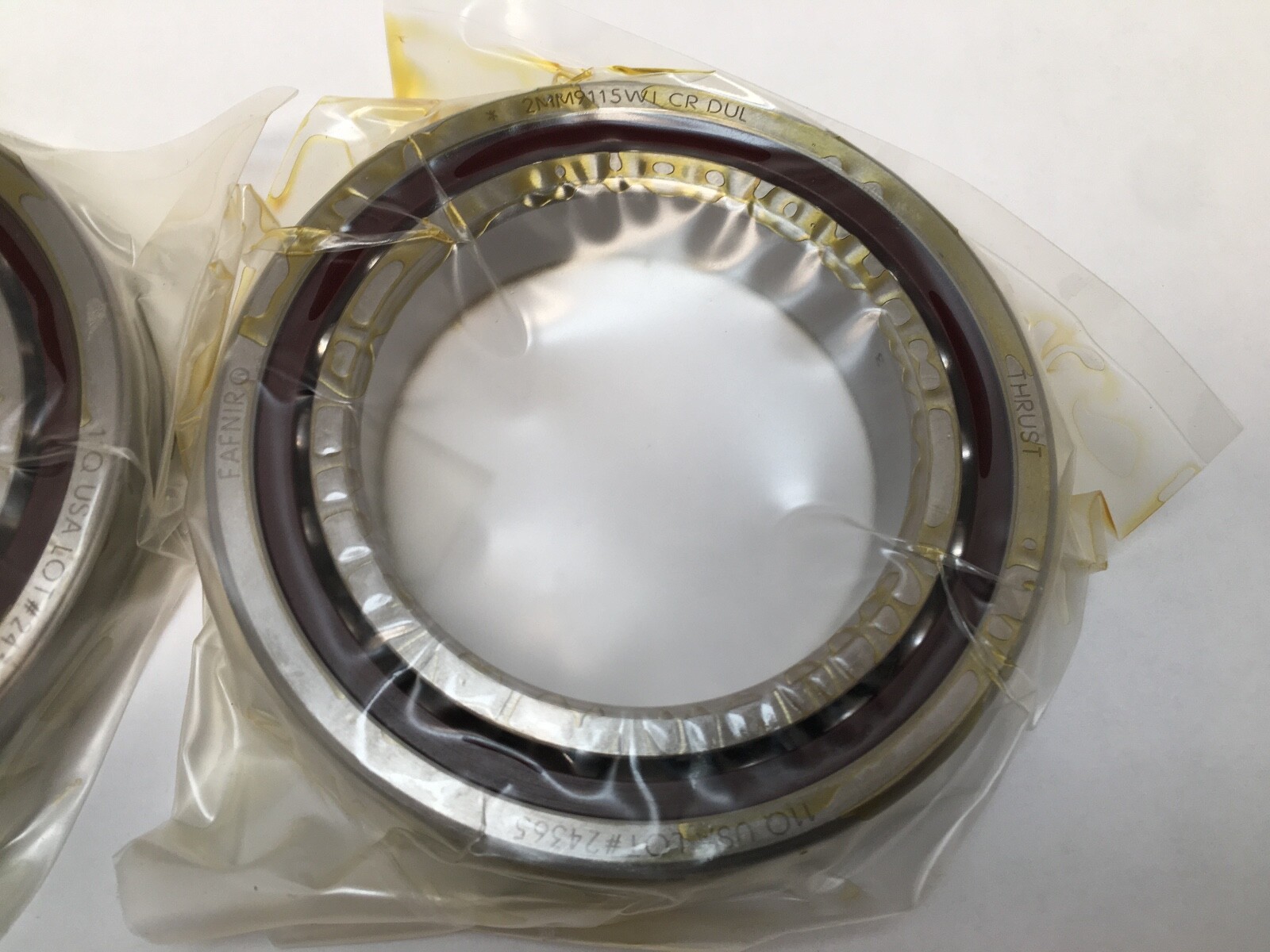

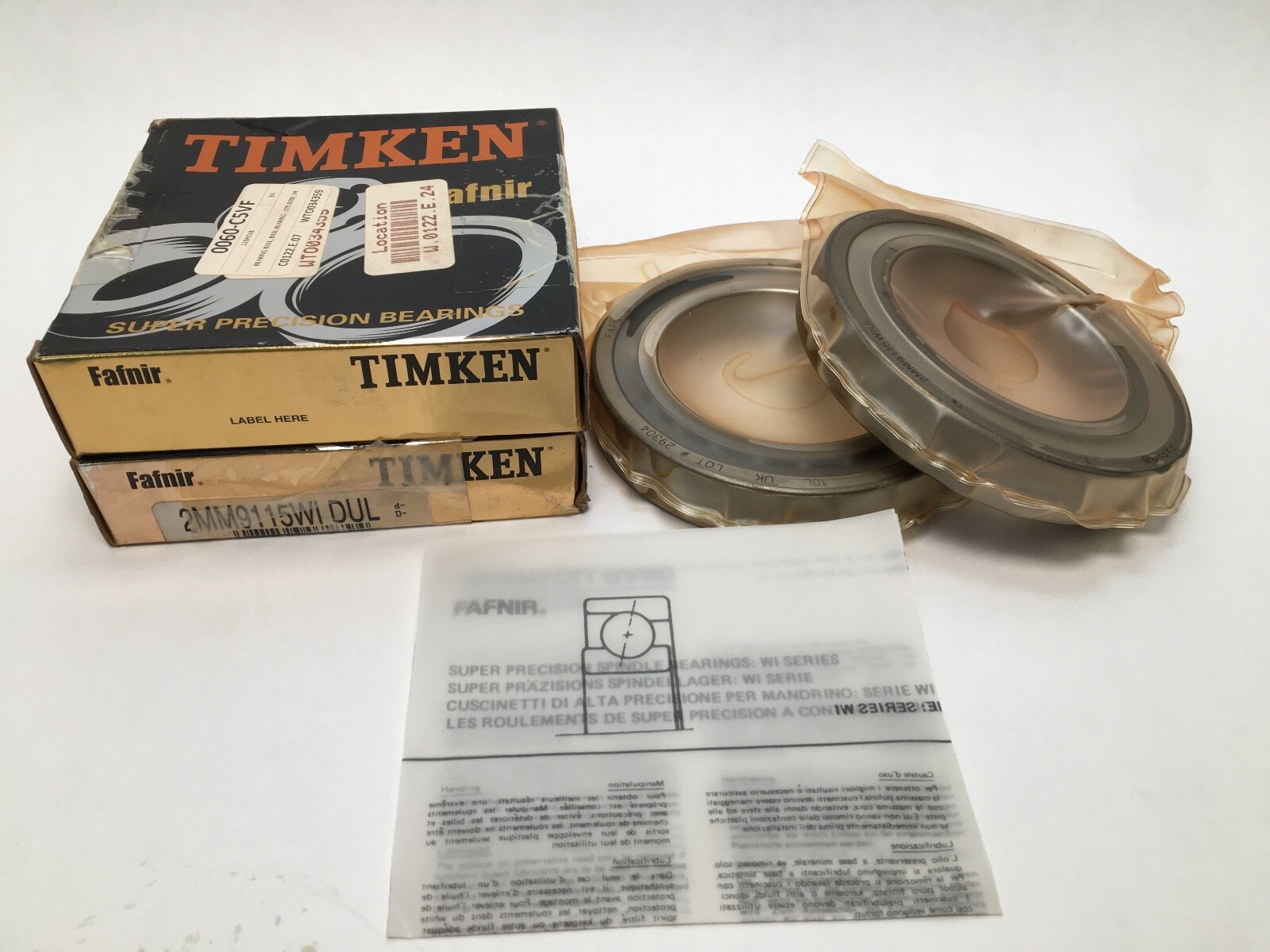

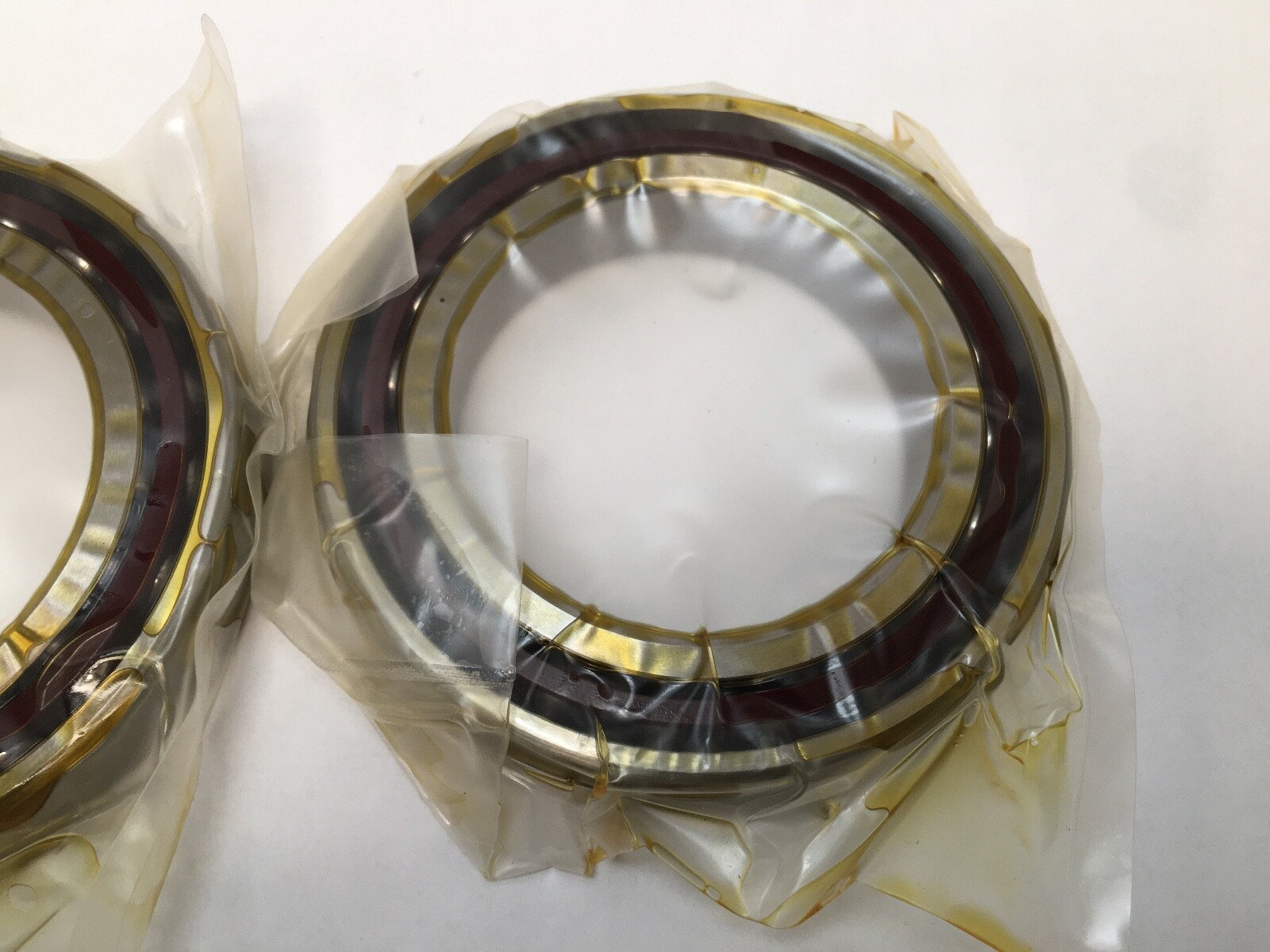

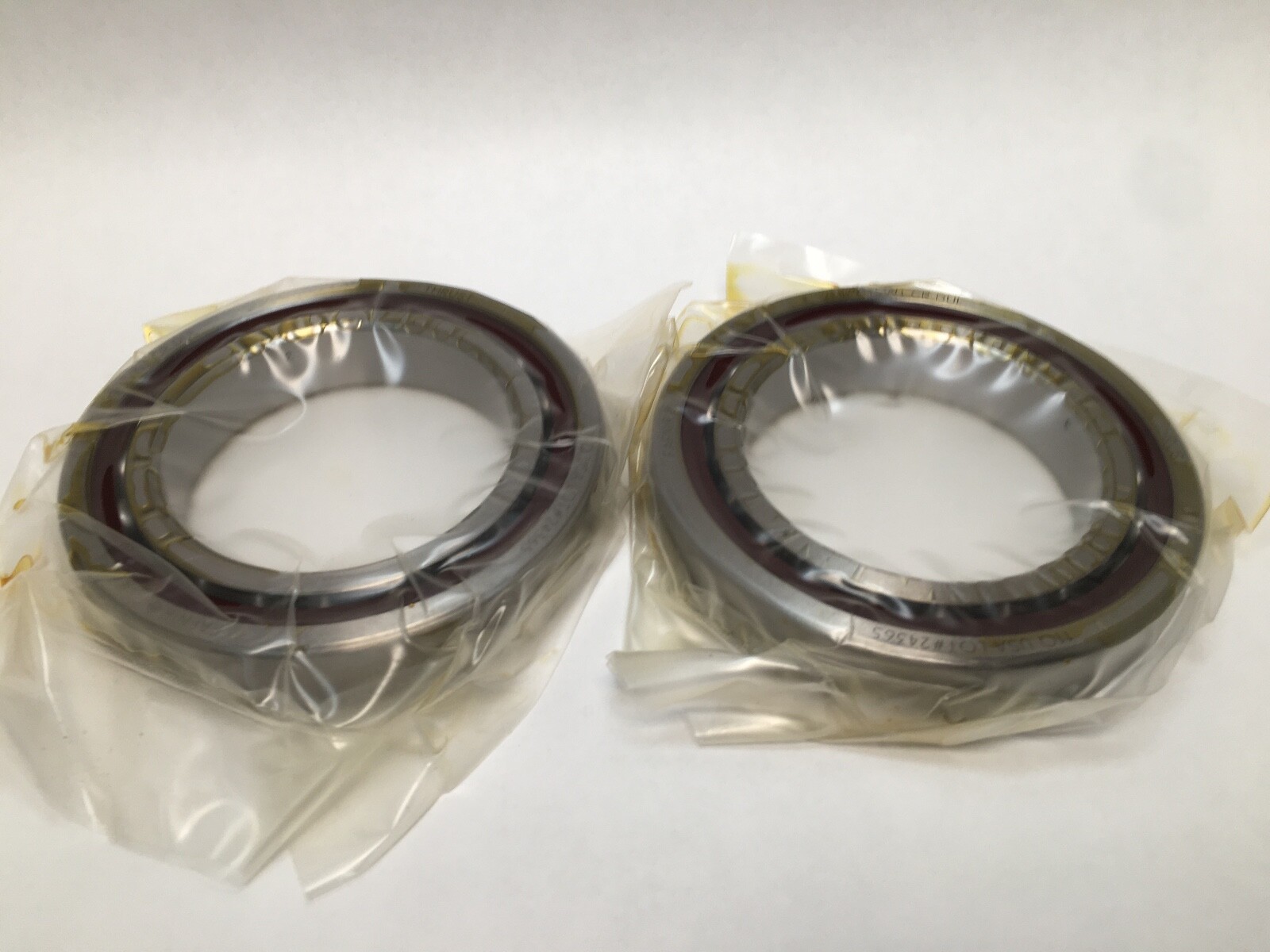

Fafnir 2MM9115WICRDUL, a super-precision spindle angular contact ball bearing from Timken’s Fafnir 9100WI range, supplied as a matched duplex set of 2 pieces. Bore Diameter: 75 mm. Outside Diameter: 115 mm. Width: 20 mm per bearing. Total Width: 40 mm across the set. Contact Angle: 15°. Preload: light. Phenolic cage, steel balls.

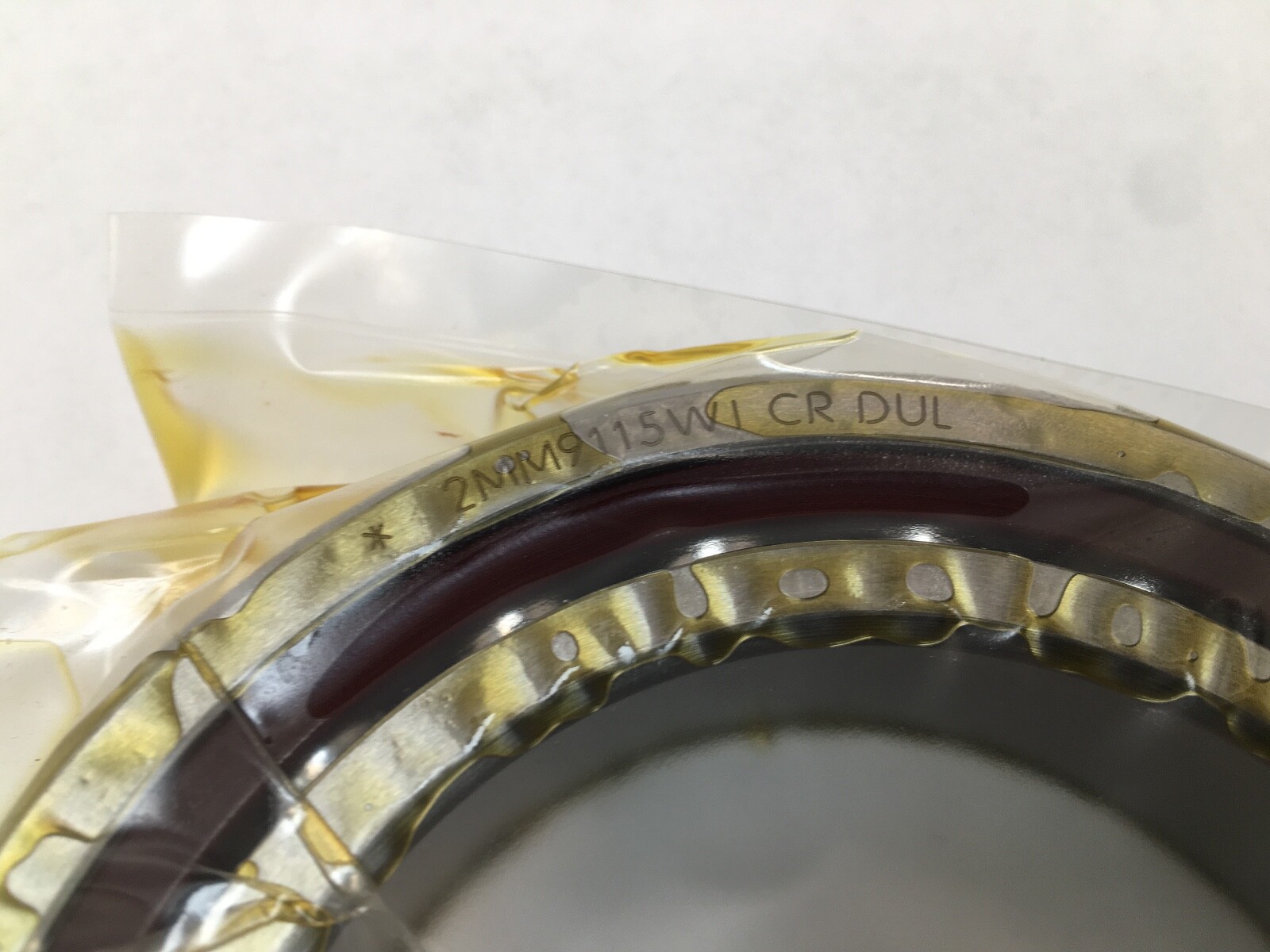

2MM — Fafnir super-precision spindle execution with a 15° contact angle.
9115 — 9100WI dimension series, bore code 15: 75 mm bore, 115 mm outside diameter, 20 mm width per bearing (ISO 7015 envelope).
WI — low shoulder on both rings.
CR — phenolic outer land riding cage.
DUL — duplex, light preload. Two universally ground bearings with flush-ground faces.
Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm per bearing. Total Width: 40 mm. Contact Angle: 15°. Precision Class: ABEC 7/9 (ISO P4S). Dynamic Radial Load Rating (C1): 51,600 N (11,600 lbf) per bearing. Dynamic Radial Load Rating, ISO method (C1 per row): 46,800 N (10,500 lbf). Static Radial Load Rating (C0): 43,500 N (9,790 lbf) per bearing. Limiting Speed: 11,000 rpm grease; 22,000 rpm oil. Preload: Light. Cage Type: CR, phenolic outer land riding. Cage Material: Phenolic. Rolling Elements: steel balls. Number Of Rows: 1 per bearing. Unit Quantity: 2 Pcs.
Shaft Backing Shoulder Diameter: 82.7 mm (3.260 in). Housing Backing Shoulder Diameter: 107.3 mm (4.230 in). Maximum Shaft Fillet Radius: 1 mm (0.039 in). Outer Ring To-Clear Radius: 1 mm (0.039 in). Mounting Arrangement: duplex, universally ground.
Timken world part number: 7015C-T-P4S-DUL. Number variants: 2MM9115WI-DUL, 2MM9115WICRDUL, 2MM-9115-WI-CR-DUL, 2MM 9115 WI CR DUL, 7015C.
Bore 75 mm, outside diameter 115 mm, width 20 mm per bearing, 40 mm total width for the set.
11,000 rpm on grease and 22,000 rpm on oil.
The world part number is 7015C-T-P4S-DUL.
