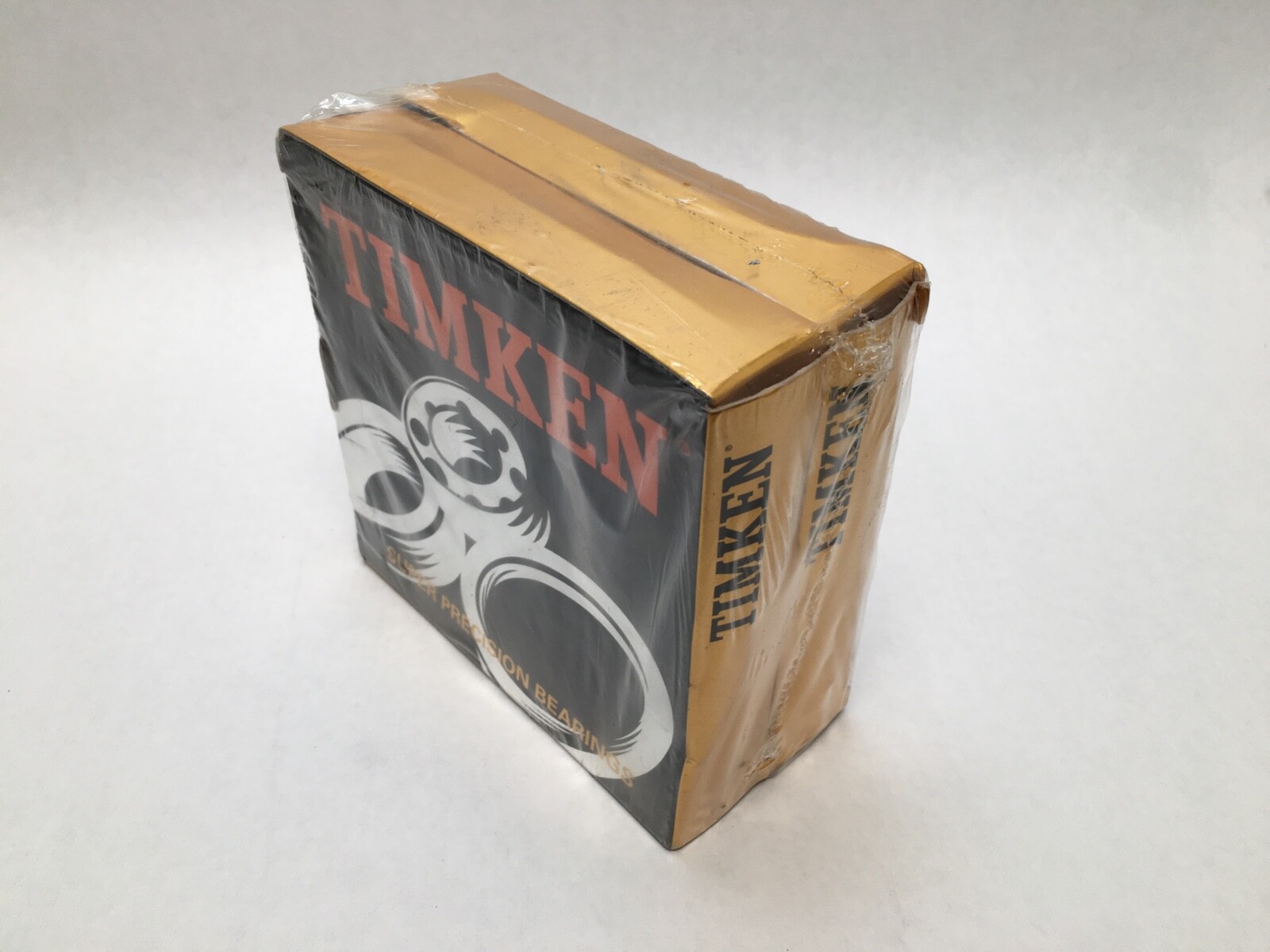

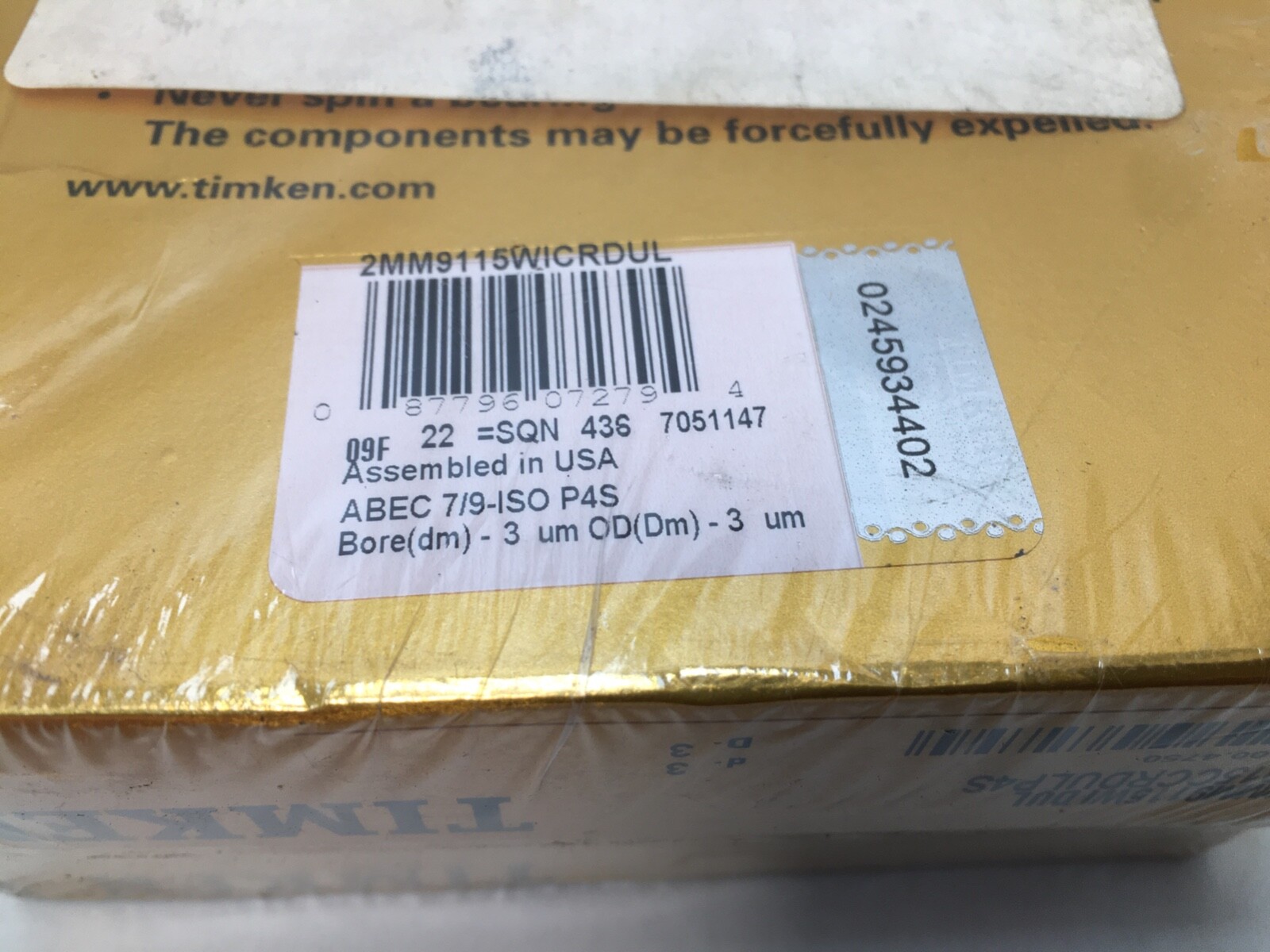

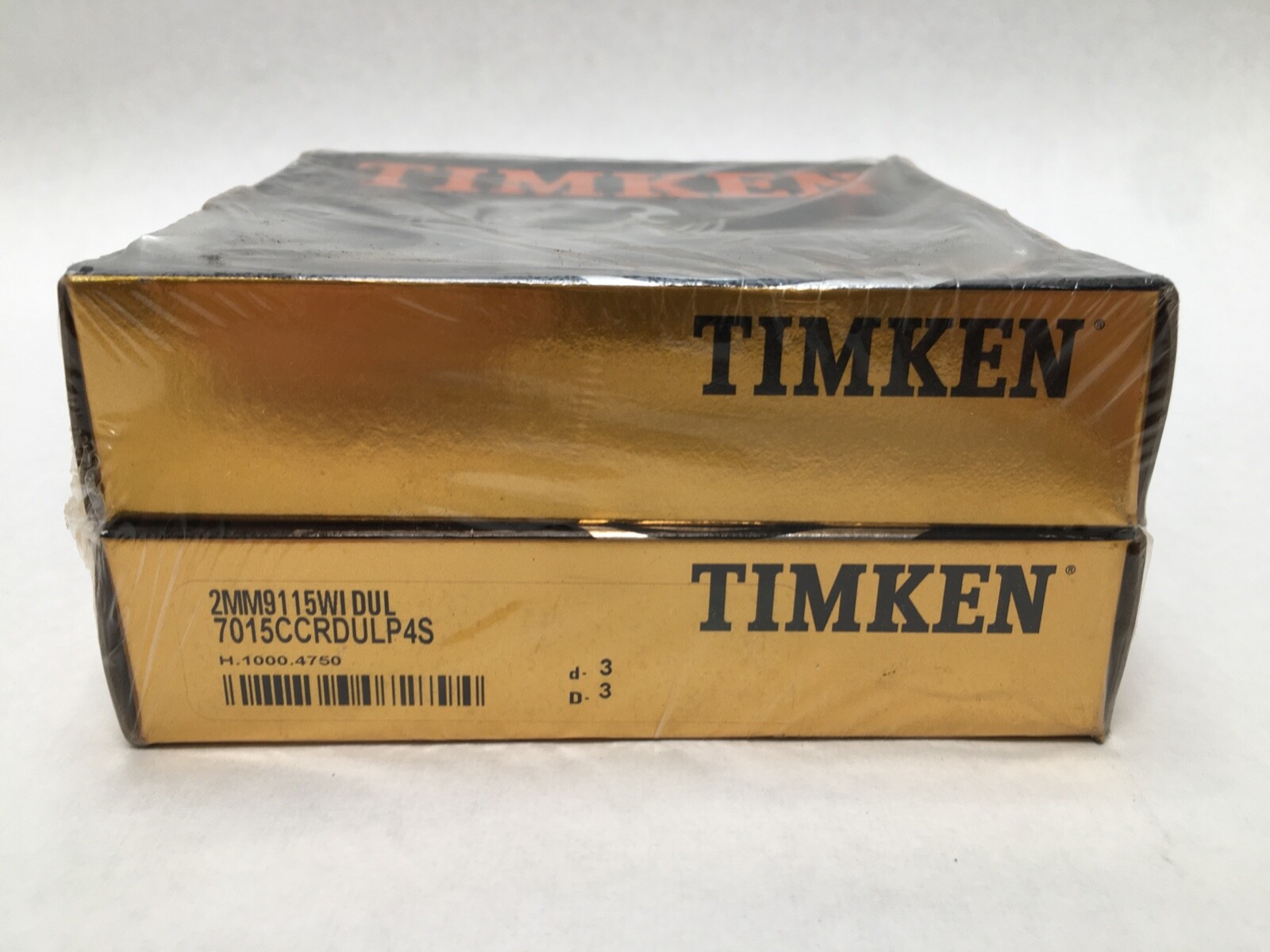

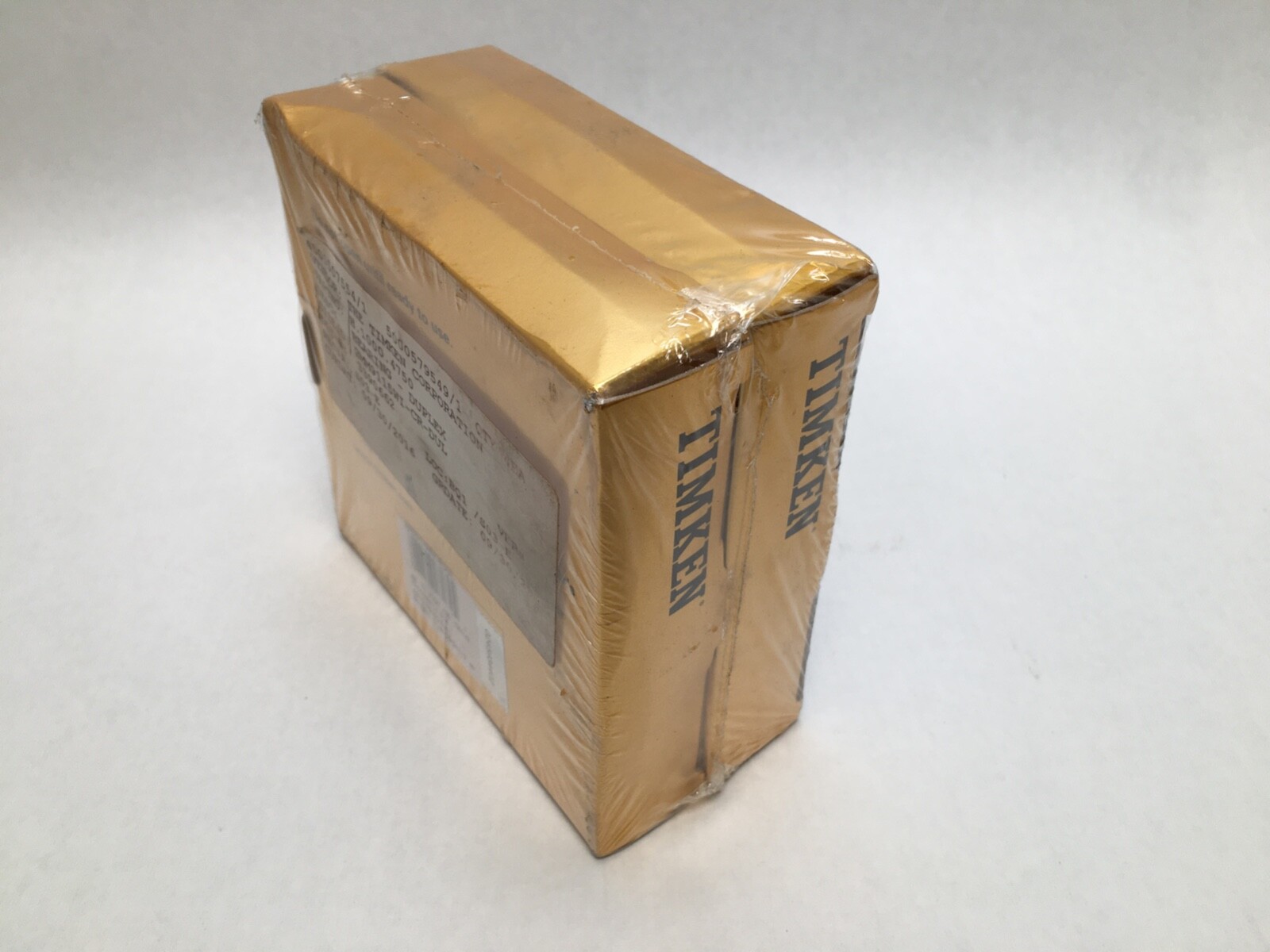

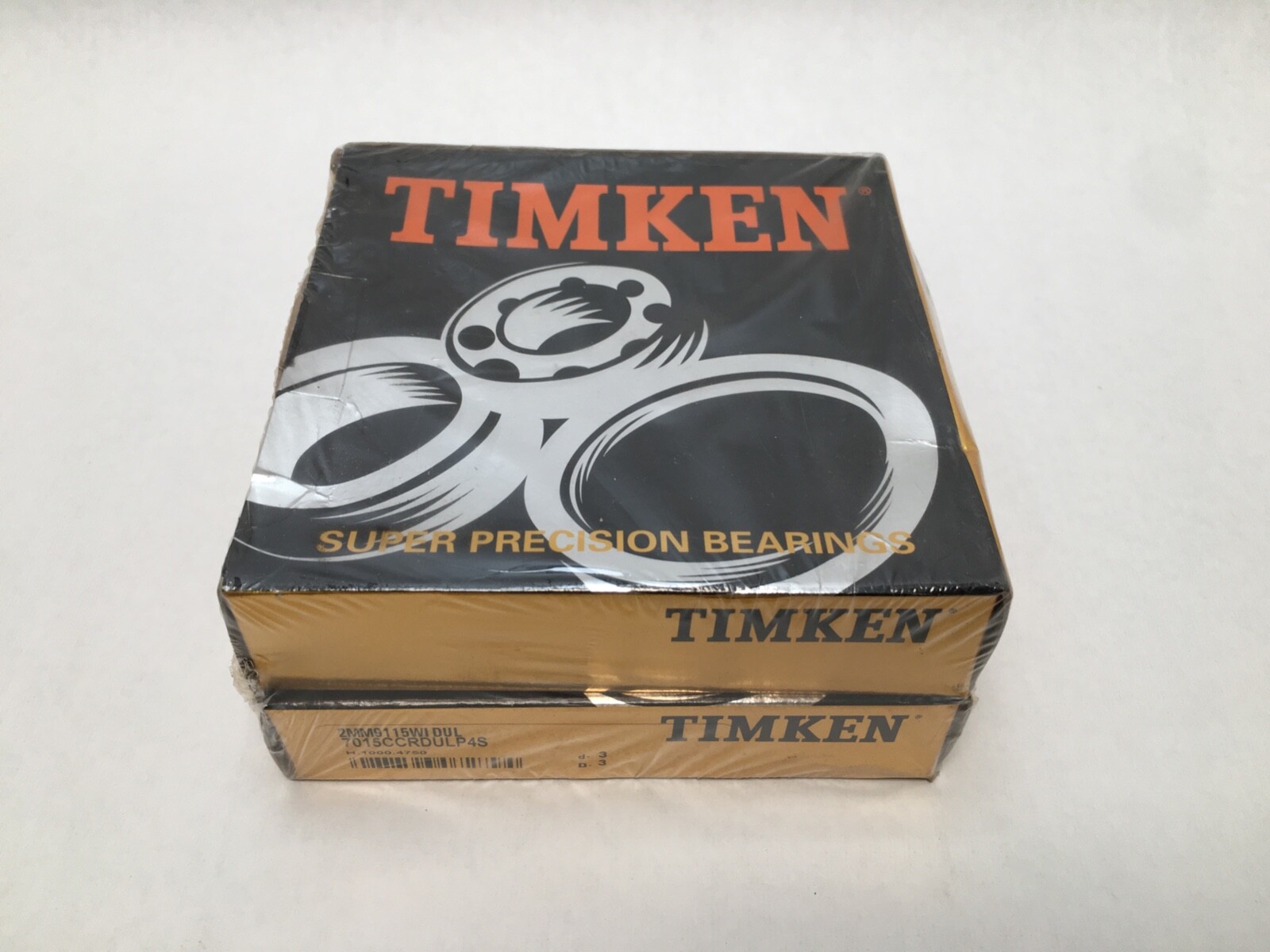

Super-precision angular contact ball bearing, 75 x 115 x 20 mm, 15 degree contact angle, duplex light preload, phenolic cage. 2 Pcs matched pair.
List Price
$456.62
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 2MM9115WI-CR-DUL |
| GTIN | 087796072794 |
| Model | 2MM9115WIDUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm |
| Width | 20 mm |
| Material | Chrome Steel |
|---|---|
| Series | 9100 |
| Preload | Light |
| Base Number | 7015 |
| Industry Terms | Spindle bearing, super precision angular contact, duplex matched pair, machine tool bearing, ABEC 7 bearing |
| Common Misspellings | Fafner 2MM9115WI, Faffnir 2MM9115WICRDUL, Timkin 2MM9115WI, 2M9115WI |
| Application Types | Machine tool spindles, grinding spindles, high-speed milling heads, precision boring spindles |
| Bore Shaft Size | 75 mm (2.9528 in) |
| Mpn Variants | 2MM9115WI-CR-DUL, 2MM9115WICRDUL, 2MM9115WI-DUL, 2MM 9115 WI CR DUL, 2MM9115WIDUL |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 2MM9115WI-CR-DUL |
| Closure Type | Open |
| Cross Reference 1 | SKF 7015 CD/P4A duplex - 15 deg |
|---|---|
| Cross Reference 2 | FAG B7015-C-T-P4S-UL - 15 deg, P4S |
| Cross Reference 3 | NSK 7015 CTR DUL P4 - 15 deg |
| Cross Reference 4 | RHP 7015CTDULP4 - 15 deg |
| Cross Reference 6 | 2MM9115WI-CR-DUM (medium preload, related) |
| Cross Reference 7 | 3MM9115WI-CR-DUL (25°, related size) |
Fafnir 2MM9115WI-CR-DUL is a super-precision angular contact ball bearing supplied as a universally ground duplex pair. Bore 75 mm, outside diameter 115 mm, ring width 20 mm. ISO 7015 envelope. Open. Sale unit: 2 Pcs, matched pair. Fafnir is the super-precision line of the Timken Company.
2MM — 15° contact angle (3MM is 25°); MM is precision class P4.
9115 — Fafnir 9100 series number for ISO 7015, 75 x 115 x 20 mm.
WI — low shoulder on both rings, the duplex form.
CR — phenolic cage.
DU — universally ground duplex pair.
L — light preload.
Bore Diameter: 75 mm (2.9528 in). Outside Diameter: 115 mm. Width: 20 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Number of Rows: 1 per bearing. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Bearing Material: Chrome steel. Unit Quantity: 2 Pcs.
Bore Diameter: 75 mm. Outside Diameter: 115 mm. Ring width: 20 mm each. Base Number: 7015.
Cross-references at 15° contact angle: SKF 7015 CD/P4A duplex, FAG B7015-C-T-P4S-UL, NSK 7015 CTR DUL P4, RHP 7015CTDULP4. Related parts: 2MM9115WI-CR-DUM with medium preload, 3MM9115WI-CR-DUL with 25° contact angle. MPN variants: 2MM9115WI-CR-DUL, 2MM9115WICRDUL, 2MM9115WI-DUL, 2MM 9115 WI CR DUL, 2MM9115WIDUL.
15°, from the 2MM prefix.
Bore 75 mm, outside diameter 115 mm, width 20 mm per bearing.
2 Pcs, one universally ground duplex pair with light preload.
