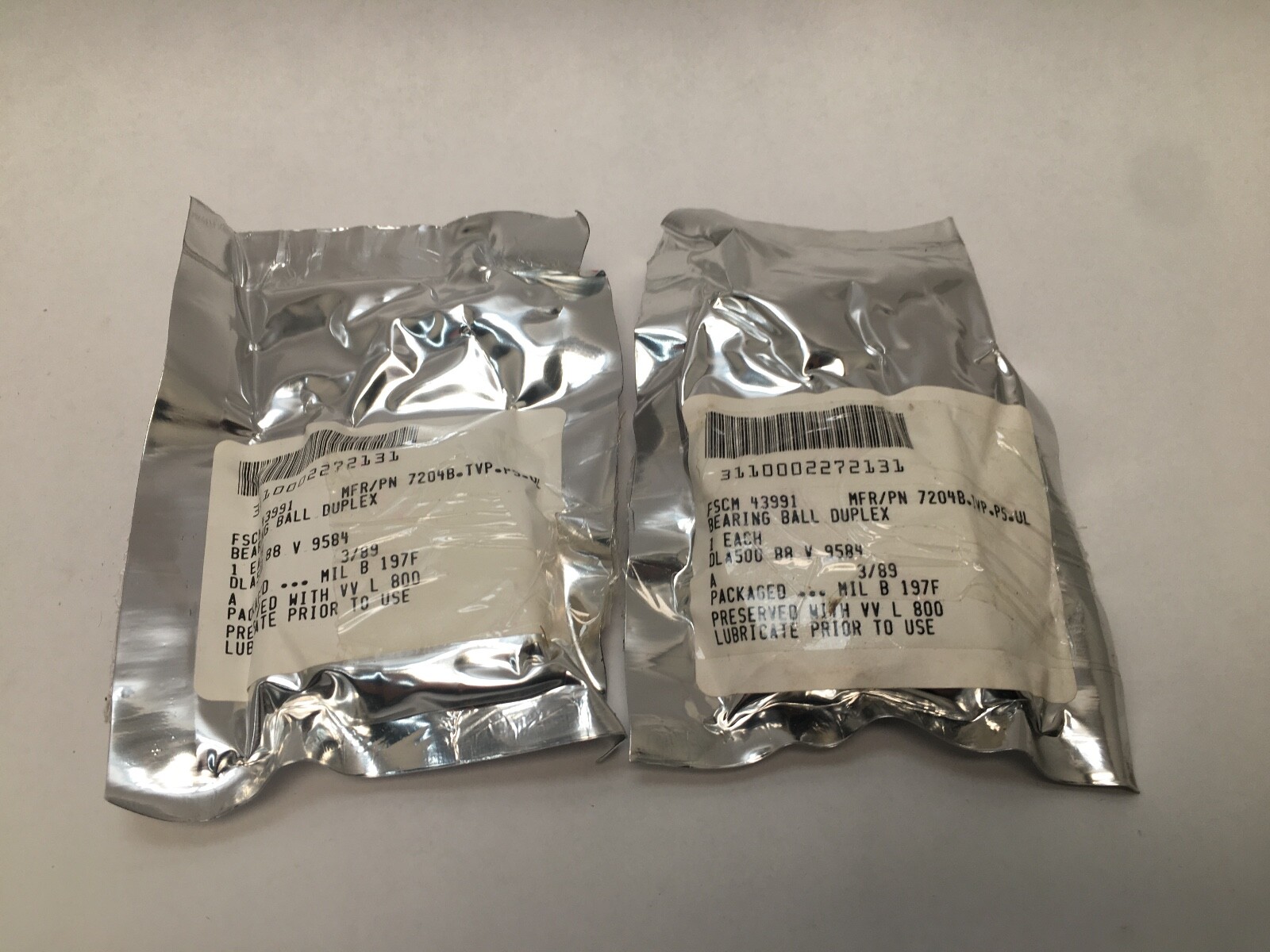

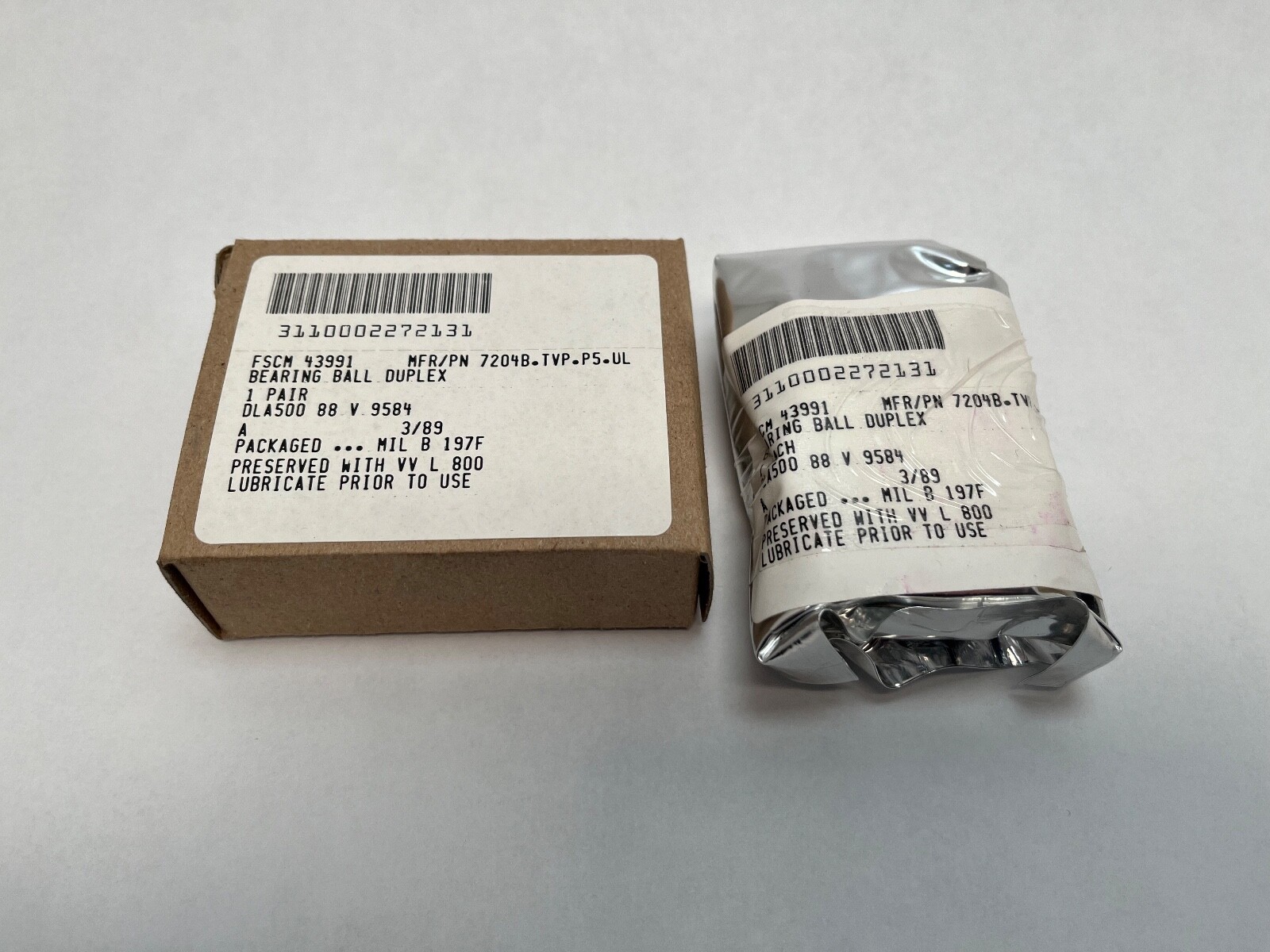

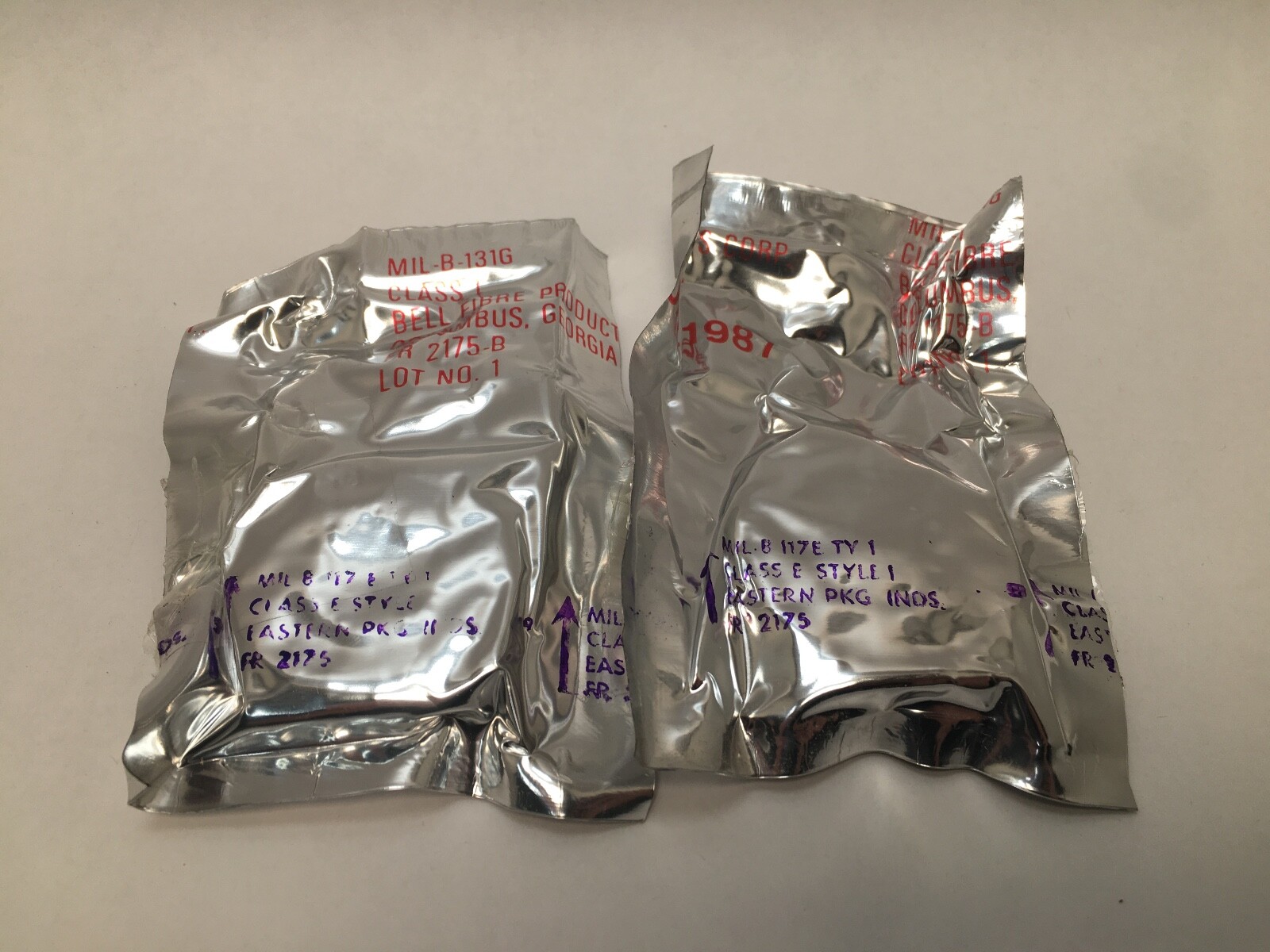

Angular contact ball bearing matched pair, 20 x 47 x 14 mm, 40 deg contact angle, P5 precision, polyamide cage, light preload, universally matchable.
List Price
$141.11
255 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7204B.TVP.P5.DUL |
| Model | 7204-B-TVP-P5-DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 14 mm per bearing |
| Series | 7200 |
|---|---|
| Preload | Light (DUL) |
| Industry Terms | Duplex spindle bearing pair; matched angular contact set; 40 degree ACBB |
| Common Misspellings | 7204BTVP P5 DUL; 7204 BTVP.P5.DUL; FAG 7204 B TVP P5 DUL pair |
| Total Width | 28 mm as a mounted pair |
| Bore Shaft Size | 20 mm |
| Mpn Variants | 7204BTVP.P5.DUL; 7204B.TVP.P5.DUL; 7204-B-TVP-P5-DUL; 7204BTVPP5DUL; 7204-B-XL-TVP-P5-UL; 7204 B TVP P5 DUL |
| Manufacturer Status | Superseded by 7204-B-XL-TVP-P5-UL |
| Arrangement Configuration | Matched pair, universally matchable |
| Precision Class | P5 |
| Closure Type | Open |
| Min Temp | -30 °C |
| Dynamic Load Rating | 14,900 N (14.9 kN) per bearing |
| Static Load Rating | 7,800 N (7.8 kN) per bearing |
| Precision Rating | P5 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.103 kg per bearing |
| Cage Material | Glass-fibre reinforced PA66 polyamide |
| Limiting Speed | 21,600 rpm |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Mounting Arrangement | Universal - DB, DF or DT |
| Dynamic Load Rating C1 | 14,900 N (14.9 kN) per bearing |
| Additional Attributes | Fatigue limit load Cur 540 N; load centre a 21.1 mm; ring stabilisation S0 to 150 °C; operating temperature -30 to +120 °C |
| Cross Reference 1 | FAG 7204-B-XL-TVP-P5-UL - current single bearing |
|---|---|
| Cross Reference 2 | FAG 7204-B-TVP-P5-DUM - medium preload |
| Cross Reference 3 | FAG 7204B.TVP.P5.UO - zero preload |

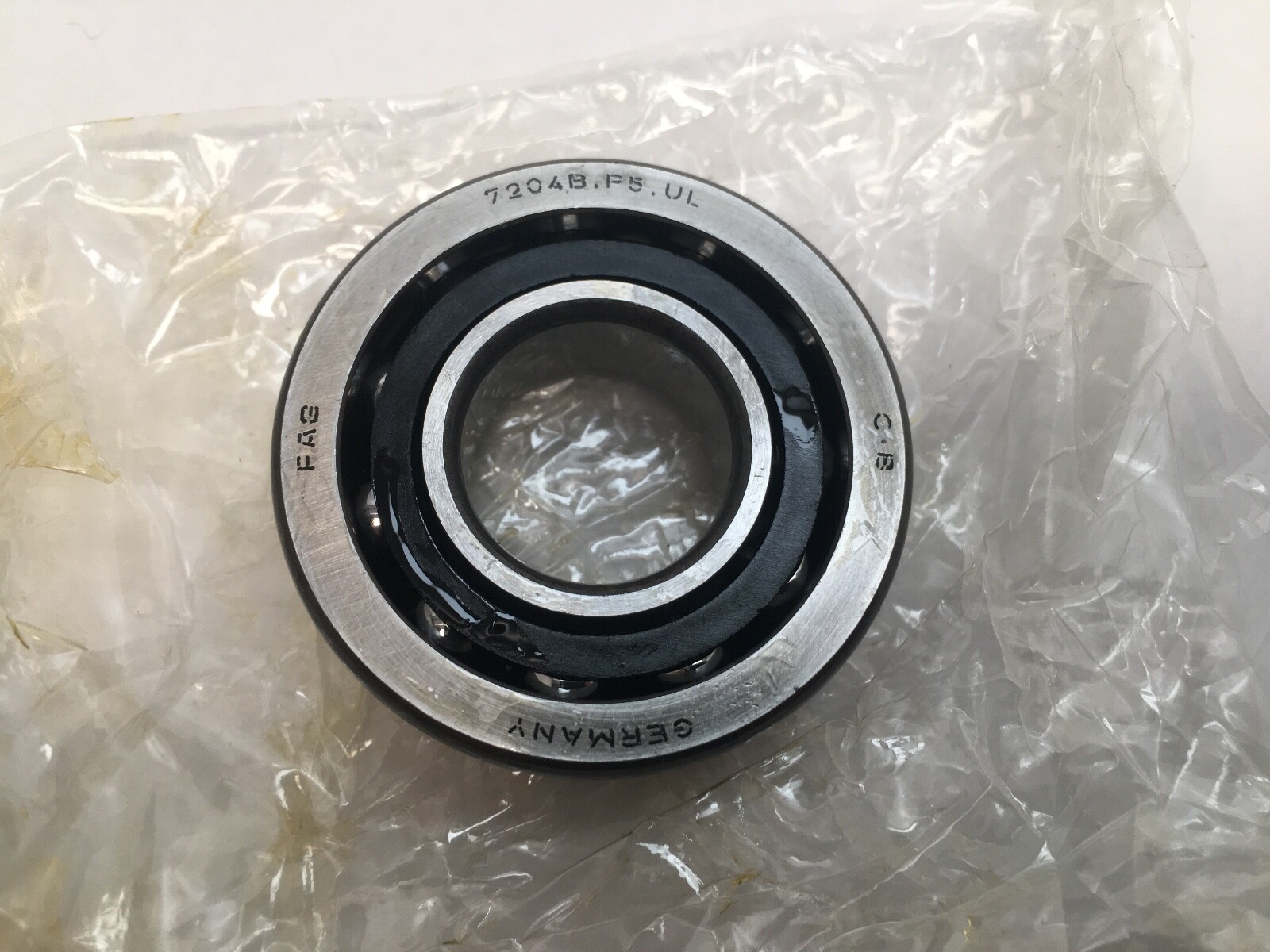

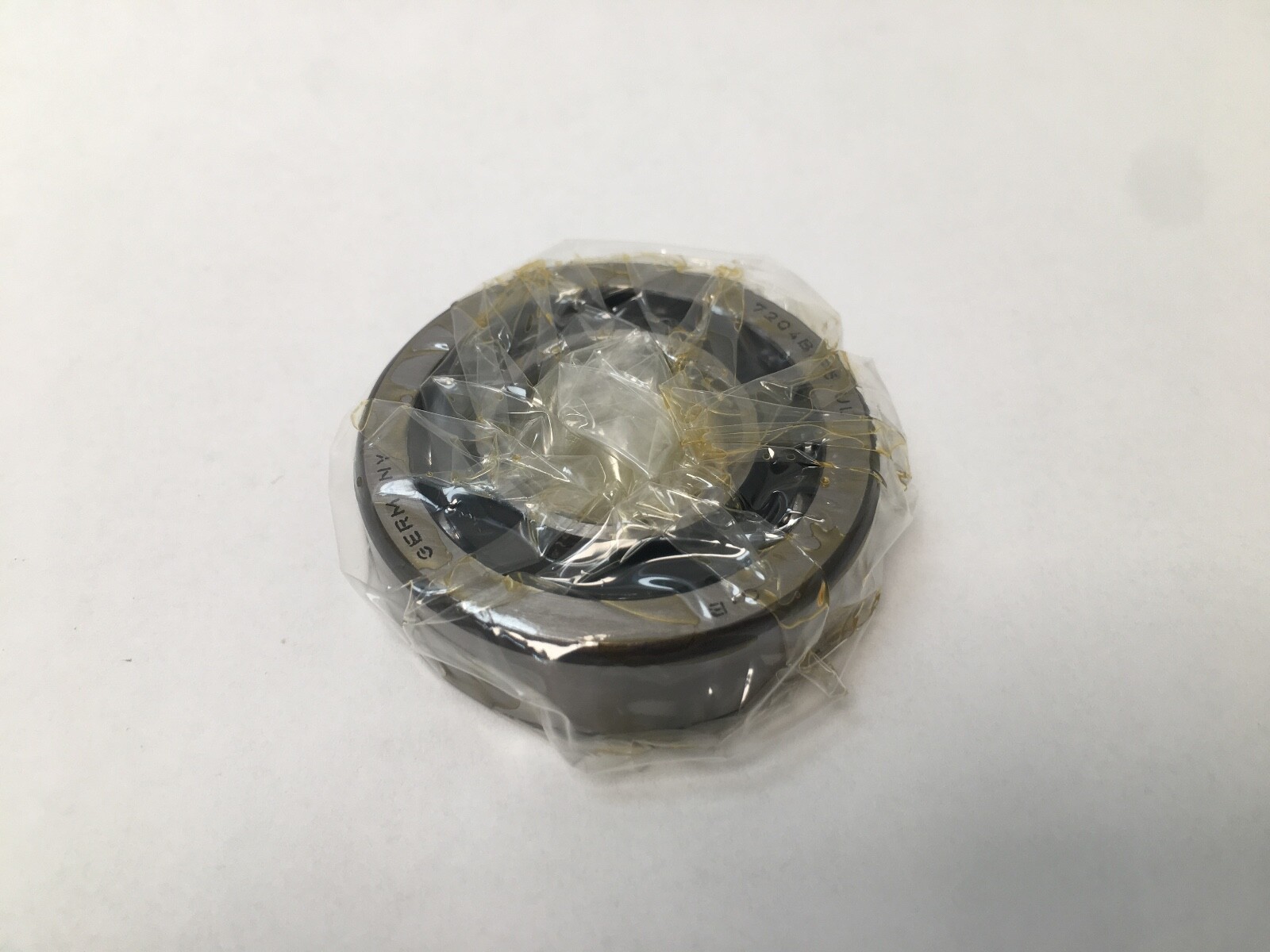

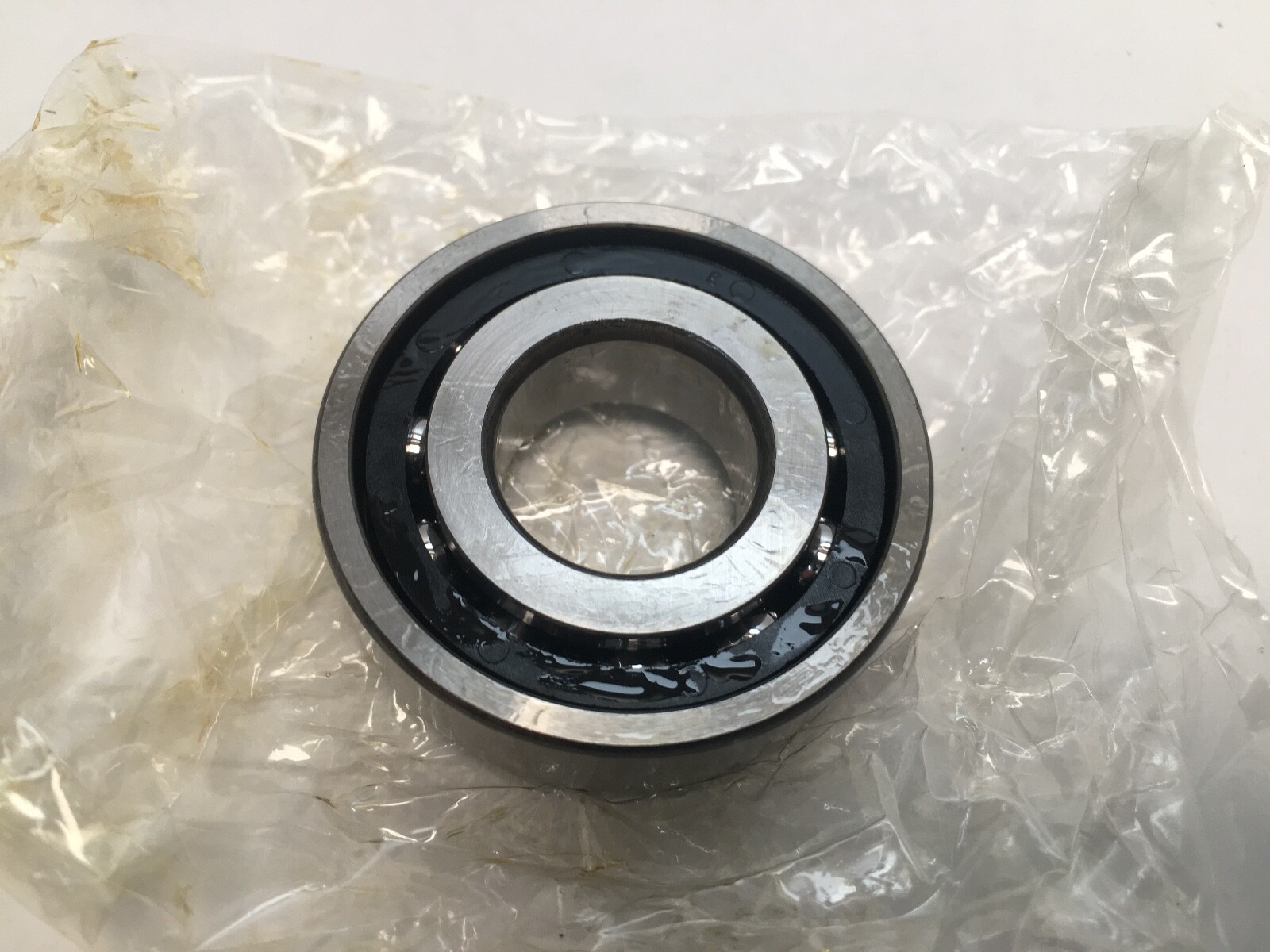

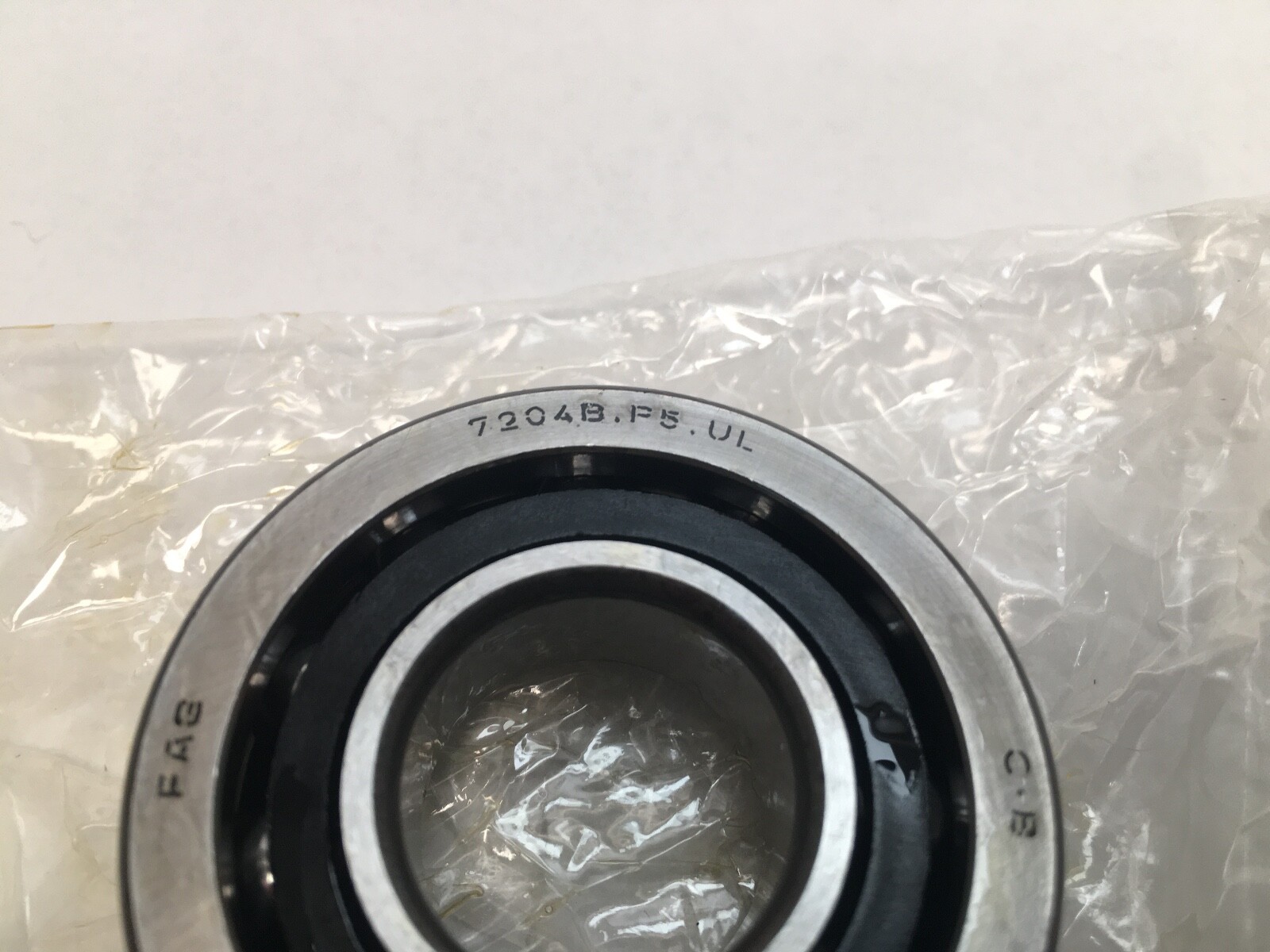

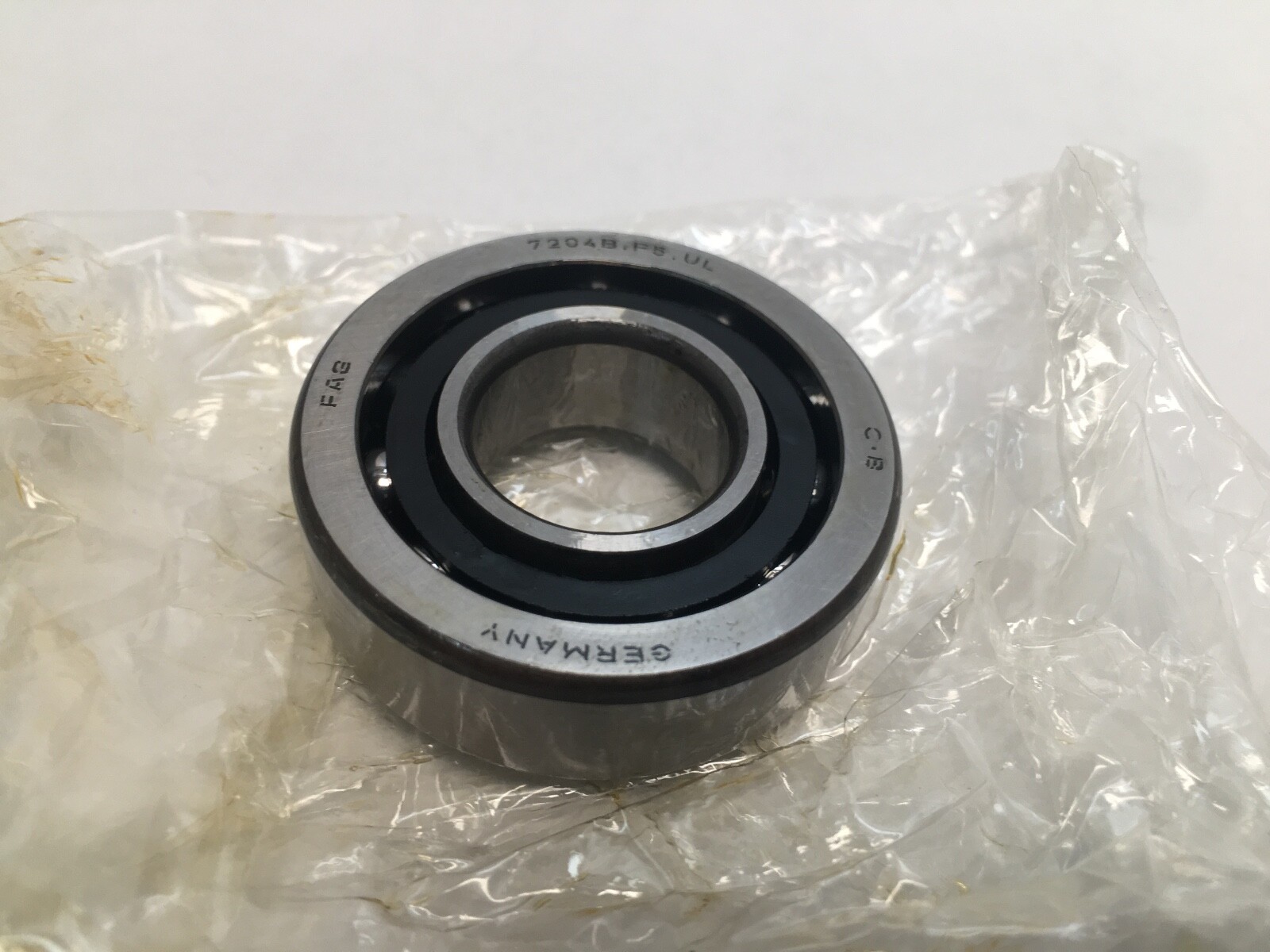

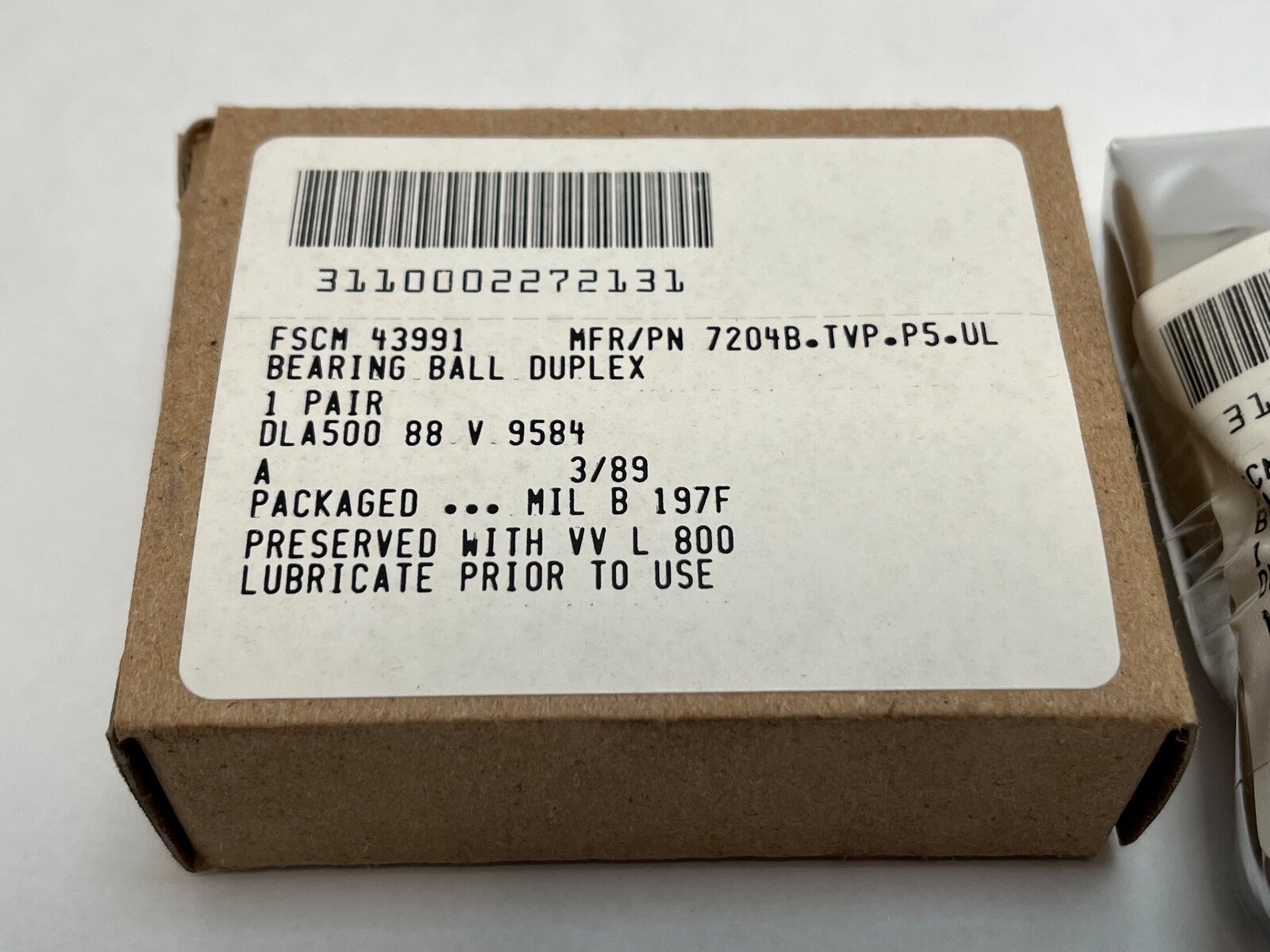

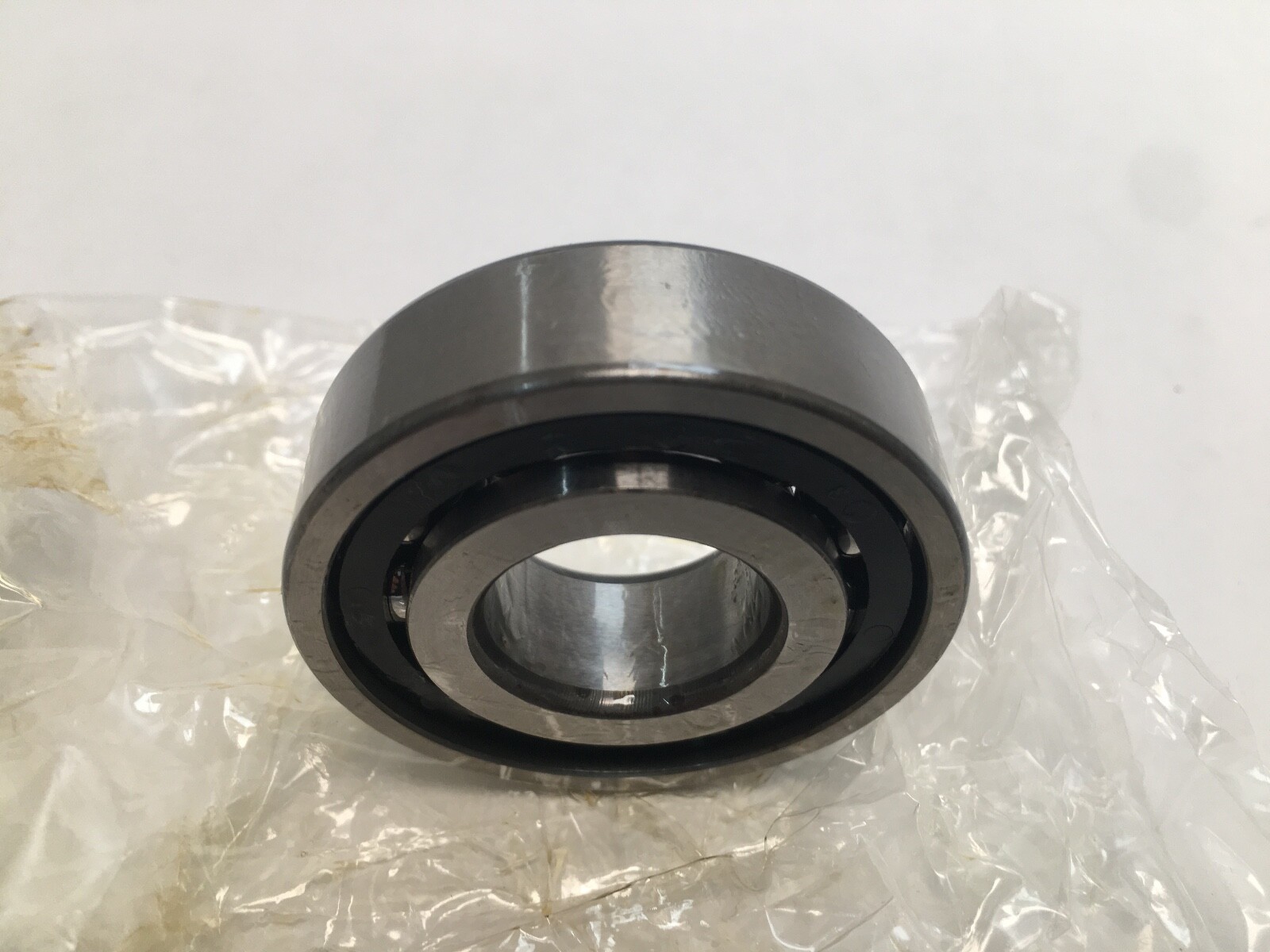

FAG 7204B.TVP.P5.DUL is a matched pair of single-row angular contact ball bearings, 20 mm bore, 47 mm outside diameter, 14 mm width per bearing, supplied as a set of 2 pieces. Universally matchable, light preload, open on both faces, steel balls, glass-fibre reinforced polyamide cage. The current Schaeffler designation for the individual bearing is 7204-B-XL-TVP-P5-UL.
7204 — ISO 72 series, bore code 04, 20 mm bore.
B — FAG design variant with a 40° contact angle.
XL — current Schaeffler optimised-design suffix.
TVP — glass-fibre reinforced PA66 window cage.
P5 — dimensional and running accuracy class, equivalent to ABEC 5.
DUL — duplex set of universally matchable bearings ground for light preload.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Width: 14 mm per bearing. Contact Angle: 40°. Dynamic Load Rating Cr: 14,900 N per bearing. Static Load Rating C0r: 7,800 N per bearing. Fatigue Limit Load Cur: 540 N. Limiting Speed: 21,600 rpm. Reference Speed: 15,400 rpm. Load Centre a: 21.1 mm. Item Weight: 0.103 kg per bearing. Precision Class: P5. Preload: Light (DUL). Number Of Rows: 1 per bearing. Closure Type: Open. Cage Material: Glass-fibre reinforced PA66 polyamide. Operating Temperature Range: -30 °C to +120 °C. Ring dimensional stabilisation: S0, to 150 °C. Unit Quantity: 2 Pcs.
Chamfer Dimension r min: 1 mm. Chamfer Dimension r1 min: 0.6 mm. Shaft Abutment Diameter da min: 25.6 mm. Housing Abutment Diameter Da max: 41.4 mm. Housing Abutment Diameter Db max: 42.8 mm. Abutment Fillet Radius ra max: 1 mm. Abutment Fillet Radius ra1 max: 0.6 mm. Total Width as a Mounted Pair: 28 mm. Mounting Arrangement: universal, back-to-back, face-to-face or tandem.
FAG 7204-B-XL-TVP-P5-UL is the current single-bearing designation. FAG 7204B.TVP.P5.UO is the same envelope matched for zero preload. FAG 7204-B-TVP-P5-DUM is the same envelope at medium preload.
Bore 20 mm, outside diameter 47 mm, width 14 mm per bearing.
Contact angle 40° with a glass-fibre reinforced PA66 window cage (TVP).
Dynamic load rating 14,900 N and static load rating 7,800 N, each per single bearing.
