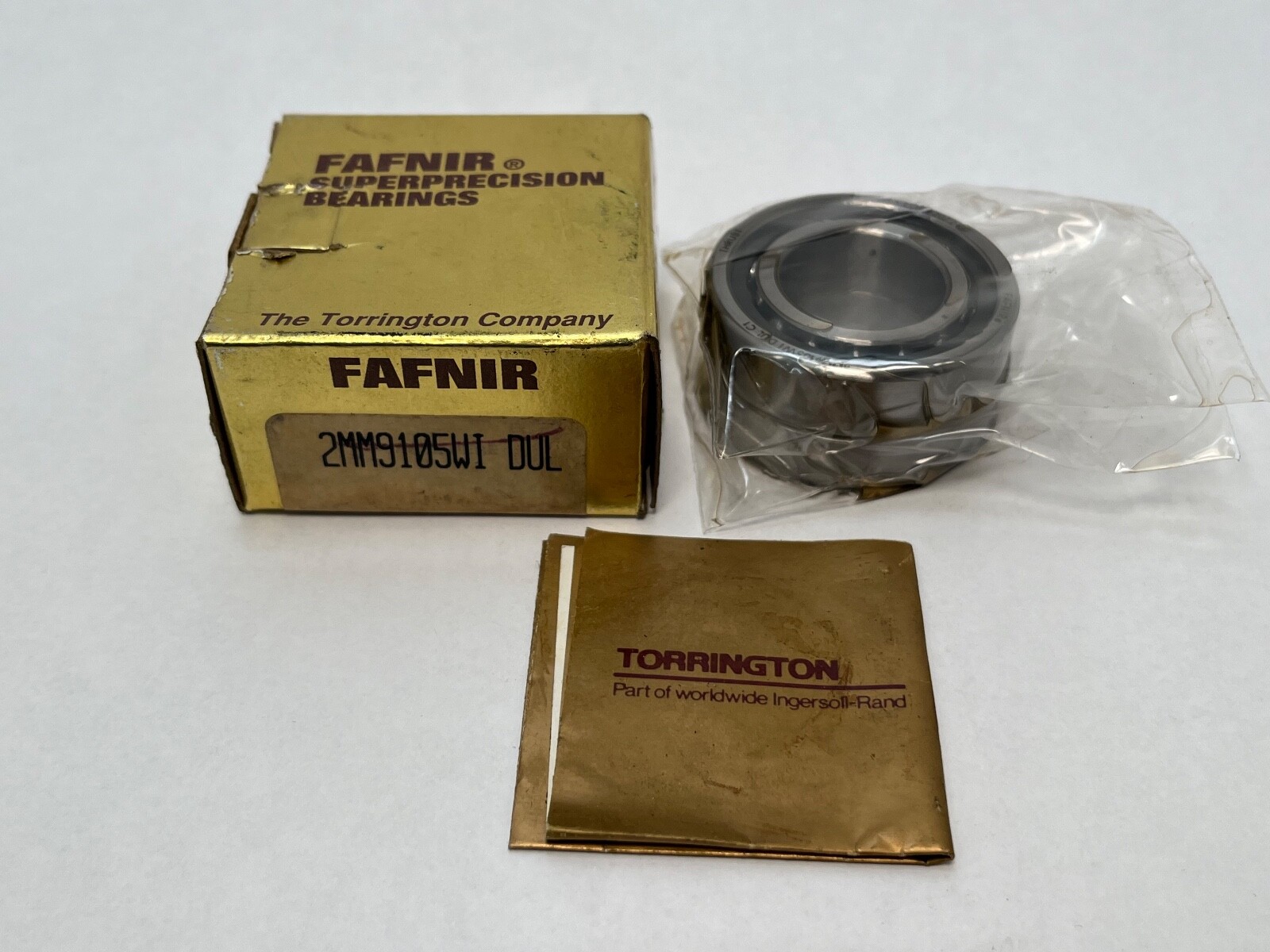

Fafnir2MM9105WICRDULAngular Contact Ball Bearing — 25 mm Bore, 47 mm OD, 12 mm Width, 15° Contact Angle, Light Preload, Matched Pair

Condition: New

Availability:

1 in stock

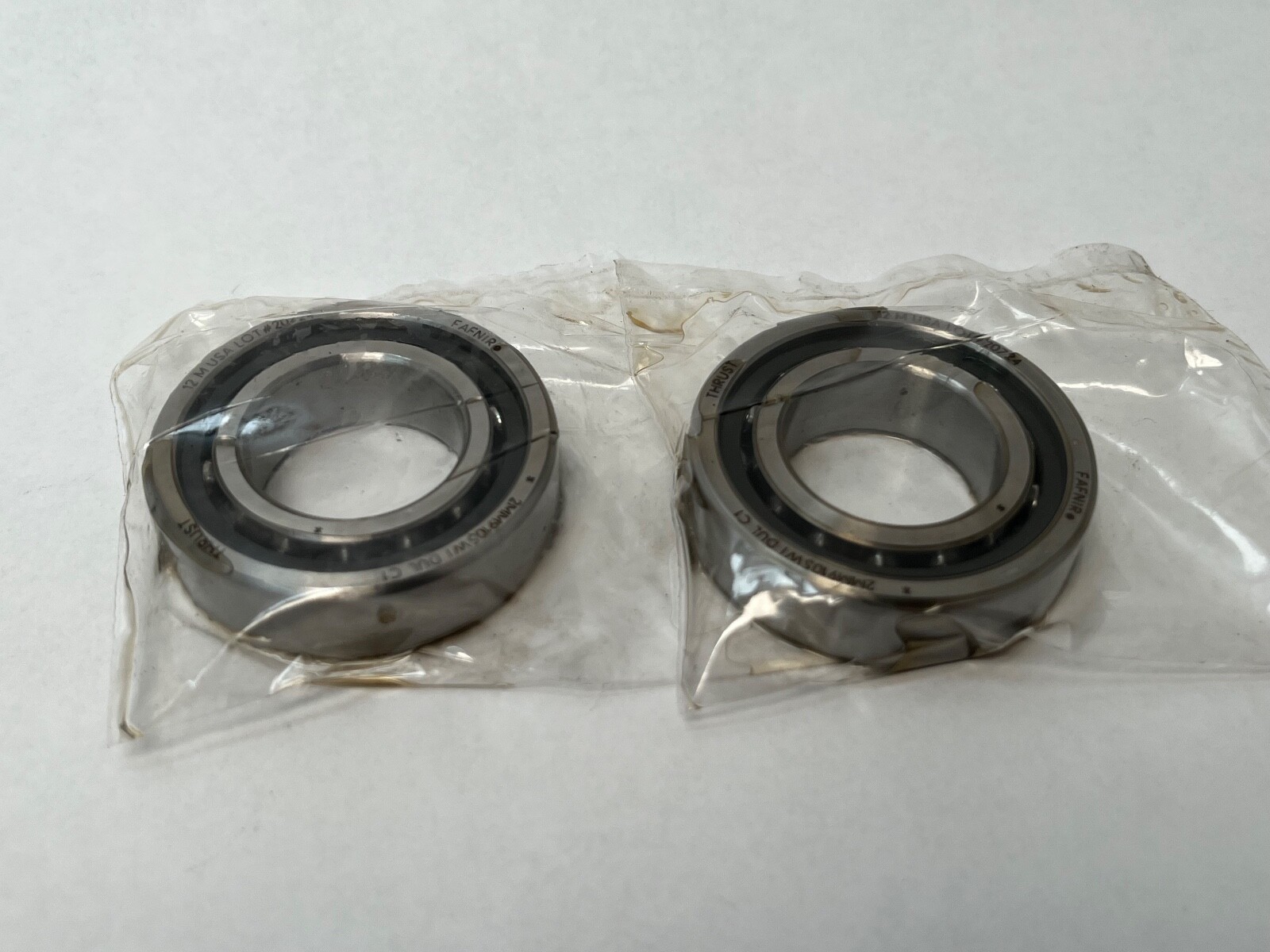

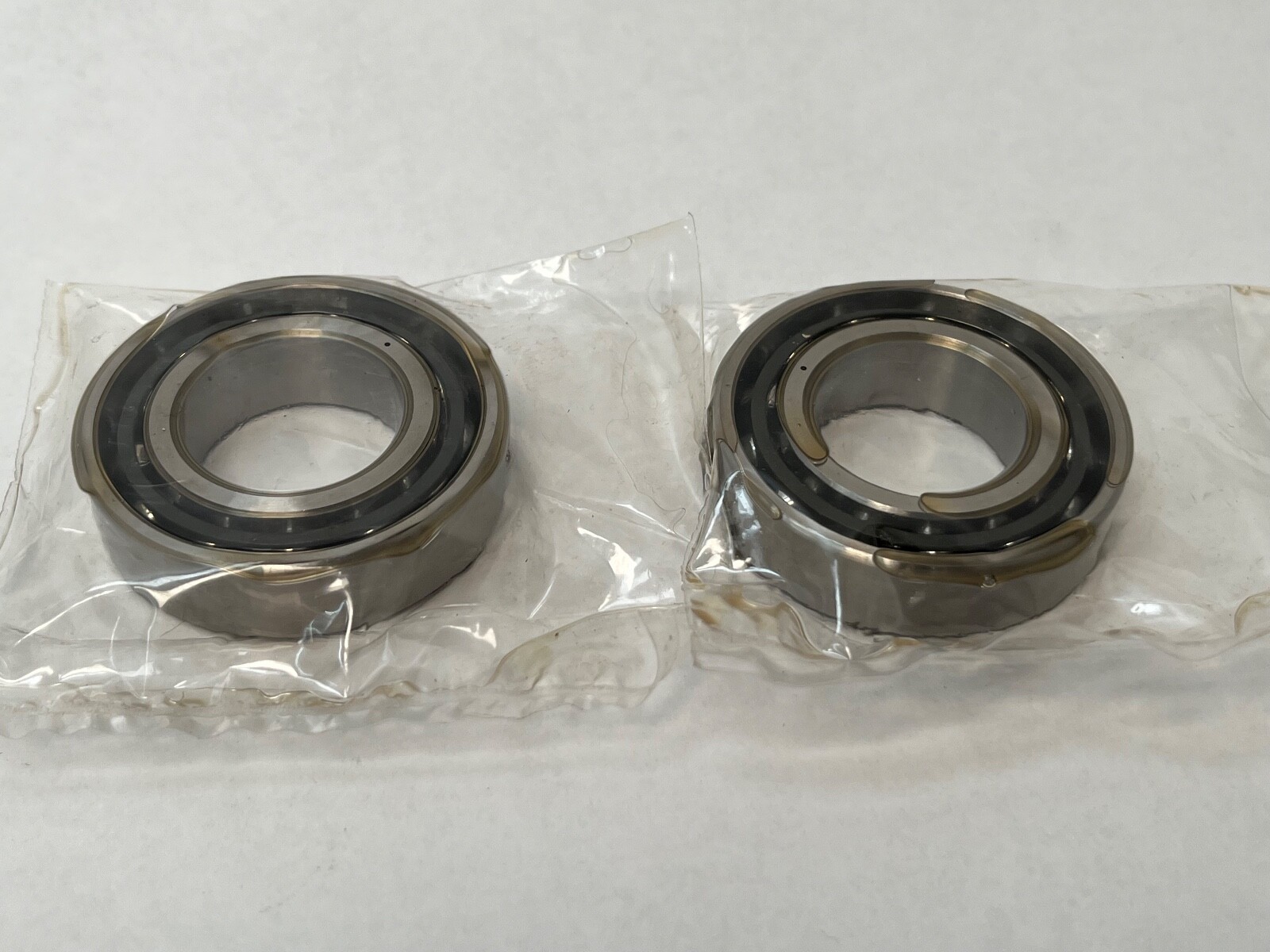

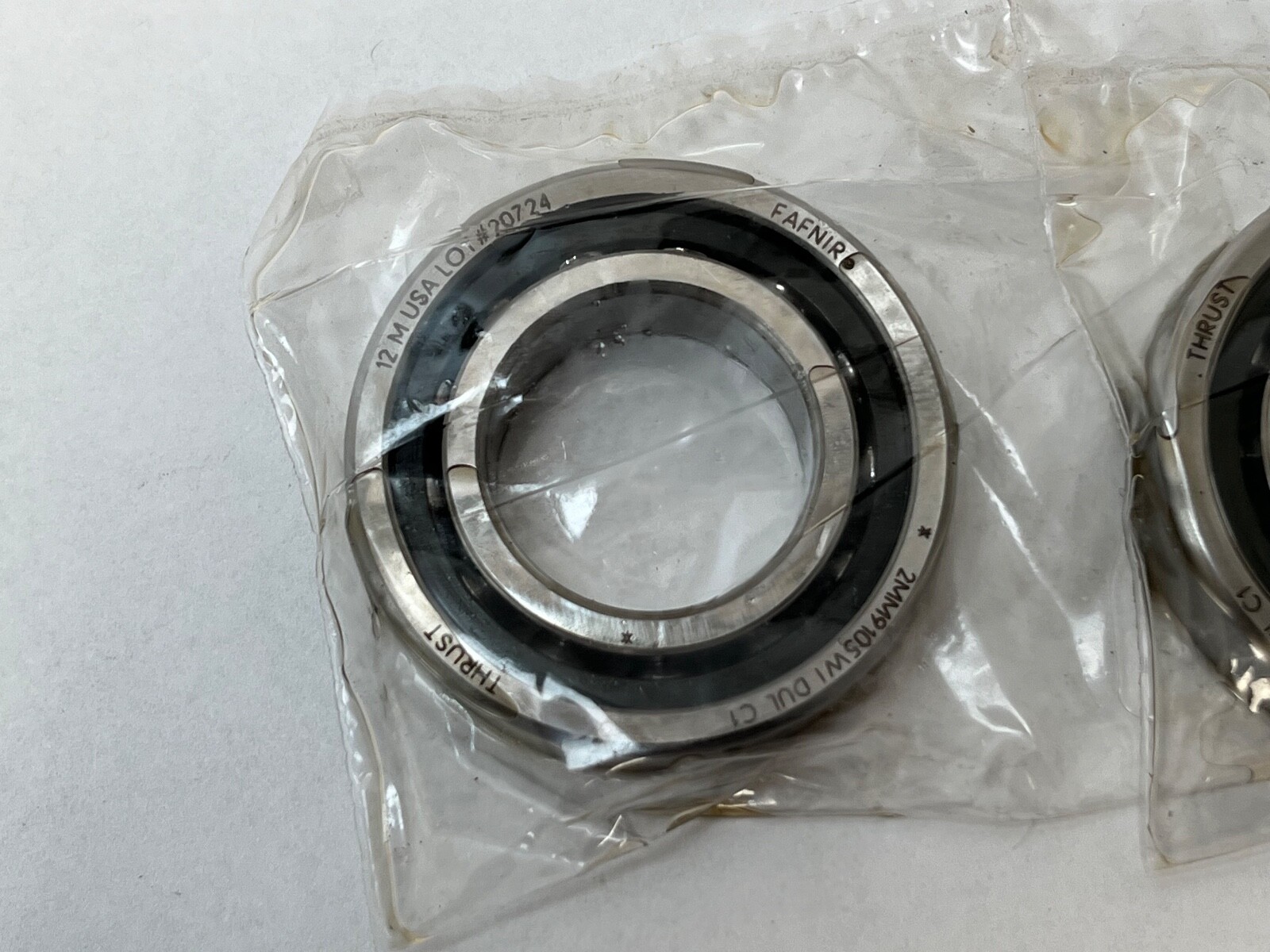

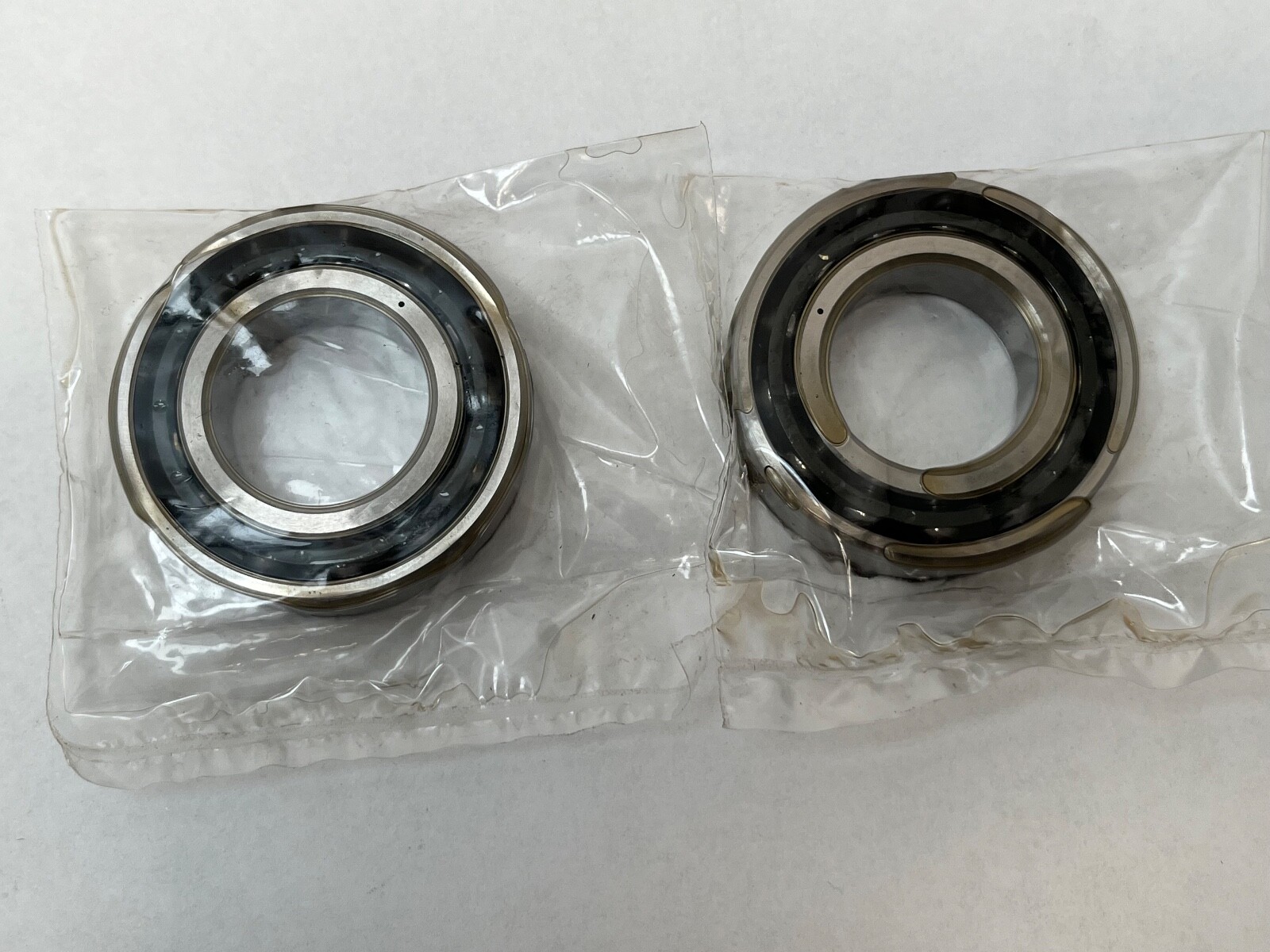

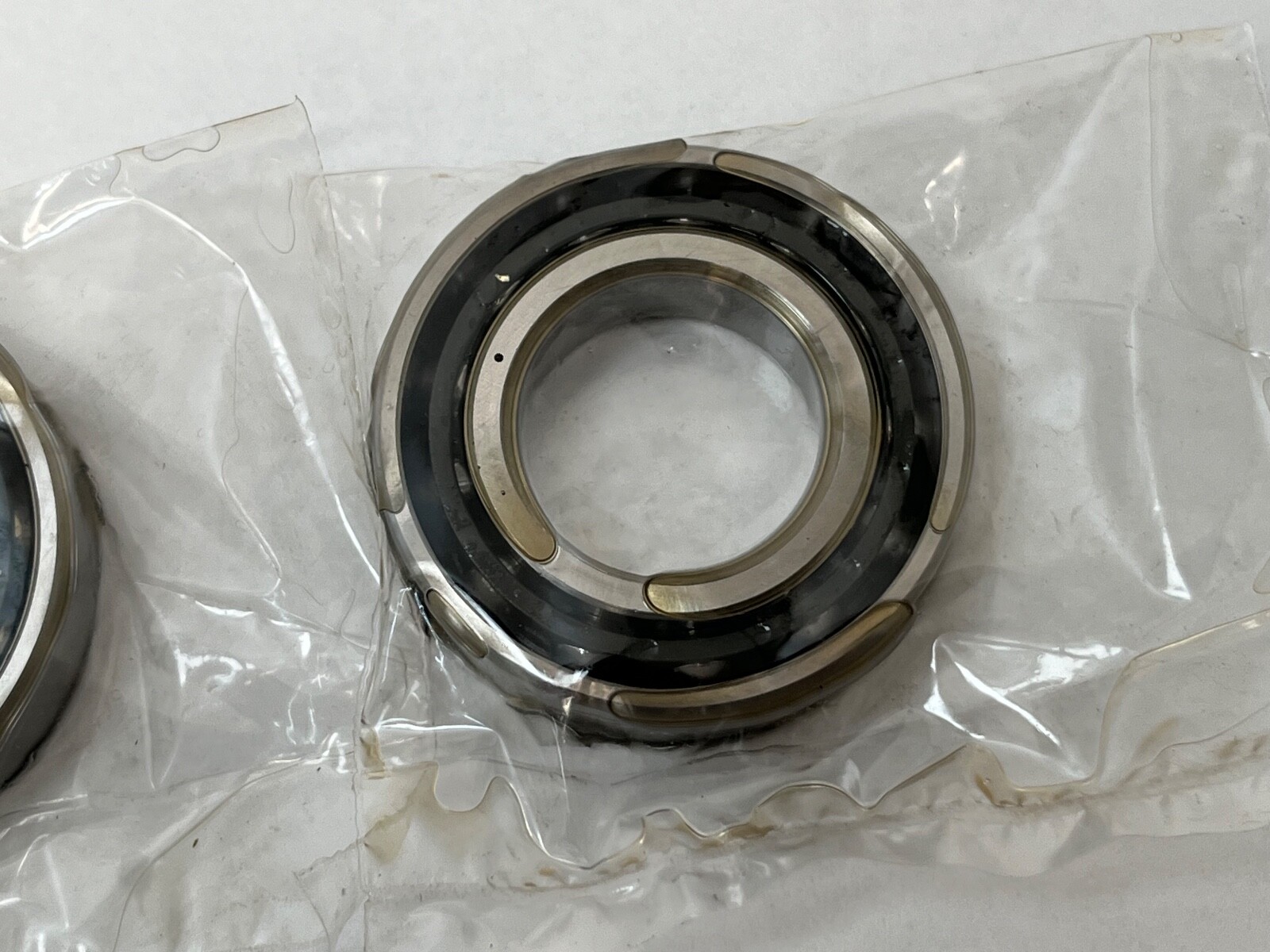

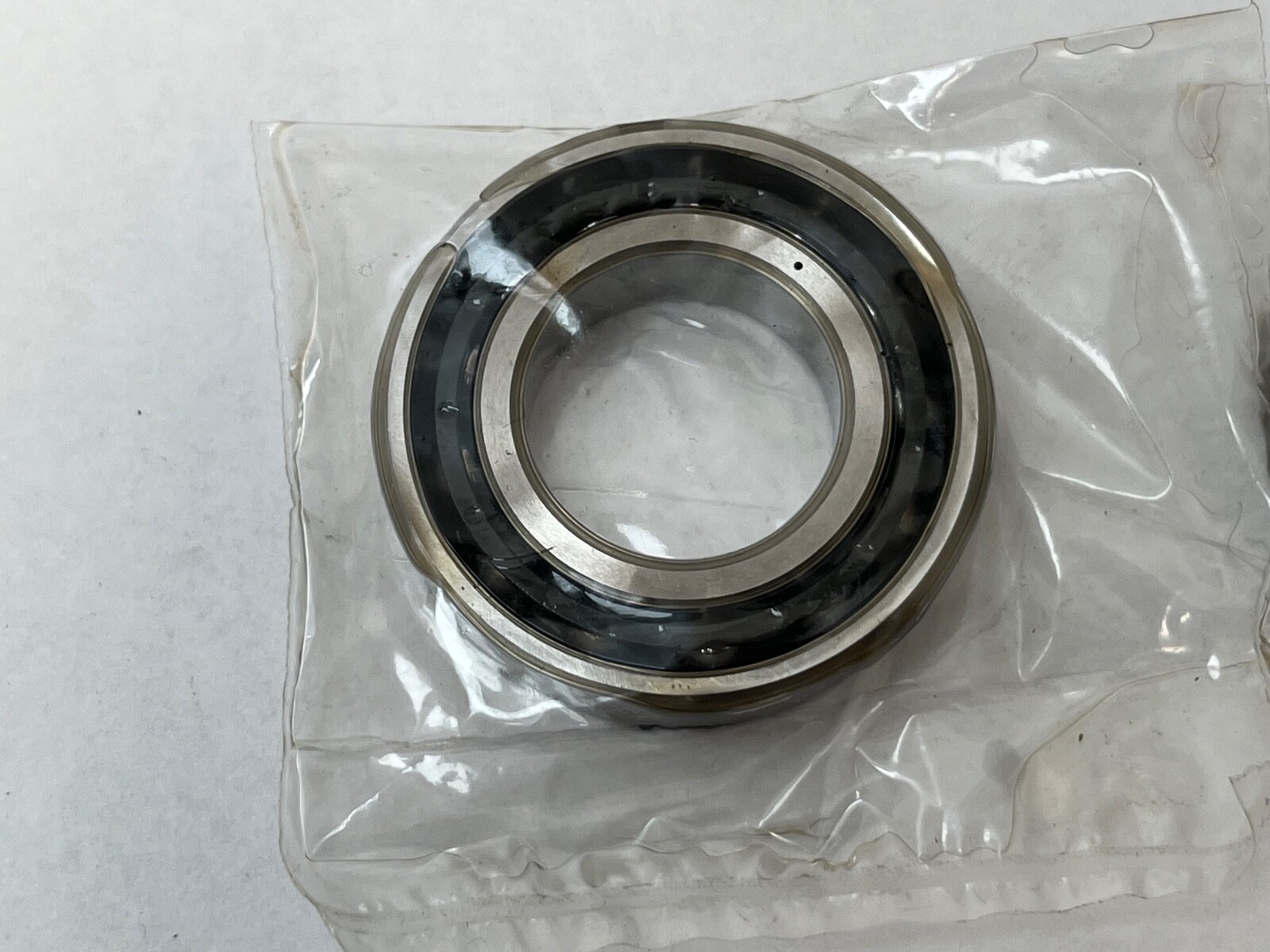

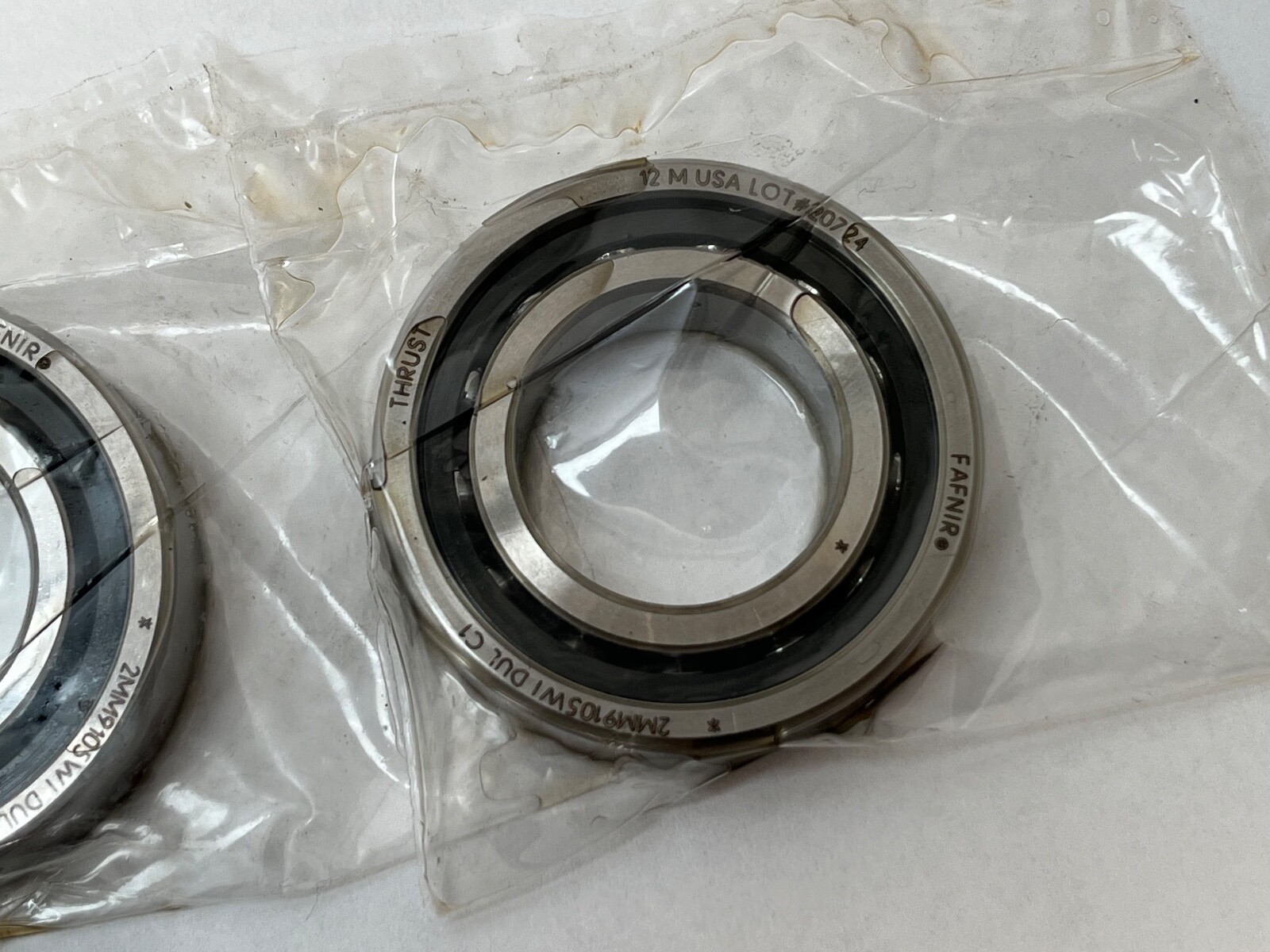

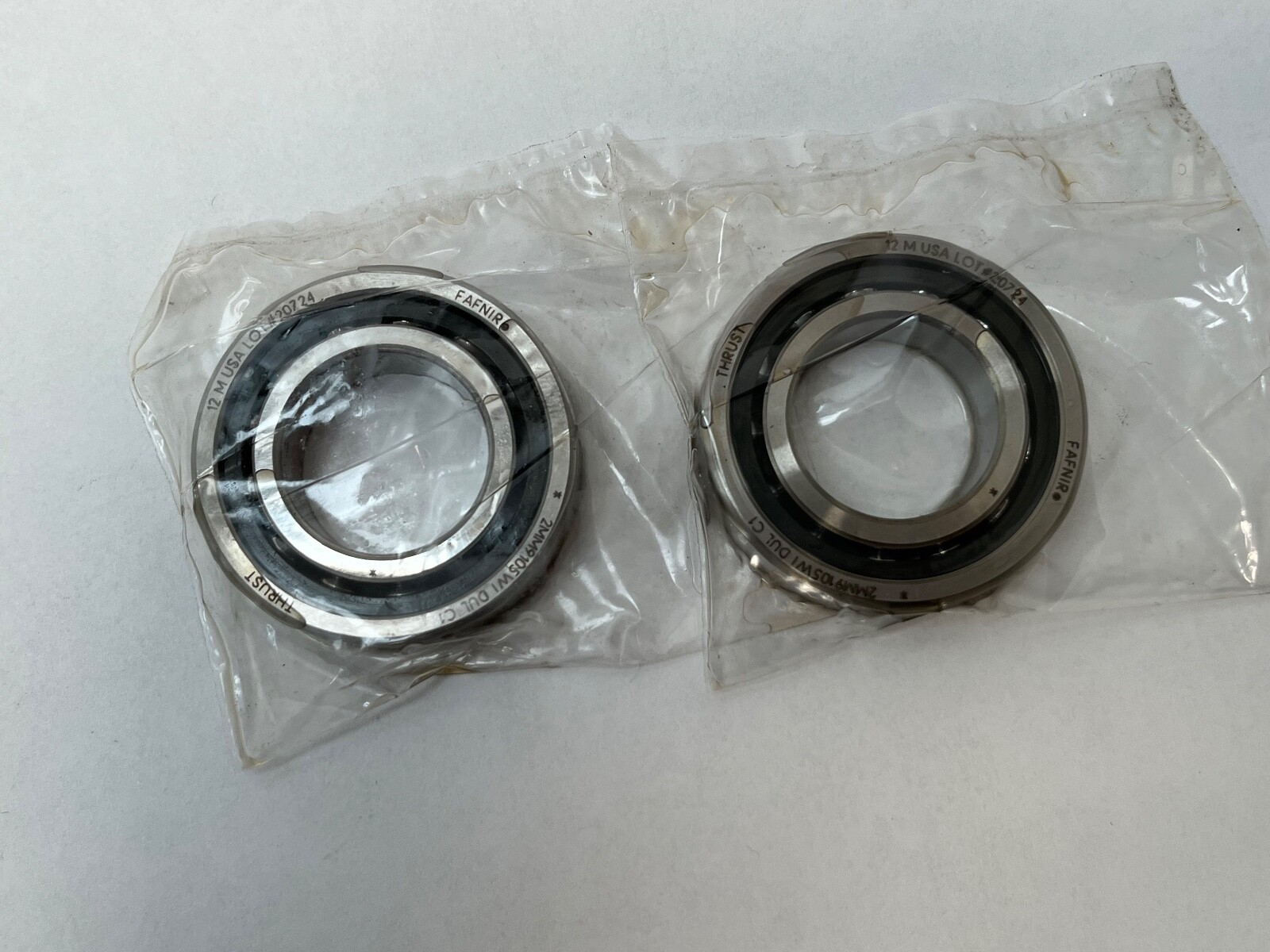

Super precision angular contact ball bearing duplex pair, 25 x 47 x 12 mm each, 15° contact angle, light preload, phenolic cage, ABEC 7 / P4.

List Price

$138.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFafnir
MPN2MM9105WICRDUL
GTIN087796072060
Model2MM 9105 WI CR DUL / 7005 C TR/TY P4/P4S/P4Y / 7005CCRDULP4S
Bearing TypeAngular Contact Ball Bearing, Open
ID25 mm
OD47 mm
Width12 mm

Technical Specifications

MaterialBearing Steel
Series9100WI
PreloadLight
Dynamic Load Rating12,900 N
Static Load Rating7,400 N
Precision RatingABEC 7 / P4
Rolling ElementsBall
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Harmonization Code8482.10.50.68
Contact Angle15°
Limiting Speed30,900 rpm grease; 61,800 rpm oil
Base Number9105
Overall Width12 mm
Mpn Variants2MM9105WI DUL; 2MM9105WI-CR-DUL; 2MM9105WICRDUL; 2MM9105WIDUL; 2MM-9105-WI-CR-DUL; 2MM 9105 WI CR DUL; 7005C-T-P4S-DUL; 7005CCRDULP4S
Precision ClassABEC 7 / P4
Additional AttributesMax Housing Fillet Radius: 0.6 mm; Shaft Backing Shoulder Diameter: 29.9 mm; Housing Backing Shoulder Diameter: 42.6 mm
Mounting ArrangementDuplex matched pair
Bearing MaterialChrome Steel
Closure TypeOpen

Cross-References

Cross Reference 1NSK 7005CTRDULP4
Cross Reference 2RHP 7005CTDULP4
Cross Reference 3SKF 7005 CD/P4ADGA
Cross Reference 4FAG B7005-C-T-P4S-UL - P4S class
Cross Reference 7SKF 7005 ACD/P4ADGA (related, 25° contact angle)
Seller Part Number: B-AG1B3#D2APAX

Product Description

What this part is:

Fafnir 2MM9105WICRDUL super precision angular contact ball bearing, supplied as a factory-matched duplex pair (2 Pcs, DUL set). Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm per bearing. Series: 9100WI. Base Number: 9105. GTIN: 087796072060.

Decoding the designation:

2MM — Contact Angle: 15°, in Timken’s MM super-precision spindle range.

MM — Precision Class: ABEC 7 / P4.

9105 — the 25 mm bore size in the 9100 light spindle series, on ISO 7005 boundary dimensions.

WI — low shoulder on both rings.

CR — Cage Material: Phenolic.

DU — duplex, two bearings ground as one matched set.

L — Preload: Light.

Specifications:

Dynamic Load Rating: 12,900 N per bearing. Static Load Rating: 7,400 N per bearing. Limiting Speed: 30,900 rpm grease; 61,800 rpm oil. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1 per bearing. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Max Housing Fillet Radius: 0.6 mm. Shaft Backing Shoulder Diameter: 29.9 mm. Housing Backing Shoulder Diameter: 42.6 mm.

Compatibility and replacement:

Cross-references: NSK 7005CTRDULP4; RHP 7005CTDULP4; SKF 7005 CD/P4ADGA; FAG B7005-C-T-P4S-UL (P4S class). SKF 7005 ACD/P4ADGA shares the envelope at a 25° contact angle.

Frequently asked questions:

What size is the Fafnir 2MM9105WICRDUL?

Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm per bearing, on the ISO 7005 envelope.

What contact angle and precision class does it have?

Contact Angle: 15° (2MM). Precision Class: ABEC 7 / P4 (MM).

What does the DUL suffix mean?

DU is a duplex set of two bearings ground as one matched pair; L is light preload.
