Fafnir2MM9105WICRDULSuper-Precision Angular Contact Ball Bearing Pair – 25 mm Bore, 47 mm OD, 12 mm Width, 15°, Light Preload

Product Description

What this part is:

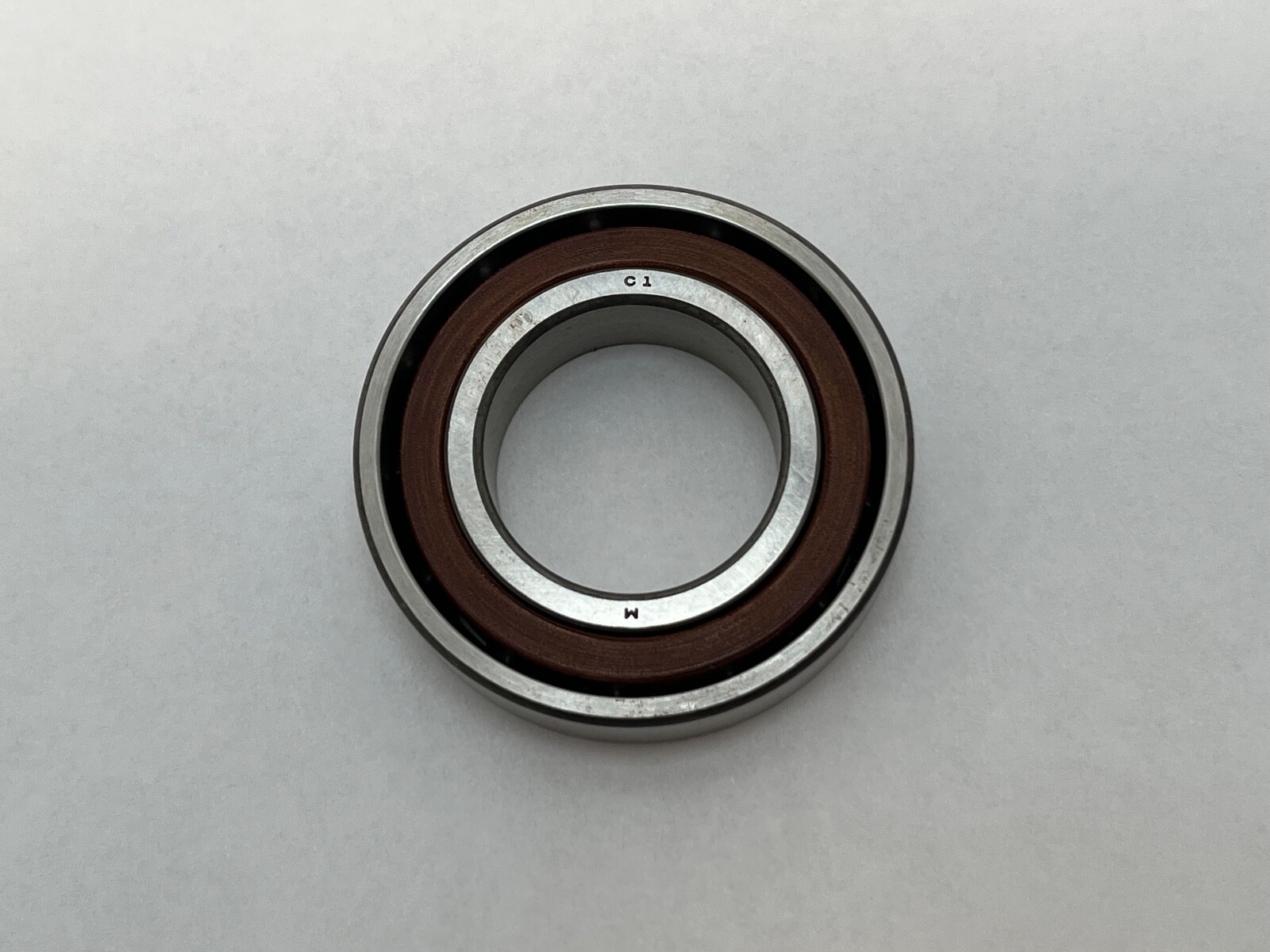

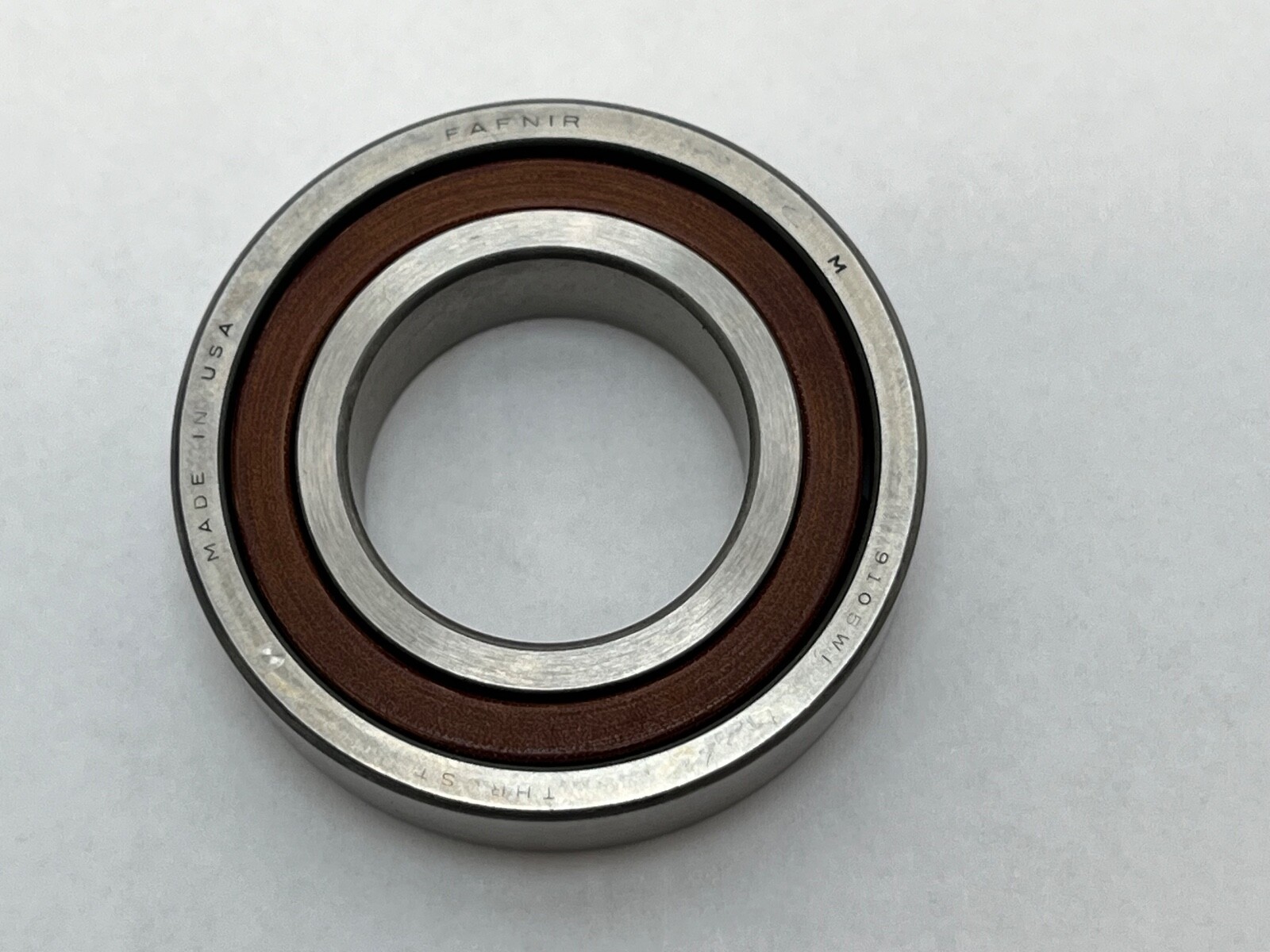

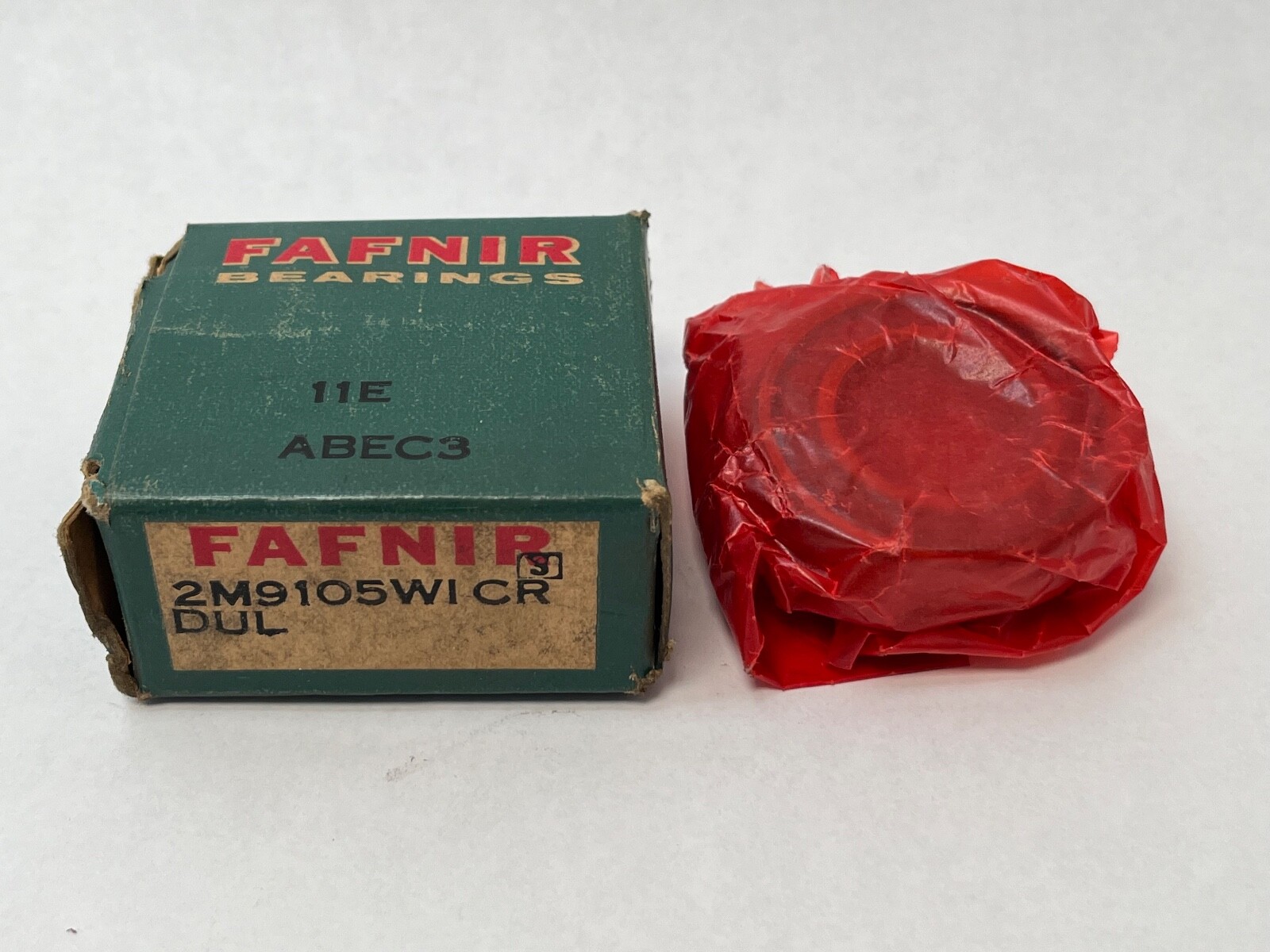

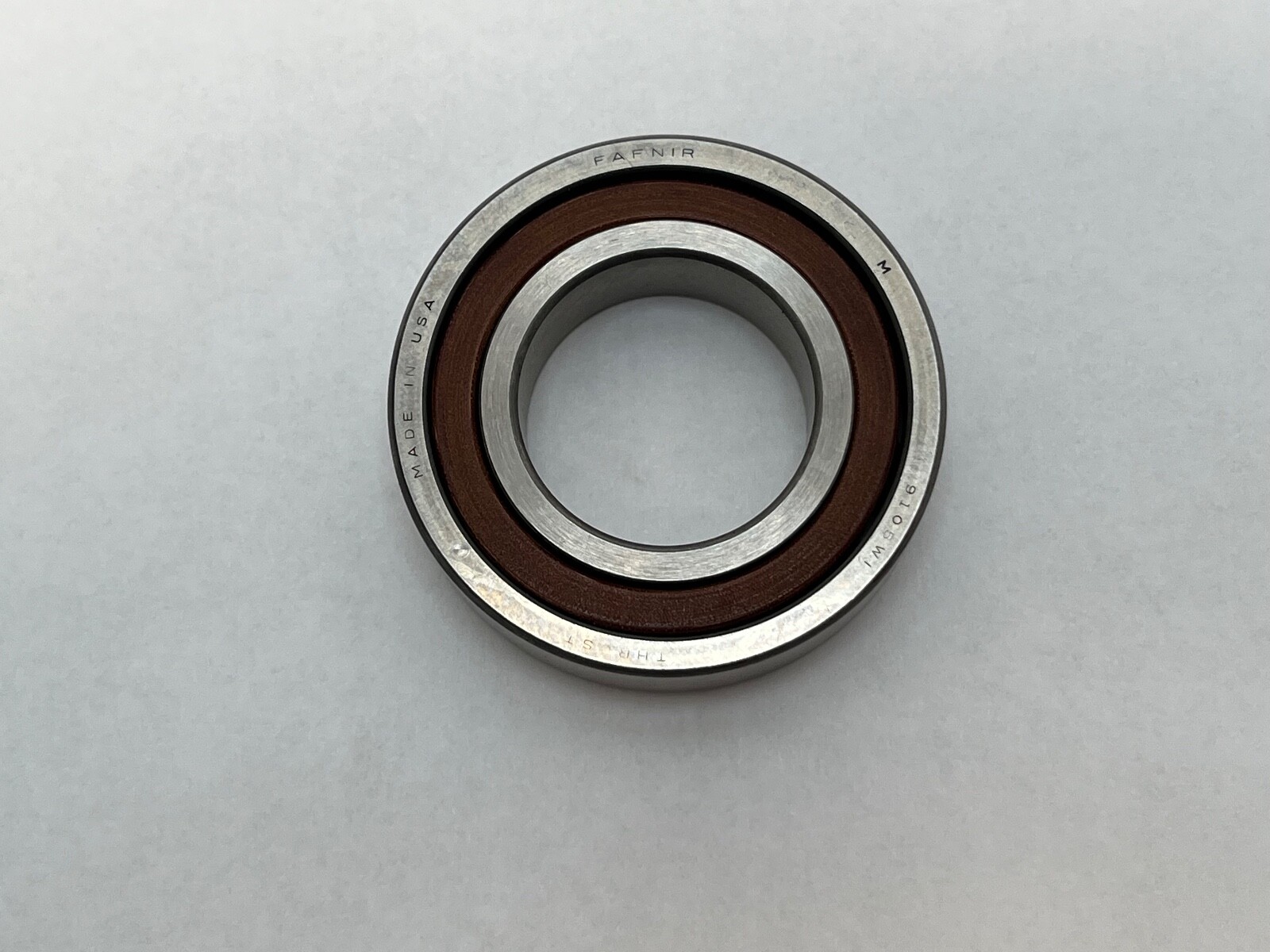

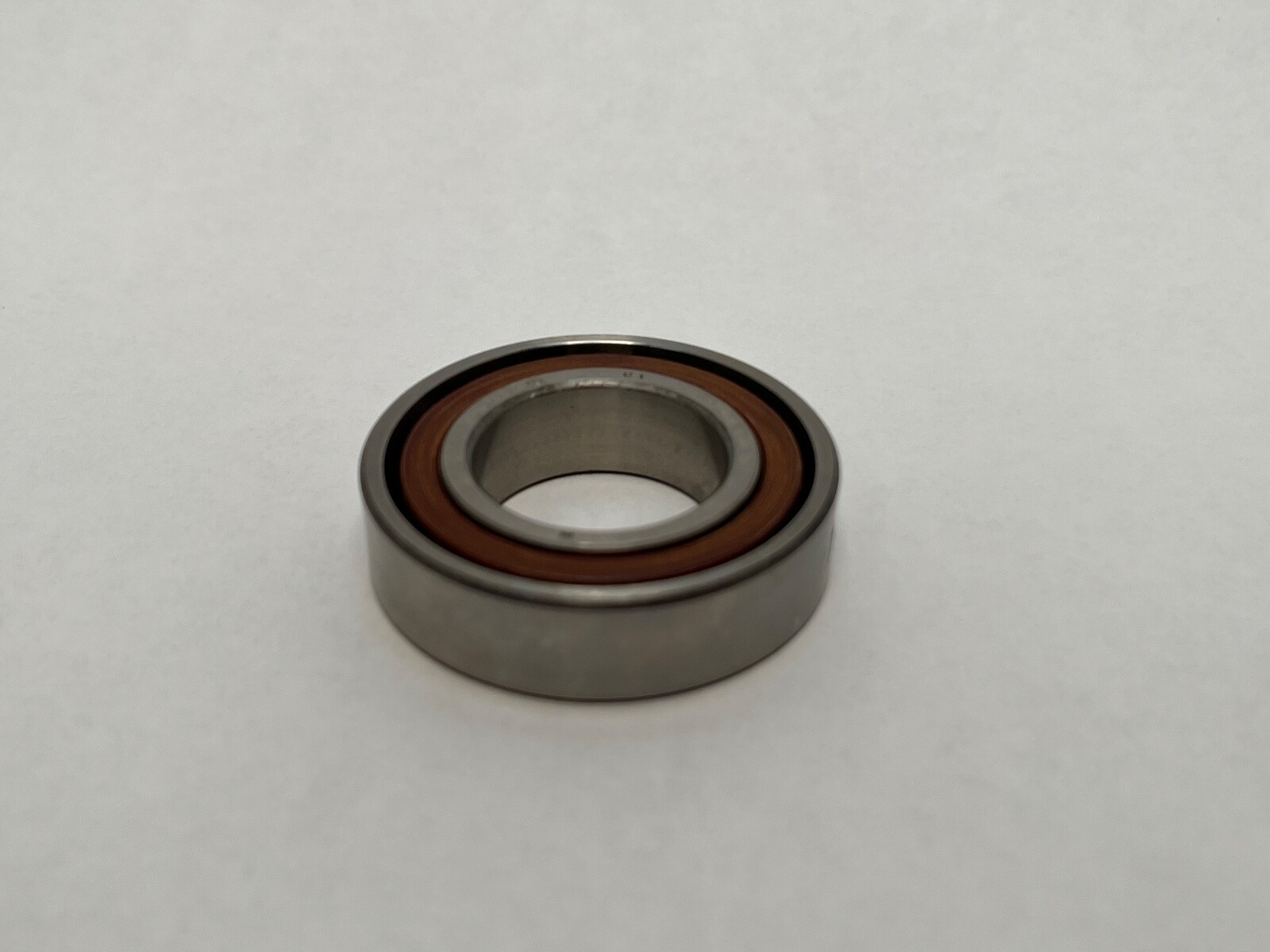

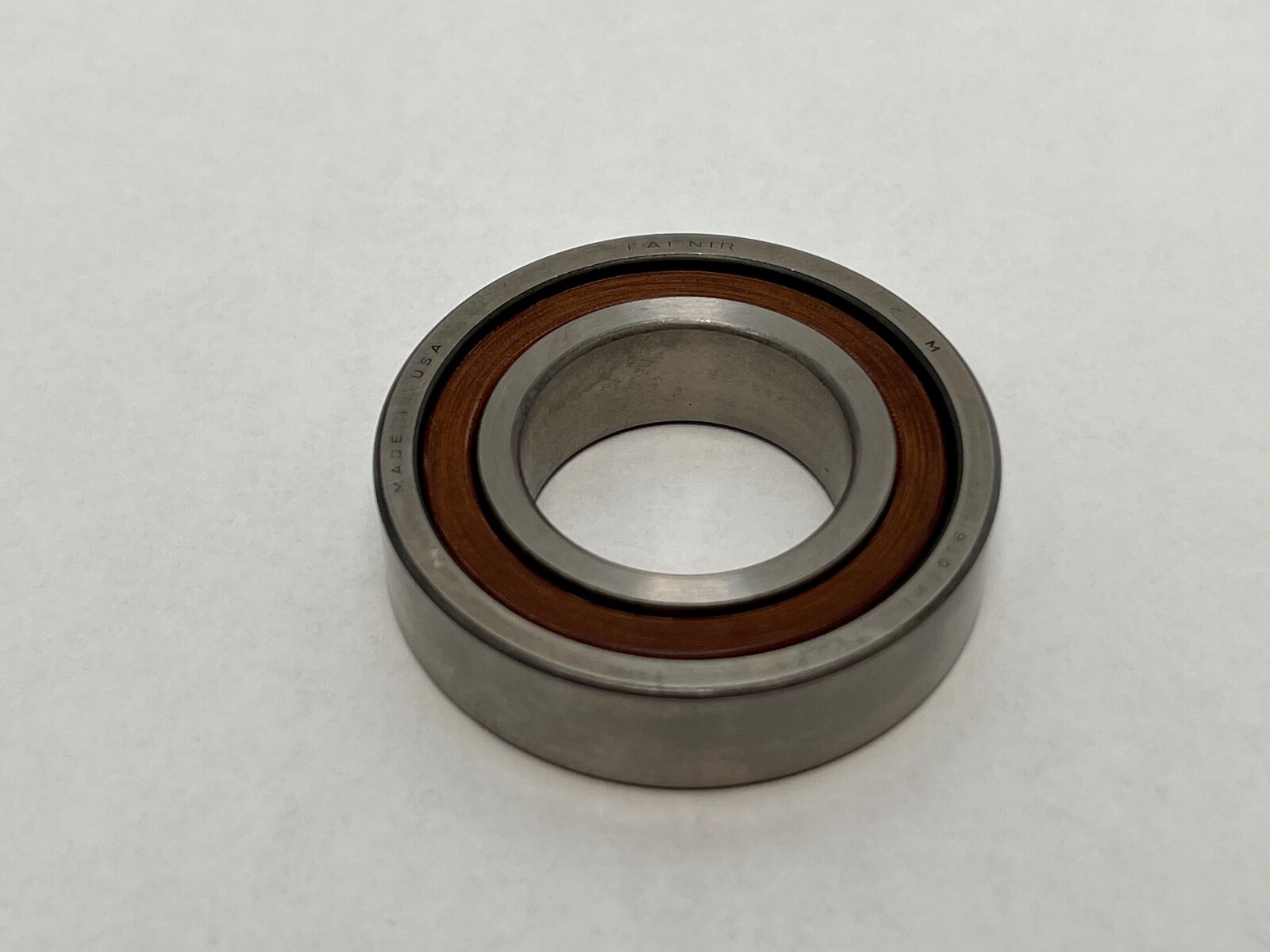

Fafnir 2MM9105WICRDUL is a super-precision angular contact ball bearing supplied as a universally ground duplex pair, two bearings. Each bearing measures 25 x 47 x 12 mm with a 15° contact angle, a phenolic cage and light preload (DUL).

Decoding the designation:

2MM — Fafnir super-precision spindle range at a 15° contact angle, P4 precision (ABEC 7).

9105 — the 9100 light dimension series, bore code 05, which maps to the ISO 7005 size: 25 mm bore, 47 mm outside diameter, 12 mm width.

WI — low shoulder on both rings.

CR — phenolic cage.

DUL — duplex pair, universally ground, light preload. Either face can be brought together, so the pair mounts back-to-back, face-to-face or in tandem.

Specifications:

Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm per bearing. Total Width: 24 mm as a pair. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Precision Class: ABEC 7 / P4. Preload: Light. Dynamic Load Rating: 12,900 N per bearing. Static Load Rating: 7,400 N per bearing. Limiting Speed: 30,900 rpm grease; 61,800 rpm oil. Item Weight: 0.154 kg (0.34 lb) for the pair. Series: 9100WI. Base Number: 2MM9105WI. Unit Quantity: 2 Pcs. GTIN: 087796072060.

Dimensions and mounting:

Shaft Backing Shoulder Diameter: 29.9 mm. Housing Backing Shoulder Diameter: 42.6 mm. Maximum Housing Fillet Radius: 0.6 mm (0.024 in). One universally ground duplex pair; the pair occupies 24 mm of shaft length when clamped together.

Compatibility and replacement:

Cross-references: FAG B7005-C-T-P4S-UL (P4S vs P4), SKF 7005 CD/P4ADGA, NSK 7005CTRDULP4, NTN 7005UCG/GNP4, RHP 7005CTDULP4, Koyo 7005C P4 DUL and SNFA VEX 25 /NS 7CE1. All are 15° super-precision duplex bearings in the 25 x 47 x 12 mm size. 7005-C is a standard-tolerance 15° bearing in the same size. MPN variants: 2MM9105WIDUL, 2MM9105WIDULC1, 2MM-9105-WI-CR-DUL-C1, 2 MM 9105 WI CR DUL.

Frequently asked questions:

What size is the Fafnir 2MM9105WICRDUL?

25 mm bore, 47 mm outside diameter and 12 mm width per bearing; 24 mm wide as a pair.

What are the load ratings and speed?

Dynamic load rating 12,900 N and static load rating 7,400 N per bearing. Limiting speed 30,900 rpm on grease and 61,800 rpm on oil.

What does DUL mean?

Duplex pair, universally ground, with light preload.
