SKF 7015CTCC78G1 super-precision angular contact ball bearing, 75 x 115 x 20 mm, 15 degree contact angle, open, phenolic cage, P5. Single bearing.
List Price
$86.99
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7015CTCC78G1 |
| Model | 7015 C TC C78 G1 / 2MM9115WI CR / 7015 C P5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm (4.5276 in) |
| Width | 20 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7000 |
| Base Number | 7015 |
| Industry Terms | Spindle bearing, super precision angular contact bearing, machine tool bearing, 15 degree angular contact, phenolic cage bearing |
| Common Misspellings | 7015 CTC C78 G1, 7015CTC78G1, 7015 CTCC78G1, 2M9115WI CR |
| Application Types | CNC machine tool spindles, precision gearboxes, high-speed electric motors, grinding spindles |
| Overall Width | 20 mm (0.7874 in) |
| Bore Shaft Size | 75 mm (2.9528 in) |
| Mpn Variants | 7015CTCC78G1, 7015 C TC C78 G1, 7015-C-TC-C78-G1, 7015CTC/C78/G1, 7015 C P5, 7015C, 2MM9115WICR, 2MM9115WI CR |
| Precision Class | ABEC 5 / P5 |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7015CTCC78G1 |
| Cross Reference 1 | Timken 2MM9115WI CR |
|---|---|
| Cross Reference 2 | FAG B7015-C-T-P5-UL |
| Cross Reference 3 | SKF 7015 CD/P4A - P4 class, not P5 |
| Cross Reference 4 | SKF 7015 ACD - 25 deg vs 15 deg |

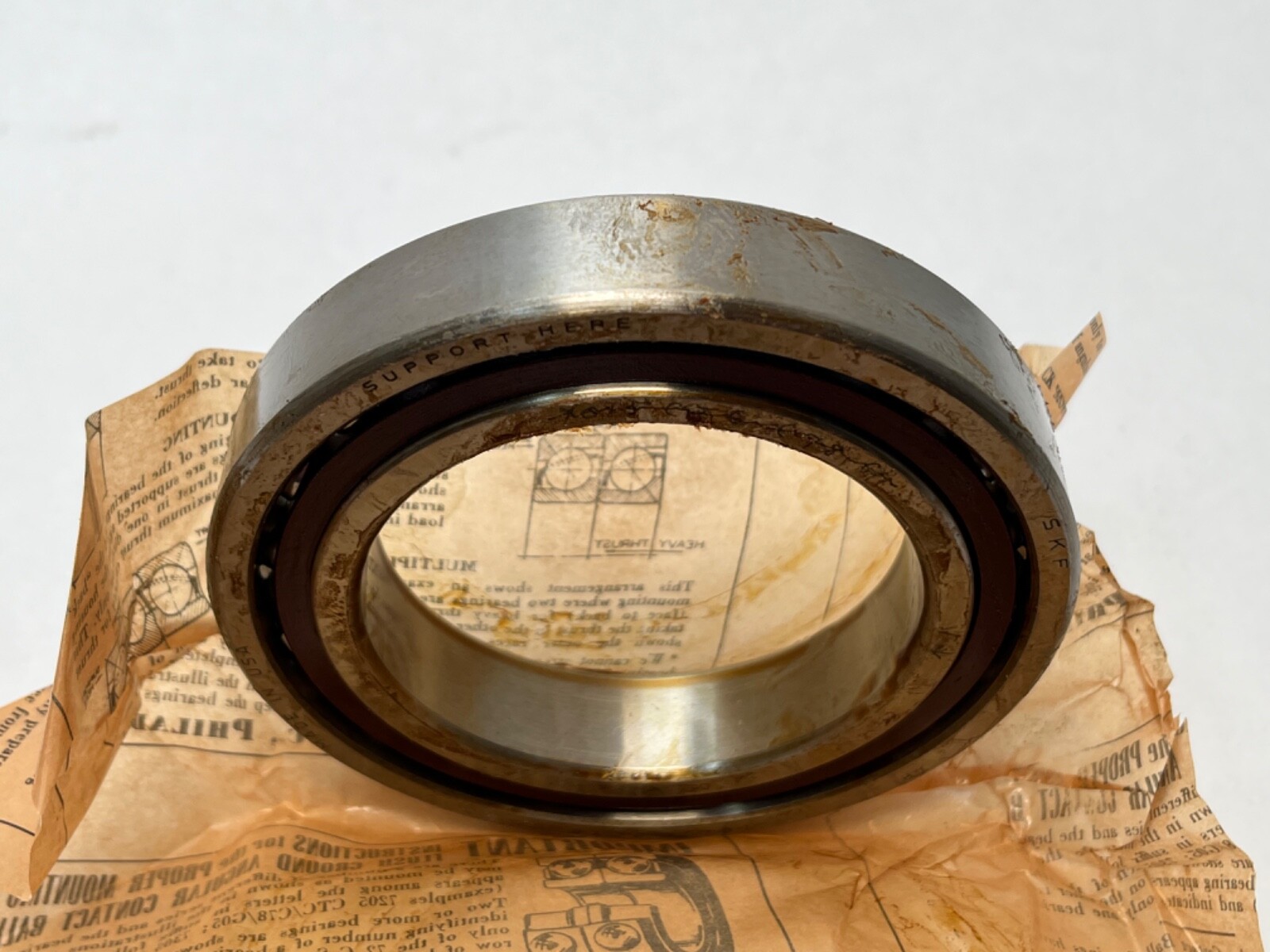

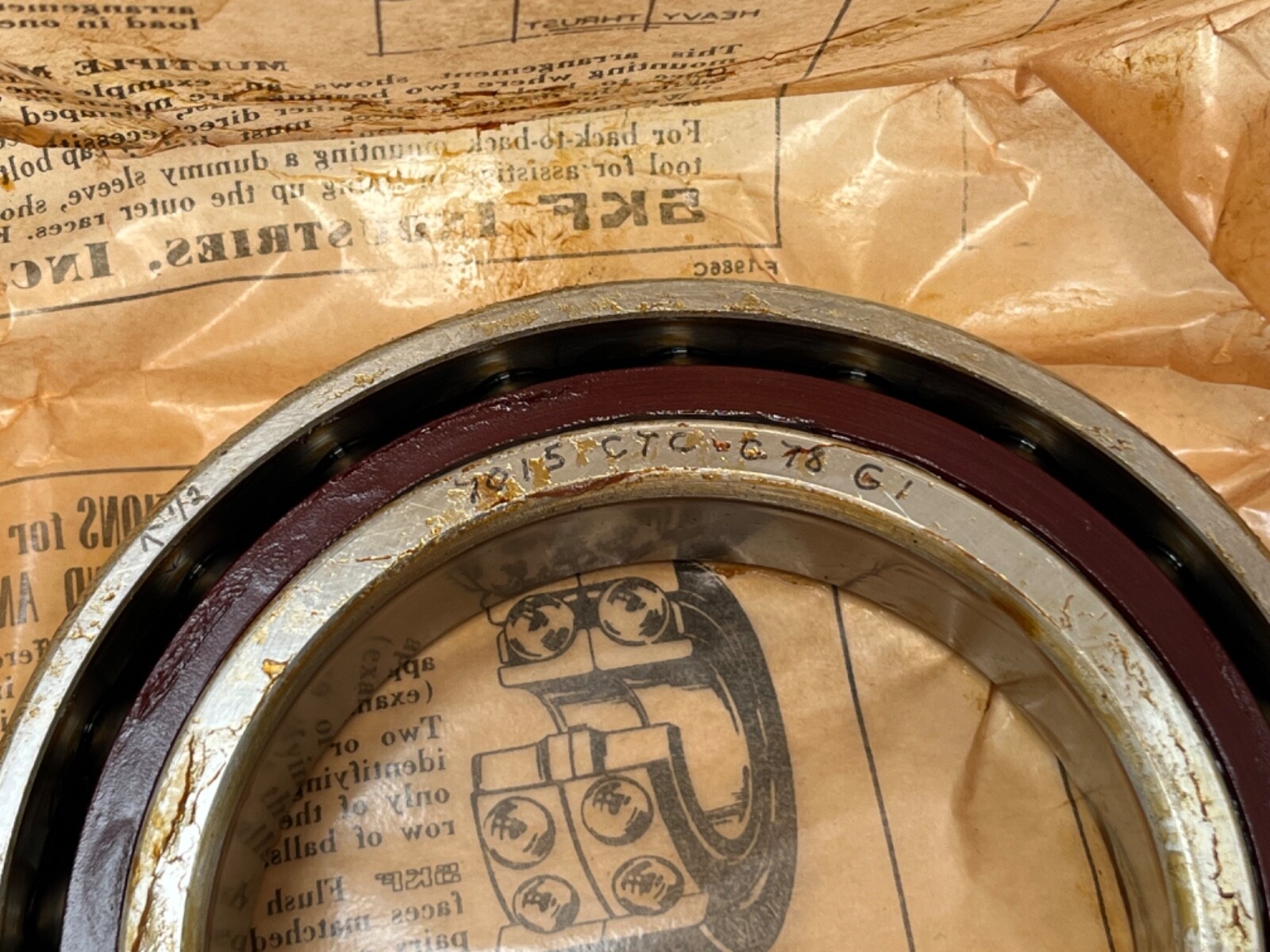

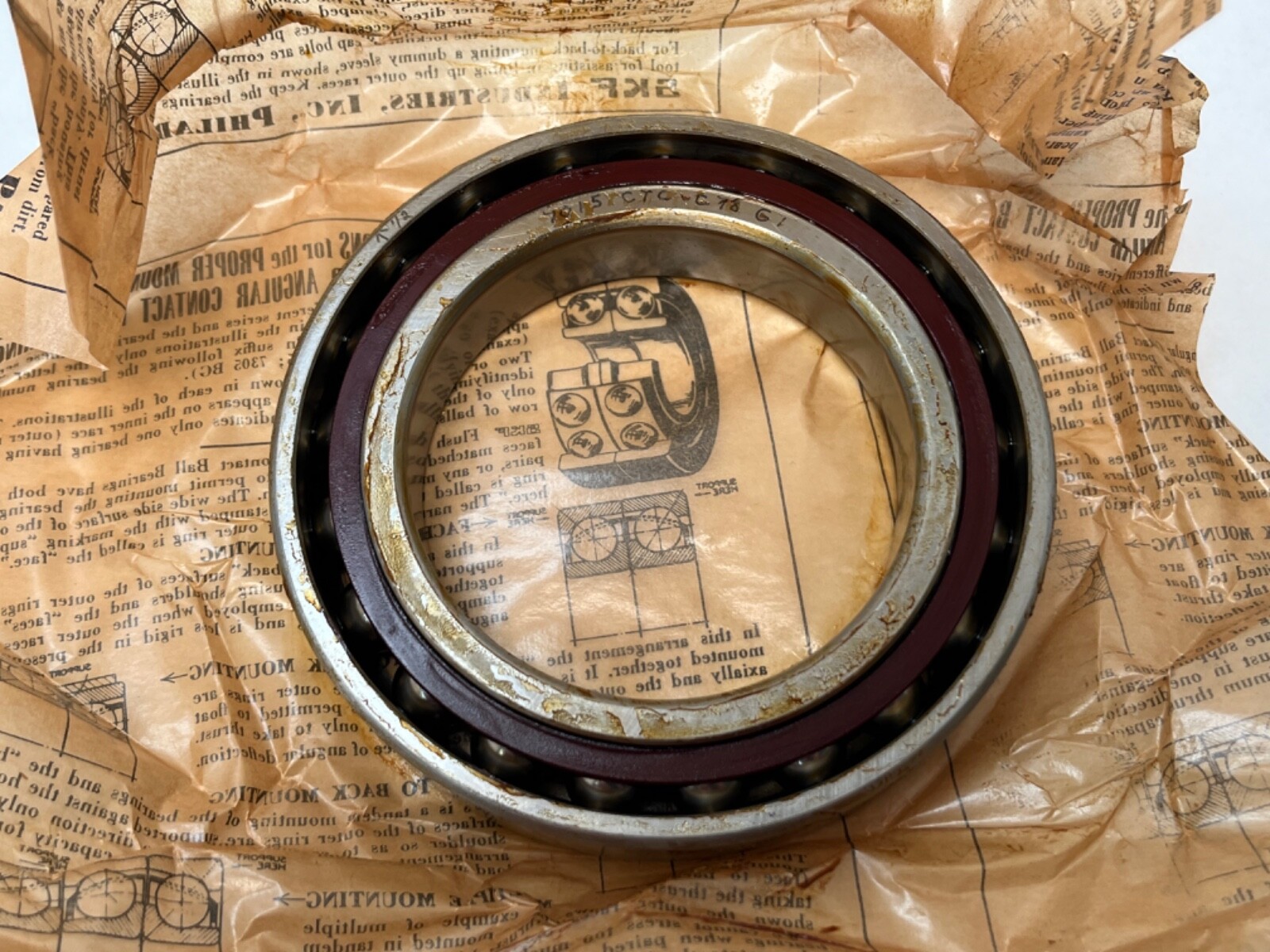

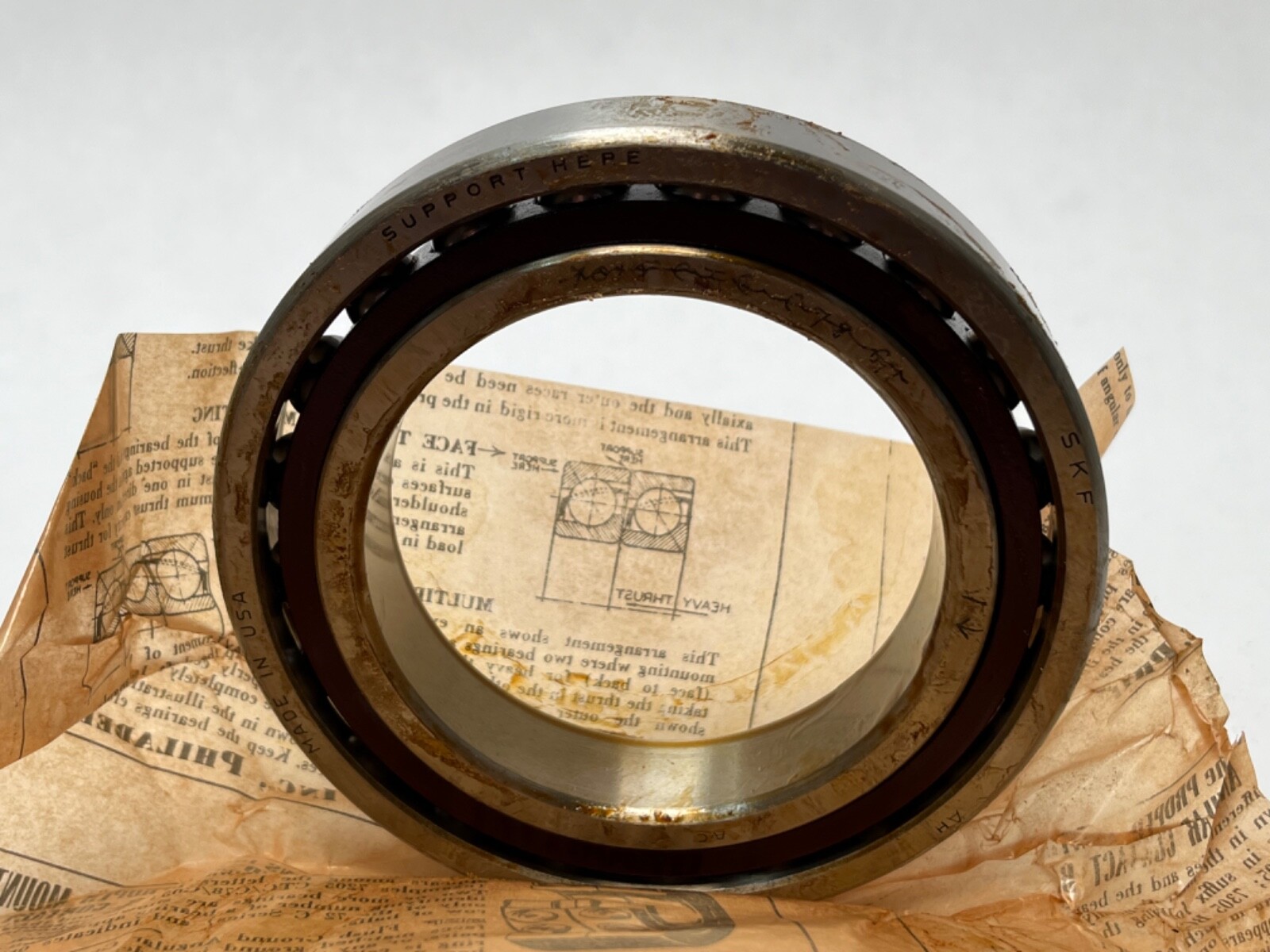

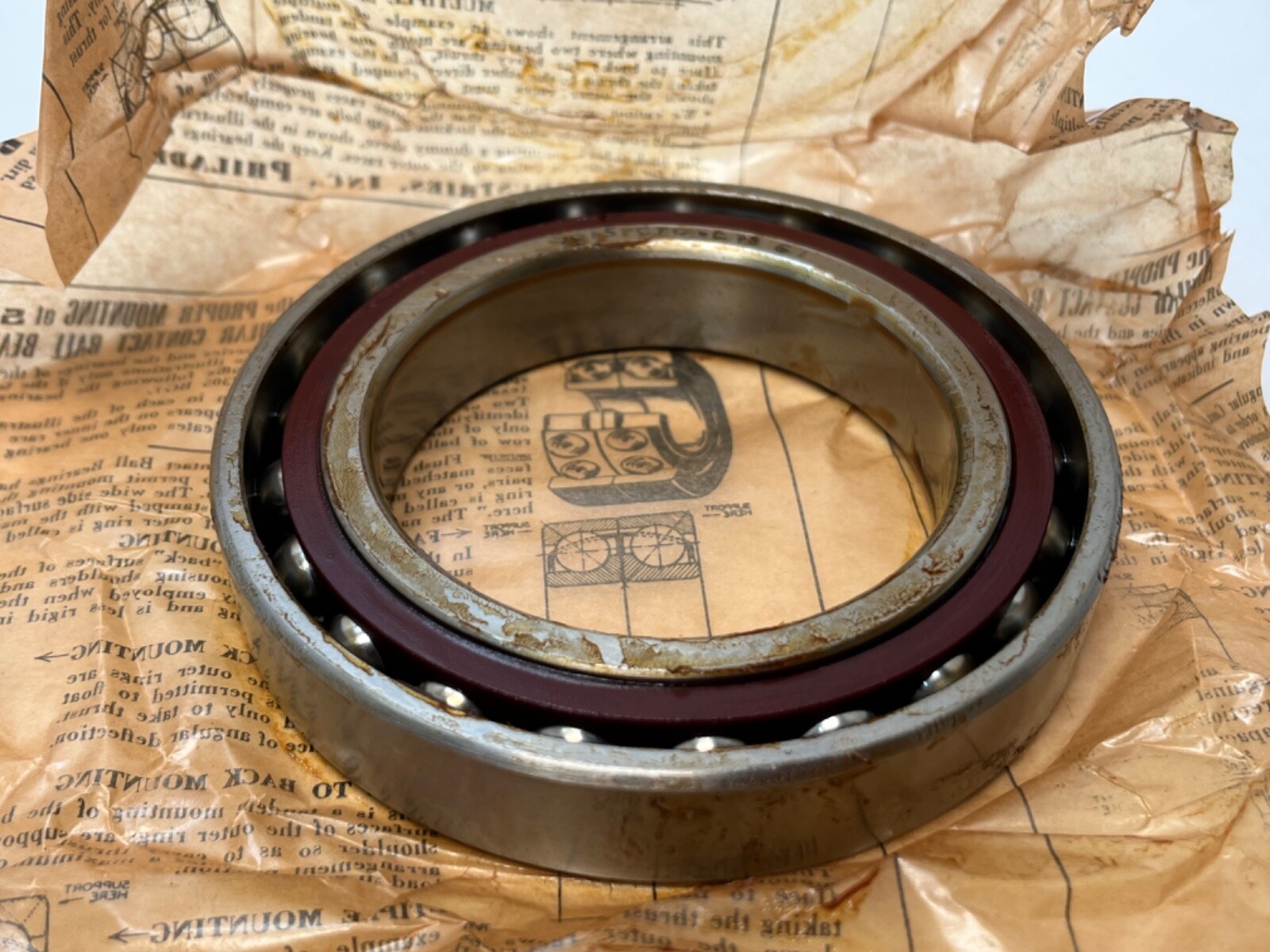

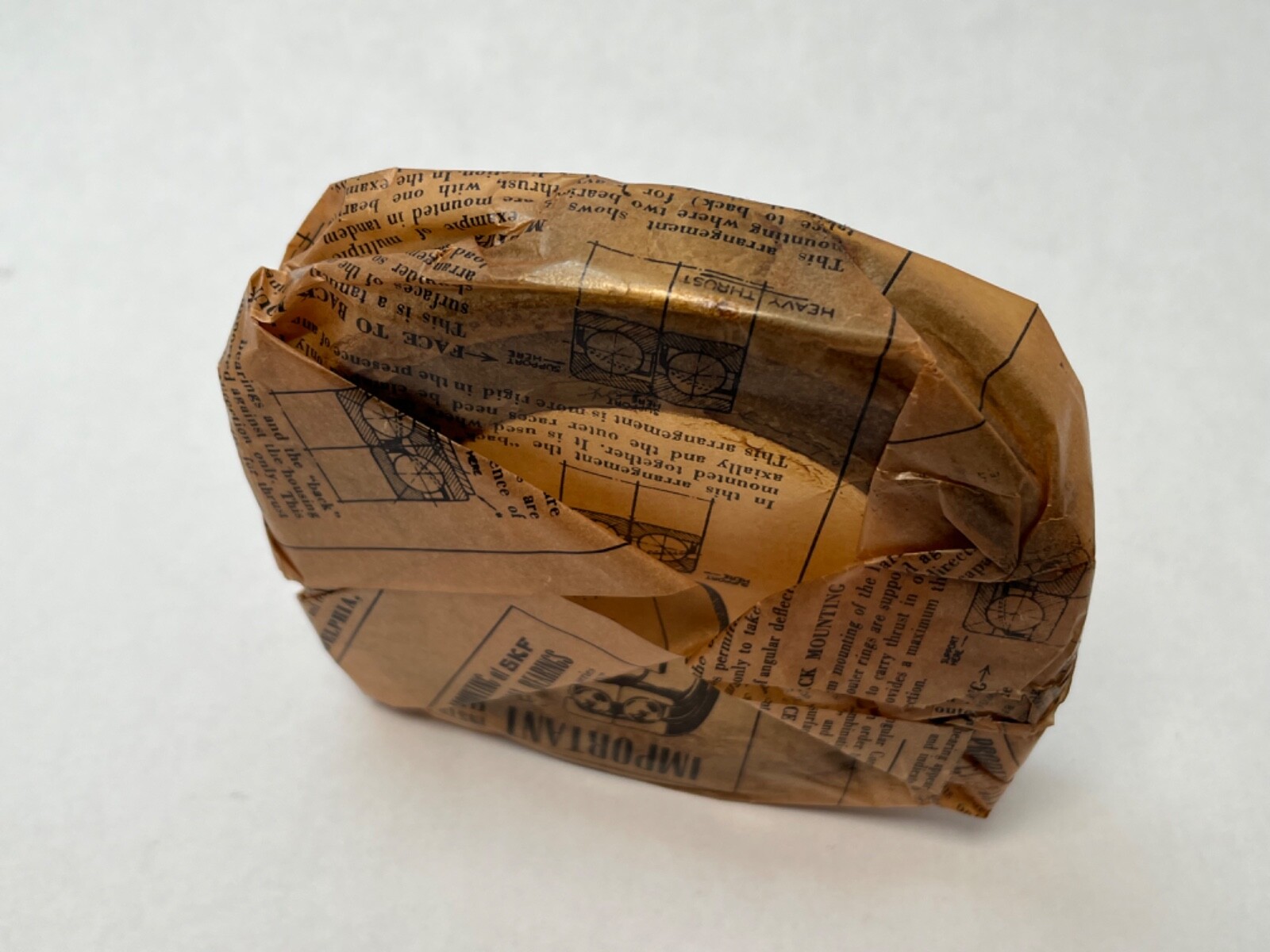

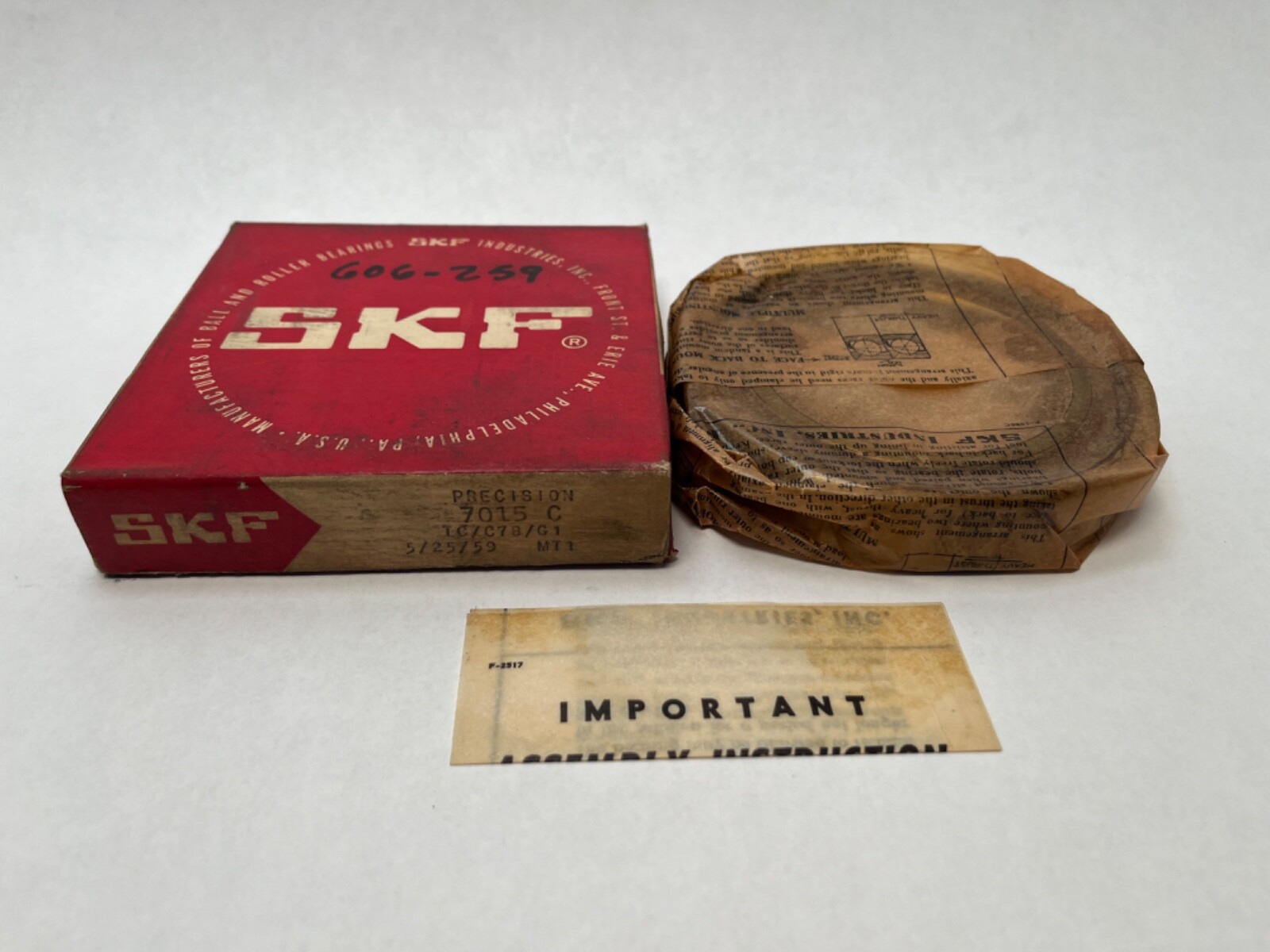

SKF 7015CTCC78G1 single-row super-precision angular contact ball bearing, 75 x 115 x 20 mm, open on both faces, straight bore, 15° contact angle. The carton also carries the Fafnir number 2MM9115WI CR and the plain form 7015 C P5. Unit Quantity: 1 Pc. Condition: new old stock, open box.
7015 — size in the 70 series, 75 mm bore, 115 mm outside diameter, 20 mm width.
2MM — Fafnir 15° contact angle series, marked on the carton.
9115WI — Fafnir size equal to ISO 7015, low shoulder on both rings.
CR — Fafnir phenolic cage.
P5 — precision class P5, marked in the carton form 7015 C P5.
Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm. Contact Angle: 15°. Precision Class: ABEC 5 / P5. Cage Material: Phenolic. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Series: 70 (7015). Base Number: 7015. Material: High carbon chrome steel.
Fafnir 2MM9115WI CR, 15° angle and phenolic cage, 75 x 115 x 20 mm. FAG B7015-C-T-P5-UL, 15° angle, phenolic cage, P5. SKF 7015 CD/P4A, 15° angle, P4 class. SKF 7015 ACD, 25° angle, same 75 x 115 x 20 mm envelope.
Bore 75 mm, outside diameter 115 mm, width 20 mm.
15 degrees, confirmed by the Fafnir 2MM9115WI marking on the carton.
Fafnir 2MM9115WI CR and the plain form 7015 C P5.
