SKF7015CTCC78G1Angular Contact Ball Bearing – 75 mm Bore, 115 mm OD, 20 mm Width, Open, 15° Contact Angle, Phenolic Outer-Ring-Guided Cage, ABEC 5

Product Description

What this part is

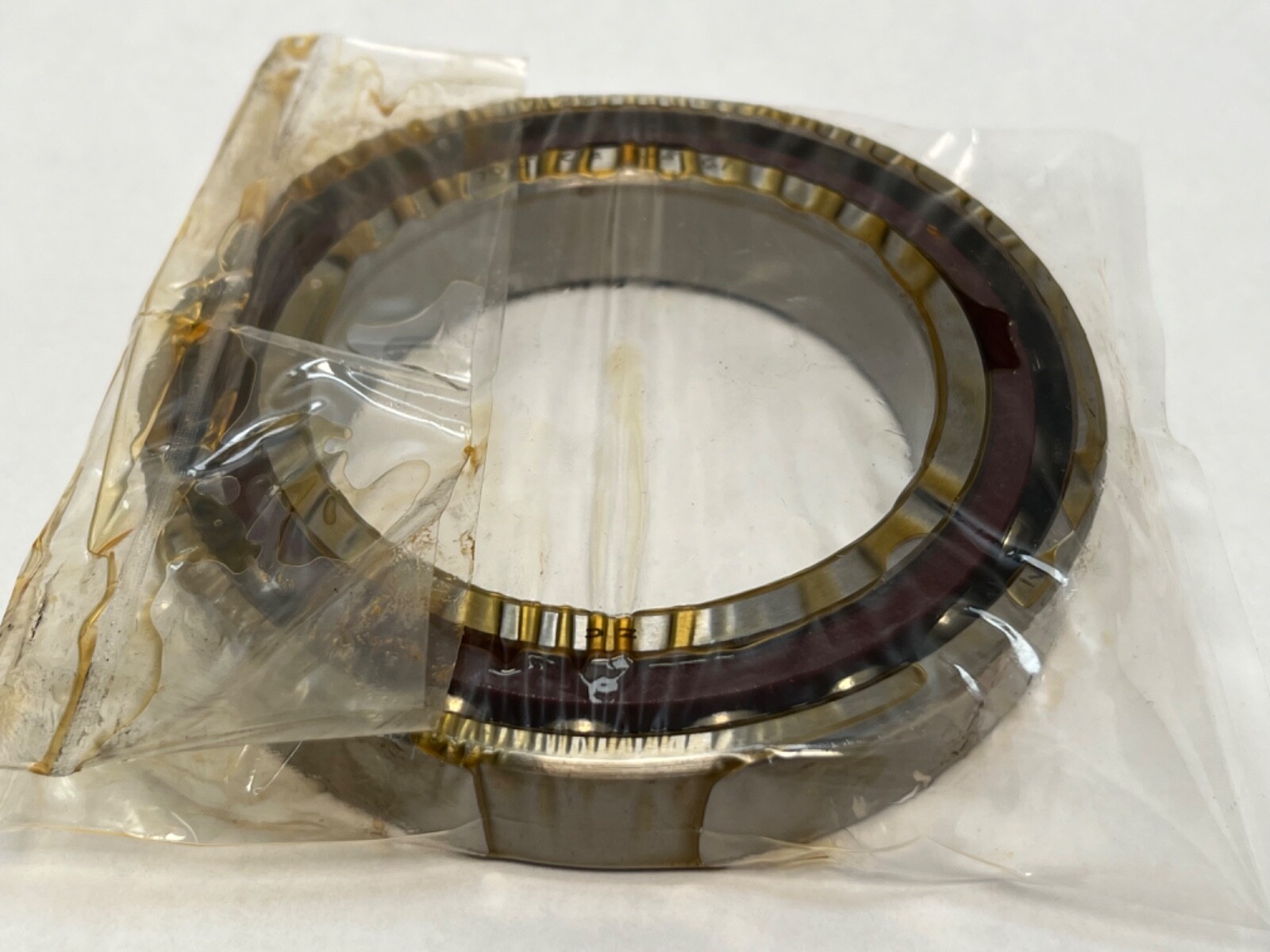

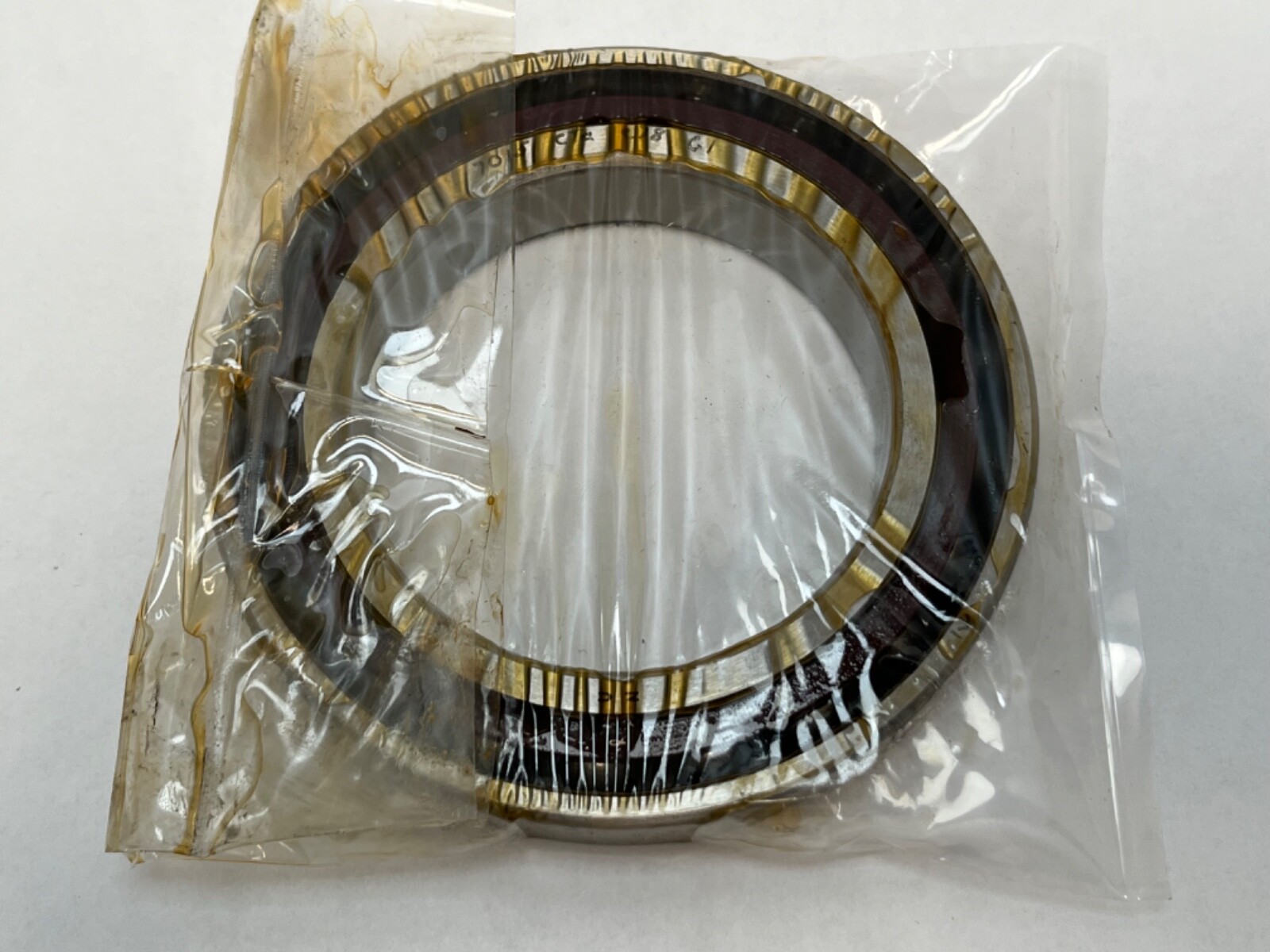

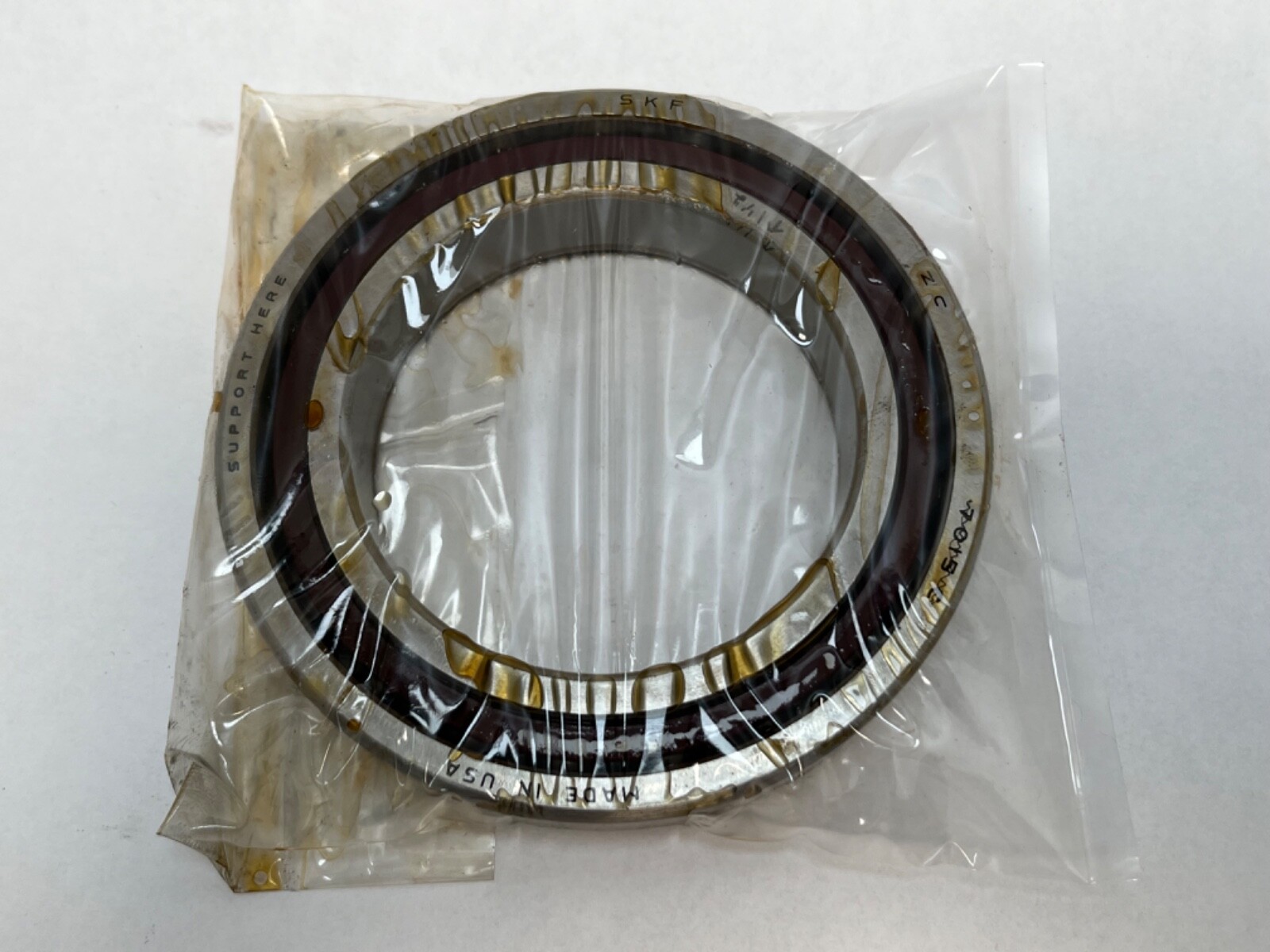

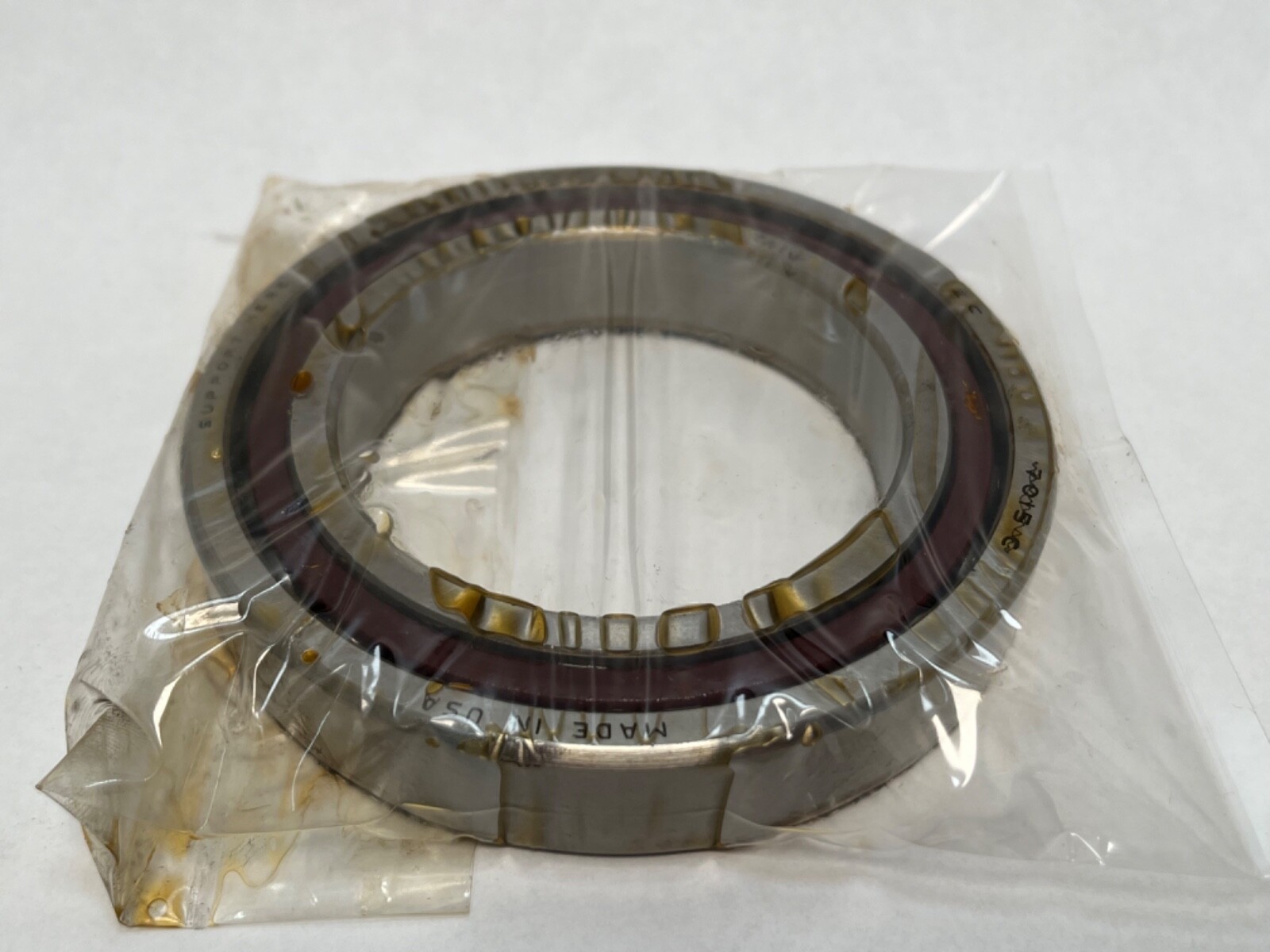

SKF 7015 C TC C78 G1 single-row super-precision angular contact ball bearing. Bore: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Chrome steel. Closure Type: Open. Bore Type: Straight. Precision Class: ABEC 5 / ISO P5. Cage Material: Phenolic. Cage Type: Outer-ring land-riding. Lubricant: Grease or oil. Item Weight: 1.4 lb.

Decoding the designation

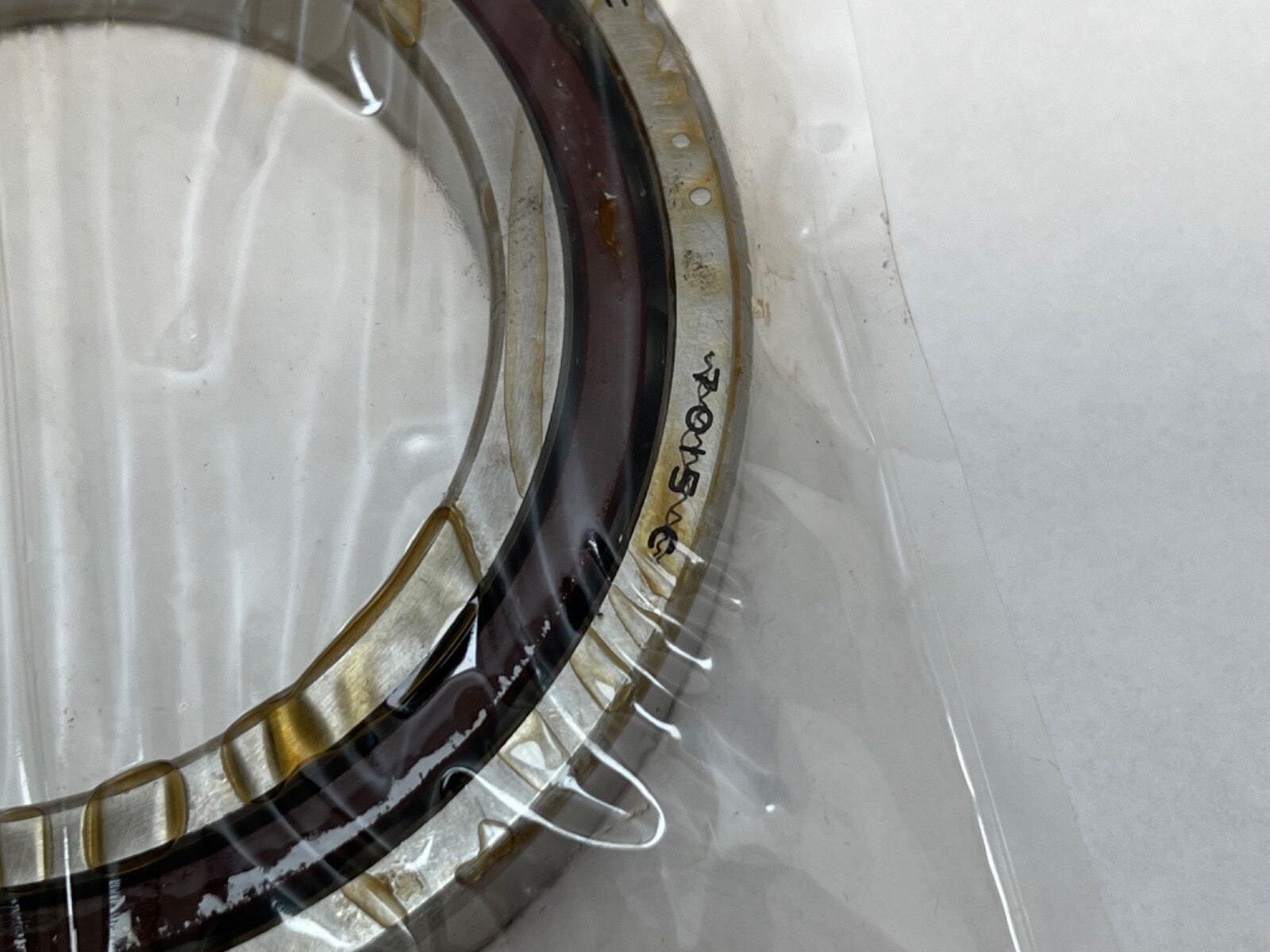

7015 — SKF’s number for the ISO 70 dimension series at a 75 mm bore, giving a 75 x 115 x 20 mm envelope.

C — 15° contact angle.

P5 — ISO tolerance class 5, equivalent to ABEC 5.

TC — machined cage in fabric-base laminate phenolic, guided on the outer ring land.

What these specs mean in practice

A 15° contact angle biases the bearing toward speed and radial stiffness. It carries less thrust than a 25° execution and runs faster and cooler in a spindle.

A phenolic cage guided on the outer ring land is light, self-lubricating and dimensionally stable at speed, which is why it is the standard choice in machine-tool spindle positions.

ISO P5 holds bore, outside diameter and running accuracy to tighter limits than normal class, so shaft location and running runout are closer.

Open on both faces, so the bearing takes its lubricant from the spindle system — grease or oil.

Quantity and configuration

Unit Quantity: 1 Pc. Single bearing, straight bore, open both faces.

Interchange guidance

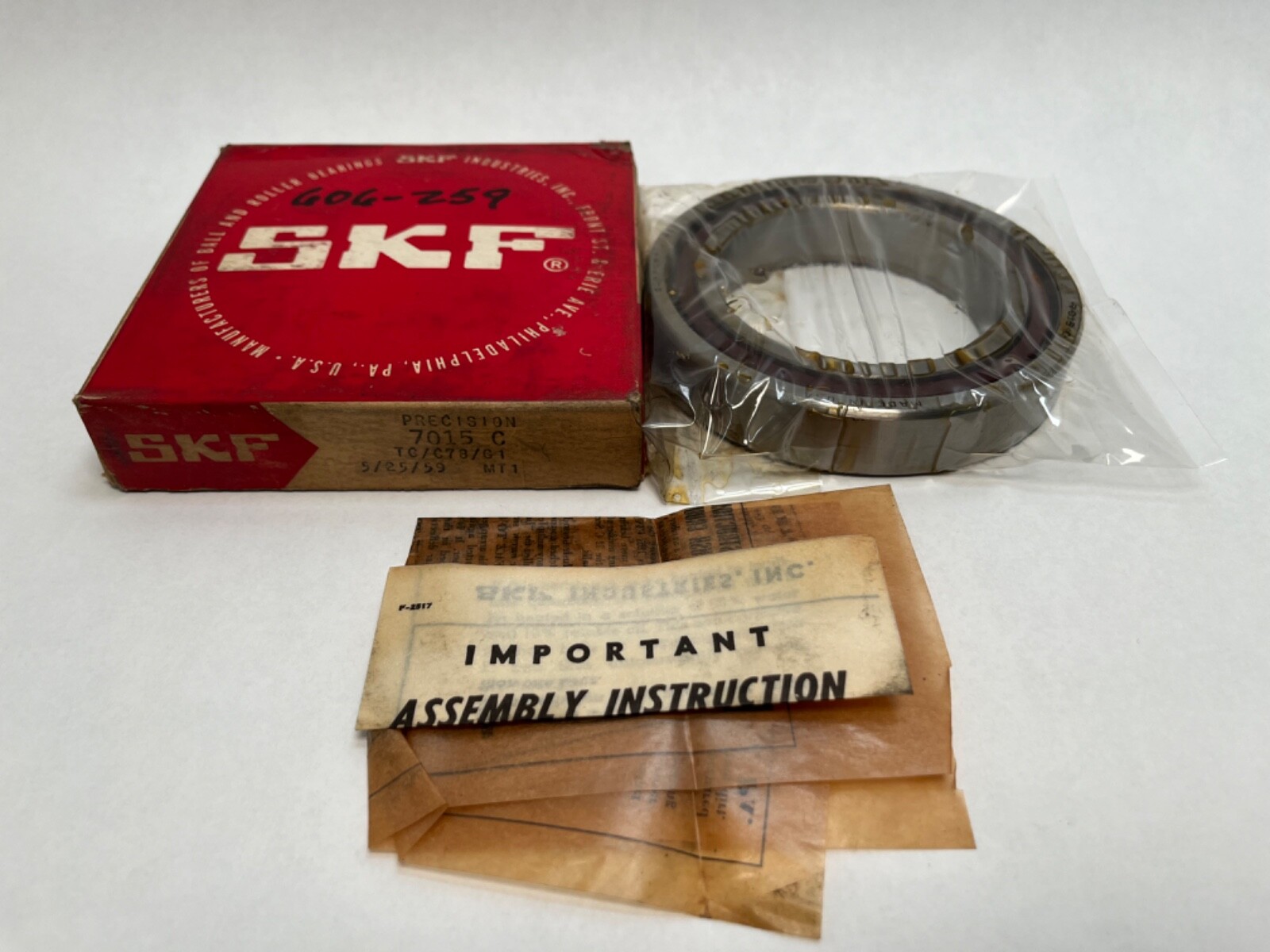

Carton cross-references: Fafnir 2MM9115WI CR and FAG B7015-C-T-P5-UL. Both share the 75 x 115 x 20 mm envelope at 15° with a phenolic cage in ISO class 5.

Searchable designation forms: 7015CTCC78G1, 7015 C TC C78 G1, 7015-C-TC-C78-G1, 7015 C P5, 7015C.
