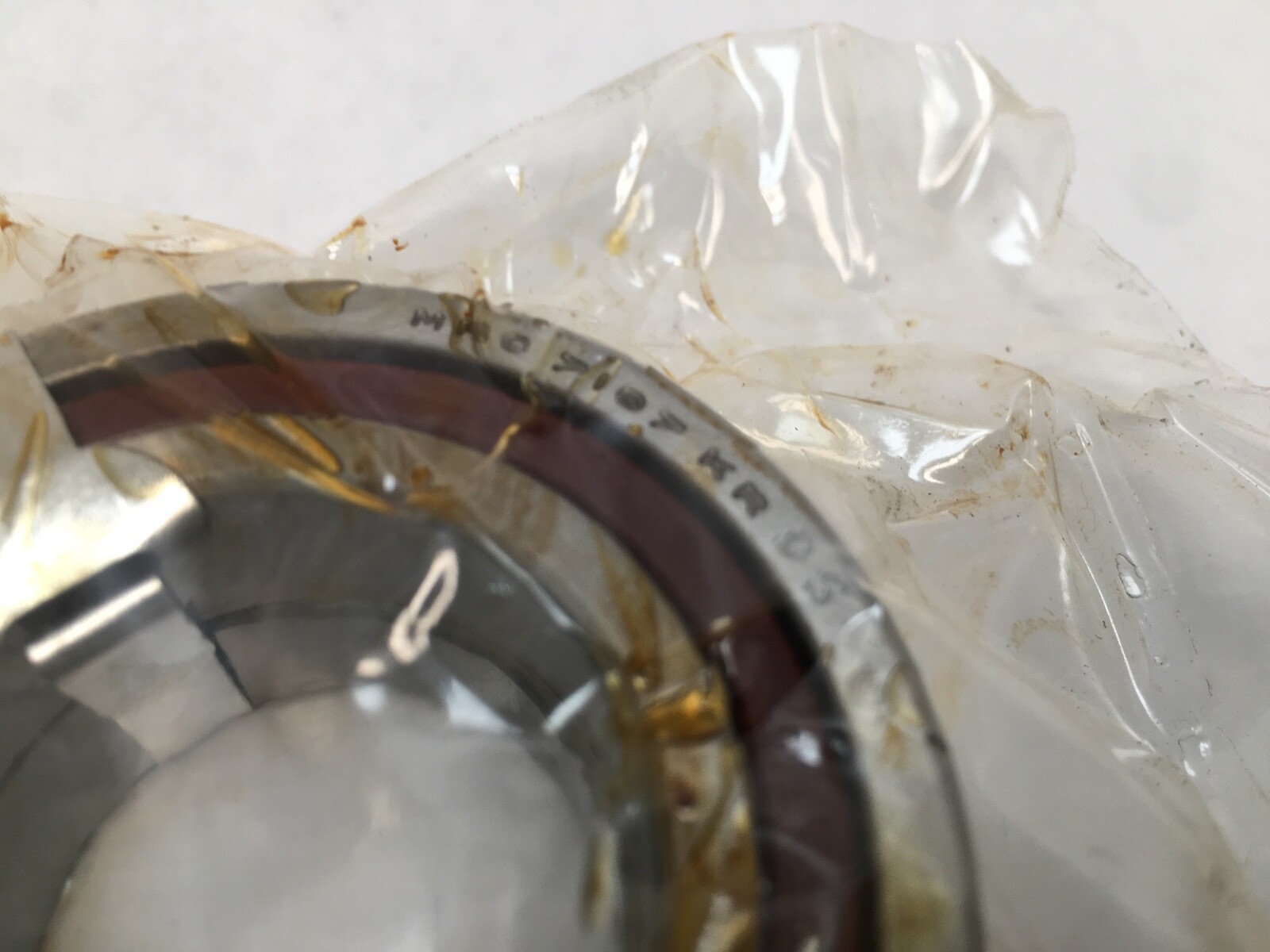

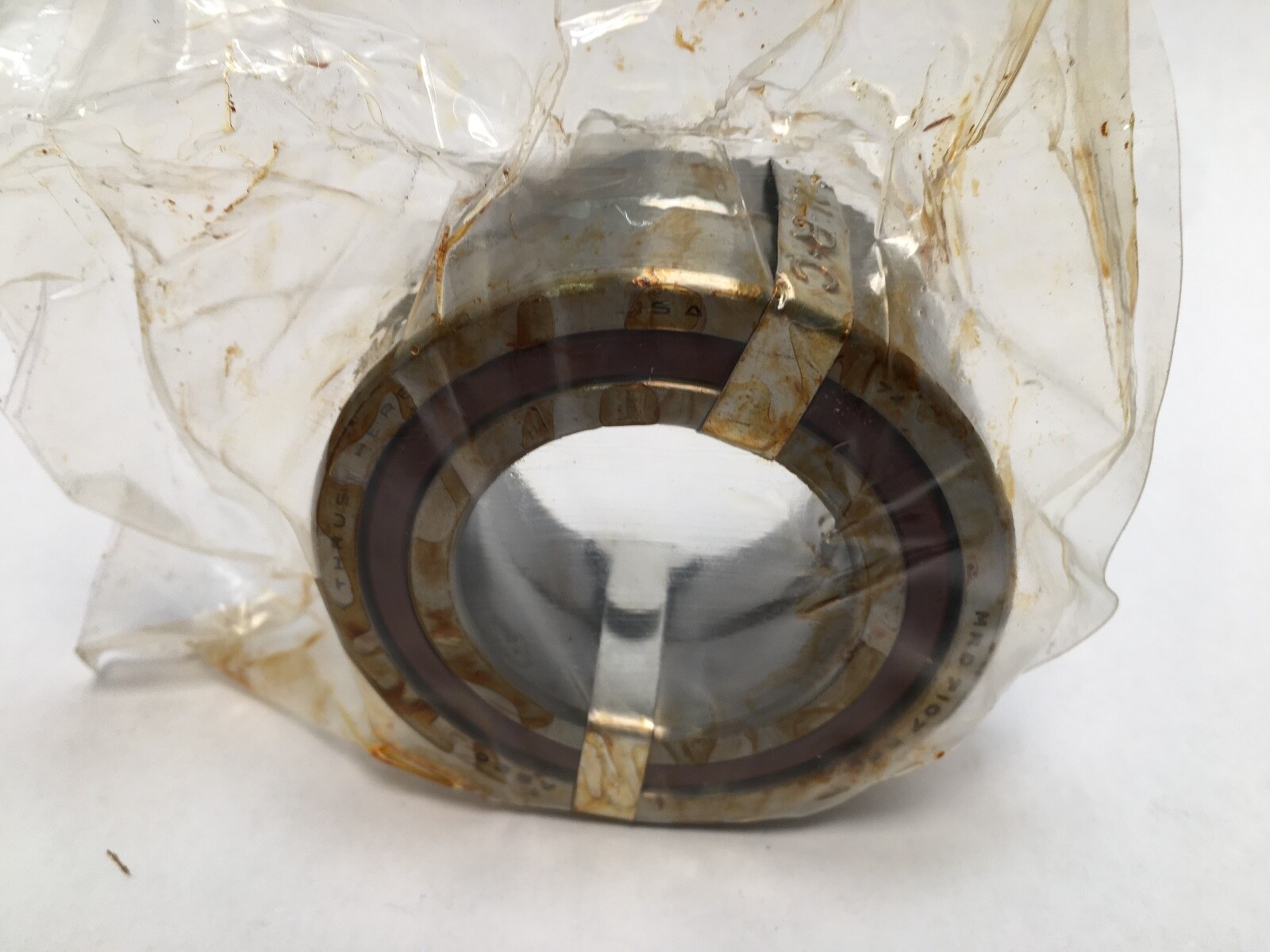

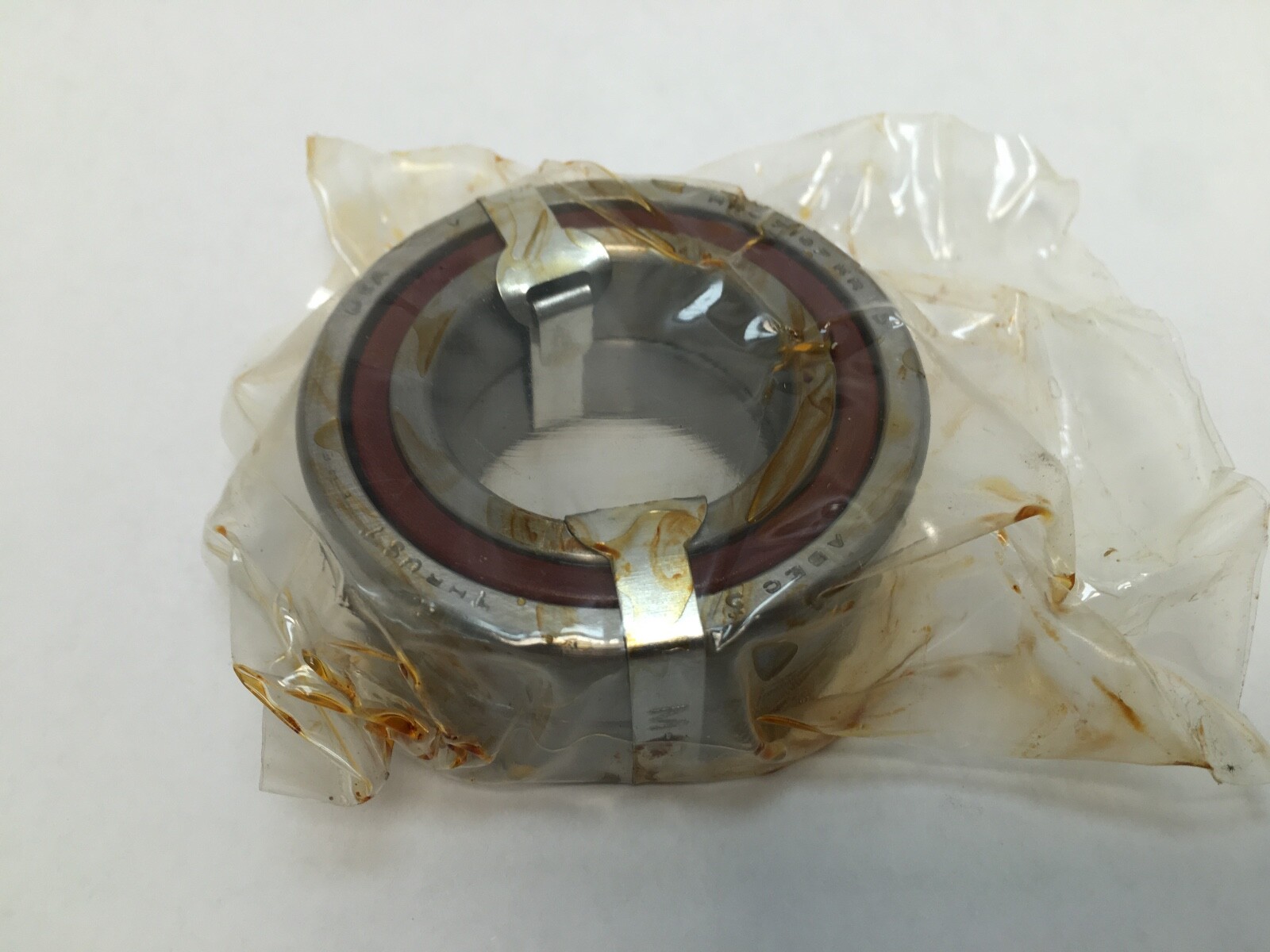

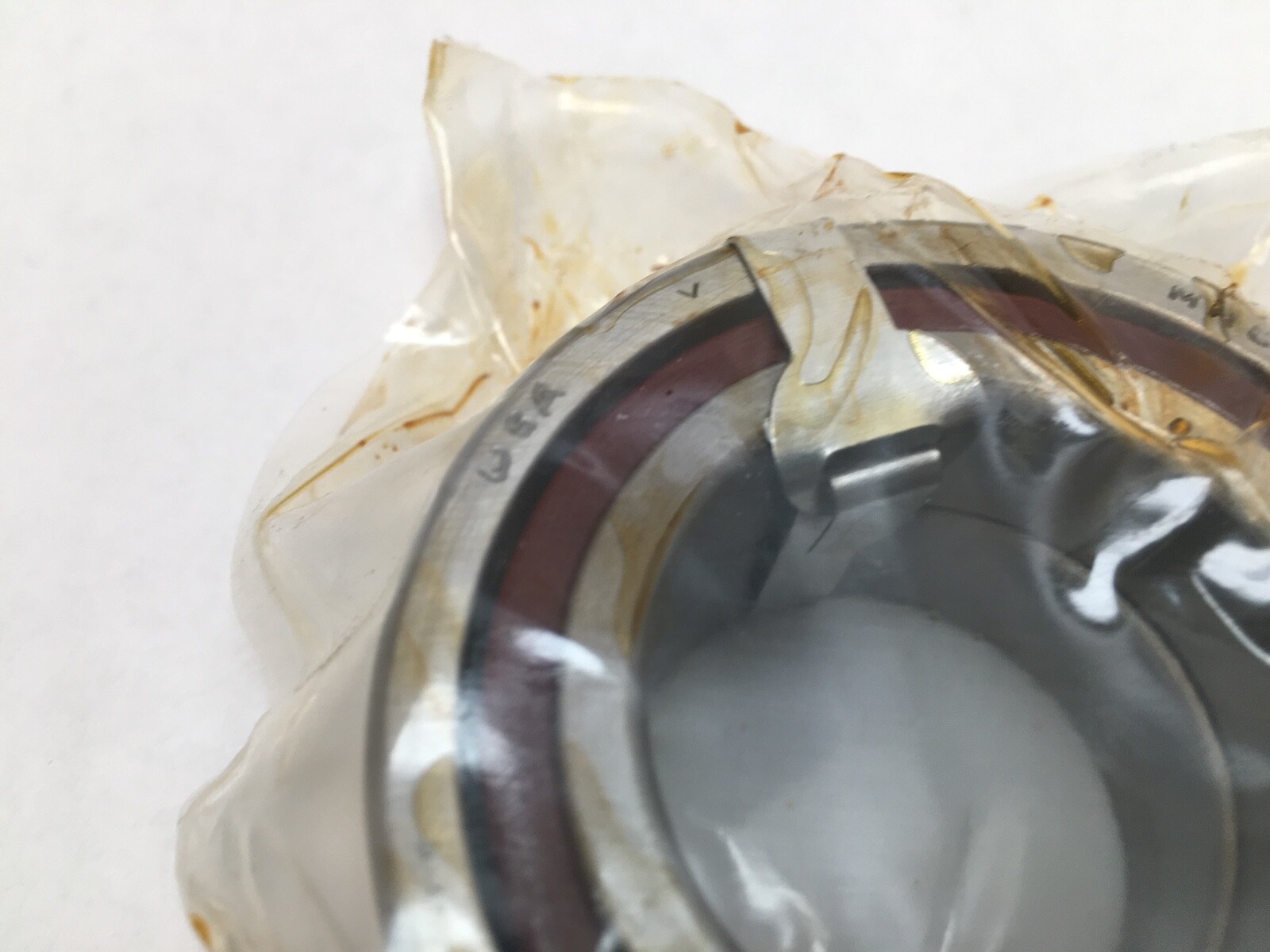

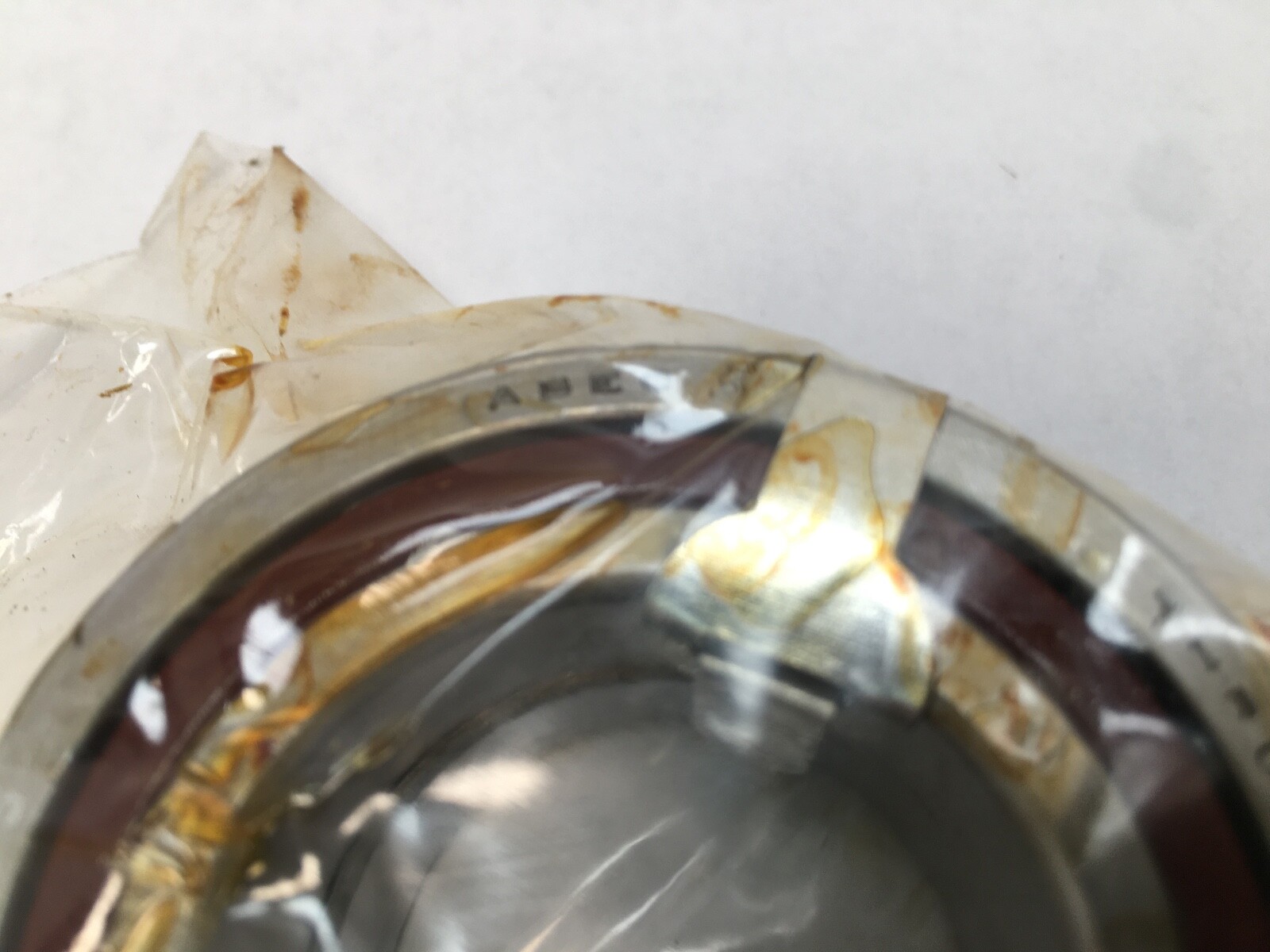

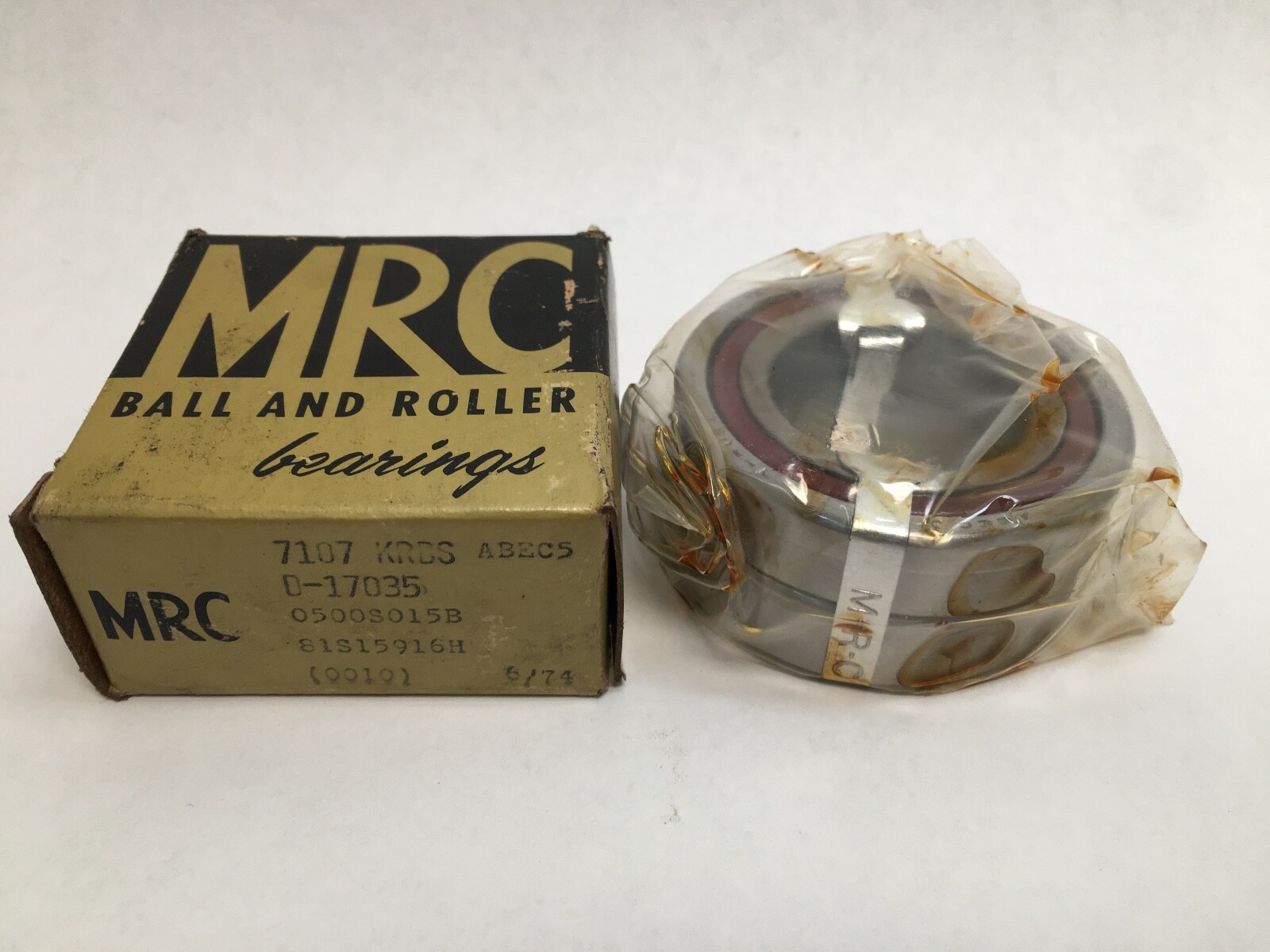

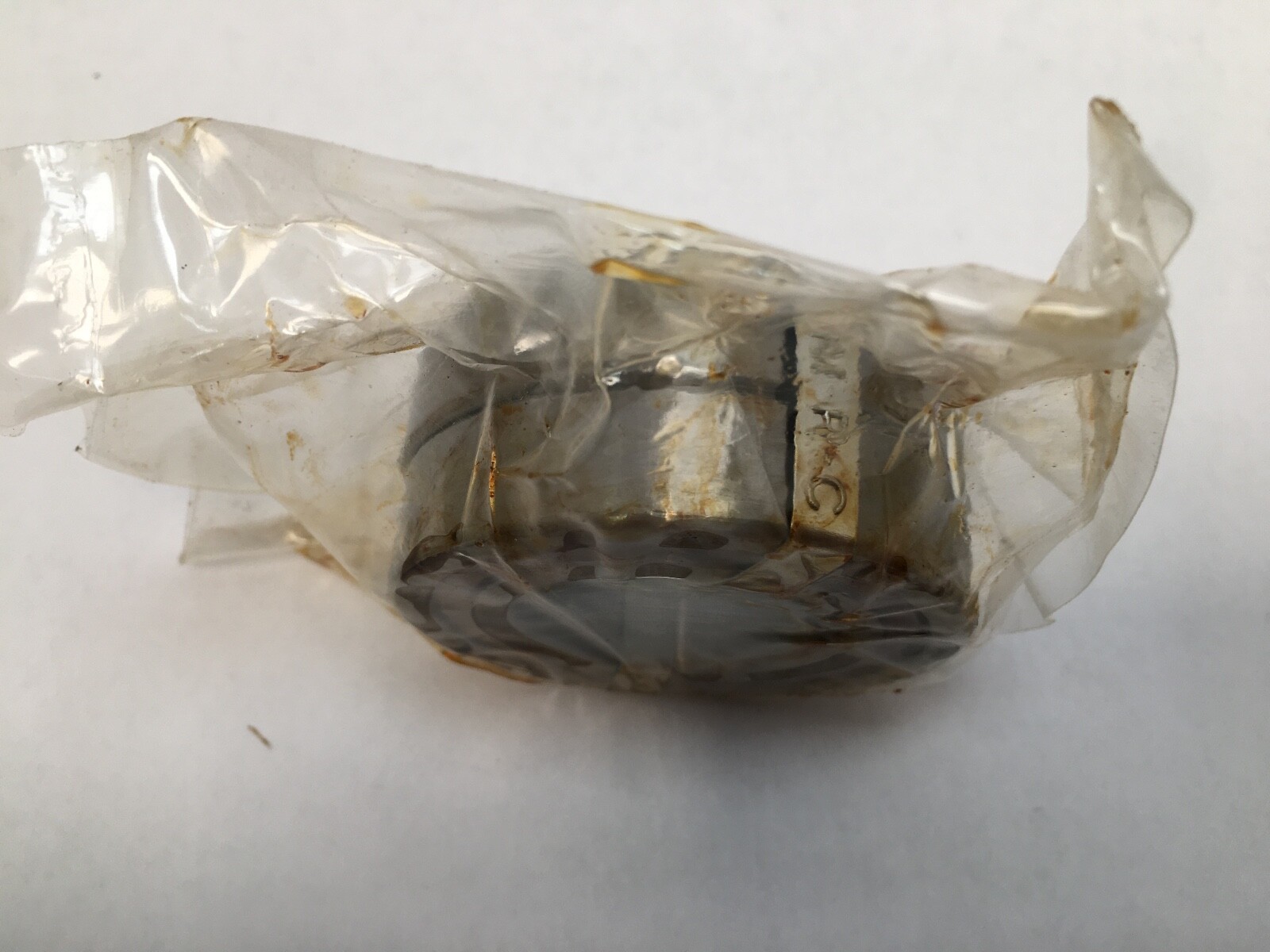

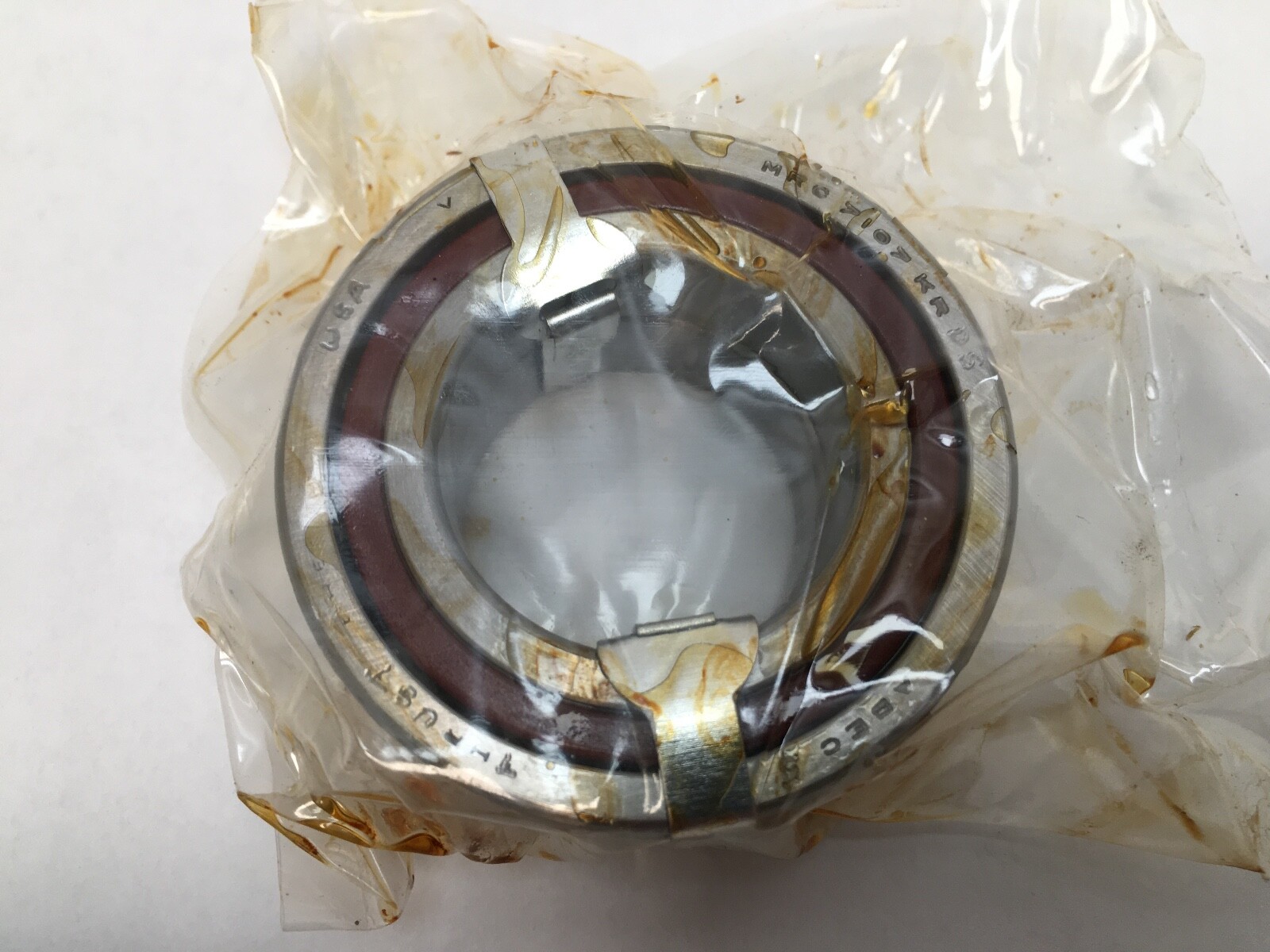

Angular contact ball bearing matched duplex pair, 35 x 62 x 14 mm, 15° contact angle, counterbored outer ring, open, straight bore, ABEC 5 precision.
List Price
$144.76
39 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 7107KRDS |
| Model | 7107 KR DS |
| Bearing Type | Angular Contact Ball Bearing, matched duplex set, Open, both faces |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm per bearing |
| Series | MRC 7100KR R-type (ISO 70 light series) |
|---|---|
| Base Number | 7107KR (ISO 7007 envelope) |
| Industry Terms | Angular contact ball bearing; matched duplex pair; precision bearing; spindle bearing; Marlin Rockwell |
| Common Misspellings | 7107KRD5; 7107KDRS; 7107 KRDS; MCR 7107KRDS |
| Total Width | 28 mm as a mounted duplex pair |
| Bore Shaft Size | 35 mm |
| Mpn Variants | 7107KRDS; 7107 KR DS; 7107-KR-DS; 7107KR DS; 7107KRD; BKE#5 |
| Manufacturer Status | MRC brand acquired by SKF; designation discontinued |
| Arrangement Configuration | Matched duplex set |
| Precision Class | ABEC 5 (P5) |
| Rolling Elements | Ball |
| Cage Material | Phenolic (Bakelite) |
| Number Of Rows | 1 per bearing (2 rows in the mounted set) |
| Bore Type | Straight, counterbored outer ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7107KRDS |
| Application Types | machine tool spindles; gearbox shafts; high-speed precision rotary shafts; pumps and compressors |
| Cross Reference 1 | SKF 7007 CD - 15 deg, single bearing |
|---|---|
| Cross Reference 2 | FAG B7007-C - 15 deg, single bearing |
| Cross Reference 3 | NSK 7007C - 15 deg, single bearing |

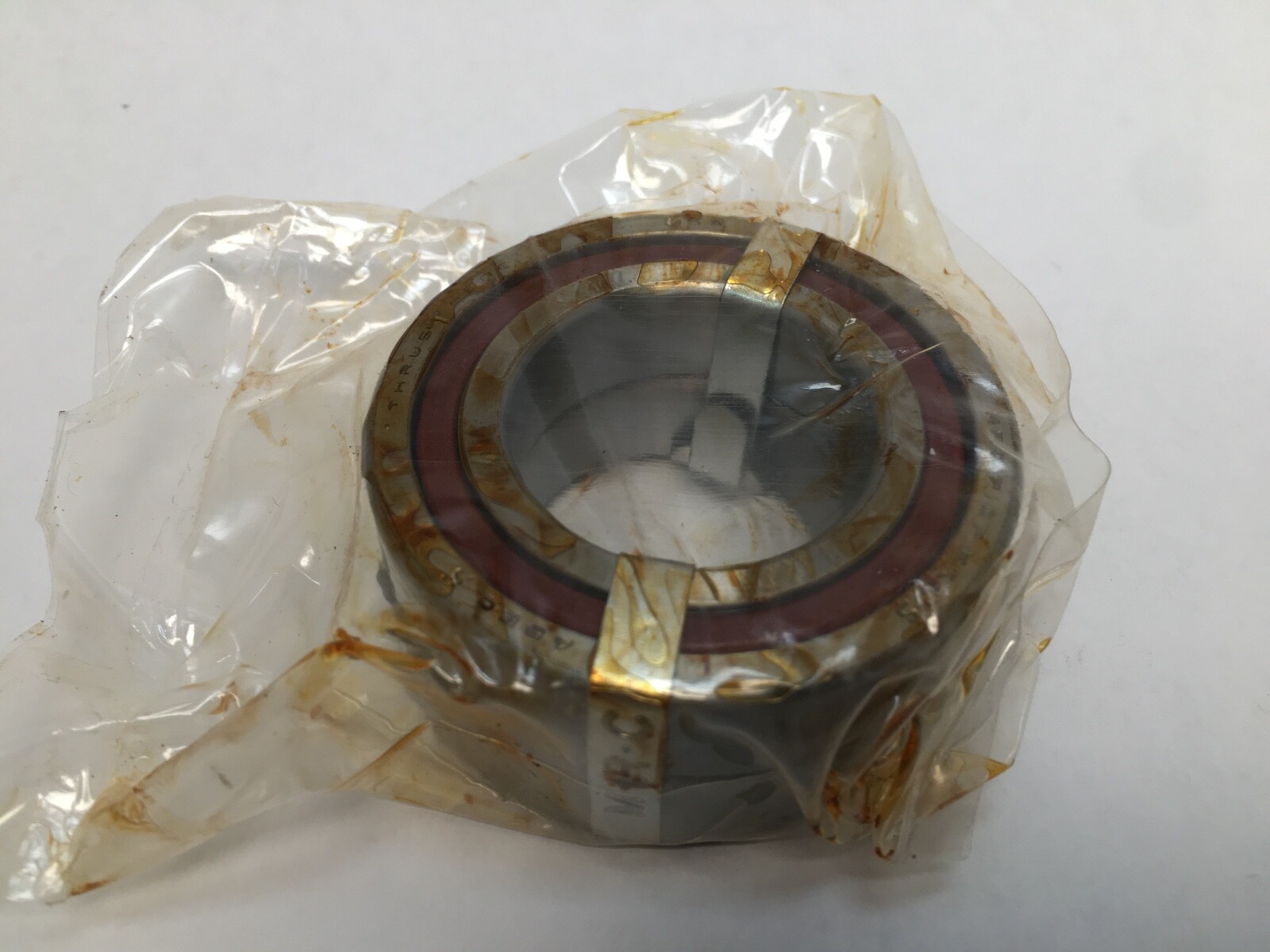

MRC 7107KRDS angular contact ball bearing, supplied as a two-piece duplex set. Unit Quantity: 2 Pcs. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm per bearing; Total Width: 28 mm as a pair. Contact Angle: 15°, counterbored outer ring, straight bore, open on both faces, machined phenolic cage, ABEC 5. The size corresponds to ISO 7007.
7 — MRC angular contact series, single row.
07 — bore code: 35 mm bore.
KR — R-type execution, counterbored outer ring, 15° contact angle.
DS — MRC duplex designation: ground for duplex mounting.
BKE — machined phenolic (Bakelite) cage.
#5 — ABEC 5 (P5) precision grade.
Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm per bearing. Total Width: 28 mm as a pair. Contact Angle: 15°. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Bore Type: Straight, counterbored outer ring. Closure Type: Open, both faces. Cage Material: Phenolic (Bakelite). Precision Class: ABEC 5 (P5). Series: MRC 7100KR R-type (ISO 70 light series).
Straight bore for an interference-fit shaft seat, with the outer rings located in a bored housing. Each bearing takes thrust in one direction. The ring faces are marked for orientation.
The 35 x 62 x 14 mm size at 15° corresponds to the ISO 7007 C executions: SKF 7007 CD, FAG B7007-C and NSK 7007C, each a single bearing. A 7007 AC or 7007 B execution is the same size at a steeper contact angle and is a related part.
15°. The KR in the designation is the R-type execution with a counterbored outer ring.
2 Pcs, a two-piece duplex set. Overall width is 14 mm per bearing and 28 mm for the pair.
BKE is a machined phenolic (Bakelite) cage and #5 is the ABEC 5 precision grade.
