GMN S6006CTBHGDUM angular contact spindle bearing set, 30 x 55 x 13 mm, 15° contact angle, phenolic TB cage, HG precision, universal medium preload.
List Price
$145.15
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S6006CTBHGDUM |
| Model | S 6006 C TB HG DUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Series | S 60 |
|---|---|
| Preload | M (medium) |
| Closure Type | Open |
| Rolling Elements | Ball |
| Cage Material | Laminated phenolic resin |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Overall Width | 13 mm |
| Mpn Variants | S6006CTBHGDUM, S 6006 C TB HG DUM, S-6006-C-TB-HG-DUM, 7006C |
| Arrangement Configuration | DUM — universal matched pair (DB, DF or DT) |
| Precision Class | HG (GMN high precision) |
| Additional Attributes | Bearing design: S, two lands on inner ring, non-separable; Cage max operating temperature: 120 °C |
| Cage Type | TB, machined, inner-ring guided |
| Industry Terms | spindle bearing; super precision angular contact bearing; universally matched pair; DUM matched set; 15 degree angular contact; high precision spindle bearing |
| Common Misspellings | GMN S6006 CTB HG DUM; GNM S6006CTBHGDUM; GMN S-6006CTBHGDUM; GMN S 6006C TB HGDUM |
| Application Types | Machine tool spindles; grinding spindles; high-speed motor spindles |
| Cross Reference 1 | Fafnir 2MM9106WI |
|---|---|
| Cross Reference 2 | FAG B7006-C-T |
| Cross Reference 3 | SKF 7006 CD |
| Cross Reference 4 | RHP 7006 X2TA |
| Cross Reference 5 | Barden 106H |
| Cross Reference 6 | SNFA EX 30 CE1 |

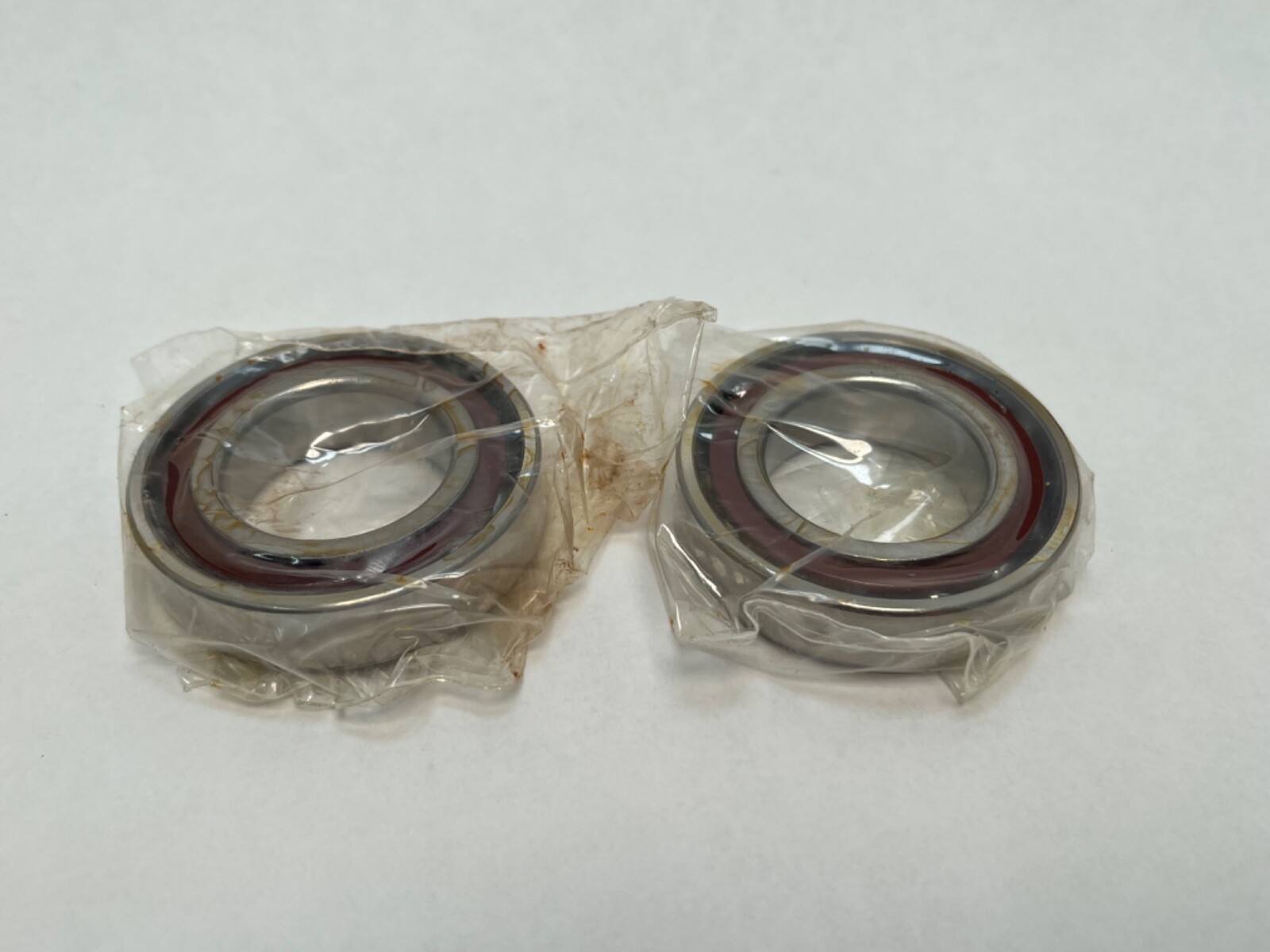

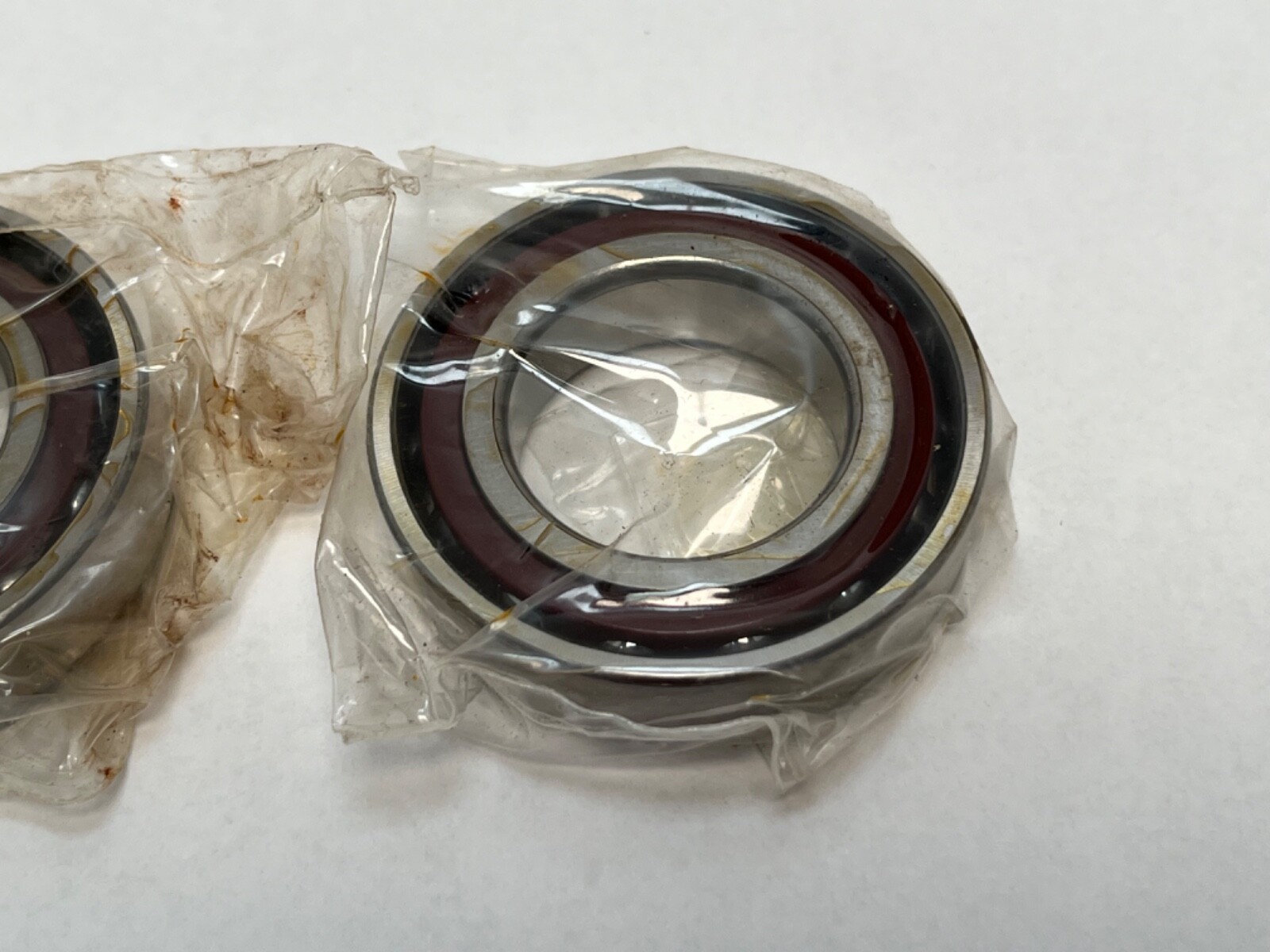

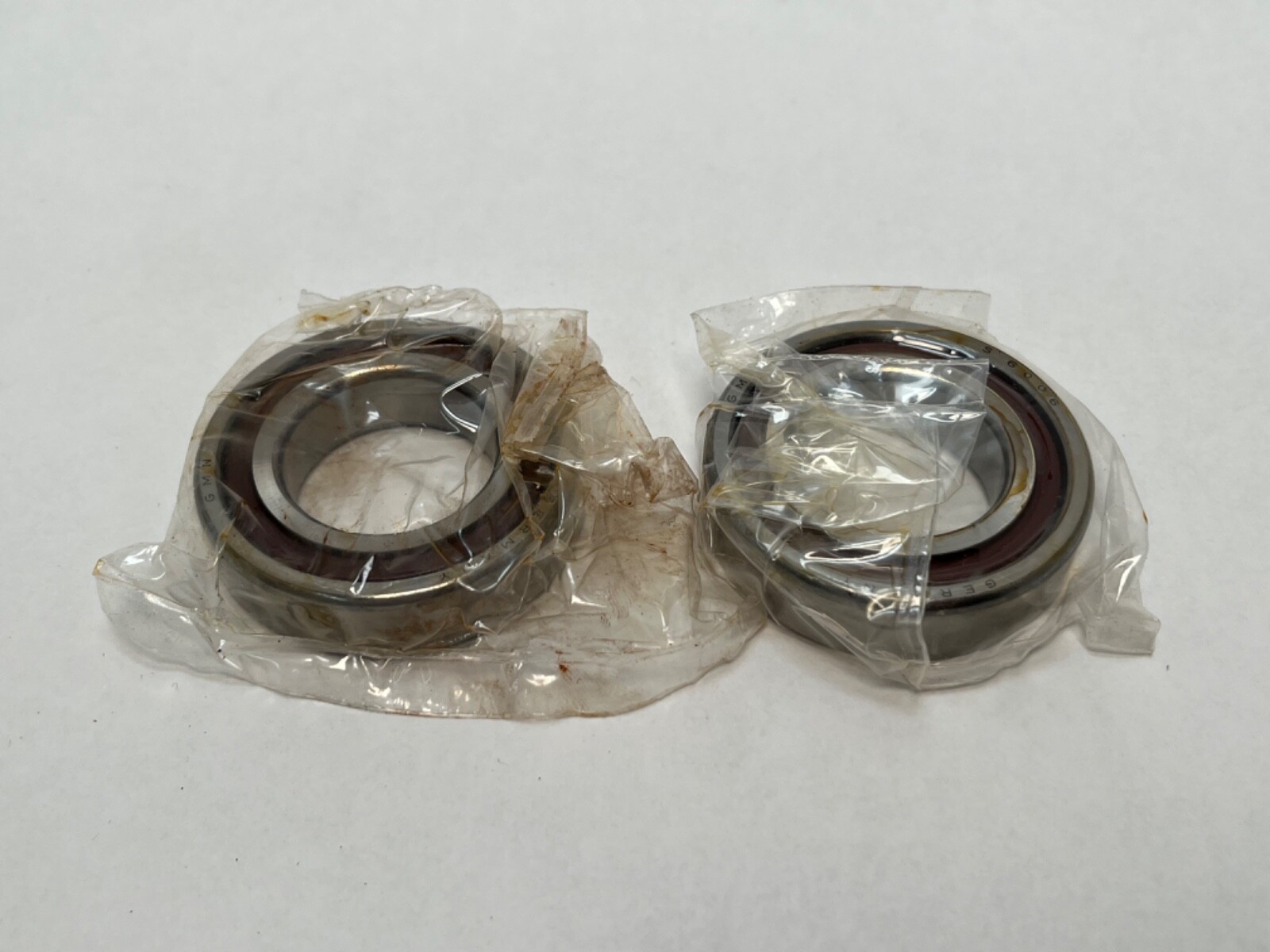

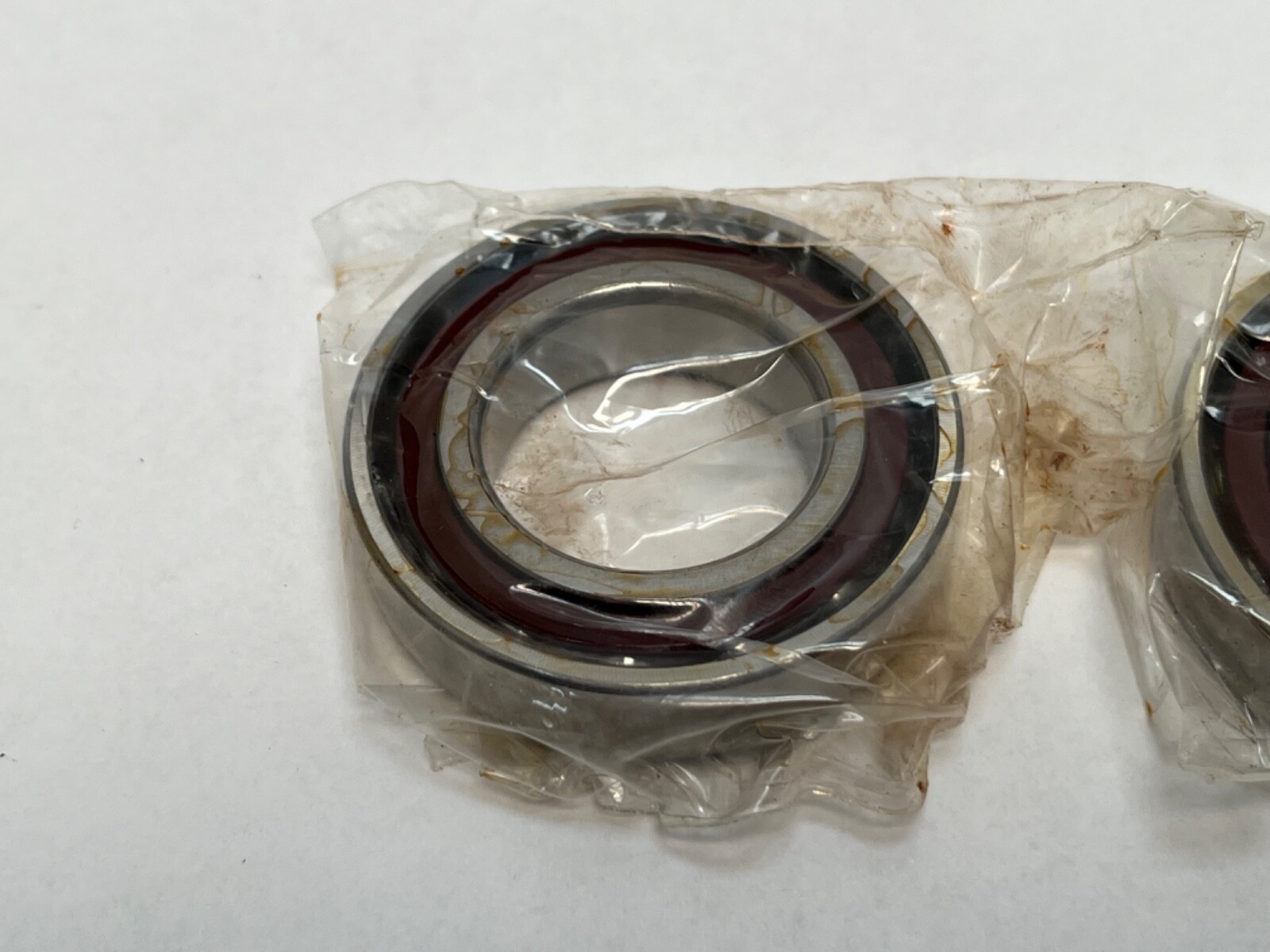

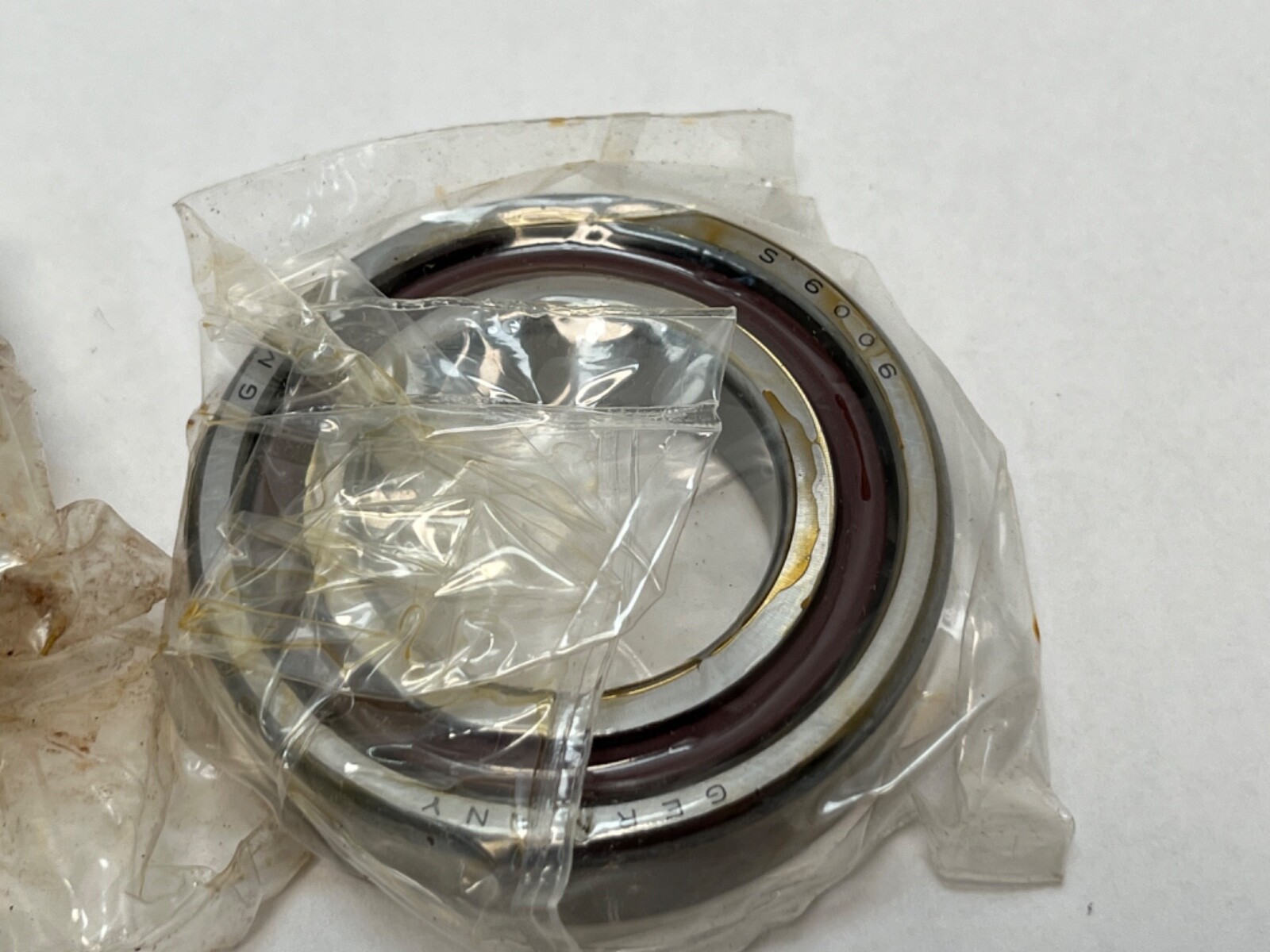

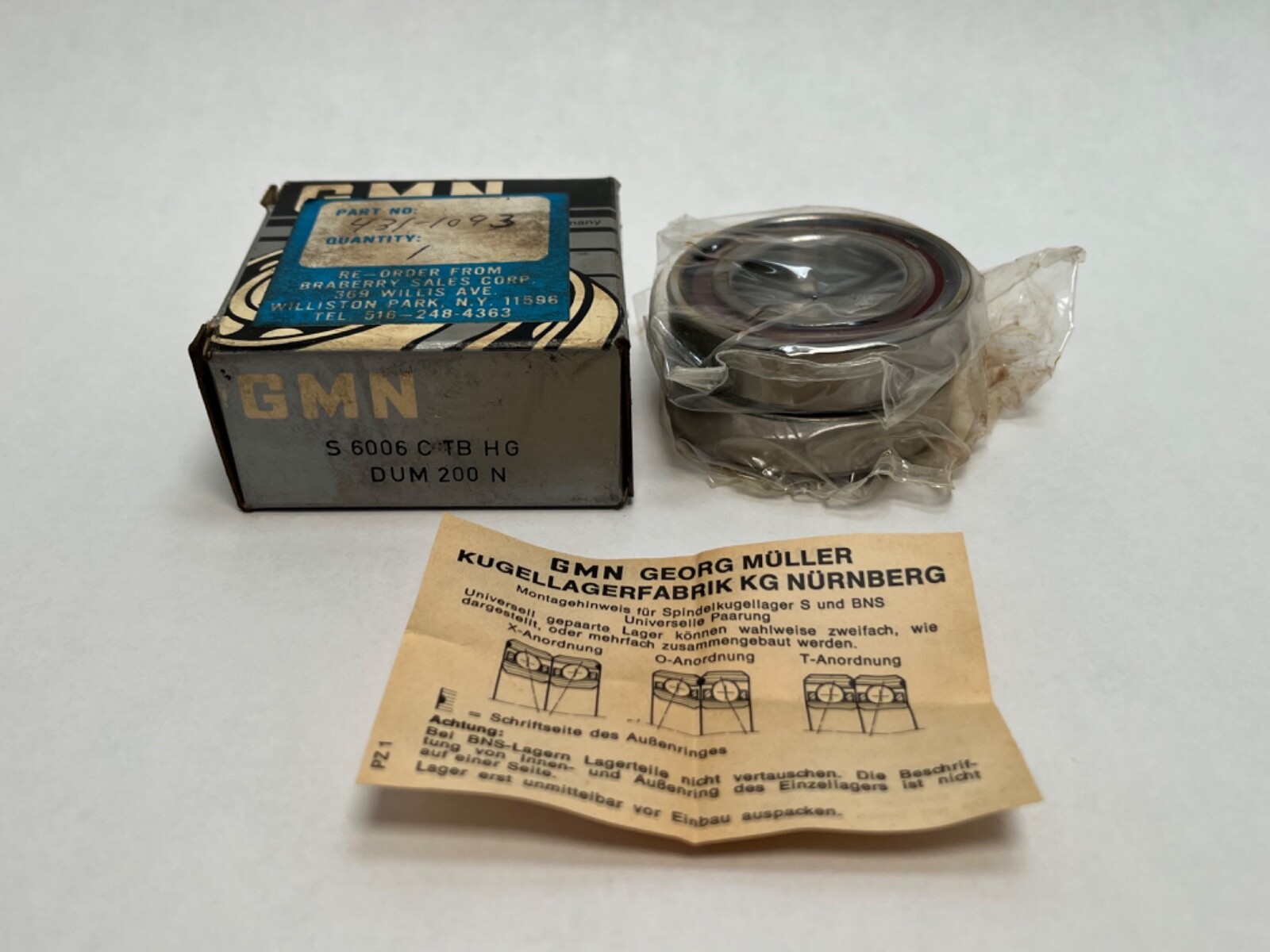

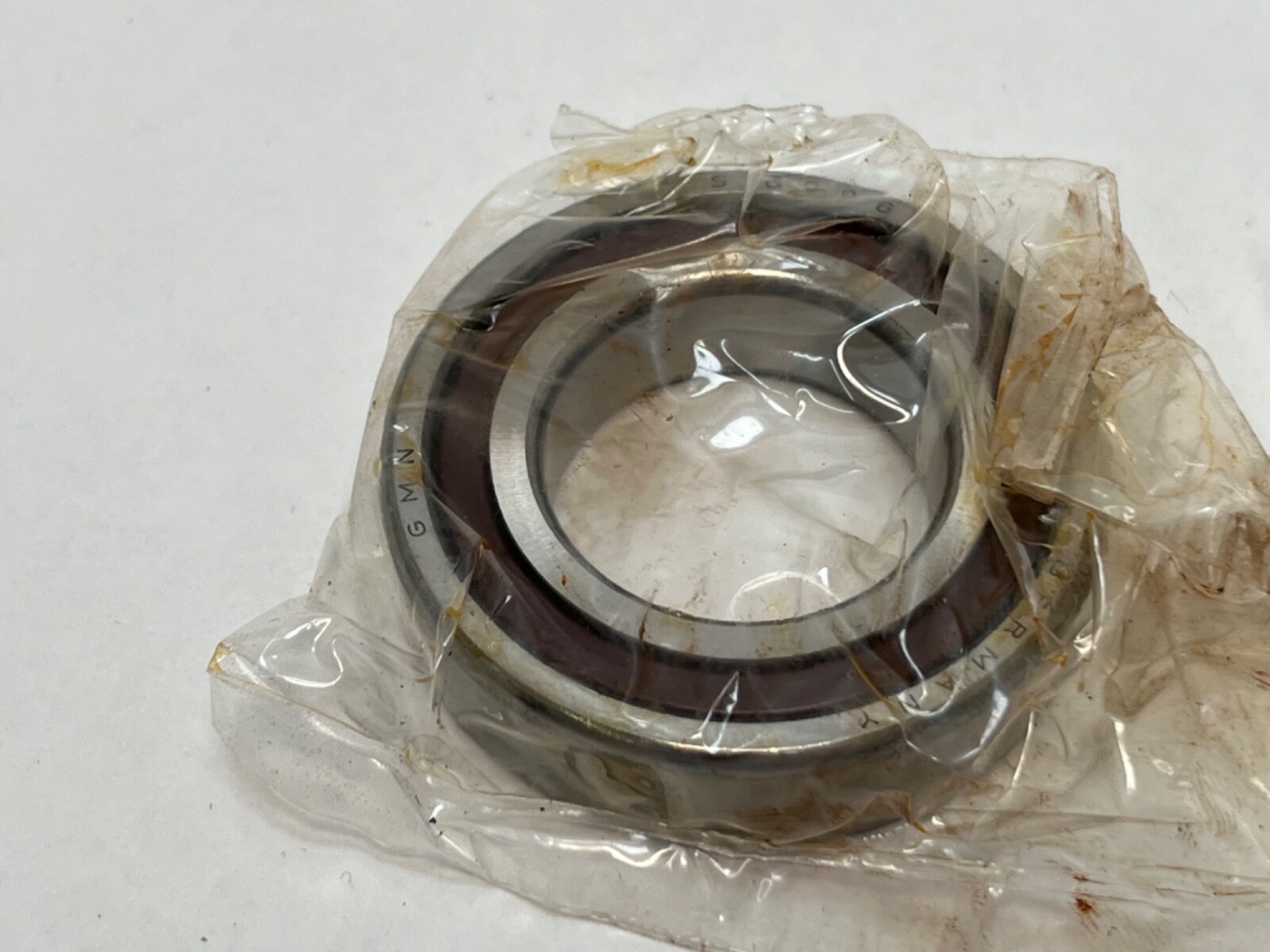

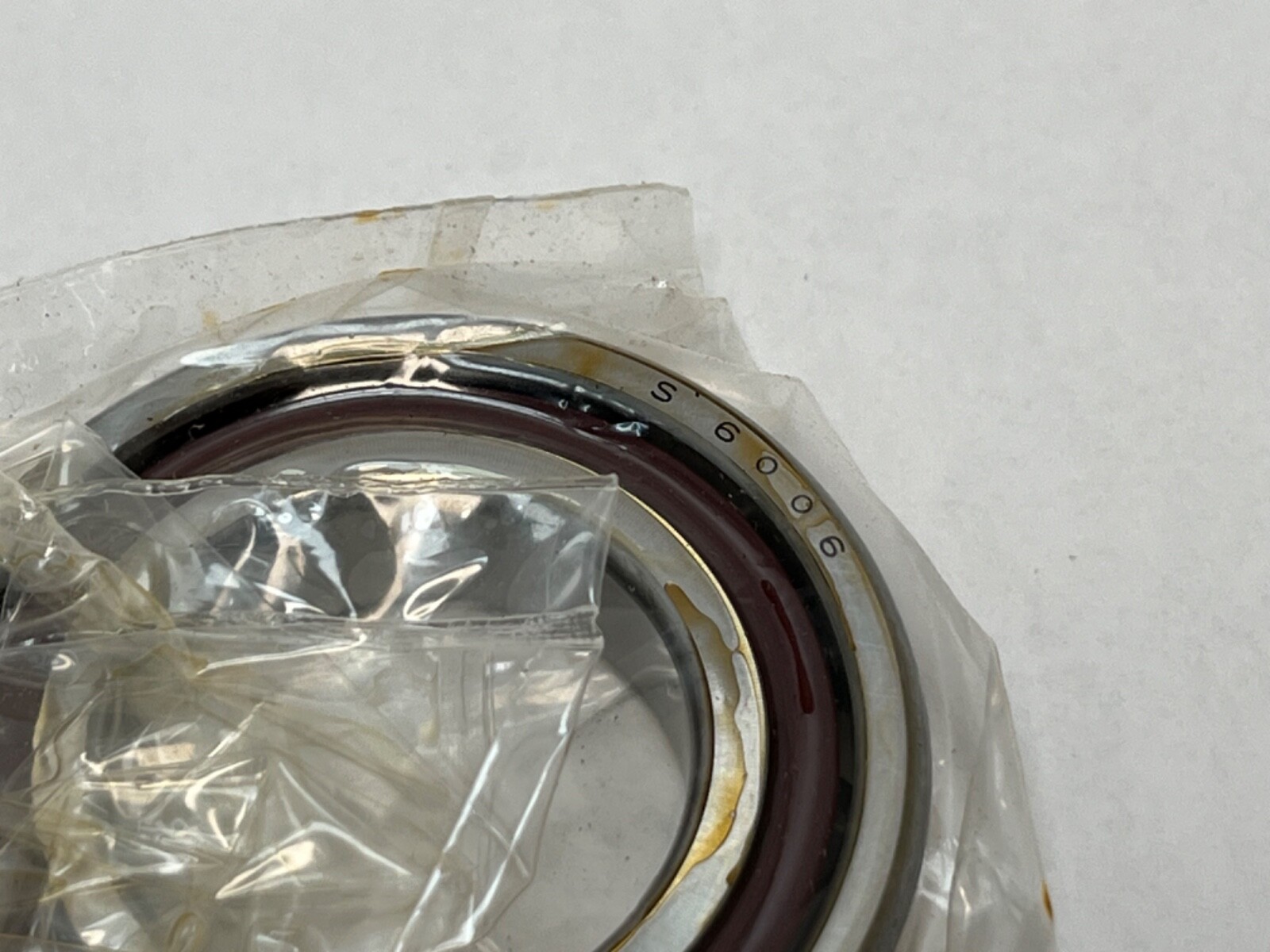

GMN S 6006 C TB HG DUM is a super-precision angular contact spindle bearing set of two bearings, universally matched with medium preload, 30 mm bore x 55 mm outside diameter x 13 mm width per bearing, 15° contact angle, laminated phenolic resin cage guided on the inner ring. Unit Quantity: 2 Pcs.
S — GMN standard spindle bearing, two lands on the inner ring, non-separable.
6006 — dimension series 10, bore code 06: 30 x 55 x 13 mm, the ISO 7006 size.
C — 15° nominal contact angle.
TB — laminated phenolic resin cage guided on the inner ring, rated to 120 °C.
HG — GMN high precision, toleranced to GMN’s own specification.
D — set of two bearings.
UM — universal matching, medium preload. The pair mounts back-to-back, face-to-face or in tandem.
Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm per bearing. Contact Angle: 15°. Cage Material: Laminated phenolic resin. Cage Type: Inner-ring guided. Precision Class: HG (GMN high precision). Preload: M (medium). Rolling Elements: Ball. Closure Type: Open. Snap Ring Included: No. Unit Quantity: 2 Pcs.
Envelope per bearing: 30 mm bore, 55 mm outside diameter, 13 mm width. Mounting Arrangement: Universal (DB, DF or DT). Cage maximum operating temperature: 120 °C.
Cross-references, 30 x 55 x 13 mm, 15°: Fafnir 2MM9106WI, FAG B7006-C-T, SKF 7006 CD, RHP 7006 X2TA, Barden 106H, SNFA EX 30 CE1. These carry outer-ring-guided cages; the GMN TB execution is inner-ring guided. MPN Variants: S6006CTBHGDUM, S 6006 C TB HG DUM, S-6006-C-TB-HG-DUM, 7006C.
Bore 30 mm, outside diameter 55 mm, width 13 mm per bearing.
Two bearings (D), universally matched with medium preload (UM).
TB is a laminated phenolic resin cage guided on the inner ring, rated to 120 °C.
