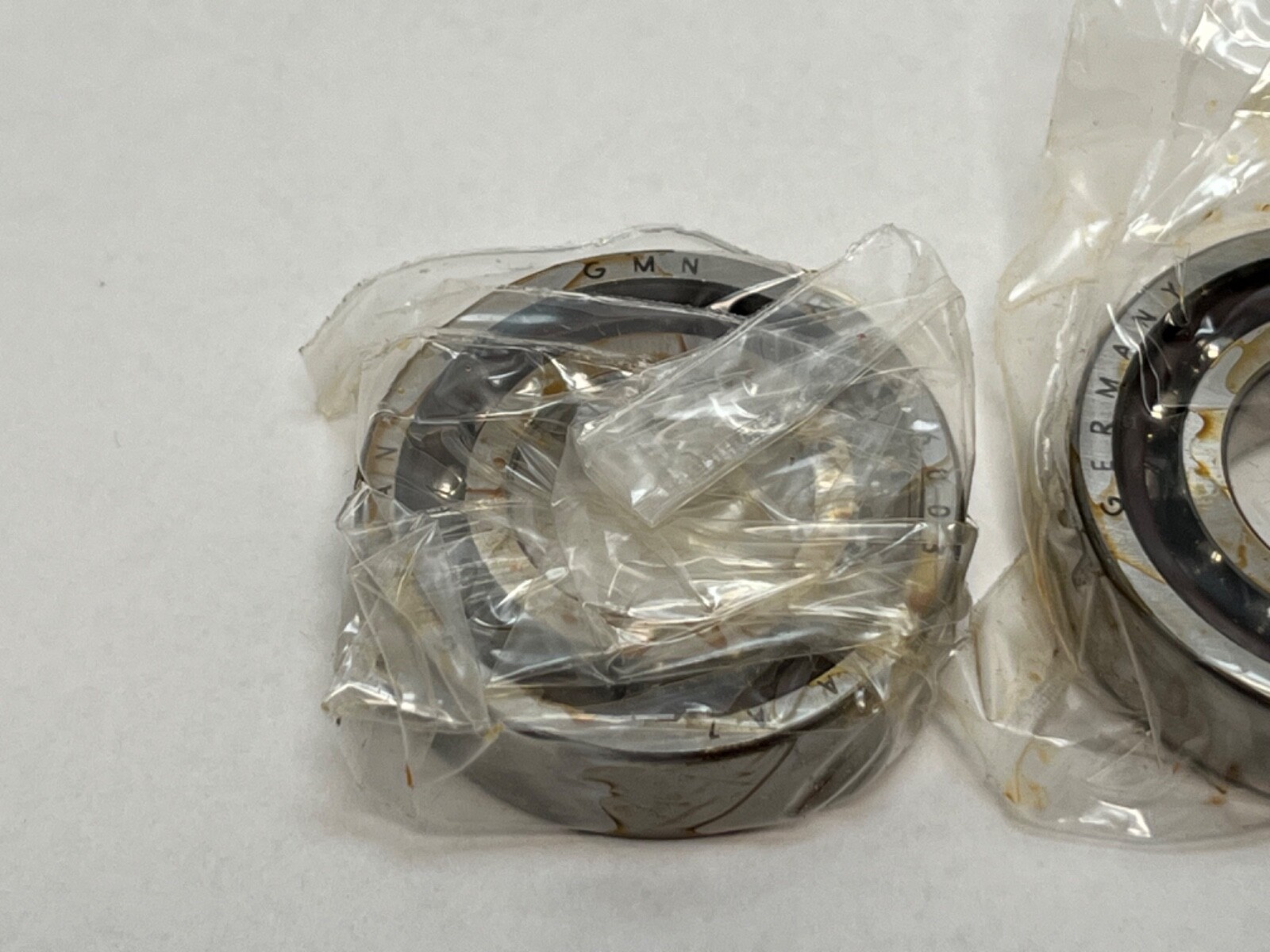

GMN S 6003 E TA A7 DUL angular contact bearing – image 1

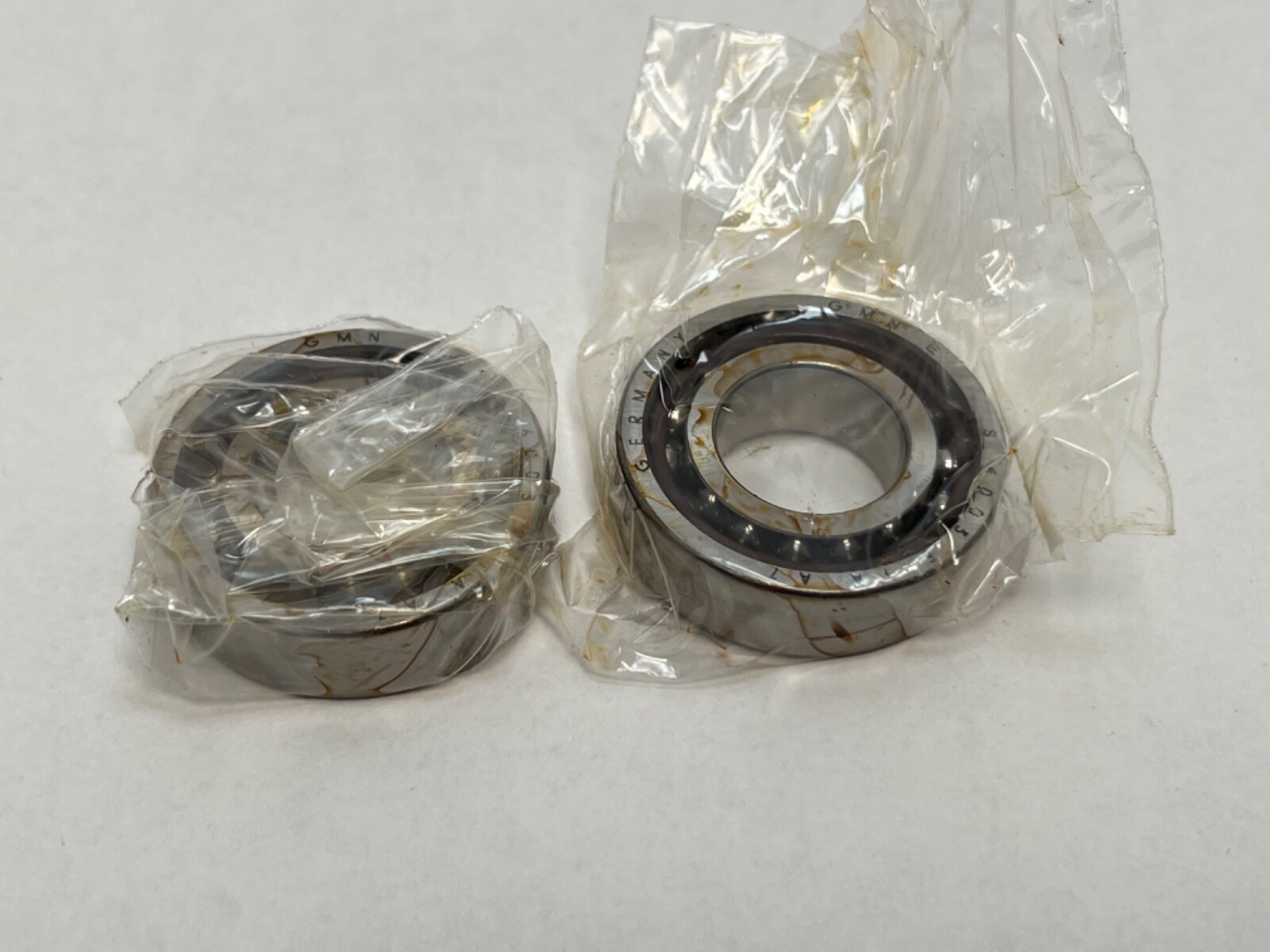

GMN S 6003 E TA A7 DUL angular contact bearing – image 2

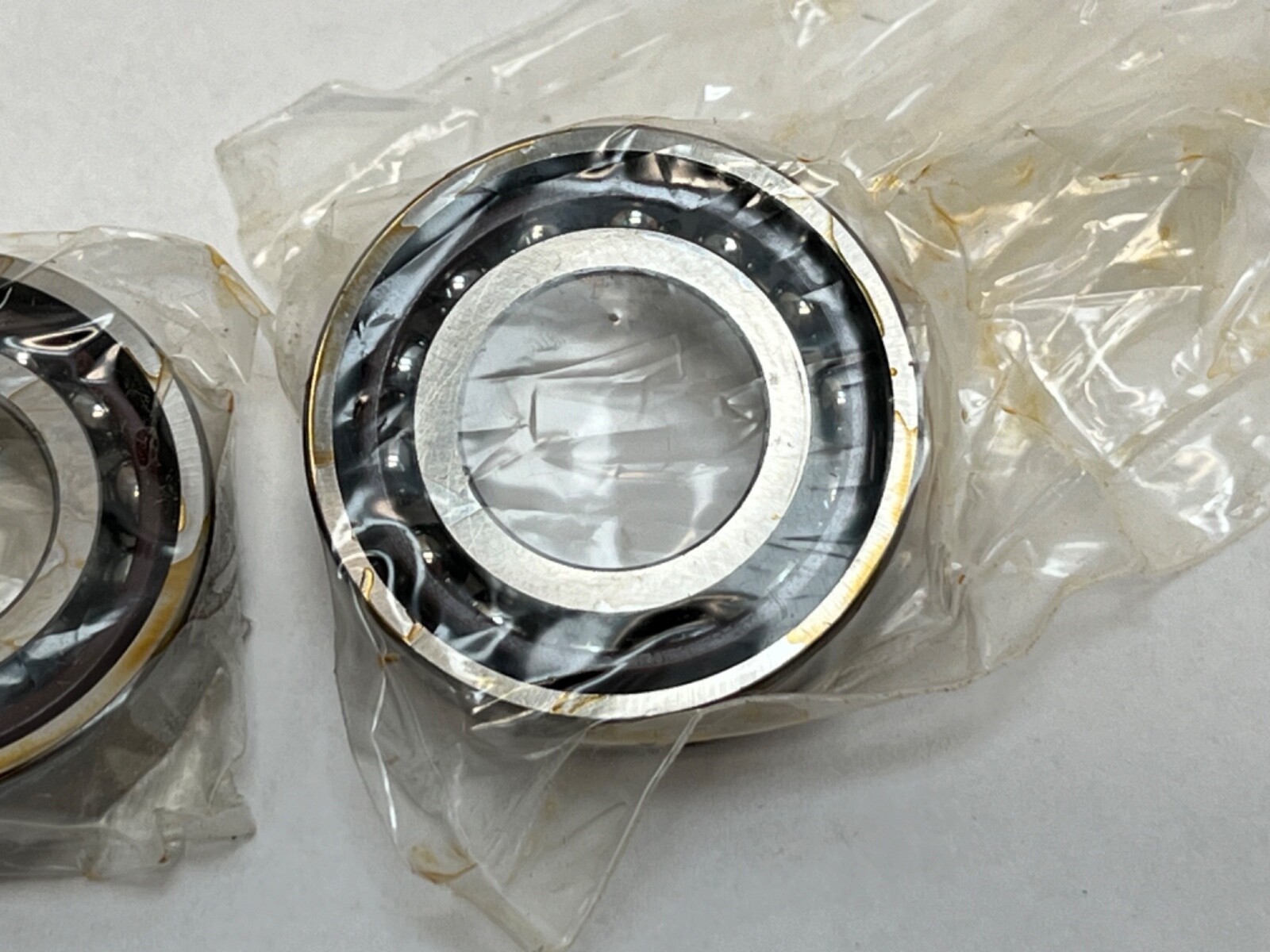

GMN S 6003 E TA A7 DUL angular contact bearing – image 3

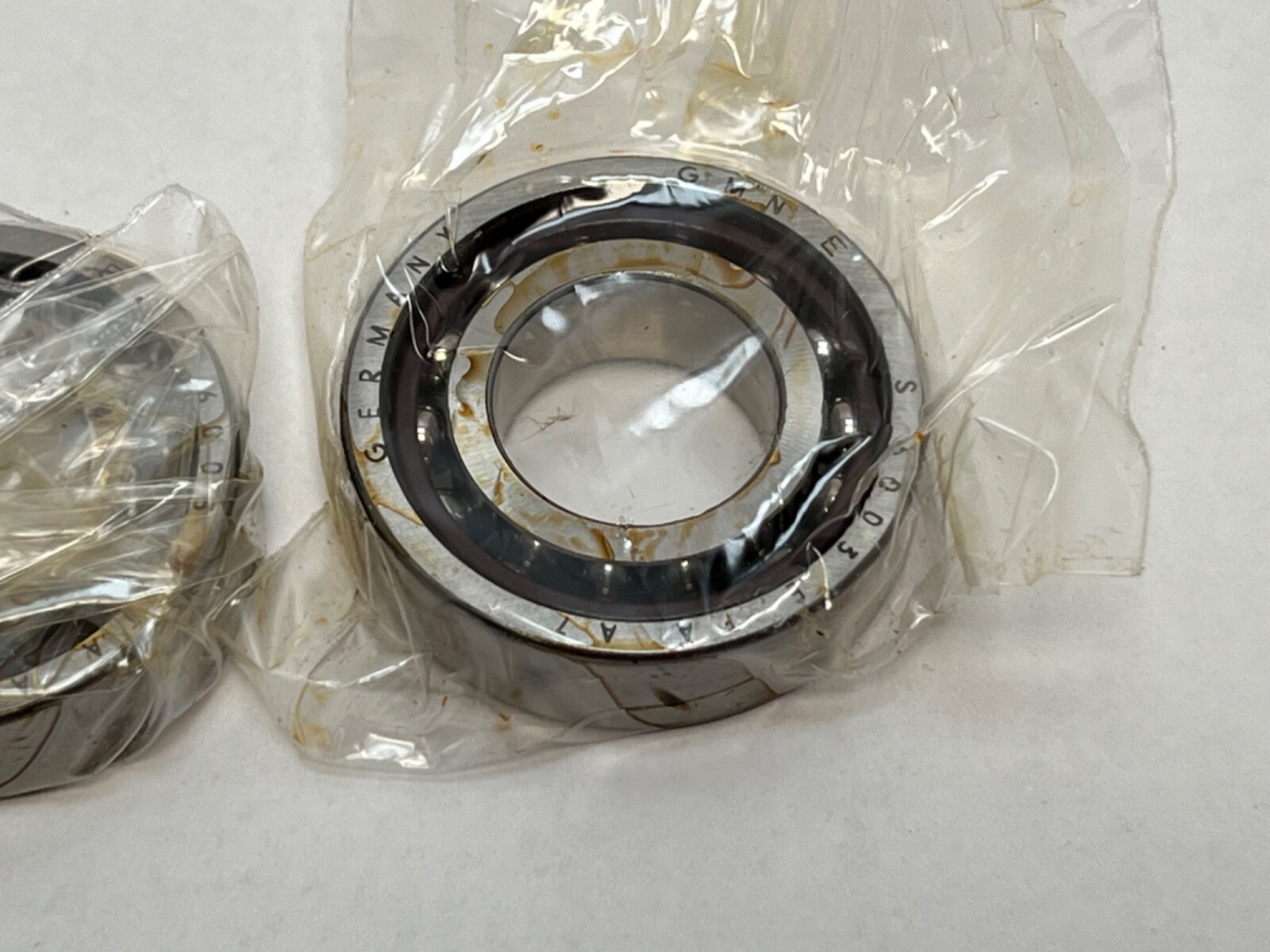

GMN S 6003 E TA A7 DUL angular contact bearing – image 4

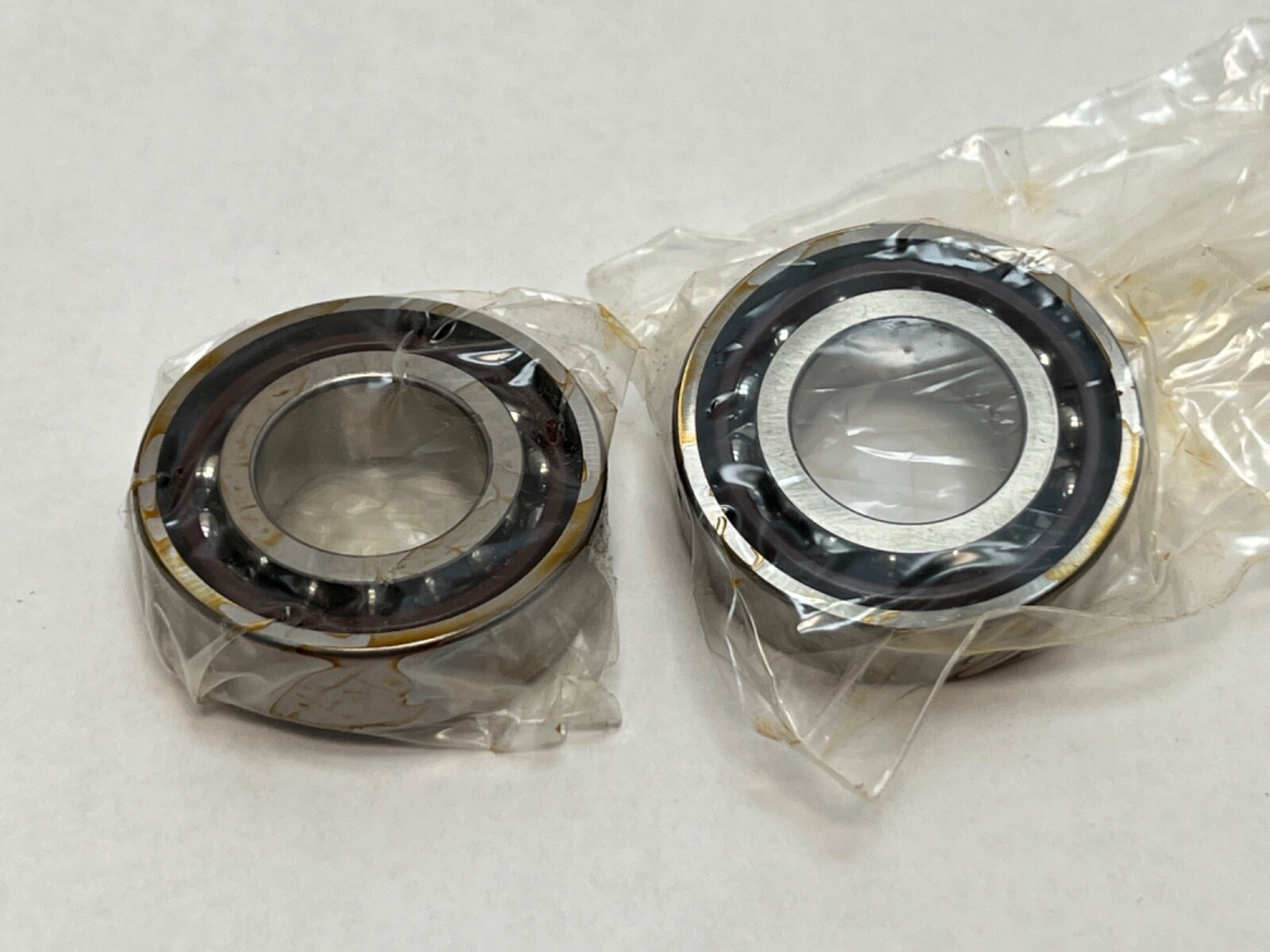

GMN S 6003 E TA A7 DUL angular contact bearing – image 5

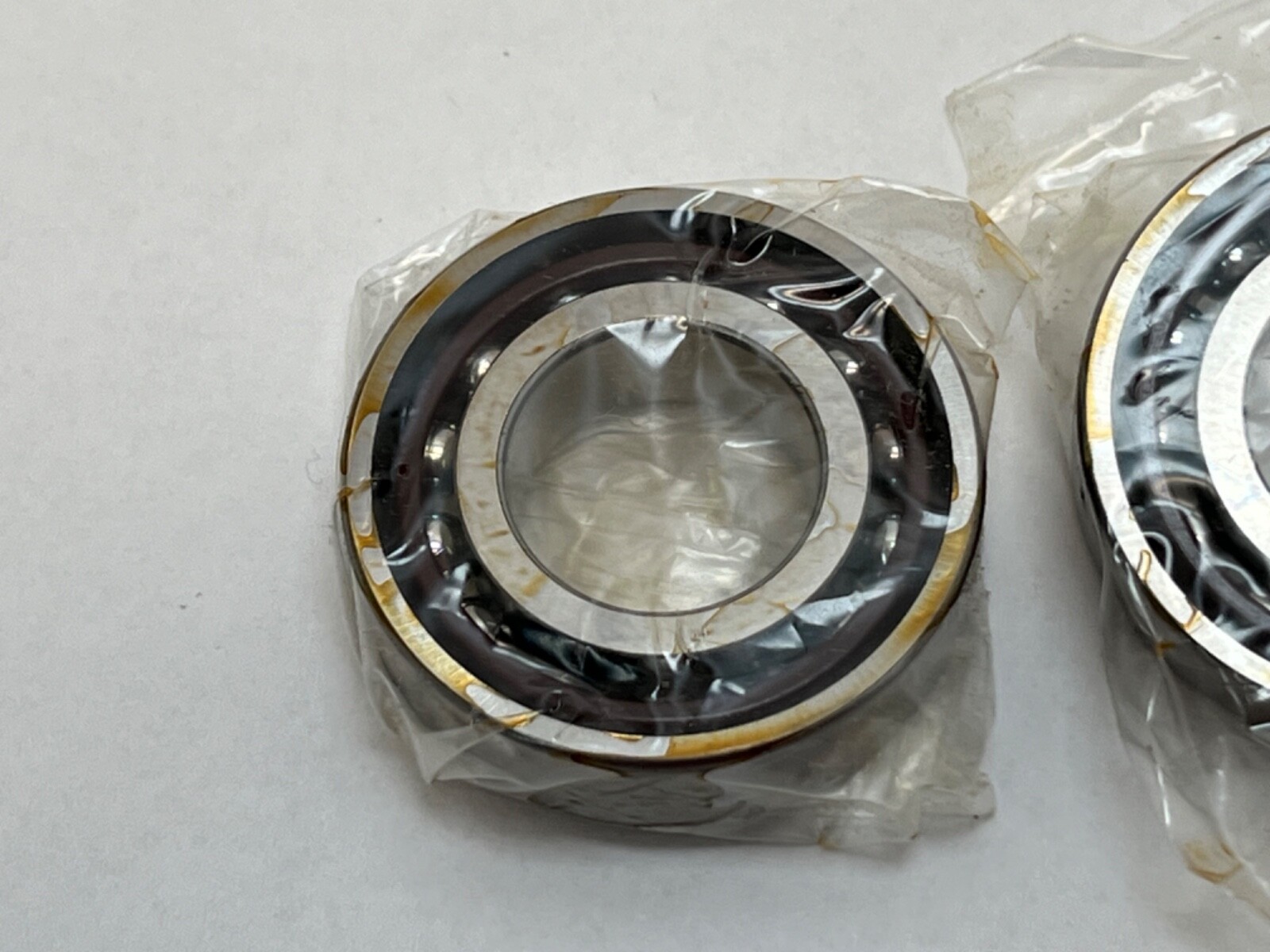

GMN S 6003 E TA A7 DUL angular contact bearing – image 6

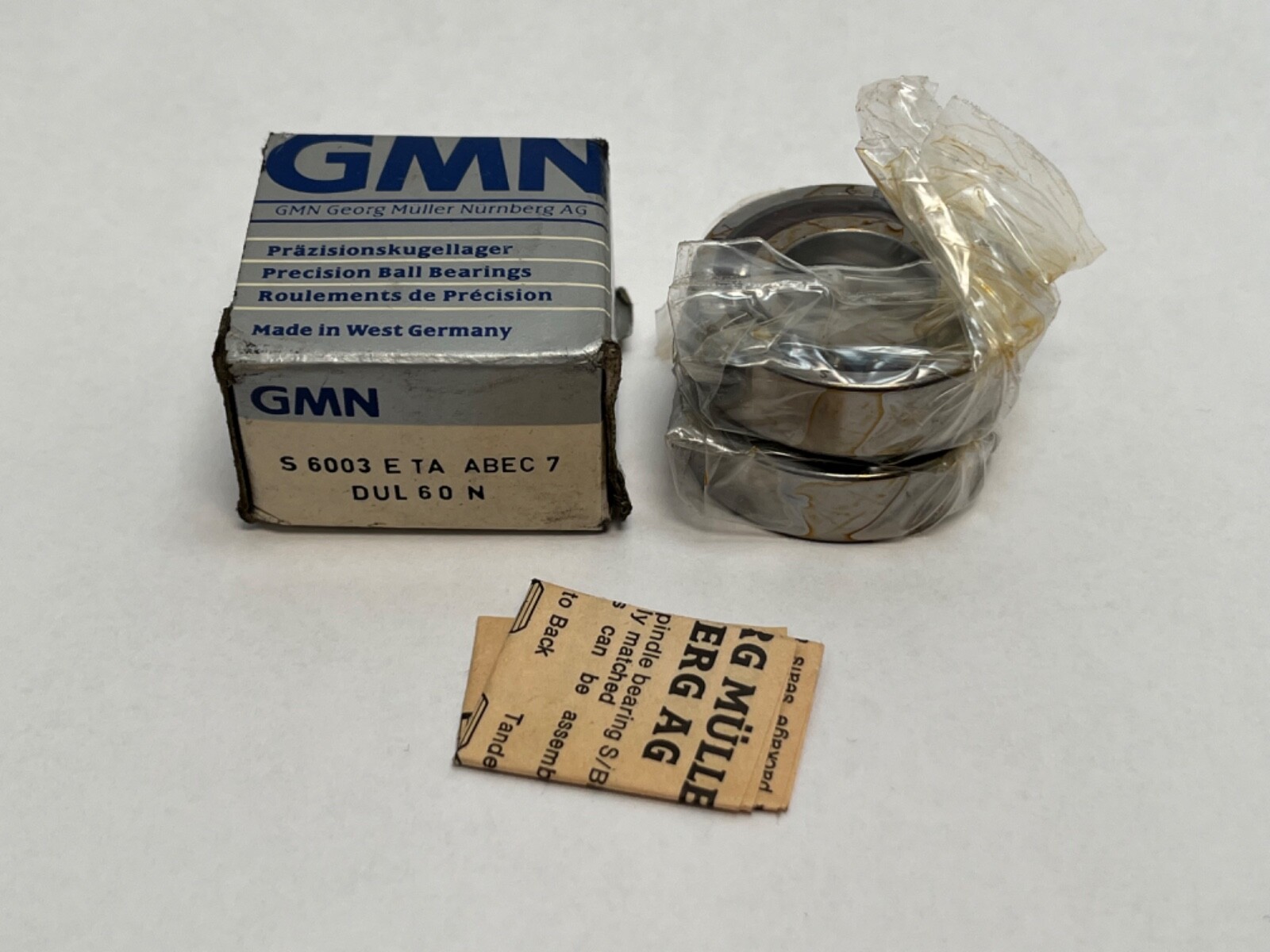

GMN S 6003 E TA A7 DUL angular contact bearing – image 7

13k+ reviews

See our eBay reviews

GMNS 6003 E TA A7 DULAngular Contact Ball Bearing — 17 mm ID, 35 mm OD, 10 mm Width, 25°, Phenolic Cage, ABEC 7 / P4, Universal Light Preload

Name: GMN S 6003 E TA A7 DUL Angular Contact Ball Bearing — 17 mm ID, 35 mm OD, 10 mm Width, 25°, Phenolic Cage, ABEC 7 / P4, Universal Light Preload
Brand: GMN
SKU: B-AA1B1#0TOSYA
Price: 70.32 USD
Availability: InStock

Condition: New

Availability:

4 in stock

Categories: Bearings, Angular Contact Ball Bearing

GMN S 6003 E TA A7 DUL angular contact bearing pair, 17x35x10 mm, 25° contact angle, ABEC 7 / P4, phenolic TA cage, universal light preload 60 N. 2 Pcs.

List Price

$70.32

4 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	GMN
MPN	S 6003 E TA A7 DUL
Model	S 6003 E TA A7 DUL
Bearing Type	Angular Contact Ball Bearing, Open
ID	17 mm
OD	35 mm
Width	10 mm

Technical Specifications

Material	Bearing Steel
Series	S 60
Lubricant	Grease or oil
Preload	L (light), 60 N
Closure Type	Open
Cage Type	TA, machined, outer-ring guided
Dynamic Load Rating	6,650 N
Static Load Rating	4,000 N
Rolling Elements	Ball
Item Weight	0.037 kg (0.08 lb) per bearing
Cage Material	Laminated phenolic resin
Limiting Speed	42,000 rpm grease; 56,000 rpm oil
Number Of Rows	1
Bore Type	Straight
Harmonization Code	8482.10.50
Contact Angle	25°
Mounting Arrangement	Universal (DB, DF or DT)
Overall Width	10 mm
Mpn Variants	S6003ETAA7DUL, S 6003 E TA A7 DUL, S-6003-E-TA-A7-DUL, 7003E
Arrangement Configuration	DUL — universal matched pair (DB, DF or DT)
Precision Class	ABEC 7 / P4
Additional Attributes	Bearing design: S, two lands on inner ring, non-separable; Balls: 14 x 4.762 mm; Axial rigidity (pair, light preload): 58 N/µm; Cage max operating temperature: 120 °C

Cross-References

Cross Reference 1	Fafnir 3MM9103WI
Cross Reference 2	FAG B7003-E-T
Cross Reference 3	SKF 7003 ACD
Cross Reference 4	RHP 7003 X3TA
Cross Reference 5	Barden 2103H
Cross Reference 6	SNFA EX 17 CE3
Cross Reference 7	SNR 7003 H

Seller Part Number: B-AA1B1#0TOSYA

Product Description

What this part is:

GMN S 6003 E TA A7 DUL super-precision angular contact spindle bearing set, two bearings universally matched with light preload. Unit Quantity: 2 Pcs. One factory duplex set, universally ground. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm per bearing. Contact Angle: 25°. Precision Class: ABEC 7 / P4.

Decoding the designation:

S — GMN standard spindle bearing, two lands on the inner ring, non-separable.

6003 — dimension series 10, bore code 03: 17 x 35 x 10 mm, the ISO 7003 size.

E — 25° nominal contact angle.

TA — laminated phenolic resin cage guided on the outer ring, rated to 120 °C.

A7 — ABEC 7 tolerance class per ABMA, corresponding to P4.

D — set of two bearings.

UL — universal matching, light preload. The pair mounts back-to-back, face-to-face or in tandem.

Specifications:

Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm per bearing. Contact Angle: 25°. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Precision Class: ABEC 7 / P4. Preload: L (light), 60 N. Rolling Elements: Ball, 14 x 4.762 mm. Dynamic Load Rating: 6,650 N. Static Load Rating: 4,000 N. Limiting Speed: 42,000 rpm grease; 56,000 rpm oil. Item Weight: 0.037 kg per bearing. Lubricant: grease or oil. Closure Type: Open.

Dimensions and mounting:

Axial rigidity at light preload: 58 N/µm per pair. Mounting Arrangement: universal (DB, DF or DT). Cage maximum operating temperature: 120 °C.

Compatibility and replacement:

Same 17 x 35 x 10 mm envelope and 25° angle: Fafnir 3MM9103WI, FAG B7003-E-T, SKF 7003 ACD, RHP 7003 X3TA, Barden 2103H, SNFA EX 17 CE3, SNR 7003 H. MPN Variants: S6003ETAA7DUL, S 6003 E TA A7 DUL, S-6003-E-TA-A7-DUL, 7003E.
