GMNS6009CTXMA7DULAngular Contact Ball Bearing — 45 mm ID, 75 mm OD, 16 mm Width, 15°, PEEK Cage, ABEC 7 / P4, Universal Light Preload Pair

Product Description

What this part is:

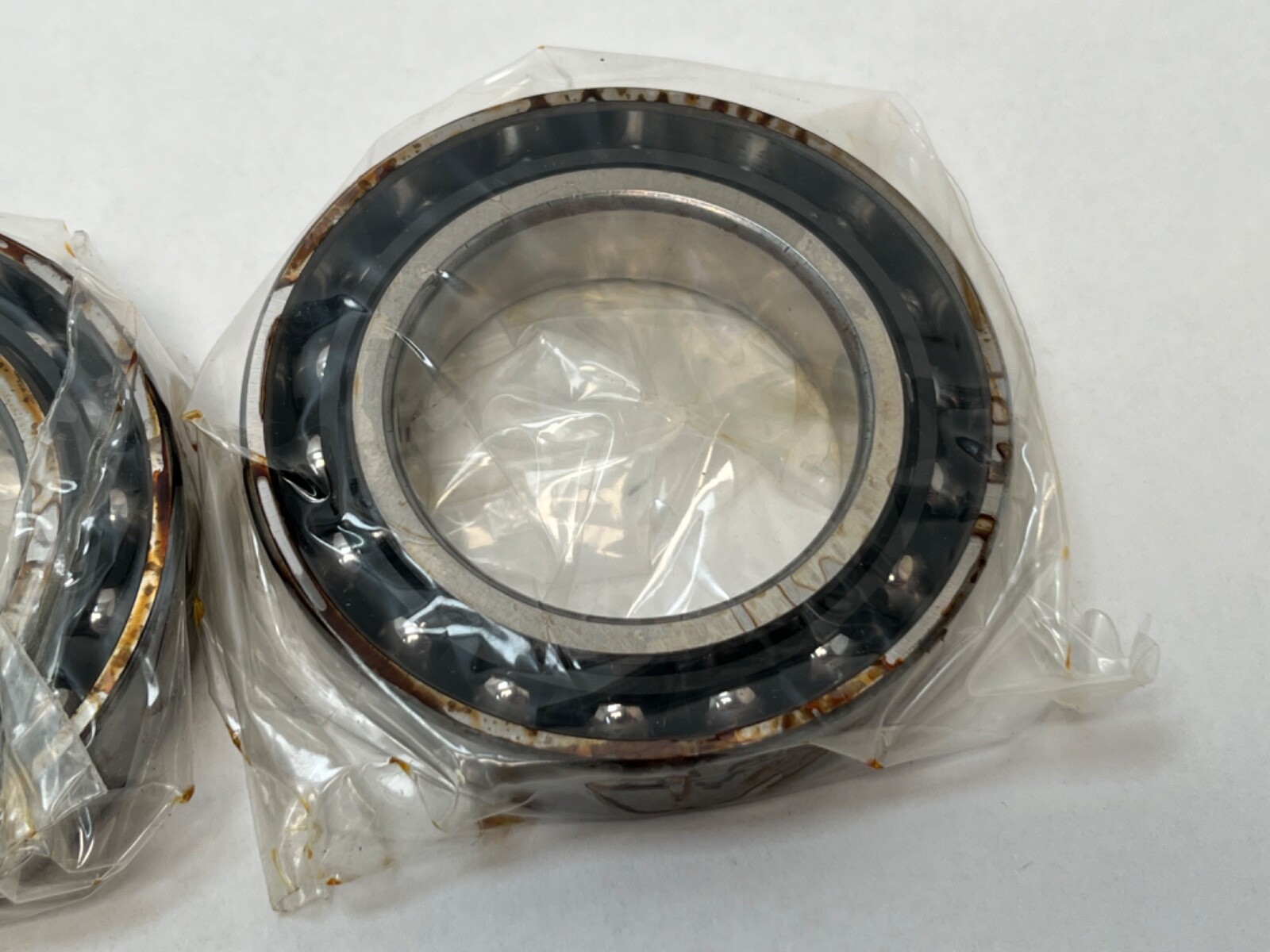

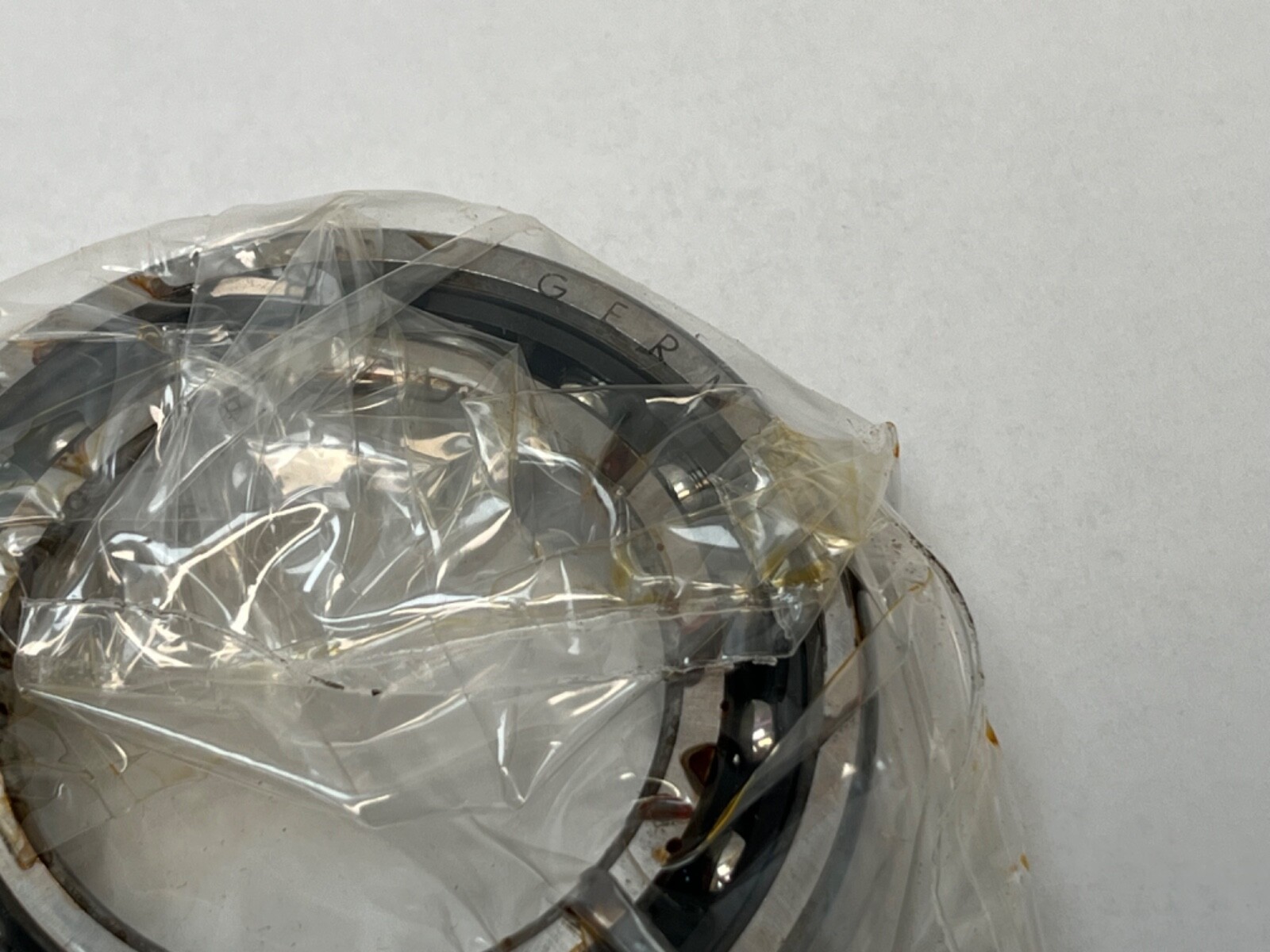

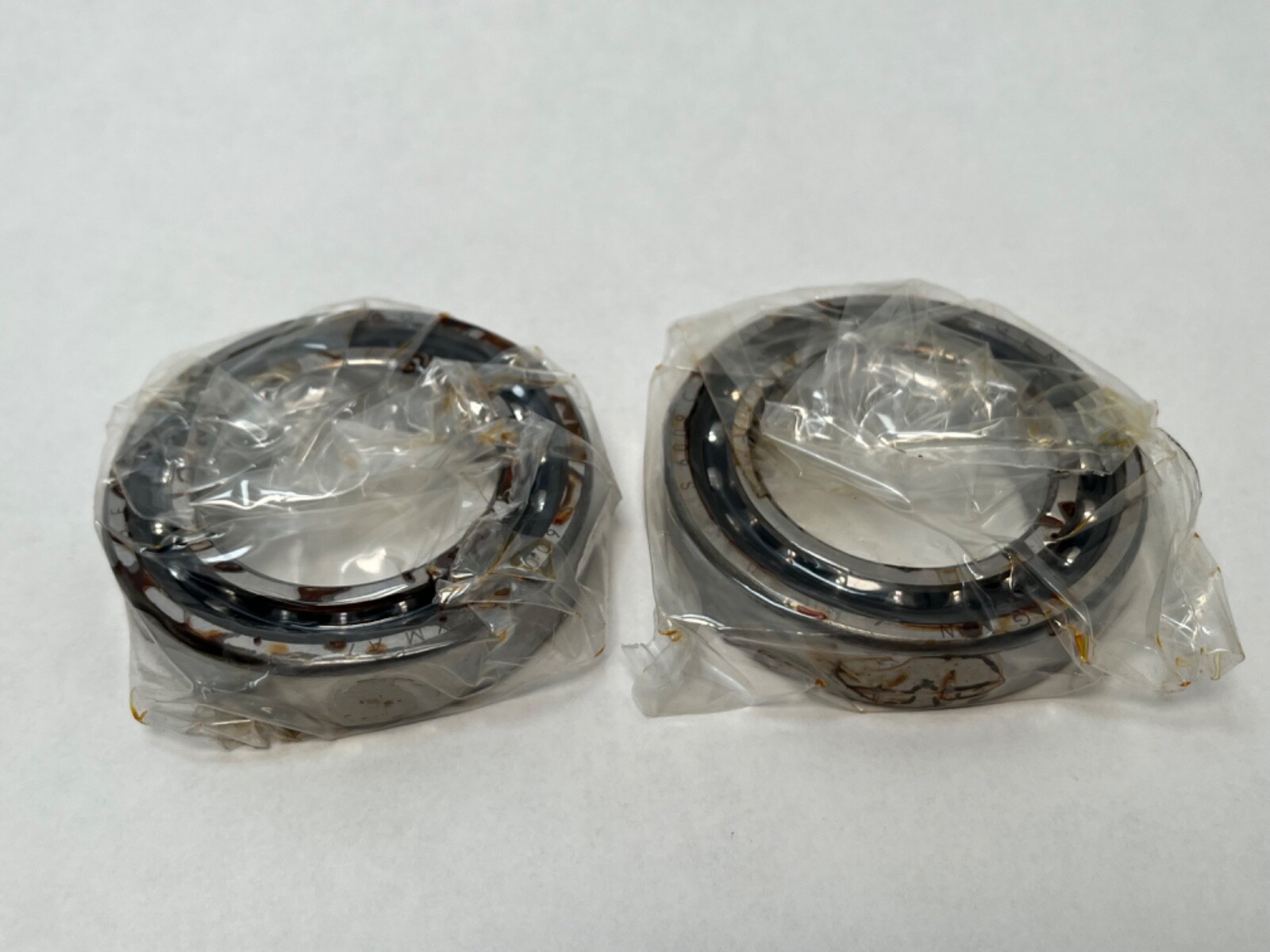

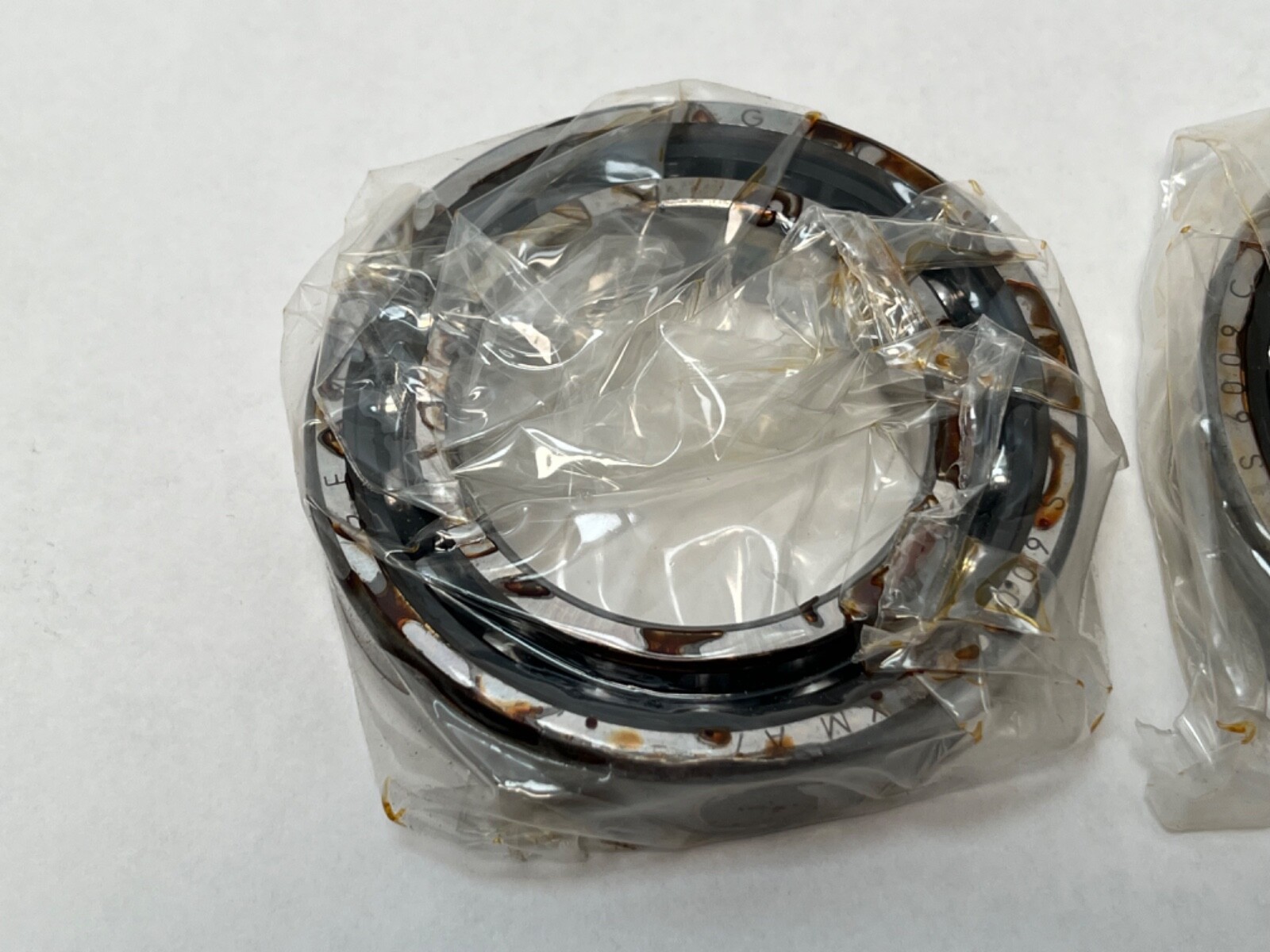

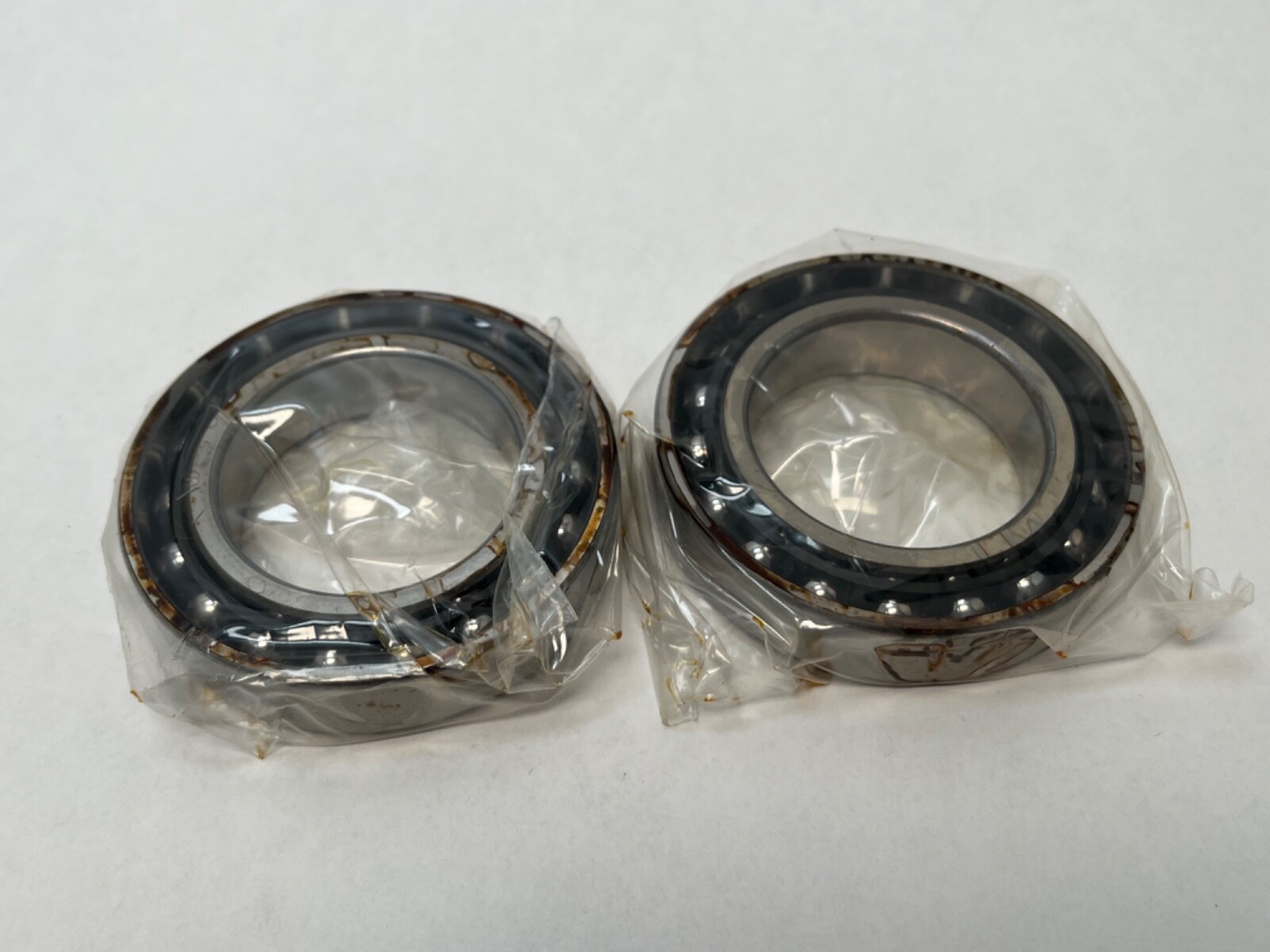

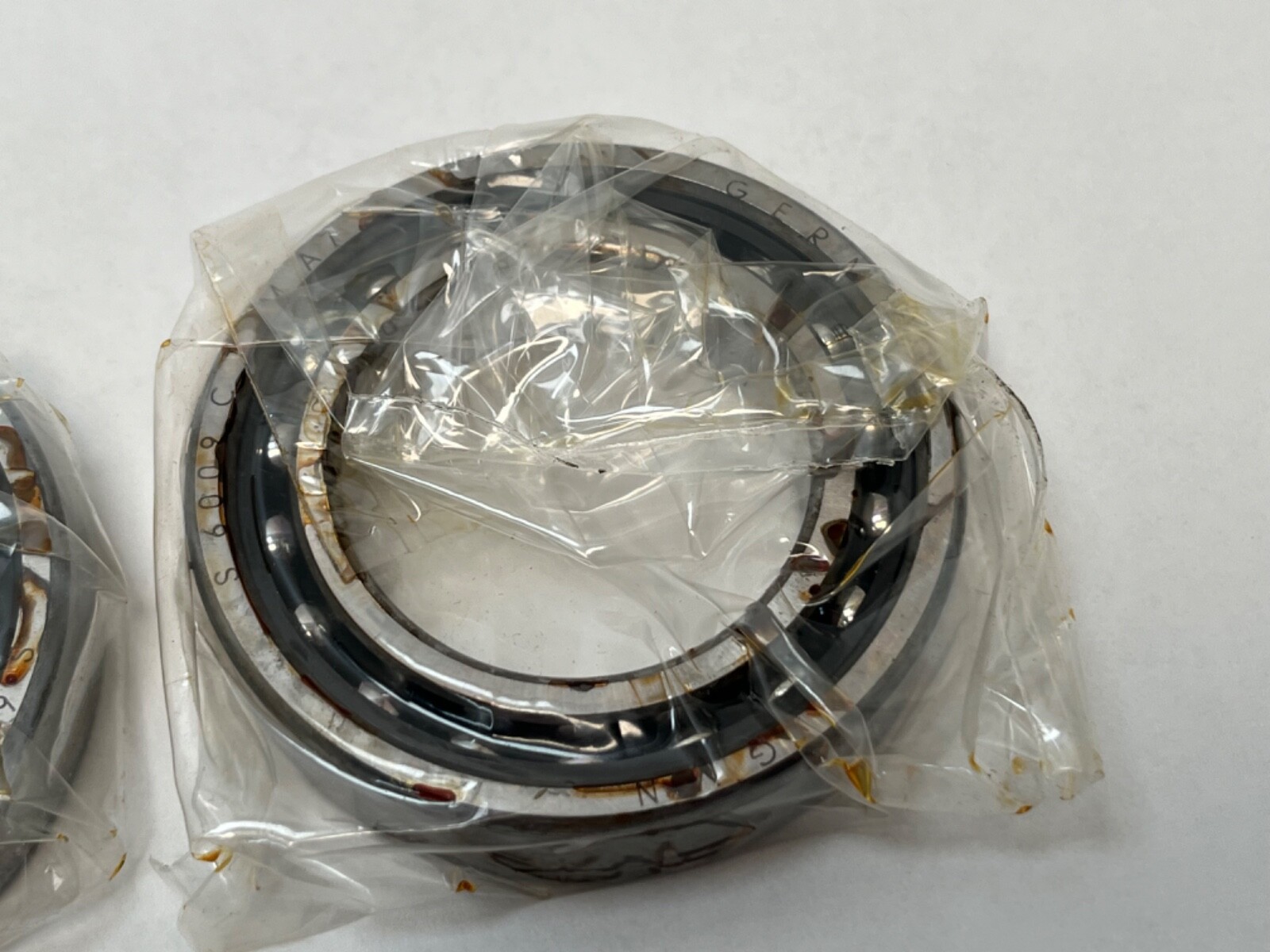

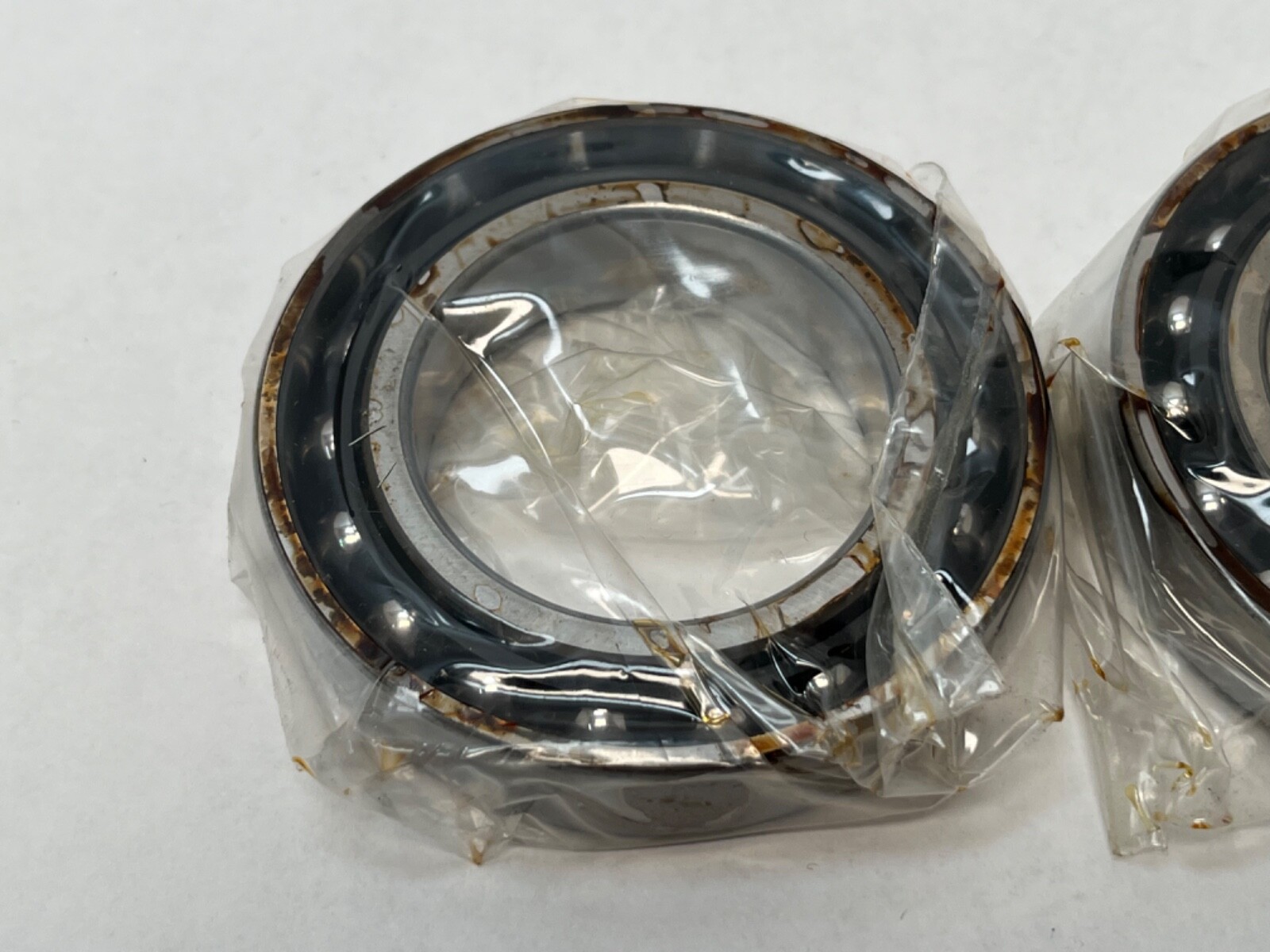

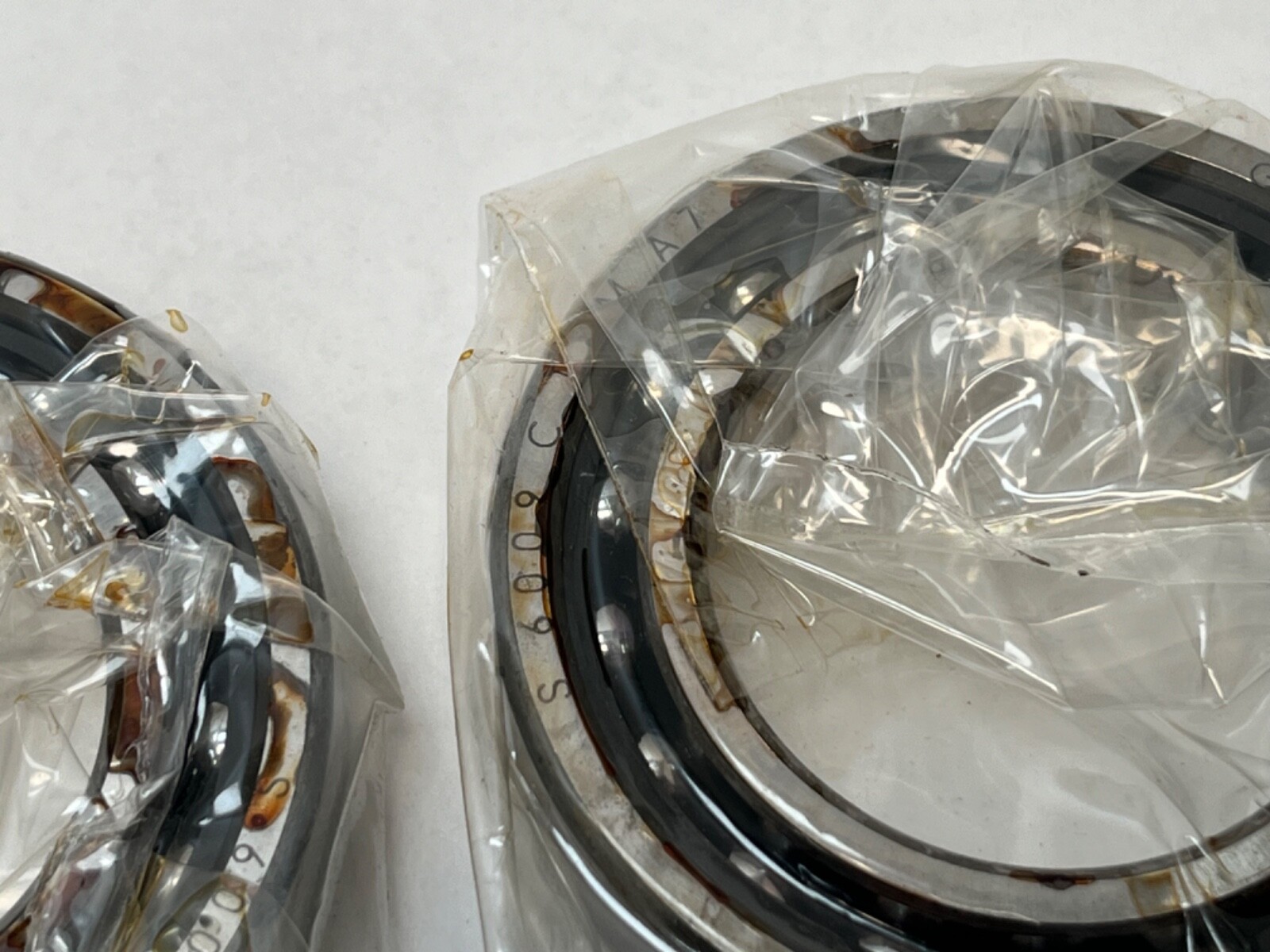

GMN S6009CTXMA7DUL (S 6009 C TXM A7 DUL) is a super-precision angular contact spindle bearing set: two bearings matched as a universal duplex pair. Unit Quantity: 2 Pcs. Bore Diameter: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm per bearing.

Decoding the designation:

S — GMN S series angular contact spindle bearing, steel balls.

60 09 — ISO 70 series, bore code 09: 45 mm bore, 75 mm OD.

C — 15° contact angle.

TXM — PEEK cage.

A7 — ABEC 7 / ISO P4 tolerance class.

DUL — duplex set of two universally ground bearings, light preload.

Specifications:

Contact Angle: 15°. Cage Material: PEEK. Precision Class: ABEC 7 / P4. Preload: Light. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Bore Type: Straight. Mounting Arrangement: Universal (DB, DF or DT). Series: S 60. Material: Bearing Steel. Harmonization Code: 8482.10.50.

Dimensions and mounting:

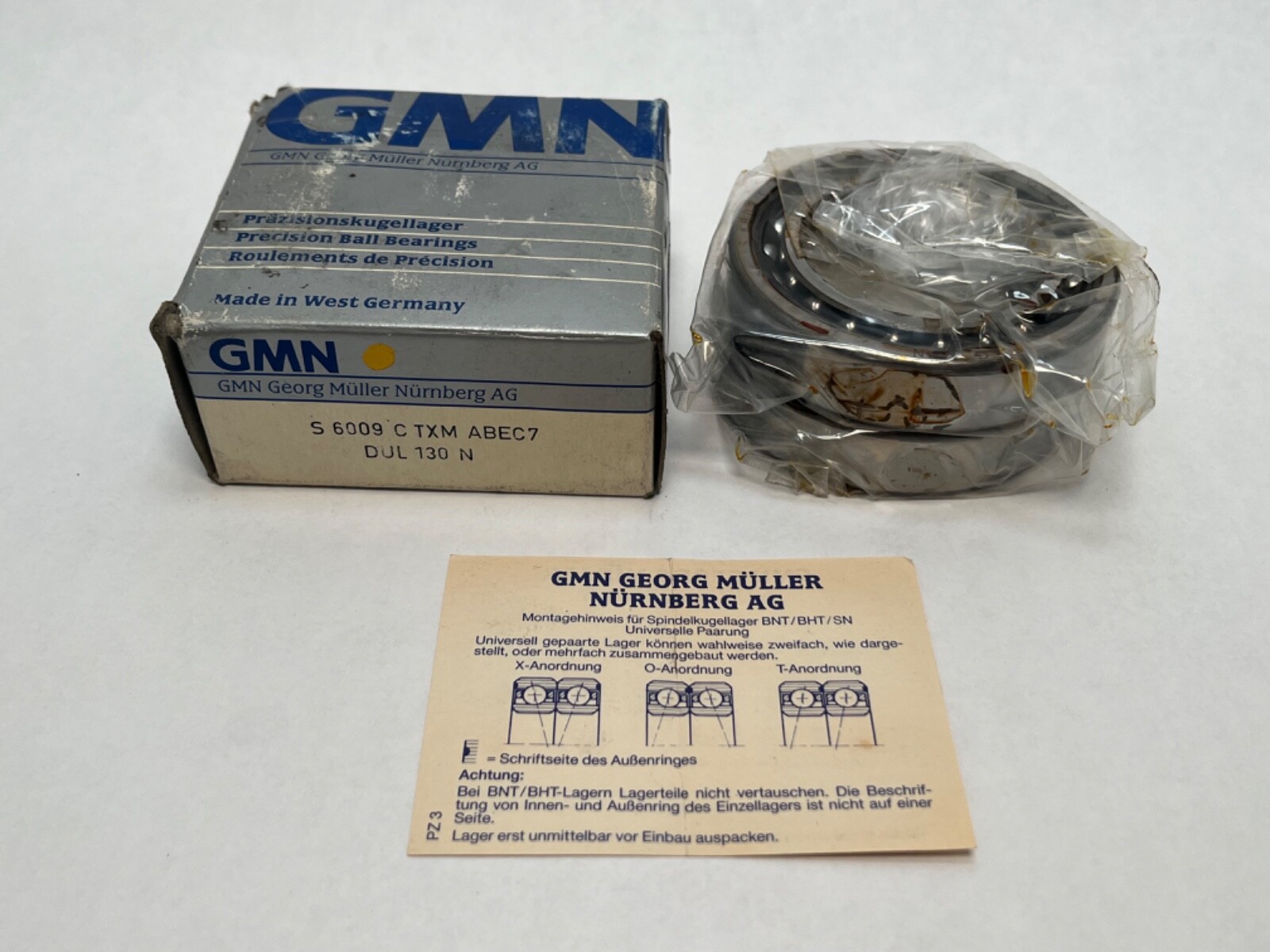

Envelope 45 x 75 x 16 mm per bearing, straight bore. Universal grinding allows the pair to be arranged back-to-back (DB), face-to-face (DF) or tandem (DT) with the light preload set by the ground faces.

Compatibility and replacement:

Cross-references on the 45 x 75 x 16 mm, 15° universal light-preload envelope: Fafnir 2MM9109WI DUL; FAG B7009-C-T-P4S-DUL (P4S class); SKF 7009 CD/P4ADGA (P4A class); NSK 7009CTYNDULP4 (polyamide cage); Barden 109HCDUL (ceramic balls). The designation is also written S 6009 C TXM A7 DUL, S-6009-C-TXM-ABEC7-DUL and 7009C.

Frequently asked questions:

What are the dimensions of the GMN S6009CTXMA7DUL?

Bore 45 mm, outside diameter 75 mm, width 16 mm per bearing.

What contact angle and cage does it have?

A 15° contact angle (C) and a PEEK cage (TXM).

What does DUL mean?

DUL is a duplex set of two universally ground bearings with light preload; the listing is one factory duplex pair, 2 Pcs.
