Availability:
1 in stock

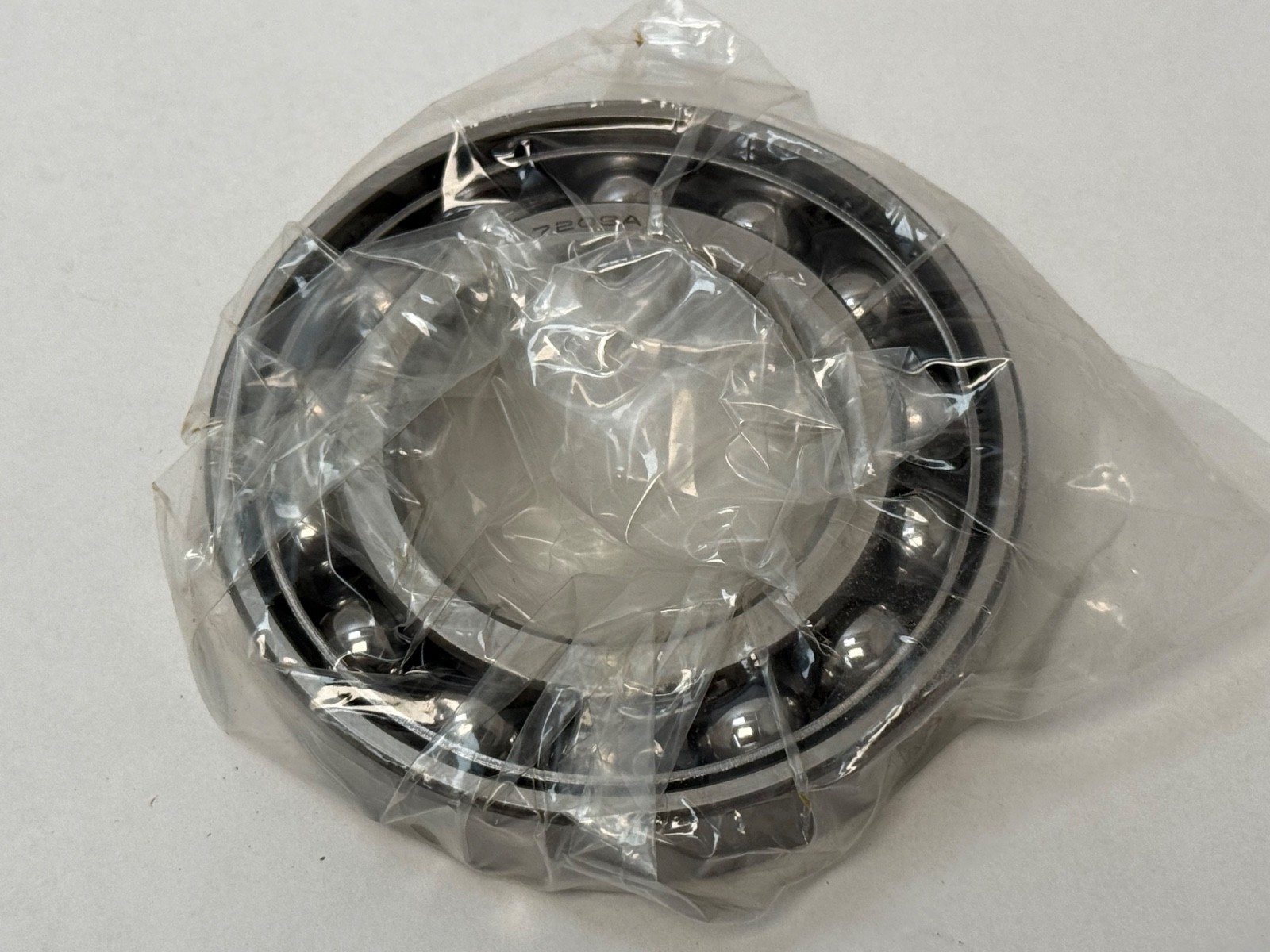

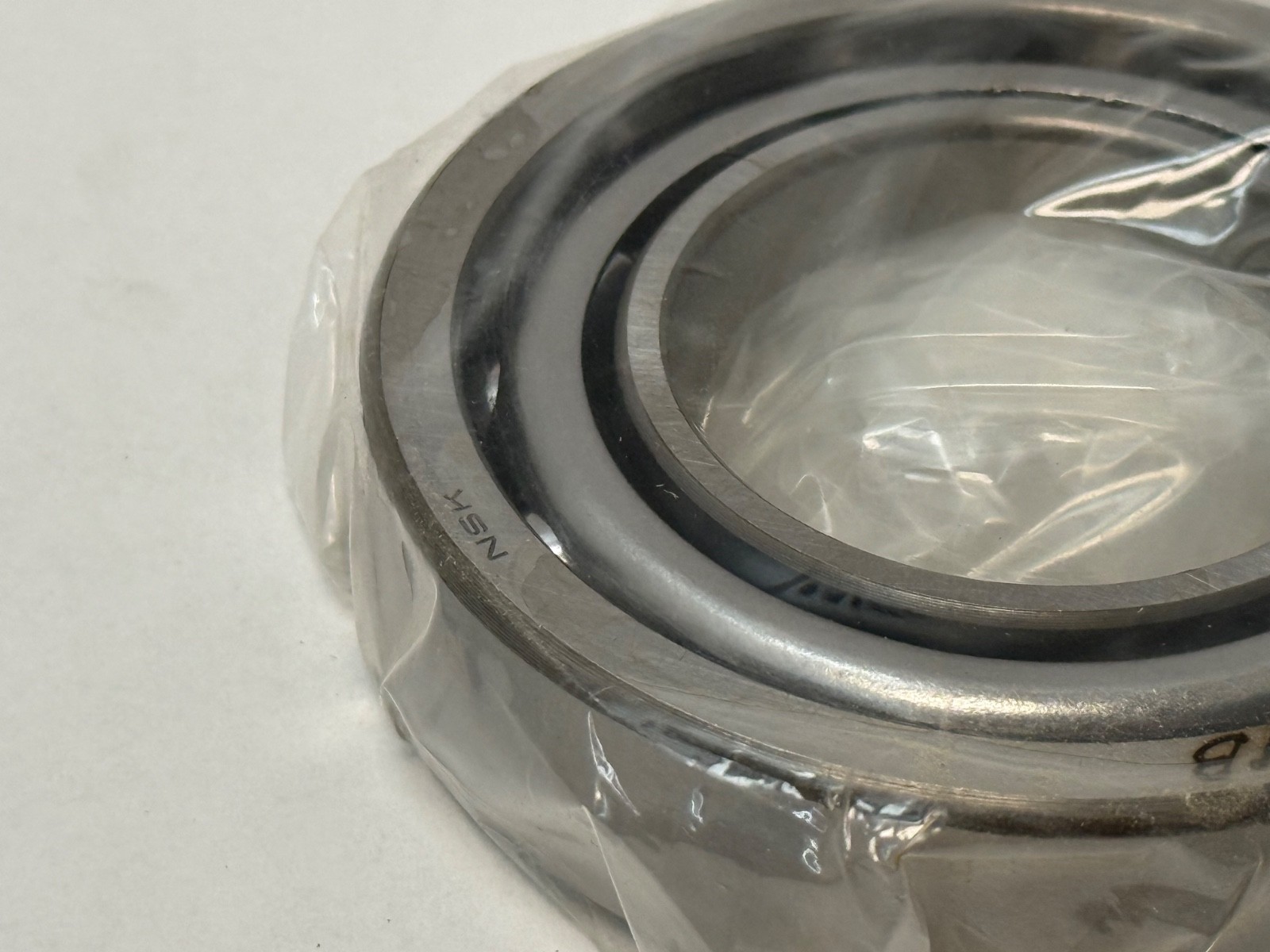

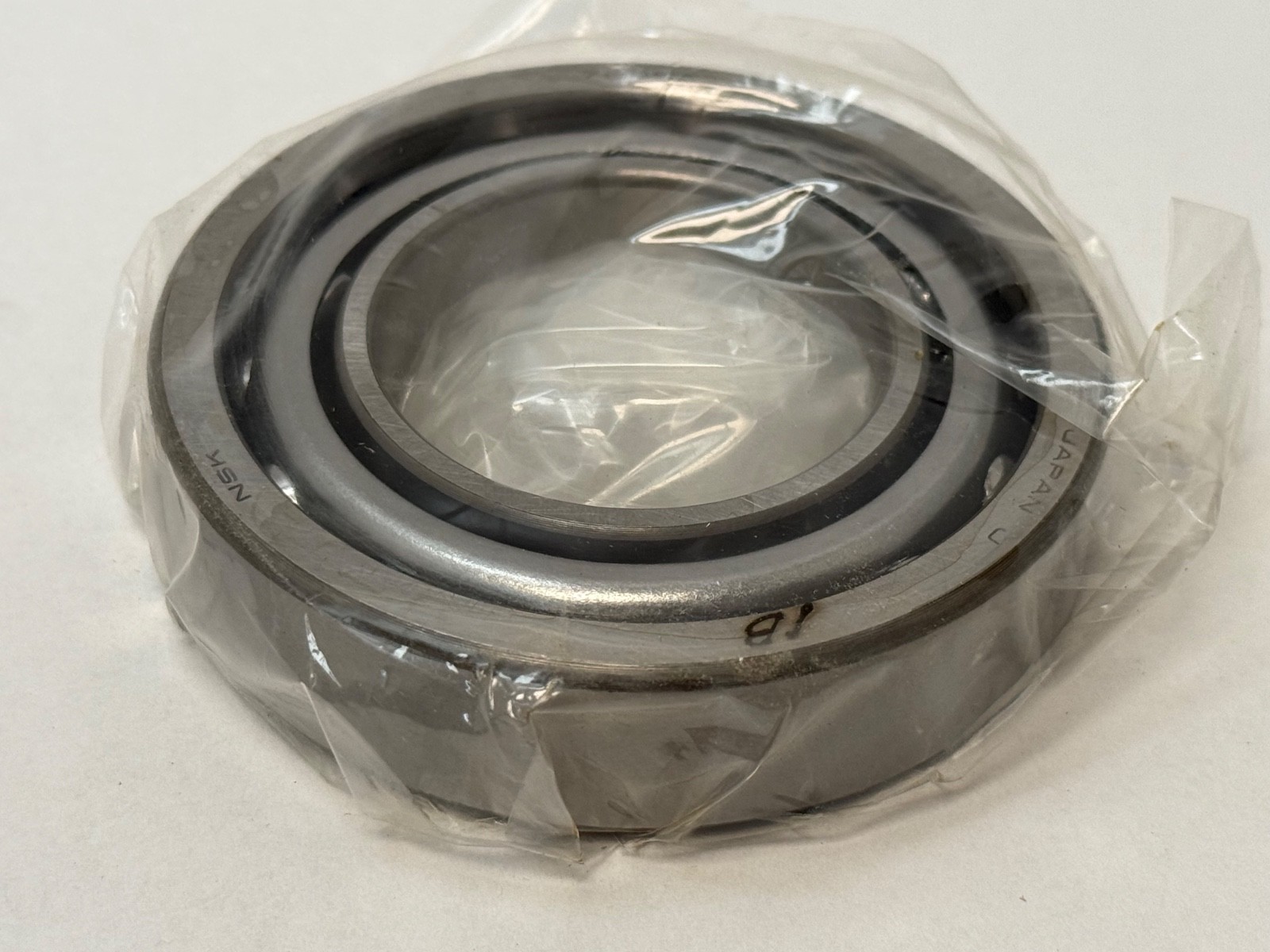

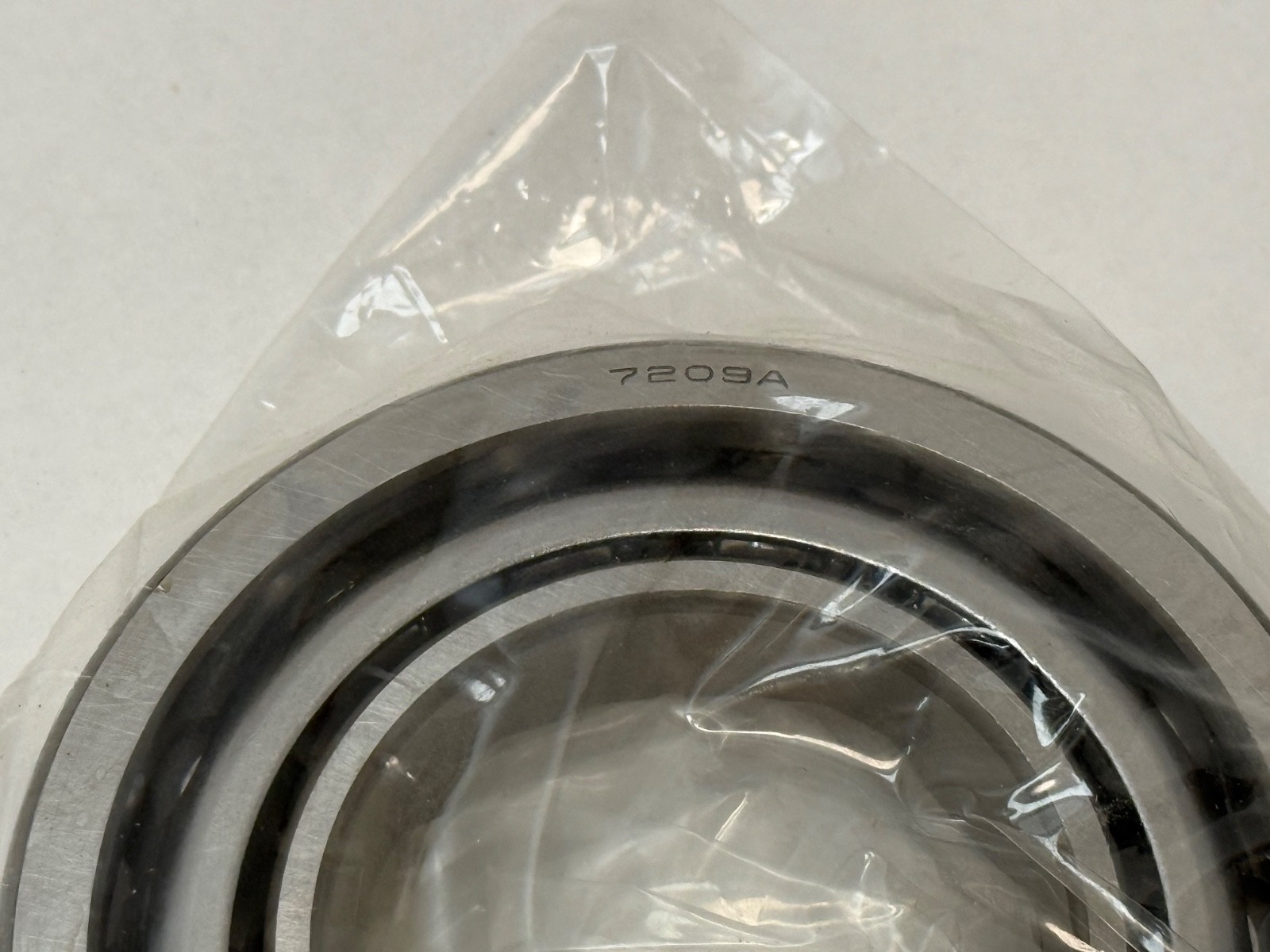

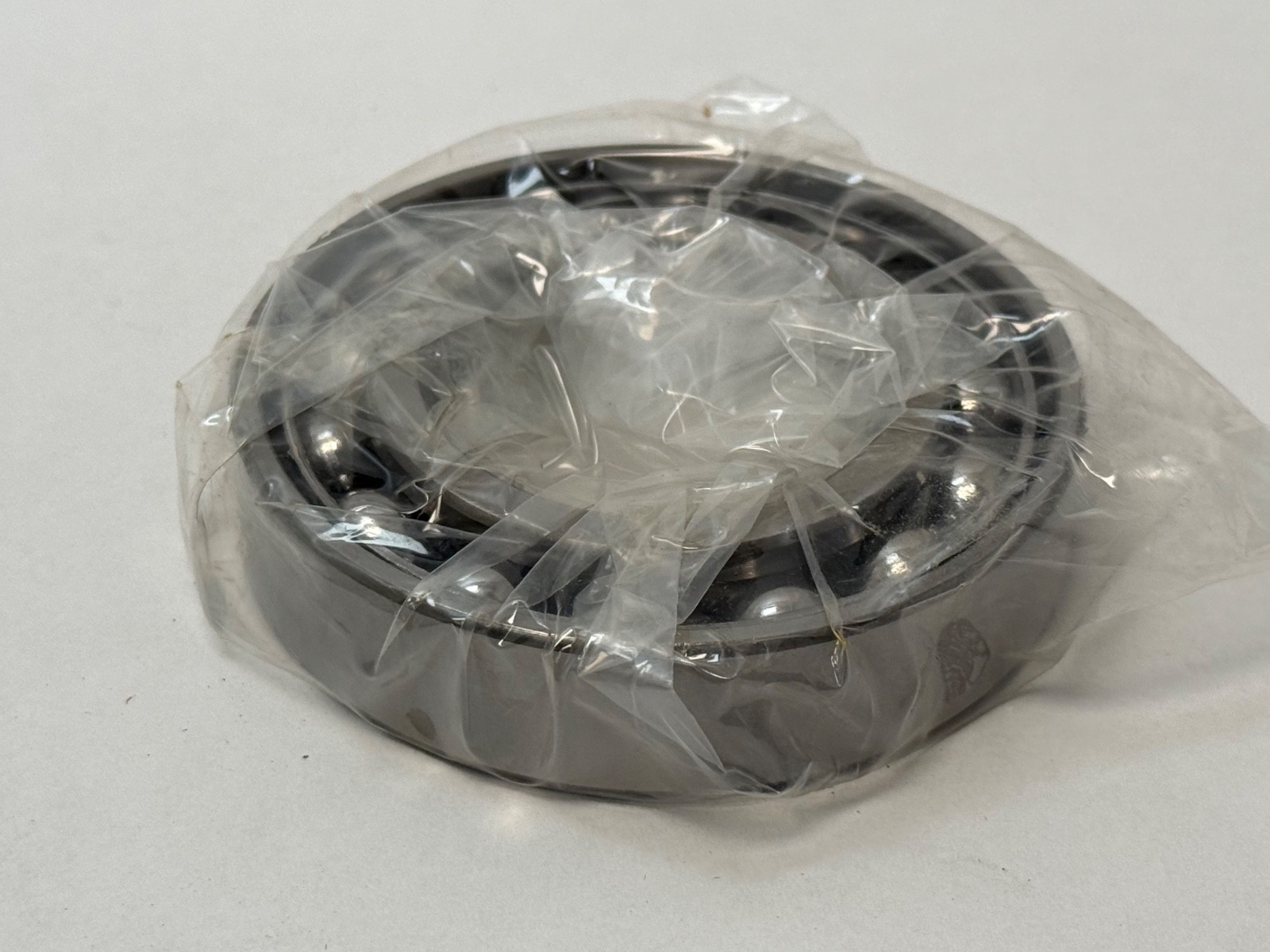

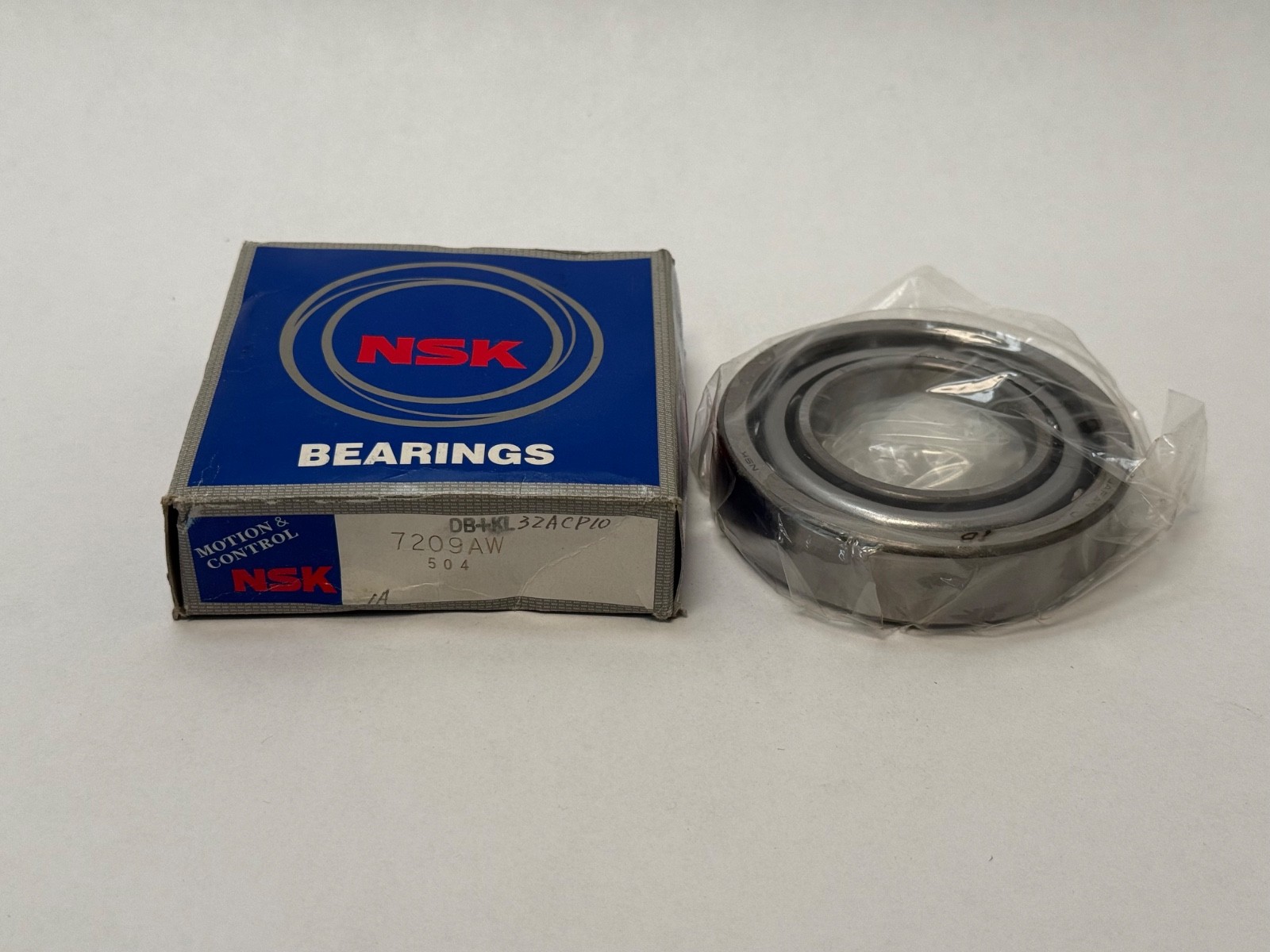

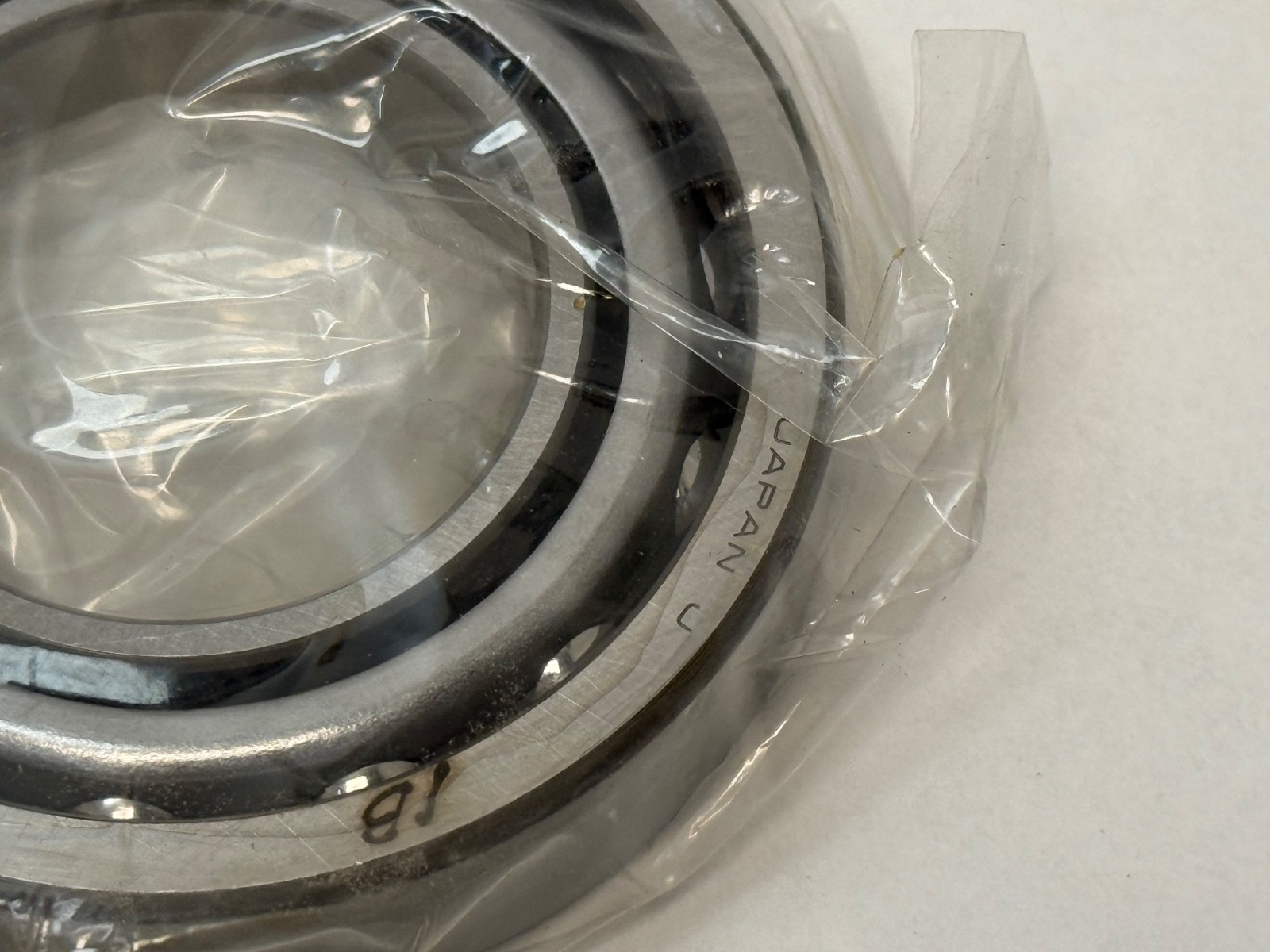

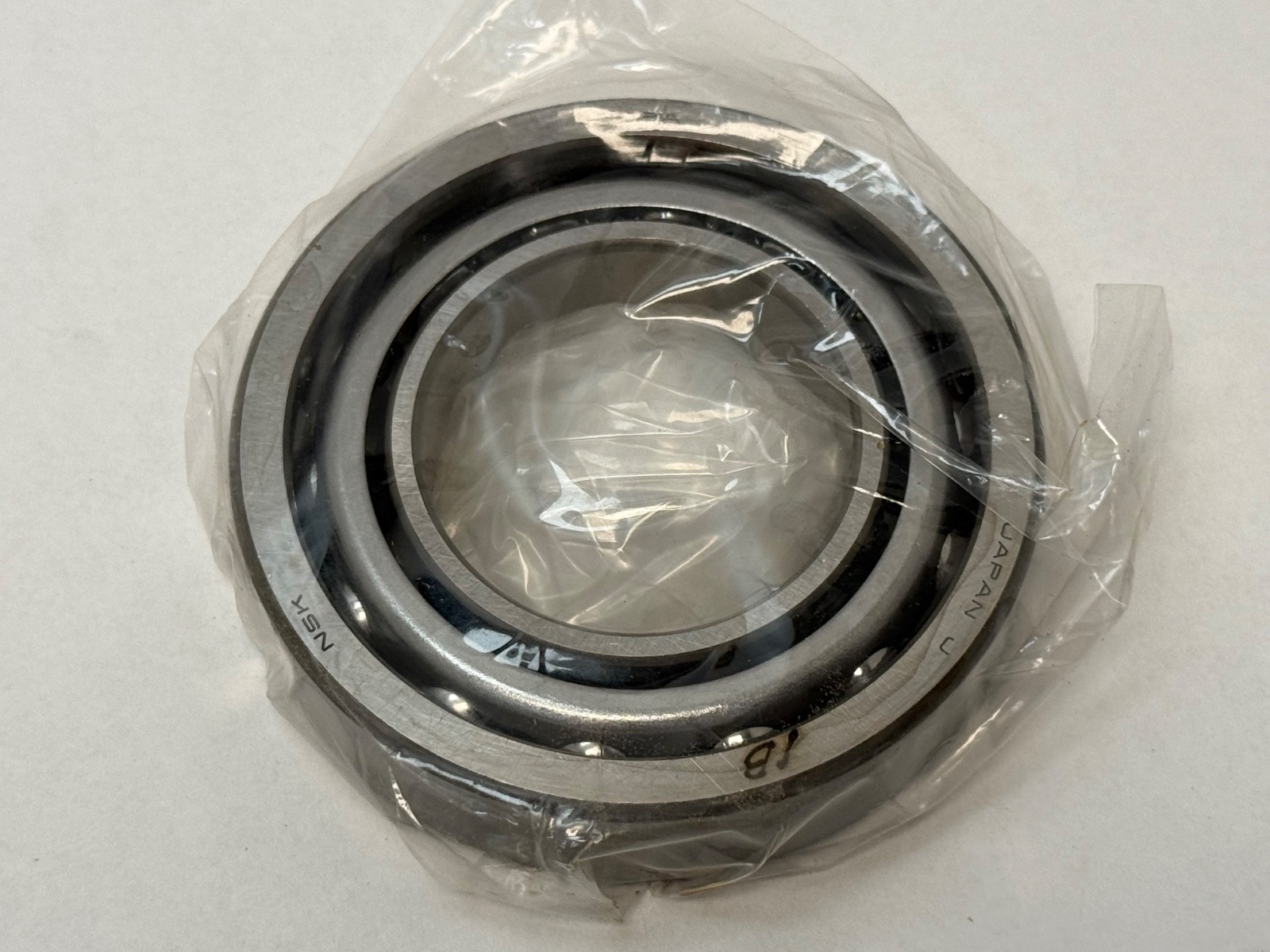

Single row angular contact ball bearing, 45 x 85 x 19 mm, 30° contact angle, pressed steel cage. Cr 43,500 N.
List Price
$47.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7209AW |
| Model | 7209AW |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Base Number | 7209 |
|---|---|
| Industry Terms | angular contact ball bearing, single row angular contact, 30 degree contact angle bearing, 7209 bearing, 7200 series bearing, spindle bearing, thrust ball bearing, pressed steel cage bearing |
| Common Misspellings | NKS 7209AW, 72O9AW, 7209-AW, 7209 A W, 7209AVV, 72O9A, NSK 7209 AW bearing |
| Application Types | Pump and blower shafts, gearbox shafts, machine tool feed spindles, vertical shafts, electric motor drive ends, any position taking combined radial and one-direction axial load |
| Mpn Variants | 7209AW, 7209A, 7209-A-W, 7209 AW, 7209E, 7209ACD, 7209AWC3 |
| Precision Class | ISO Normal |
| Additional Attributes | Effective load centre a 28.3 mm. Shaft abutment da min 52 mm. Housing abutment Da max 78 mm. Fillet radius ra max 1 mm. Chamfer r min 1.1 mm, r1 min 0.6 mm. |
| Material | Bearing Steel |
| Dynamic Load Rating | 43,500 N |
| Static Load Rating | 28,700 N |
| Precision Rating | ISO Normal |
| Series | 7200 |
| Rolling Elements | Ball |
| Item Weight | 0.411 kg (0.906 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 6,700 rpm grease; 9,500 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 30° |
| Design Units | Metric |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 7209 BE – same 45x85x19 mm envelope at 30°, ratings differ by maker |
|---|---|
| Cross Reference 2 | FAG 7209-B – same envelope at 40°, related not equivalent |
| Cross Reference 3 | Koyo 7209B – same envelope at 40°, related not equivalent |
| Cross Reference 4 | NTN 7209B – same envelope at 40°, related not equivalent |
| Cross Reference 6 | NSK 7209ATRSULP4 – super-precision phenolic-cage execution, same envelope and angle |
| Cross Reference 7 | NSK 7209AWDB – back-to-back matched pair of this bearing |
NSK 7209AW single row angular contact ball bearing. Bore Diameter: 45 mm (1.7717 in). Outside Diameter: 85 mm (3.3465 in). Overall Width: 19 mm (0.7480 in). Contact Angle: 30°. Number Of Rows: 1. Rolling Elements: Ball. Cage Material: Pressed steel. Precision Class: ISO Normal.
72 — single row angular contact ball bearing, ISO dimension series 02.
09 — bore code, 09 x 5 = 45 mm.
A — 30° contact angle.
W — pressed steel cage.
Dynamic Load Rating: 43,500 N (9,779 lbf). Static Load Rating: 28,700 N (6,452 lbf). Limiting Speed: 6,700 rpm grease; 9,500 rpm oil. Item Weight: 0.411 kg (0.906 lb). Effective load centre a: 28.3 mm.
A 30° contact angle sits at the high-thrust end of NSK’s standard angular contact range: more axial capacity and greater axial stiffness than a 15° bearing, at a lower speed ceiling.
A single row angular contact bearing takes thrust in one direction only. Two are mounted opposed, back-to-back or face-to-face, to locate a shaft in both directions.
Bore Type: Straight. Shaft abutment diameter da min: 52 mm. Housing abutment diameter Da max: 78 mm. Fillet radius ra max: 1 mm. Chamfer r min: 1.1 mm, r1 min: 0.6 mm. Effective load centre a: 28.3 mm.
Unit Quantity: 1 Pc. Single bearing.
Same 45 x 85 x 19 mm envelope at 30°: SKF 7209 BE, Koyo 7209B, NTN 7209B, FAG 7209-B. Each maker’s cage, internal design and published ratings differ. NSK’s own 7209A super-precision executions, 7209ATYNSU and 7209ATRSU in P5, P4, P4Y and P3, share the envelope and angle but carry different cages, classes, speeds and ratings.
Common spellings and search variants carried on this part: 7209A, 7209AW, 7209E, 7209ACD, 7209-A-W.
