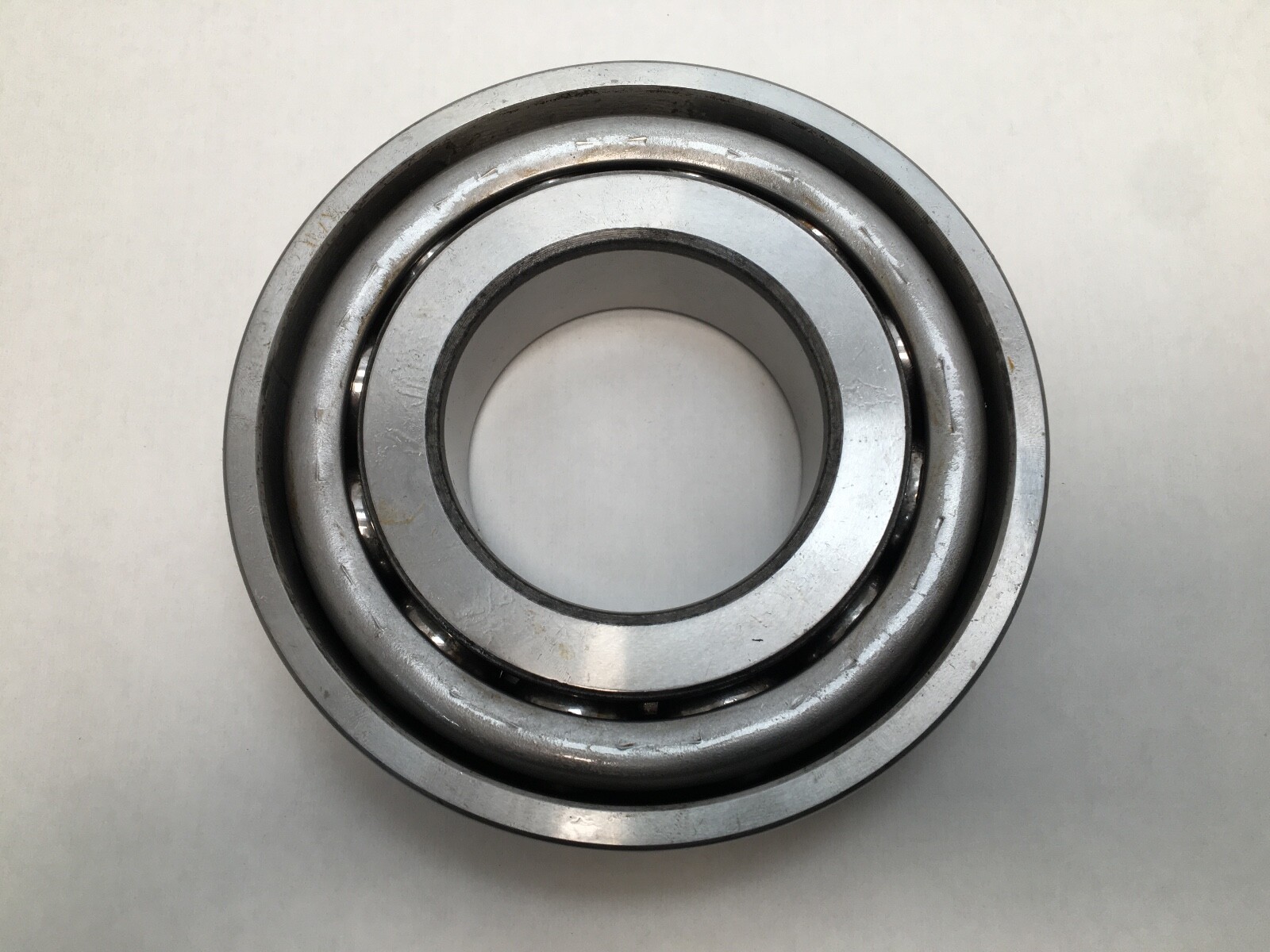

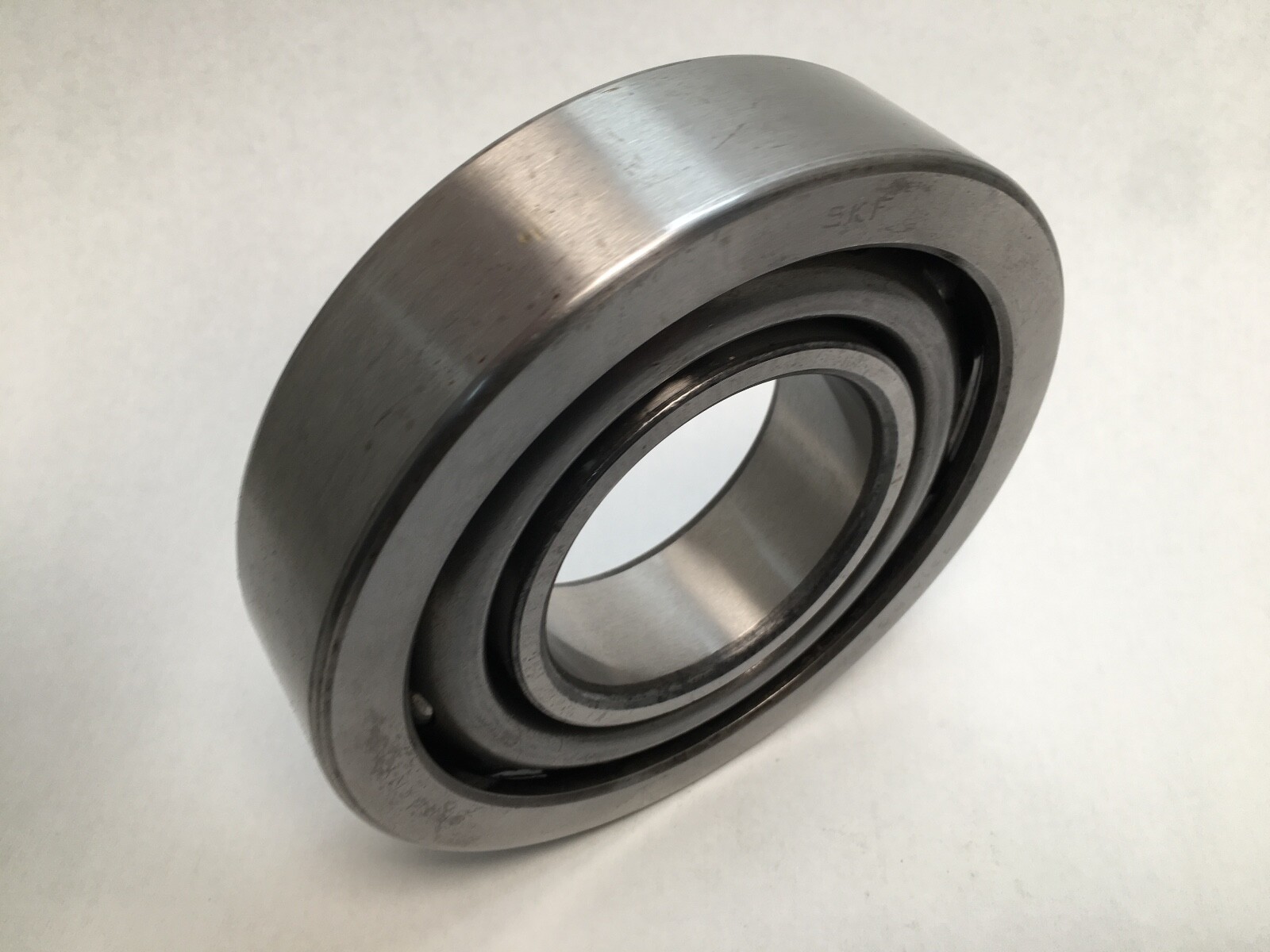

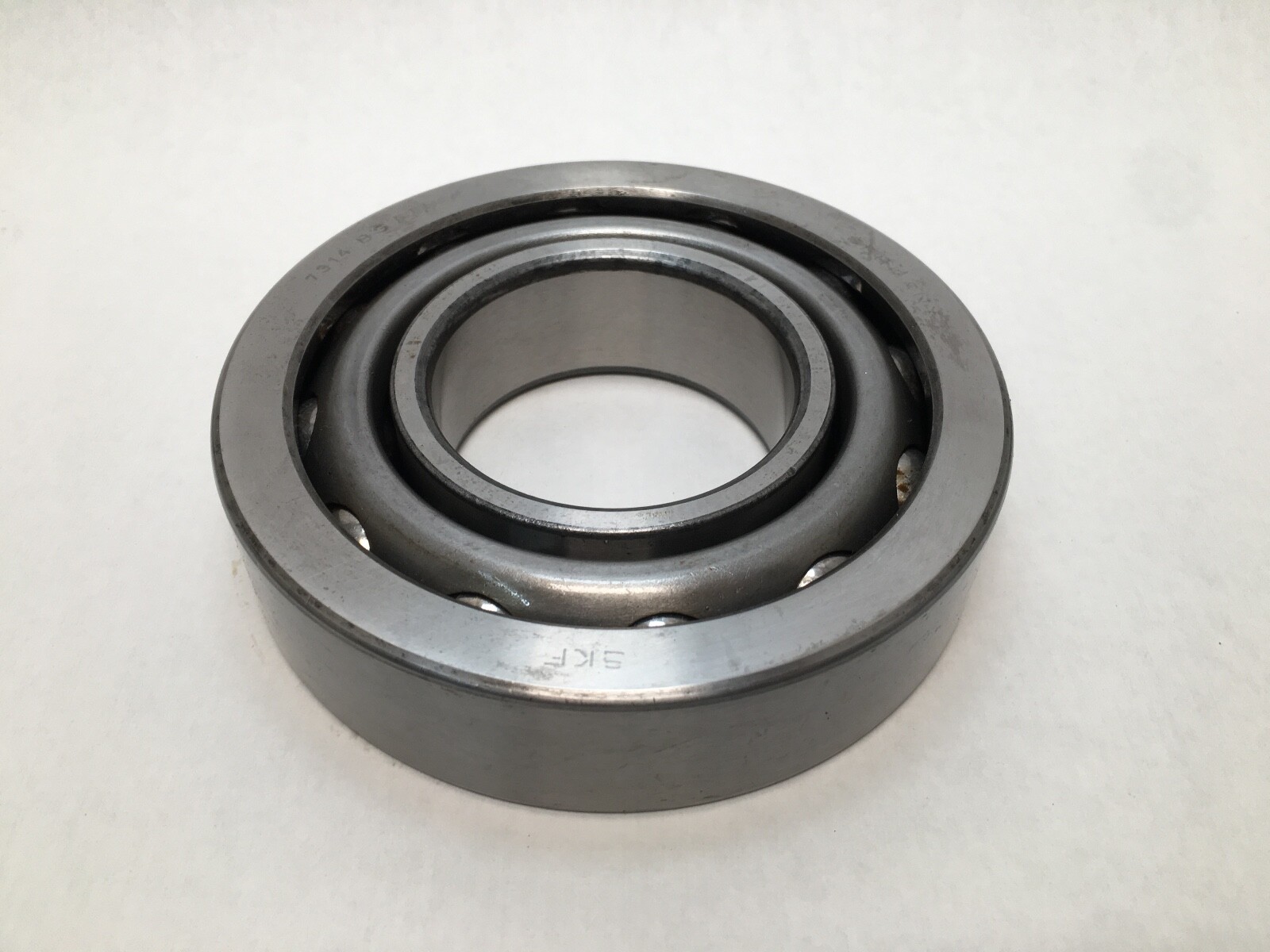

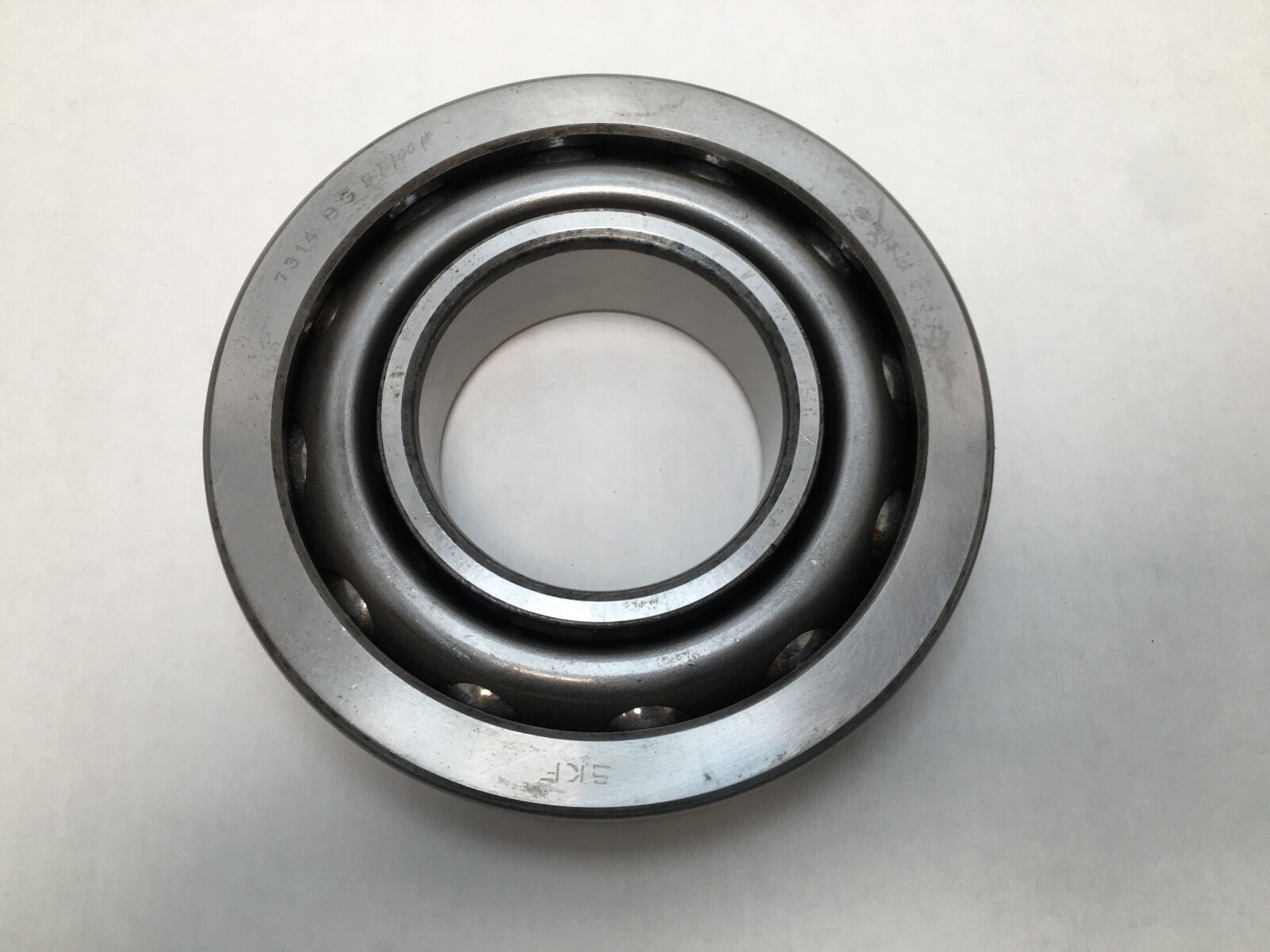

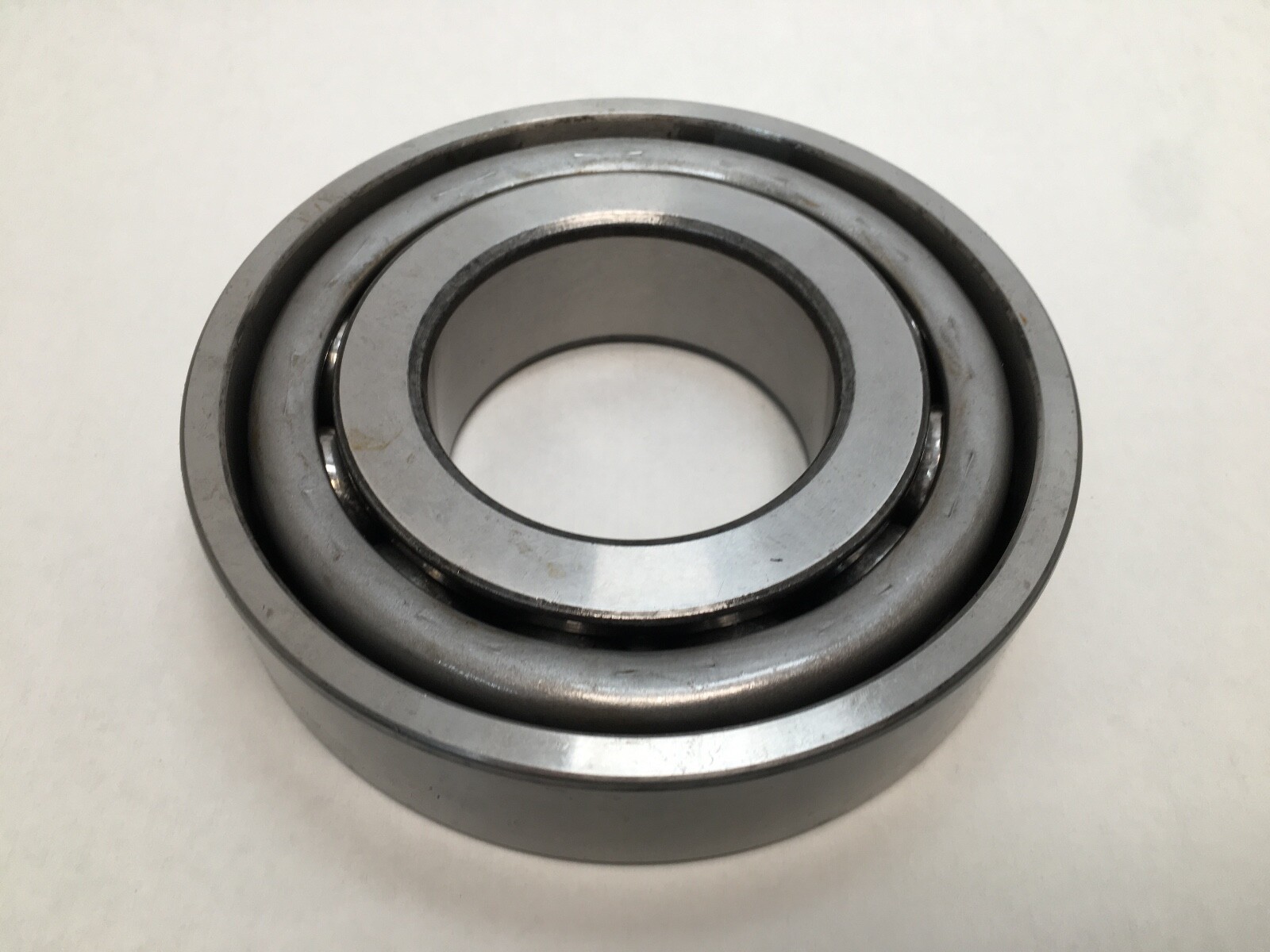

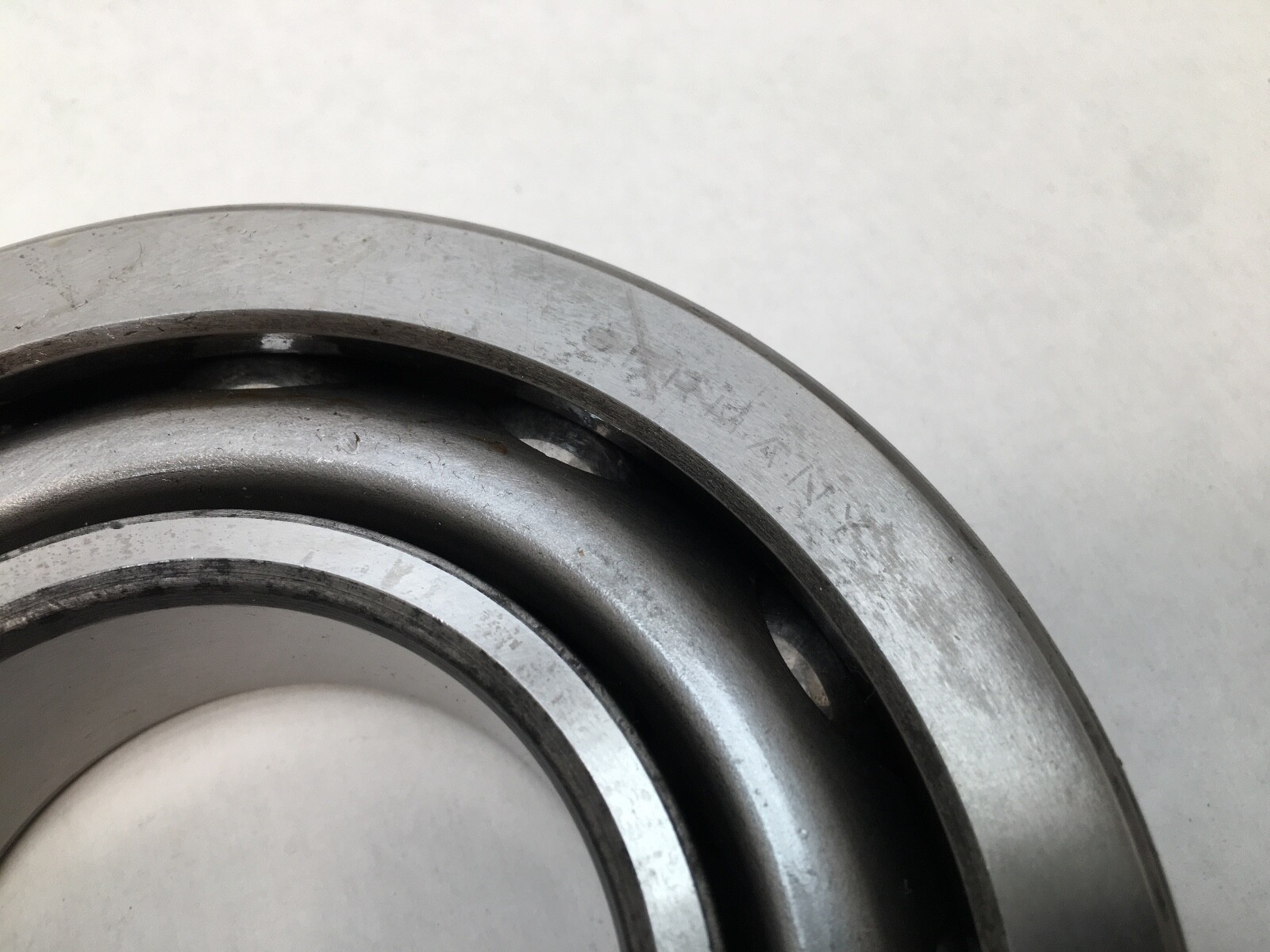

Single-row angular contact ball bearing, 70 x 150 x 35 mm, 40° contact angle, open on both faces, heavy 73 series, normal clearance. SKF 7314 B.
List Price
$64.86
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7314BG1 |
| Model | 7314 BG 1 DU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7300 |
| Base Number | 7314 |
| Industry Terms | angular contact ball bearing; 40 degree contact angle; heavy series angular contact; thrust ball bearing |
| Common Misspellings | SFK 7314BG1; 7314 B-G1; 7314BGI |
| Application Types | Pumps; gearboxes; vertical shaft support; high axial load shaft arrangements |
| Bore Shaft Size | 70 mm (2.7559 in), straight bore |
| Mpn Variants | 7314BG1; 7314 BG1; 7314-B-G1; 7314BG; 7314B; 7314 BG DU |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Part Number | 7314 B |
| Internal Clearance | CN |
| Cross Reference 1 | FAG 7314-B-XL-MP |
|---|---|
| Cross Reference 2 | NSK 7314B |
| Cross Reference 3 | NTN 7314B |
| Cross Reference 6 | 7314 BG DU |
SKF 7314 B single-row angular contact ball bearing. Bore Diameter: 70 mm (2.7559 in). Outside Diameter: 150 mm. Width: 35 mm. Contact Angle: 40°. Closure Type: Open on both faces. Bore Type: Straight. Series: 73 (ISO heavy dimension series). Rolling Elements: Steel balls. Internal Clearance: CN. A heavy-series bearing built to take a high thrust load in one direction together with a radial load.

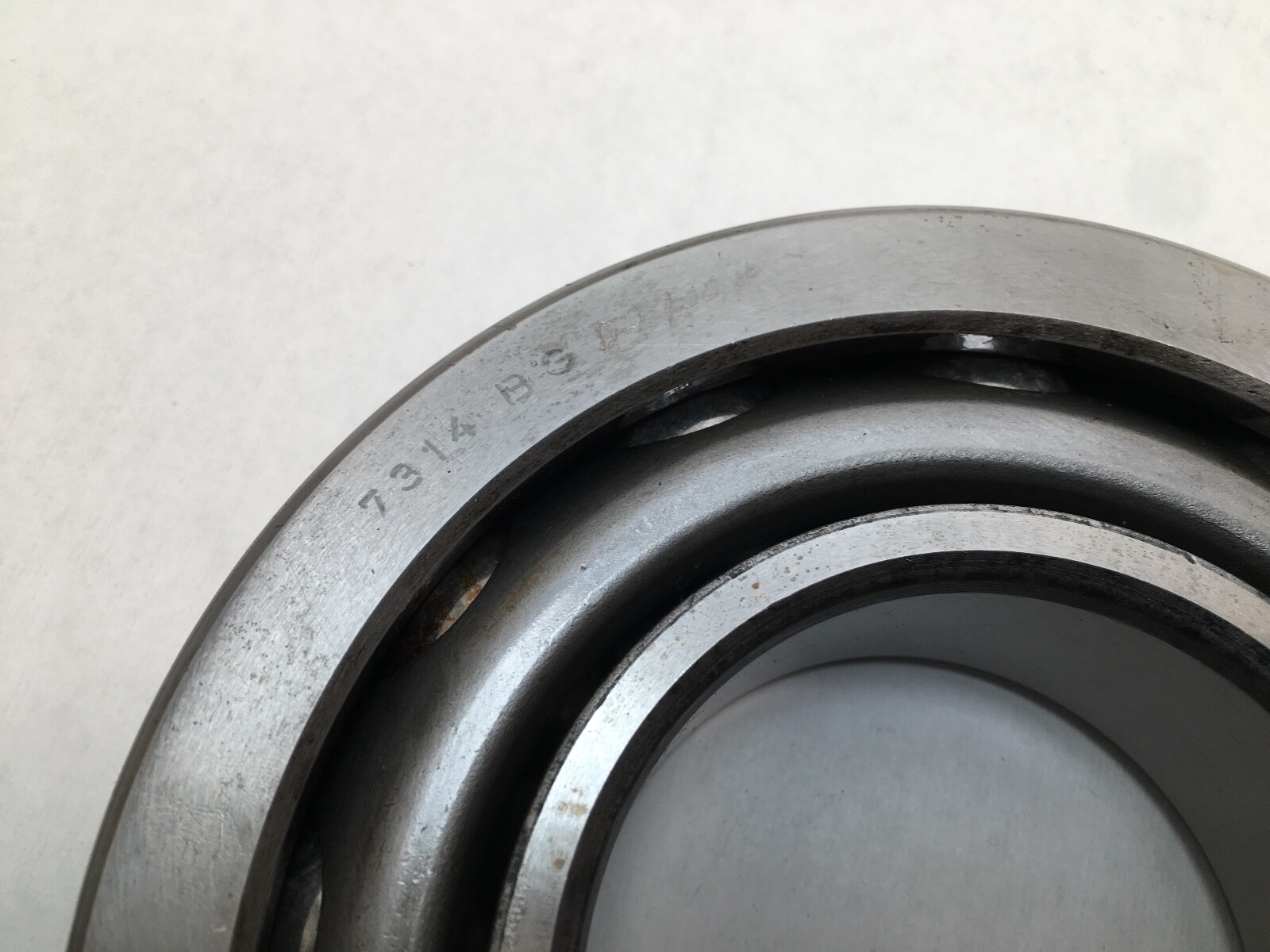

73 — ISO heavy dimension series.
14 — bore code, 14 x 5 = 70 mm.
B — 40° contact angle in SKF’s scheme.
No clearance suffix — radial internal clearance is normal, CN.
A 40° contact angle is the high-thrust end of the angular contact range. It carries substantially more axial load in its loaded direction than a 15° or 25° bearing of the same envelope, with lower speed capability and higher sensitivity to misalignment. The heavy 73 series adds ball size and ring section over the 72 series at the same bore, raising both radial and axial capacity. A single row takes thrust in one direction; a second bearing opposed to this one locates the shaft in both directions.

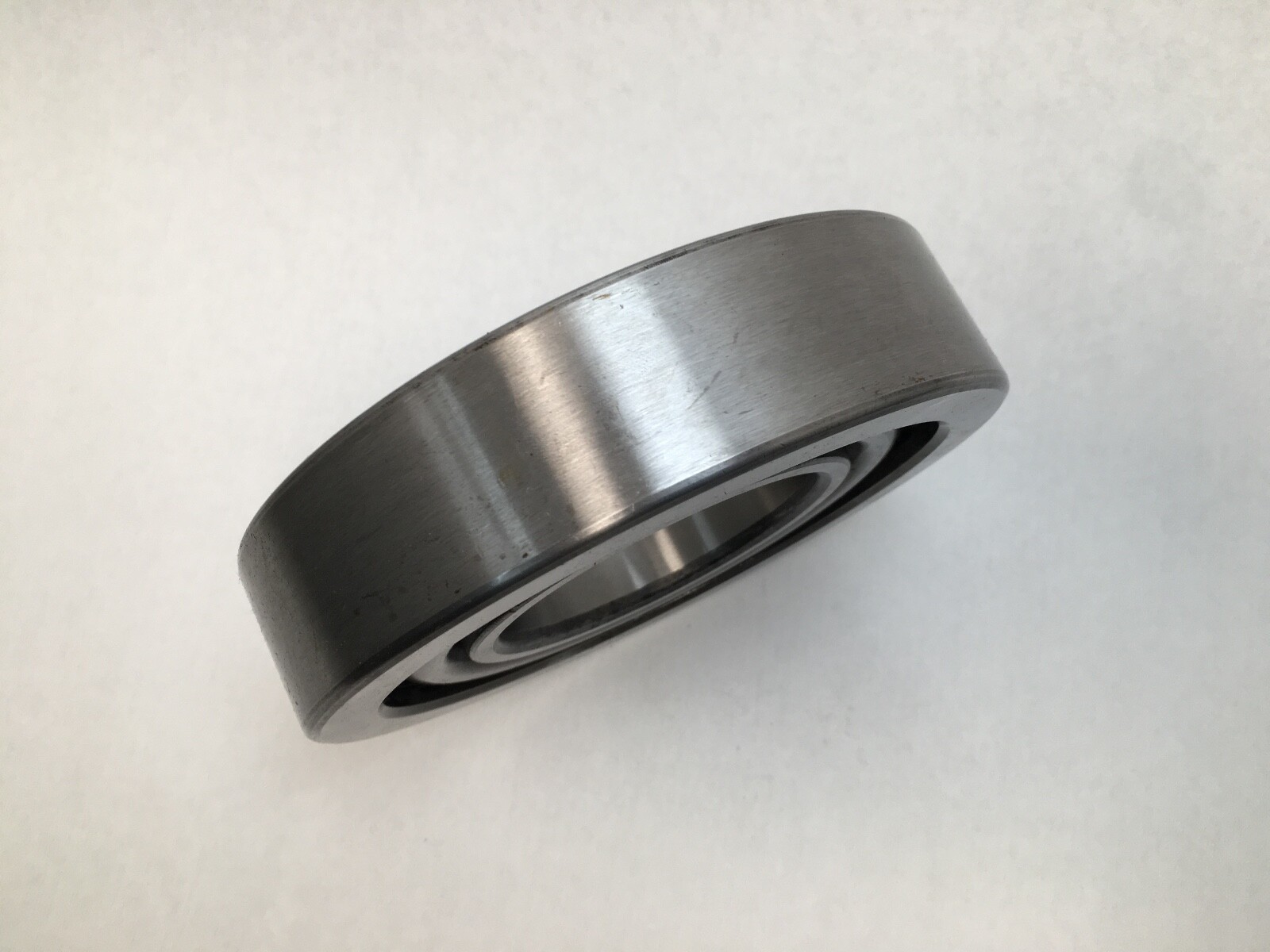

The rings have a wide face and a narrow face; the fitted direction sets which way the bearing takes thrust. Straight bore, mounting directly onto a cylindrical shaft seat.

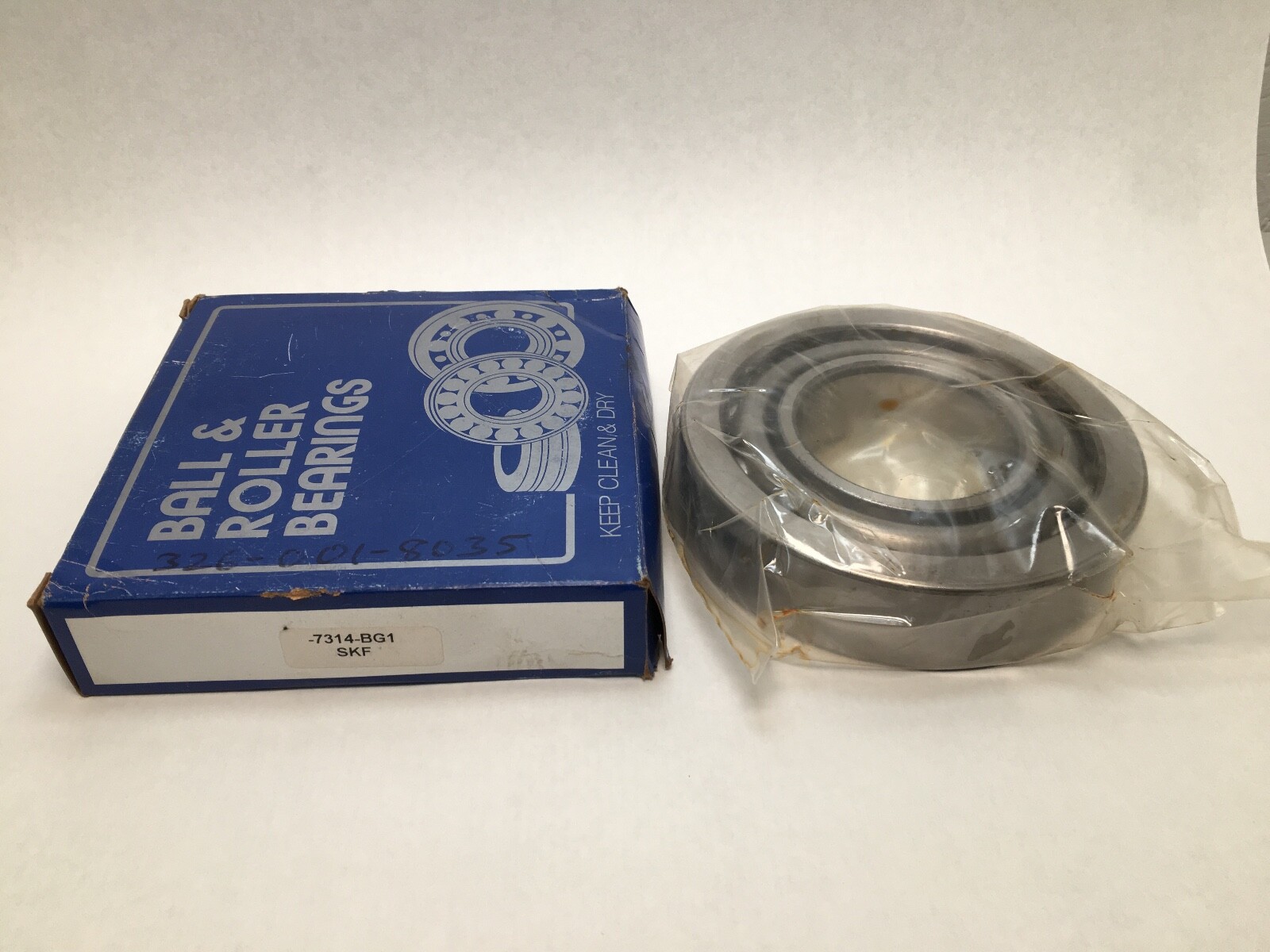

Unit Quantity: 1 Pc. Single bearing.
Cross-Reference: FAG 7314-B-XL-MP, NSK 7314B and NTN 7314B are 40° single-row angular contact bearings, 70 x 150 x 35 mm. A 7314 ACD (25°) or 7314 CD (15°) shares the envelope, and a 7214 B is the lighter 72 series at the same bore; those are related sizes.
40°.
70 mm.
No, open on both faces.
