Koyo 7016C5GL angular contact ball bearing, 80 x 125 x 22 mm, 15° angle, ABEC 7 / P4, universal flush ground, light preload. Polyamide cage (FG).
List Price
$152.98
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| MPN | 7016C5GL |
| Model | 7016C-5GL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Rolling Elements | Ball |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Overall Width | 22 mm |
| Mpn Variants | 7016C5GL, 7016C-5GL, 7016C-5GL UL FG P4, 7016-C 5GL/UL FG P4, 7016C-5GLFGP4 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Chamfer r min: 1.1 mm; r1 min: 0.6 mm; Effective load centre a: 24.7 mm; da min: 87 mm; Da max: 118 mm; ra max: 1 mm |
| Preload | Light preload |
| Mounting Arrangement | Universal (flush ground for DB, DF or DT) |
| Industry Terms | super precision angular contact bearing; machine tool spindle bearing; universal matched bearing |
| Common Misspellings | Koyo 7016C 5GL; 7016C5GL UL; Koiyo 7016C5GL; Koyo 7016-C5GL |
| Application Types | Machine tool spindles; grinding spindles; high-speed rotating equipment |
| Closure Type | Open |
| Cross Reference 1 | SKF 7016 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7016-C-T-P4S-UL - phenolic cage, P4S class |
| Cross Reference 3 | NSK 7016CTRSULP4 - phenolic cage |
| Cross Reference 4 | Fafnir 2MM9116WI SUL |

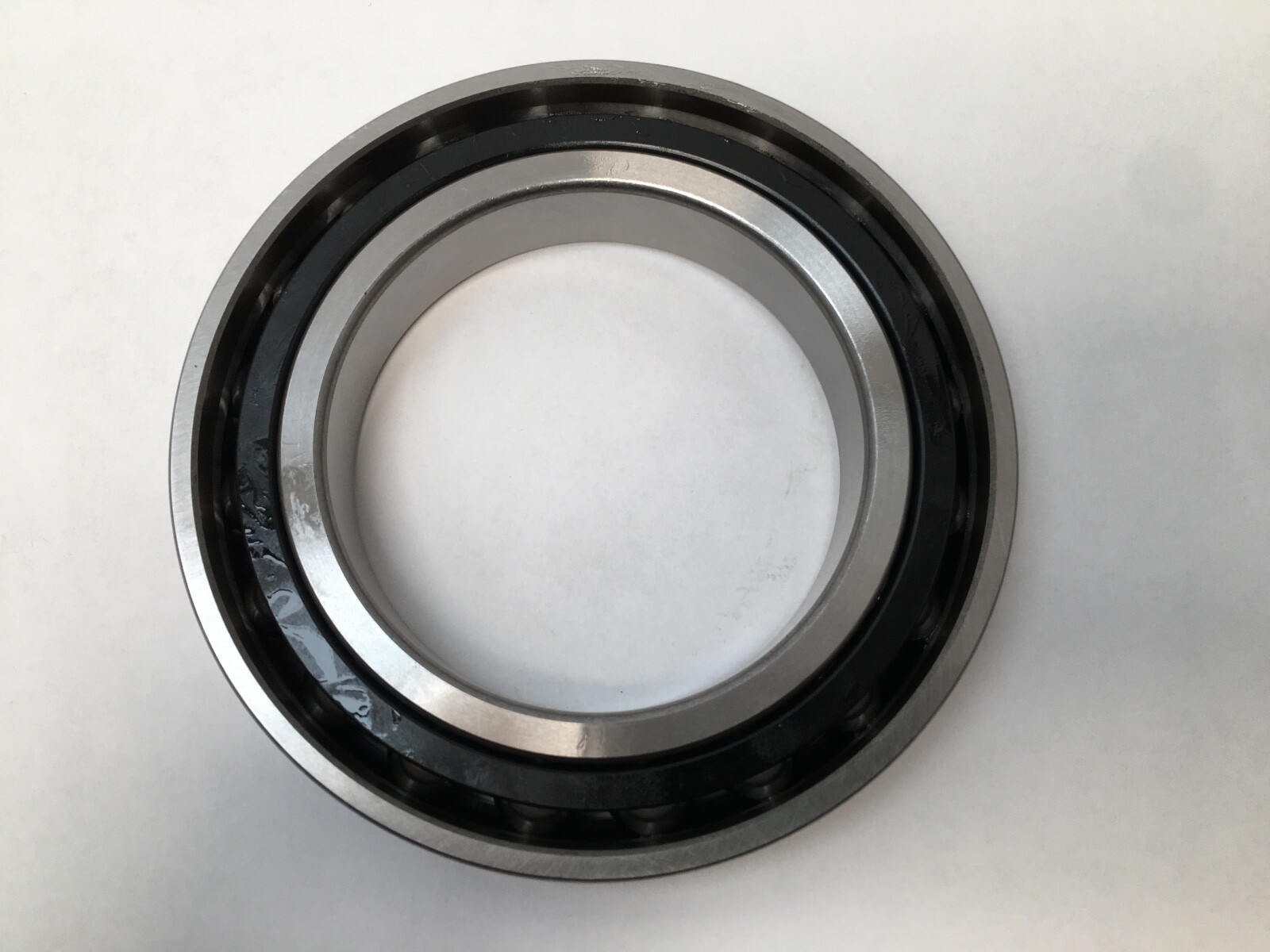

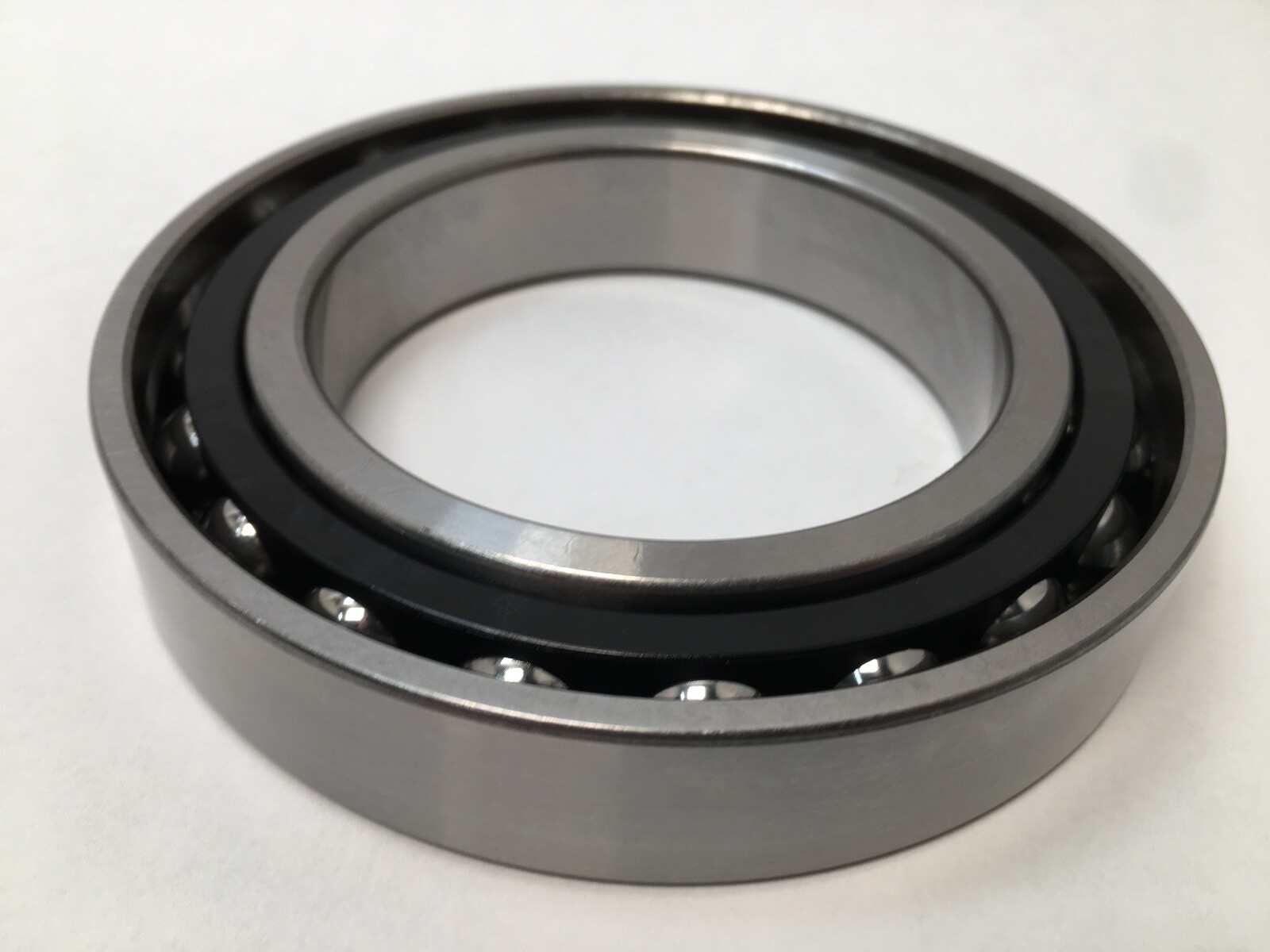

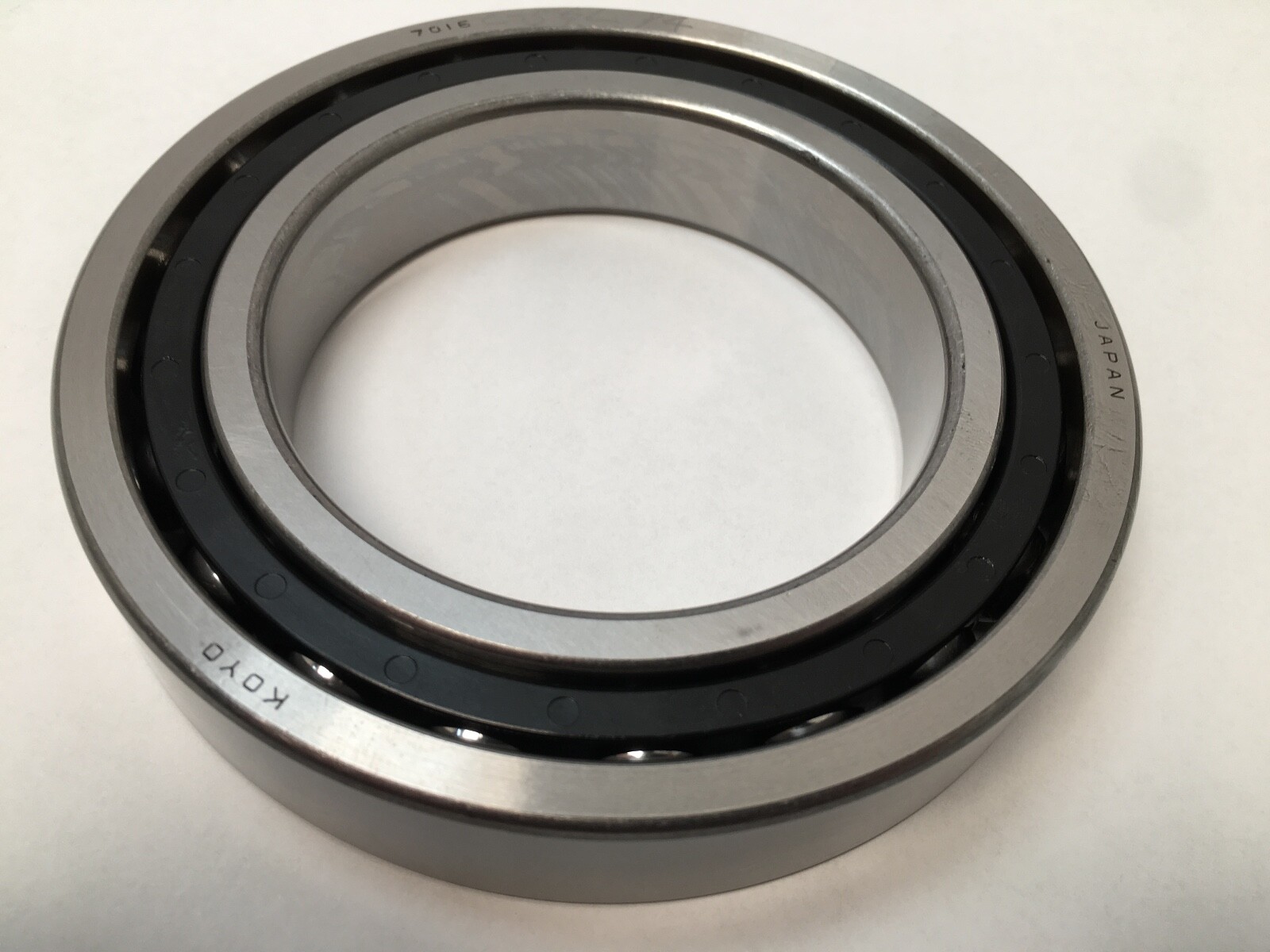

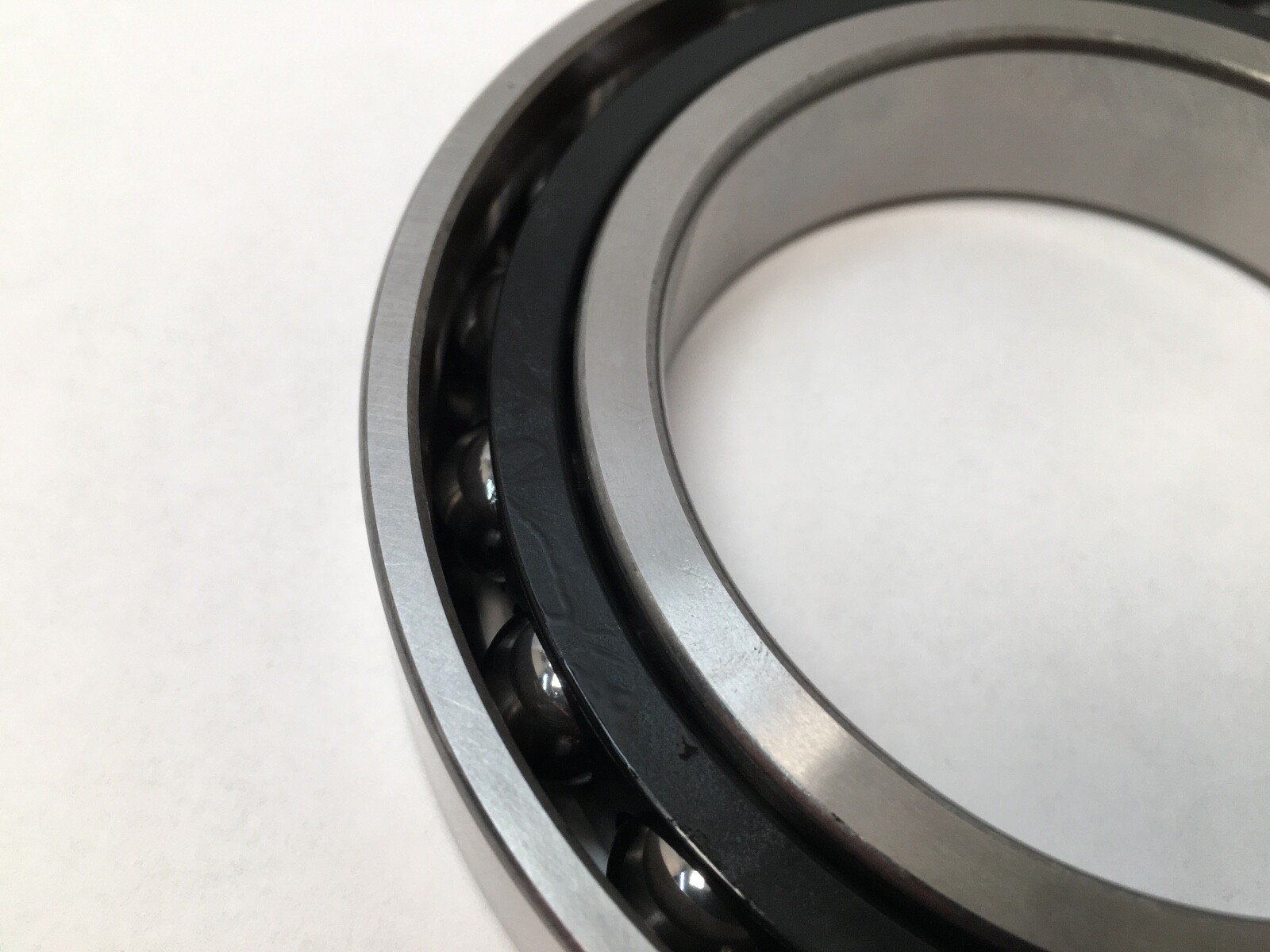

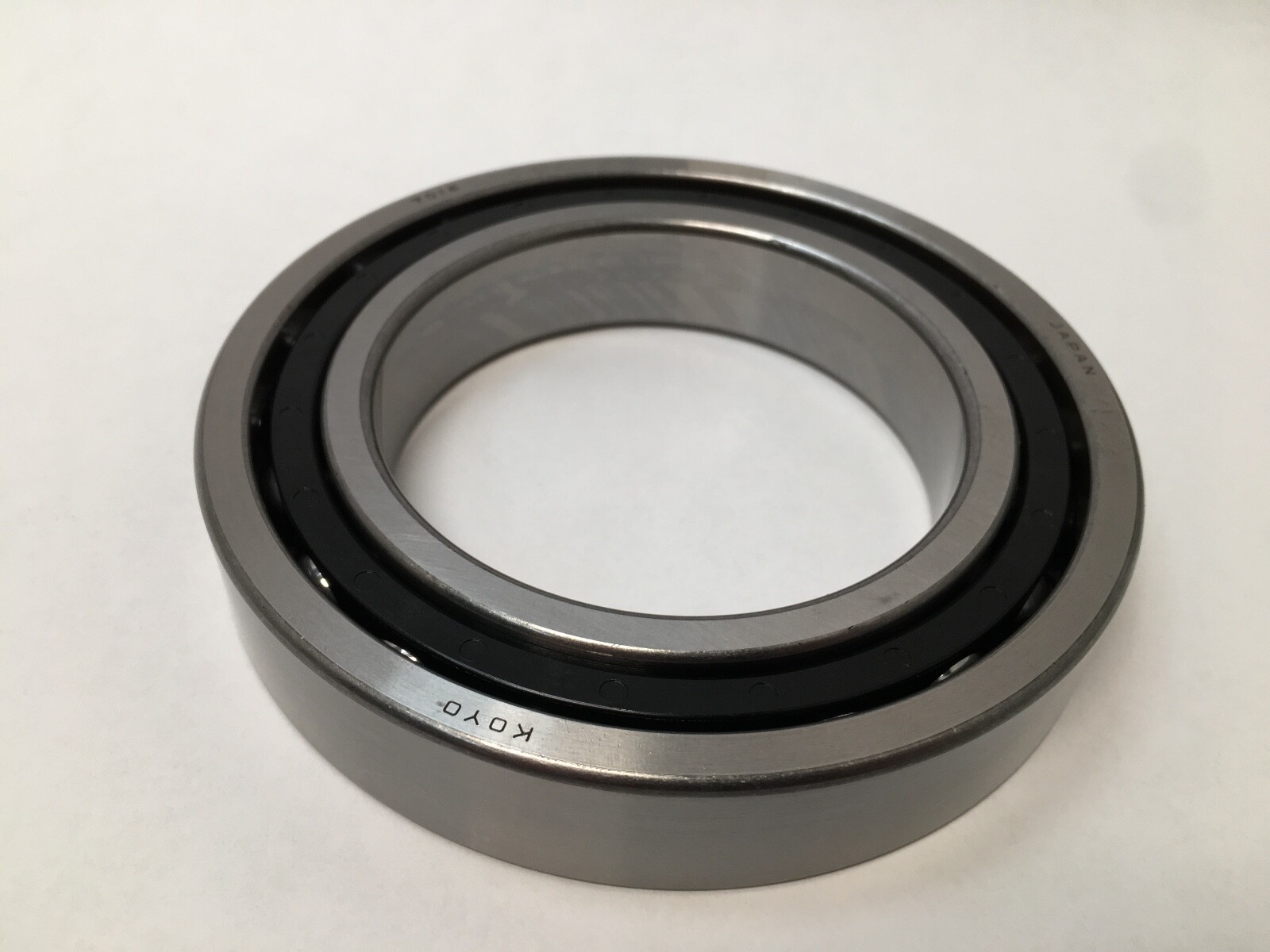

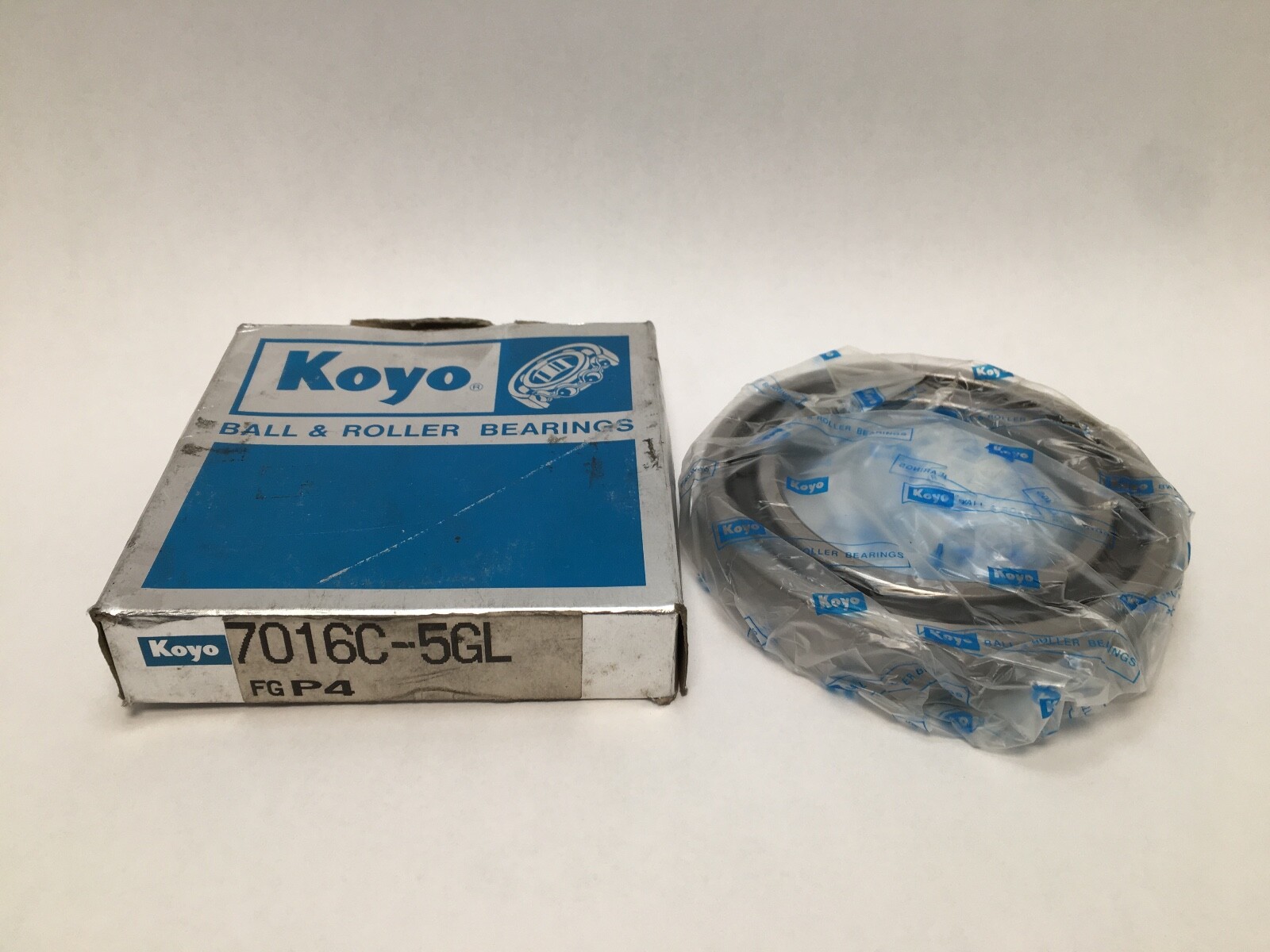

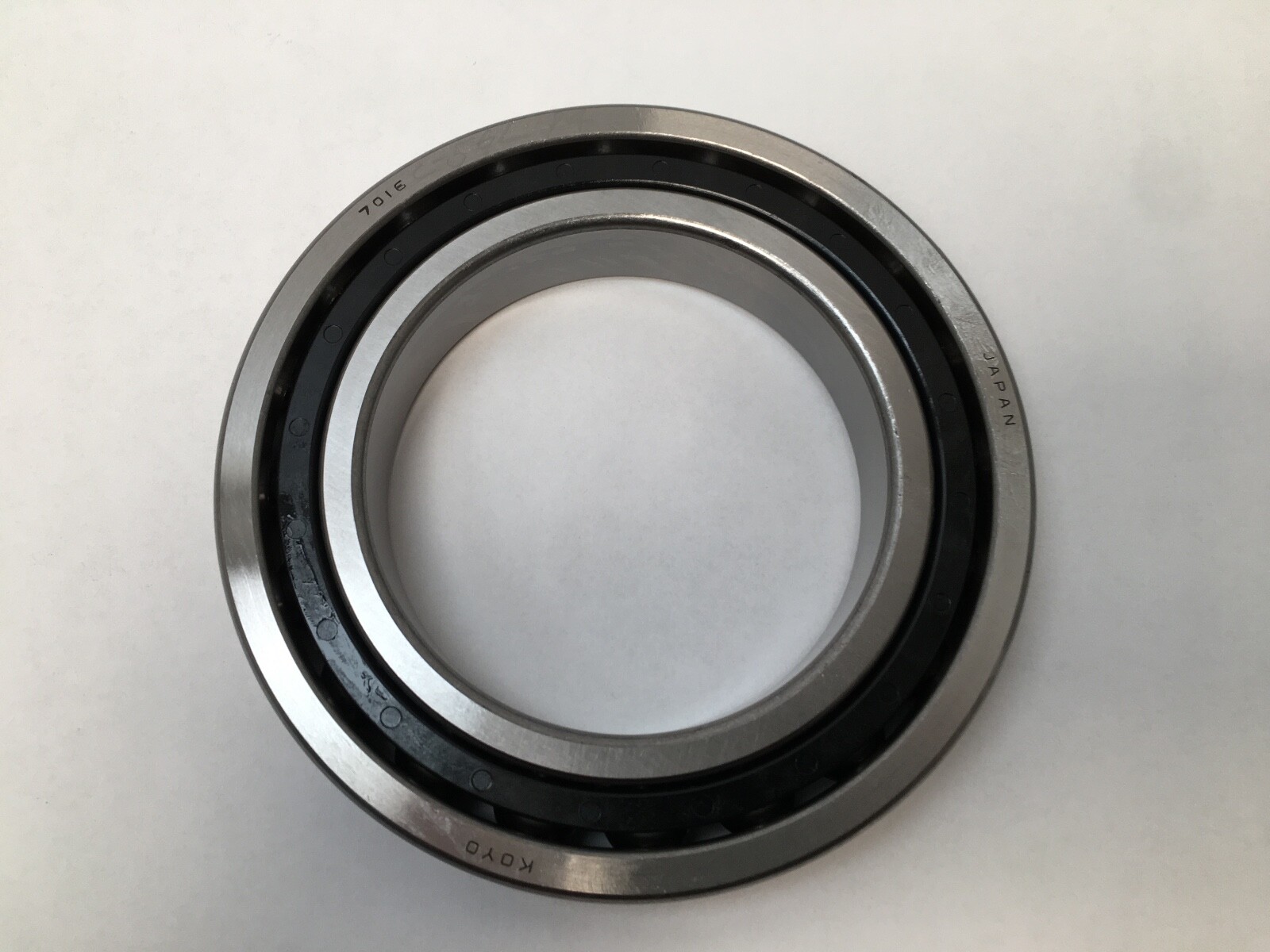

Koyo 7016C5GL single-row angular contact ball bearing, 80 x 125 x 22 mm, 15° contact angle, flush ground for universal matching with light preload, P4 tolerance and a polyamide cage (carton marking 7016C-5GL UL FG P4). Unit Quantity: 1 Pc.

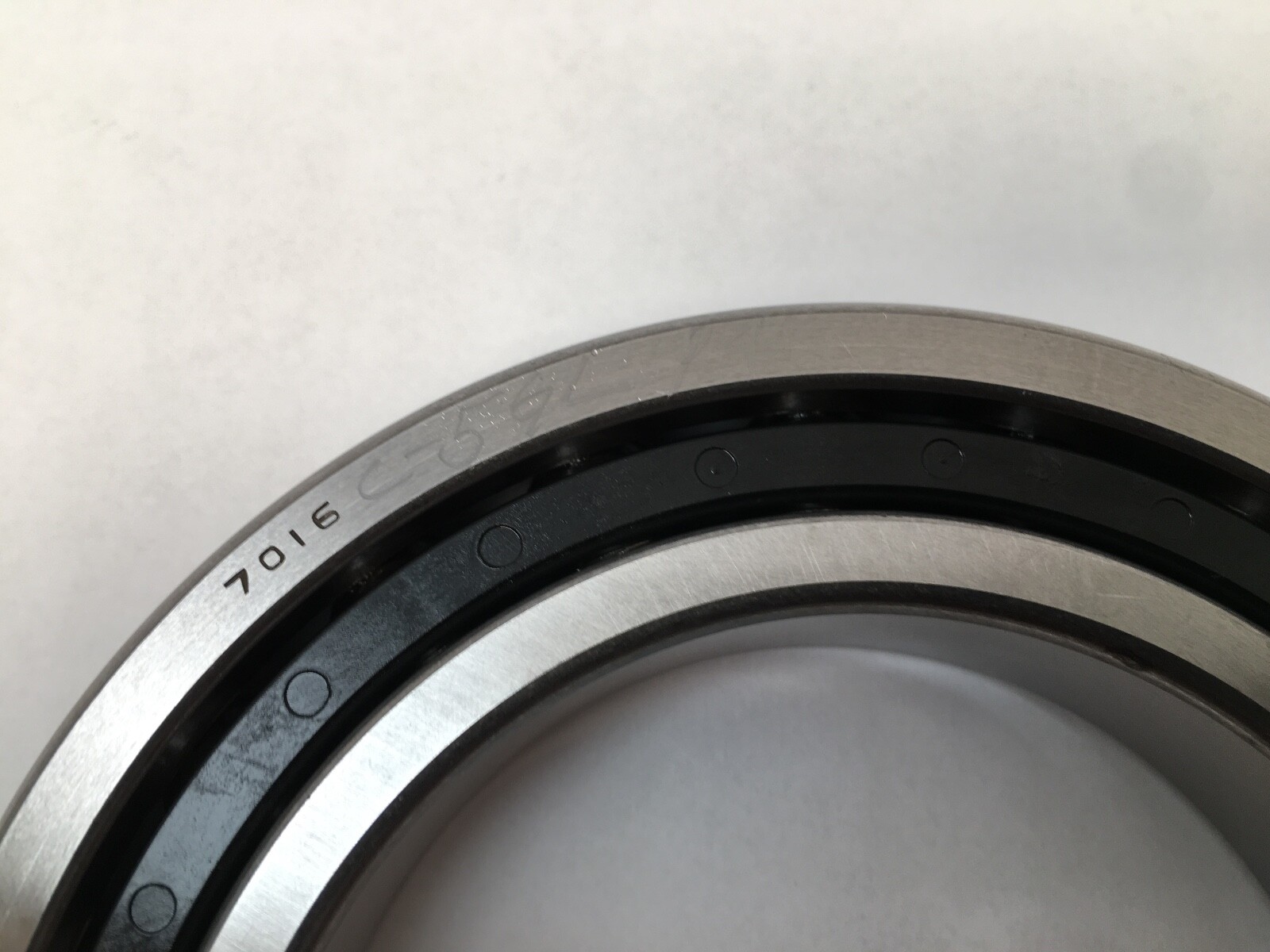

7016 — single-row angular contact, 70 extra-light series, bore code 16 = 80 mm.
C — 15° contact angle.
G — faces flush ground for back-to-back, face-to-face or tandem pairing.
L — light preload when paired.
FG — polyamide (nylon) cage.
P4 — Koyo tolerance class equivalent to ABEC 7.
Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Series: 7000. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Precision Class: ABEC 7 / P4. Preload: Light preload. Cage Material: Polyamide. Mounting Arrangement: Universal (flush ground for DB, DF or DT). Snap ring included: No. Unit Quantity: 1 Pc.
Chamfer r min: 1.1 mm. Chamfer r1 min: 0.6 mm. Effective load centre a: 24.7 mm. Shaft abutment diameter da min: 87 mm. Housing abutment diameter Da max: 118 mm. Fillet radius ra max: 1 mm.
Cross-references at 80 x 125 x 22 mm, 15° angle, light preload: SKF 7016 CD/P4ADGA, FAG B7016-C-T-P4S-UL (phenolic cage, P4S class), NSK 7016CTRSULP4 (phenolic cage), Fafnir 2MM9116WI SUL. MPN variants: 7016C5GL, 7016C-5GL, 7016C-5GL UL FG P4, 7016-C 5GL/UL FG P4, 7016C-5GLFGP4.
Bore Diameter 80 mm, Outside Diameter 125 mm, Overall Width 22 mm, Contact Angle 15° (C).
G is flush ground faces for back-to-back, face-to-face or tandem pairing; L is light preload when paired.
A polyamide (nylon) cage (FG) and P4 tolerance, equivalent to ABEC 7.
