Availability:
1 in stock

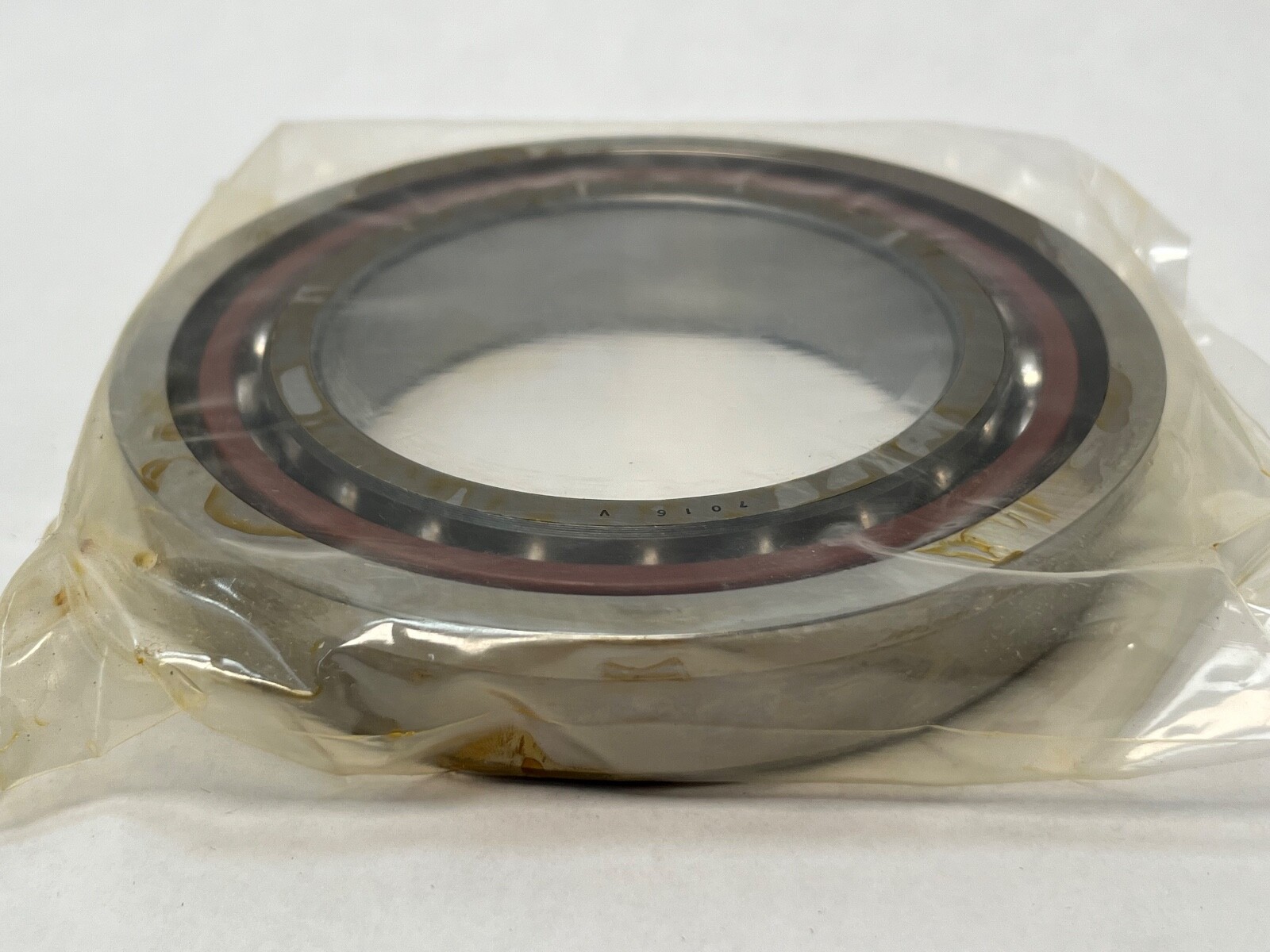

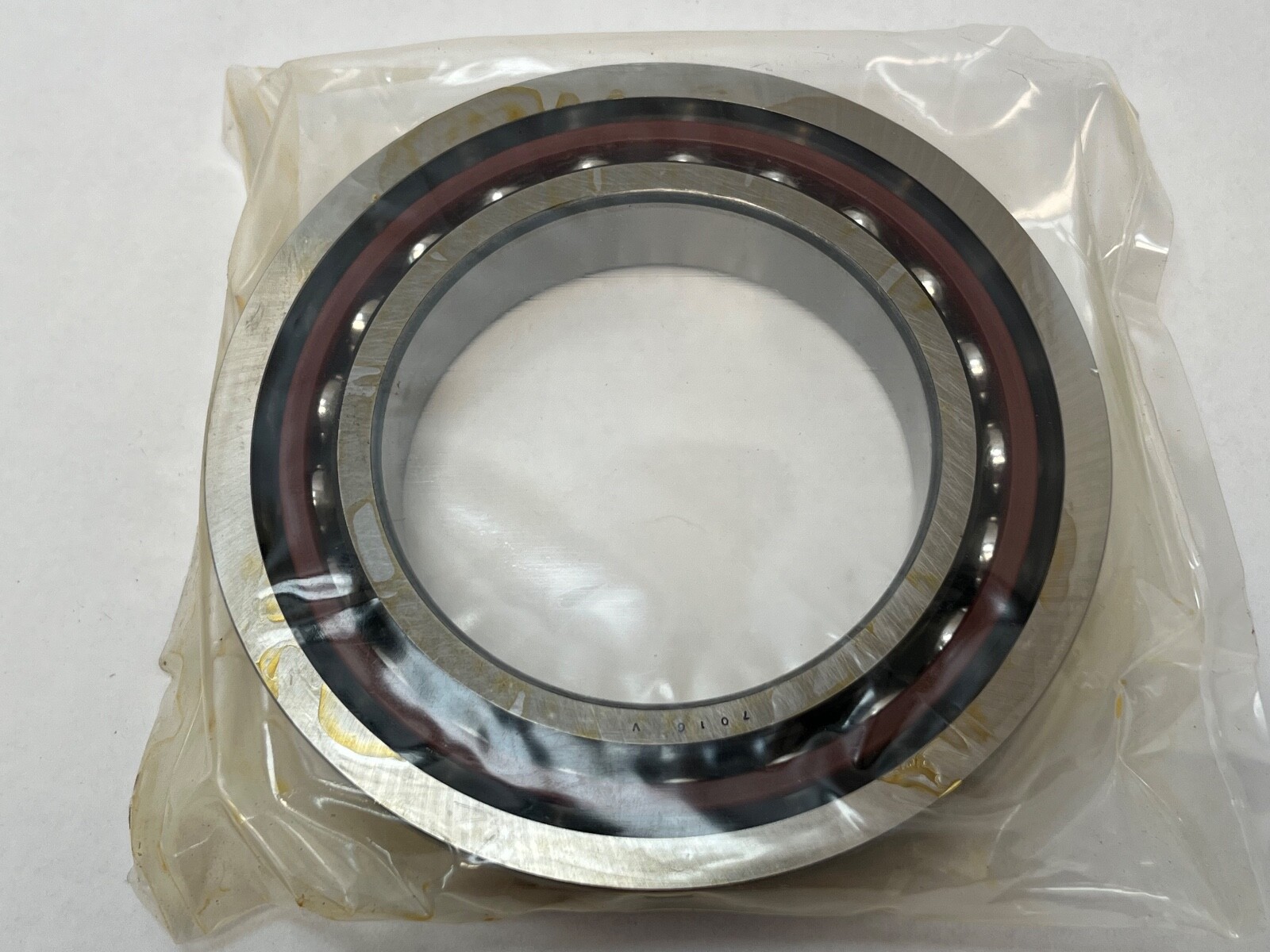

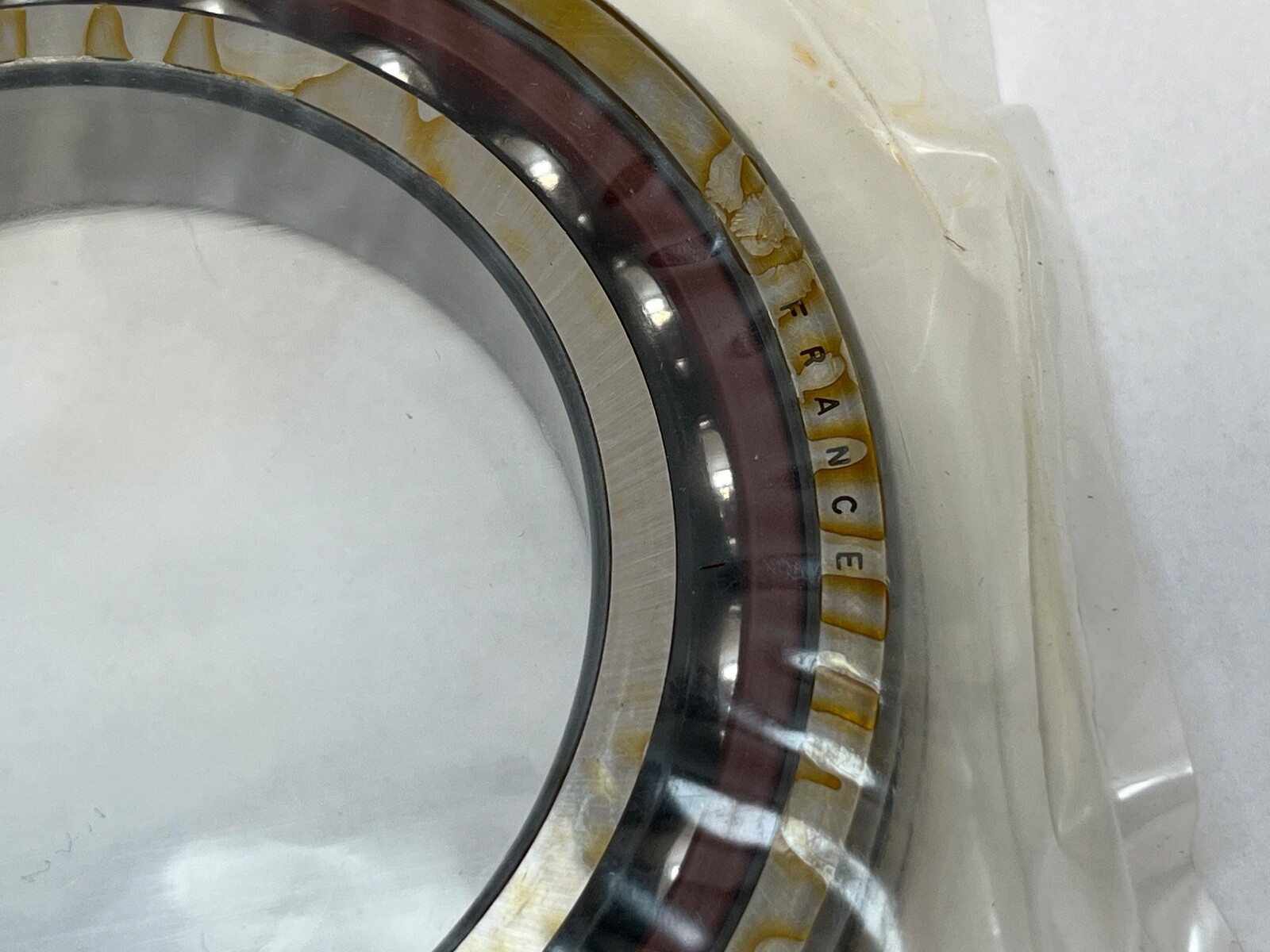

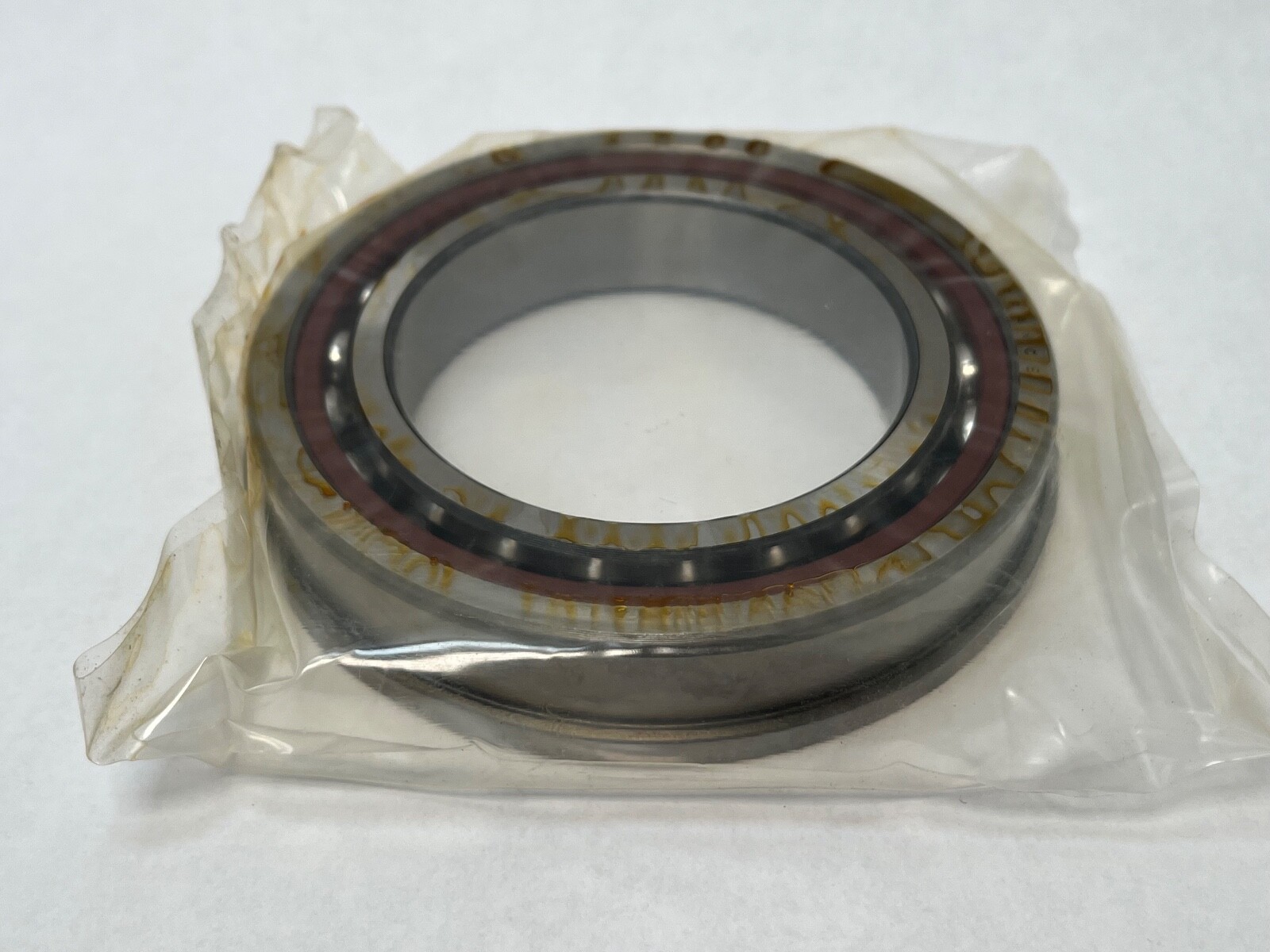

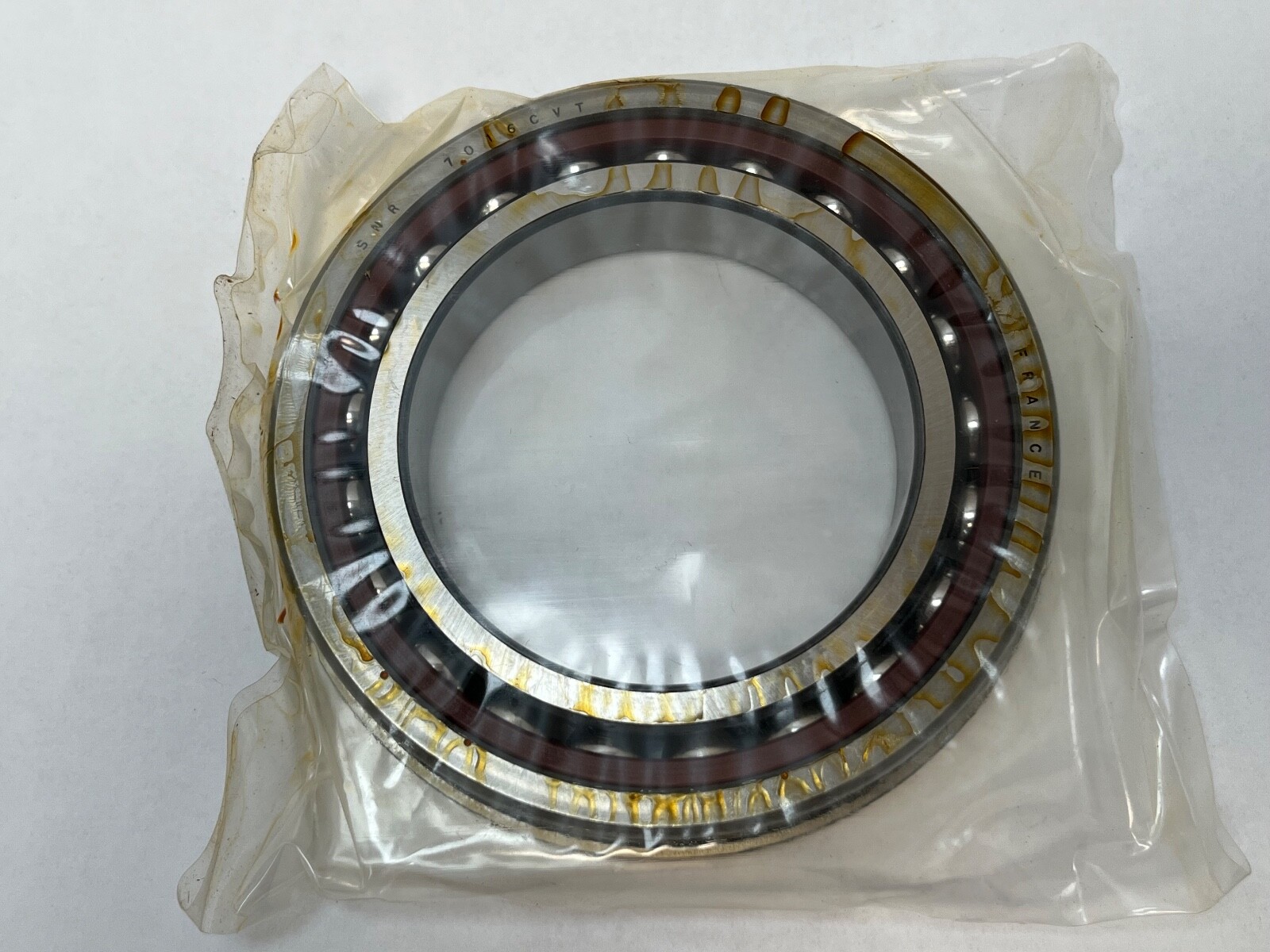

Single-row angular contact ball bearing, 80 x 125 x 22 mm, 15° contact angle, phenolic outer-ring land-riding cage, ABEC 7 precision, open both faces.
List Price
$220.62
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7016CVTUJ94 |
| Model | 2MMF9116WI CR SUH / 7016 C V T U J94 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil/Grease |
| Bore Shaft Size | 80 mm |
| Mpn Variants | 7016CVTUJ94 / 7016 C V T U J94 / 7016-C-V-T-U-J94 / 2MMF9116WI-SUH / 2MMF9116WI-CR-SUH |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
SNR 7016CVTUJ94 single-row angular contact ball bearing. Brand: SNR. Manufacturer Part Number: 7016CVTUJ94. Bore: 80 mm. Outside Diameter: 125 mm. Width: 22 mm. Series: 7000. Number of Rows: 1. Rolling Elements: Ball. Bearing Material: bearing steel. Closure Type: open on both faces. Bore Type: straight. Item Weight: 1.83 lbs.
Contact Angle: 15°. Precision Class: ABEC 7, equivalent to P4. Running Accuracy: P4. Cage Material: phenolic. Cage Type: outer-ring land-riding. Mounting Arrangement: single, universally ground. Lubricant: oil or grease. Minimum Temperature: -30°C. Maximum Temperature: 120°C.

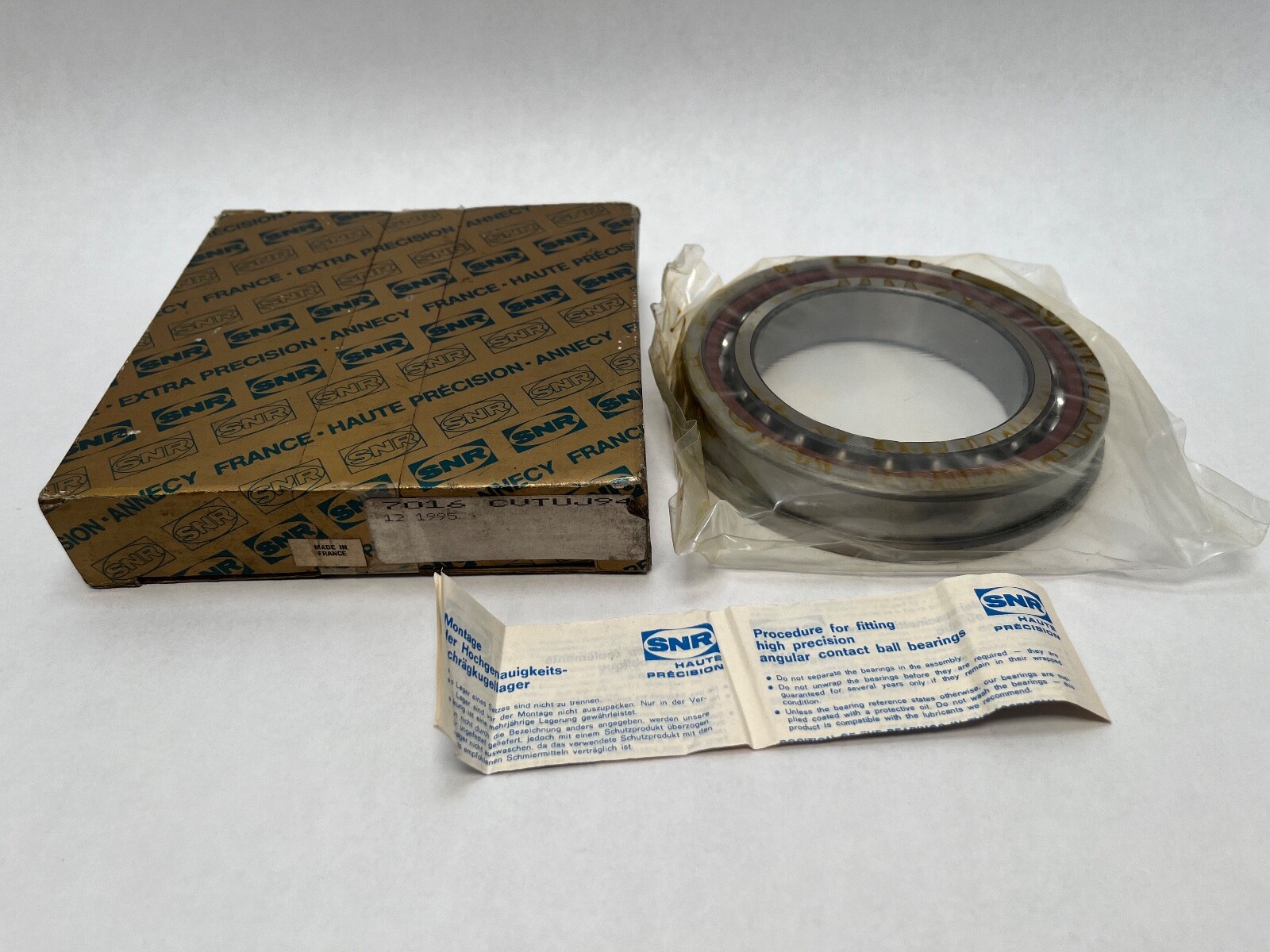

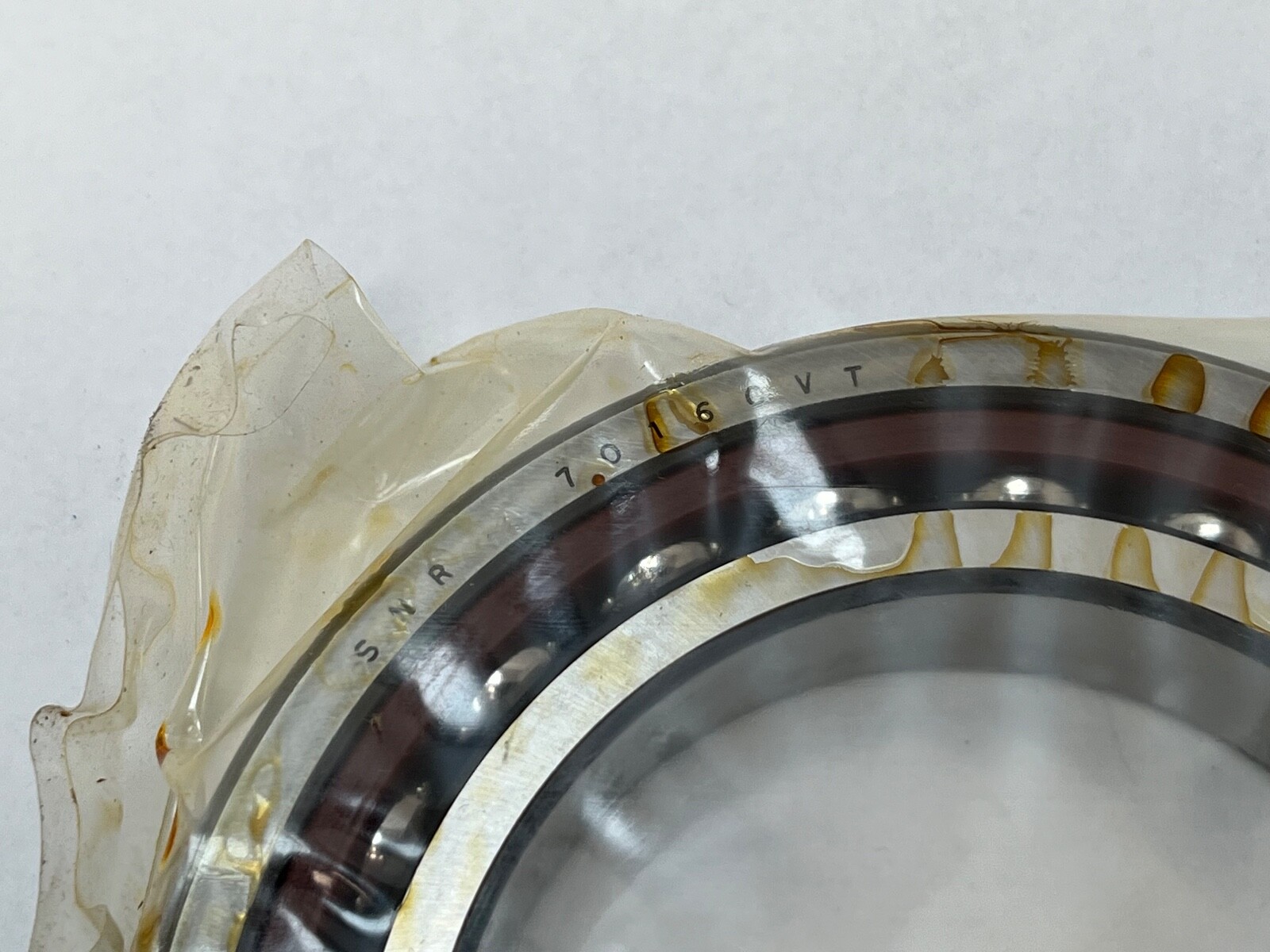

The carton carries this bearing in two schemes: SNR 7016 C V T U J94 and Fafnir 2MMF9116WI CR SUH. Searchable variants of the number include 7016CVTUJ94, 7016 C V T U J94 and 7016-C-V-T-U-J94.
A 15° contact angle keeps the load path close to the radial plane, favouring speed and radial stiffness over thrust capacity. That is the trade a high-speed spindle position normally wants at this size.
The phenolic cage is light and absorbs oil, so it runs cooler and quieter than brass or steel at high shaft speed, and the 120°C ceiling reflects the phenolic. Riding on the outer-ring land centres the cage on the stationary ring, which steadies cage motion through acceleration and deceleration. ABEC 7 precision holds low radial and axial runout and gives close, repeatable shaft location.
Universal grinding is what makes this bearing stackable. Any two of them can be clamped together in any face orientation and will seat correctly, so the same part number serves back-to-back, face-to-face and tandem builds.
Unit Quantity: 1 Pc. This listing supplies one single universally ground bearing.
Cross-Reference: Fafnir 2MMF9116WI CR SUH. Cross-Reference: SKF 7016 CD/P4ADGC. Harmonization Code: 8482.10.50. A same-envelope 7016 built at 25° is a related size rather than a substitution, because the steeper angle changes both the thrust capacity and the speed behaviour. A duplex-ground execution of the same number is likewise a different product, since this one is ground as a single.
