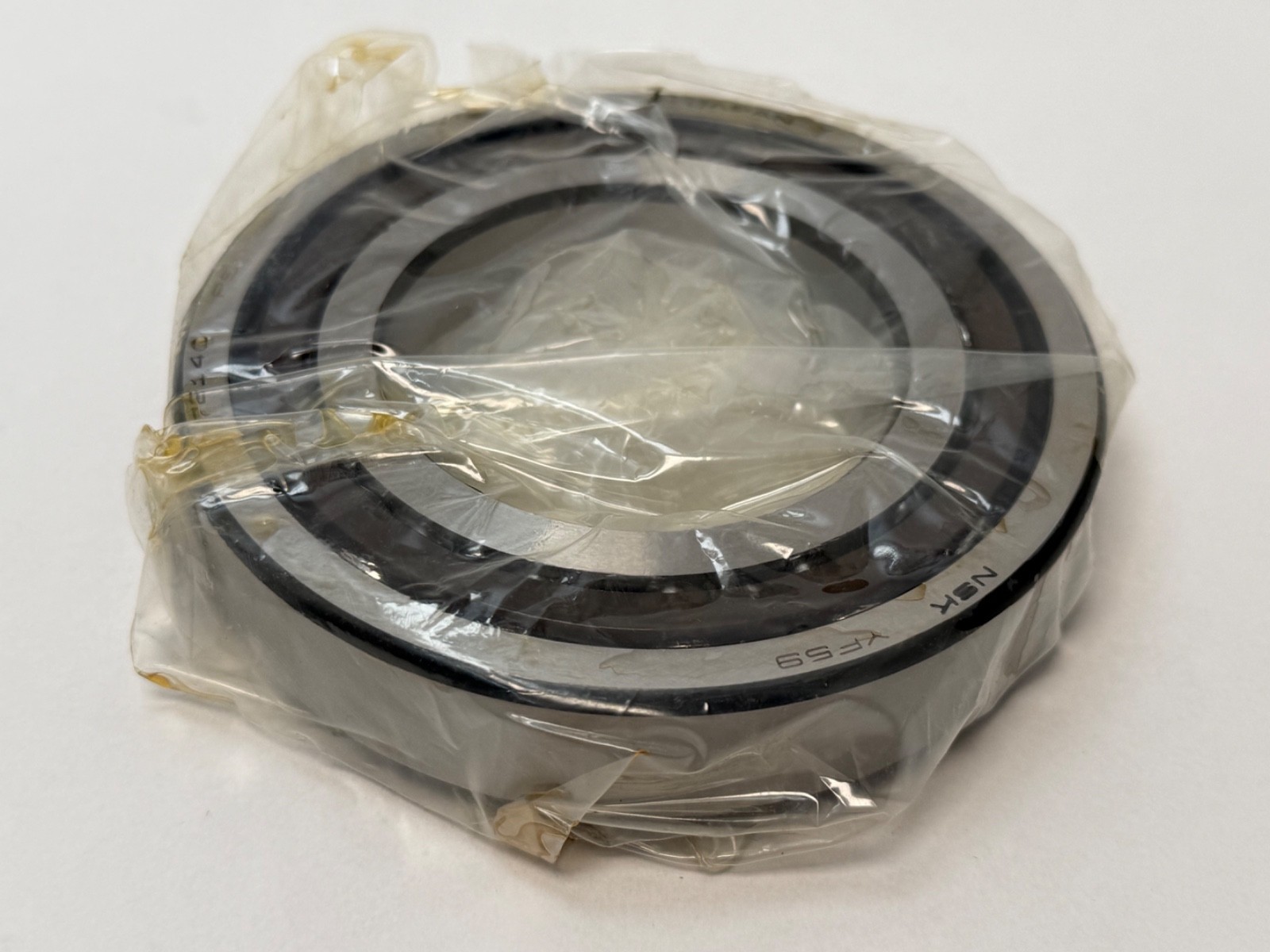

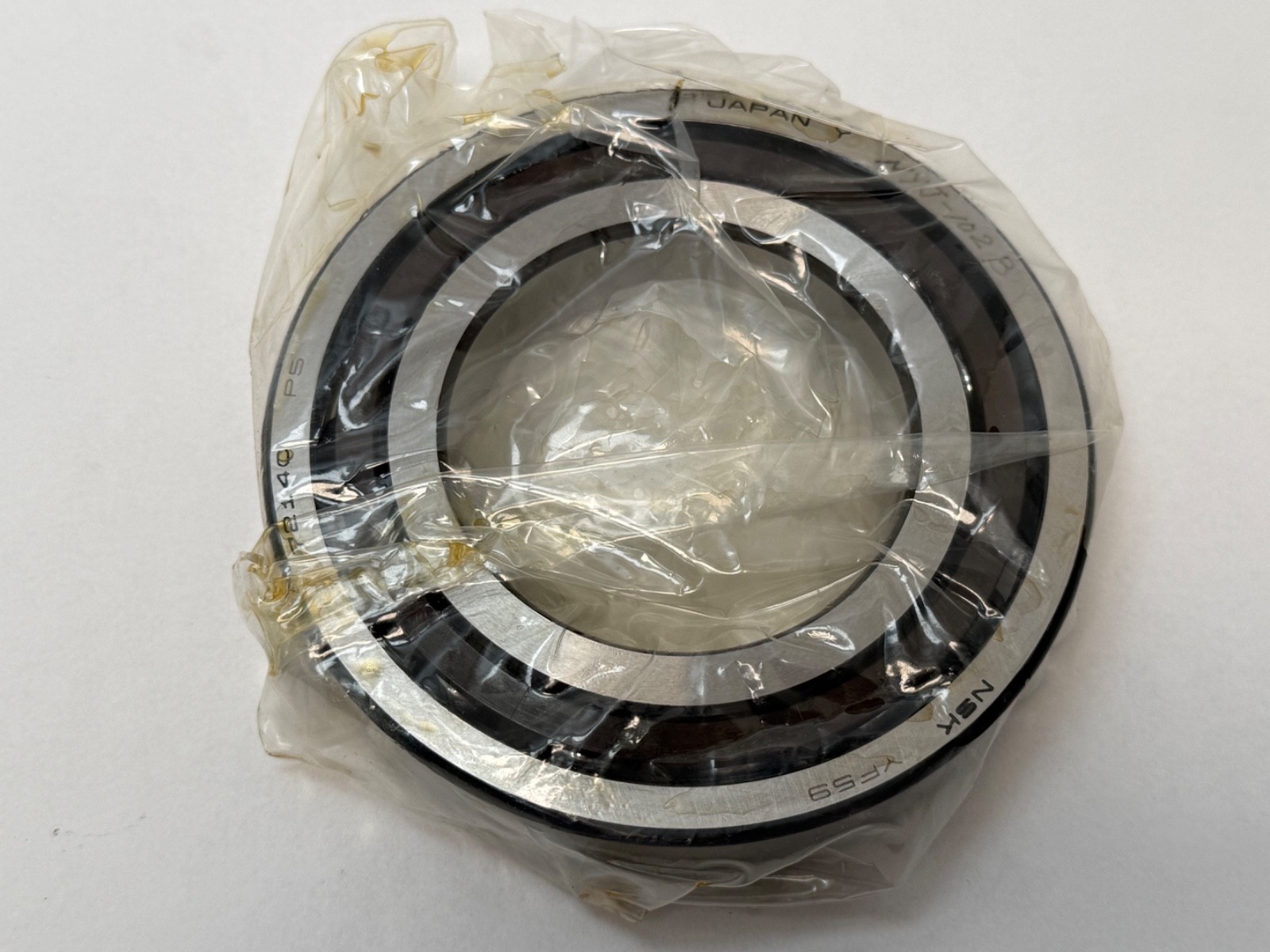

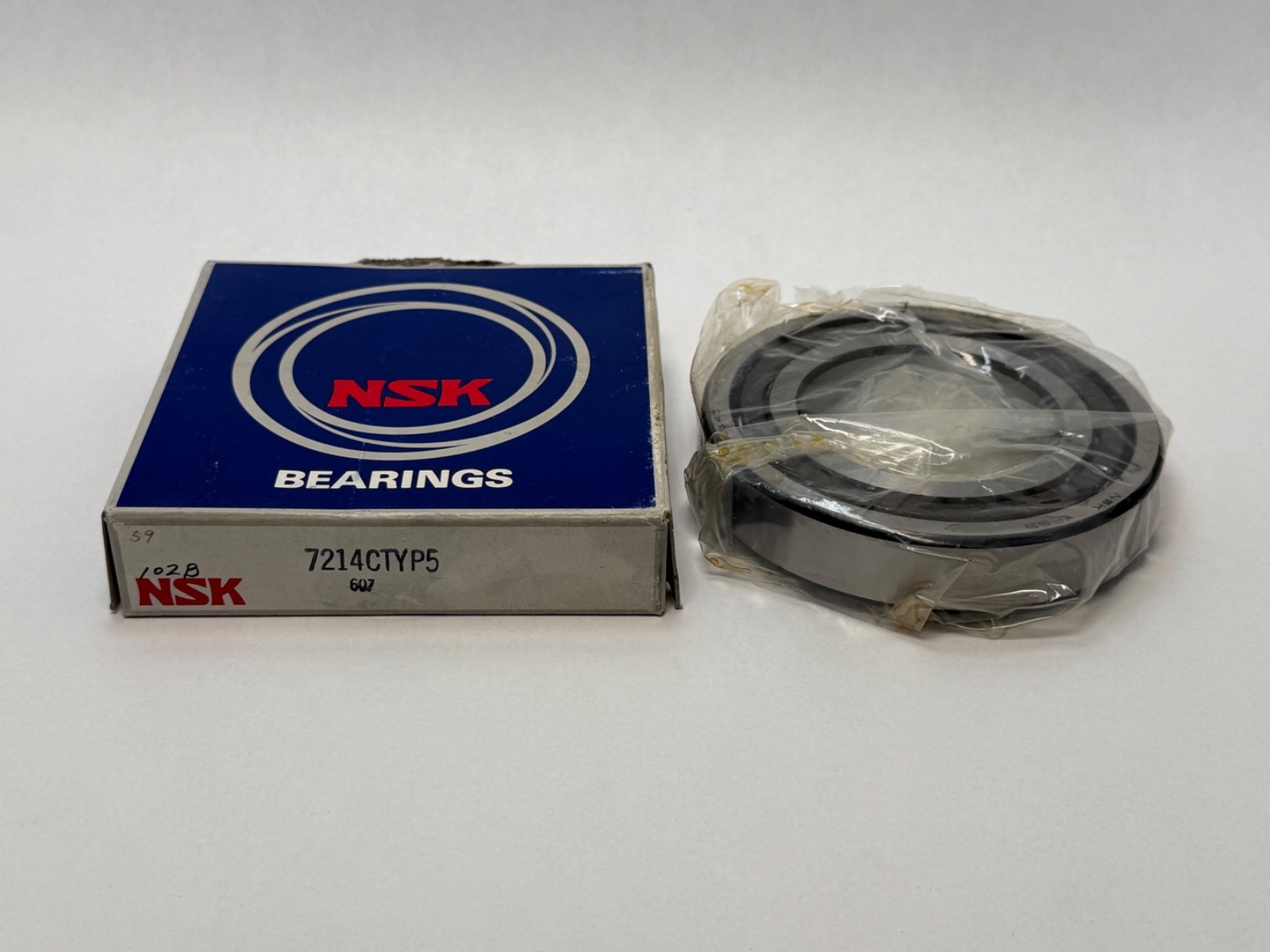

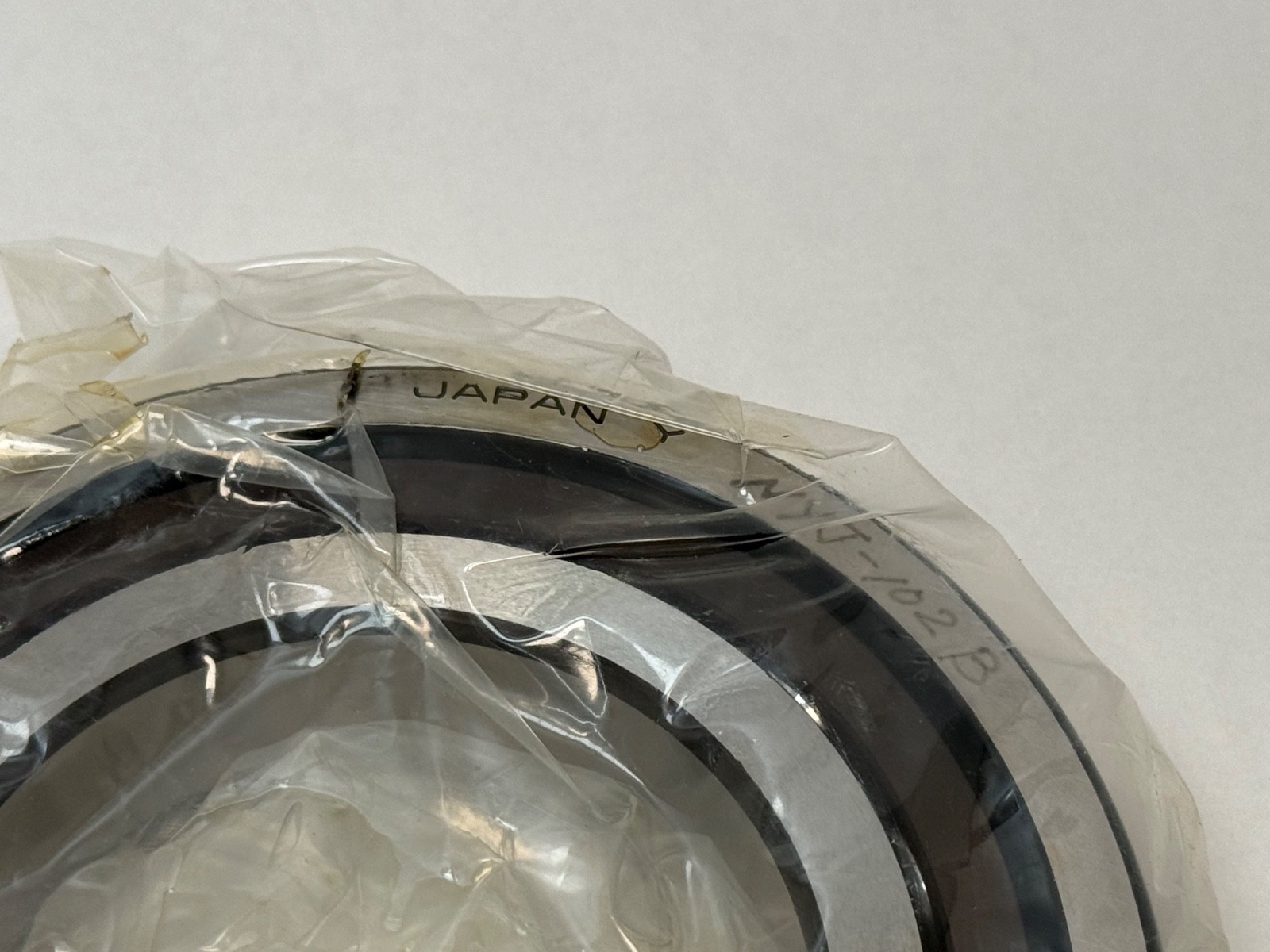

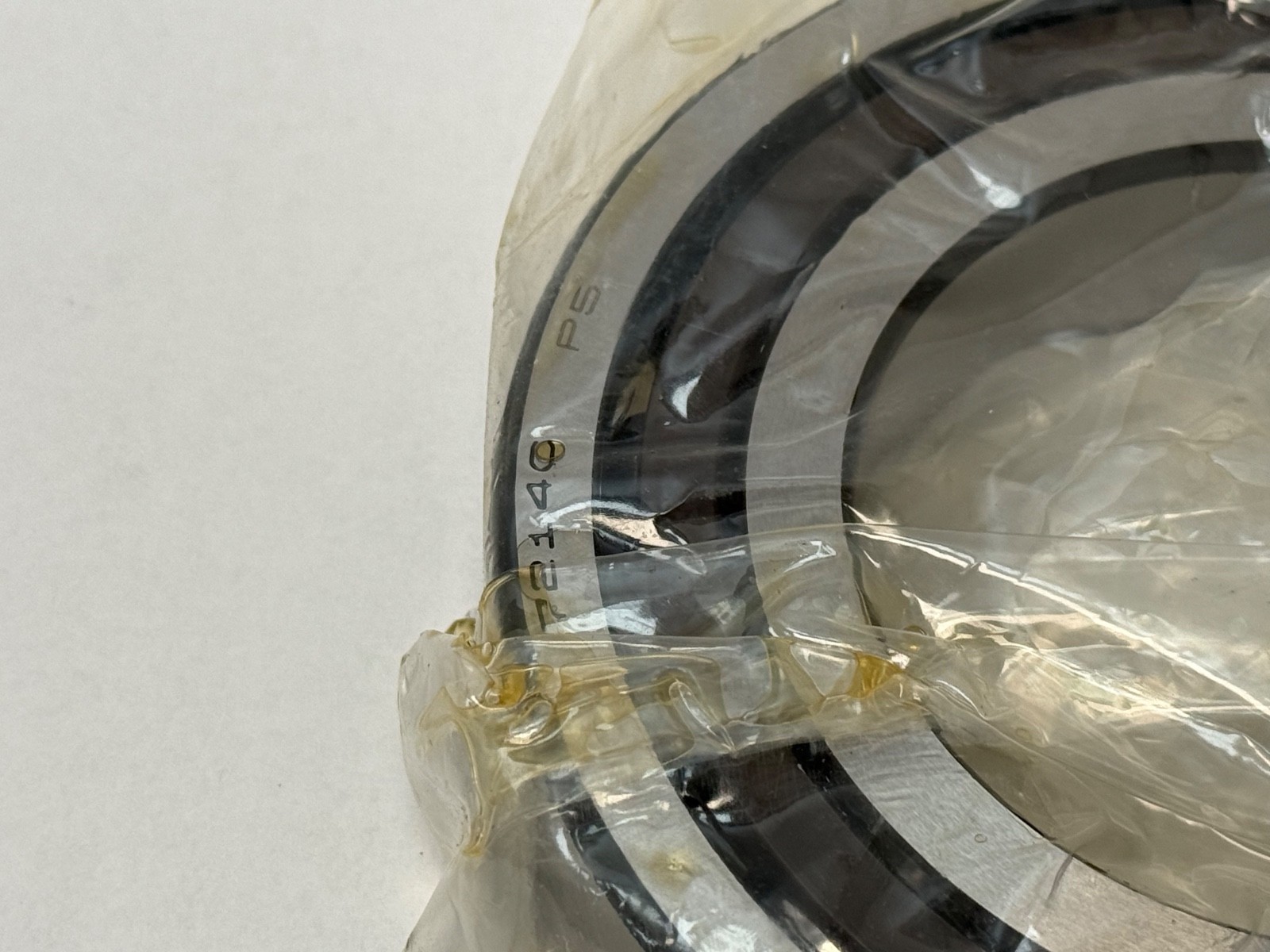

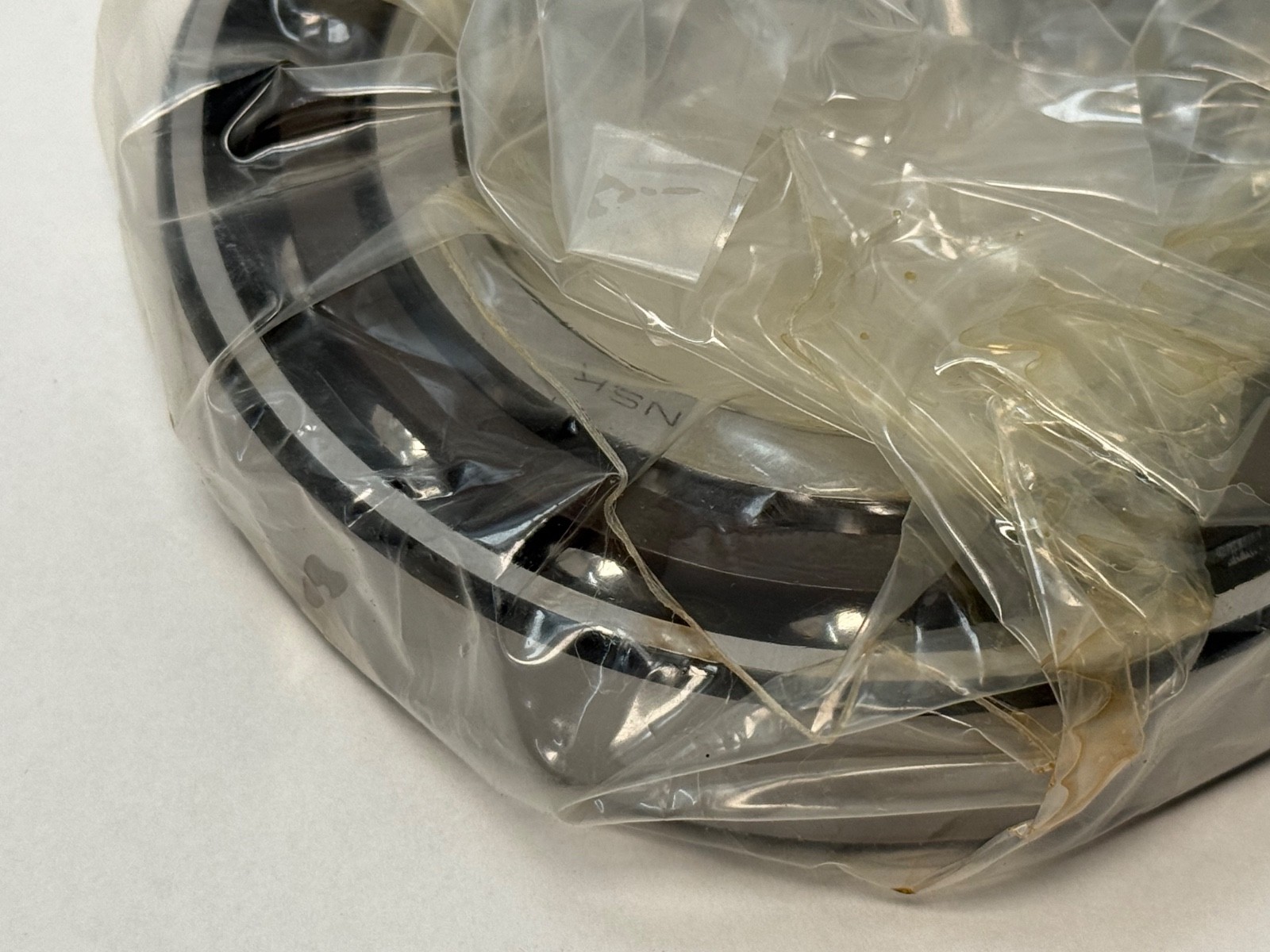

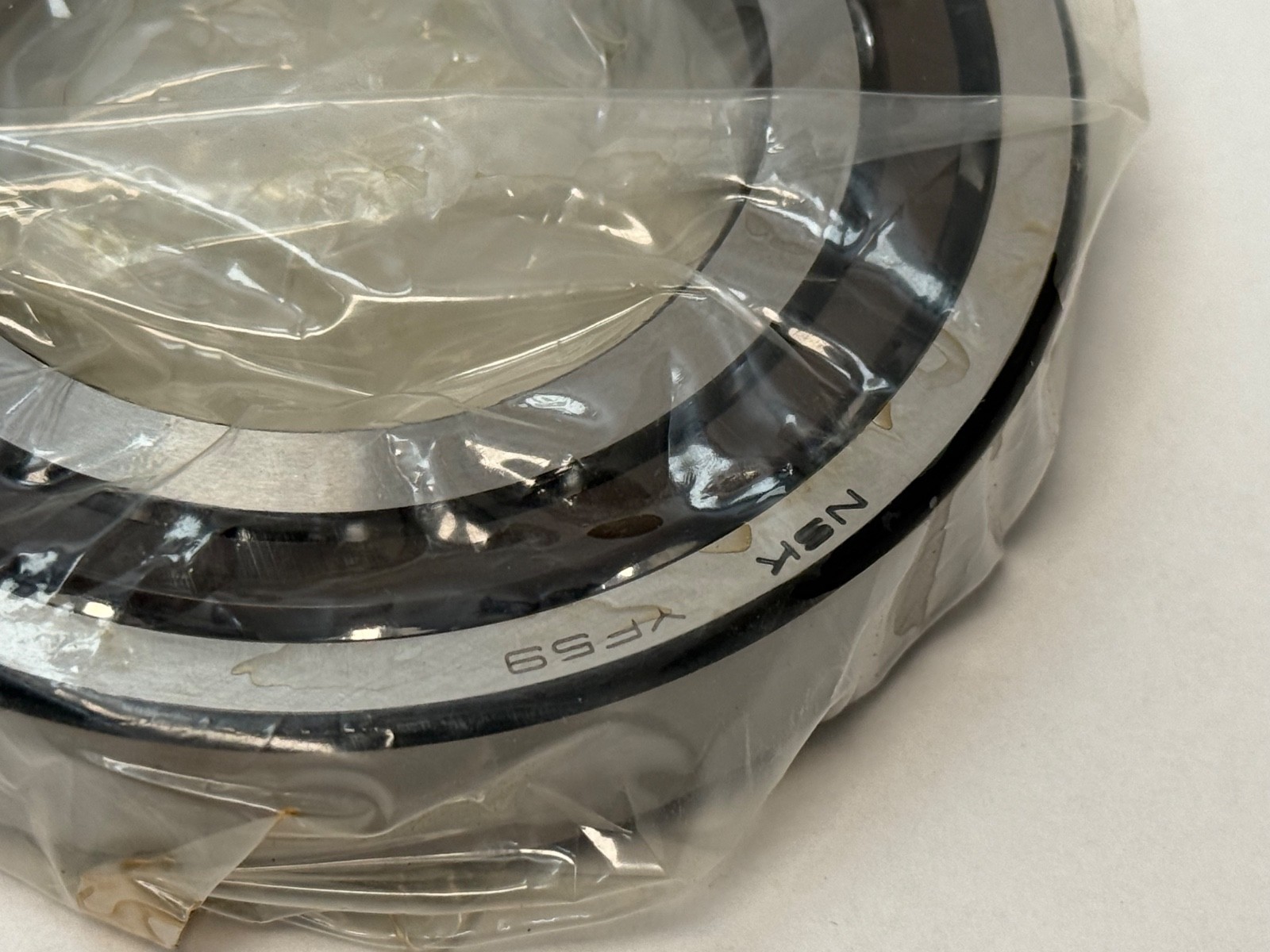

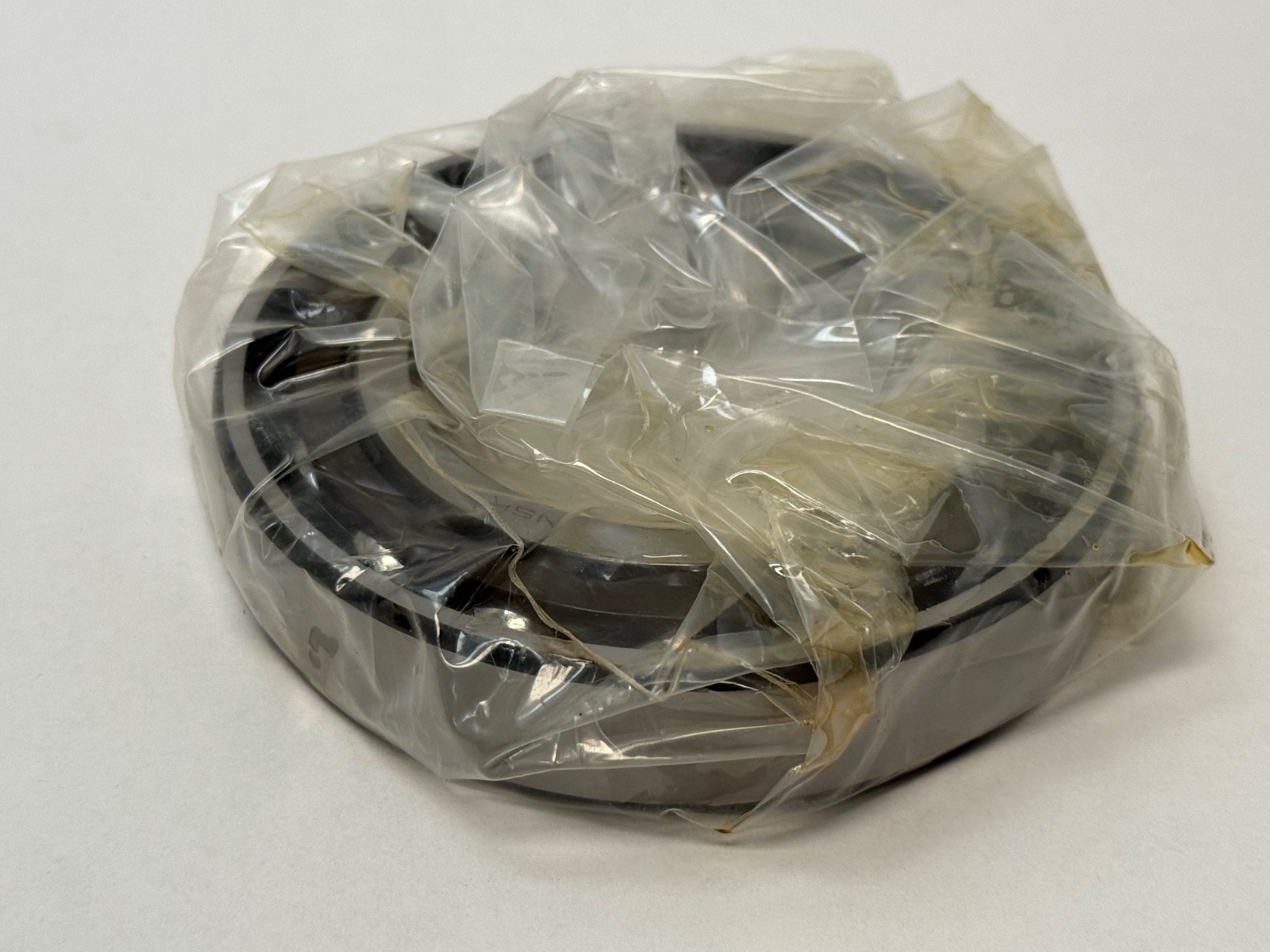

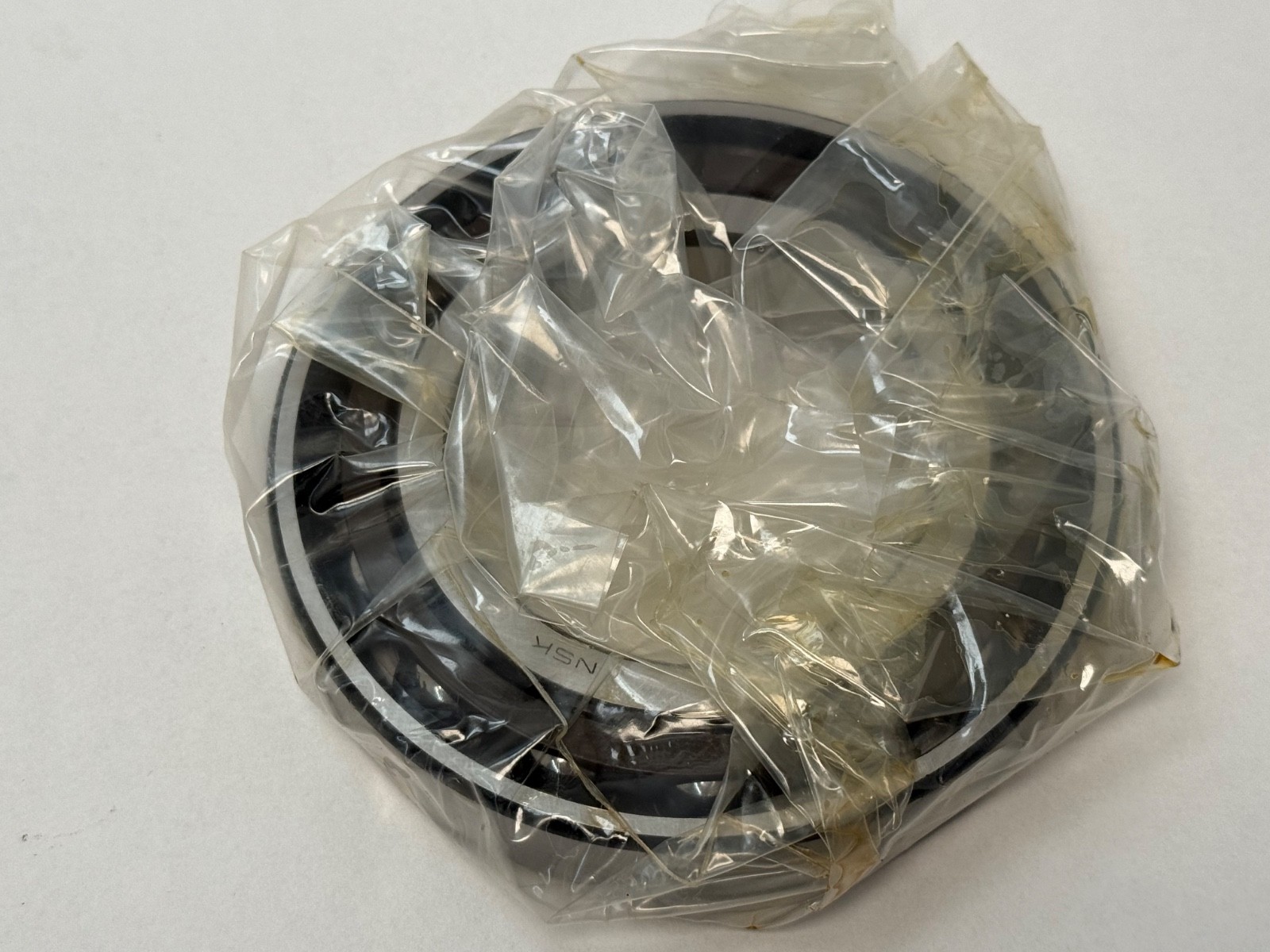

NSK 7214CTYP5 super precision angular contact ball bearing, 70 x 125 x 24 mm, 15° contact angle, P5 class, ball-guided cage, 100,000 N dynamic load.
List Price
$70.99

2 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7214CTYP5 |
| Model | 7214 C TY P5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Base Number | 7214 |
|---|---|
| Overall Width | 24 mm |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 7214CTYP5; 7214-C-TY-P5; 7214 C TY P5; 7214CTY P5; 7214CD |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | Shaft abutment da min 79 mm; housing abutment Da max 116 mm; housing shoulder Db max 119 mm; shaft fillet r min 1.5 mm; front face fillet r1 min 1 mm; ra max 1.5 mm; rb max 0.8 mm; effective load centre a 25.1 mm; permissible axial load Pa 43.0 kN; f0 14.6; recommended grease quantity 6.0 g per bearing |
| Material | High Carbon Chrome Steel |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 100,000 N |
| Static Load Rating | 64,500 N |
| Precision Rating | ABEC 5 / P5 |
| Series | 7200 |
| Rolling Elements | Ball |
| Item Weight | 1.09 kg (2.40 lb) |
| Limiting Speed | 11,800 rpm grease; 18,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Contact Angle | 15° |
| Design Units | Metric |
| Part Number | 7214CTYP5 |
| Industry Terms | super precision angular contact bearing; spindle bearing; 15 degree angular contact ball bearing; 70x125x24 spindle bearing; P5 angular contact bearing |
| Common Misspellings | NSK 7214 CTYP5; NSK 7214C TYP5; NSK 7214CTY P5; NSK7214CTYP5; NSK 7214 C TY P5 |
| Application Types | Machine tool spindles; high-speed precision spindles; precision rotary tables |
| Closure Type | Open |
NSK 7214CTYP5 super precision angular contact ball bearing, single row, open, straight bore, 70 mm bore, 125 mm outside diameter, 24 mm wide. 15° contact angle, ball-guided cage, P5 precision class. 1 Pc, single bearing.
7214 — ISO size code: 70 mm bore, 125 mm outside diameter, 24 mm width.
C — 15° contact angle.
TY — ball-guided cage.
P5 — ISO class 5 accuracy, equivalent to ABEC 5.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Bore Type: Straight. Cage Type: Ball-guided. Dynamic Load Rating: 100,000 N. Static Load Rating: 64,500 N. Permissible Axial Load: 43.0 kN. Factor f0: 14.6. Limiting Speed: 11,800 rpm grease; 18,000 rpm oil. Precision Class: ABEC 5 / P5. Lubricant: grease or oil. Recommended Grease Quantity: 6.0 g per bearing. Item Weight: 1.09 kg (2.40 lb). Series: 7200. Base Number: 7214. Unit Quantity: 1 Pc.
Envelope: 70 x 125 x 24 mm. Shaft fillet radius r min: 1.5 mm. Inner ring front face fillet r1 min: 1 mm. Shaft abutment diameter da min: 79 mm. Housing abutment diameter Da max: 116 mm. Housing bore shoulder Db max: 119 mm. Shaft fillet ra max: 1.5 mm. Housing fillet rb max: 0.8 mm. Effective load centre a: 25.1 mm from the bearing face.
70 mm bore, 125 mm outside diameter and 24 mm width.
Dynamic load rating 100,000 N and static load rating 64,500 N. Permissible axial load 43.0 kN.
11,800 rpm with grease and 18,000 rpm with oil.
