FAGB7016C.TPA.P4S.ULSuper-Precision Angular Contact Ball Bearing — 80 mm ID, 125 mm OD, 22 mm Width, 15° Contact Angle, Light Preload, Phenolic Cage

Product Description

What this part is:

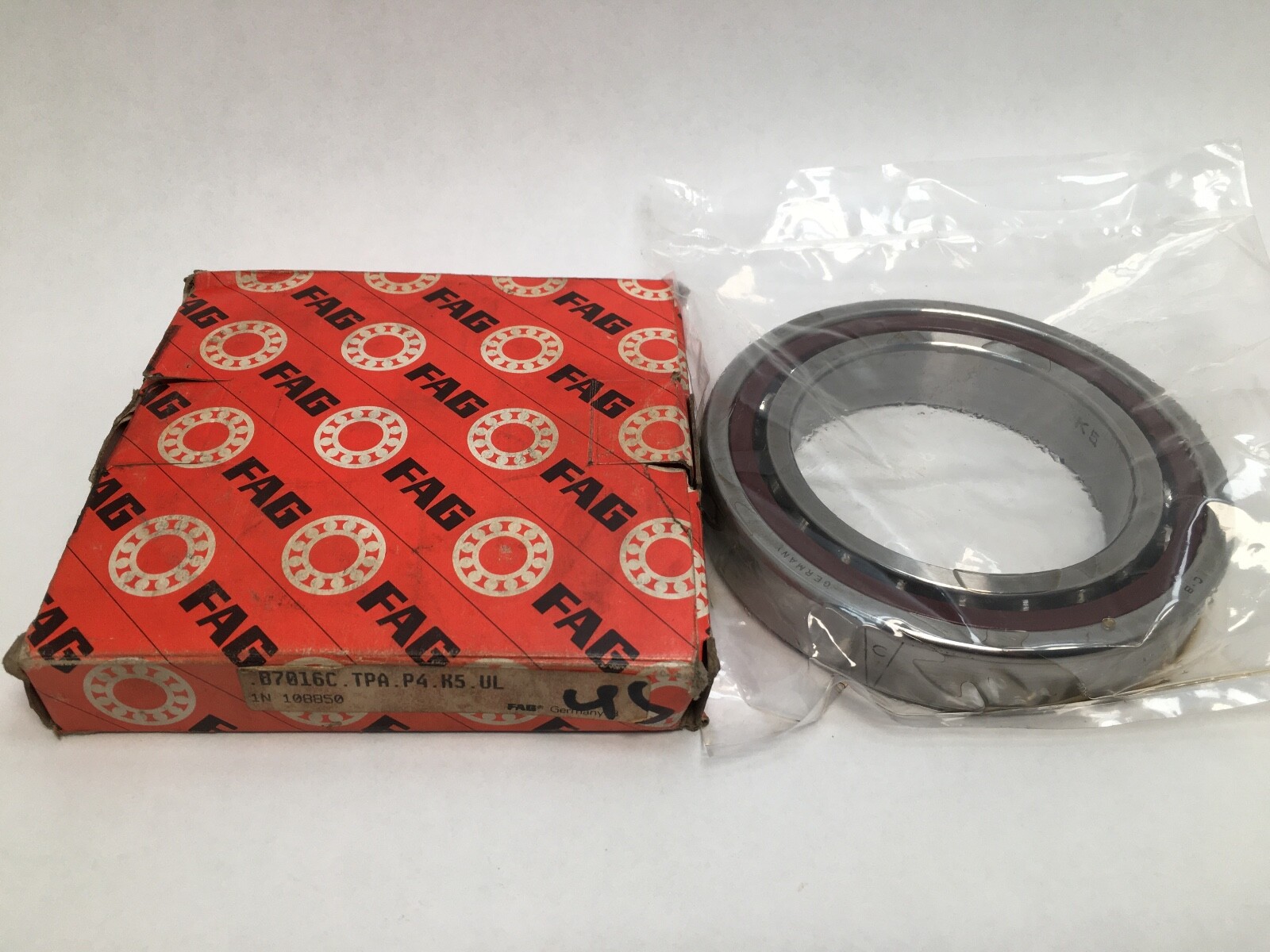

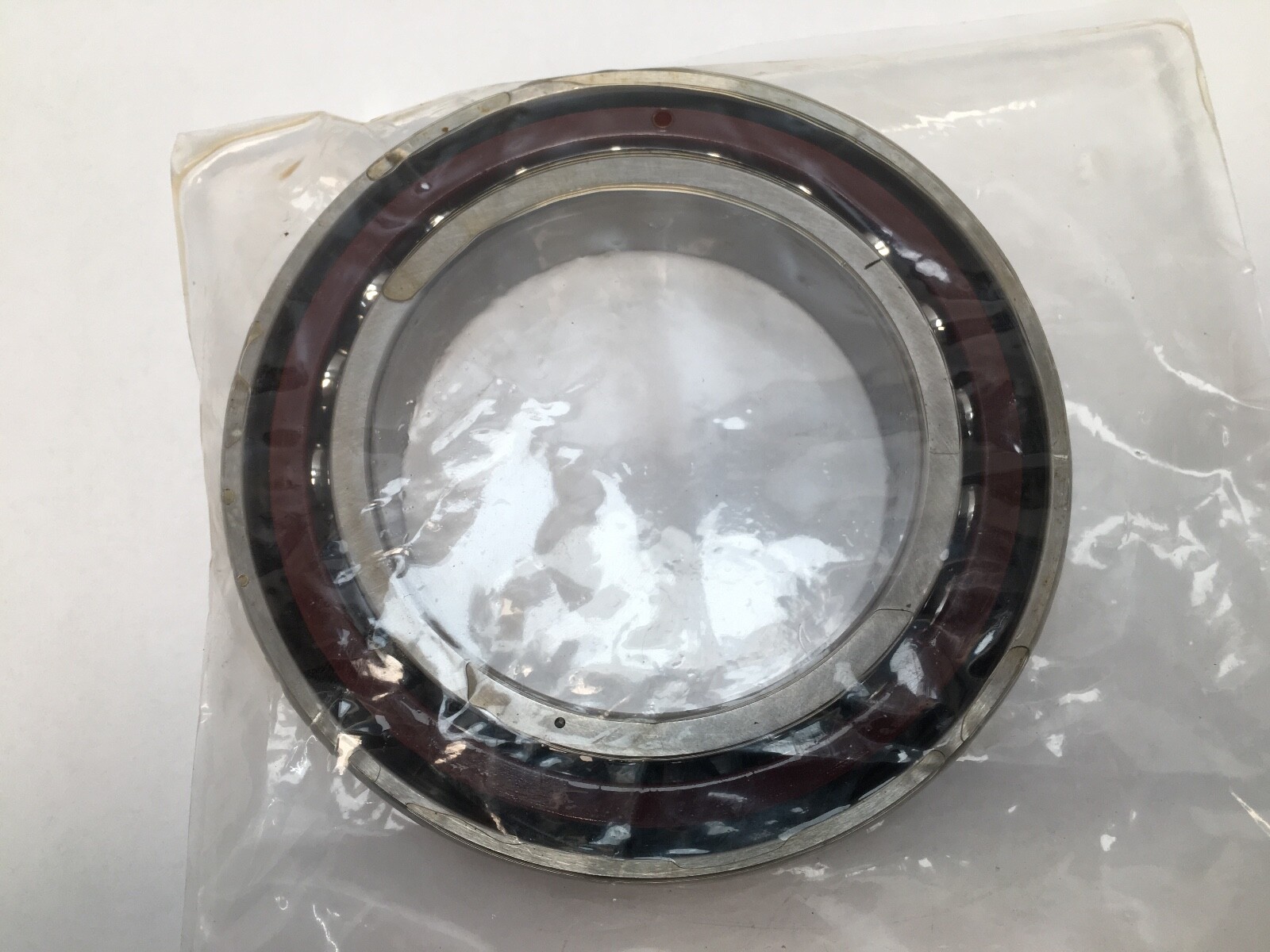

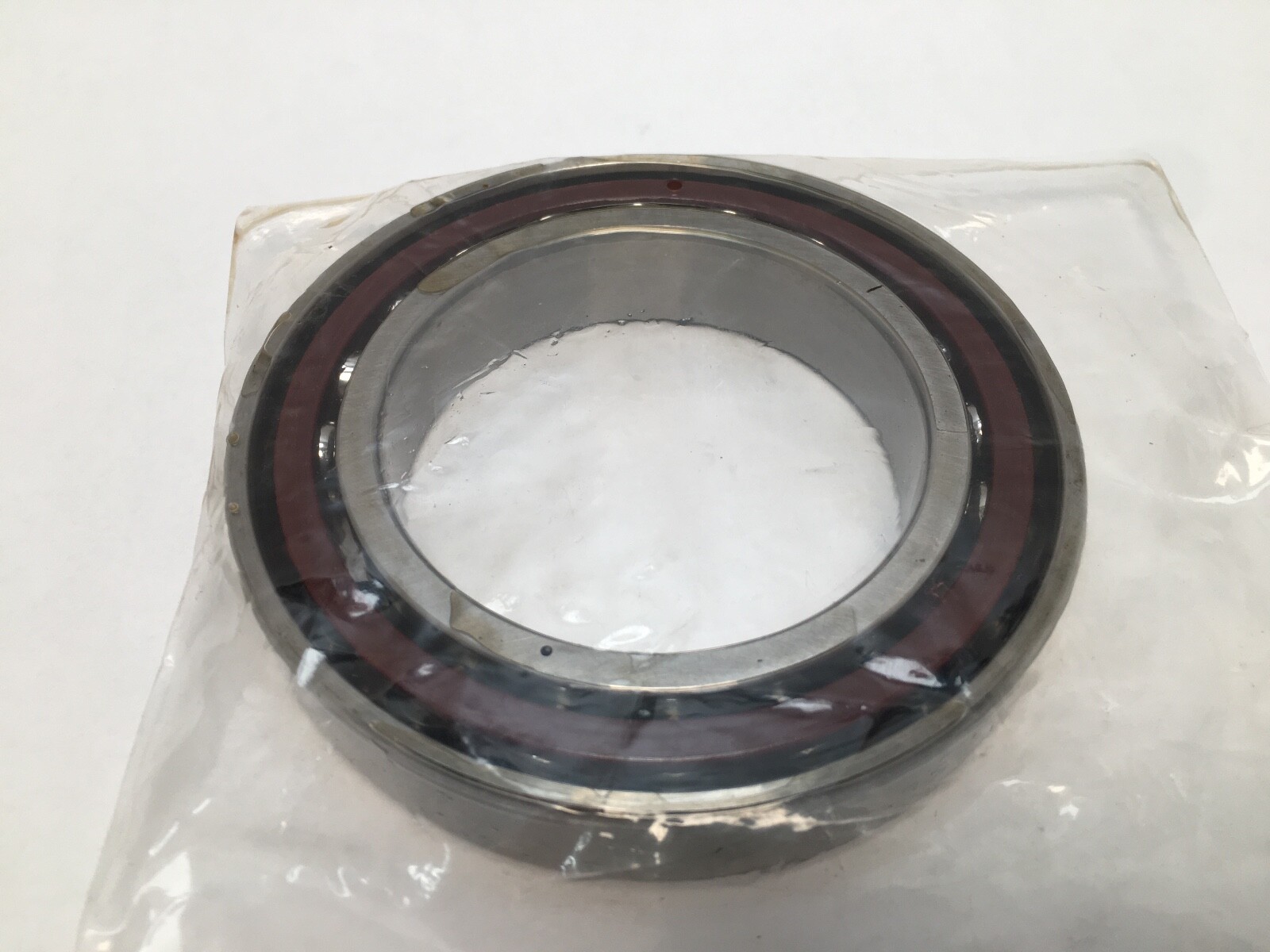

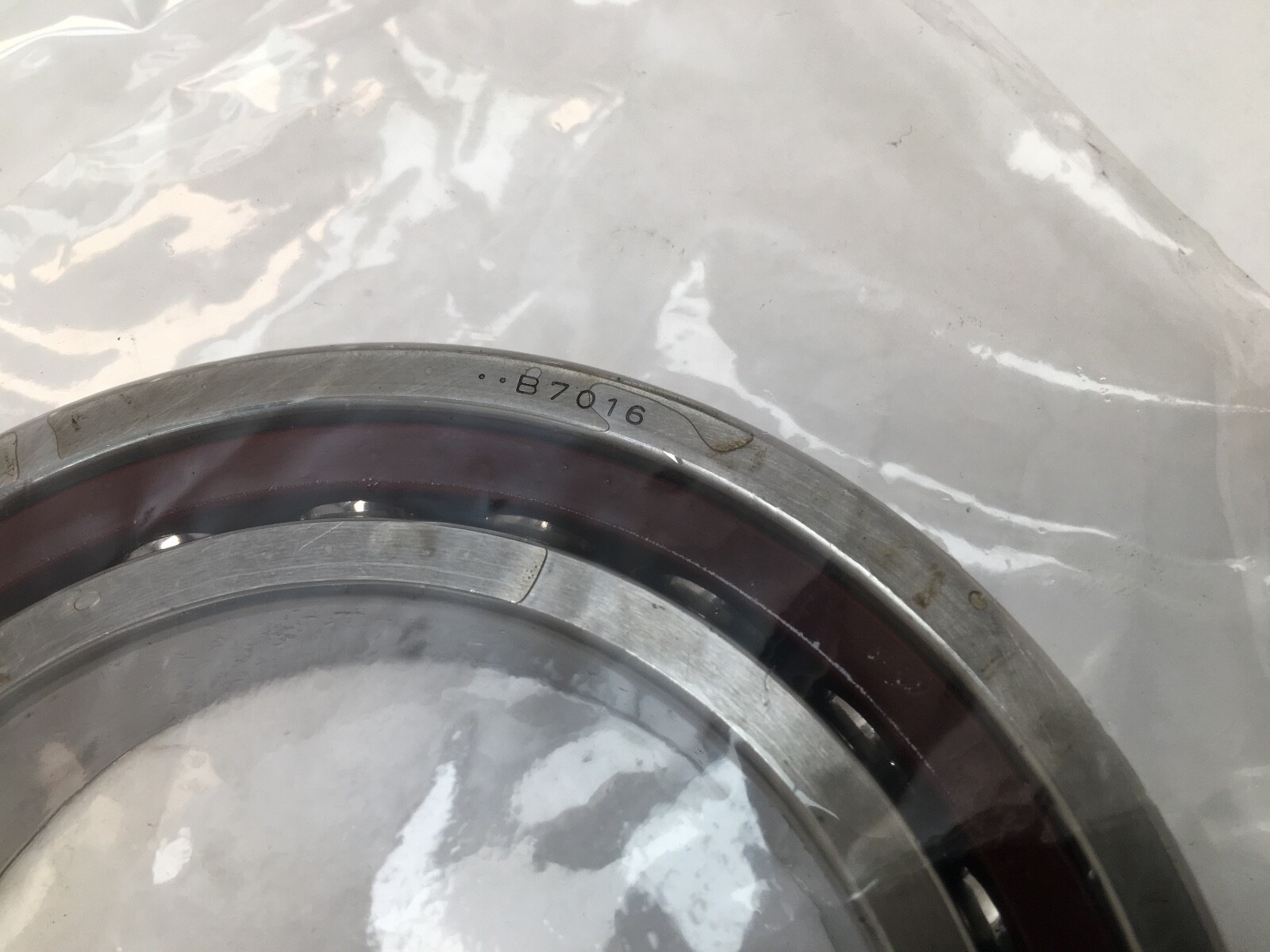

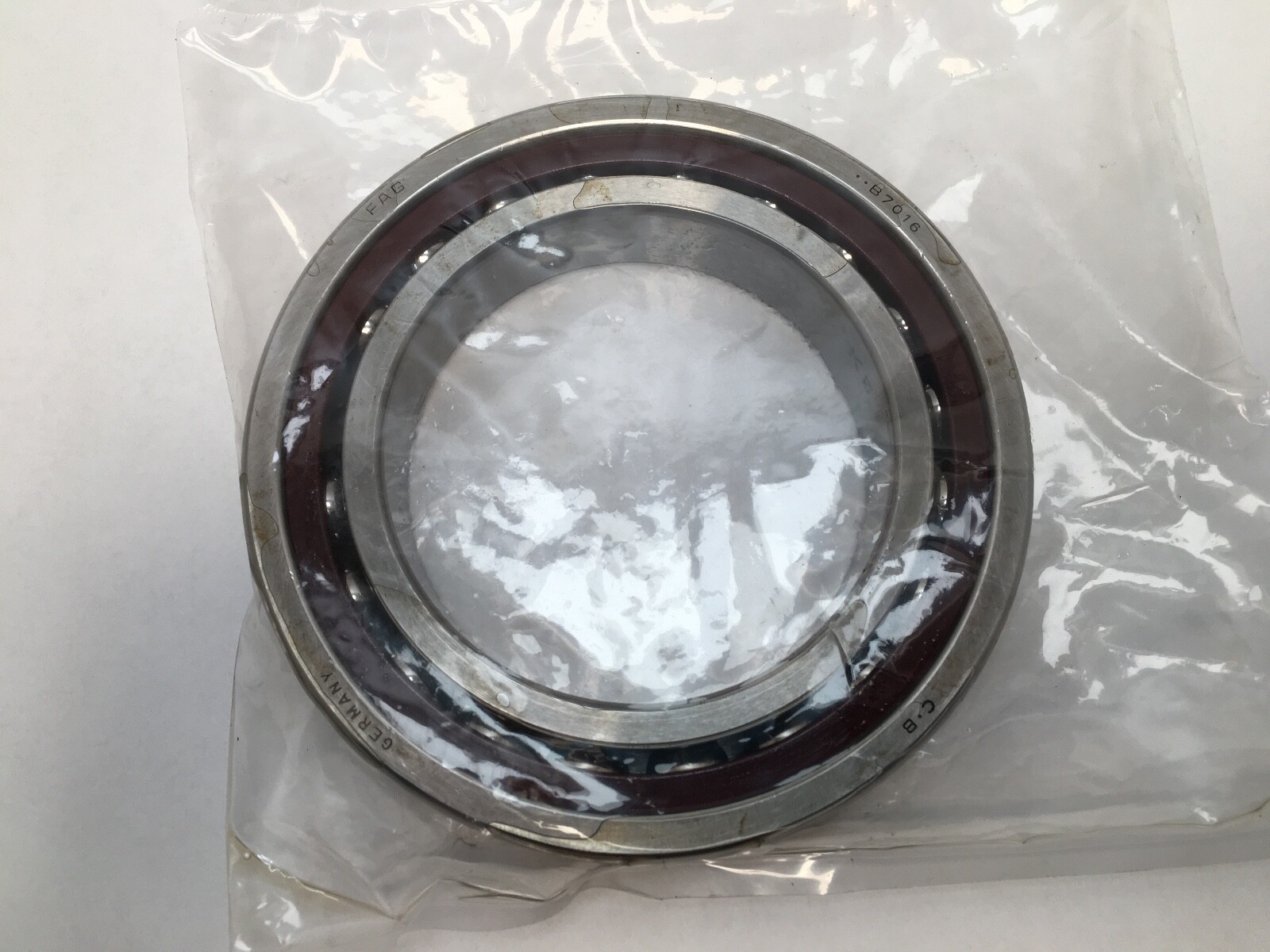

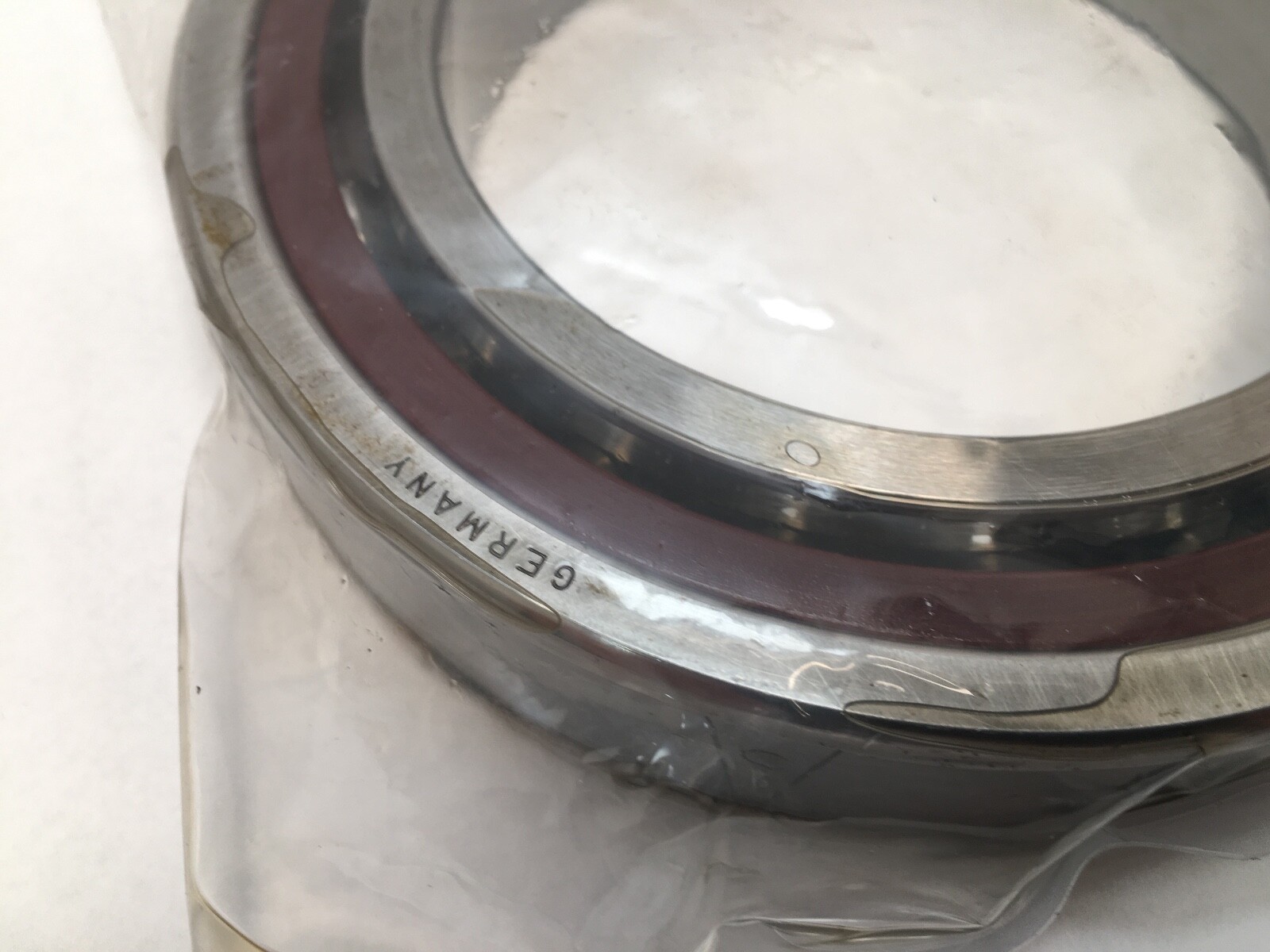

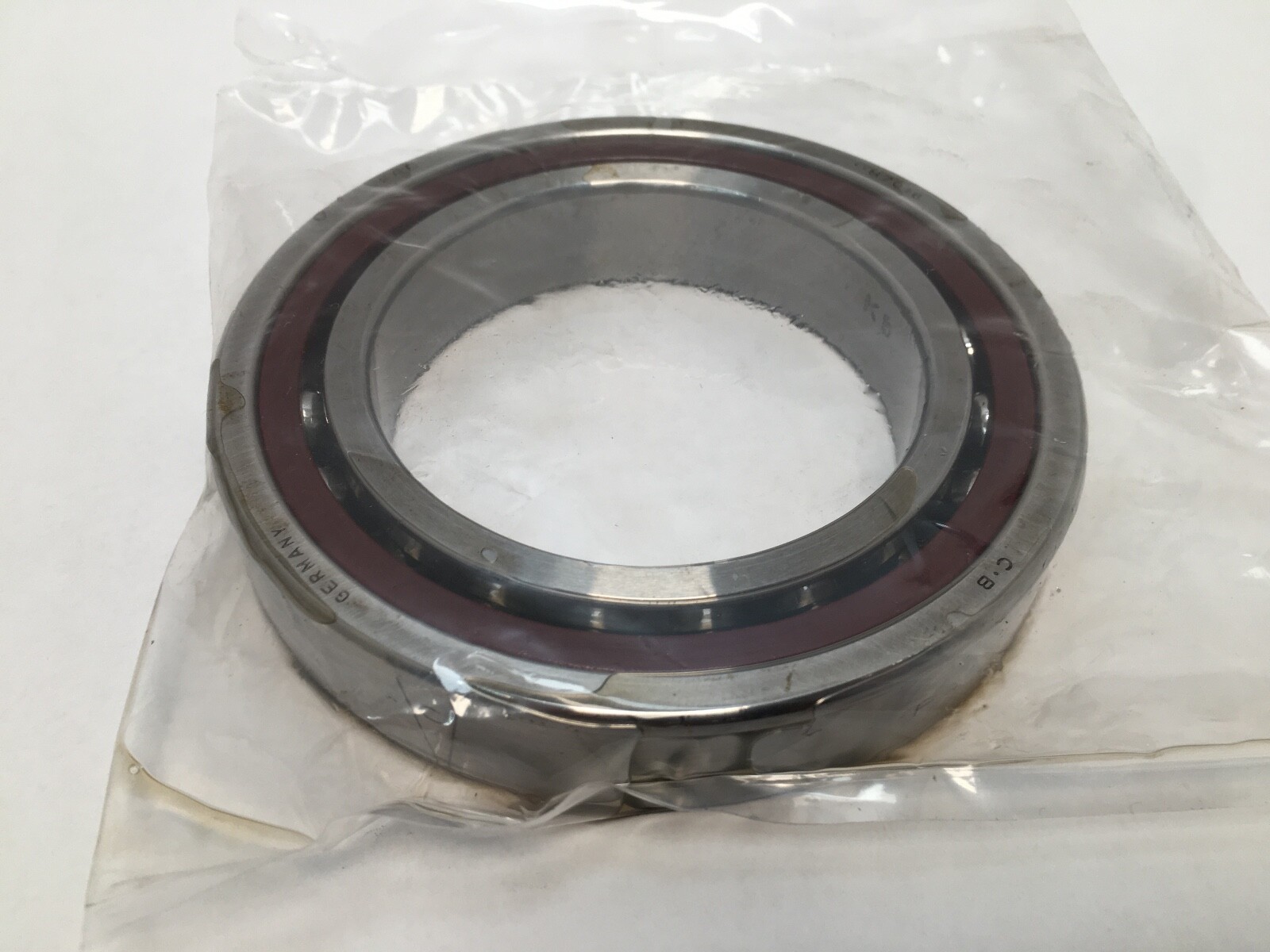

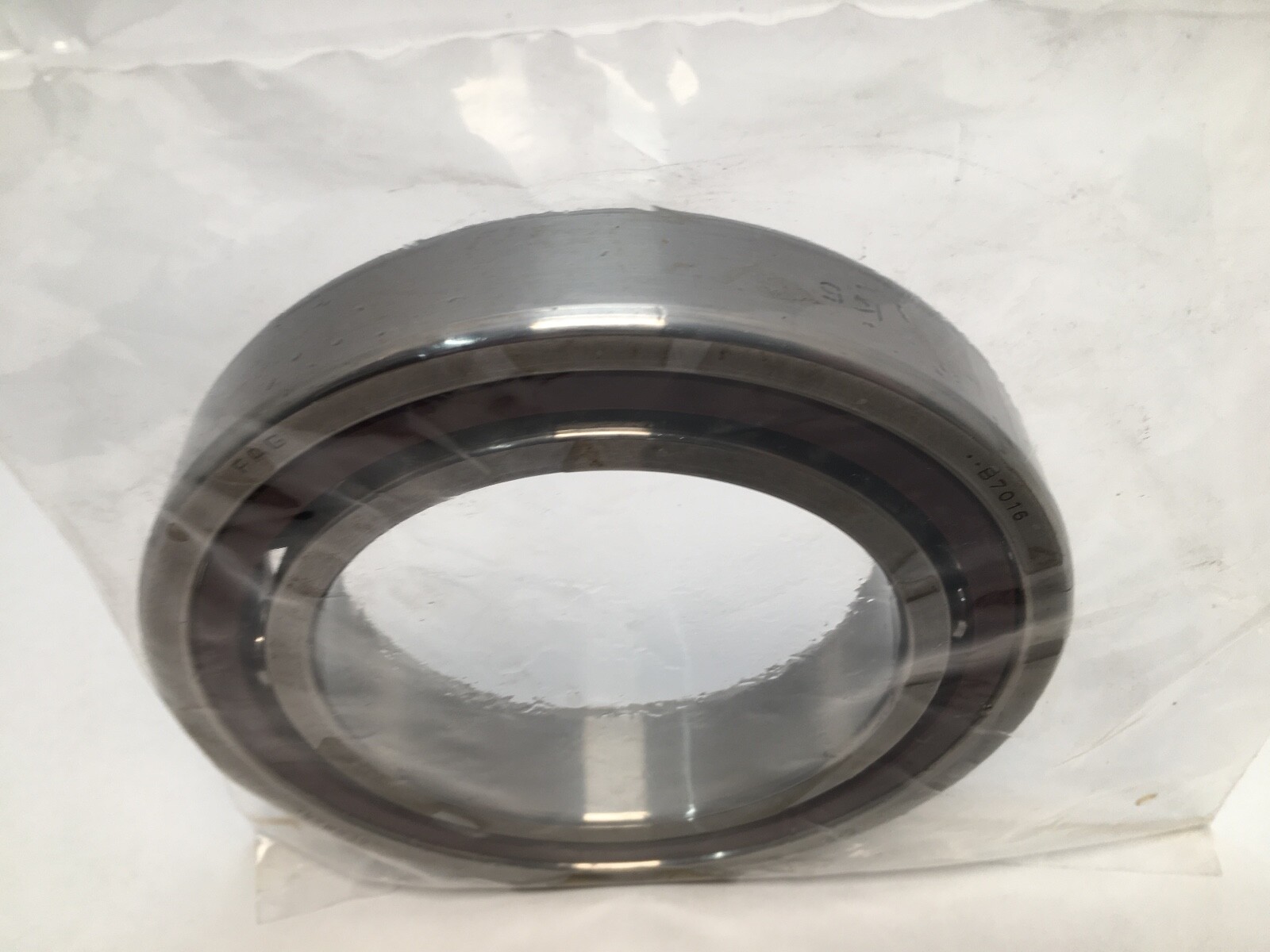

FAG B7016C.TPA.P4S.UL is a single-row super-precision angular contact ball bearing in the FAG B-series spindle range, 80 mm bore, 125 mm outside diameter, 22 mm width, ISO 7016 envelope. Universally ground single bearing. Unit Quantity: 1 Pc.

Decoding the designation:

B — FAG super-precision spindle bearing series.

7016 — single-row angular contact ball bearing, 200 dimension series, bore code 16, giving an 80 mm bore.

C — 15° contact angle in the FAG scheme.

TPA — laminated fabric phenolic cage.

P4S — ABEC 7 dimensional accuracy with ABEC 9 running accuracy.

U — universally ground single bearing.

L — light preload.

Specifications:

Bore Diameter: 80 mm (3.1496 in). Outside Diameter: 125 mm (4.9213 in). Overall Width: 22 mm (0.8661 in). Contact Angle: 15°. Precision Class: P4S, ABEC 7 dimensional, ABEC 9 running. Preload: Light (L). Number Of Rows: 1. Cage Material: Phenolic. Rolling Elements: Steel balls. Closure Type: Open. Bore Type: Straight. Arrangement: Universally ground single (U). Base Number: 7016 C. Series: B7000. Design Units: Metric.

Dimensions and mounting:

Bore Diameter: 80 mm (3.1496 in). Outside Diameter: 125 mm (4.9213 in). Overall Width: 22 mm (0.8661 in). UNSPSC Code: 31171504.

Compatibility and replacement:

Cross-Reference 1: NSK 7016CTYSUL. Cross-Reference 2: RHP 7016CTSULP4. Cross-Reference 3: SKF 7016 CD/P4A. Cross-Reference 4: FAG B7016-C-T-P4S-UL, current designation. Cross-Reference 5: FAG B7016-E.TPA.P4S.UL, 25° vs 15°. Cross-Reference 6: FAG B7016C.TPA.P4S.UM, medium preload, not light. MPN variants: B7016C.TPA.P4S.UL, B7016CTPAP4SUL, B-7016-C-TPA-P4S-UL, B7016C TPA P4S UL, B-7016-C-TPA-P4-K5-UL, B7016CTPAP4K5UL, 7016C.

Frequently asked questions:

What size and contact angle is the FAG B7016C.TPA.P4S.UL?

It is an 80 mm bore, 125 mm outside diameter, 22 mm wide angular contact ball bearing with a 15° contact angle (C in the FAG scheme).

What do TPA and P4S mean in this designation?

TPA is a laminated fabric phenolic cage. P4S is ABEC 7 dimensional accuracy with ABEC 9 running accuracy.

What do U and L mean in the UL suffix?

U is a universally ground single bearing and L is light preload.
