FAGB7016-C-T-P4S-ULAngular Contact Spindle Bearing — 80 mm ID, 125 mm OD, 22 mm Width, 15°, Light Preload, P4S, Phenolic Cage

Condition: New

Availability:

1 in stock

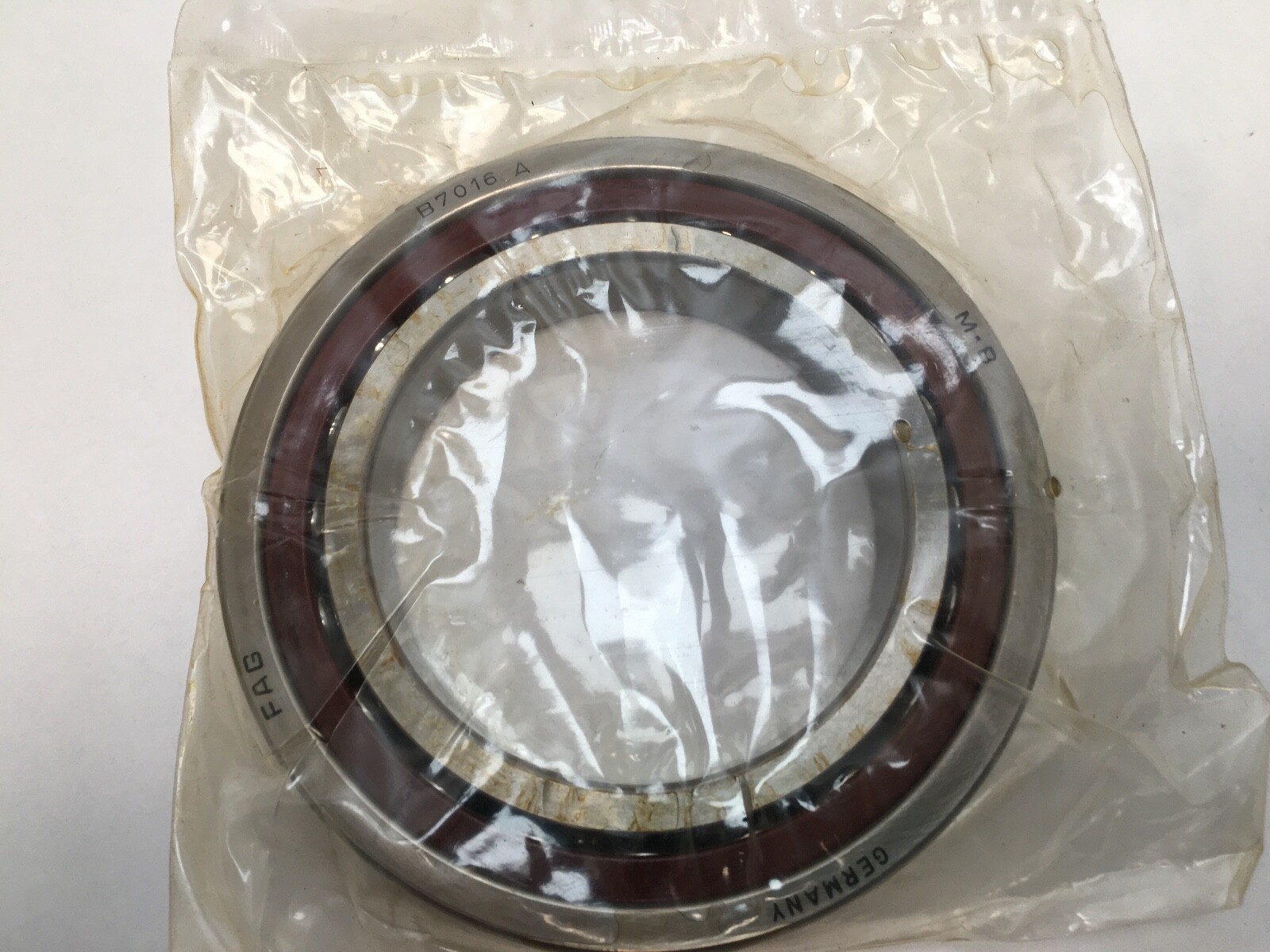

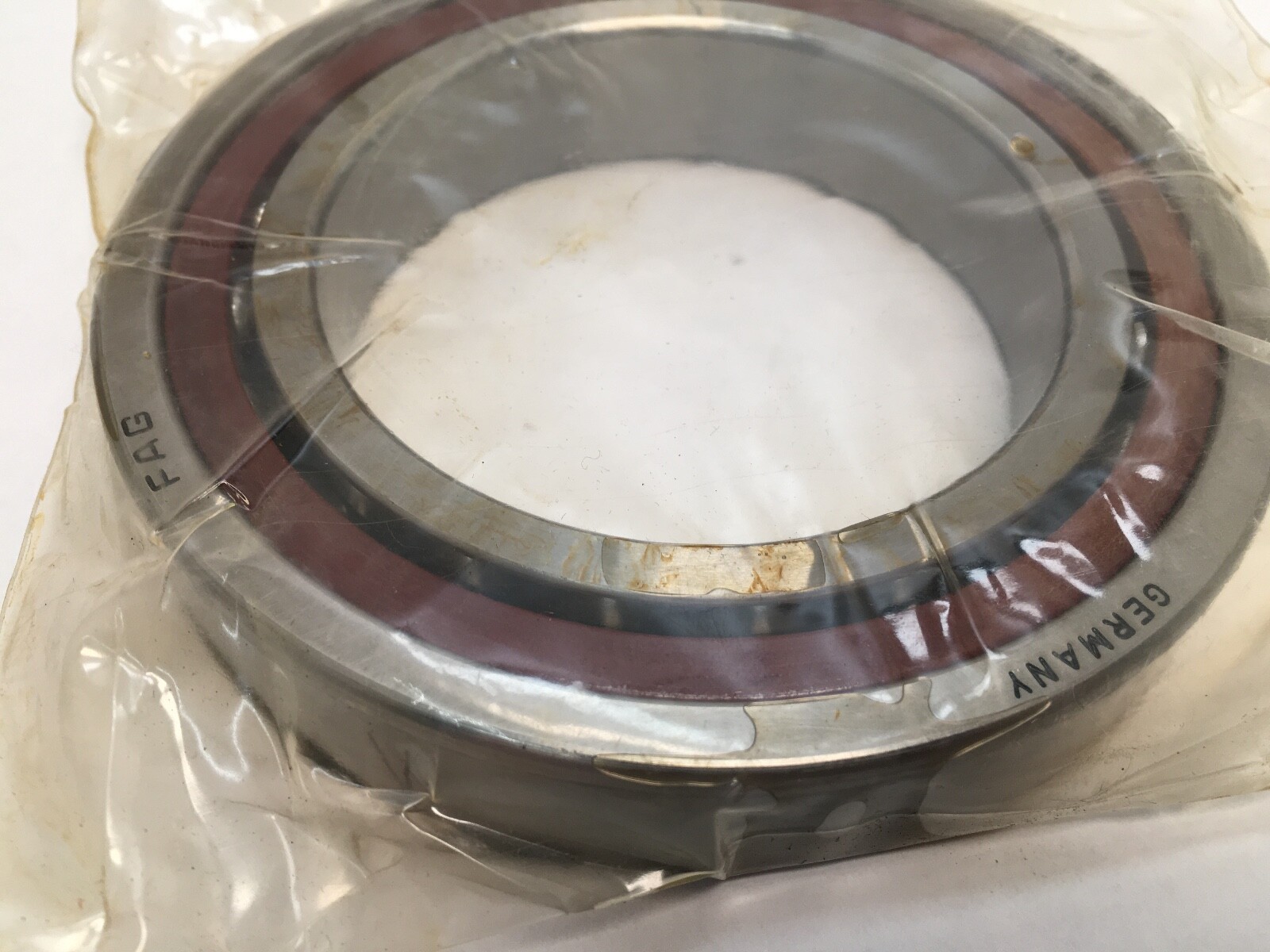

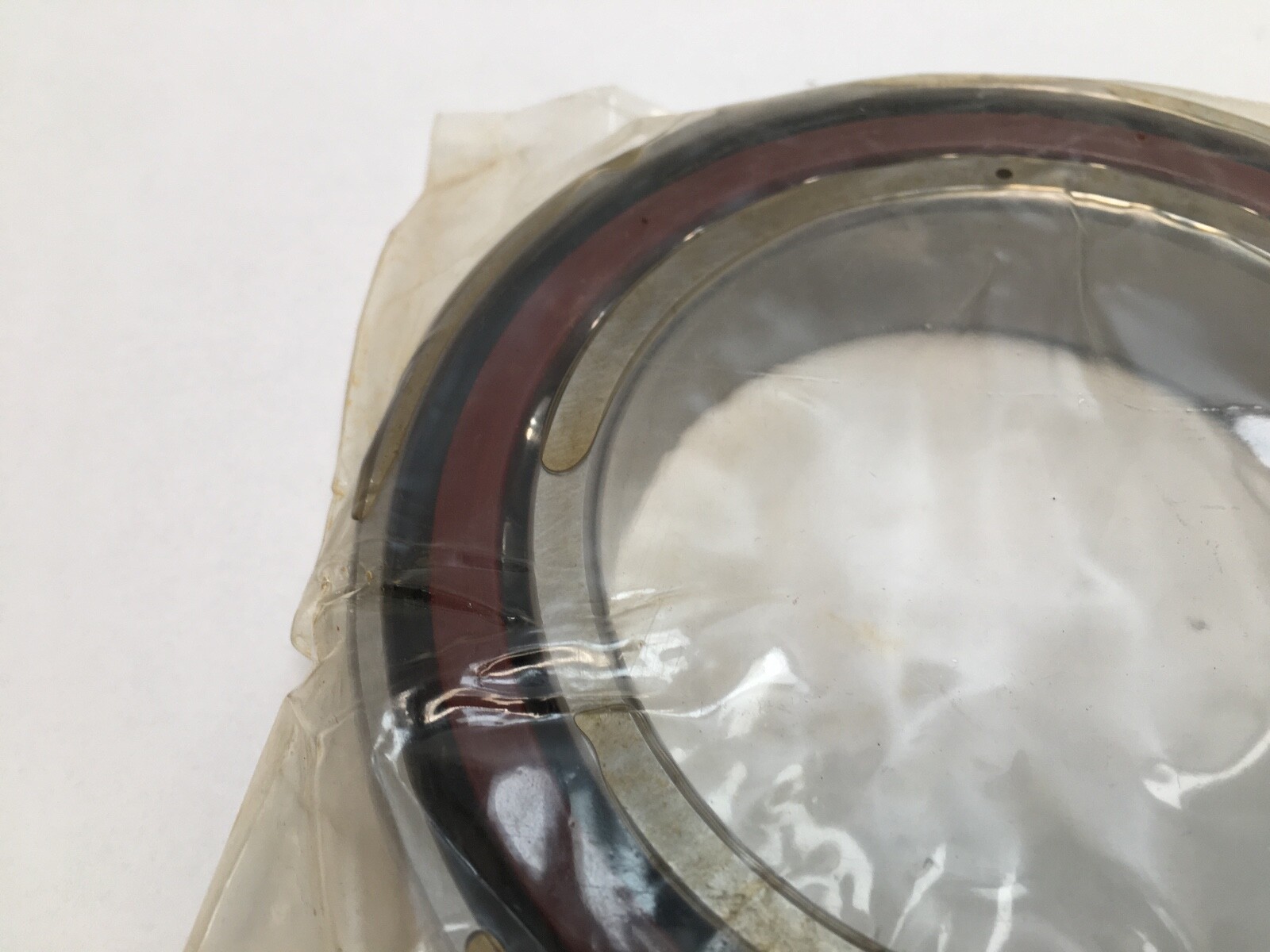

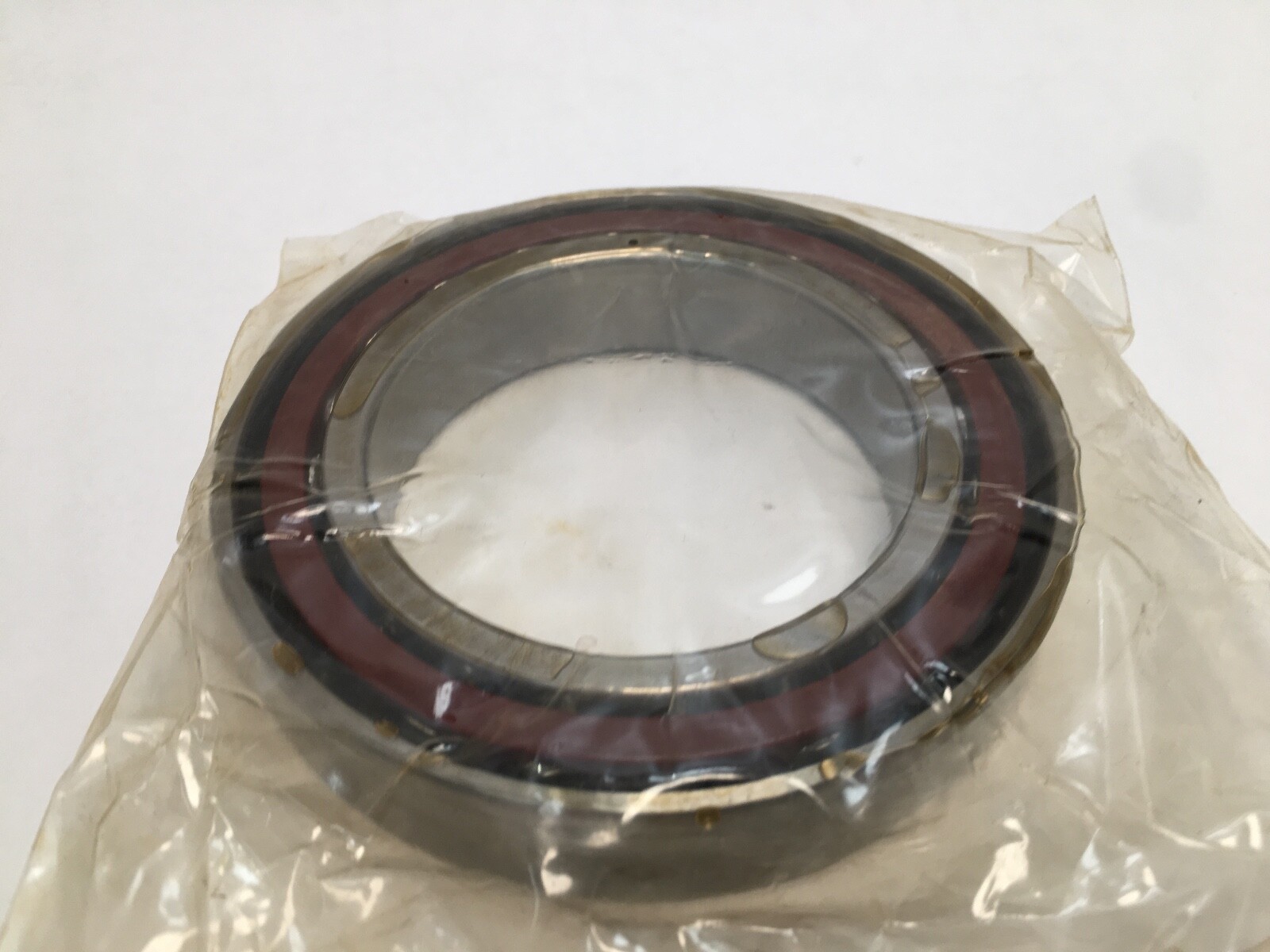

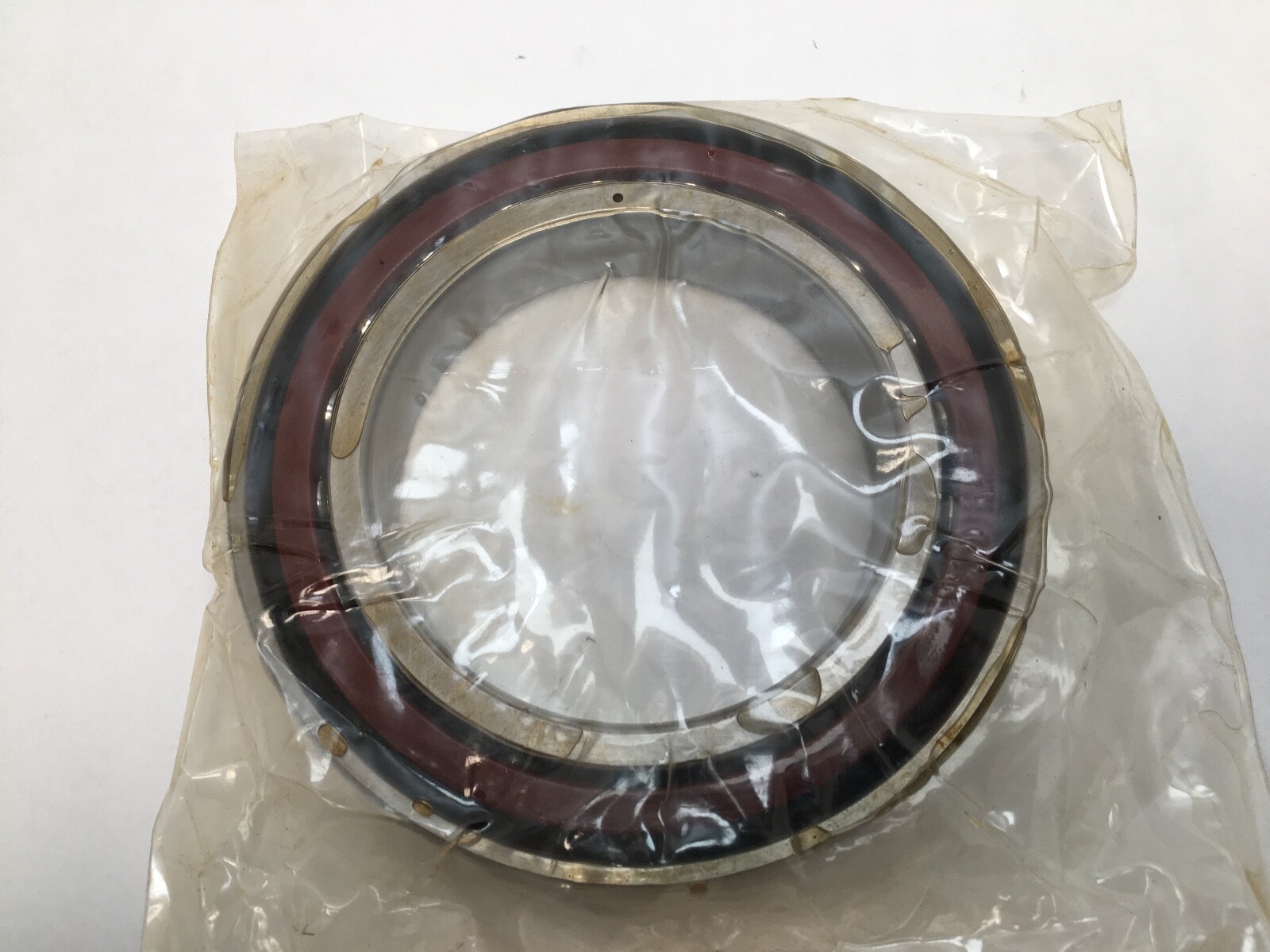

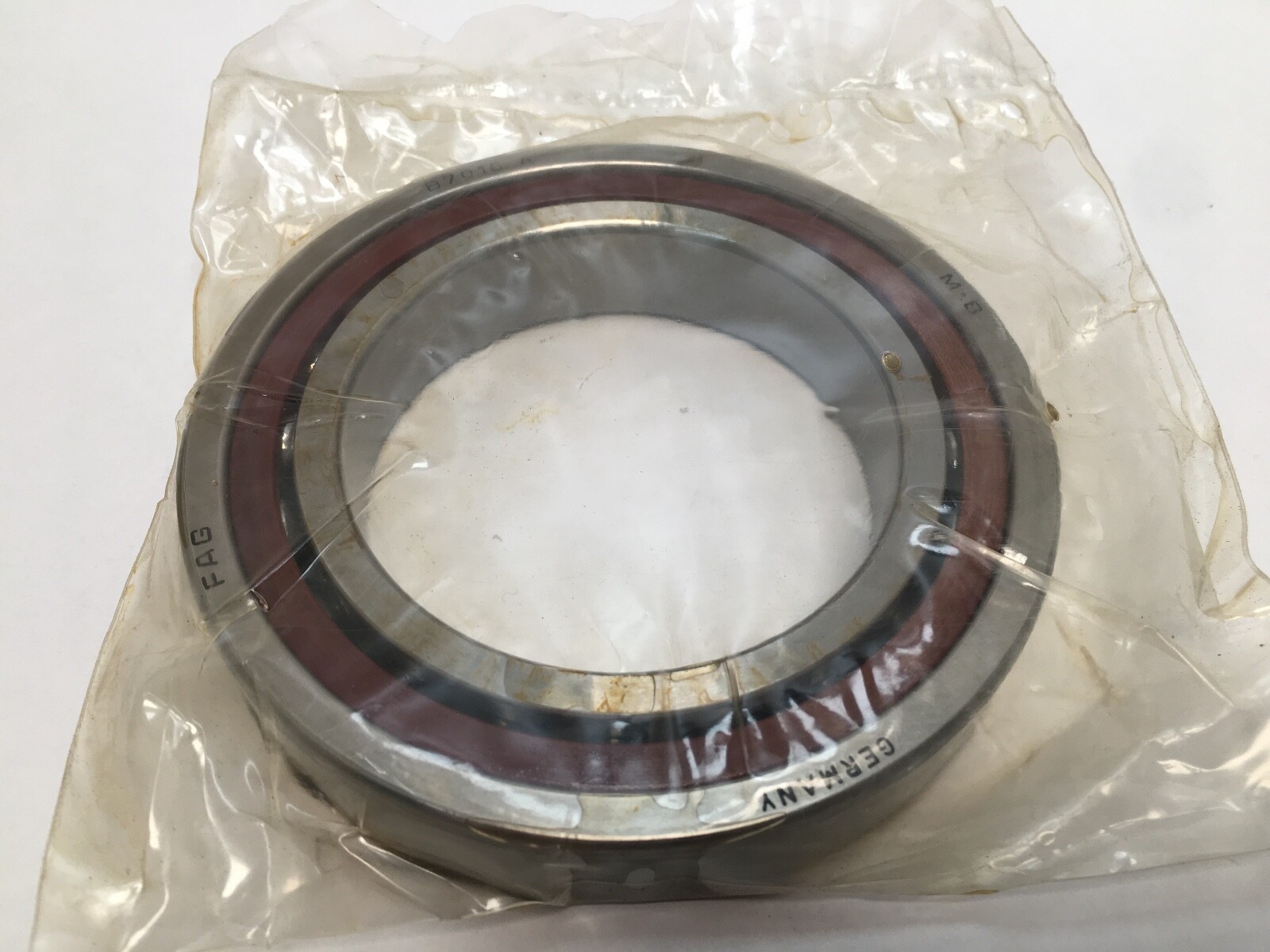

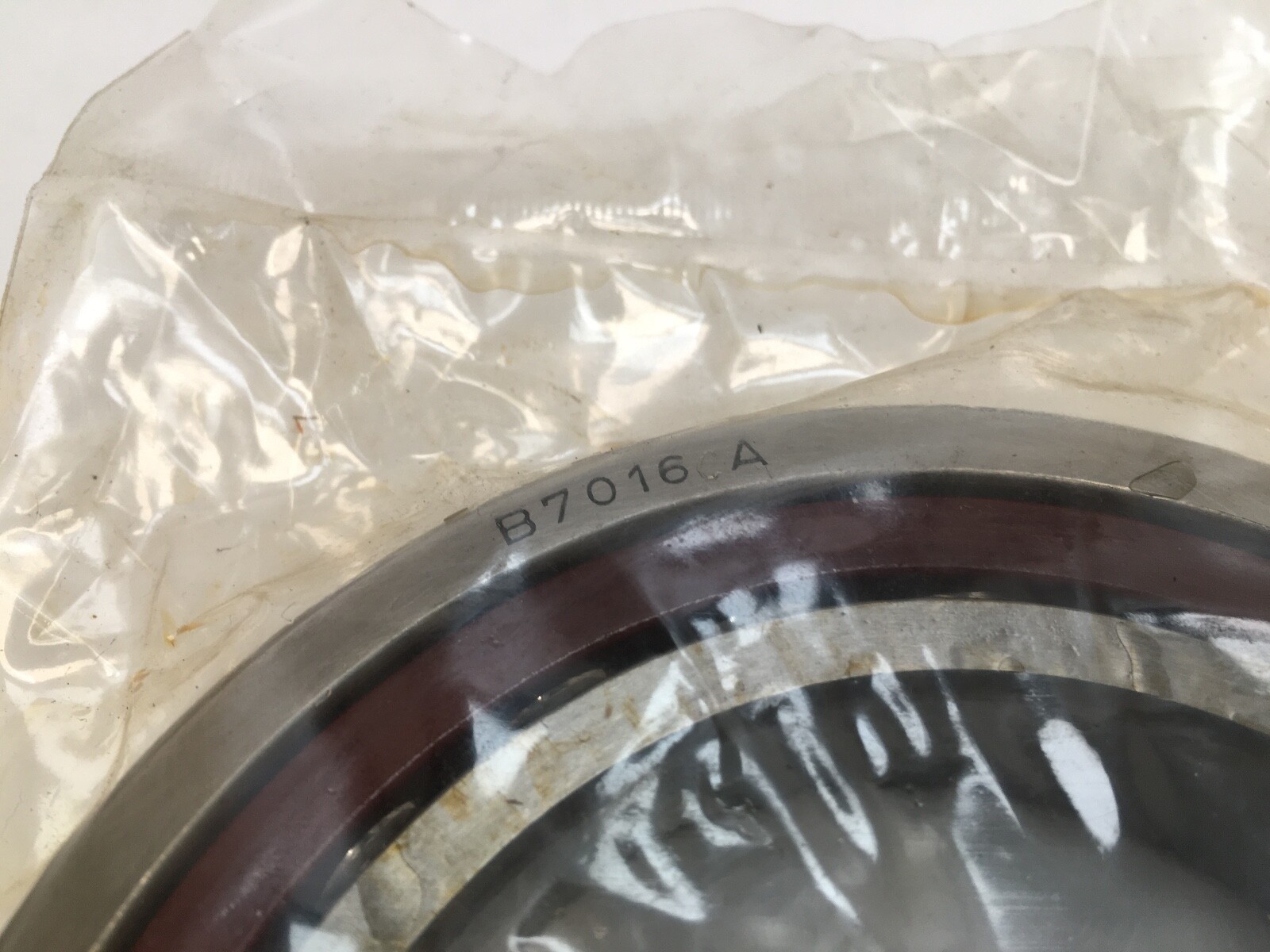

FAG B7016-C-T-P4S-UL super-precision angular contact spindle bearing, 80 x 125 x 22 mm, 15° contact angle, light preload, P4S, phenolic cage.

Same day shipment

List Price

$274.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNB7016-C-T-P4S-UL
ModelB7016C.TPA.P4.UL
Bearing TypeAngular Contact Ball Bearing, Open
ID80 mm
OD125 mm
Width22 mm

Technical Specifications

MaterialBearing Steel
SeriesB70
LubricantGrease or oil
PreloadLight (354 N)
Mpn VariantsB7016-C-T-P4S-UL, B7016C.TPA.P4.UL, B7016C.T.P4S.UL, B7016CTPAP4UL, B-7016-C-TPA-P4-UL, 7016C
Precision ClassP4S (better than ABEC 7 / P4)
Min Temp-30 °C
Cage TypeLaminated fabric cage
Dynamic Load Rating64,000 N
Static Load Rating41,000 N
Rolling ElementsBall
Max Temp100 °C
Item Weight0.84 kg (1.85 lb)
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedWithout Snap Ring
Limiting Speed11,000 rpm grease; 17,000 rpm oil
Harmonization Code8482.10.50
Contact Angle15°
Mounting ArrangementUniversal (DB, DF or DT)
Closure TypeOpen

Cross-References

Cross Reference 1Fafnir 2MM9116WI CR SUL – P4 vs P4S
Cross Reference 2SKF 7016 CD/P4ADGB – light preload
Cross Reference 3NSK 7016CTRSULP4
Seller Part Number: B-AL4B4#TD00PS

Product Description

What this part is:

FAG B7016-C-T-P4S-UL is a super-precision angular contact spindle bearing in the B70 series, supplied as a universally matchable single bearing for pairs or sets in back-to-back, face-to-face or tandem arrangement. Unit Quantity: 1 Pc.

Decoding the designation:

B70 — FAG spindle bearing, ISO dimension series 10; bore code 16 = 80 mm.

C — contact angle 15°.

T / TPA — laminated fabric (phenolic) cage.

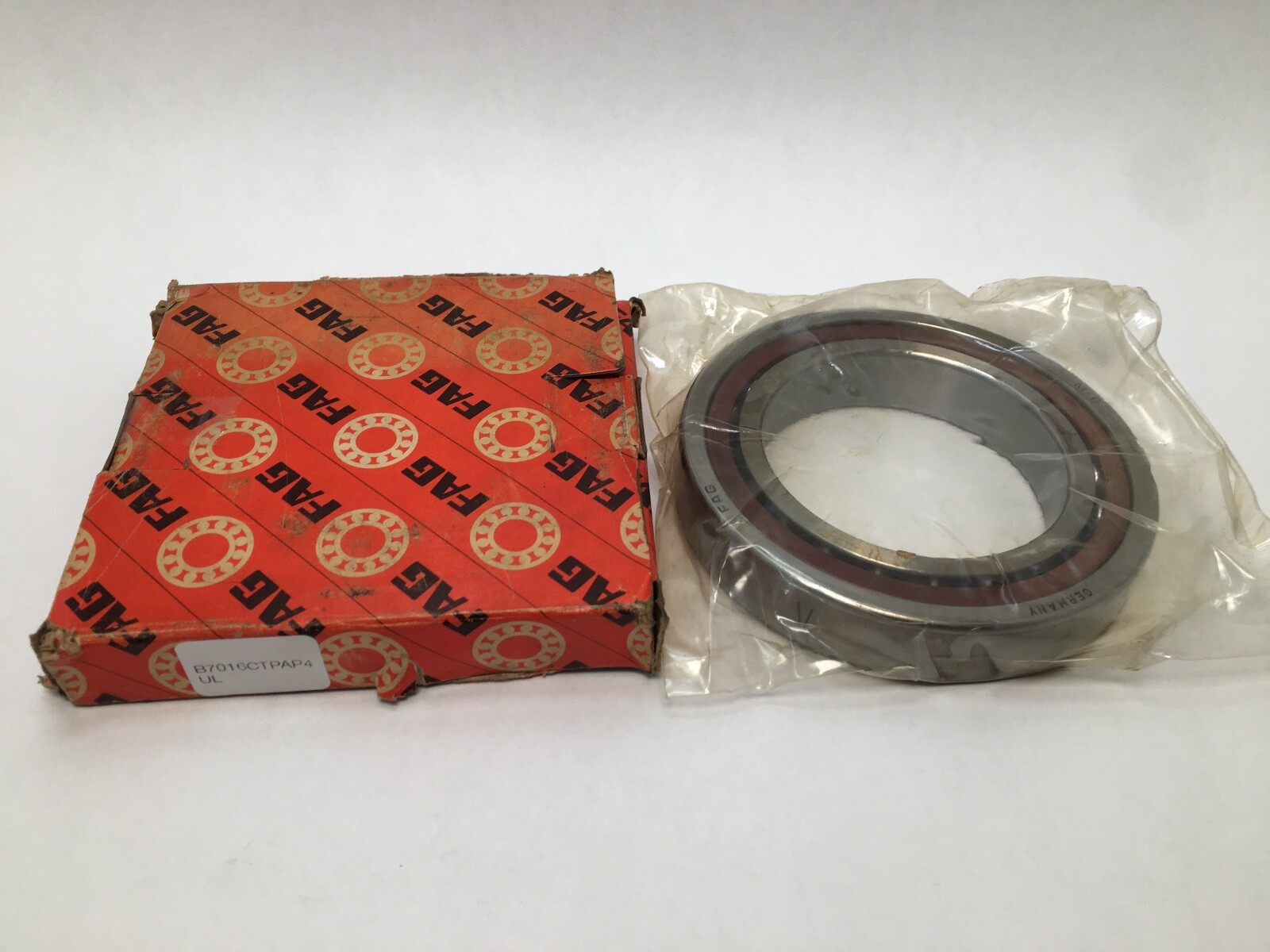

P4S — FAG tolerance class, better than ISO P4 / ABEC 7; the carton reads P4, the earlier marking of this designation.

UL — universal single bearing, Light preload when paired.

Specifications:

Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Contact Angle: 15°. Precision Class: P4S. Cage Material: Phenolic. Item Weight: 0.84 kg (1.85 lb). Number Of Rows: 1. Series: B70.

Dynamic Load Rating: 64,000 N. Static Load Rating: 41,000 N. Fatigue Load Limit: 4,300 N. Limiting Speed: 11,000 rpm grease; 17,000 rpm oil. Preload: Light, 354 N. Lift-off Force: 1,091 N. Axial Rigidity: 86 N/µm. Medium preload for this size is 1,138 N and Heavy 2,277 N. Operating Temperature: -30 to 100 °C.

Dimensions and mounting:

Shaft Shoulder Diameter: 88 mm (h12). Housing Shoulder Diameter: 117 mm (H12). Pressure Cone Apex Distance: 24.7 mm. Minimum Chamfer: 1.1 mm. Maximum Fillet Radius: 1 mm. Lubrication Jet Pitch Diameter: 94 to 98.8 mm.

Compatibility and replacement:

Current Schaeffler designation B7016-C-T-P4S-UL replaces B7016C.TPA.P4.UL and B7016C.T.P4S.UL. Cross-references: Fafnir 2MM9116WI CR SUL (P4 class), SKF 7016 CD/P4ADGB (light preload) and NSK 7016CTRSULP4; all are 15° universal single bearings with light preload.

Frequently asked questions:

What are the size and contact angle of FAG B7016-C-T-P4S-UL?

Bore 80 mm, outside diameter 125 mm, width 22 mm, contact angle 15°.

What does UL mean in B7016-C-T-P4S-UL?

UL marks a universal single bearing with Light preload when paired; it matches in back-to-back, face-to-face or tandem arrangement.

What are the speed and load ratings?

Limiting Speed 11,000 rpm grease and 17,000 rpm oil. Dynamic Load Rating 64,000 N, Static Load Rating 41,000 N.
