FAGB7016C.T.P4S.DULAngular Contact Ball Bearing — 80 mm ID, 125 mm OD, 22 mm Width, Open, 15° Contact Angle, P4S, Light Preload, Matched Duplex Pair

Condition: New

Availability:

1 in stock

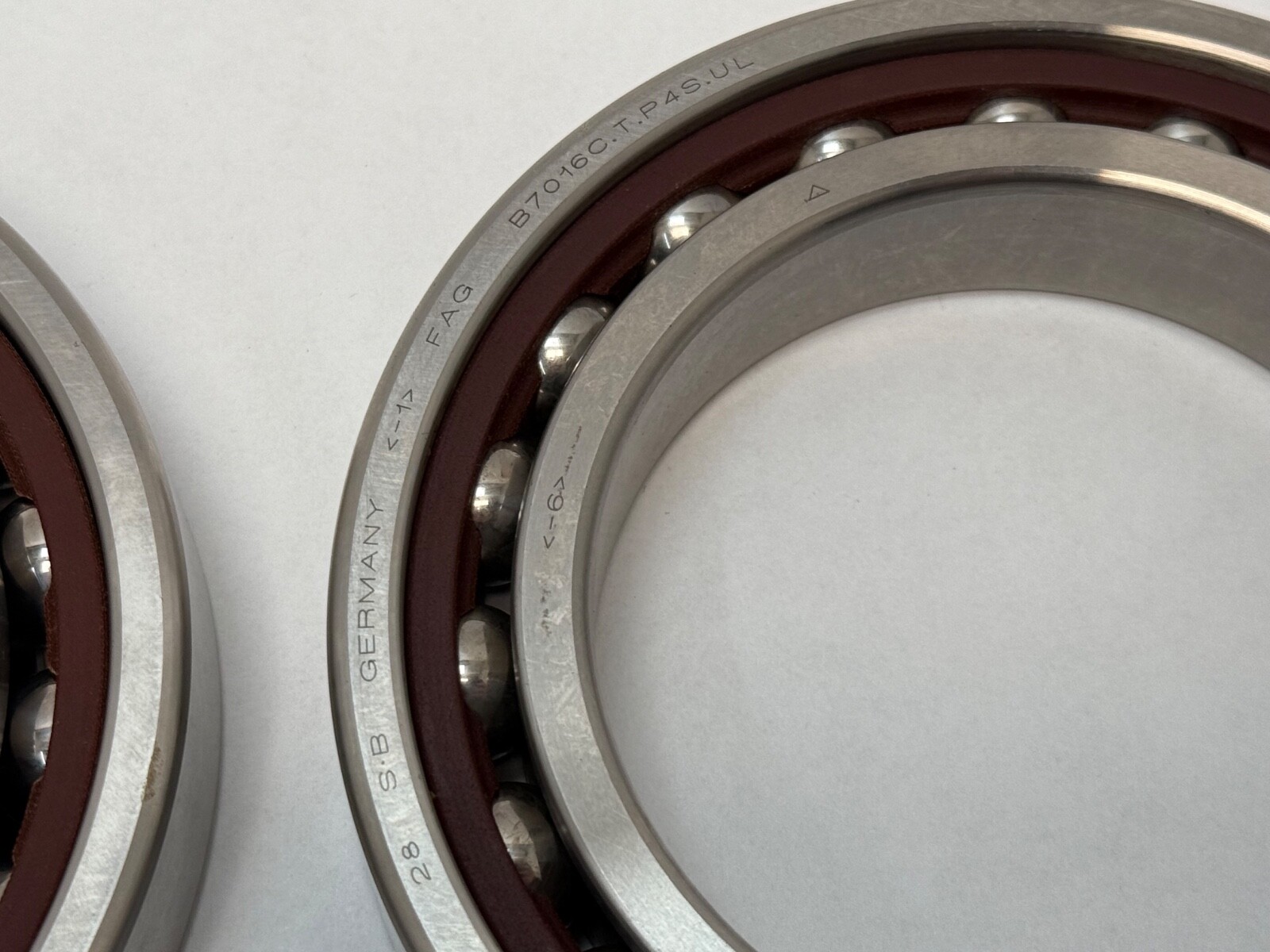

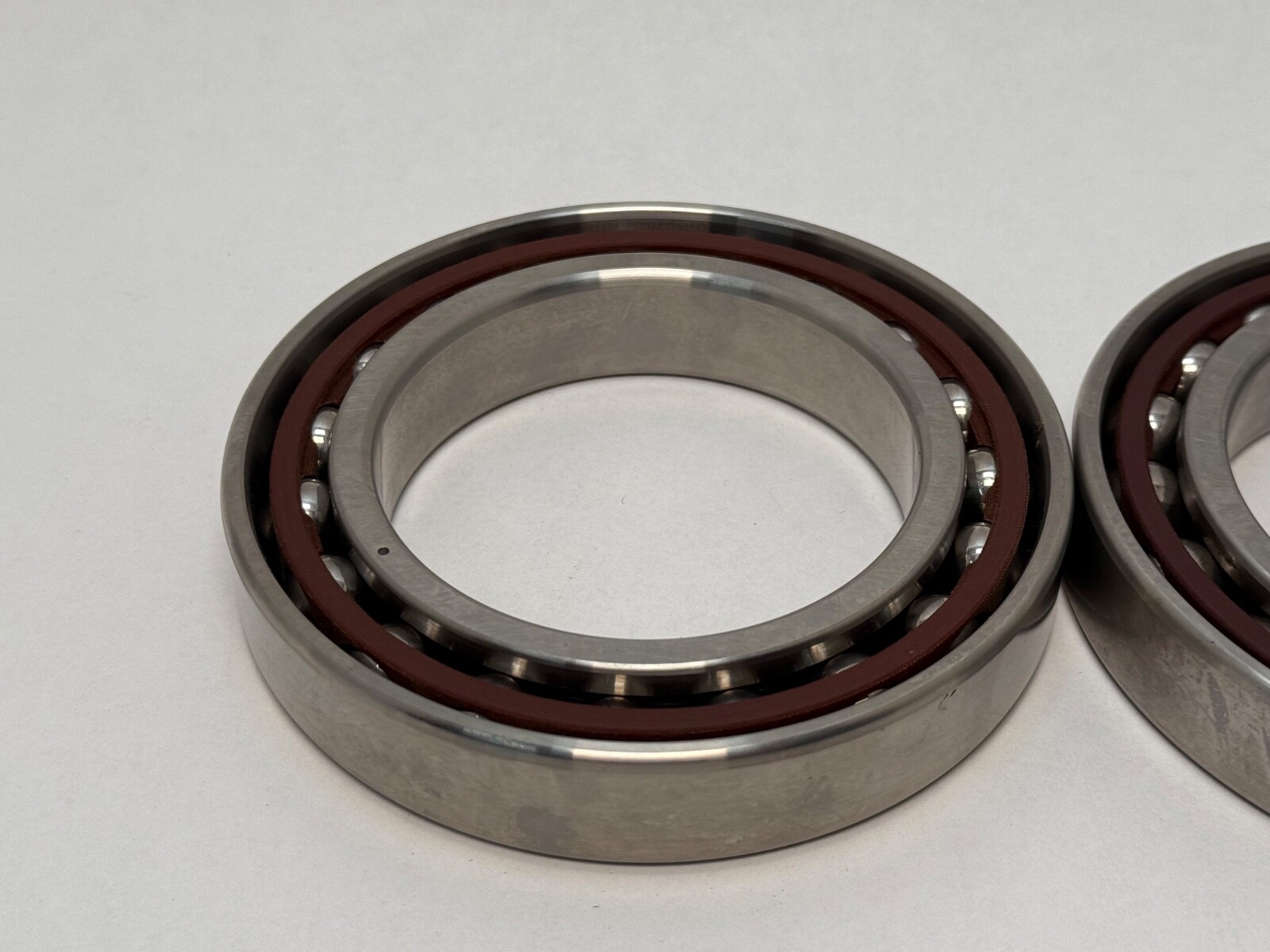

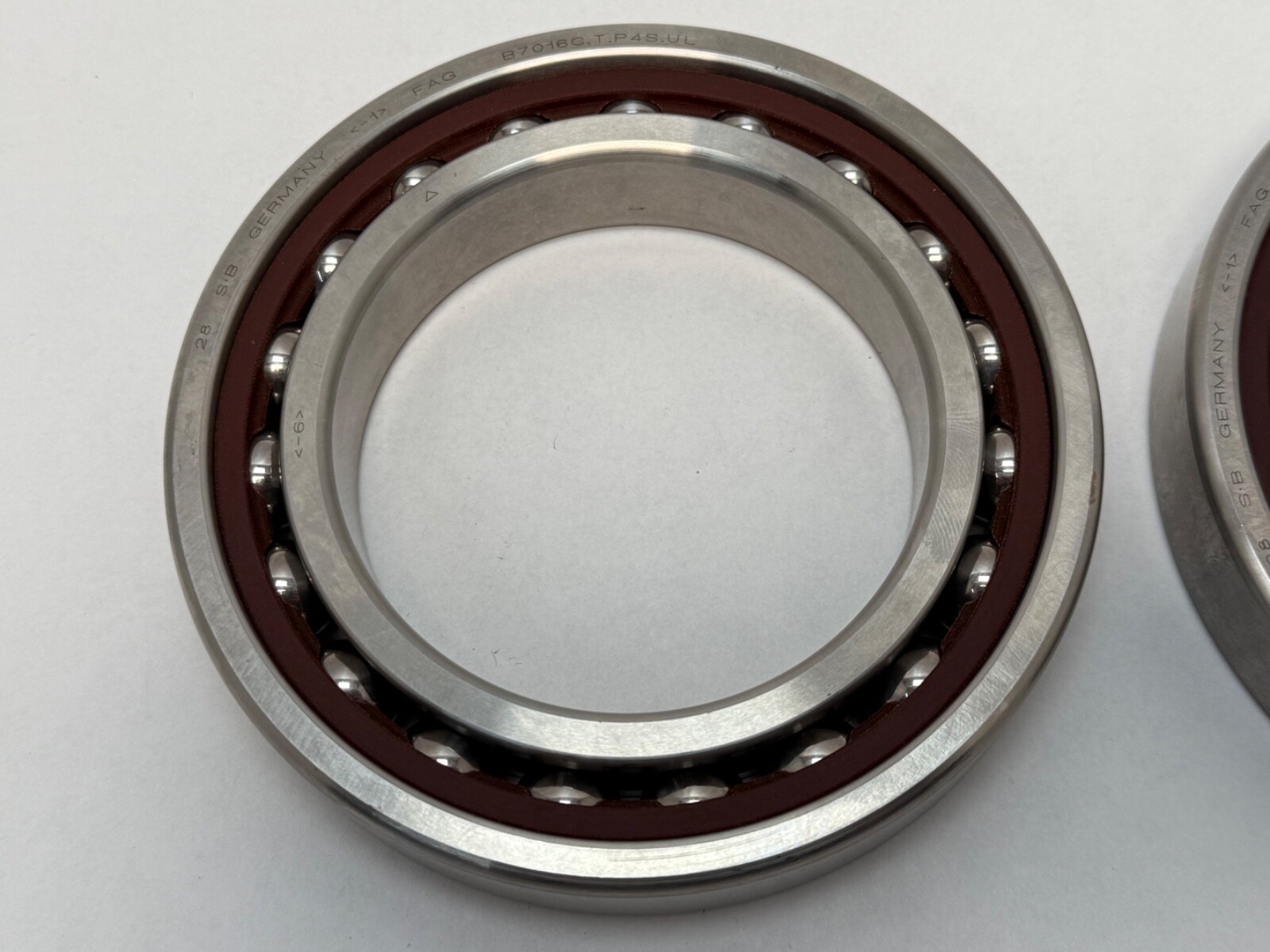

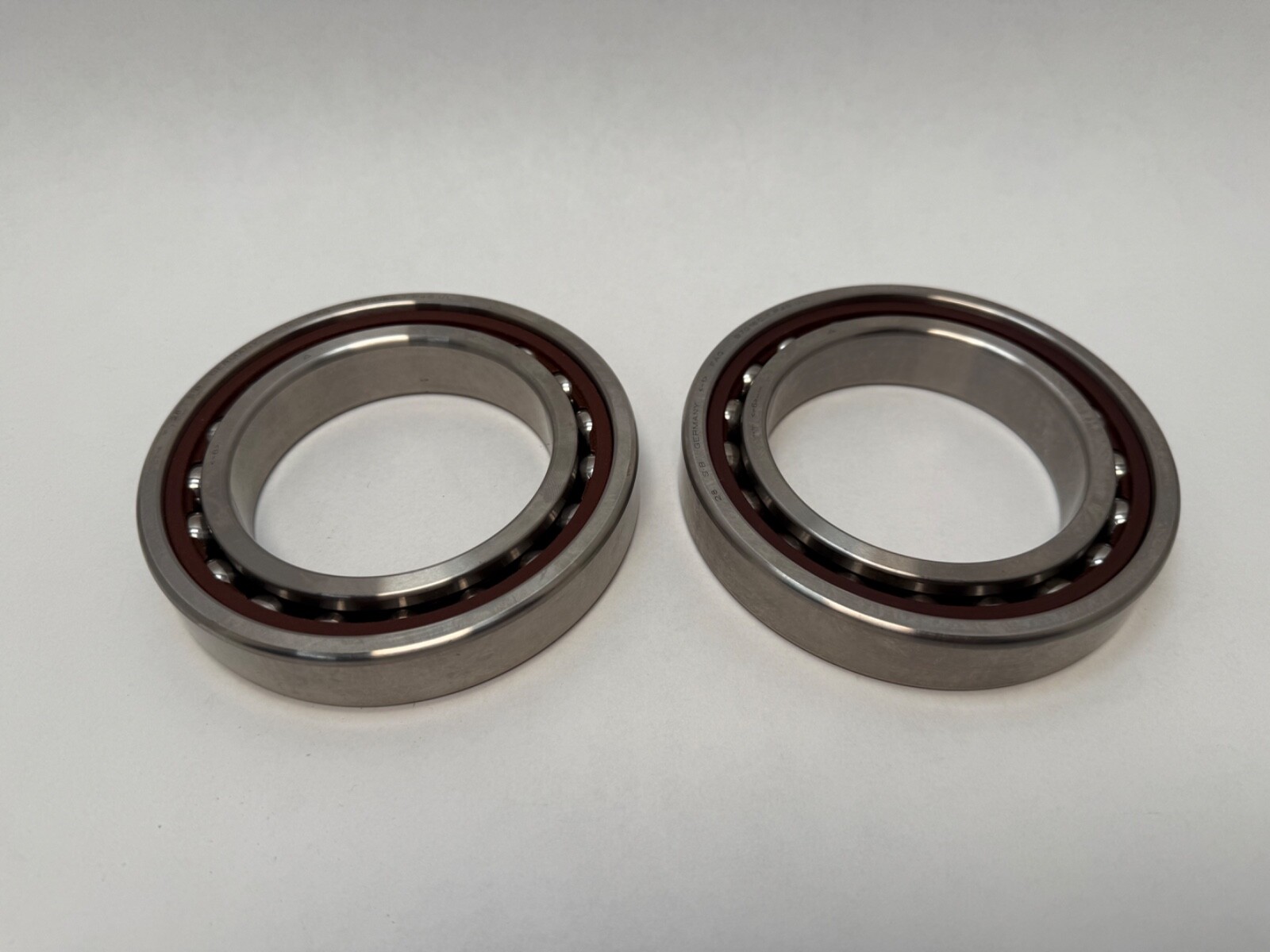

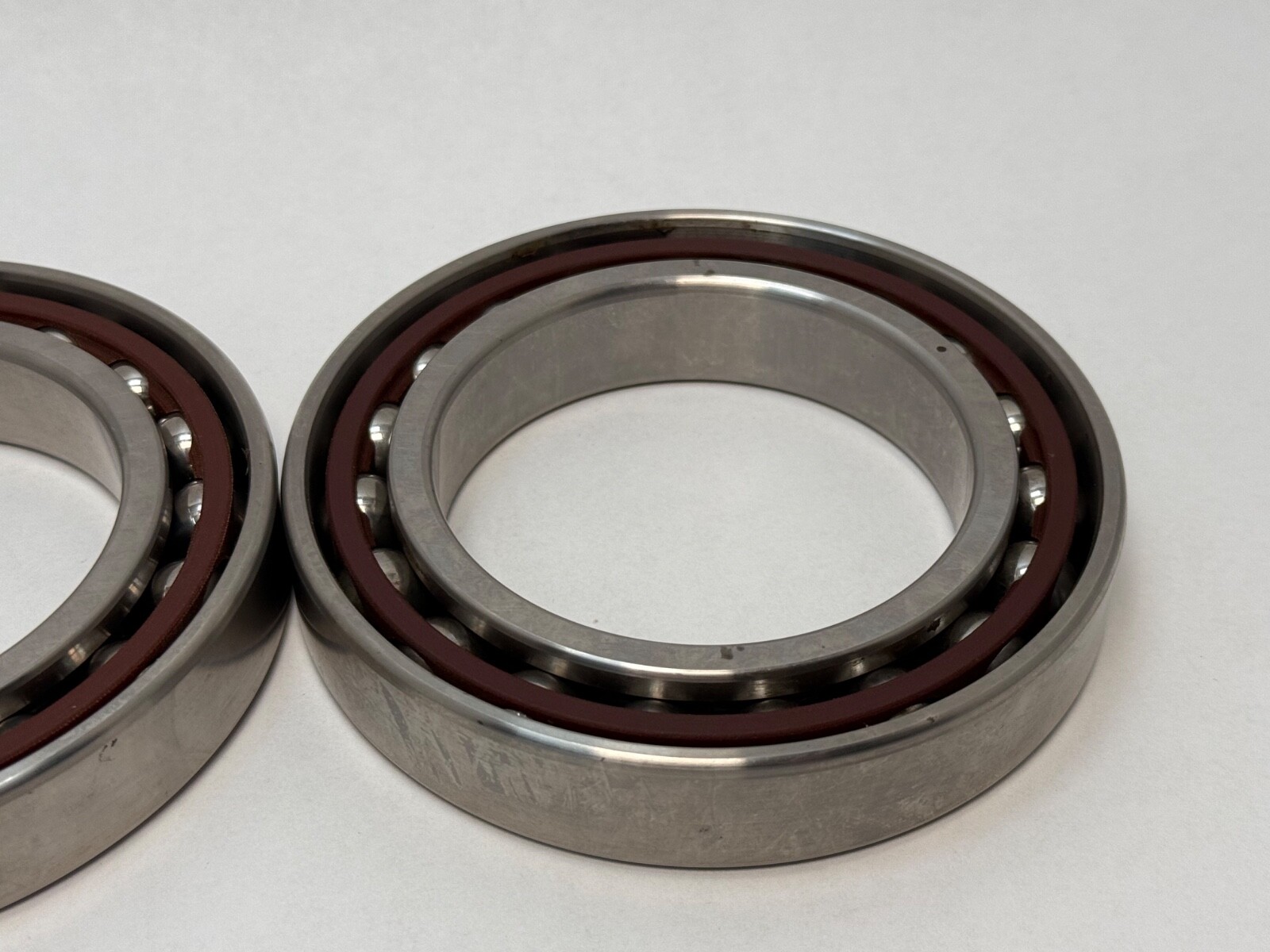

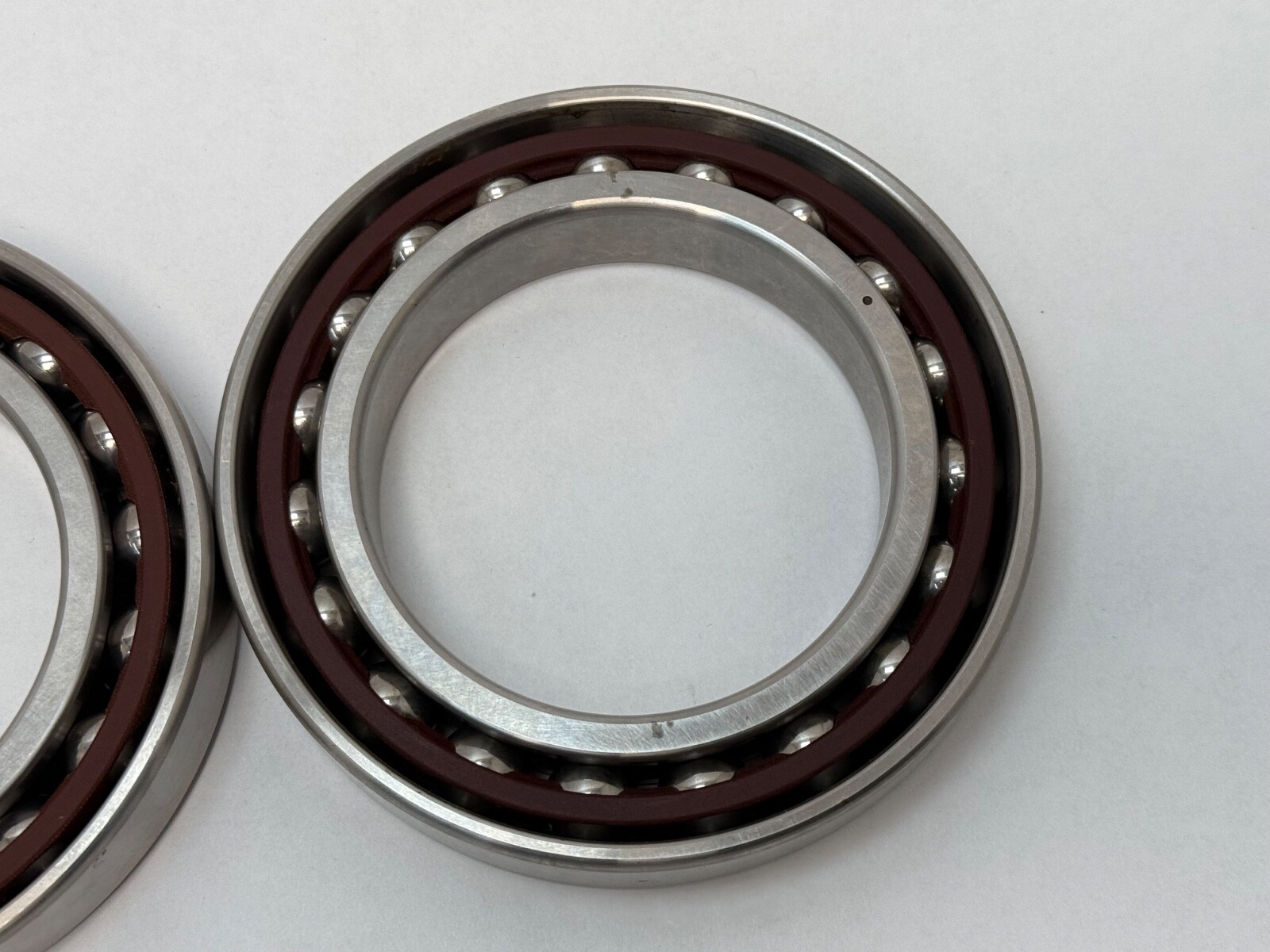

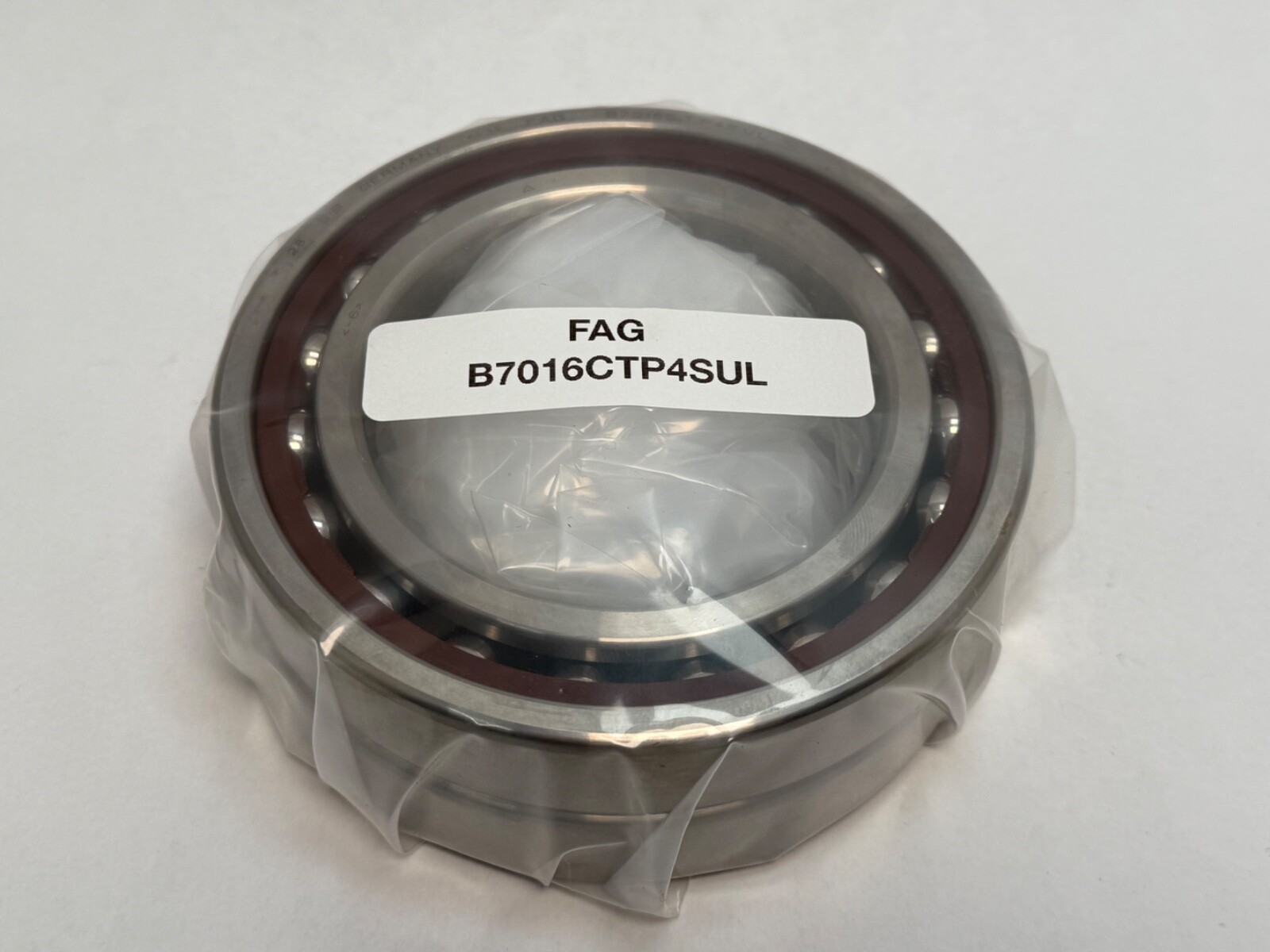

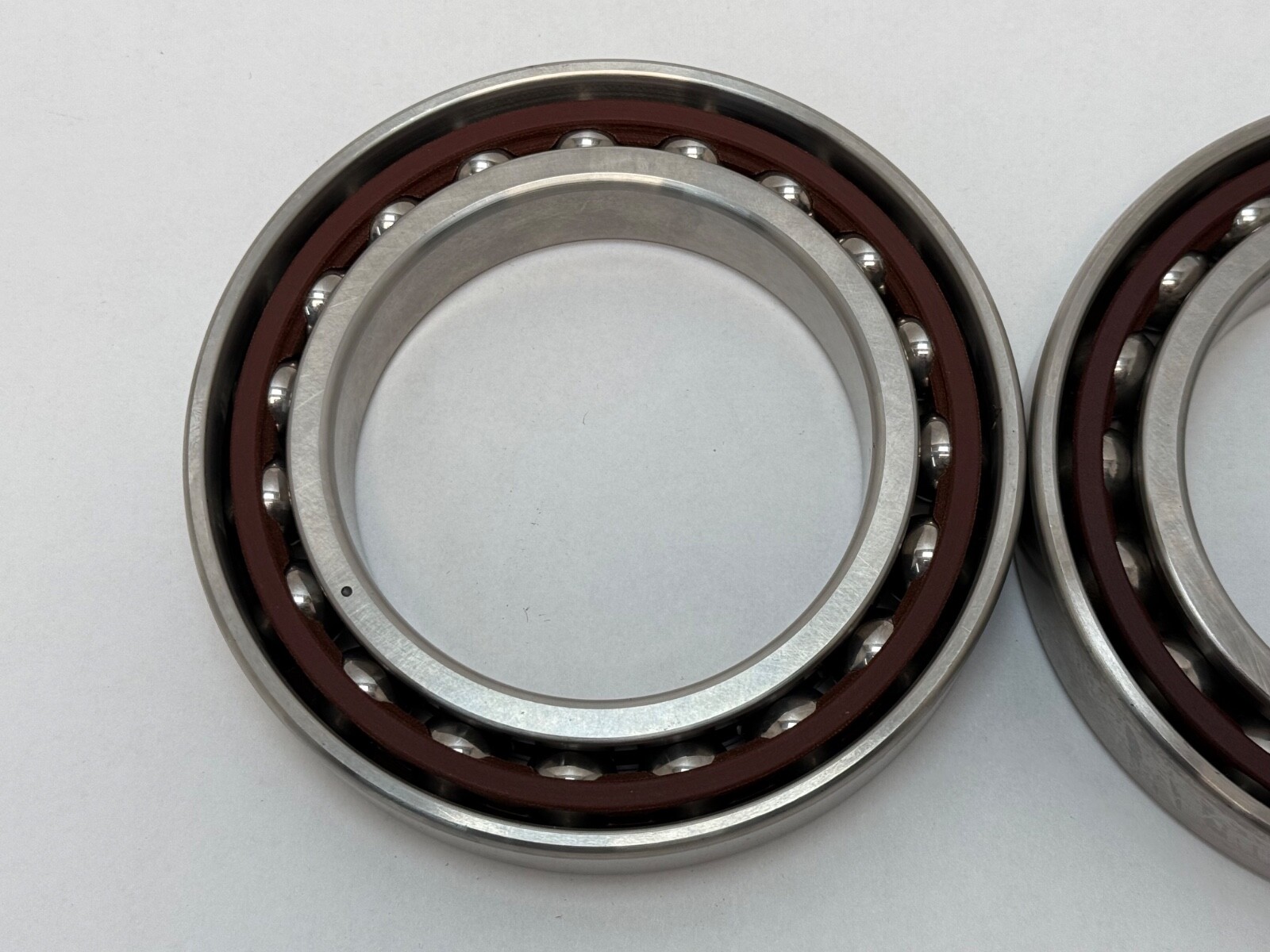

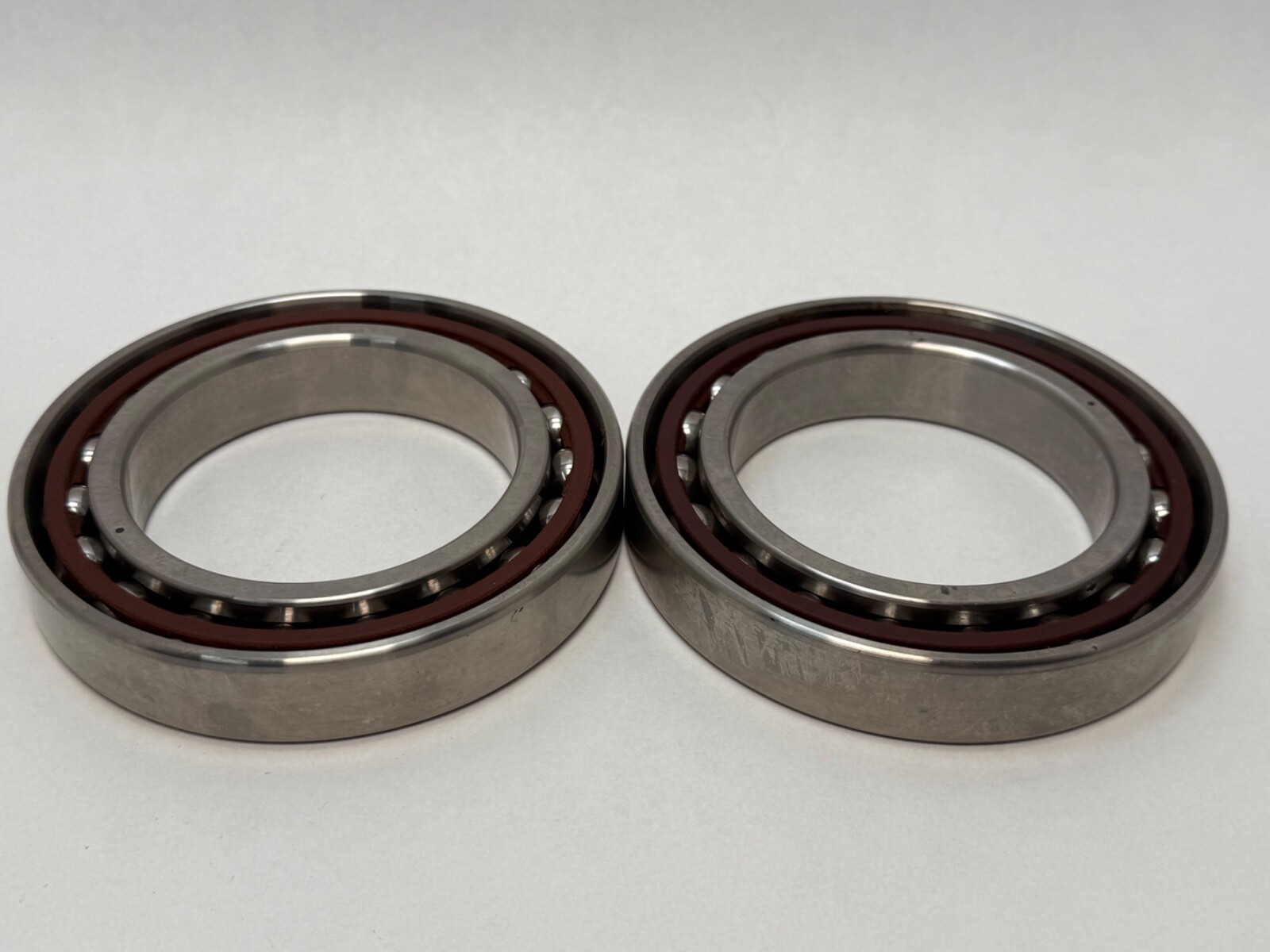

Matched duplex pair of super-precision angular contact ball bearings, 80 x 125 x 22 mm each, 15° contact angle, P4S class, light preload, phenolic cage. 2 Pcs.

Same day shipment

List Price

$282.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNB7016C.T.P4S.DUL
ModelB 7016 C T P4S DUL / 2MM9116WI CR DUL / B7016X2TADULEP7
Bearing TypeAngular Contact Ball Bearing
ID80 mm
OD125 mm
Width22 mm

Technical Specifications

Unspsc31171504
PreloadLight
Base Number7016
Industry Termsspindle bearing, machine tool bearing, super precision bearing, duplex matched pair, precision angular contact ball bearing
Common MisspellingsFAG B7016C T P4S DUL, FAG B7O16C, B7016CTP4SDUL FAG, FAG B7016E.T.P4S.DUL, FAG B7016C.T.P4S.DUM
Application TypesMachine tool spindles, grinding spindles, milling heads, high-speed precision gearboxes
Bore Shaft Size80 mm (3.1496 in)
Mpn VariantsB7016C.T.P4S.DUL, B7016CTP4SDUL, B-7016-C-T-P4S-DUL, B7016C T P4S DUL, B7016C.T.P4S, B7016CTP4S, 7016C
Precision ClassP4S
Cage MaterialPhenolic
Number Of Rows1
Harmonization Code8482.10.5028
Contact Angle15°
Part NumberB7016C.T.P4S.DUL
Precision RatingP4S
SeriesB70 (ISO 70 series)
Rolling ElementsBall
Closure TypeOpen

Cross-References

Cross Reference 1Fafnir 2MM9116WI CR DUL
Cross Reference 2SKF 7016 CD/P4ADGA
Cross Reference 3NSK 7016CTYDUL
Cross Reference 4RHP 7016CTDULP4
Seller Part Number: AP4B2#XPAHMF

Product Description

What this part is:

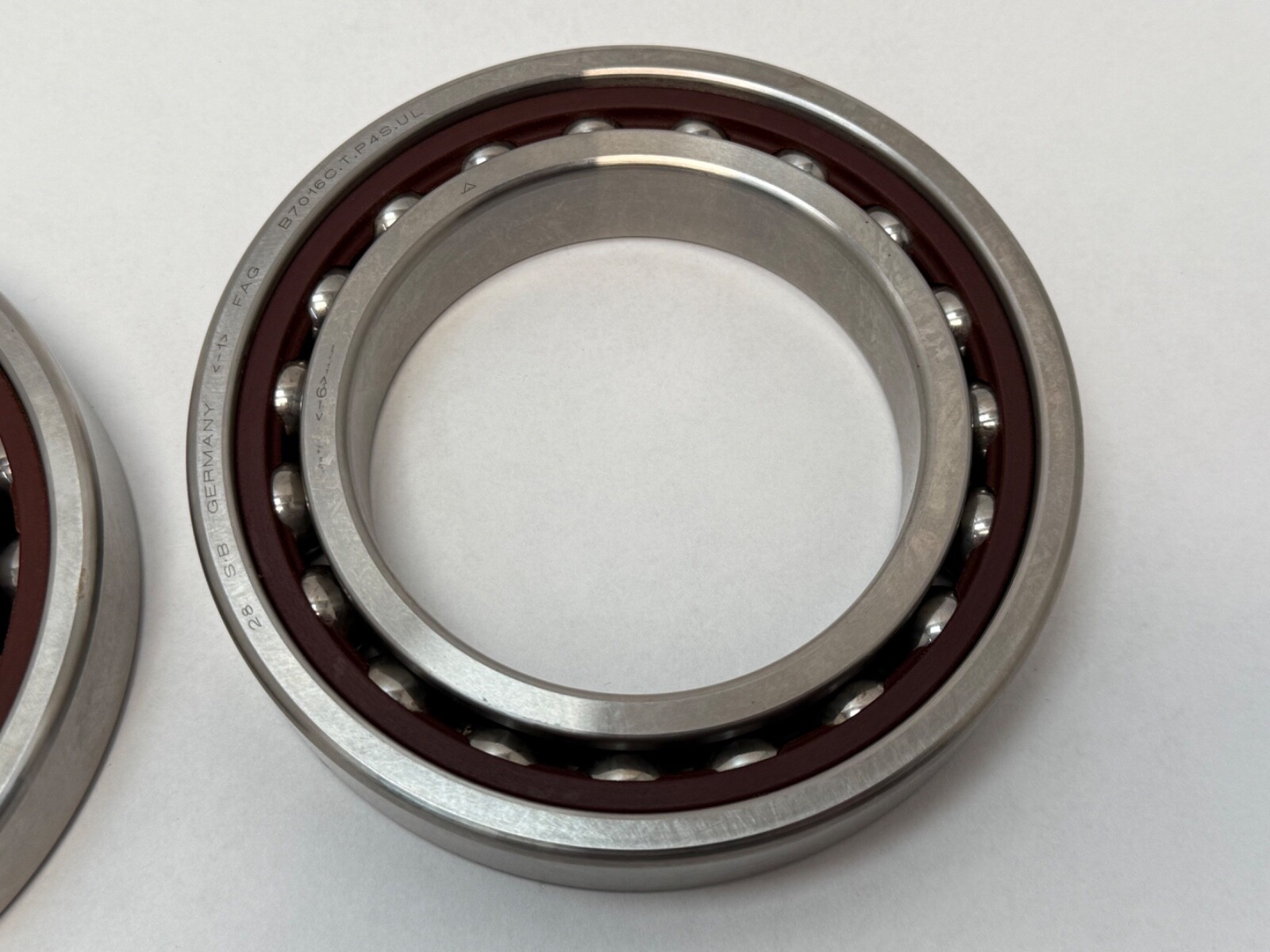

FAG B7016C.T.P4S.DUL matched duplex pair of super-precision angular contact ball bearings from the FAG B-series spindle range. Each bearing: 80 mm bore, 125 mm outside diameter, 22 mm width, ISO 7016 envelope, 15° contact angle, phenolic cage, light preload. Unit Quantity: 2 Pcs, ground and supplied as a set.

Decoding the designation:

B — FAG super-precision spindle bearing series.

7016 — single-row angular contact ball bearing, ISO 70 series, bore code 16, 80 mm bore.

C — 15° contact angle.

T — phenolic cage, fabric-reinforced laminate.

P4S — Schaeffler super-precision tolerance class, tighter than P4 to ISO 492.

DUL — duplex, universally ground, light preload.

Specifications:

Bearing Type: Angular contact ball bearing, super-precision spindle. Bore Diameter: 80 mm (3.1496 in). Outside Diameter: 125 mm (4.9213 in). Width per bearing: 22 mm (0.8661 in). Contact Angle: 15°. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Closure Type: Open. Cage Material: Phenolic. Precision Class: P4S. Preload: Light. Series: B70 (ISO 70 series). Unit Quantity: 2 Pcs. Country of Origin: United Kingdom.

Dimensions and mounting:

Envelope per bearing: 80 x 125 x 22 mm. The two bearings are ground as a set and the pair carries the light preload as supplied.

Compatibility and replacement:

Cross-references: Fafnir 2MM9116WI CR DUL, SKF 7016 CD/P4ADGA, NSK 7016CTYDUL, RHP 7016CTDULP4. Designation forms: B7016C.T.P4S.DUL, B7016CTP4SDUL, B-7016-C-T-P4S-DUL, B7016C T P4S DUL.

Frequently asked questions:

What are the dimensions of each FAG B7016C.T.P4S.DUL bearing?

Bore Diameter: 80 mm. Outside Diameter: 125 mm. Width: 22 mm.

What contact angle, precision class and preload does it have?

Contact Angle: 15°. Precision Class: P4S. Preload: light (L in DUL).

What does this listing include?

Unit Quantity: 2 Pcs. A duplex pair of two single-row bearings with phenolic cages, ground as a set.
